Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Festool 201432 (CS50EBG-FLR)'. Von hier aus können Sie alle gewünschten Teile direkt bestellen.Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert 5 bis 10 Arbeitstage. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

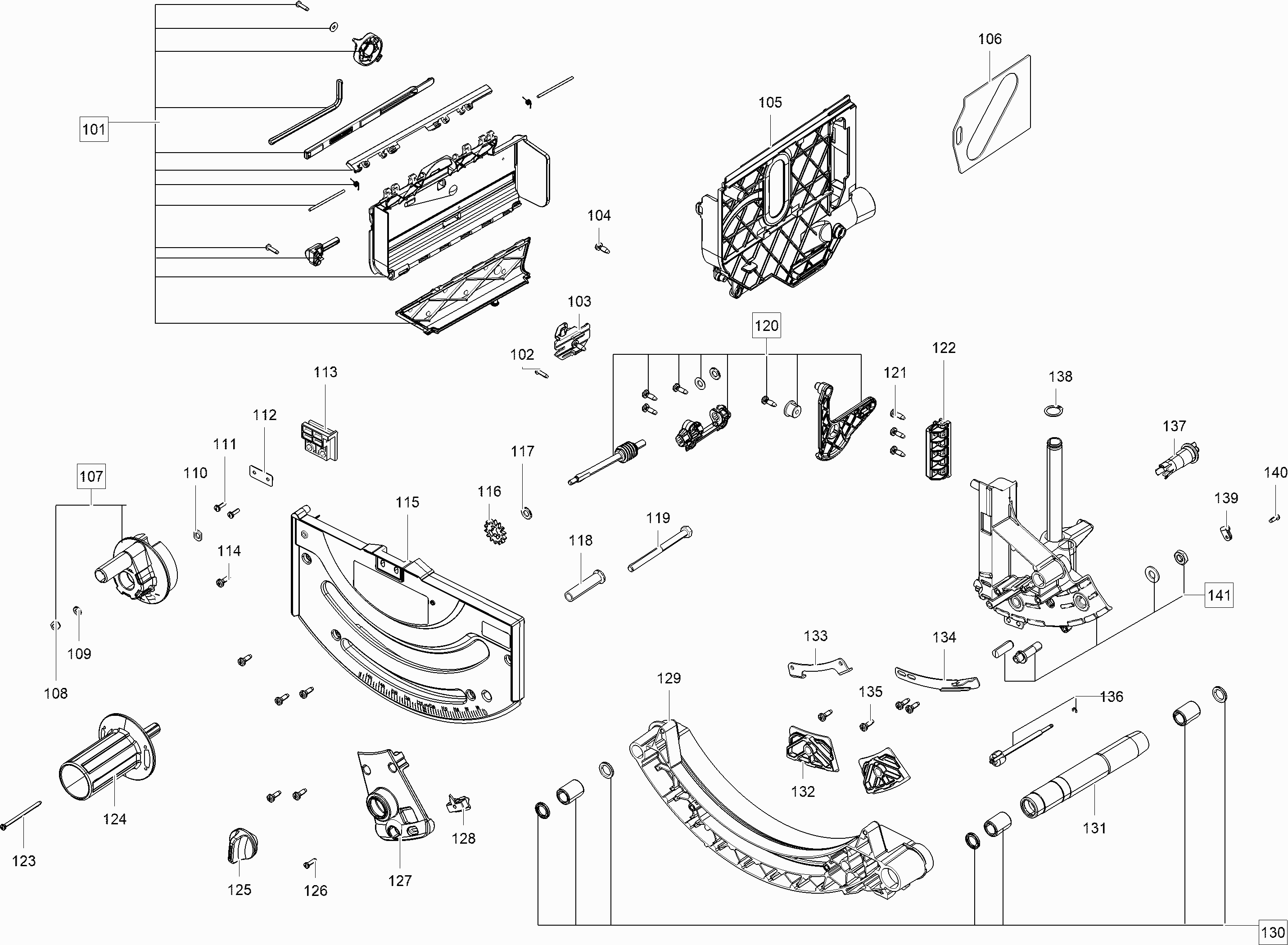

Zeichnungen der Festool 201432 (CS50EBG-FLR)
Teileliste der Festool 201432 (CS50EBG-FLR)
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Zylinderschraube M8 x 16 | ||||
| 1 | 774346 | 1.51 | 1.80 | |
| Spaltkeilplatte | ||||
| 2 | 463751 | 3.38 | 4.02 | |
| Spaltautomat CS 50 EBG | ||||
| 3 | 10023701 | 45.50 | 54.14 | |
| Gehäuse | ||||
| 4 | 470102 | 11.23 | 13.36 | |
| Schraube | ||||
| 5 | 401038 | 1.51 | 1.80 | |
| Kontaktfeder | ||||
| 6 | 469925 | 2.59 | 3.08 | |
| Stössel | ||||
| 7 | 463934 | 1.51 | 1.80 | |
| Druckfeder | ||||
| 8 | 463590 | 1.51 | 1.80 | |
| Spannmutter | ||||
| 9 | 465326 | 54.45 | 64.80 | |
| Flansch | ||||
| 10 | 463195 | 8.86 | 10.54 | |
| Schraube | ||||
| 11 | 400709 | 1.51 | 1.80 | |
| Kontaktfeder | ||||
| 12 | 466698 | 1.51 | 1.80 | |
| Getriebedeckel | ||||
| 13 | 202487 | 28.31 | 33.69 | |
| Rillenkugellager | ||||
| 14 | 401518 | 9.36 | 11.14 | |
| Zylinderschraube | ||||
| 15 | 400735 | 1.51 | 1.80 | |
| Spaltkeilaufnahme | ||||
| 16 | 492010 | 17.55 | 20.88 | |
| Sechskantmutter M8 | ||||
| 17 | 200719 | 1.51 | 1.80 | |
| Schraube | ||||
| 18 | 400709 | 1.51 | 1.80 | |
| Schutzplatte | ||||
| 19 | 10023706 | 3.74 | 4.45 | |
| Rillenkugellager | ||||
| 20 | 789595 | 10.08 | 12.00 | |
| Sicherungsring | ||||
| 21 | 401246 | 1.51 | 1.80 | |
| Getriebewelle | ||||
| 22 | 465606 | 62.56 | 74.45 | |
| Dichtung | ||||
| 23 | 463990 | 2.45 | 2.92 | |
| Getriebegehäuse | ||||
| 24 | 492321 | 84.58 | 100.65 | |
| Druckfeder | ||||
| 25 | 463590 | 1.51 | 1.80 | |
| Sechskantmutter M8 | ||||
| 26 | 200719 | 1.51 | 1.80 | |
| Justierblech | ||||
| 27 | 492307 | 14.40 | 17.14 | |
| Gleitblech | ||||
| 28 | 463197 | 2.16 | 2.57 | |
| Schraube | ||||
| 29 | 400709 | 1.51 | 1.80 | |
| Hebel | ||||
| 30 | 470064 | 3.02 | 3.59 | |
| Kabelschelle | ||||
| 31 | 761618 | 1.51 | 1.80 | |
| Linsenschraube 4,0 x 16 mm | ||||
| 32 | 228713 | 5.94 | 7.07 | |
| Kleinschütz 230 V | ||||
| 33 | 463936 | 33.28 | 39.60 | |
| Dichtung | ||||
| 34 | 463933 | 2.52 | 3.00 | |
| Elektronik | ||||
| 35 | 493626 | 138.42 | 164.72 | |
| Linsenschraube 4,0 x 16 mm | ||||
| 36 | 228713 | 5.94 | 7.07 | |
| KABEL MIT STECKER 230V EU | ||||
| 37 | 10244897 | 24.32 | 28.94 | |
| Rillenkugellager | ||||
| 38 | 401576 | 8.21 | 9.77 | |
| Linsenschraube 4,0 x 70 mm | ||||
| 39 | 442415 | 1.51 | 1.80 | |
| Sicherungsring | ||||
| 40 | 200619 | 1.51 | 1.80 | |
| Lüfter | ||||
| 41 | 463280 | 4.75 | 5.65 | |
| Luftführung | ||||
| 42 | 463512 | 2.66 | 3.17 | |
| ARMATURE 230V | ||||
| 43 | 205200 | 130.92 | 155.79 | |
| Rillenkugellager | ||||
| 44 | 400626 | 5.83 | 6.94 | |
| Feldpaket 230v Eq / Ebq | ||||
| 45 | 491713 | 64.13 | 76.31 | |
| Motorgehäuse | ||||
| 46 | 463199 | 11.22 | 13.35 | |
| Tacho | ||||
| 47 | 493567 | 16.09 | 19.15 | |
| Ptc-widerstand | ||||
| 48 | 491722 | 21.05 | 25.05 | |
| Kohle (paar) 230v | ||||
| 49 | 491704 | 17.30 | 20.59 | |
| Linsenschraube 3,5 x 8 mm | ||||
| 50 | 219047 | 1.51 | 1.80 | |
| Schraube | ||||
| 52 | 401038 | 1.51 | 1.80 | |
| Gehäusedeckel | ||||
| 53 | 463200 | 9.00 | 10.71 | |
| Linsenschraube 4,0 x 16 mm | ||||
| 54 | 228713 | 5.94 | 7.07 | |
| VENTIL | ||||
| 101 | 10030844 | 43.08 | 51.27 | |
| Linsenschraube 4,0 x 16 mm | ||||
| 102 | 228713 | 5.94 | 7.07 | |
| Schieber | ||||
| 103 | 463350 | 3.67 | 4.37 | |
| Schraube | ||||
| 104 | 400709 | 1.51 | 1.80 | |
| Kappe | ||||
| 105 | 10023702 | 15.37 | 18.29 | |
| Schutz AF-DW | ||||
| 106 | 463300 | 3.53 | 4.20 | |
| Kurbel | ||||
| 107 | 488159 | 17.30 | 20.59 | |
| Sechskantmutter M6 | ||||
| 108 | 228541 | 1.51 | 1.80 | |
| Scheibe 6,4 mm | ||||
| 109 | 200578 | 1.51 | 1.80 | |
| Scheibe | ||||
| 110 | 447790 | 1.51 | 1.80 | |
| Linsenschraube M4 x 14 | ||||
| 111 | 445566 | 14.59 | 17.36 | |
| Blech | ||||
| 112 | 463299 | 1.51 | 1.80 | |
| Stützlager | ||||
| 113 | 465449 | 10.58 | 12.59 | |
| Schraube | ||||
| 114 | 400709 | 1.51 | 1.80 | |
| Blende TSC 55 | ||||
| 115 | 10023855 | 24.44 | 29.08 | |
| Zahnrad | ||||
| 116 | 463179 | 8.14 | 9.69 | |
| Scheibe 8,4 mm | ||||
| 117 | 228601 | 1.51 | 1.80 | |
| Hülse | ||||
| 118 | 463400 | 11.42 | 13.59 | |
| Sechskantschraube M8 x 110 | ||||
| 119 | 400734 | 1.58 | 1.88 | |
| Tiefeneinstellung | ||||
| 120 | 492253 | 32.31 | 38.45 | |
| Schraube | ||||
| 121 | 400709 | 1.51 | 1.80 | |
| Führungsschiene | ||||
| 122 | 463189 | 2.02 | 2.40 | |
| Linsenschraube 4,0 x 70 mm | ||||
| 123 | 442415 | 1.51 | 1.80 | |
| Drehgriff | ||||
| 124 | 463178 | 10.87 | 12.94 | |
| Drehknopf M8 | ||||
| 125 | 483162 | 5.90 | 7.02 | |
| Linsenschraube 4,0 x 16 mm | ||||
| 126 | 228713 | 5.94 | 7.07 | |
| Abdeckung | ||||
| 127 | 491925 | 9.29 | 11.06 | |
| Zeiger | ||||
| 128 | 463181 | 1.87 | 2.23 | |
| Träger | ||||
| 129 | 202485 | 94.99 | 113.04 | |
| Lagerbuchse | ||||
| 130 | 492251 | 75.38 | 89.70 | |
| Führungsrohr CS 50 EB | ||||
| 131 | 202486 | 42.83 | 50.97 | |
| Nutenstein | ||||
| 132 | 463176 | 2.45 | 2.92 | |
| Klemmplatte | ||||
| 133 | 463251 | 2.66 | 3.17 | |
| Endanschlag | ||||
| 134 | 463281 | 4.90 | 5.83 | |
| Schraube | ||||
| 135 | 400709 | 1.51 | 1.80 | |
| Drücker | ||||
| 136 | 492248 | 21.54 | 25.63 | |
| Verschluss | ||||
| 137 | 463725 | 3.67 | 4.37 | |
| Sicherungsring | ||||
| 138 | 400788 | 1.51 | 1.80 | |
| Klammer | ||||
| 139 | 458614 | 1.51 | 1.80 | |
| Linsenschraube 4,0 x 12 mm | ||||
| 140 | 400691 | 1.51 | 1.80 | |
| Schwenksegment | ||||
| 141 | 492322 | 103.21 | 122.82 | |
| Schaltermodul | ||||
| 201 | 492274 | 54.09 | 64.37 | |
| Druckfeder | ||||
| 202 | 463590 | 1.51 | 1.80 | |
| Bein CS 50 EBG | ||||
| 203 | 10030845 | 113.86 | 135.49 | |
| Schaltermodul | ||||
| 204 | 492274 | 54.09 | 64.37 | |
| Scheibe | ||||
| 204 | 222490 | 1.51 | 1.80 | |
| Dämpfer | ||||
| 205 | 491760 | 33.28 | 39.60 | |
| Taster | ||||
| 206 | 463673 | 1.51 | 1.80 | |
| Griff | ||||
| 207 | 492250 | 15.61 | 18.58 | |
| Rohr CS 50 EBG | ||||
| 208 | 10023867 | 52.88 | 62.93 | |
| Kulisse | ||||
| 209 | 463918 | 13.43 | 15.98 | |
| ZUGKABEL CS 70 | ||||
| 210 | 10176889 | 47.19 | 56.16 | |
| Klemmung | ||||
| 211 | 204745 | 8.05 | 9.58 | |
| Sicherungsring | ||||
| 212 | 200352 | 1.51 | 1.80 | |
| Flansch | ||||
| 213 | 463260 | 5.54 | 6.59 | |
| Schraube | ||||
| 214 | 400709 | 1.51 | 1.80 | |
| Blech | ||||
| 215 | 464030 | 1.87 | 2.23 | |
| Zugfeder | ||||
| 216 | 464031 | 3.74 | 4.45 | |
| Seitenwand | ||||
| 301 | 463205 | 98.86 | 117.64 | |
| Tischtopfeinlage CS 70 ET-BG | ||||
| 302 | 10045447 | 52.15 | 62.06 | |
| Drehverschluss | ||||
| 303 | 492257 | 18.39 | 21.88 | |
| Feder | ||||
| 304 | 492259 | 13.67 | 16.27 | |
| Achse CS 50 ET-BG | ||||
| 305 | 10711272 | 49.61 | 59.04 | |
| Bodenplatte CS 50 EBG ET-BG | ||||
| 306 | 10703146 | 68.12 | 81.06 | |
| Feder | ||||
| 307 | 492258 | 13.55 | 16.12 | |
| Linsenschraube 4,0 x 12 mm | ||||
| 308 | 400691 | 1.51 | 1.80 | |
| Lagerblech | ||||
| 309 | 448236 | 2.30 | 2.74 | |
| Linsenschraube 4,0 x 12 mm | ||||
| 310 | 219071 | 1.51 | 1.80 | |
| Klemmschuh | ||||
| 311 | 467630 | 1.51 | 1.80 | |
| Linsenschraube | ||||
| 312 | 401137 | 1.51 | 1.80 | |
| Aufkleber | ||||
| 313 | 463724 | 4.46 | 5.31 | |
| Portal CS 50 | ||||
| 314 | 10029970 | 89.90 | 106.98 | |
| Klemmung | ||||
| 315 | 492262 | 14.16 | 16.85 | |
| GUMMIPUFFER | ||||
| 316 | 204747 | 30.49 | 36.28 | |
| Fender CS 50 EBG | ||||
| 318 | 10024406 | 18.39 | 21.88 | |
| Zugfeder | ||||
| 319 | 465456 | 11.75 | 13.98 | |
| FUHRUNG | ||||
| 320 | 10018211 | 2.09 | 2.49 | |
| Skala | ||||
| 321 | 492256 | 27.10 | 32.25 | |
| Feder | ||||
| 322 | 10030842 | 9.58 | 11.40 | |
| Schalter | ||||
| 323 | 10030843 | 54.09 | 64.37 | |
| Hülse | ||||
| 324 | 464027 | 2.02 | 2.40 | |
| Dämpfer | ||||
| 325 | 465528 | 3.02 | 3.59 | |
| Hülse | ||||
| 326 | 464028 | 2.30 | 2.74 | |
| Tellerfeder | ||||
| 327 | 832605 | 1.51 | 1.80 | |
| STREIFEN | ||||
| 701 | 465145 | 1.80 | 2.14 | |
| TRANSPORTTASCHE CS 50 EBG | ||||
| 702 | 10032097 | 28.92 | 34.41 | |
| Flachrundschraube M6 x 40 | ||||
| 703 | 228534 | 1.51 | 1.80 | |
| Distanzbuchse | ||||
| 704 | 448066 | 9.29 | 11.06 | |
| Schraube M6 x 12 | ||||
| 705 | 449888 | 1.51 | 1.80 | |
| Griff | ||||
| 706 | 487893 | 8.35 | 9.94 | |
| Klemmpratze CS 70 | ||||
| 707 | 10031568 | 14.52 | 17.28 | |
| Hülse 6 x 36 mm | ||||
| 708 | 400289 | 1.51 | 1.80 | |
| Druckfeder | ||||
| 709 | 448064 | 2.02 | 2.40 | |
| KABELKLEMME | ||||
| 710 | 204748 | 39.93 | 47.52 | |
| Scheibe 6,4 mm | ||||
| 711 | 228546 | 1.51 | 1.80 | |
| Drehknopf M6 | ||||
| 712 | 483350 | 7.27 | 8.65 | |
| Aufnahme | ||||
| 713 | 489181 | 27.95 | 33.26 | |
| Drehknopf | ||||
| 714 | 440713 | 3.10 | 3.69 | |
| Stiftschraube | ||||
| 715 | 464525 | 1.51 | 1.80 | |
| Scheibe 6,4 mm | ||||
| 716 | 228546 | 1.51 | 1.80 | |
| Drehknopf | ||||
| 717 | 487755 | 9.22 | 10.97 | |
| Scheibe | ||||
| 718 | 448471 | 3.60 | 4.28 | |
| Senkschraube M4 x 8 | ||||
| 719 | 219043 | 1.51 | 1.80 | |
| Flachkopfschraube | ||||
| 720 | 448065 | 4.39 | 5.22 | |
| Skala | ||||
| 721 | 488156 | 22.63 | 26.93 | |
| Schwenksegment CS 70 EB ET-BG | ||||
| 722 | 10699976 | 43.56 | 51.84 | |
| Schwenksegment | ||||
| 722 | 448014 | 30.13 | 35.85 | |
| Hülse 5 x 12 mm | ||||
| 723 | 228692 | 1.51 | 1.80 | |
| Klemmplatte CS 50 EB | ||||
| 724 | 10023711 | 5.33 | 6.34 | |
| Führungsprofil CS 50 ET-BG | ||||
| 725 | 10703140 | 31.58 | 37.58 | |
| Anschlagprofil CS 50 ET-BG | ||||
| 726 | 10703085 | 38.60 | 45.93 | |
| Anschlagprofil CS 50 EB | ||||
| 726 | 10023710 | 35.21 | 41.90 | |
| Y-stück | ||||
| 727 | 450575 | 25.05 | 29.81 | |
| Schlauch Ø 27 x 2 m | ||||
| 728 | 459250 | 45.13 | 53.70 | |
| Schlauch Ø 36 x 1,5 m | ||||
| 729 | 459251 | 43.92 | 52.26 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 730 | 202346 | |||
| Anschlussmuffe Antistatik | ||||
| 731 | 452358 | 25.29 | 30.10 | |
| Schieber CS 70 EB | ||||
| 732 | 10023700 | 9.79 | 11.65 | |
| Sicherheitsvorrichtung CS 50 EBG | ||||
| 733 | 10023759 | 51.30 | 61.05 | |
| Klammer | ||||
| 734 | 450158 | 2.02 | 2.40 | |
| Rutschstück CS 70 LA | ||||
| 735 | 450031 | 4.39 | 5.22 | |
| Linsenschraube PT-4.0x20-KT15 | ||||
| 736 | 228567 | 1.51 | 1.80 | |
