Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Festool 497599 ( CS70EBCN230V )'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

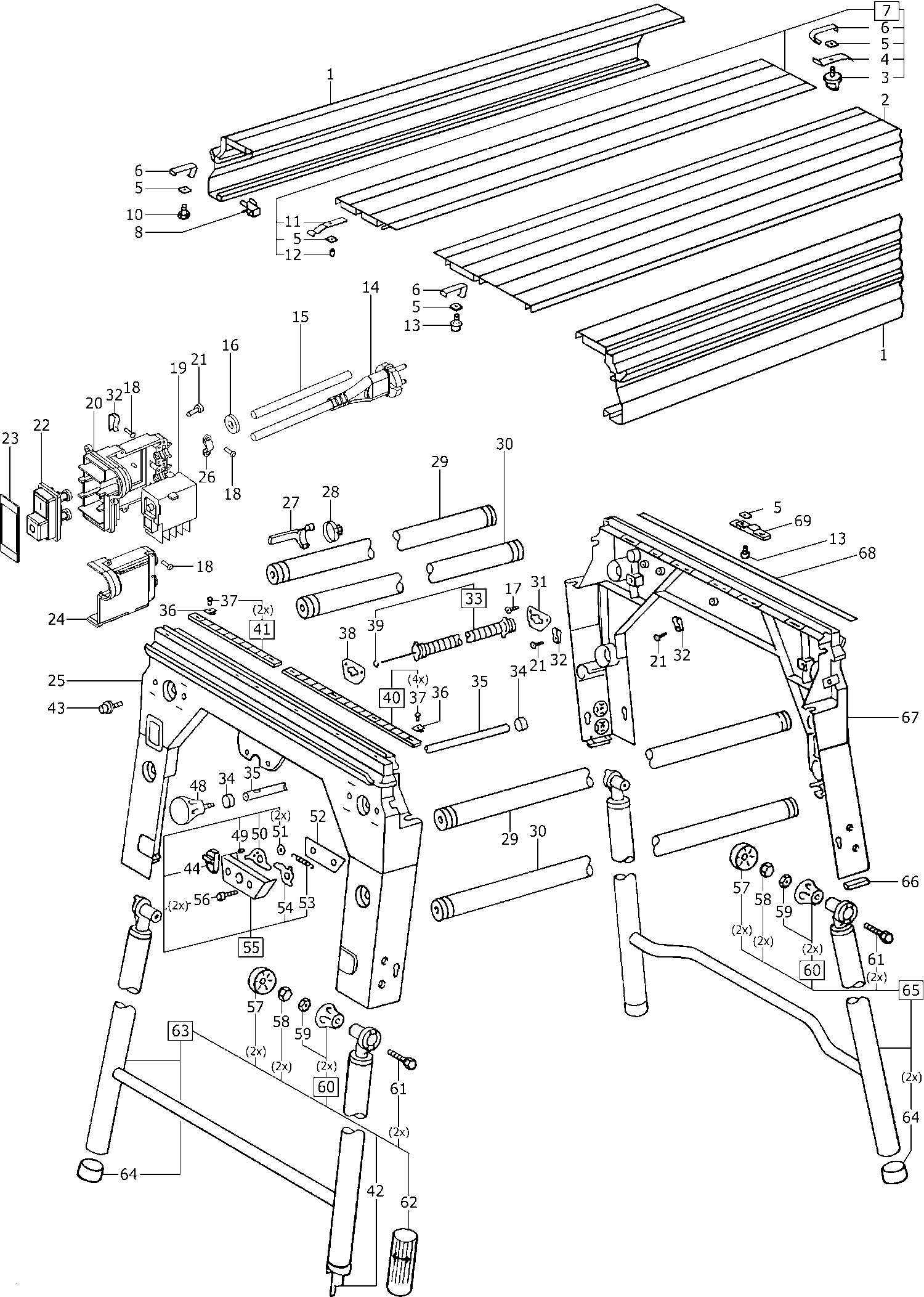

Zeichnungen der Festool 497599 ( CS70EBCN230V )
Teileliste der Festool 497599 ( CS70EBCN230V )
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Eckprofil | ||||
| 1 | 445867 | 69.33 | 82.50 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 2 | 445866 | |||
| Drehknopf | ||||
| 3 | 482110 | 2.18 | 2.59 | |
| Spannpratze | ||||
| 4 | 448234 | 4.36 | 5.19 | |
| Vierkantmutter DIN 557-M6-05 | ||||
| 5 | 228566 | 1.39 | 1.65 | |
| Feder | ||||
| 6 | 447262 | 1.39 | 1.65 | |
| Tischeinlage | ||||
| 7 | 488160 | 80.34 | 95.60 | |
| Klammer | ||||
| 8 | 449080 | 2.38 | 2.83 | |
| Scheibe 6,4 mm | ||||
| 9 | 228546 | 1.39 | 1.65 | |
| Schraube M6 x 12 | ||||
| 10 | 450682 | 1.92 | 2.28 | |
| Blattfeder | ||||
| 11 | 448233 | 2.11 | 2.51 | |
| Gewindestift M6 x 10 | ||||
| 12 | 772405 | 1.39 | 1.65 | |
| Schraube M6 x 12 | ||||
| 13 | 449888 | 1.39 | 1.65 | |
| Kabel Eu | ||||
| 14 | 458753 | 24.80 | 29.51 | |
| Schleppkabel | ||||
| 15 | 458756 | 24.80 | 29.51 | |
| Gummiring | ||||
| 16 | 458613 | 1.39 | 1.65 | |
| Linsenschraube M4 x 16 | ||||
| 17 | 219075 | 1.39 | 1.65 | |
| Linsenschraube 3,5 x 14 mm | ||||
| 18 | 228584 | 1.39 | 1.65 | |
| Schütz | ||||
| 19 | 455695 | 39.08 | 46.51 | |
| Schaltergehäuse | ||||
| 20 | 447703 | 8.90 | 10.59 | |
| Linsenschraube M4 x 12 | ||||
| 21 | 228509 | 1.39 | 1.65 | |
| Drücker | ||||
| 22 | 490211 | 10.16 | 12.09 | |
| Dichtung | ||||
| 23 | 447768 | 1.39 | 1.65 | |
| Schalterdeckel | ||||
| 24 | 447704 | 5.02 | 5.97 | |
| Portal | ||||
| 25 | 462419 | 162.50 | 193.38 | |
| Klemmbrücke | ||||
| 26 | 439288 | 1.39 | 1.65 | |
| Kabelhalter | ||||
| 27 | 449273 | 2.51 | 2.99 | |
| Klammer | ||||
| 28 | 400428 | 3.77 | 4.49 | |
| Rohr | ||||
| 29 | 459286 | 57.11 | 67.96 | |
| Tragrohr | ||||
| 30 | 459287 | 57.84 | 68.83 | |
| Lagerblech | ||||
| 31 | 448236 | 2.11 | 2.51 | |
| Klammer | ||||
| 32 | 458614 | 1.39 | 1.65 | |
| Dämpfer | ||||
| 33 | 488139 | 43.08 | 51.27 | |
| Puffer | ||||
| 34 | 447528 | 1.72 | 2.05 | |
| Zugstange | ||||
| 35 | 487568 | 54.81 | 65.22 | |
| Blechmutter | ||||
| 36 | 448477 | 1.39 | 1.65 | |
| Linsenschraube 2,5 x 8 mm | ||||
| 37 | 400444 | 1.39 | 1.65 | |
| Lagerblech | ||||
| 38 | 448236 | 2.11 | 2.51 | |
| Scheibe | ||||
| 39 | 222490 | 1.39 | 1.65 | |
| Skala | ||||
| 40 | 488138 | 18.76 | 22.32 | |
| Skala | ||||
| 41 | 488137 | 15.12 | 17.99 | |
| Stellkurve | ||||
| 42 | 448178 | 2.51 | 2.99 | |
| Schraube M8 x 25 | ||||
| 43 | 450683 | 1.58 | 1.88 | |
| Griff | ||||
| 44 | 446974 | 1.92 | 2.28 | |
| Griff | ||||
| 48 | 487569 | 11.28 | 13.42 | |
| Federdruckstück | ||||
| 49 | 400286 | 4.22 | 5.02 | |
| Hebel | ||||
| 50 | 446669 | 3.83 | 4.56 | |
| Hülse | ||||
| 51 | 449122 | 1.39 | 1.65 | |
| Halteblech | ||||
| 52 | 447789 | 6.79 | 8.08 | |
| Zugfeder | ||||
| 53 | 447263 | 1.39 | 1.65 | |
| Rasthebel | ||||
| 54 | 702066 | 6.00 | 7.14 | |
| Führung | ||||
| 55 | 488140 | 33.64 | 40.03 | |
| Zylinderschraube DIN 912-M6x25-10.9 | ||||
| 56 | 200128 | 1.39 | 1.65 | |
| Griffoberteil | ||||
| 57 | 447534 | 1.78 | 2.12 | |
| Sechskantmutter M8 | ||||
| 58 | 200735 | 1.39 | 1.65 | |
| Sechskantmutter M8 | ||||
| 59 | 200719 | 1.39 | 1.65 | |
| Griffunterteil | ||||
| 60 | 488523 | 2.64 | 3.14 | |
| Sechskantschraube M8 x 75 | ||||
| 61 | 400309 | 1.51 | 1.80 | |
| Stellfuss | ||||
| 62 | 465883 | 13.07 | 15.55 | |
| Klappbein | ||||
| 63 | 499888 | 89.90 | 106.98 | |
| Gummifuss | ||||
| 64 | 465163 | 3.30 | 3.93 | |
| Klappbein | ||||
| 65 | 499889 | 81.43 | 96.90 | |
| Gummifuss | ||||
| 66 | 701230 | 4.88 | 5.81 | |
| Portal | ||||
| 67 | 462420 | 162.50 | 193.38 | |
| Aufkleber | ||||
| 68 | 448251 | 6.60 | 7.85 | |
| Anschlag | ||||
| 69 | 448118 | 2.04 | 2.43 | |
| Stiftschlüssel | ||||
| 81 | 450935 | 2.45 | 2.92 | |
| Abdeckung | ||||
| 82 | 488152 | 53.24 | 63.36 | |
| Schutzhaube | ||||
| 83 | 460737 | 30.37 | 36.14 | |
| Zylinderschraube M6 x 20 | ||||
| 84 | 228612 | 1.39 | 1.65 | |
| Bundbuchse | ||||
| 85 | 449159 | 3.62 | 4.31 | |
| Splitterschutz | ||||
| 86 | 448695 | 1.92 | 2.28 | |
| Regelelektronik 230 V | ||||
| 93 | 487681 | 140.60 | 167.31 | |
| Dichtrahmen | ||||
| 94 | 447584 | 5.62 | 6.69 | |
| Poti | ||||
| 95 | 487466 | 12.34 | 14.68 | |
| Linsenschraube 3,5 x 10 mm | ||||
| 96 | 219031 | 1.39 | 1.65 | |
| Absaugstutzen | ||||
| 98 | 446588 | 2.64 | 3.14 | |
| Deckel | ||||
| 99 | 488155 | 37.63 | 44.78 | |
| Linsenschraube 3,5 x 25 mm | ||||
| 100 | 219068 | 1.39 | 1.65 | |
| Stellrad | ||||
| 101 | 447115 | 4.68 | 5.57 | |
| Spannflansch | ||||
| 102 | 488151 | 65.70 | 78.18 | |
| Bundschraube M8 x 15 | ||||
| 103 | 446370 | 8.84 | 10.52 | |
| Tellerfeder | ||||
| 106 | 444235 | 1.58 | 1.88 | |
| Gleitblech | ||||
| 107 | 450055 | 4.09 | 4.87 | |
| Schwinge | ||||
| 108 | 488149 | 128.99 | 153.50 | |
| Spindelstop | ||||
| 109 | 488150 | 23.35 | 27.79 | |
| Linsenschraube M4 x 10 | ||||
| 110 | 228582 | 1.39 | 1.65 | |
| Sprengring | ||||
| 111 | 219855 | 1.39 | 1.65 | |
| Rillenkugellager | ||||
| 112 | 789595 | 9.24 | 11.00 | |
| Spindel CS 70EBG ET-BG | ||||
| 113 | 10666107 | 50.46 | 60.05 | |
| Rillenkugellager | ||||
| 114 | 400467 | 19.48 | 23.18 | |
| Zahnriemenrad | ||||
| 115 | 445880 | 34.48 | 41.03 | |
| Mutter M10 | ||||
| 117 | 451484 | 1.45 | 1.73 | |
| Luftkanal | ||||
| 118 | 446473 | 8.45 | 10.06 | |
| Filzstreifen | ||||
| 119 | 447962 | 1.45 | 1.73 | |
| Motorabdeckung | ||||
| 120 | 446469 | 8.64 | 10.28 | |
| Zahnriemen | ||||
| 121 | 488135 | 52.88 | 62.93 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 122 | 485802 | |||
| Mitnehmerscheibe | ||||
| 123 | 446937 | 1.51 | 1.80 | |
| Zahnriemenrad | ||||
| 124 | 445878 | 33.64 | 40.03 | |
| Abdeckung | ||||
| 125 | 447710 | 6.41 | 7.63 | |
| Zahnrad | ||||
| 126 | 491936 | 28.92 | 34.41 | |
| Sicherungsring | ||||
| 127 | 771483 | 1.39 | 1.65 | |
| Scheibe | ||||
| 128 | 449203 | 2.38 | 2.83 | |
| Rillenkugellager | ||||
| 129 | 789775 | 9.24 | 11.00 | |
| Welle | ||||
| 131 | 202846 | 38.36 | 45.65 | |
| Nadelbuchse | ||||
| 132 | 400254 | 8.05 | 9.58 | |
| Scheibe | ||||
| 133 | 446474 | 6.79 | 8.08 | |
| Ausgleichscheibe | ||||
| 134 | 488465 | 11.62 | 13.83 | |
| Sicherungsring | ||||
| 135 | 200414 | 1.39 | 1.65 | |
| Stützblech | ||||
| 137 | 446704 | 7.26 | 8.64 | |
| Zylinderschraube M5 x 18 DIN912-8.8 | ||||
| 138 | 202824 | 1.39 | 1.65 | |
| Sechskantmutter M5 | ||||
| 139 | 200717 | 1.39 | 1.65 | |
| Blechsegment | ||||
| 140 | 446147 | 6.94 | 8.26 | |
| Schwenksegment | ||||
| 141 | 488148 | 113.01 | 134.48 | |
| Linsenschraube M4 x 16 | ||||
| 142 | 219075 | 1.39 | 1.65 | |
| Zahnsegment CS 70 EB | ||||
| 143 | 202847 | 9.46 | 11.26 | |
| Du-bundbuchse | ||||
| 144 | 400253 | 1.98 | 2.36 | |
| Zylinderstift | ||||
| 145 | 400097 | 1.45 | 1.73 | |
| Du-bundbuchse | ||||
| 146 | 400253 | 1.98 | 2.36 | |
| Kulisse | ||||
| 147 | 446146 | 1.51 | 1.80 | |
| Tacho | ||||
| 148 | 487467 | 7.85 | 9.34 | |
| Dichtring | ||||
| 149 | 447750 | 4.49 | 5.34 | |
| Kohle (paar) 230v | ||||
| 150 | 488134 | 37.63 | 44.78 | |
| Kohlehalter (paar) 230v | ||||
| 151 | 488136 | 44.29 | 52.71 | |
| Motorgehäuse | ||||
| 152 | 446309 | 16.58 | 19.73 | |
| Feldpaket 230 V | ||||
| 153 | 493503 | 89.42 | 106.41 | |
| Lagerring | ||||
| 154 | 438613 | 1.39 | 1.65 | |
| Rillenkugellager | ||||
| 155 | 228559 | 4.30 | 5.12 | |
| Anker 230 V | ||||
| 156 | 493504 | 205.22 | 244.21 | |
| Rillenkugellager | ||||
| 157 | 219021 | 11.42 | 13.59 | |
| Luftführungsscheibe | ||||
| 158 | 469886 | 2.90 | 3.45 | |
| Linsenschraube 5,0 x 80 mm | ||||
| 159 | 400264 | 1.39 | 1.65 | |
| Lüfter | ||||
| 160 | 486880 | 6.14 | 7.31 | |
| O-ring | ||||
| 161 | 400488 | 1.39 | 1.65 | |
| Linsenschraube M5 x 40 | ||||
| 162 | 400255 | 1.39 | 1.65 | |
| Sechskantmutter M8 | ||||
| 163 | 200719 | 1.39 | 1.65 | |
| Spannhülse | ||||
| 164 | 400259 | 1.39 | 1.65 | |
| Zahnriemenrad | ||||
| 165 | 445877 | 15.25 | 18.15 | |
| Motorflansch | ||||
| 166 | 451454 | 40.78 | 48.53 | |
| Motor 230 V | ||||
| 167 | 488153 | 429.07 | 510.59 | |
| Lippenring | ||||
| 168 | 447968 | 2.11 | 2.51 | |
| Gehäuse | ||||
| 169 | 488154 | 18.63 | 22.17 | |
| Drehknopf CS 70 | ||||
| 171 | 10734068 | 2.18 | 2.59 | |
| Dichtring | ||||
| 172 | 449830 | 1.39 | 1.65 | |
| Deckel | ||||
| 173 | 447997 | 3.83 | 4.56 | |
| Filterpatrone | ||||
| 174 | 447995 | 17.79 | 21.17 | |
| Filtergehäuse | ||||
| 175 | 447996 | 7.52 | 8.95 | |
| Litzensortiment | ||||
| 176 | 488440 | 23.84 | 28.37 | |
| O-ring | ||||
| 177 | 442413 | 1.39 | 1.65 | |
| Splitterschutz | ||||
| 178 | 448694 | 2.77 | 3.30 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 179 | xxx | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 180 | xxx | |||
| Kabelklemme RTK-S | ||||
| 181 | 431899 | 1.39 | 1.65 | |
| Spaltkeilplatte | ||||
| 182 | 445927 | 6.67 | 7.94 | |
| Zylinderschraube M8 x 16 | ||||
| 183 | 774346 | 1.39 | 1.65 | |
| Spaltkeil | ||||
| 184 | 710662 | 46.10 | 54.86 | |
| Spaltkeilhalter | ||||
| 185 | 488158 | 81.68 | 97.20 | |
| Zylinderschraube M6 x 14 | ||||
| 186 | 209354 | 1.39 | 1.65 | |
| Spaltkeilaufnahme | ||||
| 187 | 445926 | 14.52 | 17.28 | |
| Bundbuchse | ||||
| 188 | 447555 | 1.85 | 2.20 | |
| Bolzen | ||||
| 190 | 447358 | 2.57 | 3.06 | |
| Koppel | ||||
| 191 | 446528 | 1.92 | 2.28 | |
| Scheibe | ||||
| 192 | 447702 | 2.24 | 2.67 | |
| Sicherungsring | ||||
| 193 | 200615 | 1.39 | 1.65 | |
| Federdruckstück | ||||
| 194 | 400287 | 5.02 | 5.97 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 201 | 202346 | |||
| STOPFPROFIL CS 70 ET-BG | ||||
| 202 | 10711280 | 28.19 | 33.55 | |
| Profil Cs 70 | ||||
| 203 | 465708 | 31.34 | 37.29 | |
| Klemmplatte CS 50 EB | ||||
| 204 | 10023711 | 4.68 | 5.57 | |
| Schwenksegment | ||||
| 205 | 448014 | 30.13 | 35.85 | |
| Skala | ||||
| 206 | 488156 | 21.78 | 25.92 | |
| Linsenschraube M4 x 6 | ||||
| 207 | 400348 | 1.39 | 1.65 | |
| Flachkopfschraube | ||||
| 208 | 448065 | 4.03 | 4.80 | |
| Scheibe | ||||
| 209 | 448471 | 3.30 | 3.93 | |
| Drehknopf | ||||
| 210 | 487755 | 8.45 | 10.06 | |
| Drehknopf | ||||
| 211 | 440713 | 2.71 | 3.22 | |
| Senkschraube M4 x 8 | ||||
| 212 | 219043 | 1.39 | 1.65 | |
| Stiftschraube | ||||
| 213 | 464525 | 1.39 | 1.65 | |
| Zylinderschraube M6 x 12 | ||||
| 214 | 200684 | 1.39 | 1.65 | |
| Aufnahme | ||||
| 215 | 489181 | 26.86 | 31.96 | |
| Hülse 5 x 12 mm | ||||
| 218 | 228692 | 1.39 | 1.65 | |
| Flachrundschraube M6 x 40 | ||||
| 219 | 228534 | 1.39 | 1.65 | |
| Distanzbuchse | ||||
| 220 | 448066 | 8.52 | 10.14 | |
| Klemmstück | ||||
| 221 | 488433 | 40.78 | 48.53 | |
| Klemmpratze CS 70 | ||||
| 222 | 10031568 | 14.16 | 16.85 | |
| Griff | ||||
| 223 | 487893 | 7.66 | 9.12 | |
| Hülse 6 x 36 mm | ||||
| 224 | 400289 | 1.39 | 1.65 | |
| Druckfeder | ||||
| 225 | 448064 | 1.85 | 2.20 | |
| Drehknopf M6 | ||||
| 226 | 483350 | 6.67 | 7.94 | |
| Schlauch Ø 27 x 2 m | ||||
| 227 | 459250 | 43.44 | 51.69 | |
| Schlauch Ø 36 x 1,5 m | ||||
| 228 | 459251 | 43.44 | 51.69 | |
| Y-stück | ||||
| 229 | 450575 | 24.68 | 29.37 | |
| Rolle | ||||
| 230 | 488868 | 40.90 | 48.67 | |
| Rolle | ||||
| 231 | 488867 | 38.84 | 46.22 | |
| Zylinderrolle | ||||
| 232 | 488870 | 29.64 | 35.27 | |
| Wagenfront | ||||
| 233 | 497195 | 73.93 | 87.98 | |
| Zylinderschraube M6 x 40 | ||||
| 234 | 228653 | 1.39 | 1.65 | |
| Linsenschraube M4 x 25 | ||||
| 235 | 400257 | 1.39 | 1.65 | |
| Sechskantschraube M8 x 60 | ||||
| 236 | 400382 | 1.39 | 1.65 | |
| Anschlussmuffe Antistatik | ||||
| 237 | 452358 | 25.29 | 30.10 | |
| Griff | ||||
| 238 | 487555 | 7.13 | 8.48 | |
| Skala | ||||
| 239 | 446467 | 13.19 | 15.70 | |
| Drehgriff | ||||
| 240 | 446063 | 8.38 | 9.97 | |
| Aufkleber | ||||
| 241 | 447577 | 1.92 | 2.28 | |
| Zugfeder | ||||
| 242 | 447263 | 1.39 | 1.65 | |
| Endanschlag | ||||
| 243 | 449868 | 7.73 | 9.20 | |
| Griff | ||||
| 244 | 449869 | 1.85 | 2.20 | |
| Zylinderschraube M5 x 18 DIN912-8.8 | ||||
| 245 | 202824 | 1.39 | 1.65 | |
| Exzentermutter | ||||
| 246 | 449928 | 7.13 | 8.48 | |
| Kurbel | ||||
| 247 | 488159 | 16.58 | 19.73 | |
| Sechskantmutter M6 | ||||
| 248 | 228541 | 1.39 | 1.65 | |
| Federscheibe | ||||
| 249 | 200588 | 1.39 | 1.65 | |
| Passscheibe | ||||
| 250 | 400884 | 1.39 | 1.65 | |
| Spindel | ||||
| 251 | 488271 | 34.97 | 41.61 | |
| Lager | ||||
| 252 | 446470 | 5.15 | 6.13 | |
| Scheibe | ||||
| 253 | 446472 | 3.04 | 3.62 | |
| Zeiger | ||||
| 254 | 446468 | 2.38 | 2.83 | |
| Filzeinlage | ||||
| 255 | 451917 | 1.39 | 1.65 | |
| Filzeinlage | ||||
| 256 | 451918 | 1.39 | 1.65 | |
| Abstreifer | ||||
| 257 | 496821 | 18.39 | 21.88 | |
| Federring | ||||
| 258 | 447961 | 1.78 | 2.12 | |
| Abstreifer | ||||
| 259 | 496820 | 13.07 | 15.55 | |
| Sicherungsring | ||||
| 260 | 200618 | 1.39 | 1.65 | |
| Rolle | ||||
| 261 | 488869 | 45.86 | 54.57 | |
| Zahnrad | ||||
| 262 | 446072 | 3.77 | 4.49 | |
| Scheibe | ||||
| 263 | 447702 | 2.24 | 2.67 | |
| Linsenschraube PT-4.0x20-KT15 | ||||
| 264 | 228567 | 1.39 | 1.65 | |
| Zugfeder | ||||
| 265 | 447263 | 1.39 | 1.65 | |
| Stützlager | ||||
| 266 | 465449 | 9.31 | 11.08 | |
| Zylinderstift | ||||
| 267 | 400260 | 1.39 | 1.65 | |
| Hebel | ||||
| 268 | 446671 | 1.85 | 2.20 | |
| Scheibe 4,3 mm | ||||
| 269 | 228542 | 1.39 | 1.65 | |
| Flansch | ||||
| 270 | 488147 | 26.86 | 31.96 | |
| Träger | ||||
| 271 | 497196 | 49.13 | 58.46 | |
| Sechskantmutter M8 | ||||
| 272 | 200719 | 1.39 | 1.65 | |
| Scheibe 8,4 mm | ||||
| 273 | 228601 | 1.39 | 1.65 | |
| Schiebestock | ||||
| 274 | 450199 | 6.60 | 7.85 | |
| Klammer | ||||
| 275 | 450158 | 1.85 | 2.20 | |
| Schutzeinrichtung | ||||
| 276 | 492132 | 27.95 | 33.26 | |
