Hikoki CS33EDP Zeichnungen und Teile
Auf dem Typenschild sollte die Typenbezeichnung CS33EDP stehen. Je nach Typenbezeichnung kann es Unterschiede geben, die dazu führen können, dass Teile nicht passen. Bestellen Sie nur, wenn diese Nummer übereinstimmt. Hikoki Powertools ist der neue Name von Hitachi Powertools.Zeichnungen der HIKOKI CS33EDP

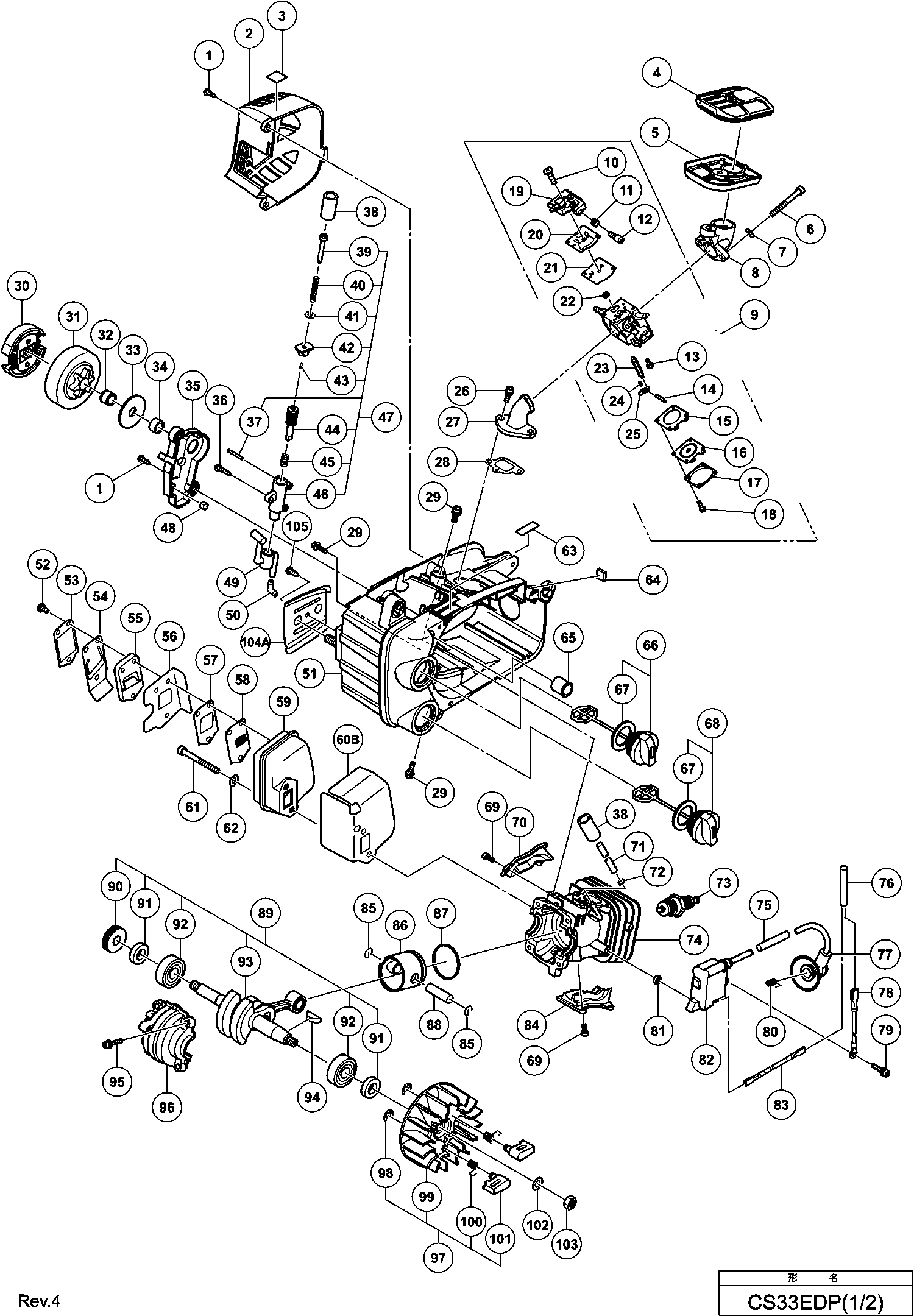

Teileliste der Hikoki CS33EDP
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer.
| Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | ||||
| 1 | 305812 | Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | € 1.00 | |
| Muffler Cover Till 8.2017 (since 9.2017 Except Fo | ||||
| 2 | 6696821 | Muffler Cover Till 8.2017 (since 9.2017 Except Fo | € 7.70 | |
| Caution Label (hot) | ||||
| 3 | 6698864 | Caution Label (hot) | € 1.16 | |
| Cleaner Element (b) | ||||
| 4 | 6699969 | Cleaner Element (b) | € 3.34 | |
| Cleaner Element (a) | ||||
| 5 | 6699968 | Cleaner Element (a) | € 3.19 | |
| Inbusschraube M5x45 (10st), Nr90aa | ||||
| 6 | 949824 | Inbusschraube M5x45 (10st), Nr90aa | € 3.78 | |
| Ring | ||||
| 7 | 6685408 | Ring | € 1.02 | |
| Cleaner Support | ||||
| 8 | 6699966 | Cleaner Support | € 1.00 | |
| Carburetor Ass'y Includ.10-25 | ||||
| 9 | 6699976 | Carburetor Ass'y Includ.10-25 | € 47.65 | |
| Schraube | ||||
| 10 | 6685210 | Schraube | € 1.11 | |
| Justierschraube | ||||
| 11 | 6685297 | Justierschraube | € 2.24 | |
| Justierschraube | ||||
| 12 | 6685298 | Justierschraube | € 2.24 | |
| Gelenkwellenset | ||||
| 13 | 6685218 | Gelenkwellenset | € 2.24 | |
| Gelenkwelle | ||||
| 14 | 6685219 | Gelenkwelle | € 1.11 | |
| Membran Verpackung | ||||
| 15 | 6685220 | Membran Verpackung | € 2.24 | |
| Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | ||||
| 16 | 6684690 | Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | € 17.42 | |
| Membranabdeckung | ||||
| 17 | 6685222 | Membranabdeckung | € 4.31 | |
| Schraube | ||||
| 18 | 6685223 | Schraube | € 1.11 | |
| Pump Cover | ||||
| 19 | 6600091 | Pump Cover | € 10.70 | |
| Pumpendichtung | ||||
| 20 | 6685212 | Pumpendichtung | € 2.24 | |
| Pumpen Membrane | ||||
| 21 | 6685213 | Pumpen Membrane | € 4.31 | |
| Schutzsieb Cg24ekb | ||||
| 22 | 6684700 | Schutzsieb Cg24ekb | € 4.15 | |
| Nadelventil alte Art.nr. 603-25012-20 | ||||
| 23 | 6685215 | Nadelventil alte Art.nr. 603-25012-20 | € 5.11 | |
| Ventilfeder | ||||
| 24 | 6685216 | Ventilfeder | € 2.24 | |
| Kontrollhebel | ||||
| 25 | 6685217 | Kontrollhebel | € 3.19 | |
| Hex. Socket Bolt M4 | ||||
| 26 | 6698792 | Hex. Socket Bolt M4 | € 1.16 | |
| Intake | ||||
| 27 | 6699951 | Intake | € 4.50 | |
| Dichtung | ||||
| 28 | 6699952 | Dichtung | € 1.00 | |
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 29 | 6699044 | Seal Lock Hex. Socket Bolt (w/washers)m5 | € 1.00 | |
| Clutch | ||||
| 30 | 6600316 | Clutch | € 10.60 | |
| Kupplungsgehäuse | ||||
| 31 | 6685144 | Kupplungsgehäuse | € 14.06 | |
| Nadellager | ||||
| 32 | 6685361 | Nadellager | € 3.92 | |
| Ring | ||||
| 33 | 6685414 | Ring | € 1.02 | |
| Kurbelwelle | ||||
| 34 | 6685360 | Kurbelwelle | € 2.03 | |
| Oil Pump Cover | ||||
| 35 | 6699610 | Oil Pump Cover | € 2.71 | |
| Schneidschraubed4x20 M.flansch (schwarz) Cg18dal, | ||||
| 36 | 302086 | Schneidschraubed4x20 M.flansch (schwarz) Cg18dal, | € 1.02 | |
| Nadelrolle | ||||
| 37 | 6685356 | Nadelrolle | € 1.02 | |
| Idol Sponge | ||||
| 38 | 6696793 | Idol Sponge | € 1.16 | |
| Oil Pump Adjuster (ed) | ||||
| 39 | 6699960 | Oil Pump Adjuster (ed) | € 1.60 | |
| Adjuster Spring | ||||
| 40 | 6699961 | Adjuster Spring | € 1.00 | |
| Bolt Washer M4 (black) For 220v-240v | ||||
| 41 | 323210 | Bolt Washer M4 (black) For 220v-240v | € 1.02 | |
| Einstellkappe | ||||
| 42 | 6699959 | Einstellkappe | € 1.00 | |
| Needle Roller | ||||
| 43 | 6600046 | Needle Roller | € 1.00 | |
| Pump Gear (ed) | ||||
| 44 | 6699957 | Pump Gear (ed) | € 1.89 | |
| Pump Gear Spring (ed) | ||||
| 45 | 6699958 | Pump Gear Spring (ed) | € 1.00 | |
| Pump Case | ||||
| 46 | 6699119 | Pump Case | € 7.26 | |
| Pump Ass'y Includ.37,39-46 | ||||
| 47 | 6600085 | Pump Ass'y Includ.37,39-46 | € 15.04 | |
| Schwamm,belüftung | ||||
| 48 | 6685371 | Schwamm,belüftung | € 1.02 | |
| Oil Pipe | ||||
| 49 | 6696811 | Oil Pipe | € 2.03 | |
| Rohrverbindung | ||||
| 50 | 6685358 | Rohrverbindung | € 1.02 | |
| Motorgehäuse | ||||
| 51 | 6600084 | Motorgehäuse | € 34.47 | |
| Screw (w/washers) M4 (black) | ||||
| 52 | 6600048 | Screw (w/washers) M4 (black) | € 1.00 | |
| Packing Plate Till 8.2019 (since 9.2017 Except Fo | ||||
| 53 | 6698861 | Packing Plate Till 8.2019 (since 9.2017 Except Fo | € 1.16 | |
| Muffler Special Packing (s) Till 8.2019 (since 9. | ||||
| 54 | 6698862 | Muffler Special Packing (s) Till 8.2019 (since 9. | € 1.16 | |
| Exhaust Pipe Till 8.2019 (since 9.2017 Except For | ||||
| 55 | 6696816 | Exhaust Pipe Till 8.2019 (since 9.2017 Except For | € 1.16 | |
| Muffler Special Packing Till 8.2019 (since 9.2017 | ||||
| 56 | 6696818 | Muffler Special Packing Till 8.2019 (since 9.2017 | € 1.16 | |
| Gauze Fixing Plate Till 8.2019 (since 9.2017 Exce | ||||
| 57 | 6696817 | Gauze Fixing Plate Till 8.2019 (since 9.2017 Exce | € 1.16 | |
| Muffler Gauze Till 8.2019 (since 9.2017 Except Fo | ||||
| 58 | 6696815 | Muffler Gauze Till 8.2019 (since 9.2017 Except Fo | € 1.16 | |
| Muffler | ||||
| 59 | 6600049 | Muffler | € 20.76 | |
| Muffler Packing Till 8.2019 (since 9.2017 Except | ||||
| 60B | 6600445 | Muffler Packing Till 8.2019 (since 9.2017 Except | € 1.45 | |
| Nicht bestellbar | ||||
| 61 | 6696819 | Nicht bestellbar | ||
| Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
| 62 | 949432 | Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | € 1.02 | |
| Tank Mark Label (50:1) | ||||
| 63 | 6698921 | Tank Mark Label (50:1) | € 1.16 | |
| Protection Sheet | ||||
| 64 | 6600047 | Protection Sheet | € 1.00 | |
| innerer Tankdeckel | ||||
| 65 | 6685351 | innerer Tankdeckel | € 4.36 | |
| Fuel Tank Cap Ass'y (vermilion) Includ.159 | ||||
| 66 | 6698854 | Fuel Tank Cap Ass'y (vermilion) Includ.159 | € 4.07 | |
| Tankkappen Verpackung | ||||
| 67 | 6685179 | Tankkappen Verpackung | € 1.11 | |
| Fuel Tank Cap Ass'y (black) Includ.159 | ||||
| 68 | 6698358 | Fuel Tank Cap Ass'y (black) Includ.159 | € 4.07 | |
| Inbusschraube M4x10 (10st) Till 12.2017 | ||||
| 69 | 949812 | Inbusschraube M4x10 (10st) Till 12.2017 | € 2.32 | |
| Scavenging Cover (b) | ||||
| 70 | 6696766 | Scavenging Cover (b) | € 2.03 | |
| Fuel Pipe (fkm) 3x6x80 | ||||
| 71 | 6698907 | Fuel Pipe (fkm) 3x6x80 | € 7.70 | |
| D6clipnew | ||||
| 72 | 6685311 | D6clipnew | € 1.02 | |
| Nicht bestellbar | ||||
| 73 | 6699320 | Nicht bestellbar | ||
| Zylinder | ||||
| 74 | 6600083 | Zylinder | € 52.84 | |
| Cord Insulation Tube L100 | ||||
| 75 | 6600051 | Cord Insulation Tube L100 | € 1.00 | |
| Cord Insulation Tube L60 | ||||
| 76 | 6699175 | Cord Insulation Tube L60 | € 1.16 | |
| SPARK PLUG CAP | ||||
| 77 | 6696771 | SPARK PLUG CAP | € 2.03 | |
| Cord | ||||
| 78 | 6600052 | Cord | € 1.00 | |
| Abzweigdosen Bolzen | ||||
| 79 | 6696326 | Abzweigdosen Bolzen | € 1.16 | |
| Metal Fitting Of Plug Cap (a) | ||||
| 80 | 6696772 | Metal Fitting Of Plug Cap (a) | € 1.16 | |
| Ring | ||||
| 81 | 6698700 | Ring | € 1.16 | |
| Ignition Coil Comp. | ||||
| 82 | 6699977 | Ignition Coil Comp. | € 25.42 | |
| Cord (a) | ||||
| 83 | 6699948 | Cord (a) | € 1.00 | |
| Scavenging Cover (a) | ||||
| 84 | 6696765 | Scavenging Cover (a) | € 2.03 | |
| Sicherungsring | ||||
| 85 | 6685326 | Sicherungsring | € 1.02 | |
| Kolben | ||||
| 86 | 6698806 | Kolben | € 12.93 | |
| Kolbenring | ||||
| 87 | 6685331 | Kolbenring | € 3.92 | |
| Piston Pin | ||||
| 88 | 6696764 | Piston Pin | € 1.16 | |
| Crank Worm Ass'y Includ.73-76 | ||||
| 89 | 6698853 | Crank Worm Ass'y Includ.73-76 | € 64.42 | |
| Schneckengetriebe | ||||
| 90 | 6685330 | Schneckengetriebe | € 4.36 | |
| Ölsieb | ||||
| 91 | 6685329 | Ölsieb | € 2.03 | |
| Kugellager | ||||
| 92 | 6685328 | Kugellager | € 2.90 | |
| Kurbelwelle | ||||
| 93 | 6696762 | Kurbelwelle | € 49.65 | |
| Scheibenfeder 3x13x4.5 alte Art.nr. 068-10100-20 | ||||
| 94 | 6684899 | Scheibenfeder 3x13x4.5 alte Art.nr. 068-10100-20 | € 2.08 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M5x18 | ||||
| 95 | 6698386 | Hex. Socket Hd. Bolt (w/sp.washer) M5x18 | € 1.02 | |
| Crank Case | ||||
| 96 | 6696767 | Crank Case | € 5.52 | |
| Magneto Sub Ass'y Includ.85-88 | ||||
| 97 | 6600090 | Magneto Sub Ass'y Includ.85-88 | € 35.54 | |
| Sicherungsring | ||||
| 98 | 6685336 | Sicherungsring | € 1.02 | |
| Magneto Rotor Comp. | ||||
| 99 | 6600053 | Magneto Rotor Comp. | € 8.57 | |
| Startersperrfeder | ||||
| 100 | 6685335 | Startersperrfeder | € 1.02 | |
| Startersperre | ||||
| 101 | 6685334 | Startersperre | € 1.02 | |
| Bolt Washer D7 | ||||
| 102 | 6696880 | Bolt Washer D7 | € 1.02 | |
| Mutter | ||||
| 103 | 6696879 | Mutter | € 1.02 | |
| Guide Plate (c) | ||||
| 104A | 6600346 | Guide Plate (c) | € 1.60 | |
| Schraube | ||||
| 105 | 958715 | Schraube | € 1.00 | |
| Side Case For Europe | ||||
| 121 | 6600088 | Side Case For Europe | € 13.50 | |
| Brake Support Plate | ||||
| 122 | 6696782 | Brake Support Plate | € 4.07 | |
| Brake Lever Spring | ||||
| 123 | 6696783 | Brake Lever Spring | € 1.16 | |
| Brake Handle | ||||
| 124 | 6699972 | Brake Handle | € 4.94 | |
| Brake Link Cover | ||||
| 126 | 6696779 | Brake Link Cover | € 1.16 | |
| Name Plate (euro.a) Cs33edp For Europe | ||||
| 127 | 6600071 | Name Plate (euro.a) Cs33edp For Europe | € 1.00 | |
| Chain Bar Clamp Nut (eu) For Europe | ||||
| 128 | 6600057 | Chain Bar Clamp Nut (eu) For Europe | € 1.00 | |
| Nut Holder For Europe | ||||
| 129 | 6600058 | Nut Holder For Europe | € 1.00 | |
| Chain Puller | ||||
| 130 | 6698986 | Chain Puller | € 12.92 | |
| Guide Plate (b) | ||||
| 131 | 6696784 | Guide Plate (b) | € 2.03 | |
| Nicht bestellbar | ||||
| 132 | 6697889 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 132 | 6697854 | Nicht bestellbar | ||
| ZWAARD 16" HITACHI | ||||
| 133 | 6696992 | ZWAARD 16" HITACHI | € 22.09 | |
| ZWAARD 14" HITACHI | ||||
| 133 | 6696991 | ZWAARD 14" HITACHI | € 22.09 | |
| Schraube | ||||
| 134 | 958715 | Schraube | € 1.00 | |
| Tapping Screw D3x6 | ||||
| 135 | 696352 | Tapping Screw D3x6 | € 1.09 | |
| Brake Spring | ||||
| 136 | 6600054 | Brake Spring | € 1.00 | |
| Bremseisenabdeckung | ||||
| 137 | 6685388 | Bremseisenabdeckung | € 3.92 | |
| Bremse | ||||
| 138 | 6685140 | Bremse | € 14.06 | |
| Nadelrolle | ||||
| 139 | 6685391 | Nadelrolle | € 1.02 | |
| Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | ||||
| 140 | 305812 | Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | € 1.00 | |
| Filterabdeckung | ||||
| 141 | 6699970 | Filterabdeckung | € 2.61 | |
| Cleaner Knob | ||||
| 142 | 6699971 | Cleaner Knob | € 1.00 | |
| Rear Handle Grip | ||||
| 143 | 6699965 | Rear Handle Grip | € 1.60 | |
| Gashebelsperre | ||||
| 144 | 6685350 | Gashebelsperre | € 1.02 | |
| Throttle Lever Spring | ||||
| 145A | 6600341 | Throttle Lever Spring | € 1.00 | |
| Feder | ||||
| 146 | 6685282 | Feder | € 1.11 | |
| Stop Switch | ||||
| 147A | 6601275 | Stop Switch | € 1.31 | |
| Start Label (cs33ed) Ex | ||||
| 148 | 6600082 | Start Label (cs33ed) Ex | € 1.02 | |
| Abgasklappe A | ||||
| 150 | 6696327 | Abgasklappe A | € 4.07 | |
| Distanzbuchse | ||||
| 151 | 696314 | Distanzbuchse | € 3.34 | |
| Dämpferset | ||||
| 152 | 6685413 | Dämpferset | € 1.02 | |
| Drosselklappenhebel | ||||
| 153 | 6685206 | Drosselklappenhebel | € 1.11 | |
| Zugstange | ||||
| 154 | 6699964 | Zugstange | € 1.02 | |
| Grommet | ||||
| 155 | 6698787 | Grommet | € 1.74 | |
| Throttle Lever (vermilion) | ||||
| 156 | 6698916 | Throttle Lever (vermilion) | € 1.16 | |
| Engine Case Cover | ||||
| 157 | 6699974 | Engine Case Cover | € 1.16 | |
| Grommet | ||||
| 158 | 6698787 | Grommet | € 1.74 | |
| Spring Holder | ||||
| 159 | 6698409 | Spring Holder | € 2.03 | |
| Damper Set Bolt (a) | ||||
| 160 | 6699962 | Damper Set Bolt (a) | € 1.02 | |
| Antivibration Spring | ||||
| 161 | 6698428 | Antivibration Spring | € 2.03 | |
| Benzin Durchführung alte Art.nr. 701-72930-20 | ||||
| 162 | 6696167 | Benzin Durchführung alte Art.nr. 701-72930-20 | € 1.11 | |
| Fuel Pipe | ||||
| 163 | 6699975 | Fuel Pipe | € 1.89 | |
| Fuel Pipe L220 | ||||
| 164 | 6600055 | Fuel Pipe L220 | € 1.02 | |
| Mutter M6 | ||||
| 165 | 329934 | Mutter M6 | € 1.67 | |
| Rear Handle | ||||
| 166 | 6699963 | Rear Handle | € 9.58 | |
| Idle Sponge | ||||
| 167 | 6600056 | Idle Sponge | € 1.02 | |
| Benzinleitung | ||||
| 168 | 6685267 | Benzinleitung | € 1.11 | |
| Hauptpumpe | ||||
| 169 | 6685139 | Hauptpumpe | € 5.75 | |
| Protection Sheet | ||||
| 170 | 6600047 | Protection Sheet | € 1.00 | |
| Kraftstoff Gummidichtung | ||||
| 171 | 6685308 | Kraftstoff Gummidichtung | € 1.02 | |
| Entlüftungsventil | ||||
| 172 | 6685370 | Entlüftungsventil | € 2.03 | |
| Flanged Tapping Screw D5x15 | ||||
| 173 | 6698456 | Flanged Tapping Screw D5x15 | € 1.02 | |
| Spike | ||||
| 174 | 6699973 | Spike | € 1.74 | |
| Flanged Tapping Screw D5x15 | ||||
| 175 | 6698456 | Flanged Tapping Screw D5x15 | € 1.02 | |
| Chain Catcher | ||||
| 176 | 6699950 | Chain Catcher | € 1.00 | |
| Pump Filter | ||||
| 177A | 6600351 | Pump Filter | € 2.61 | |
| D6clipnew | ||||
| 178 | 6685311 | D6clipnew | € 1.02 | |
| Ölfiltergehäuse | ||||
| 179 | 6685310 | Ölfiltergehäuse | € 1.02 | |
| Nicht bestellbar | ||||
| 180 | 6696804 | Nicht bestellbar | ||
| Ring | ||||
| 181 | 6685407 | Ring | € 1.02 | |
| Fuel Pipe | ||||
| 182 | 6698715 | Fuel Pipe | € 9.44 | |
| Starter Handle Ass'y Includ.184-186 | ||||
| 183 | 6600061 | Starter Handle Ass'y Includ.184-186 | € 2.47 | |
| Rope Stopper | ||||
| 184 | 6699465 | Rope Stopper | € 1.00 | |
| Starter Knob | ||||
| 185 | 6699467 | Starter Knob | € 1.89 | |
| Starter Rope (ns) | ||||
| 186 | 6600060 | Starter Rope (ns) | € 1.00 | |
| Lüftergehäuse | ||||
| 187 | 6600066 | Lüftergehäuse | € 16.77 | |
| Air Deflector Ass'y Includ.170 | ||||
| 188 | 6600089 | Air Deflector Ass'y Includ.170 | € 2.47 | |
| Set Screw (ns) | ||||
| 189 | 6600062 | Set Screw (ns) | € 1.00 | |
| Cam Plate (ns) | ||||
| 190 | 6600064 | Cam Plate (ns) | € 1.89 | |
| Reel (ns) | ||||
| 191 | 6600065 | Reel (ns) | € 11.76 | |
| Spiral Spring (ns) | ||||
| 192 | 6600063 | Spiral Spring (ns) | € 5.66 | |
| Schneidschraube D5x25 M.flansch (schwarz), C8fshe | ||||
| 193 | 305558 | Schneidschraube D5x25 M.flansch (schwarz), C8fshe | € 1.00 | |
| Ring | ||||
| 194 | 6685408 | Ring | € 1.02 | |
| Front Handle | ||||
| 195 | 6699967 | Front Handle | € 6.10 | |
| SPRING COVER | ||||
| 196 | 6698865 | SPRING COVER | € 1.16 | |
| Damper Set Bolt | ||||
| 197 | 6698859 | Damper Set Bolt | € 1.16 | |
| Recoil Starter Ass'y (ns) Includ.183,187,189-192 | ||||
| 198 | 6699953 | Recoil Starter Ass'y (ns) Includ.183,187,189-192 | € 20.76 | |
| CHAIN COVER 16" (OLD 6694810) | ||||
| 501 | 6685440 | CHAIN COVER 16" (OLD 6694810) | € 6.68 | |
| CHAIN COVER 15"/16" | ||||
| 501 | 6685439 | CHAIN COVER 15"/16" | € 6.68 | |
| Kombi Ringschlüssel | ||||
| 502 | 6685402 | Kombi Ringschlüssel | € 3.05 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
