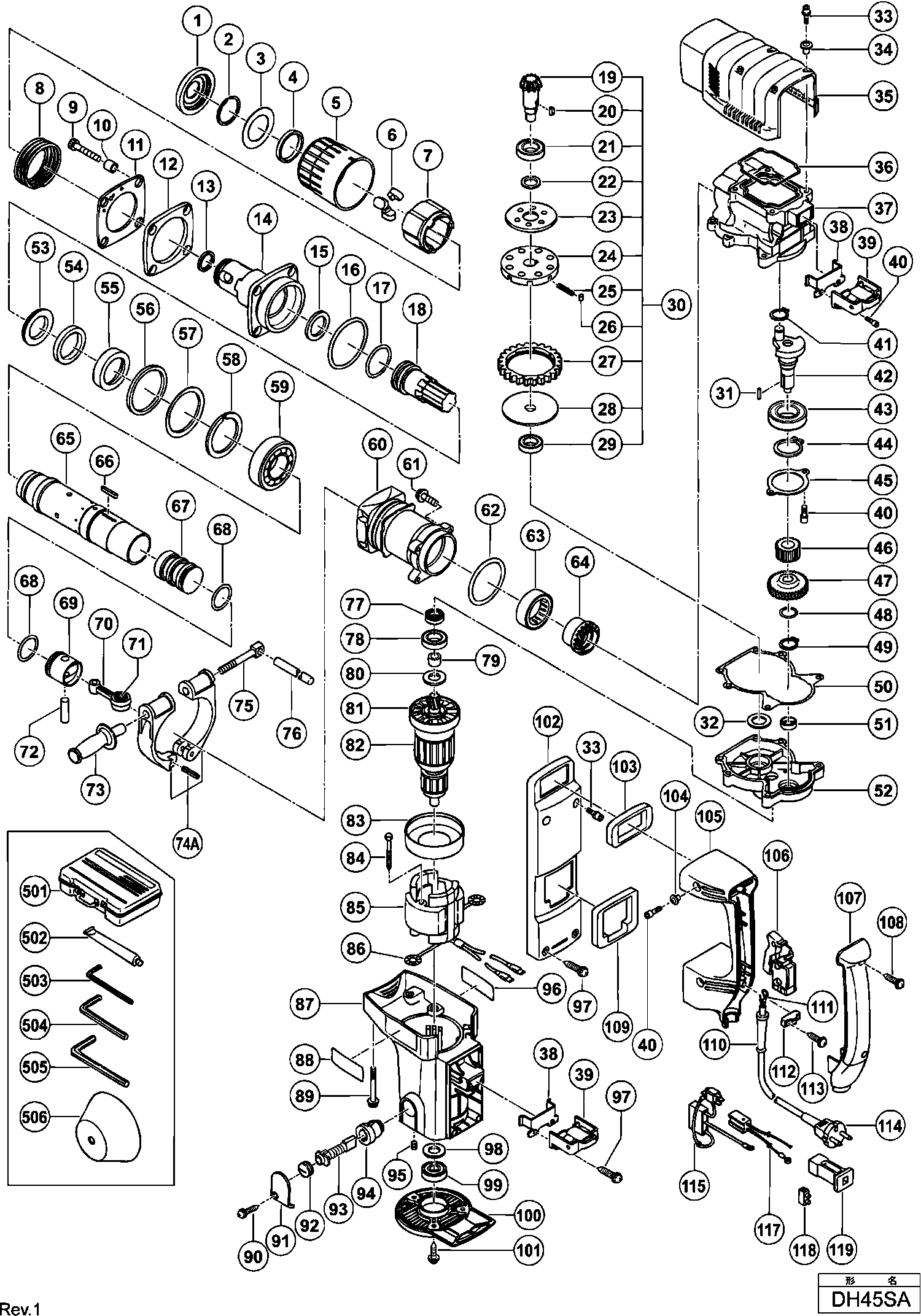

Zeichnungen der Hikoki DH45SA
Teileliste der Hikoki DH45SA
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Vordere Kappe | ||||
1 | 318758 | 3.00 | 3.57 | |
Sicherungsring D35 | ||||
2 | 318757 | 6.45 | 7.68 | |
Vordere Scheibe (a) | ||||
3 | 318756 | 4.80 | 5.71 | |
Dämpfer Ring | ||||
4 | 318755 | 3.30 | 3.93 | |
Griff | ||||
5 | 318754 | 5.85 | 6.96 | |
Keil Dh40yb | ||||
6 | 313069 | 20.49 | 24.38 | |
Sattelschlüsselhalter | ||||
7 | 318752 | 61.33 | 72.98 | |
Federscheibe | ||||
8 | 318753 | 6.45 | 7.68 | |
Inbusschraube M8x30 Selbstsich seit 6.1981 | ||||
9 | 306437 | 1.35 | 1.61 | |
Ring | ||||
10 | 986892 | 5.25 | 6.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
11 | 319075 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
12 | 319074 | |||
Staubschutz | ||||
13 | 318759 | 1.65 | 1.96 | |
Vorderabdeckung | ||||
14 | 318751 | 201.44 | 239.71 | |
Dämpfer (b) | ||||
15 | 318762 | 4.80 | 5.71 | |
O-ring (1as-60) Div.typen, Nr90aa Since 9.1979 | ||||
16 | 956996 | 3.00 | 3.57 | |
O-ring Dh38yf/dh40fa/fb/dh50sa1 | ||||
17 | 986882 | 10.20 | 12.14 | |
Zweiter Hammer | ||||
18 | 318743 | 71.50 | 85.08 | |
Kegelritzel | ||||
19 | 318551 | 32.18 | 38.29 | |
Keil 3x3x8 Dh22vb/g12sa/g12sa2/ G13sb2/g12sa2/dh4 | ||||
20 | 944109 | 1.70 | 2.02 | |
Kugellager 6202 Dd | ||||
21 | 6202DD | 6.75 | 8.03 | |
Ring | ||||
22 | 313058 | 1.05 | 1.25 | |
Unterlegscheibe Dh50mb | ||||
23 | 318552 | 6.45 | 7.68 | |
Getriebehalter Dh50mr | ||||
24 | 318554 | 10.20 | 12.14 | |
Feder (c) Dh50mb | ||||
25 | 318555 | 7.95 | 9.46 | |
Nadelbolzen D6x6 Dh40yb/mr | ||||
26 | 313057 | 4.20 | 5.00 | |
Zweites Zahnrad Dh50mb | ||||
27 | 318553 | 37.95 | 45.16 | |
Ausgleichsscheibe | ||||
28 | 318556 | 15.13 | 18.00 | |
Kugellager 629 Vvm | ||||
29 | 629VVM | 5.85 | 6.96 | |
KOMPLETTE RUTSCHKUPPLUNG | ||||
30 | 318550 | 125.40 | 149.23 | |
Keil 5x5x15 Dh50mb | ||||
31 | 945072 | 1.35 | 1.61 | |
Ring | ||||
32 | 944525 | 1.05 | 1.25 | |
Bolzen M5x16 Dh40ma/mb/yb/fa Vb16y For Usa,can | ||||
33 | 313082 | 1.05 | 1.25 | |
Distanzbuchse | ||||
34 | 991711 | 1.05 | 1.25 | |
Kurbelgehäuseabdeckung Dh50mb | ||||
35 | 318584 | 21.31 | 25.36 | |
Gummidichtung Dh40ma/mb/yb/fa | ||||
36 | 313084 | 2.55 | 3.03 | |
Kurbelgehäuse Dh50mb | ||||
37 | 318543 | 43.86 | 52.20 | |
Platte | ||||
38 | 980750 | 17.05 | 20.29 | |
Handgriffgummi Dh50sa1/h55sa u.a. | ||||
39 | 980727 | 14.10 | 16.78 | |
Inbusschraube M5x16 Dh40ma u.a. | ||||
40 | 878181 | 1.05 | 1.25 | |
Sicherungsring D12 (10st), G23ss | ||||
41 | 939542 | 1.50 | 1.78 | |
Kurbelwelle | ||||
42 | 318544 | 43.86 | 52.20 | |
Kugellager 6205 Dd | ||||
43 | 6205DD | 10.35 | 12.32 | |
Federscheibe | ||||
44 | 965469 | 1.05 | 1.25 | |
Lagerdeckel | ||||
45 | 318548 | 2.55 | 3.03 | |
Zweites Ritzel Dh50mb | ||||
46 | 318545 | 13.80 | 16.42 | |
Erstes Zahnrad Dh50mb | ||||
47 | 318546 | 22.00 | 26.18 | |
Druckscheibe Dh50mb | ||||
48 | 318547 | 1.65 | 1.96 | |
Ring | ||||
49 | 967261 | 1.05 | 1.25 | |
Dichtung | ||||
50 | 318549 | 2.55 | 3.03 | |
Nadellager | ||||
51 | 939299 | 10.65 | 12.67 | |
Getriebegehaeuse | ||||
52 | 318595 | 35.06 | 41.72 | |
Dämpferscheibe Dh38yf/dh40fa/fb | ||||
53 | 993235 | 12.45 | 14.82 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
54 | 318745 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
55 | 318746 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
56 | 318748 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
57 | 318747 | |||
Aufnahmering D40 H30pv | ||||
58 | 318582 | 5.10 | 6.07 | |
Kugellager 6008cm | ||||
59 | 6008CM | 13.80 | 16.42 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
60 | 318749 | |||
Inbusschraube M6x35 M.flansch Selbstsichernd Cr13 | ||||
61 | 318451 | 1.65 | 1.96 | |
O-ring (d) Dh50sa1/sb | ||||
62 | 985779 | 2.40 | 2.86 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
64 | 318741 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
65 | 318740 | |||
Keil 3x3x20 Dh40ma/mb/yb/fa/fb Vb16y Till 4.2002 | ||||
66 | 971750 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
67 | 318742 | |||
O-ring Dh50mb | ||||
68 | 318917 | 6.45 | 7.68 | |
Kolben | ||||
69 | 985772 | 52.53 | 62.50 | |
Stange | ||||
70 | 318557 | 43.86 | 52.20 | |
Nadellager (nsk Aj50 1203) Dh28y/dh40ma/mb u.a. | ||||
71 | 980756 | 10.65 | 12.67 | |
Stift (1) | ||||
72 | 955593 | 3.00 | 3.57 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
73 | 318574 | |||
Griffhalterung | ||||
74A | 331096 | 12.23 | 14.55 | |
Handgriffbolzen Dh50mb | ||||
75 | 318576 | 9.00 | 10.71 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
76 | 971786 | |||
Oeldichtung (fpm807) Dh50mb | ||||
77 | 318596 | 6.45 | 7.68 | |
Kugellager 6203vv | ||||
78 | 6203VV | 7.80 | 9.28 | |
Hülse Dh50mb | ||||
79 | 318597 | 14.03 | 16.69 | |
Staubscheibe | ||||
80 | 318594 | 1.65 | 1.96 | |
Ventilator Dh50mb | ||||
81 | 318918 | 7.95 | 9.46 | |
Anker 230v | ||||
82 | 360526E | 227.43 | 270.64 | |
Ventilatorführung Dh50mb | ||||
83 | 318633 | 5.85 | 6.96 | |
Sechskantschneidschraube D5x50 | ||||
84 | 953121 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
85 | 340467E | |||
Kohlebürstenverbinder | ||||
86 | 958032 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
87 | 318764 | |||
Inbusschraube M6x40 | ||||
89 | 318570 | 6.45 | 7.68 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
90 | 307811 | |||
Bürstenkappendeckel Dh50mb | ||||
91 | 318599 | 3.90 | 4.64 | |
Kohlenkappe C13u/m12v/div.typen H70sa | ||||
92 | 940540 | 1.04 | 1.23 | |
Kohlebürsten Selbstabsch.(paar) For Sin,mal | ||||
93 | 999074 | 14.40 | 17.14 | |
Kohlenhalter C13u/cm12y u.a. | ||||
94 | 980487 | 5.68 | 6.75 | |
Inbusstiftschraube M5x8, C8fshe, C8fse, H41mb,g23 | ||||
95 | 938477 | 1.05 | 1.25 | |
Schneidschraube D5x25 M.flansch (schwarz), C8fshe | ||||
97 | 305558 | 1.04 | 1.23 | |
Lagerscheibe F30a/h65sb/sd u.a. H70sa | ||||
98 | 944954 | 1.05 | 1.25 | |
Kugellager 6201 Vv | ||||
99 | 6201VV | 6.45 | 7.68 | |
Enddeckel Dh50mb | ||||
100 | 318598 | 35.06 | 41.72 | |
Schraube D5x16 | ||||
101 | 303273 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
102 | 318750 | |||
Handgriffdichtung Dh50mb | ||||
103 | 318572 | 1.65 | 1.96 | |
Distanzbuchse | ||||
104 | 991711 | 1.05 | 1.25 | |
Griff | ||||
105 | 318601 | 25.30 | 30.11 | |
Schalter | ||||
106 | 313093 | 14.30 | 17.02 | |
Handgriffabdeckung Dh50mb | ||||
107 | 318602 | 24.34 | 28.96 | |
Schneidschraube D4x20 Mit Flansch (schwarz), C8fs | ||||
108 | 301653 | 1.04 | 1.23 | |
Handgriffdichtung (b) Dh50mb | ||||
109 | 318573 | 2.55 | 3.03 | |
Kabelknickschutz D10.7 Div.typen, Cm9by, H41mb, G | ||||
110 | 940778 | 2.10 | 2.50 | |
Anschlussklemme | ||||
111 | 980063 | 1.04 | 1.23 | |
Kabelklemme Div.typen, Cm9uby, G23ss | ||||
112 | 960266 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
113 | 984750 | |||
Kabel 5M 2 X1.0 Ho7rn-f (ohne Stecker) | ||||
114 | 500454Z | 15.54 | 18.49 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
115 | 313142 | |||
STECKER (B) | ||||
117 | 318648 | 12.15 | 14.46 | |
Schraubklemme 1-reihig Div.typen Till 10.1999 For | ||||
118 | 938307 | 2.13 | 2.53 | |
STECKERHALTER | ||||
119 | 318603 | 3.30 | 3.93 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
501 | 318646 | |||
Fett (tube 30 Gramm) | ||||
502 | 981840 | 8.40 | 10.00 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
503 | 944458 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
504 | 944459 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
505 | 872422 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
506 | 315871 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
601 | 985721 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
602 | 985720 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
603 | 985722 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
604 | 991330 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
605 | 991331 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
606 | 985724 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
607 | 985723 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
608 | 985725 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
609 | 991332 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
610 | 991334 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
611 | 991333 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
612 | 985727 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
613 | 985726 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
614 | 985728 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
615 | 991335 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
616 | 985730 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
617 | 985729 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
618 | 985731 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
619 | 991336 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
620 | 985733 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
621 | 985732 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
622 | 985734 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
623 | 991337 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
624 | 991338 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
625 | 985736 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
626 | 985735 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
627 | 985737 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
628 | 991339 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
629 | 991340 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
630 | 985739 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
631 | 985738 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
632 | 985740 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
633 | 991341 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
641 | 985752 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
642 | 985753 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
643 | 944477 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
644 | 985754 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
645 | 985755 | |||
Nicht mehr lieferbar, kein Ersatz | ||||
646 | 992813 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
647 | 985750 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
648 | 985751 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
649 | 955994 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
650 | 955995 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
651 | 955996 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
652 | 955997 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
653 | 955998 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
654 | 955999 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
655 | 956000 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
656 | 956001 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
657 | 955154 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
658 | 955166 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
659 | 955155 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
660 | 955167 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
661 | 956002 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
662 | 956003 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
663 | 955157 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
664 | 955168 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
665 | 956004 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
666 | 956005 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
667 | 955159 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
668 | 955169 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
669 | 956008 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
670 | 955163 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
671 | 956009 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
672 | 955165 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
673 | 992814 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
674 | 992815 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
675 | 992816 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
676 | 992817 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
677 | 992818 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
678 | 992819 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
679 | 903901 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
680 | 985756 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
681 | 985757 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
682 | 985758 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
683 | 985759 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
684 | 985760 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
685 | 981929 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
686 | 981930 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
687 | 981931 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
688 | 985761 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
689 | 944574 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
690 | 981922 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
691 | 981923 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
692 | 981925 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
693 | 981926 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
694 | 981924 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
695 | 956126 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
696 | 955181 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
697 | 955183 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
698 | 955186 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
700 | 318085 | |||
Fett für Hammer. Hammerbohrer (70g) | ||||
701 | 308471 | 12.75 | 15.17 | |
Fett (Dose 500 Gramm) | ||||
702 | 980927 | 73.01 | 86.88 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
703 | 320859 |
