Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki NV65AJ'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

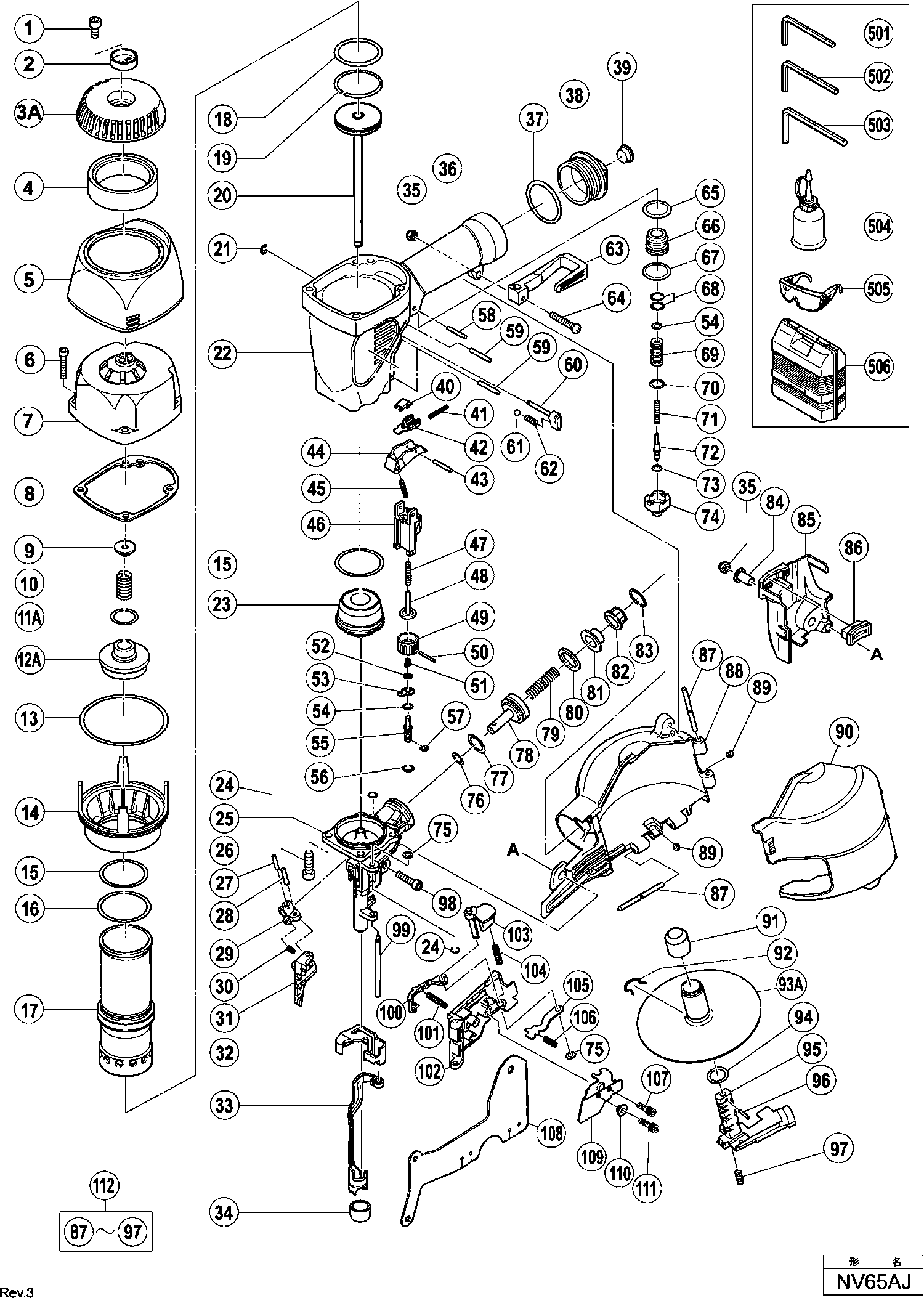

Zeichnungen der Hikoki NV65AJ
Teileliste der Hikoki NV65AJ
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Inbusschraube M6x12 (10st), Nr90aa | ||||
1 | 949657 | 3.00 | 3.57 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
2 | 882919 | |||
Deckel Nv65aj | ||||
3A | 882917 | 9.90 | 11.78 | |
Schalldämpfer Nv65aj | ||||
4 | 882918 | 13.65 | 16.24 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
5 | 883632 | |||
Inbusschraube M5x25 (10st) | ||||
6 | 949662 | 2.10 | 2.50 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
7 | 884300 | |||
Dichtung (a) Nv65aj | ||||
8 | 882915 | 4.80 | 5.71 | |
Scheibe Nv65aj | ||||
9 | 882914 | 6.60 | 7.85 | |
Hauptventilfeder Nv65aj | ||||
10 | 882913 | 6.75 | 8.03 | |
O-ring | ||||
11A | 883992 | 1.65 | 1.96 | |
Hauptventil (a) Nv65af3 | ||||
12A | 882927 | 14.10 | 16.78 | |
O-ring (s-70) Nr100a | ||||
13 | 878863 | 2.40 | 2.86 | |
Zylinderplatte Nv65aj | ||||
14 | 882910 | 6.45 | 7.68 | |
O-ring (s-46) Nv65aj | ||||
15 | 882874 | 1.65 | 1.96 | |
O-ring (1ap-48) Nv83a/nr83a/aa | ||||
16 | 877368 | 1.95 | 2.32 | |
Zylinder | ||||
17 | 882909 | 74.25 | 88.36 | |
Kolben O-ring Nv65aj | ||||
18 | 882871 | 1.80 | 2.14 | |
Kolbenring Nv65aj | ||||
19 | 882872 | 27.78 | 33.05 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
20 | 883920 | |||
Sicherungsring D4 (e-type) | ||||
21 | 968643 | 1.95 | 2.32 | |
Gehäuse | ||||
22 | 884301 | 246.26 | 293.05 | |
Kolbenpuffer Nv65aj | ||||
23 | 882873 | 22.00 | 26.18 | |
O-ring (p-4) Cs35b/nr83a | ||||
24 | 874436 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
25 | 883921 | |||
Schraube M6x20 | ||||
26 | 880675 | 4.05 | 4.82 | |
Rollstift D4x16 | ||||
27 | 949497 | 2.55 | 3.03 | |
Nadelrolle Nv 65 Aj | ||||
28 | 880659 | 1.05 | 1.25 | |
Schiebearm Nv45ab | ||||
29 | 878132 | 40.84 | 48.60 | |
Schiebefeder Nv65aj | ||||
30 | 882924 | 1.65 | 1.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
31 | 883923 | |||
Druckhebelabdeckung (b) Nv65aj | ||||
32 | 882900 | 3.45 | 4.11 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
33 | 883924 | |||
Nasenkappe (a) Nv65aj | ||||
34 | 880678 | 4.20 | 5.00 | |
Nylonmutter M5 Nv83a/nr83a, Nr90aa | ||||
35 | 877371 | 1.05 | 1.25 | |
O-ring (i.d.37.2.) Nv38ab/nv65ad2 | ||||
37 | 880183 | 1.05 | 1.25 | |
Kappe Nv65ad3 For H/k | ||||
38 | 882162 | 32.18 | 38.29 | |
Staubabdeckung Dh40sr | ||||
39 | 877914 | 1.95 | 2.32 | |
Abzugbügel Nv65aj | ||||
40 | 882896 | 1.65 | 1.96 | |
Feder (1) | ||||
41 | 882897 | 1.65 | 1.96 | |
Schaltarm (b) Nv65aj | ||||
42 | 882895 | 28.05 | 33.38 | |
Rollstift D2,5x16 | ||||
43 | 881951 | 1.80 | 2.14 | |
Druecker (1) | ||||
44 | 882894 | 3.30 | 3.93 | |
Druckfeder Nv65aj | ||||
45 | 883759 | 3.30 | 3.93 | |
Druckhebelführung Nv65aj | ||||
46 | 882885 | 6.45 | 7.68 | |
Druckhebelfeder Nv65aj | ||||
47 | 882892 | 5.10 | 6.07 | |
Druckhebel (c) Nv65aj | ||||
48 | 882891 | 18.15 | 21.60 | |
Justierung | ||||
49 | 882889 | 3.45 | 4.11 | |
Rollstift D2x16 | ||||
50 | 880093 | 1.04 | 1.23 | |
Justierfeder Nv65aj | ||||
51 | 882890 | 1.65 | 1.96 | |
Justierungsplatte (b) Nv65aj | ||||
52 | 882887 | 3.30 | 3.93 | |
Justierungsplatte (a) Nv65aj | ||||
53 | 882886 | 3.30 | 3.93 | |
O-RING (S-4) | ||||
54 | 981317 | 1.05 | 1.25 | |
Druckhebel (b) Nv65aj | ||||
55 | 882888 | 17.33 | 20.62 | |
O-ring (s-5) Nc65a | ||||
56 | 872822 | 3.00 | 3.57 | |
Sicherungsring (e-typ) D3 Till 6.1998 | ||||
57 | 872971 | 1.05 | 1.25 | |
Rollstift D3x22 (10st), Nr90aa | ||||
58 | 949864 | 1.65 | 1.96 | |
Rollstift D3x28 (10st), Nr90aa | ||||
59 | 949865 | 2.55 | 3.03 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
60 | 884302 | |||
Stahlkugel D3.175 (10st) (alte Art.nr.939270) Wh1 | ||||
61 | 959148 | 1.05 | 1.25 | |
Arretierfeder Nv65aj | ||||
62 | 882923 | 1.80 | 2.14 | |
Haken | ||||
63 | 883763 | 4.80 | 5.71 | |
Kopfschraube M5x35 (schwarz) | ||||
64 | 302197 | 1.05 | 1.25 | |
KOPFVENTIL-O-RING (I.D.16.8) | ||||
65 | 877699 | 1.05 | 1.25 | |
Ventilhülse (b) Nv65aj | ||||
66 | 882925 | 18.01 | 21.43 | |
O-ring (s-18) Cr17y/nv65ad2, Nr90aa | ||||
67 | 878885 | 1.05 | 1.25 | |
O-Ring (I.D. 8.8) | ||||
68 | 878925 | 1.05 | 1.25 | |
Ventilkolben (b) Nv65ad2, Nr90aa | ||||
69 | 880672 | 32.18 | 38.29 | |
O-Ring (I.D.11) | ||||
70 | 878887 | 1.65 | 1.96 | |
Tauchkolbenfeder Nv65ad2/nv50ag, Nr90aa | ||||
71 | 878884 | 1.65 | 1.96 | |
Tauchkolben (a) Nv65aj | ||||
72 | 882921 | 15.54 | 18.49 | |
O-Ring (I.D.1.8) | ||||
73 | 878888 | 1.05 | 1.25 | |
Ventilhülse (a) Nv65aj | ||||
74 | 882920 | 29.56 | 35.18 | |
Sicherungsring Nv50ag | ||||
75 | 880319 | 1.65 | 1.96 | |
O-ring (1p-9) Dh20v | ||||
76 | 872645 | 1.65 | 1.96 | |
O-ring (p-21) Nv50ae | ||||
77 | 880330 | 1.05 | 1.25 | |
Schiebekolben Nv65aj | ||||
78 | 882673 | 18.43 | 21.93 | |
Schiebefeder Nv65aj | ||||
79 | 882883 | 1.80 | 2.14 | |
Dämpfer Nv83a | ||||
80 | 877711 | 1.95 | 2.32 | |
Schiebekolbenabdeckung Nv50ag | ||||
81 | 880331 | 3.15 | 3.75 | |
Magazinhülse Nv83a | ||||
82 | 878305 | 1.04 | 1.23 | |
C-sicherungsring D28 (10stück) | ||||
83 | 939555 | 4.35 | 5.18 | |
Huelse (1) | ||||
84 | 882907 | 3.30 | 3.93 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
85 | 882899 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
86 | 882901 | |||
Stift (1) | ||||
87 | 881825 | 3.00 | 3.57 | |
Magazin | ||||
88 | 882903 | 22.00 | 26.18 | |
Schiebehülsenring Nv83a/nv45ab | ||||
89 | 877826 | 2.55 | 3.03 | |
Magazinabdeckung Nv65aj | ||||
90 | 883926 | 16.36 | 19.47 | |
Haltekappe (a) Nv90af | ||||
91 | 881003 | 2.40 | 2.86 | |
Feder Nv50ae | ||||
92 | 880398 | 7.65 | 9.10 | |
Nagelhalterung (alt 882906) | ||||
93A | 885683 | 24.75 | 29.45 | |
O-ring (1p-9) Dh20v | ||||
94 | 872645 | 1.65 | 1.96 | |
Stift D2,5x12 Nv50af3 | ||||
95 | 878791 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
96 | 882905 | |||
Feder (1) | ||||
97 | 881826 | 1.05 | 1.25 | |
Inbusschraube M5x20 (10st) For Europe | ||||
98 | 949757 | 3.00 | 3.57 | |
Nagelführumgshülse Nv 65 Aj | ||||
99 | 880658 | 8.40 | 10.00 | |
Nagelstopper (a) Nv65aj | ||||
100 | 883783 | 67.79 | 80.67 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
101 | 882878 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
102 | 883922 | |||
Führungsriegel Nv90ab | ||||
103 | 886107 | 5.10 | 6.07 | |
Feder Nv50ag u.a. | ||||
104 | 880446 | 1.35 | 1.61 | |
Nagelstopper (b) Nv65aj | ||||
105 | 882680 | 3.30 | 3.93 | |
Stopfeder Nr100a | ||||
106 | 880494 | 2.40 | 2.86 | |
Inbusschraube M4x10 Selbstsich. | ||||
107 | 880413 | 1.05 | 1.25 | |
Abdeckung (1) | ||||
108 | 882880 | 4.80 | 5.71 | |
Nagelführungsabdeckung Nv65aj | ||||
109 | 883784 | 4.80 | 5.71 | |
Hülse (b) Nv65aj | ||||
110 | 882881 | 3.30 | 3.93 | |
Inbusschraube M4x12 Dh40ma/mb/yb/ | ||||
111 | 880630 | 1.05 | 1.25 | |
Magazin kpl. Nv65aj Includ.87-97 | ||||
112 | 884303 | 69.99 | 83.29 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
501 | 943277 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
502 | 944458 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
503 | 944459 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
504 | 877153 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
505 | 875769 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
506 | 880790 | |||
Griffband (a) Nv50ae u.a. Alte Art.nr.880349, Nr9 | ||||
601 | 881768 | 5.25 | 6.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
602A | 888213 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
603 | 876212 | |||
Einzelschussauslösung Nv75ag | ||||
604 | 883991 | 84.56 | 100.63 |
