Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki RB24EA'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

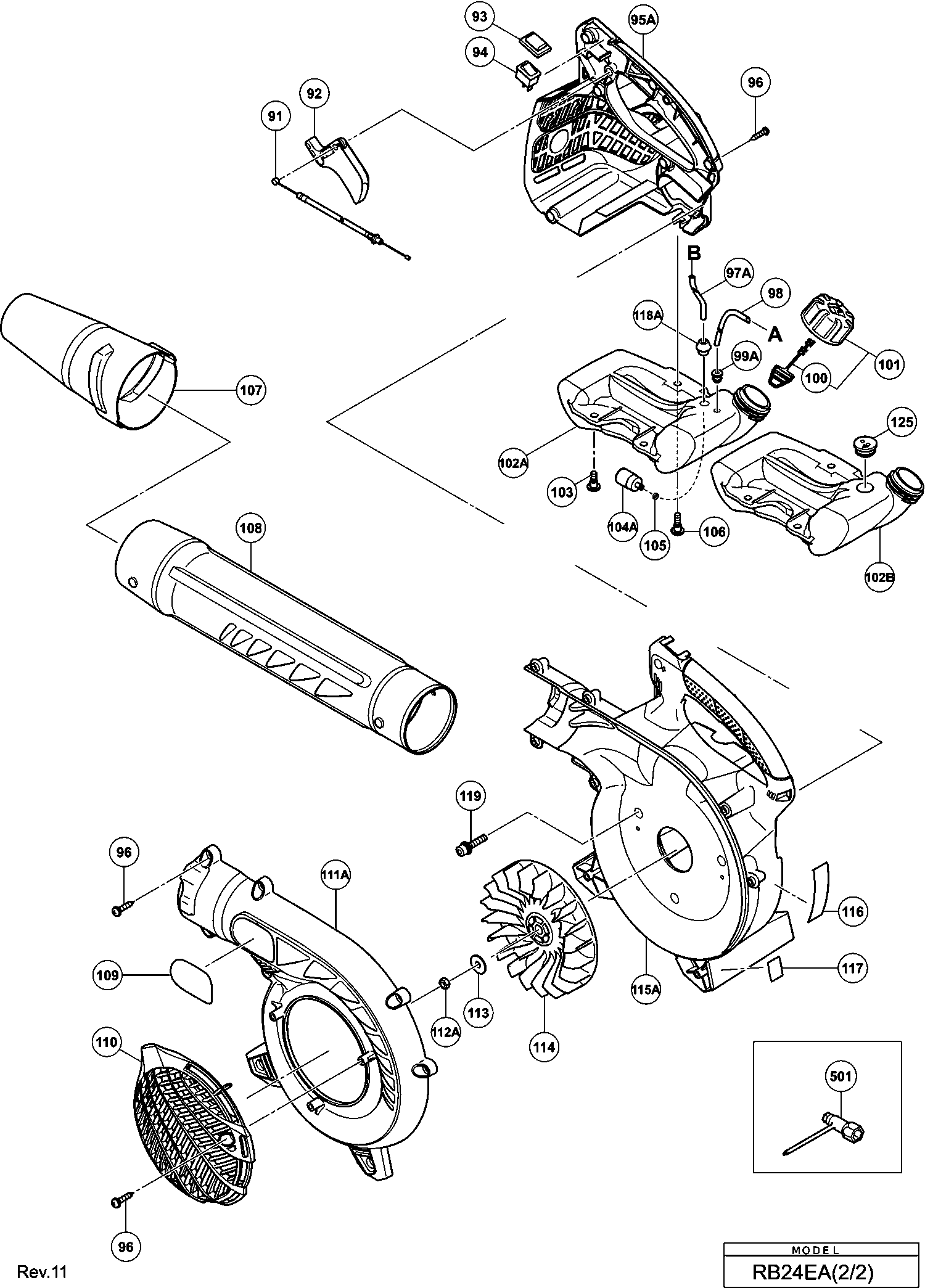

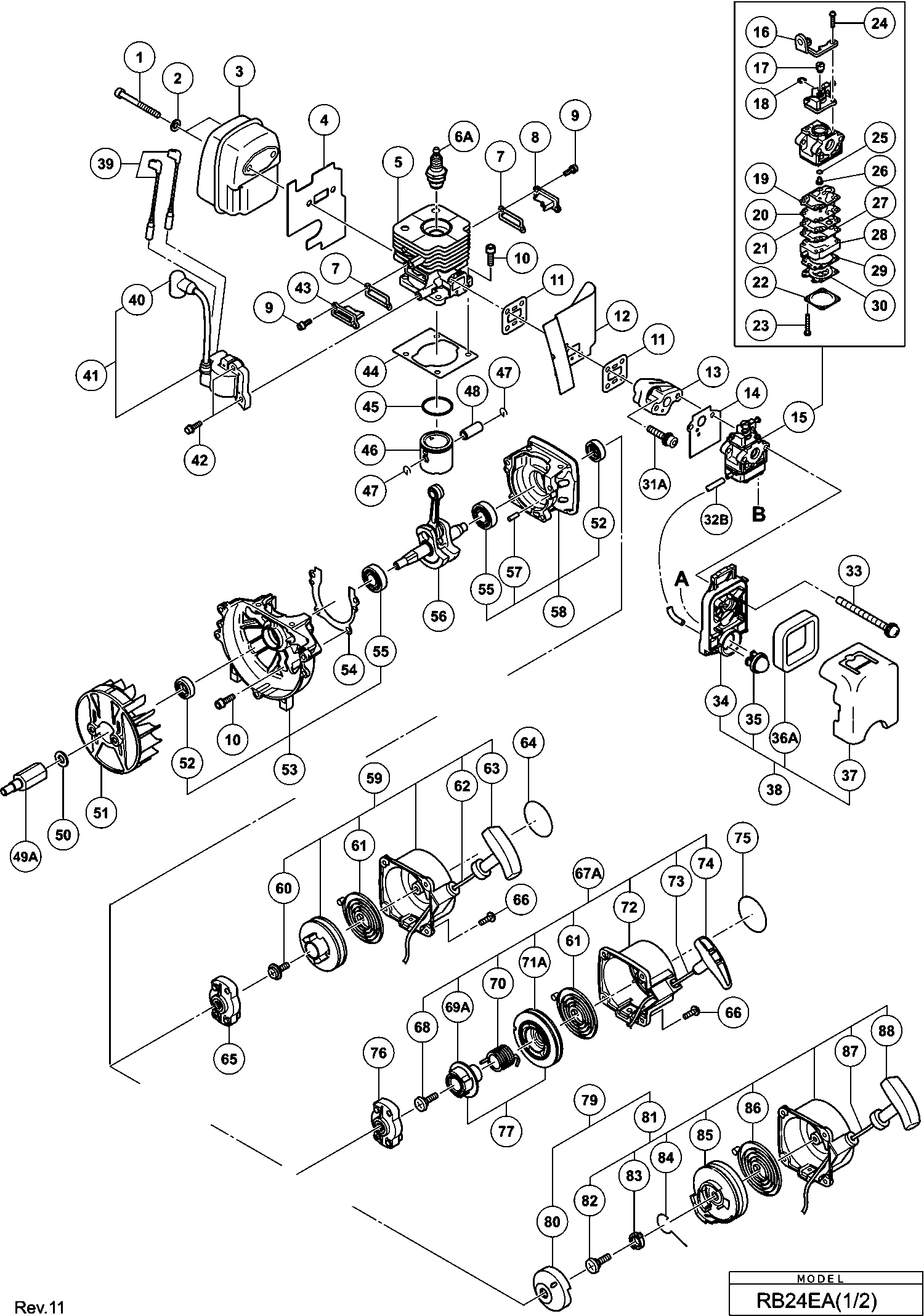

Zeichnungen der Hikoki RB24EA
Teileliste der Hikoki RB24EA
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Hex. Socket Hd Bolt M6x65 | ||||
| 1 | 6698384 | 1.05 | 1.25 | |
| Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
| 2 | 949432 | 1.05 | 1.25 | |
| Nicht mehr lieferbar | ||||
| 3 | 6698376 | |||
| Hitteschild | ||||
| 4 | 6698374 | 6.15 | 7.32 | |
| Zylinder | ||||
| 5 | 6698362 | 30.53 | 36.32 | |
| Bougie Bmr7a | ||||
| 6A | 6699316 | 8.91 | 10.61 | |
| Cover Packing | ||||
| 7 | 6698365 | 1.05 | 1.25 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 8 | 6698363 | 1.05 | 1.25 | |
| Hex. Socket Hd Bolt M4x12 | ||||
| 9 | 6698385 | 1.05 | 1.25 | |
| Nicht mehr lieferbar | ||||
| 10 | 6698386 | |||
| Nicht mehr lieferbar | ||||
| 11 | 6684865 | |||
| Flash Pan | ||||
| 12 | 6698372 | 2.10 | 2.50 | |
| Carburetor Insulator | ||||
| 13 | 6698387 | 3.15 | 3.75 | |
| Carbureteur Pakking | ||||
| 14 | 6698405 | 2.10 | 2.50 | |
| Carburator Wyc-27 | ||||
| 15 | 6698373 | 45.65 | 54.32 | |
| Swivel | ||||
| 17 | 6696830 | 4.45 | 5.30 | |
| Anschlagring Cg24ekb alte Art.nr. 489-25100-20 | ||||
| 18 | 6684696 | 2.15 | 2.56 | |
| Pumpendichtung Cg24ekb alte Art.nr. 577-25292-20 | ||||
| 19 | 6684692 | 29.19 | 34.73 | |
| Membranabdeckung Cg24ekb alte Art.nr.576-25100-20 | ||||
| 20 | 6684693 | 8.58 | 10.20 | |
| Pumpenplatte alte Art.nr.523-25100-20 | ||||
| 21 | 6691242 | 2.31 | 2.75 | |
| Membranabdeckung | ||||
| 22 | 6685222 | 4.45 | 5.30 | |
| Schrauben Set alte Art.nr.548-25101-20 | ||||
| 23 | 6691312 | 1.15 | 1.37 | |
| Set Screw M3x12 | ||||
| 24 | 6696829 | 1.04 | 1.23 | |
| O-RING (OUD 550-25100-20) | ||||
| 25 | 6684695 | 4.29 | 5.10 | |
| Hauptdüse #36 alte Art.nr. 599-2001w-36 | ||||
| 26 | 6697090 | 5.45 | 6.49 | |
| Schaltplatte alte Art.nr.522-25100-20 | ||||
| 27 | 6691234 | 3.30 | 3.93 | |
| Pump Body | ||||
| 28 | 6696828 | 13.36 | 15.90 | |
| Membran Verpackung | ||||
| 29 | 6685220 | 2.31 | 2.75 | |
| Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | ||||
| 30 | 6684690 | 18.00 | 21.42 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 31A | 6698844 | 1.20 | 1.43 | |
| Brandstofleiding L70 | ||||
| 32B | 6699014 | 1.65 | 1.96 | |
| Kopfschraube M5x60 M.u-scheibe (schwarz) | ||||
| 33 | 307224 | 1.05 | 1.25 | |
| Nicht mehr lieferbar | ||||
| 34 | 6696832 | |||
| Hauptpumpe | ||||
| 35 | 6685139 | 5.94 | 7.07 | |
| Cleaner Sponge | ||||
| 36A | 6600704 | 3.80 | 4.52 | |
| Nicht mehr lieferbar | ||||
| 37 | 6696831 | |||
| Air Cleaner Ass'y | ||||
| 38 | 6696549 | 9.13 | 10.86 | |
| Cord (l325) | ||||
| 39 | 6696566 | 2.10 | 2.50 | |
| Nicht mehr lieferbar | ||||
| 40 | 6696833 | |||
| Bobine | ||||
| 41 | 6698397 | 18.56 | 22.09 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 42 | 6698388 | 1.05 | 1.25 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 43 | 6698364 | 1.05 | 1.25 | |
| Cylinder Packing | ||||
| 44 | 6698366 | 1.05 | 1.25 | |
| Zuiger Ring | ||||
| 45 | 6698404 | 4.20 | 5.00 | |
| Kolben | ||||
| 46 | 6698368 | 7.28 | 8.66 | |
| Kolbenstift Cg24ekb | ||||
| 47 | 6684590 | 2.15 | 2.56 | |
| Kolbenstift Cg24ekb | ||||
| 48 | 6684591 | 4.29 | 5.10 | |
| Special Bolt | ||||
| 49A | 6600347 | 1.80 | 2.14 | |
| Bolzenscheibe H65sd2 | ||||
| 50 | 323212 | 1.05 | 1.25 | |
| Magneto Rotor | ||||
| 51 | 6698396 | 8.70 | 10.35 | |
| Öldichtung Cg24ekb | ||||
| 52 | 6684607 | 4.29 | 5.10 | |
| Crank Case Ass'y (b) | ||||
| 53 | 6698370 | 15.68 | 18.65 | |
| Crank Case Packing | ||||
| 54 | 6698371 | 1.05 | 1.25 | |
| Kugellager Cg24ekb | ||||
| 55 | 6684608 | 3.80 | 4.52 | |
| Kurbelwelle | ||||
| 56 | 6696533 | 32.31 | 38.45 | |
| Knock Pin 4x12 | ||||
| 57 | 6696947 | 1.05 | 1.25 | |
| Crank Case Ass'y (a) | ||||
| 58 | 6698369 | 13.35 | 15.89 | |
| Seilzugstartergehäuse Includ.60-63 Till 7.2014 | ||||
| 59 | 6696572 | 10.20 | 12.14 | |
| Stellschraube alte Art.nr. 839-02010-20 Till 7.20 | ||||
| 60 | 6693633 | 1.15 | 1.37 | |
| Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | ||||
| 61 | 6684675 | 11.55 | 13.74 | |
| Schnuranlasser alte Art.nr. 783-06097-20 Till 7.2 | ||||
| 62 | 6693168 | 2.31 | 2.75 | |
| Startergriff alte Art.nr.785-01620-20 Till 7.2014 | ||||
| 63 | 6693227 | 3.30 | 3.93 | |
| Riemenscheibe Till 7.2014 | ||||
| 65 | 6696471 | 5.10 | 6.07 | |
| Screw M4x16 (w/washer) | ||||
| 66 | 6698398 | 1.05 | 1.25 | |
| Nicht mehr lieferbar | ||||
| 67A | 6699995 | |||
| SET SCREW (OLD 839-03045-20) | ||||
| 68 | 6684679 | 2.15 | 2.56 | |
| Cam Plate | ||||
| 69A | 6699996 | 2.55 | 3.03 | |
| Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20 | ||||
| 70 | 6684677 | 8.58 | 10.20 | |
| Starter Rope Reel | ||||
| 71A | 6699997 | 8.41 | 10.01 | |
| Seilzugstarter Gehäuse Cg24ekb For (s) Type Since | ||||
| 72 | 6684673 | 19.06 | 22.68 | |
| Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo | ||||
| 73 | 6684674 | 4.29 | 5.10 | |
| Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo | ||||
| 74 | 6684680 | 2.15 | 2.56 | |
| Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90 | ||||
| 76 | 6684681 | 13.20 | 15.71 | |
| Cam Plate Ass'y | ||||
| 77 | 6699691 | 6.10 | 7.26 | |
| Recoil Starter Ass'y | ||||
| 79 | 6600408 | 8.25 | 9.82 | |
| Starter Pulley | ||||
| 80 | 6600407 | 2.55 | 3.03 | |
| Recoil Ass'y | ||||
| 81 | 6600406 | 7.20 | 8.57 | |
| Recoil Set Screw | ||||
| 82 | 6600404 | 1.20 | 1.43 | |
| Swing Arm Holder | ||||
| 83 | 6600402 | 1.35 | 1.61 | |
| Swing Arm Holder | ||||
| 84 | 6600401 | 1.65 | 1.96 | |
| Nicht mehr lieferbar | ||||
| 85 | 6600405 | |||
| Recoil Spring | ||||
| 86 | 6600403 | 4.80 | 5.71 | |
| Recoil Rope 3x800 | ||||
| 88 | 6600400 | 1.50 | 1.78 | |
| Recoil Handle | ||||
| 89 | 6600399 | 2.10 | 2.50 | |
| Gaskabel | ||||
| 91 | 6698399 | 2.10 | 2.50 | |
| Regulateur | ||||
| 92 | 6698391 | 1.05 | 1.25 | |
| Switch Cover | ||||
| 93 | 6698400 | 1.05 | 1.25 | |
| Nicht mehr lieferbar | ||||
| 94 | 6685364 | |||
| Muffler Protector | ||||
| 95A | 6699427 | 9.60 | 11.42 | |
| Schneidschraube D5x20 M.flansch H41mb | ||||
| 96 | 302089 | 1.05 | 1.25 | |
| Brandstofleiding | ||||
| 97A | 6698716 | 3.45 | 4.11 | |
| Nicht mehr lieferbar | ||||
| 98 | 6698401 | |||
| Return Grommet (old 6684627) | ||||
| 99A | 6697846 | 1.04 | 1.23 | |
| Nicht mehr lieferbar | ||||
| 100 | 6684625 | |||
| Tank Dop Compleet | ||||
| 101 | 6698402 | 4.20 | 5.00 | |
| Behalter | ||||
| 102A | 6600317 | 7.95 | 9.46 | |
| Tank (c) | ||||
| 102B | 6600354 | 3.45 | 4.11 | |
| Bout L17.8 | ||||
| 103 | 6698511 | 1.05 | 1.25 | |
| Pomp Filter | ||||
| 104A | 6600351 | 2.70 | 3.21 | |
| Clip | ||||
| 105 | 6696949 | 1.68 | 1.99 | |
| Bout L23.8 | ||||
| 106 | 6698512 | 1.05 | 1.25 | |
| Opzetstuk | ||||
| 107 | 6698394 | 5.25 | 6.25 | |
| Blaaspijp | ||||
| 108 | 6698393 | 10.35 | 12.32 | |
| Luchtrooster | ||||
| 110 | 6698381 | 2.10 | 2.50 | |
| Slakkehuis | ||||
| 111A | 6699428 | 8.10 | 9.64 | |
| U-mutter Rb24e | ||||
| 112A | 6684932 | 2.15 | 2.56 | |
| Nicht mehr lieferbar | ||||
| 113 | 6684924 | |||
| Luefter | ||||
| 114 | 6698378 | 6.90 | 8.21 | |
| Ventilatorhuis (oud 6698380) | ||||
| 115A | 6699426 | 16.78 | 19.96 | |
| Lüftergehäuse | ||||
| 115A | 6699429 | 16.50 | 19.64 | |
| Fuel Grommet | ||||
| 118A | 6698931 | 3.45 | 4.11 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 119 | 6698844 | 1.20 | 1.43 | |
| Fuel Grommet | ||||
| 125 | 6600358 | 1.04 | 1.23 | |
| Nicht mehr lieferbar | ||||
| 501 | 6698403 | |||
| Nicht mehr lieferbar | ||||
| 601 | 6699184 | |||
