Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki TBC-225CS'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

Zeichnungen der Hikoki TBC-225CS

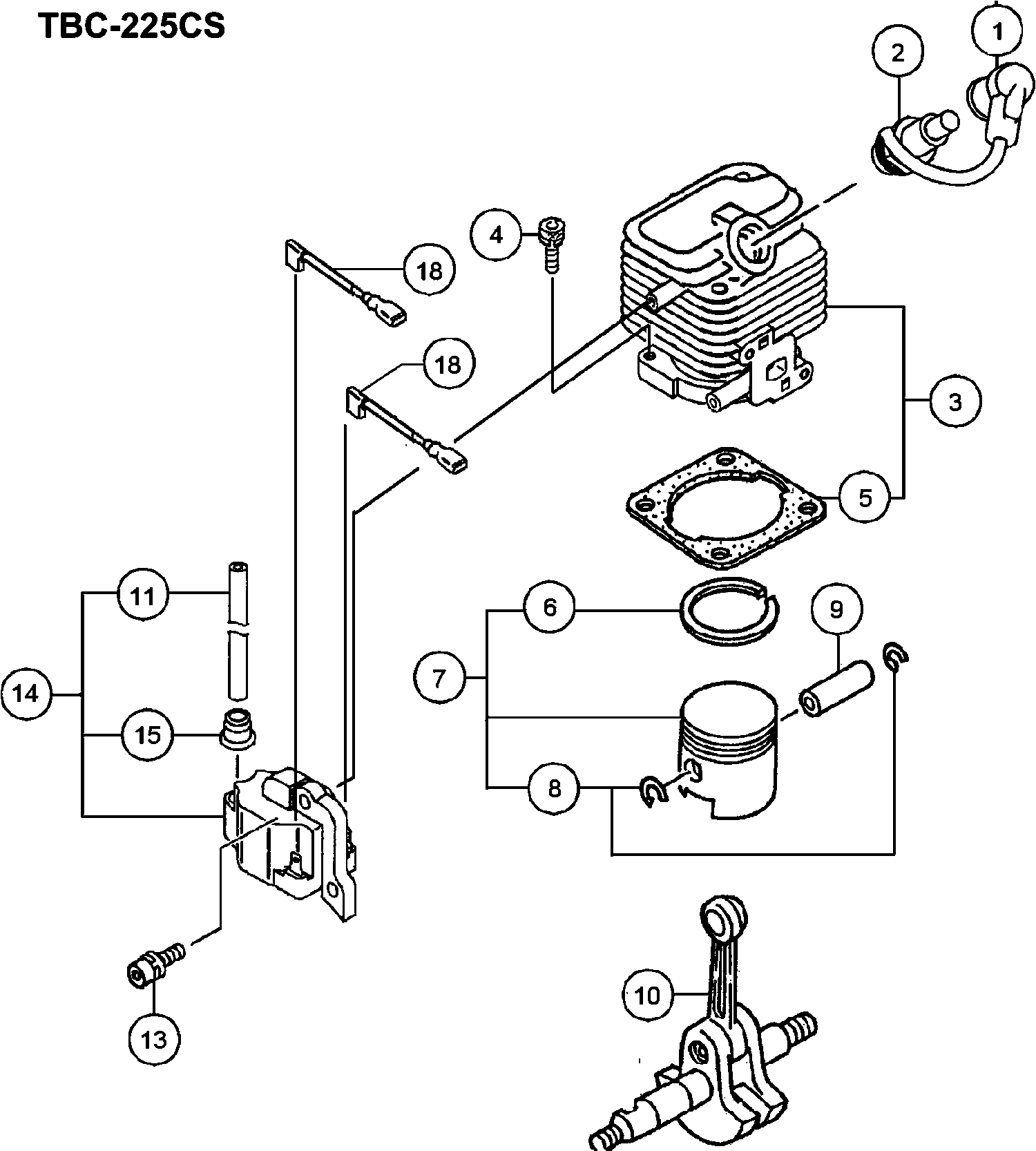

Teilezeichnung 1
Zum Vergrößern anklicken

Teileliste der Hikoki TBC-225CS

Pos. Beschreibung Preis ohne MwSt Preis inkl. MwSt
Die angegebenen Preise enthalten die Mehrwertsteuer

Zündkerzenkappe kpl. alte Art.nr. 157-01570-90 Ti
1 6687468 2.31 2.75

Zündkerzenbaugruppe (alt 6685085)
2 6699317 6.76 8.05

Zylinder-set
3 6685489 34.19 40.68

Sechskantbolzen Cg24ekb
4 6684586 2.15 2.56

Zylinderdichtung alte Art.nr. 017-00980-20
5 6685709 1.15 1.37

Kolbenring
6 6686118 4.45 5.30

Kolbenset alte Art.nr. 030-00070-90
7 6685869 15.58 18.53

Kolbenstift Cg24ekb
8 6684590 2.15 2.56

Kolbenstift
9 6696944 3.33 3.96

Kurbelwelle kpl.
10 6686217 42.20 50.22

Hochspannungskabel 140l Till G165840
11 6687888 2.31 2.75

Sechskantbolzen Cg24ekb alte Art.nr. 994-63040-15
13 6684682 2.15 2.56

Zündspule Ass'y (alt 6687665/6699774)
14 6699772 17.85 21.24

Gummikappe Cg24ekb Till G165840
15 6684602 2.15 2.56

Kabelstopper kpl. Till F061750
18 6687826 2.31 2.75

Getriebewelle Cg24ekb
31 6684604 2.15 2.56

Getriebewelle Cg24ekb
31 6684605 2.15 2.56

Kurbelgehäuse kpl.
32 6686585 36.15 43.02

Öldichtung Cg24ekb
33 6684607 4.29 5.10

Kugellager Cg24ekb
34 6684608 3.80 4.52

Dichtung f. Kurbelgehäuse alte Art.nr. 090-06410-
35 6686719 1.15 1.37

Sechskantbolzen Cg24ekb
36 6684586 2.15 2.56

Magneto-Rotor-Komp.
37 6601171 22.99 27.36

Unterlegscheibe Cg24ekb Neue Art.nr. 6684611
38 6684611 2.15 2.56

Sechskantmutter Cg24ekb
39 6684612 2.15 2.56

Ansaugkrümmerdichtung
51 6689890 1.15 1.37

Vergaser Isolator Set
52 6689914 5.94 7.07

Vergaserdichtung (ALT 402-0602K-21/6689836)
53 6684615 2.15 2.56

Sechskantbolzen 5x22/ws alte Art.nr. 994-64050-22
54 6695514 1.15 1.37

Röhrenschutz
57 6688174 2.31 2.75

Clip Cg24ekb
58 6684619 2.15 2.56

Keine Informationen verfügbar, nicht bestellbar
59 6684620

Tank (evapo) alte Art.nr.591-071f-20 Since D00100
60 6691595 30.25 36.00

Tankdeckel alte Art.nr.595-03002-90 Since K032881
61 6691748 7.59 9.03

Manschette 5.8 alte Art.nr.659-00801-20 Till G103
62 6692244 1.15 1.37

Vergaser Set Wyl182 Since B023801
63 6690512 66.40 79.02

Spannschlosskappe Since C026901
64 6691337 1.15 1.37

Sechskantbolzen 5x16/ps alte Art.nr. 994-63050-16
65 6695504 1.15 1.37

Schraube 5x20ws alte Art.nr. 994-65050-205 Till G
66 6695516 1.15 1.37

Benzinleitung Rb24e
68 6684880 2.15 2.56

Rückkehr Dichtung (alt 6684627)
69 6697846 1.04 1.23

Schraube 5x60/ws alte Art.nr. 994-16050-601 Till
71 6695431 1.15 1.37

O-Ring P-15
72 6698966 1.04 1.23

Schalldämpferschutz schwarz alte Art.-nr.738-0716
91 6692809 5.11 6.08

Schraube 4x15ps alte Art.nr. 994-15040-151
92 6695373 1.15 1.37

Blechschraube Cg24ekb
94 6684637 2.15 2.56

Sechskantbolzen
95 6685114 1.15 1.37

Unterlegscheibe Rb24e
96 6684918 2.15 2.56

Schalldämpfer Set alte Art.-nr.704-07139-90 For A
98 6692496 12.54 14.92

Schalldämpferdichtung alte Art.-nr.737-07000-20
100 6692745 1.15 1.37

Hitzeschutz 133-06540-20
101 6687253 2.31 2.75

Ring
103 6684642 2.15 2.56

Kupplungsschuh T-16 Till F113110
104 6688616 7.59 9.03

Kupplungsfeder Till F113110
105 6689430 2.31 2.75

Kupplungsscheibe Cg24ekb
106 6684645 2.15 2.56

Stufen Bolzen Till F113110
107 6689627 1.15 1.37

Ring
108 6684648 2.15 2.56

Sechskantbolzen Cg24ekb alte Art.nr. 994-64050-18
110 6684647 2.15 2.56

Sechskantbolzen Cg24eks, Dv14dvf, Cg18dl
112 6684973 2.15 2.56

Kabelklemme kpl.
113 6688011 1.15 1.37

Schalldämpfer Bolzen alte Art.nr. 751-04200-20 Fo
114 6692883 1.15 1.37

Auspuff Set Reserve alte Art.-nr.734-0099k-90 For
115 6692709 2.31 2.75

Ring
116 6685109 1.15 1.37

Schalldämpfer Draht alte Art.-nr.732-0099f-90 For
117 6692688 2.31 2.75

Keine Informationen verfügbar, nicht bestellbar
131A 6699995

Seilzugstarter Gehäuse Cg24ekb For (s) Type Since
132 6684673 19.06 22.68

Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo
133 6684674 4.29 5.10

Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti
134 6684675 11.55 13.74

Starter Seilrolle
135A 6699997 8.41 10.01

Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20
136 6684677 8.58 10.20

NOCKENPLATTE
137A 6699996 2.55 3.03

Einstellschraube (alte 839-03045-20)
138 6684679 2.15 2.56

Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo
139 6684680 2.15 2.56

Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90
140 6684681 13.20 15.71

Sechskantbolzen 4x18ws alte Art.nr. 994-64040-185
141 6695508 1.15 1.37

Anschlagring Cg24ekb Neue Art.-nr. 6684683 Since
142 6684683 2.15 2.56

Feder f. Startersperre Cg24ekb
143 6684684 4.29 5.10

Startersperre Cg24ekb alte Art.nr.788-0651h-20
144 6684685 4.29 5.10

Nockenplatte Ass'y
145 6699691 6.10 7.26

Luftfilter kpl.
171 6690005 9.58 11.39

Luftfilterkappe
172 6690139 4.45 5.30

Filter Element
173 6690347 4.45 5.30

Manschette
175 6690801 2.31 2.75

Filtergehäuse kpl.
176 6690085 8.91 10.61

Pumpengehäuse Rb24e
191 6684879 62.16 73.97

Entlüftungspumpe Cg24ekb alte Art.nr. 442-25151-8
192 6684687 16.34 19.44

Membranabdeckung Cg24ekd alte Art.nr. 476-25151-2
193 6684688 8.58 10.20

Grundgehäuse Cg24ekb alte Art.nr. 447-25108-20
194 6684689 6.44 7.66

Dosiermembrane alte Art.nr.474-25241-80
195 6690830 11.88 14.13

Membrandichtung Cg24ekb alte Art.nr.475-25153-20
196 6684691 8.58 10.20

Membranabdeckung Cg24ekb alte Art.nr.576-25100-20
197 6684693 8.58 10.20

Pumpendichtung alte Art.nr.577-25100-20
198 6691457 7.10 8.45

Hauptdüse alte Art.nr.599-2000w-38 Since B023801
199 6691844 4.45 5.30

O-RING (ALT 550-25100-20)
200 6684695 4.29 5.10

Anschlagring Cg24ekb alte Art.nr. 489-25100-20
201 6684696 2.15 2.56

Spannschloss Cg24ekb alte Art.nr. 539-25120-20
202 6684697 6.44 7.66

Drosselschrauben Set Cg24ekb alte Art.nr. 548-251
203 6684698 4.29 5.10

Stellschraube Cg24ekb alte Art.nr. 548-25151-20
204 6684699 2.15 2.56

Schutzsieb Cg24ekb
205 6684700 4.29 5.10

Kupplungstrommel Comp (alt 6688603)
221 6697713 11.05 13.15

Schneidschraube
222 6685152 1.15 1.37

Sechskantbolzen Cg24eks, Dv14dvf, Cg18dl
223 6684973 2.15 2.56

Lüftergehäuse
224 6687031 14.53 17.28

Vierkantmutter 5 alte Art.nr. 991-91050-001 Till
225 6695176 1.15 1.37

Distanzstück
226 6688311 1.05 1.25

Hauptröhre Set For Irl
261 6689610 88.33 105.11

Messergehäuse For Irl
262 6685044 58.39 69.48

Hauptröhre For Irl
263 6689413 50.21 59.75

flexible Abdichtung For Irl
264 6685037 17.70 21.06

flexible Welle For Usa (slb)
265 6685038 17.70 21.06

Keine Informationen verfügbar, nicht bestellbar
266 6698339

Kugellager 608 Zz
267 6695547 3.30 3.93

Hülse 5
268 6685014 2.10 2.50

Bolzen M5x10 For Irl
269 6684994 1.15 1.37

Messergehäuse For Irl
270 6685042 24.20 28.80

Hex Bolzen M 5 x 30 For Irl
271 6684996 1.15 1.37

Ring
272 6684971 1.04 1.23

Ring
273 6685001 1.15 1.37

Messerhalter
274 6685073 4.45 5.30

Keine Informationen verfügbar, nicht bestellbar
275 6685016

Sicherheitsabdeckung For Irl
276 6685030 12.05 14.34

Ring
277 6684639 2.15 2.56

Keine Informationen verfügbar, nicht bestellbar
278 6684792

Plusbolzen 6x45 For Usa (slb)
279 6684995 1.15 1.37

Messer For Usa (slb)
280 6685015 2.31 2.75

Schneidschraube
281 6685074 1.15 1.37

Leitungshalter
282 6689501 2.31 2.75

Schaft Griff For Irl
283 6685032 14.68 17.46

Frontgriff For Irl
321 6685041 20.11 23.93

Keine Informationen verfügbar, nicht bestellbar
322 6685075

Sechskantbolzen 5x30 S alte Art.nr. 994-16050-301
323 6695426 1.15 1.37

Gashebel alte Art.nr. 870-38474-90 For Irl
324 6693772 30.25 36.00

Drosselklappen-seil alte Art.nr.885-38451-81 For
325 6693983 3.30 3.93

Drosselklappenhebel
326 6685006 1.15 1.37

Gegenfeder
327 6684998 1.15 1.37

Stoppschalter
328 6685009 2.31 2.75

Schaltermarkierung
329 6685003 1.15 1.37

Stoppschalter kpl. alte Art.nr. 156-38451-80
330 6687462 9.40 11.19

Schraube M5x30
331 6685076 1.15 1.37

Sechskantmutter 5
332 6684965 1.04 1.23

Schneidschraube Since C026901 Till F024130
333 6685275 1.15 1.37

Schutzrohr 7x170
334 6685007 2.31 2.75

Keine Informationen verfügbar, nicht bestellbar
501 6684813

Keine Informationen verfügbar, nicht bestellbar
502 6684764

Symbolmarkierung alte Art.nr. 929-07177-20
601 6694648 1.15 1.37
