Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita AC3610'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

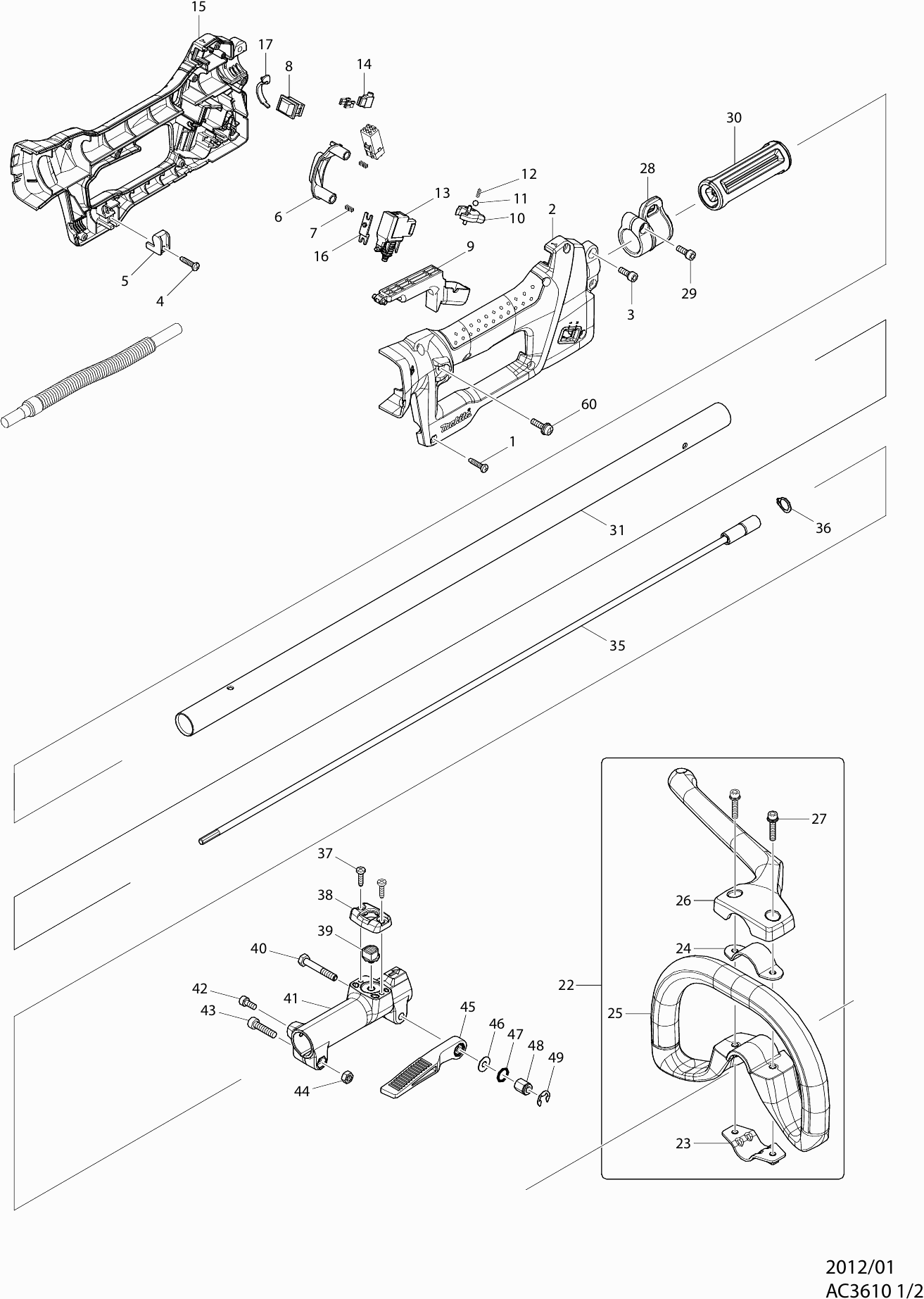

Zeichnungen der Makita AC3610
Teileliste der Makita AC3610
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Tapschroef 4x18 | ||||
001 | 265A48-7@141 | 0.90 | 1.07 | |
Tapschroef 4x18 | ||||
1 | 265A48-7@141 | 0.90 | 1.07 | |
Handgreep set | ||||
002 | 188840-7@141 | 63.78 | 75.90 | |
Handgreep set | ||||
2 | 188840-7@141 | 63.78 | 75.90 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
003 | 922228-9@141 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
3 | 922228-9@141 | |||
Tapschroef 4x18 | ||||
004 | 265A48-7@141 | 0.90 | 1.07 | |
Tapschroef 4x18 | ||||
4 | 265A48-7@141 | 0.90 | 1.07 | |
Trekontlaster | ||||
005 | 687261-5@141 | 0.83 | 0.99 | |
Trekontlaster | ||||
5 | 687261-5@141 | 0.83 | 0.99 | |
Blokeerknop | ||||
006 | 451983-1@141 | 8.46 | 10.07 | |
Blokeerknop | ||||
6 | 451983-1@141 | 8.46 | 10.07 | |
Drukveer 4 | ||||
007 | 233054-4@141 | 0.83 | 0.99 | |
Drukveer 4 | ||||
7 | 233054-4@141 | 0.83 | 0.99 | |
Schakelaar sle6a2-33 | ||||
008 | 651533-4@141 | 3.83 | 4.56 | |
Schakelaar sle6a2-33 | ||||
8 | 651533-4@141 | 3.83 | 4.56 | |
Schalterknopf | ||||
009 | 451984-9@141 | 16.13 | 19.19 | |
Schalterknopf | ||||
9 | 451984-9@141 | 16.13 | 19.19 | |
Stroomindicator | ||||
010 | 451986-5@141 | 11.16 | 13.28 | |
Stroomindicator | ||||
10 | 451986-5@141 | 11.16 | 13.28 | |
Stalen kogel 5.0 | ||||
011 | 216018-3@141 | 0.83 | 0.99 | |
Stalen kogel 5.0 | ||||
11 | 216018-3@141 | 0.83 | 0.99 | |
Drukveer 2 | ||||
012 | 233211-4@141 | 0.83 | 0.99 | |
Drukveer 2 | ||||
12 | 233211-4@141 | 0.83 | 0.99 | |
Schakelaar Tgr3-3 | ||||
013 | 650630-3@141 | 13.19 | 15.70 | |
Schakelaar Tgr3-3 | ||||
13 | 650630-3@141 | 13.19 | 15.70 | |
Hülse | ||||
014 | 686015-7@141 | 0.83 | 0.99 | |
Hülse | ||||
14 | 686015-7@141 | 0.83 | 0.99 | |
Handgreep set | ||||
015 | 188840-7@141 | 63.78 | 75.90 | |
Handgreep set | ||||
15 | 188840-7@141 | 63.78 | 75.90 | |
Verbindingsplaat | ||||
016 | 451982-3@141 | 7.44 | 8.85 | |
Verbindingsplaat | ||||
16 | 451982-3@141 | 7.44 | 8.85 | |
Kabeltuelle | ||||
017 | 451985-7@141 | 10.81 | 12.86 | |
Kabeltuelle | ||||
17 | 451985-7@141 | 10.81 | 12.86 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
022 | 195515-1@141 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
22 | 195515-1@141 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
023 | 346467-1@141 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
23 | 346467-1@141 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
024 | 346468-9@141 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
24 | 346468-9@141 | |||
Beugelhandgreep | ||||
025 | 452841-4@141 | 10.81 | 12.86 | |
Beugelhandgreep | ||||
25 | 452841-4@141 | 10.81 | 12.86 | |
Klemdeksel | ||||
026 | 452842-2@141 | 4.09 | 4.87 | |
Klemdeksel | ||||
26 | 452842-2@141 | 4.09 | 4.87 | |
Vleugelbout M5X25Mm | ||||
027 | 922244-1@141 | 1.00 | 1.19 | |
Vleugelbout M5X25Mm | ||||
27 | 922244-1@141 | 1.00 | 1.19 | |
Hanger | ||||
028 | 168478-4@141 | 4.08 | 4.86 | |
Hanger | ||||
28 | 168478-4@141 | 4.08 | 4.86 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
029 | 922228-9@141 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
29 | 922228-9@141 | |||
Distanzscheibe | ||||
030 | 451601-1@141 | 2.08 | 2.48 | |
Distanzscheibe | ||||
30 | 451601-1@141 | 2.08 | 2.48 | |
Gelenkwelle (a) | ||||
031 | 141499-1@141 | 21.70 | 25.82 | |
Warnschild | ||||
031 | 898125-0@141 | 8.46 | 10.07 | |
Gelenkwelle (a) | ||||
31 | 141499-1@141 | 21.70 | 25.82 | |
Binnenas | ||||
035 | 141238-9@141 | 16.84 | 20.04 | |
Borgring S-12 | ||||
036 | 961052-5@141 | 0.83 | 0.99 | |
Borgring S-12 | ||||
36 | 961052-5@141 | 0.83 | 0.99 | |
Tapschroef Ct4x16 | ||||
037 | 266034-5@141 | 0.83 | 0.99 | |
Tapschroef Ct4x16 | ||||
37 | 266034-5@141 | 0.83 | 0.99 | |
Kap tbv ontgrendelknop | ||||
038 | 452840-6@141 | 1.21 | 1.44 | |
Kap tbv ontgrendelknop | ||||
38 | 452840-6@141 | 1.21 | 1.44 | |
Ontgrendelknop | ||||
039 | 452839-1@141 | 1.01 | 1.20 | |
Ontgrendelknop | ||||
39 | 452839-1@141 | 1.01 | 1.20 | |
Inbusbout M6X40 | ||||
040 | 265596-0@141 | 0.83 | 0.99 | |
Inbusbout M6X40 | ||||
40 | 265596-0@141 | 0.83 | 0.99 | |
Verbindungsstück | ||||
041 | 312D49-5@141 | 15.29 | 18.20 | |
Verbindungsstück | ||||
41 | 312D49-5@141 | 15.29 | 18.20 | |
Inbusbout 5x12 | ||||
042 | 922211-6@141 | 0.83 | 0.99 | |
Inbusbout M6X25 P * | ||||
043 | 922342-1@141 | 0.83 | 0.99 | |
Zeskant moer M6 | ||||
044 | 931302-2@141 | 0.83 | 0.99 | |
Zeskant moer M6 | ||||
44 | 931302-2@141 | 0.83 | 0.99 | |
Hebel | ||||
045 | 272268-0@141 | 2.08 | 2.48 | |
Hebel | ||||
45 | 272268-0@141 | 2.08 | 2.48 | |
Dunne ring 6 | ||||
046 | 253332-6@141 | 0.83 | 0.99 | |
Dunne ring 6 | ||||
46 | 253332-6@141 | 0.83 | 0.99 | |
O-ring 11 | ||||
047 | 213105-9@141 | 0.83 | 0.99 | |
O-ring 11 | ||||
47 | 213105-9@141 | 0.83 | 0.99 | |
Zeskantmoer M6 | ||||
048 | 252159-1@141 | 2.08 | 2.48 | |
Zeskantmoer M6 | ||||
48 | 252159-1@141 | 2.08 | 2.48 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
049 | 961014-3@141 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
49 | 961014-3@141 | |||
Schroef Vk 20mm | ||||
060 | 911233-1@141 | 0.83 | 0.99 | |
Schroef Vk 20mm | ||||
60 | 911233-1@141 | 0.83 | 0.99 | |
Abdeckhaube | ||||
061 | 451981-5@141 | 17.90 | 21.30 | |
Abdeckhaube | ||||
61 | 451981-5@141 | 17.90 | 21.30 | |
Damper | ||||
062 | 424307-4@141 | 2.08 | 2.48 | |
Damper | ||||
62 | 424307-4@141 | 2.08 | 2.48 | |
Zeskant Bout 5X20 LF1000 A | ||||
063 | 265550-4@141 | 0.83 | 0.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
63 | 922231-0@141 | |||
Steelhouder | ||||
064 | 318560-1@141 | 28.73 | 34.19 | |
Steelhouder | ||||
64 | 318560-1@141 | 28.73 | 34.19 | |
Schroef Vk 20mm | ||||
065 | 911233-1@141 | 0.83 | 0.99 | |
Schroef Vk 20mm | ||||
65 | 911233-1@141 | 0.83 | 0.99 | |
Rubber pen 4 | ||||
066 | 263002-9@141 | 0.83 | 0.99 | |
Rubber pen 4 | ||||
66 | 263002-9@141 | 0.83 | 0.99 | |
O-Ring 6 An250/Bo3711 | ||||
067 | 213045-1@141 | 0.83 | 0.99 | |
O-Ring 6 An250/Bo3711 | ||||
67 | 213045-1@141 | 0.83 | 0.99 | |
Ashouder | ||||
068 | 325811-5@141 | 17.63 | 20.98 | |
Ashouder | ||||
68 | 325811-5@141 | 17.63 | 20.98 | |
Kogellager 6001zz | ||||
069 | 211148-5@141 | 8.46 | 10.07 | |
Kogellager 6001zz | ||||
69 | 211148-5@141 | 8.46 | 10.07 | |
Sluitring 12 | ||||
070 | 253744-3@141 | 0.83 | 0.99 | |
Sluitring 12 | ||||
70 | 253744-3@141 | 0.83 | 0.99 | |
Tandwiel 33 | ||||
071 | 227720-3@141 | 43.10 | 51.29 | |
Tandwiel 33 | ||||
71 | 227720-3@141 | 43.10 | 51.29 | |
Sluitring 12 | ||||
072 | 253744-3@141 | 0.83 | 0.99 | |
Sluitring 12 | ||||
72 | 253744-3@141 | 0.83 | 0.99 | |
Kogellager 6901zz | ||||
073 | 211150-8@141 | 5.22 | 6.21 | |
Kogellager 6901zz | ||||
73 | 211150-8@141 | 5.22 | 6.21 | |
Getriebegehaeuse | ||||
074 | 318559-6@141 | 34.36 | 40.89 | |
Getriebegehaeuse | ||||
74 | 318559-6@141 | 34.36 | 40.89 | |
Tapschroef 4x18 | ||||
075 | 265A48-7@141 | 0.90 | 1.07 | |
Tapschroef 4x18 | ||||
75 | 265A48-7@141 | 0.90 | 1.07 | |
Tapschroef 5x25 | ||||
076 | 266041-8@141 | 0.83 | 0.99 | |
Tapschroef 5x25 | ||||
76 | 266041-8@141 | 0.83 | 0.99 | |
Pedal | ||||
077 | 451572-2@141 | 8.46 | 10.07 | |
Pedal | ||||
77 | 451572-2@141 | 8.46 | 10.07 | |
Schroef Vk 20mm | ||||
078 | 911233-1@141 | 0.83 | 0.99 | |
Schroef Vk 20mm | ||||
78 | 911233-1@141 | 0.83 | 0.99 | |
Kabel | ||||
079 | 699047-5@141 | 14.24 | 16.95 | |
Kabel | ||||
79 | 699047-5@141 | 14.24 | 16.95 | |
Tapschroef 4x18 | ||||
080 | 265A48-7@141 | 0.90 | 1.07 | |
Tapschroef 4x18 | ||||
80 | 265A48-7@141 | 0.90 | 1.07 | |
Schroef M4x12 | ||||
082 | 251314-2@141 | 0.83 | 0.99 | |
Schroef M4x12 | ||||
82 | 251314-2@141 | 0.83 | 0.99 | |
Batterijhouder | ||||
083 | 346194-0@141 | 24.97 | 29.71 | |
Batterijhouder | ||||
83 | 346194-0@141 | 24.97 | 29.71 | |
Handgreep set | ||||
084 | 188837-6@141 | 36.22 | 43.10 | |
Handgreep set | ||||
84 | 188837-6@141 | 36.22 | 43.10 | |
Tapschroef 4x18 | ||||
085 | 265A48-7@141 | 0.90 | 1.07 | |
Tapschroef 4x18 | ||||
85 | 265A48-7@141 | 0.90 | 1.07 | |
Motorhuisset | ||||
086 | 188838-4@141 | 10.12 | 12.04 | |
Motorhuisset | ||||
86 | 188838-4@141 | 10.12 | 12.04 | |
O-ring 22 | ||||
087 | 213961-7@141 | 0.83 | 0.99 | |
O-ring 22 | ||||
87 | 213961-7@141 | 0.83 | 0.99 | |
Anker | ||||
088 | 619254-4@141 | 73.52 | 87.49 | |
Anker | ||||
88 | 619254-4@141 | 73.52 | 87.49 | |
Feld | ||||
089 | 629880-1@141 | 63.90 | 76.04 | |
Feld | ||||
89 | 629880-1@141 | 63.90 | 76.04 | |
Motorhuisset | ||||
090 | 188838-4@141 | 10.12 | 12.04 | |
Motorhuisset | ||||
90 | 188838-4@141 | 10.12 | 12.04 | |
Tapschroef 4x18 | ||||
091 | 265A48-7@141 | 0.90 | 1.07 | |
Tapschroef 4x18 | ||||
91 | 265A48-7@141 | 0.90 | 1.07 | |
Trekontlaster | ||||
092 | 687261-5@141 | 0.83 | 0.99 | |
Trekontlaster | ||||
92 | 687261-5@141 | 0.83 | 0.99 | |
Stützplatte | ||||
093 | 346039-2@141 | 1.02 | 1.21 | |
Stützplatte | ||||
93 | 346039-2@141 | 1.02 | 1.21 | |
Handgreep set | ||||
094 | 188837-6@141 | 36.22 | 43.10 | |
Handgreep set | ||||
94 | 188837-6@141 | 36.22 | 43.10 | |
Aansluitunit | ||||
095 | 643849-1@141 | 4.08 | 4.86 | |
Aansluitunit | ||||
95 | 643849-1@141 | 4.08 | 4.86 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
096 | 631942-3@141 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
96 | 631942-3@141 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
097 | 631941-5@141 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
97 | 631941-5@141 | |||
Indicatie label | ||||
098 | 140285-7@141 | 7.44 | 8.85 | |
Indicatie label | ||||
98 | 140285-7@141 | 7.44 | 8.85 |
