Makita DHR182 Zeichnungen und Teile
Genaue Typennummer:
DHR182
DHR182

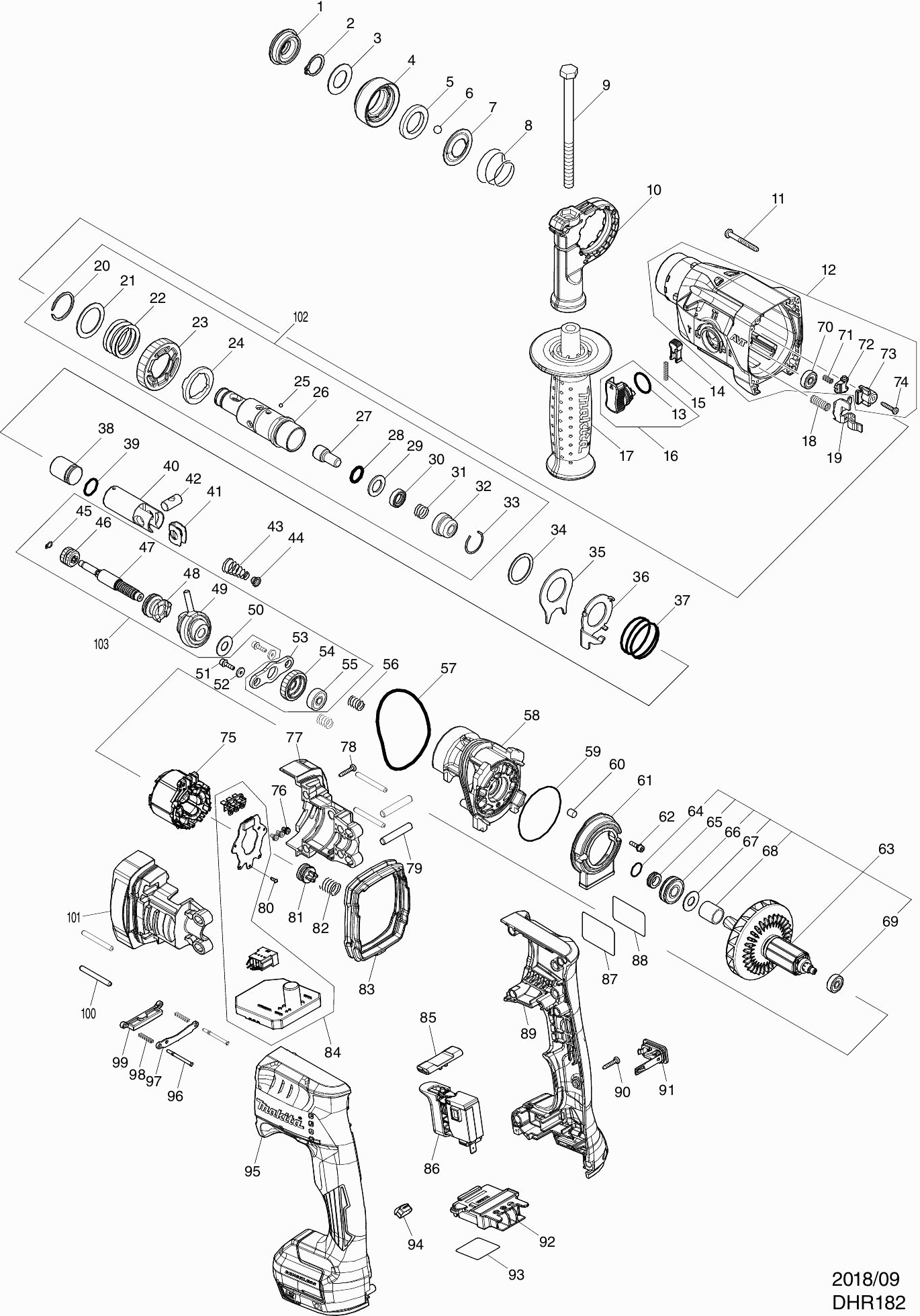

Zeichnungen der MAKITA DHR182
Teileliste der MAKITA DHR182
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Rubber stofkap 34 | ||||
| 001 | 286037-3 | Rubber stofkap 34 | € 0.96 | |
| Borgring S-17 | ||||
| 002 | 961057-5 | Borgring S-17 | € 0.96 | |
| Sluitring 17mm | ||||
| 003 | 253377-4 | Sluitring 17mm | € 0.96 | |
| Beitelblokkeerkap DHR182C | ||||
| 004 | 458845-4 | Beitelblokkeerkap DHR182C | € 0.96 | |
| Ring 21 | ||||
| 005 | 257416-2 | Ring 21 | € 0.97 | |
| Stalen kogel 7.0 | ||||
| 006 | 216022-2 | Stalen kogel 7.0 | € 0.96 | |
| Geleidering | ||||
| 007 | 346177-0 | Geleidering | € 0.96 | |
| Conische drukveer 21-29 | ||||
| 008 | 232347-6 | Conische drukveer 21-29 | € 0.96 | |
| Zeskant bout 8x120 | ||||
| 009 | 265583-9 | Zeskant bout 8x120 | € 0.97 | |
| Handgreepbeugel | ||||
| 010 | 417911-6 | Handgreepbeugel | € 2.02 | |
| Schroef 4x35 | ||||
| 011 | 266351-3 | Schroef 4x35 | € 0.96 | |
| Tandwielhuis DHR182 | ||||
| 012 | 136043-7 | Tandwielhuis DHR182 | € 28.07 | |
| Kogellager 6805llb | ||||
| 012C10 | 211375-4 | Kogellager 6805llb | € 21.11 | |
| Keerring 25mm DHR182 | ||||
| 012C20 | 213874-2 | Keerring 25mm DHR182 | € 2.71 | |
| O-ring 17 | ||||
| 013 | 213278-8 | O-ring 17 | € 0.96 | |
| Blokkeerknop DHR182 | ||||
| 014 | 458851-9 | Blokkeerknop DHR182 | € 0.96 | |
| Drukveer 3x28mm | ||||
| 015 | 234264-6 | Drukveer 3x28mm | € 0.96 | |
| Verstelknop DHR182 | ||||
| 016 | 136040-3 | Verstelknop DHR182 | € 1.67 | |
| Griff | ||||
| 017 | 158057-6 | Griff | € 9.26 | |
| Moer M8 | ||||
| 017C10 | 931402-8 | Moer M8 | € 0.96 | |
| Drukveer 8 DHR182 | ||||
| 018 | 232473-1 | Drukveer 8 DHR182 | € 0.96 | |
| Wisselplaat DHR182 | ||||
| 019 | 347463-2 | Wisselplaat DHR182 | € 0.97 | |
| Borgring Wr-25 | ||||
| 020 | 961135-1 | Borgring Wr-25 | € 1.67 | |
| Sluitring 25 | ||||
| 021 | 267304-5 | Sluitring 25 | € 0.96 | |
| Drukveer 25 | ||||
| 022 | 232360-4 | Drukveer 25 | € 0.96 | |
| Tandwiel 44 DHR182 | ||||
| 023 | 226854-9 | Tandwiel 44 DHR182 | € 5.08 | |
| Antriebsflansch | ||||
| 024 | 327039-1 | Antriebsflansch | € 2.37 | |
| Stalen kogel 3 | ||||
| 025 | 216019-1 | Stalen kogel 3 | € 0.96 | |
| Boor/beitelhouder | ||||
| 026 | 326886-7 | Boor/beitelhouder | € 13.36 | |
| Schlagbolzen | ||||
| 027 | 326887-5 | Schlagbolzen | € 0.97 | |
| O-ring 11 (3,5mm) | ||||
| 028 | 213117-2 | O-ring 11 (3,5mm) | € 1.39 | |
| Revet 13 | ||||
| 029 | 253380-5 | Revet 13 | € 0.96 | |
| Ring 10 | ||||
| 030 | 326888-3 | Ring 10 | € 0.97 | |
| Drukveer 10a | ||||
| 031 | 232357-3 | Drukveer 10a | € 0.96 | |
| Hülse | ||||
| 032 | 327038-3 | Hülse | € 2.02 | |
| Borgring 22 | ||||
| 033 | 233942-5 | Borgring 22 | € 0.96 | |
| Platte ring 24 | ||||
| 034 | 267175-0 | Platte ring 24 | € 0.96 | |
| Adapterplatte | ||||
| 035 | 345681-6 | Adapterplatte | € 0.96 | |
| Wisselplaat A DHR182 | ||||
| 036 | 347462-4 | Wisselplaat A DHR182 | € 0.97 | |
| Drukveer 32 | ||||
| 037 | 233458-0 | Drukveer 32 | € 0.96 | |
| Slaghamer DHR182 | ||||
| 038 | 327215-7 | Slaghamer DHR182 | € 2.02 | |
| O-ring 10 | ||||
| 039 | 213832-8 | O-ring 10 | € 0.96 | |
| Zuiger-cilinder | ||||
| 040 | 326890-6 | Zuiger-cilinder | € 5.08 | |
| Geleidingsplaat | ||||
| 041 | 347127-8 | Geleidingsplaat | € 0.96 | |
| Zuigerverbinding | ||||
| 042 | 324612-8 | Zuigerverbinding | € 0.97 | |
| Conische drukveer 6-13 | ||||
| 043 | 232361-2 | Conische drukveer 6-13 | € 0.96 | |
| Federfuhrung | ||||
| 044 | 347130-9 | Federfuhrung | € 0.96 | |
| Sicherungsring | ||||
| 045 | 961008-8 | Sicherungsring | € 0.96 | |
| Tandwiel 12 DHR182 | ||||
| 046 | 226853-1 | Tandwiel 12 DHR182 | € 4.45 | |
| Koppeling BHR182 | ||||
| 047 | 327216-5 | Koppeling BHR182 | € 3.97 | |
| Koppelingsplaat DHR182 | ||||
| 048 | 327217-3 | Koppelingsplaat DHR182 | € 2.71 | |
| Schommellager 9 | ||||
| 049 | 219029-7 | Schommellager 9 | € 13.36 | |
| Sluitring 9 | ||||
| 050 | 253733-8 | Sluitring 9 | € 0.96 | |
| Inbusbout M3x12mm | ||||
| 051 | 251510-2 | Inbusbout M3x12mm | € 0.96 | |
| Revet 3 | ||||
| 052 | 253381-3 | Revet 3 | € 0.96 | |
| Plaat tbv veer | ||||
| 053 | 347129-4 | Plaat tbv veer | € 0.96 | |
| Tandwiel 23 | ||||
| 054 | 221496-4 | Tandwiel 23 | € 3.55 | |
| Kogellager 626llb | ||||
| 055 | 211016-2 | Kogellager 626llb | € 5.71 | |
| Drukveer 7 | ||||
| 056 | 232359-9 | Drukveer 7 | € 0.96 | |
| O-ring 60 | ||||
| 057 | 213833-6 | O-ring 60 | € 0.96 | |
| Binnenhuis DHR182 | ||||
| 058 | 140F85-1 | Binnenhuis DHR182 | € 17.42 | |
| O-ring 51 | ||||
| 059 | 213641-5 | O-ring 51 | € 0.96 | |
| Filter | ||||
| 060 | 443138-2 | Filter | € 0.96 | |
| Luchtverplaatser DHR182 | ||||
| 061 | 458848-8 | Luchtverplaatser DHR182 | € 0.97 | |
| Inbusbout M3x12mm | ||||
| 062 | 251510-2 | Inbusbout M3x12mm | € 0.96 | |
| Anker 18V DHR182 | ||||
| 063 | 519549-4 | Anker 18V DHR182 | € 30.75 | |
| O-ring 12 | ||||
| 064 | 213118-0 | O-ring 12 | € 0.96 | |
| Ring 9 DHR182 | ||||
| 065 | 327227-0 | Ring 9 DHR182 | € 0.96 | |
| Kogellager 609llu | ||||
| 066 | 210060-6 | Kogellager 609llu | € 4.45 | |
| Sluitring 9 | ||||
| 067 | 267231-6 | Sluitring 9 | € 0.96 | |
| Bus 12mm DHR182 | ||||
| 068 | 458841-2 | Bus 12mm DHR182 | € 0.96 | |
| Kogellager 625DDW | ||||
| 069 | 210035-5 | Kogellager 625DDW | € 1.67 | |
| Kogellager 625DDW | ||||
| 070 | 210035-5 | Kogellager 625DDW | € 1.67 | |
| Drukveer 4 DHR182 | ||||
| 071 | 232474-9 | Drukveer 4 DHR182 | € 0.96 | |
| Blokkeerplaat DHR182 | ||||
| 072 | 310913-0 | Blokkeerplaat DHR182 | € 5.71 | |
| Stopplaat DHR182 | ||||
| 073 | 458846-2 | Stopplaat DHR182 | € 0.96 | |
| Tapschroef 3x16 | ||||
| 074 | 266429-2 | Tapschroef 3x16 | € 0.96 | |
| Veld 18V DHR182 | ||||
| 075 | 629393-2 | Veld 18V DHR182 | € 13.36 | |
| Kruiskop Schroef M3X6 | ||||
| 076 | 652069-6 | Kruiskop Schroef M3X6 | € 0.96 | |
| Motorhuis DHR182 | ||||
| 077 | 183L14-7 | Motorhuis DHR182 | € 4.45 | |
| Tapschroef 3x16 | ||||
| 078 | 266429-2 | Tapschroef 3x16 | € 0.96 | |
| Pin 6 | ||||
| 079 | 268076-5 | Pin 6 | € 0.96 | |
| Parker Ck 2x6mm | ||||
| 080 | 266490-9 | Parker Ck 2x6mm | € 0.96 | |
| Veersteun DHR182 | ||||
| 081 | 458847-0 | Veersteun DHR182 | € 0.96 | |
| Drukveer 10b | ||||
| 082 | 232358-1 | Drukveer 10b | € 0.96 | |
| Flexbuis DHR182 | ||||
| 083 | 422354-9 | Flexbuis DHR182 | € 1.67 | |
| Controller DHR182 | ||||
| 084 | 620995-7 | Controller DHR182 | € 112.29 | |
| L/R verstelhendel DHR182 | ||||
| 085 | 458844-6 | L/R verstelhendel DHR182 | € 0.96 | |
| Schakelaar C3JW-6B-25 DHR182 | ||||
| 086 | 651380-3 | Schakelaar C3JW-6B-25 DHR182 | € 21.11 | |
| Naamplaat DHR182 | ||||
| 087 | 855F52-0 | Naamplaat DHR182 | € 0.96 | |
| Nicht mehr lieferbar | ||||
| 088 | 818N47-2 | Nicht mehr lieferbar | ||
| Handgreep set DHR182 | ||||
| 089 | 183L12-1 | Handgreep set DHR182 | € 13.36 | |
| Rubber pen 6 | ||||
| 089C10 | 263005-3 | Rubber pen 6 | € 0.96 | |
| Borgmoer M4x7mm | ||||
| 089C20 | 252126-6 | Borgmoer M4x7mm | € 0.96 | |
| Tapschroef 3x16 | ||||
| 090 | 266429-2 | Tapschroef 3x16 | € 0.96 | |
| Afdekkap DGA701 | ||||
| 091 | 140F99-0 | Afdekkap DGA701 | € 2.37 | |
| O-ring 16 | ||||
| 091C10 | 213218-6 | O-ring 16 | € 0.96 | |
| Label DGA701 | ||||
| 091C20 | 818H07-8 | Label DGA701 | € 2.71 | |
| Aansluitunit | ||||
| 092 | 643874-2 | Aansluitunit | € 3.55 | |
| Label serienr DHR182 | ||||
| 093 | 855F59-6 | Label serienr DHR182 | € 0.96 | |
| Licht Circuit Dhp483 | ||||
| 094 | 620549-0 | Licht Circuit Dhp483 | € 3.55 | |
| Handgreep set DHR182 | ||||
| 095 | 183L12-1 | Handgreep set DHR182 | € 13.36 | |
| Rubber pen 6 | ||||
| 095C10 | 263005-3 | Rubber pen 6 | € 0.96 | |
| Borgmoer M4x7mm | ||||
| 095C20 | 252126-6 | Borgmoer M4x7mm | € 0.96 | |
| Pen 2,5mm DHR182 | ||||
| 096 | 256586-4 | Pen 2,5mm DHR182 | € 0.97 | |
| Geleidingsplaat DHR182 | ||||
| 097 | 458850-1 | Geleidingsplaat DHR182 | € 0.96 | |
| Drukveer 3 DHR182 | ||||
| 098 | 232475-7 | Drukveer 3 DHR182 | € 0.96 | |
| Breker DHR182 | ||||
| 099 | 458849-6 | Breker DHR182 | € 0.96 | |
| Stang 4Mm DHR182 | ||||
| 100 | 256585-6 | Stang 4Mm DHR182 | € 0.96 | |
| Motorhuis DHR182 | ||||
| 101 | 183L14-7 | Motorhuis DHR182 | € 4.45 | |
| Boor/beitelkophoud DHR182 P | ||||
| 102 | 136041-1 | Boor/beitelkophoud DHR182 P | € 28.07 | |
| Koppeling DHR182 | ||||
| 103 | 136042-9 | Koppeling DHR182 | € 30.75 | |
