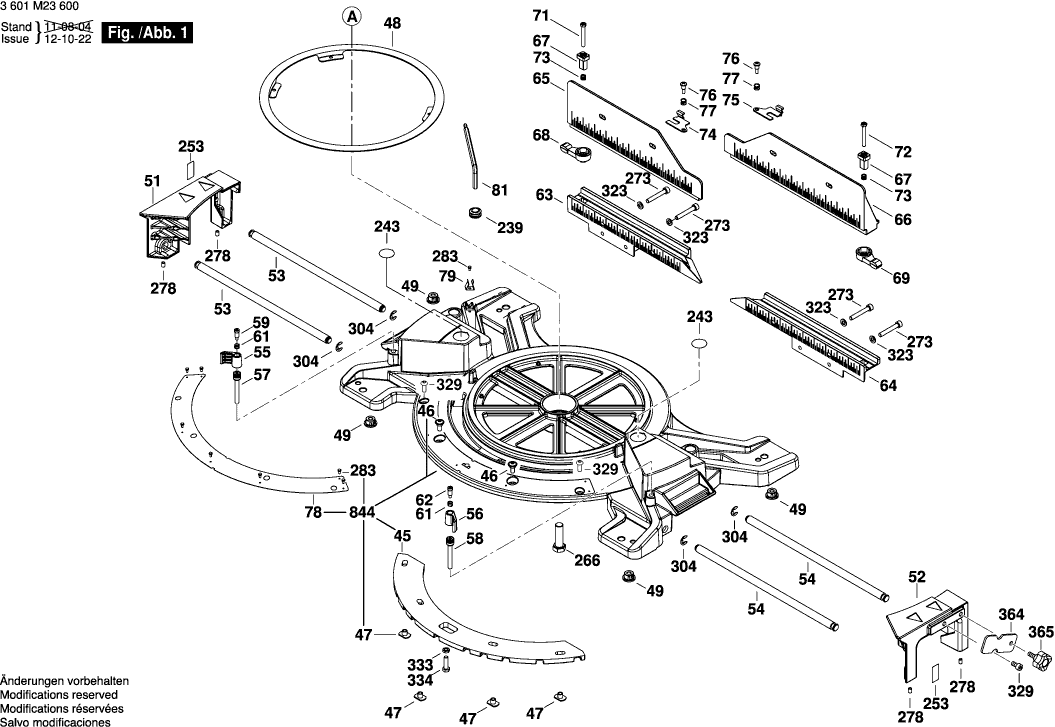

Zeichnungen der Bosch 3601M23600 ( GCM12GDL )
Teileliste der Bosch 3601M23600 ( GCM12GDL )
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Polschuh 220V | ||||
| 2 | 1609B02484 | 91.56 | 108.96 | |
| Schalter | ||||
| 4 | 2610950336 | 13.93 | 16.58 | |
| Netzanschlussleitung EU 3,5m 2x1mm H07 RN-F | ||||
| 5 | 1609B00372 | 15.71 | 18.69 | |
| Typschild | ||||
| 8 | 1609BN0175 | 1.94 | 2.31 | |
| Lager | ||||
| 13 | 1609B00597 | 7.58 | 9.02 | |
| Warnschild | ||||
| 20 | 1609B02125 | 1.94 | 2.31 | |
| Verschleissplatte | ||||
| 31 | 1609B00201 | 4.70 | 5.59 | |
| Zapfen | ||||
| 32 | 1609B02384 | 6.54 | 7.78 | |
| Drehfeder | ||||
| 33 | 1609B00204 | 10.73 | 12.77 | |
| Lagerbuchse | ||||
| 34 | 1609B00205 | 0.83 | 0.99 | |
| Verschleissplatte | ||||
| 35 | 1609B00206 | 1.70 | 2.02 | |
| Gurt | ||||
| 36 | 1609B00207 | 23.75 | 28.26 | |
| Flansch | ||||
| 37 | 1609B02350 | 9.53 | 11.34 | |
| Flansch | ||||
| 39 | 1609B02352 | 8.45 | 10.06 | |
| Bundbolzen | ||||
| 41 | 1609B00960 | 3.31 | 3.94 | |
| Scheibe | ||||
| 42 | 1609B00212 | 0.83 | 0.99 | |
| Flanschbolzen | ||||
| 43 | 1609B00213 | 0.83 | 0.99 | |
| Gleitplatte | ||||
| 45 | 1609B00222 | 8.98 | 10.69 | |
| Arretierblech | ||||
| 45 | 1609B04487 | 6.54 | 7.78 | |
| Schraube | ||||
| 46 | 1609B00223 | 1.18 | 1.40 | |
| Mutter | ||||
| 47 | 1609B00225 | 2.71 | 3.22 | |
| Schiebeblech | ||||
| 48 | 1609B00226 | 2.71 | 3.22 | |
| Gerätefuss | ||||
| 49 | 1609B01431 | 1.70 | 2.02 | |
| Ergänzungsgestell | ||||
| 51 | 1609B00228 | 23.75 | 28.26 | |
| Ergänzungsgestell | ||||
| 52 | 1609B00229 | 20.42 | 24.30 | |
| Verlängerungswelle | ||||
| 53 | 1609B00230 | 6.54 | 7.78 | |
| Verlängerungswelle | ||||
| 54 | 1609B00231 | 6.54 | 7.78 | |
| Sperrhebel | ||||
| 55 | 1609B00232 | 1.18 | 1.40 | |
| Sperrhebel | ||||
| 56 | 1609B00233 | 0.83 | 0.99 | |
| Schraube | ||||
| 57 | 1609B00234 | 3.31 | 3.94 | |
| Schraube | ||||
| 58 | 1609B00235 | 3.31 | 3.94 | |
| Ansatzschraube | ||||
| 59 | 1609B00236 | 1.18 | 1.40 | |
| Druckfeder | ||||
| 61 | 1609B00237 | 0.83 | 0.99 | |
| Ansatzschraube | ||||
| 62 | 1609B00238 | 1.18 | 1.40 | |
| Gehrungslineal | ||||
| 63 | 1609B02101 | 40.61 | 48.33 | |
| Nicht mehr lieferbar, kein Ersatz | ||||
| 64 | 1609B02102 | |||
| Parallelanschlag | ||||
| 65 | 1609B02103 | 40.61 | 48.33 | |
| Parallelanschlag | ||||
| 66 | 1609B02104 | 36.85 | 43.85 | |
| Klemmhülse | ||||
| 67 | 1609B00244 | 2.71 | 3.22 | |
| Sperrhebel | ||||
| 68 | 1609B00245 | 1.70 | 2.02 | |
| Sperrhebel | ||||
| 69 | 1609B00246 | 1.18 | 1.40 | |
| Bolzen | ||||
| 71 | 1609B00247 | 1.18 | 1.40 | |
| Bolzen | ||||
| 72 | 1609B00248 | 0.83 | 0.99 | |
| Druckfeder | ||||
| 73 | 1609B00249 | 1.18 | 1.40 | |
| Platte | ||||
| 74 | 1609B00250 | 0.83 | 0.99 | |
| Nicht mehr lieferbar, kein Ersatz | ||||
| 75 | 1609B00251 | |||
| Ansatzschraube | ||||
| 76 | 1609B00252 | 1.18 | 1.40 | |
| Druckfeder | ||||
| 77 | 1609B00253 | 1.18 | 1.40 | |
| Skale | ||||
| 78 | 1609B00254 | 20.42 | 24.30 | |
| Klemmfeder | ||||
| 79 | 1609B00255 | 0.83 | 0.99 | |
| Steckschlüsseleinsatz | ||||
| 81 | 1609B00256 | 1.70 | 2.02 | |
| Stützplatte | ||||
| 83 | 1609B02375 | 6.54 | 7.78 | |
| Fingerwelle | ||||
| 84 | 1609B00273 | 3.31 | 3.94 | |
| Knopf | ||||
| 85 | 1609B02377 | 5.83 | 6.94 | |
| Abdeckung | ||||
| 86 | 1609B00275 | 1.94 | 2.31 | |
| Stange | ||||
| 87 | 1609B00276 | 7.58 | 9.02 | |
| Stützwinkel | ||||
| 88 | 1609B00277 | 1.94 | 2.31 | |
| Gleitbacke | ||||
| 89 | 1609B00278 | 4.10 | 4.88 | |
| Gleitbacke | ||||
| 91 | 1609B00279 | 8.45 | 10.06 | |
| Druckfeder | ||||
| 92 | 1609B00280 | 0.83 | 0.99 | |
| Druckfeder | ||||
| 93 | 1609B00281 | 0.83 | 0.99 | |
| Schiebeblech | ||||
| 94 | 1609B00282 | 0.83 | 0.99 | |
| Abdeckung | ||||
| 95 | 1609B00283 | 1.18 | 1.40 | |
| Knopf | ||||
| 96 | 1609B00284 | 1.94 | 2.31 | |
| Stützwinkel | ||||
| 97 | 1609B00285 | 2.24 | 2.67 | |
| Kurvenscheibe | ||||
| 98 | 1609B00286 | 5.33 | 6.34 | |
| Gestänge | ||||
| 99 | 1609B00287 | 8.45 | 10.06 | |
| Führungsbügel | ||||
| 101 | 1609B00289 | 0.83 | 0.99 | |
| Druckfeder | ||||
| 103 | 1609B00291 | 0.83 | 0.99 | |
| Sperrhebel | ||||
| 104 | 1609B00292 | 9.53 | 11.34 | |
| Hebelwelle | ||||
| 105 | 1609B00293 | 4.70 | 5.59 | |
| Kurvenscheibe | ||||
| 106 | 1609B00294 | 1.18 | 1.40 | |
| Stützwinkel | ||||
| 107 | 1609B00295 | 6.54 | 7.78 | |
| Stützwinkel | ||||
| 108 | 1609B00296 | 4.70 | 5.59 | |
| Spannstange | ||||
| 109 | 1609B00297 | 9.53 | 11.34 | |
| Tube | ||||
| 111 | 1609B00298 | 11.88 | 14.14 | |
| Führungsbügel | ||||
| 112 | 1609B00299 | 0.83 | 0.99 | |
| Abdeckung | ||||
| 114 | 1609B04380 | 0.83 | 0.99 | |
| Rastbolzen | ||||
| 115 | 1609B00302 | 2.71 | 3.22 | |
| Druckfeder | ||||
| 116 | 1609B00303 | 0.83 | 0.99 | |
| Sperrhebel | ||||
| 117 | 1609B00304 | 4.70 | 5.59 | |
| Bolzen | ||||
| 118 | 1609B00305 | 1.94 | 2.31 | |
| Druckfeder | ||||
| 119 | 1609B00306 | 0.83 | 0.99 | |
| Steckerstift | ||||
| 122 | 1609B00308 | 1.18 | 1.40 | |
| Drehfeder | ||||
| 123 | 1609B00309 | 0.83 | 0.99 | |
| Zeiger | ||||
| 124 | 1609B00310 | 1.70 | 2.02 | |
| Skale | ||||
| 125 | 1609B02988 | 2.24 | 2.67 | |
| Platte | ||||
| 126 | 1609B00312 | 1.94 | 2.31 | |
| Scharnier | ||||
| 129 | 1609B00331 | 101.94 | 121.31 | |
| Scharnier | ||||
| 134 | 1609B00335 | 40.61 | 48.33 | |
| Welle | ||||
| 136 | 1609B00337 | 9.53 | 11.34 | |
| Welle | ||||
| 137 | 1609B00338 | 8.45 | 10.06 | |
| Leitungshalter | ||||
| 138 | 1609B00339 | 1.70 | 2.02 | |
| Bolzen | ||||
| 142 | 1609B00342 | 1.94 | 2.31 | |
| Lagerbuchse | ||||
| 143 | 1609B00343 | 4.10 | 4.88 | |
| Sperrhebel | ||||
| 144 | 1609B00345 | 8.45 | 10.06 | |
| Klemmfeder | ||||
| 145 | 1609B00346 | 1.18 | 1.40 | |
| Verstellbolzen | ||||
| 146 | 1609B00347 | 0.83 | 0.99 | |
| Platte | ||||
| 147 | 1609B00348 | 2.71 | 3.22 | |
| Ansatzschraube | ||||
| 148 | 1609B00349 | 1.18 | 1.40 | |
| Knopf | ||||
| 149 | 1609B00350 | 1.18 | 1.40 | |
| Ansatzschraube | ||||
| 151 | 1609B00351 | 0.83 | 0.99 | |
| Raste | ||||
| 152 | 1609B02371 | 15.71 | 18.69 | |
| Rückhalteblech | ||||
| 153 | 1609B00353 | 1.18 | 1.40 | |
| Rückhalteblech | ||||
| 154 | 1609B00354 | 1.18 | 1.40 | |
| Bremsteller | ||||
| 155 | 1609B00355 | 1.18 | 1.40 | |
| Distanzstück | ||||
| 156 | 1609B00356 | 0.83 | 0.99 | |
| Zeiger | ||||
| 157 | 1609B00357 | 1.70 | 2.02 | |
| Zeiger | ||||
| 158 | 1609B00358 | 1.70 | 2.02 | |
| Verstellbolzen | ||||
| 159 | 1609B00359 | 1.70 | 2.02 | |
| Stützwinkel | ||||
| 161 | 1609B00361 | 1.18 | 1.40 | |
| Anschlagpuffer | ||||
| 162 | 1609B00362 | 1.70 | 2.02 | |
| Abzweigstecker | ||||
| 163 | 1609B02428 | 11.88 | 14.14 | |
| Welle | ||||
| 164 | 1609B00364 | 5.83 | 6.94 | |
| Schraube | ||||
| 167 | 1609B00367 | 1.70 | 2.02 | |
| Gummistopfen | ||||
| 168 | 1609B00368 | 1.18 | 1.40 | |
| Gummistopfen | ||||
| 169 | 1609B00369 | 1.18 | 1.40 | |
| Knopf ROT | ||||
| 172 | 1609B00382 | 4.10 | 4.88 | |
| Getriebedeckel | ||||
| 174 | 1609B00384 | 1.70 | 2.02 | |
| Abtriebswelle | ||||
| 175 | 1609B00385 | 9.53 | 11.34 | |
| Getriebe | ||||
| 176 | 1609B00386 | 20.42 | 24.30 | |
| Ritzel | ||||
| 177 | 1609B00387 | 13.93 | 16.58 | |
| Riemenscheibe | ||||
| 178 | 1609B00388 | 9.53 | 11.34 | |
| Bandabdeckung | ||||
| 179 | 1609B00389 | 14.80 | 17.61 | |
| Riemenabdeckung | ||||
| 179 | 1609B00504 | 5.33 | 6.34 | |
| Taste | ||||
| 181 | 1609B00390 | 1.18 | 1.40 | |
| Verschlussstift | ||||
| 182 | 1609B00391 | 1.70 | 2.02 | |
| Druckfeder | ||||
| 183 | 1609B00392 | 0.83 | 0.99 | |
| Auslöser | ||||
| 186 | 1609B02399 | 2.24 | 2.67 | |
| Ein/Aus-Schalter | ||||
| 187 | 1619P03669 | 14.80 | 17.61 | |
| Schalter | ||||
| 187 | 1609B05392 | 3.31 | 3.94 | |
| Netzgerät | ||||
| 188 | 1609B02562 | 20.42 | 24.30 | |
| Kabelklemme | ||||
| 189 | 1609B02408 | 0.83 | 0.99 | |
| Schraube old, only with softstartmodule | ||||
| 191 | 1609B02183 | 0.83 | 0.99 | |
| Klemmschelle | ||||
| 192 | 1609B02413 | 0.83 | 0.99 | |
| Klemmschelle | ||||
| 193 | 1609B00405 | 0.83 | 0.99 | |
| Druckfeder | ||||
| 194 | 1609B00417 | 0.83 | 0.99 | |
| Hülse | ||||
| 195 | 1609B00418 | 0.83 | 0.99 | |
| Gummi-Ohrkissen | ||||
| 196 | 1609B00419 | 0.83 | 0.99 | |
| Steckkupplung | ||||
| 197 | 1609B02406 | 0.83 | 0.99 | |
| Schutzabdeckung | ||||
| 198 | 1609B02425 | 49.56 | 58.98 | |
| Schutzabdeckung | ||||
| 203 | 1609B02427 | 1.94 | 2.31 | |
| Gestänge | ||||
| 204 | 1609B02465 | 8.45 | 10.06 | |
| Ansatzschraube | ||||
| 205 | 1609B00448 | 2.24 | 2.67 | |
| Lagerbuchse | ||||
| 206 | 1609B00449 | 0.83 | 0.99 | |
| Schraube | ||||
| 211 | 1609B00453 | 3.31 | 3.94 | |
| Schraube | ||||
| 212 | 1609B00454 | 0.83 | 0.99 | |
| Lagerbuchse | ||||
| 213 | 1609B00455 | 0.83 | 0.99 | |
| Anschlagpuffer | ||||
| 214 | 1609B02467 | 0.83 | 0.99 | |
| Scheibe | ||||
| 215 | 1609B00457 | 0.83 | 0.99 | |
| Lagerbuchse | ||||
| 218 | 1609B00460 | 0.83 | 0.99 | |
| Aufspannplatte | ||||
| 219 | 1609B00471 | 23.75 | 28.26 | |
| Schallwand | ||||
| 222 | 1609B00476 | 2.71 | 3.22 | |
| Bürstendeckel | ||||
| 223 | 1609B00478 | 0.83 | 0.99 | |
| Einlage | ||||
| 224 | 1609B00479 | 0.83 | 0.99 | |
| Gummibuchse | ||||
| 225 | 1609B00480 | 1.70 | 2.02 | |
| Tragplatte | ||||
| 226 | 1609B00483 | 0.83 | 0.99 | |
| Schacht | ||||
| 228 | 1609B00501 | 9.53 | 11.34 | |
| Gummiplatte | ||||
| 229 | 1609B00502 | 3.31 | 3.94 | |
| Steckkupplung | ||||
| 231 | 1609B00505 | 7.58 | 9.02 | |
| Staubbeutel | ||||
| 232 | 1609B00506 | 9.53 | 11.34 | |
| Gummi-Ohrkissen | ||||
| 235 | 1609B00523 | 1.94 | 2.31 | |
| Kabelband | ||||
| 238 | 1609B01538 | 0.83 | 0.99 | |
| Gummibuchse | ||||
| 239 | 1609B00533 | 0.83 | 0.99 | |
| Schutzabdeckung | ||||
| 241 | 1609B02426 | 3.31 | 3.94 | |
| Warnschild | ||||
| 243 | 1609B00543 | 1.94 | 2.31 | |
| Klebeschild | ||||
| 244 | 1609B02120 | 1.70 | 2.02 | |
| Klebeschild | ||||
| 245 | 1609B02119 | 1.70 | 2.02 | |
| Warnschild | ||||
| 248 | 1609B00549 | 1.94 | 2.31 | |
| Klebeschild | ||||
| 251 | 1609B02123 | 2.24 | 2.67 | |
| Klebeschild | ||||
| 253 | 1609B02122 | 1.94 | 2.31 | |
| Geräteclip | ||||
| 255 | 1609B00582 | 0.83 | 0.99 | |
| Schrumpfschlauch | ||||
| 256 | 1609B00583 | 0.83 | 0.99 | |
| Schlüssel | ||||
| 257 | 1609B00592 | 1.18 | 1.40 | |
| Schlüssel | ||||
| 258 | 1609B00593 | 1.18 | 1.40 | |
| Kugel | ||||
| 259 | 1609B00594 | 0.83 | 0.99 | |
| Lager | ||||
| 262 | 1609B00599 | 10.73 | 12.77 | |
| Lager | ||||
| 263 | 1609B00596 | 10.73 | 12.77 | |
| O-Ring | ||||
| 265 | 1609B00601 | 1.18 | 1.40 | |
| Bolzen | ||||
| 266 | 1609B00602 | 1.18 | 1.40 | |
| Klemmutter | ||||
| 267 | 1609B00603 | 0.83 | 0.99 | |
| Klemmutter | ||||
| 268 | 1609B00604 | 1.18 | 1.40 | |
| Klemmutter | ||||
| 269 | 1609B00605 | 0.83 | 0.99 | |
| Klemmutter | ||||
| 271 | 1609B00608 | 0.83 | 0.99 | |
| Bolzen | ||||
| 272 | 1609B00609 | 0.83 | 0.99 | |
| Schraube | ||||
| 273 | 1609B00610 | 1.18 | 1.40 | |
| Schraube | ||||
| 274 | 1609B00612 | 0.83 | 0.99 | |
| Gewindestift | ||||
| 275 | 1609B00614 | 0.83 | 0.99 | |
| Gewindestift | ||||
| 276 | 1609B00615 | 1.70 | 2.02 | |
| Gewindestift | ||||
| 277 | 1609B00616 | 0.83 | 0.99 | |
| Gewindestift | ||||
| 278 | 1609B00617 | 1.18 | 1.40 | |
| Gewindestift | ||||
| 279 | 1609B00618 | 1.18 | 1.40 | |
| Gewindestift | ||||
| 281 | 1609B00620 | 0.83 | 0.99 | |
| Gewindestift | ||||
| 282 | 1609B00621 | 1.18 | 1.40 | |
| Rastniet | ||||
| 283 | 1609B00622 | 0.83 | 0.99 | |
| Schraube | ||||
| 284 | 1609B00623 | 0.83 | 0.99 | |
| Schraube | ||||
| 285 | 1609B00624 | 0.83 | 0.99 | |
| Schraube | ||||
| 286 | 1609B00625 | 0.83 | 0.99 | |
| Schraube | ||||
| 287 | 1609B00628 | 0.83 | 0.99 | |
| Schraube | ||||
| 288 | 1609B00627 | 1.70 | 2.02 | |
| Schraube | ||||
| 289 | 1609B00630 | 0.83 | 0.99 | |
| Schraube | ||||
| 292 | 1609B00631 | 1.94 | 2.31 | |
| Schraube | ||||
| 293 | 1609B00632 | 1.18 | 1.40 | |
| Schraube | ||||
| 294 | 1609B00633 | 0.83 | 0.99 | |
| Schraube | ||||
| 295 | 1609B00634 | 0.83 | 0.99 | |
| Blechschraube | ||||
| 296 | 1609B00636 | 1.94 | 2.31 | |
| Blechschraube | ||||
| 297 | 1609B00637 | 0.83 | 0.99 | |
| Federsteg | ||||
| 298 | 1609B00638 | 0.83 | 0.99 | |
| Sprengring | ||||
| 301 | 1609B00641 | 1.18 | 1.40 | |
| Sprengring | ||||
| 302 | 1609B00642 | 0.83 | 0.99 | |
| Sprengring | ||||
| 303 | 1609B00643 | 0.83 | 0.99 | |
| Sprengring | ||||
| 304 | 1609B00644 | 1.70 | 2.02 | |
| Schraube | ||||
| 305 | 1609B00645 | 0.83 | 0.99 | |
| Schraube | ||||
| 306 | 1609B00647 | 1.18 | 1.40 | |
| Schraube | ||||
| 307 | 1609B00649 | 0.83 | 0.99 | |
| Schraube | ||||
| 308 | 1609B00650 | 0.83 | 0.99 | |
| Schraube | ||||
| 309 | 1609B00652 | 0.83 | 0.99 | |
| Schraube | ||||
| 310 | 1609B00653 | 0.83 | 0.99 | |
| Schraube | ||||
| 311 | 1609B00654 | 0.83 | 0.99 | |
| Schraube | ||||
| 312 | 1609B00655 | 0.83 | 0.99 | |
| Schraube | ||||
| 313 | 1609B00656 | 1.18 | 1.40 | |
| Federscheibe | ||||
| 315 | 1609B00658 | 0.83 | 0.99 | |
| Scheibe | ||||
| 316 | 1609BP7042 | 0.83 | 0.99 | |
| Scheibe | ||||
| 317 | 1609B00661 | 0.83 | 0.99 | |
| Scheibe | ||||
| 318 | 1609B00662 | 1.18 | 1.40 | |
| Scheibe | ||||
| 320 | 1609B00664 | 0.83 | 0.99 | |
| Scheibe | ||||
| 321 | 1609B00665 | 0.83 | 0.99 | |
| Scheibe | ||||
| 322 | 1609B00667 | 0.83 | 0.99 | |
| Scheibe | ||||
| 323 | 1609B00669 | 0.83 | 0.99 | |
| Scheibe | ||||
| 324 | 1609B00670 | 1.18 | 1.40 | |
| Klemmutter | ||||
| 325 | 1609B00672 | 0.83 | 0.99 | |
| Klemmutter | ||||
| 326 | 1609B00673 | 0.83 | 0.99 | |
| Scheibe | ||||
| 327 | 1609B00674 | 0.83 | 0.99 | |
| Vorlegscheibe | ||||
| 328 | 1609B02105 | 0.83 | 0.99 | |
| Schraube | ||||
| 329 | 1609B00678 | 0.83 | 0.99 | |
| Schraube | ||||
| 330 | 1609B00680 | 0.83 | 0.99 | |
| Axiallager | ||||
| 331 | 1609B00681 | 4.70 | 5.59 | |
| Schraube | ||||
| 332 | 1609B00682 | 0.83 | 0.99 | |
| Einstellmutter | ||||
| 333 | 1609B04227 | 0.83 | 0.99 | |
| Gerätefuss | ||||
| 334 | 1609B02367 | 1.18 | 1.40 | |
| Sprengring | ||||
| 335 | 1609B00687 | 0.83 | 0.99 | |
| Scheibe | ||||
| 336 | 1609B00688 | 0.83 | 0.99 | |
| Schraube | ||||
| 337 | 1609B00689 | 1.18 | 1.40 | |
| Bremsblech | ||||
| 338 | 2610919073 | 6.54 | 7.78 | |
| Scheibe | ||||
| 339 | 2610919281 | 2.71 | 3.22 | |
| Fingerwelle | ||||
| 341 | 1609B00370 | 1.18 | 1.40 | |
| Sprengring | ||||
| 342 | 1609B00690 | 0.83 | 0.99 | |
| Mutter | ||||
| 343 | 1609B00691 | 1.70 | 2.02 | |
| Scheibe | ||||
| 345 | 1609B00288 | 0.83 | 0.99 | |
| Spannband | ||||
| 351 | 1609B00344 | 1.94 | 2.31 | |
| Ansatzschraube | ||||
| 352 | 1609B00371 | 2.24 | 2.67 | |
| Scheibe | ||||
| 354 | 1609B00676 | 1.18 | 1.40 | |
| Kabeltülle | ||||
| 356 | 1609B00446 | 2.71 | 3.22 | |
| Schraube | ||||
| 362 | 1609B02429 | 0.83 | 0.99 | |
| Schraube | ||||
| 363 | 1609B02430 | 0.83 | 0.99 | |
| Anschlagplatte | ||||
| 364 | 1609B02365 | 1.18 | 1.40 | |
| Schraube | ||||
| 365 | 1609B00263 | 1.70 | 2.02 | |
| Schraube | ||||
| 369 | 1609B02174 | 0.83 | 0.99 | |
| Elektr Leitung | ||||
| 370 | 1609B02565 | 5.33 | 6.34 | |
| Verstellwelle | ||||
| 378 | 1609B02383 | 5.33 | 6.34 | |
| Traggriff | ||||
| 379 | 1609B02380 | 4.10 | 4.88 | |
| Griffschale | ||||
| 380 | 1609B02381 | 5.33 | 6.34 | |
| Schraube | ||||
| 382 | 1609B02437 | 0.83 | 0.99 | |
| Riffelscheibe | ||||
| 384 | 1609B02438 | 0.83 | 0.99 | |
| Scheibe | ||||
| 385 | 1609B02191 | 1.94 | 2.31 | |
| Schraube | ||||
| 386 | 1609B02192 | 0.83 | 0.99 | |
| Laser | ||||
| 387 | 1609B02439 | 60.65 | 72.17 | |
| Anschlusskasten | ||||
| 391 | 1609B02392 | 1.94 | 2.31 | |
| Kabeldurchführungstülle | ||||
| 392 | 1609B02415 | 0.83 | 0.99 | |
| Kabeldurchführungstülle | ||||
| 393 | 1609B02416 | 0.83 | 0.99 | |
| Anschlusskasten | ||||
| 394 | 1609B02391 | 1.18 | 1.40 | |
| Modulhalter | ||||
| 396 | 1609B00325 | 1.18 | 1.40 | |
| Softstartmodul | ||||
| 397 | 2610233020 | 13.93 | 16.58 | |
| Kabelabdeckung | ||||
| 398 | 1609B02432 | 2.71 | 3.22 | |
| Gehäusedeckel | ||||
| 399 | 1609B02482 | 5.33 | 6.34 | |
| Blechschraube | ||||
| 400 | 1609B00637 | 0.83 | 0.99 | |
| Schraube | ||||
| 401 | 1609B02189 | 0.83 | 0.99 | |
| O-Ring | ||||
| 402 | 1609B00956 | 0.83 | 0.99 | |
| Steckschlüsseleinsatz | ||||
| 403 | 1609B02490 | 0.83 | 0.99 | |
| Klemmschelle | ||||
| 436 | 1609B02412 | 0.83 | 0.99 | |
| Motorgehäuse | ||||
| 801 | 1609B02302 | 40.61 | 48.33 | |
| Rastbolzen | ||||
| 802 | 1609B02310 | 3.31 | 3.94 | |
| Anker 220-240V | ||||
| 803 | 1609B02590 | 130.32 | 155.08 | |
| Kohlebürstensatz | ||||
| 810 | 2610021311 | 13.93 | 16.58 | |
| Entstörkondensator | ||||
| 812 | 1609B02405 | 1.94 | 2.31 | |
| Platte | ||||
| 817 | 1609B02598 | 7.58 | 9.02 | |
| Lager | ||||
| 827 | 1609B02316 | 12.41 | 14.77 | |
| Taste | ||||
| 828 | 1609B02593 | 1.94 | 2.31 | |
| Scharnier | ||||
| 831 | 1609B02303 | 73.72 | 87.73 | |
| Scharnier | ||||
| 832 | 1609B02304 | 60.65 | 72.17 | |
| Scharnier | ||||
| 833 | 1609B02305 | 67.25 | 80.03 | |
| Schraubzwinge | ||||
| 834 | 1609B06203 | 10.73 | 12.77 | |
| Lagerblock | ||||
| 835 | 1609B02592 | 26.84 | 31.94 | |
| Deckeleinheit | ||||
| 838 | 1609B02431 | 4.10 | 4.88 | |
| Sockel | ||||
| 844 | 1609B02591 | 101.94 | 121.31 | |
| Arm | ||||
| 871 | 1609B02594 | 148.65 | 176.89 | |
| Getriebekasten | ||||
| 873 | 1609B02307 | 26.84 | 31.94 | |
| Verschlusshebel | ||||
| 874 | 1609B02499 | 15.71 | 18.69 | |
| Tisch | ||||
| 882 | 1609B02309 | 209.26 | 249.02 | |
| Stützplatte | ||||
| 883 | 1609B02434 | 12.41 | 14.77 | |
| Handgriff | ||||
| 885 | 1609B02552 | 15.71 | 18.69 | |
| Schutzhaube | ||||
| 899 | 1609B02597 | 23.75 | 28.26 | |
