Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Bosch 3601M23101 (GCM12SDE)'. Von hier aus können Sie alle gewünschten Teile direkt bestellen.Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

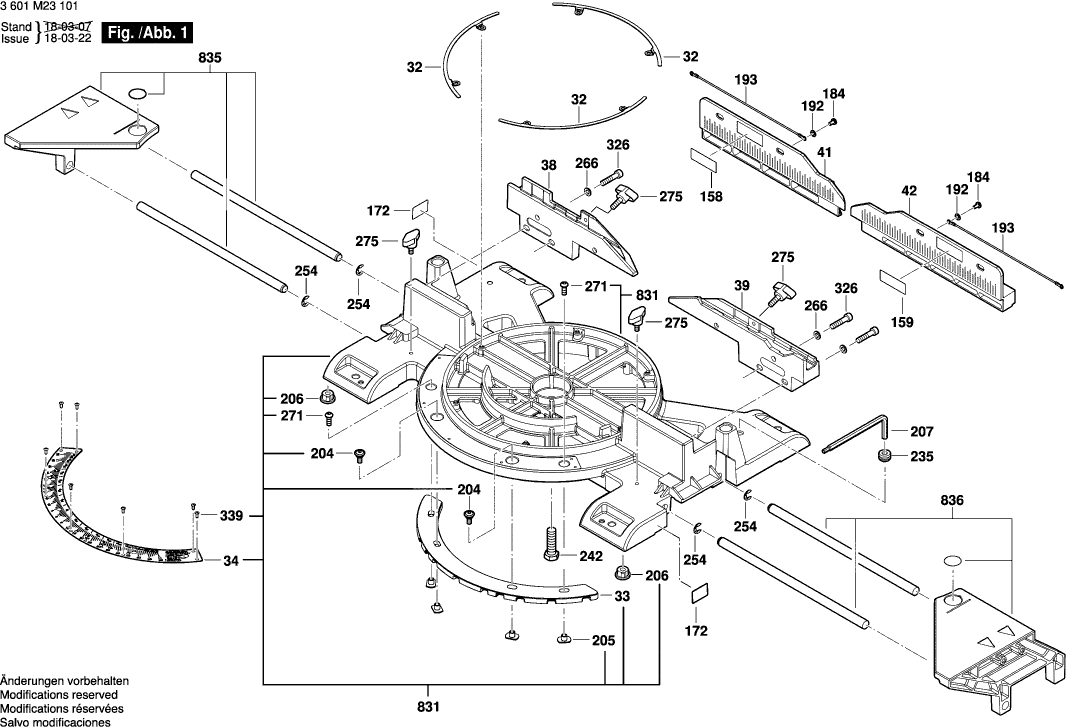

Zeichnungen der Bosch 3601M23101 (GCM12SDE)
Teileliste der Bosch 3601M23101 (GCM12SDE)
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Polschuh 230V | ||||
| 2 | 1609B04898 | 71.68 | 85.30 | |
| Schalter | ||||
| 4 | 2610950336 | 16.79 | 19.98 | |
| Netzanschlussleitung | ||||
| 5 | 1609B00372 | 18.94 | 22.54 | |
| Einklebeblatt | ||||
| 9 | 1609B00695 | 2.40 | 2.86 | |
| Lager | ||||
| 13 | 1609B00597 | 9.67 | 11.51 | |
| Schiebeblech | ||||
| 32 | 1609B04702 | 6.73 | 8.01 | |
| Arretierblech | ||||
| 33 | 1609B04703 | 7.46 | 8.88 | |
| Skale | ||||
| 34 | 1609B04704 | 5.81 | 6.91 | |
| Gehrungslineal | ||||
| 38 | 1609B04991 | 27.81 | 33.09 | |
| Gehrungslineal | ||||
| 39 | 1609B04992 | 23.90 | 28.44 | |
| Gehrungslineal | ||||
| 41 | 1609B04993 | 27.81 | 33.09 | |
| Gehrungslineal | ||||
| 42 | 1609B04994 | 27.81 | 33.09 | |
| Tisch | ||||
| 44 | 1609B04721 | 219.55 | 261.26 | |
| Fingerwelle | ||||
| 45 | 1609B04722 | 4.18 | 4.97 | |
| Knopf | ||||
| 47 | 1609B04725 | 4.94 | 5.88 | |
| Stange | ||||
| 48 | 1609B04726 | 2.86 | 3.40 | |
| Abdeckung | ||||
| 49 | 1609B04727 | 2.86 | 3.40 | |
| Gerätefuss | ||||
| 51 | 1609B04728 | 2.86 | 3.40 | |
| Arretierung | ||||
| 52 | 1609B04743 | 12.82 | 15.26 | |
| Ansatzschraube | ||||
| 53 | 1609B04744 | 1.00 | 1.19 | |
| Kontaktlasche | ||||
| 54 | 1609B04745 | 1.00 | 1.19 | |
| Kugel | ||||
| 55 | 1609B04746 | 1.00 | 1.19 | |
| Raste | ||||
| 56 | 1609B04747 | 2.86 | 3.40 | |
| Raste | ||||
| 57 | 1609B04748 | 9.67 | 11.51 | |
| Kontaktlasche | ||||
| 58 | 1609B04749 | 1.00 | 1.19 | |
| Blattfeder | ||||
| 59 | 1609B04750 | 1.49 | 1.77 | |
| Zeiger | ||||
| 61 | 1609B04751 | 1.49 | 1.77 | |
| Skale | ||||
| 62 | 1609B04752 | 18.94 | 22.54 | |
| Schiebeblech | ||||
| 63 | 1609B04754 | 2.08 | 2.48 | |
| Abdeckung | ||||
| 64 | 1609B04755 | 1.00 | 1.19 | |
| Kontaktlasche | ||||
| 65 | 1609B04756 | 1.00 | 1.19 | |
| Blattfeder | ||||
| 66 | 1609B04758 | 1.00 | 1.19 | |
| Pfosten | ||||
| 67 | 1609B04761 | 80.26 | 95.51 | |
| Zeiger | ||||
| 68 | 1609B04773 | 1.00 | 1.19 | |
| Zeiger | ||||
| 69 | 1609B04774 | 1.00 | 1.19 | |
| Lager | ||||
| 71 | 1609B04775 | 43.12 | 51.31 | |
| Verschleissplatte | ||||
| 72 | 1609B04776 | 2.08 | 2.48 | |
| Platte | ||||
| 73 | 1609B04778 | 3.44 | 4.09 | |
| Filz | ||||
| 74 | 1609B04780 | 2.52 | 3.00 | |
| Knopf | ||||
| 75 | 1609B04781 | 4.18 | 4.97 | |
| Kontaktlasche | ||||
| 76 | 1609BP7343 | 1.00 | 1.19 | |
| Sperrhebel | ||||
| 77 | 1609B04794 | 14.94 | 17.78 | |
| Hebelwelle | ||||
| 78 | 1609B04795 | 14.94 | 17.78 | |
| Abdeckung | ||||
| 79 | 1609B04798 | 2.08 | 2.48 | |
| Arm | ||||
| 81 | 1609B04995 | 110.30 | 131.26 | |
| Bandabdeckung | ||||
| 83 | 1609B04803 | 9.67 | 11.51 | |
| Vorgelegewelle | ||||
| 84 | 1609B04804 | 9.67 | 11.51 | |
| Riemenscheibe | ||||
| 85 | 1609B04805 | 13.13 | 15.62 | |
| Transportschiene | ||||
| 86 | 1609B04806 | 12.82 | 15.26 | |
| Scheibe | ||||
| 87 | 1609B04807 | 1.49 | 1.77 | |
| Kette | ||||
| 88 | 1609B04808 | 14.94 | 17.78 | |
| Abtriebswelle | ||||
| 89 | 1609B04809 | 9.67 | 11.51 | |
| Platte | ||||
| 91 | 1609B04810 | 1.49 | 1.77 | |
| Spindel | ||||
| 92 | 1609B04811 | 1.49 | 1.77 | |
| Abdeckung | ||||
| 93 | 1609B04812 | 1.00 | 1.19 | |
| Kanal | ||||
| 94 | 1609B04813 | 1.00 | 1.19 | |
| Spanabweiser | ||||
| 95 | 1609B04821 | 2.08 | 2.48 | |
| Spanabweiser | ||||
| 96 | 1609B04820 | 2.08 | 2.48 | |
| Gelenkbolzen | ||||
| 97 | 1609B04816 | 3.44 | 4.09 | |
| Flachdichtung | ||||
| 102 | 1609B04822 | 2.86 | 3.40 | |
| Geräteclip | ||||
| 103 | 1609B05177 | 2.08 | 2.48 | |
| Verschleissplatte | ||||
| 104 | 1609B04826 | 1.00 | 1.19 | |
| Kabelklemme | ||||
| 105 | 1609B04827 | 1.00 | 1.19 | |
| Traggriff | ||||
| 106 | 1609B04828 | 3.44 | 4.09 | |
| Schraube | ||||
| 107 | 1609B04829 | 1.00 | 1.19 | |
| Drehfeder | ||||
| 109 | 1609B04831 | 11.37 | 13.53 | |
| Schraube | ||||
| 111 | 1609B04832 | 12.82 | 15.26 | |
| Schraube | ||||
| 115 | 1609B04836 | 1.00 | 1.19 | |
| Drehfeder | ||||
| 116 | 1609B04837 | 3.44 | 4.09 | |
| Druckfeder | ||||
| 117 | 1609B04838 | 2.08 | 2.48 | |
| Draht | ||||
| 118 | 1609B04839 | 3.44 | 4.09 | |
| Endkappe | ||||
| 122 | 1609B04843 | 9.67 | 11.51 | |
| Versenkungsklappe | ||||
| 123 | 1609B05131 | 2.08 | 2.48 | |
| Staubabsaugung | ||||
| 126 | 1609B04847 | 4.18 | 4.97 | |
| Stützwinkel | ||||
| 127 | 1609B04848 | 2.08 | 2.48 | |
| Schaltergriff | ||||
| 129 | 1609B05031 | 14.94 | 17.78 | |
| Draht | ||||
| 132 | 1609B04881 | 1.49 | 1.77 | |
| Draht | ||||
| 133 | 1609B04882 | 1.49 | 1.77 | |
| Netzteilplatte | ||||
| 134 | 1609B05144 | 16.79 | 19.98 | |
| Gestänge | ||||
| 141 | 1609B04875 | 9.67 | 11.51 | |
| Ansatzschraube | ||||
| 142 | 1609B04876 | 1.00 | 1.19 | |
| Zwischenflansch | ||||
| 143 | 1609B04891 | 11.37 | 13.53 | |
| Endkappe | ||||
| 144 | 1609B04902 | 4.18 | 4.97 | |
| Schallwand | ||||
| 145 | 1609B04904 | 2.86 | 3.40 | |
| Schraube | ||||
| 146 | 1609B04911 | 3.44 | 4.09 | |
| Drehzahlregler | ||||
| 147 | 1609B04913 | 27.81 | 33.09 | |
| Draht | ||||
| 148 | 1609B04915 | 2.86 | 3.40 | |
| Draht | ||||
| 149 | 1609B04916 | 1.49 | 1.77 | |
| Draht | ||||
| 151 | 1609B04917 | 2.08 | 2.48 | |
| Draht | ||||
| 152 | 1609B04918 | 2.40 | 2.86 | |
| Draht | ||||
| 153 | 1609B04919 | 1.49 | 1.77 | |
| Hülse | ||||
| 154 | 1609B04921 | 1.00 | 1.19 | |
| Geräteclip | ||||
| 156 | 1609B04923 | 1.00 | 1.19 | |
| Einklebeblatt | ||||
| 158 | 1609B04949 | 2.40 | 2.86 | |
| Einklebeblatt | ||||
| 159 | 1609B04950 | 2.40 | 2.86 | |
| Einklebeblatt | ||||
| 161 | 1609B05073 | 4.18 | 4.97 | |
| Einklebeblatt | ||||
| 171 | 1609B04937 | 2.40 | 2.86 | |
| Einklebeblatt | ||||
| 172 | 1609B04960 | 2.40 | 2.86 | |
| Platte | ||||
| 173 | 1609B04782 | 2.08 | 2.48 | |
| Ansatzschraube | ||||
| 174 | 1609B04783 | 1.00 | 1.19 | |
| Berührungsschutz | ||||
| 175 | 1609B04823 | 3.44 | 4.09 | |
| Drehfeder | ||||
| 176 | 1609B04824 | 1.00 | 1.19 | |
| Scheibe | ||||
| 183 | 1609B04757 | 1.00 | 1.19 | |
| Schraube | ||||
| 184 | 1609B00780 | 1.00 | 1.19 | |
| Blattfeder | ||||
| 186 | 1609B04762 | 1.00 | 1.19 | |
| Einklebeblatt | ||||
| 187 | 1609B04959 | 2.40 | 2.86 | |
| Unterlegscheibe | ||||
| 192 | 1609B04225 | 1.00 | 1.19 | |
| Elektr Leitung | ||||
| 193 | 1609B05115 | 2.08 | 2.48 | |
| Scheibe | ||||
| 198 | 1609B05158 | 4.18 | 4.97 | |
| Schraube | ||||
| 199 | 1609BP7139 | 1.00 | 1.19 | |
| Gurt | ||||
| 201 | 1609B00207 | 27.81 | 33.09 | |
| Flanschbolzen | ||||
| 202 | 1609B00211 | 4.18 | 4.97 | |
| Flanschbolzen | ||||
| 203 | 1609B00213 | 1.00 | 1.19 | |
| Schraube | ||||
| 204 | 1609B00223 | 1.49 | 1.77 | |
| Mutter | ||||
| 205 | 1609B00225 | 3.44 | 4.09 | |
| Gerätefuss | ||||
| 206 | 1609B01431 | 2.08 | 2.48 | |
| Steckschlüsseleinsatz | ||||
| 207 | 1609B00256 | 2.08 | 2.48 | |
| Bolzen | ||||
| 208 | 1609B00305 | 2.40 | 2.86 | |
| Knopf | ||||
| 209 | 1609B00350 | 1.49 | 1.77 | |
| Fingerwelle | ||||
| 212 | 1609B00370 | 1.49 | 1.77 | |
| Knopf | ||||
| 213 | 1609B00382 | 4.94 | 5.88 | |
| Taste | ||||
| 214 | 1609B00390 | 1.49 | 1.77 | |
| Druckfeder | ||||
| 215 | 1609B00417 | 1.00 | 1.19 | |
| Hülse | ||||
| 216 | 1609B00418 | 1.00 | 1.19 | |
| Steckkupplung | ||||
| 217 | 1609B00430 | 1.00 | 1.19 | |
| Lagerbuchse | ||||
| 218 | 1609B00449 | 1.00 | 1.19 | |
| Schraube | ||||
| 222 | 1609B00454 | 1.00 | 1.19 | |
| Scheibe | ||||
| 224 | 1609B00457 | 1.00 | 1.19 | |
| Schnellverschluss | ||||
| 225 | 1609B00458 | 1.00 | 1.19 | |
| Bürstendeckel | ||||
| 227 | 1609B00478 | 1.00 | 1.19 | |
| Gummibuchse | ||||
| 228 | 1609B01670 | 1.49 | 1.77 | |
| Gummibuchse | ||||
| 235 | 1609B00533 | 1.00 | 1.19 | |
| Schlüssel | ||||
| 237 | 1609B00592 | 1.49 | 1.77 | |
| Schlüssel | ||||
| 238 | 1609B00593 | 1.49 | 1.77 | |
| Lager | ||||
| 239 | 1609B00596 | 12.82 | 15.26 | |
| O-Ring | ||||
| 241 | 1609B00601 | 1.49 | 1.77 | |
| Bolzen | ||||
| 242 | 1609B00602 | 1.49 | 1.77 | |
| Klemmutter | ||||
| 243 | 1609B00603 | 1.00 | 1.19 | |
| Klemmutter | ||||
| 244 | 1609B00605 | 1.00 | 1.19 | |
| Gewindestift | ||||
| 245 | 1609B00617 | 1.49 | 1.77 | |
| Schraube | ||||
| 246 | 1609B00627 | 2.08 | 2.48 | |
| Schraube | ||||
| 247 | 1609B00630 | 1.00 | 1.19 | |
| Schraube | ||||
| 248 | 1609B00633 | 1.00 | 1.19 | |
| Blechschraube | ||||
| 249 | 1609B00636 | 2.18 | 2.59 | |
| Blechschraube | ||||
| 251 | 1609B00637 | 1.00 | 1.19 | |
| Sprengring | ||||
| 252 | 1609B00641 | 1.49 | 1.77 | |
| Sprengring | ||||
| 253 | 1609B00643 | 1.00 | 1.19 | |
| Sprengring | ||||
| 254 | 1609B00644 | 2.08 | 2.48 | |
| Schraube | ||||
| 255 | 1609B00649 | 1.00 | 1.19 | |
| Schraube | ||||
| 256 | 1609B00650 | 1.00 | 1.19 | |
| Schraube | ||||
| 257 | 1609B00652 | 1.00 | 1.19 | |
| Schraube | ||||
| 258 | 1609B00654 | 1.00 | 1.19 | |
| Federscheibe | ||||
| 259 | 1609B00658 | 1.00 | 1.19 | |
| Scheibe | ||||
| 262 | 1609B00662 | 1.49 | 1.77 | |
| Scheibe | ||||
| 264 | 1609B00665 | 1.00 | 1.19 | |
| Scheibe | ||||
| 265 | 1609B00667 | 1.00 | 1.19 | |
| Scheibe | ||||
| 266 | 1609B00669 | 1.00 | 1.19 | |
| Scheibe | ||||
| 268 | 1609B00674 | 1.00 | 1.19 | |
| Scheibe | ||||
| 269 | 1609B00675 | 1.00 | 1.19 | |
| Schraube | ||||
| 271 | 1609B00678 | 1.00 | 1.19 | |
| Sprengring | ||||
| 273 | 1609B00690 | 1.00 | 1.19 | |
| Ring | ||||
| 274 | 1609B05354 | 1.00 | 1.19 | |
| Knopf | ||||
| 275 | 1609B02991 | 1.00 | 1.19 | |
| Sechskantmutter | ||||
| 277 | 1609B01041 | 1.00 | 1.19 | |
| Schraube | ||||
| 278 | 1609B04799 | 1.00 | 1.19 | |
| Blechschraube | ||||
| 279 | 1609B01194 | 1.00 | 1.19 | |
| Zylinderblechschraube | ||||
| 281 | 1609B01356 | 1.00 | 1.19 | |
| Schraube | ||||
| 282 | 1609B01388 | 1.00 | 1.19 | |
| Zugentlastung | ||||
| 283 | 1609B04869 | 1.00 | 1.19 | |
| Schulterschraube | ||||
| 284 | 1609B01462 | 1.00 | 1.19 | |
| Kabelklemme | ||||
| 285 | 1609B01512 | 1.00 | 1.19 | |
| Auslöser | ||||
| 287 | 1609B01531 | 2.08 | 2.48 | |
| Kabeltülle | ||||
| 288 | 1609B01533 | 1.00 | 1.19 | |
| Kabelband | ||||
| 289 | 1609B01538 | 1.00 | 1.19 | |
| Reglerschraube | ||||
| 292 | 1609B01599 | 1.49 | 1.77 | |
| Laufbuchse | ||||
| 293 | 1609B01605 | 1.49 | 1.77 | |
| Schraube | ||||
| 295 | 1609B01660 | 1.00 | 1.19 | |
| Schraube | ||||
| 296 | 1609B01664 | 1.49 | 1.77 | |
| Vorlegscheibe | ||||
| 297 | 1609B01668 | 1.00 | 1.19 | |
| Schraube | ||||
| 298 | 1609B01665 | 1.00 | 1.19 | |
| Schraube | ||||
| 299 | 1609B01693 | 1.00 | 1.19 | |
| Endklipp | ||||
| 300 | 1609B01992 | 1.00 | 1.19 | |
| Schraube | ||||
| 304 | 1609B00653 | 1.00 | 1.19 | |
| Scheibe | ||||
| 305 | 1609BP7042 | 1.00 | 1.19 | |
| Scheibe | ||||
| 307 | 1609B02191 | 2.40 | 2.86 | |
| Schraube | ||||
| 308 | 1609B05179 | 2.40 | 2.86 | |
| Flansch | ||||
| 309 | 1609B02350 | 11.37 | 13.53 | |
| Flansch | ||||
| 310 | 1609B02352 | 10.90 | 12.97 | |
| Schraube | ||||
| 314 | 1609B00414 | 4.94 | 5.88 | |
| Riffelscheibe | ||||
| 315 | 1609B02438 | 1.00 | 1.19 | |
| Anschlagpuffer | ||||
| 317 | 1609B02467 | 1.00 | 1.19 | |
| Steckschlüsseleinsatz | ||||
| 319 | 1609B00415 | 2.40 | 2.86 | |
| Schraube | ||||
| 325 | 1609B03179 | 1.00 | 1.19 | |
| Schraube | ||||
| 326 | 1609B03722 | 1.00 | 1.19 | |
| Schalthebel | ||||
| 327 | 1609B03733 | 4.18 | 4.97 | |
| Schloss-Türschild | ||||
| 329 | 1609B03741 | 2.40 | 2.86 | |
| Verstellbolzen | ||||
| 330 | 1609B03742 | 1.00 | 1.19 | |
| Verschiebeanschlag | ||||
| 331 | 1609B03753 | 1.49 | 1.77 | |
| Friktionsteller | ||||
| 332 | 1609B03770 | 7.46 | 8.88 | |
| Anschlagbolzen | ||||
| 333 | 1609B03776 | 1.00 | 1.19 | |
| Schraube | ||||
| 334 | 1609B04086 | 2.08 | 2.48 | |
| Einstellmutter | ||||
| 335 | 1609B04227 | 1.00 | 1.19 | |
| Anschlussklotz | ||||
| 336 | 1609BP7059 | 1.49 | 1.77 | |
| Laufrolle | ||||
| 338 | 1609BP7124 | 1.49 | 1.77 | |
| Rastniet | ||||
| 339 | 1609B00622 | 1.00 | 1.19 | |
| Schalter | ||||
| 340 | 1609B05392 | 3.71 | 4.41 | |
| Warnschild | ||||
| 342 | 1609B04936 | 2.40 | 2.86 | |
| Anschlussklemme | ||||
| 345 | 1609B01397 | 1.00 | 1.19 | |
| Schulterschraube | ||||
| 351 | 1609B01463 | 1.00 | 1.19 | |
| Taste | ||||
| 352 | 1609B04865 | 1.00 | 1.19 | |
| Gestänge | ||||
| 354 | 1609B01529 | 1.49 | 1.77 | |
| Druckfeder | ||||
| 355 | 1609B01530 | 1.00 | 1.19 | |
| Gehäusebaugruppe | ||||
| 801 | 1609B05013 | 18.94 | 22.54 | |
| Ankerbaugruppe 230V | ||||
| 803 | 1609B04912 | 136.48 | 162.41 | |
| Typschild | ||||
| 808 | 1609BN0206 | 2.40 | 2.86 | |
| Kohlebürstensatz | ||||
| 810 | 2610021311 | 15.61 | 18.58 | |
| Aufspannplatte | ||||
| 812 | 1609B05189 | 2.86 | 3.40 | |
| Stützplatte | ||||
| 813 | 1609B02434 | 14.94 | 17.78 | |
| Lager | ||||
| 814 | 1609B02316 | 14.94 | 17.78 | |
| Kondensator | ||||
| 815 | 1609B05030 | 1.49 | 1.77 | |
| Laser | ||||
| 816 | 1609B05188 | 71.68 | 85.30 | |
| Transportschiene | ||||
| 818 | 1609B05020 | 12.82 | 15.26 | |
| Träger | ||||
| 819 | 1609B05035 | 71.68 | 85.30 | |
| Schraubzwinge | ||||
| 824 | 1609B06203 | 12.82 | 15.26 | |
| Gummi-Ohrkissen | ||||
| 824/232 | 1609B00523 | 2.40 | 2.86 | |
| Staubabsaugung | ||||
| 825 | 1609B05018 | 11.37 | 13.53 | |
| Basiseinheit | ||||
| 831 | 1609B05022 | 219.55 | 261.26 | |
| Ergänzungsgestell | ||||
| 835 | 1609B05023 | 43.12 | 51.31 | |
| Ergänzungsgestell | ||||
| 836 | 1609B05024 | 43.12 | 51.31 | |
| Nicht mehr lieferbar, kein Ersatz | ||||
| 837 | 1609B05025 | |||
| Platte | ||||
| 846 | 1609B05028 | 9.67 | 11.51 | |
| Kettenabdeckung | ||||
| 882 | 1609B05026 | 31.42 | 37.39 | |
| Bolzen | ||||
| 885 | 1609B05017 | 16.79 | 19.98 | |
