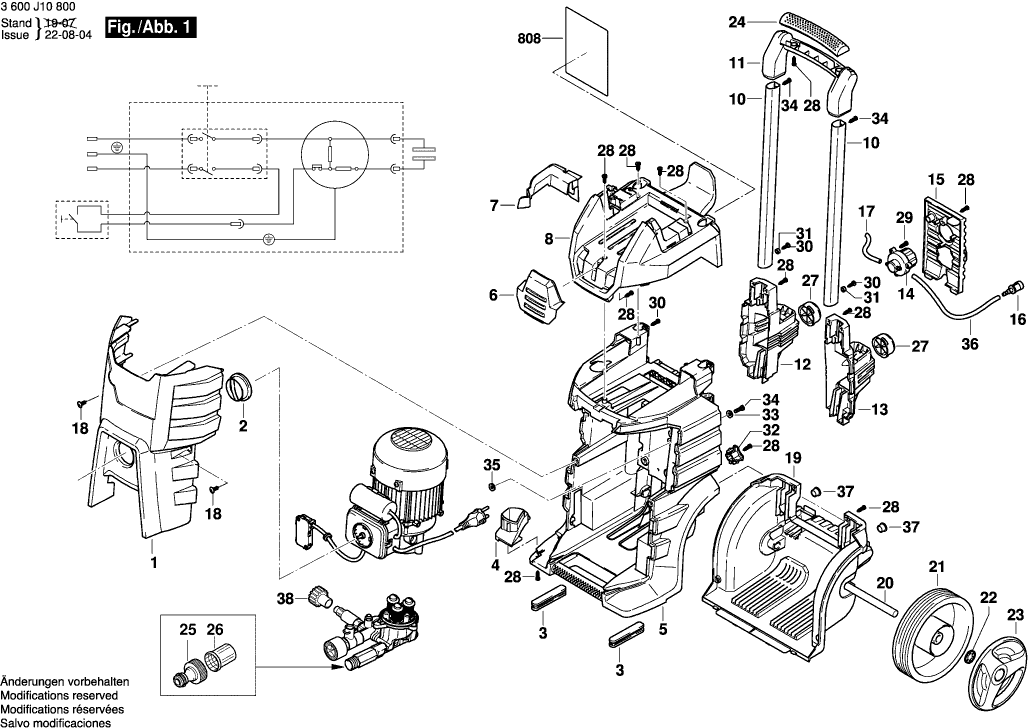

Zeichnungen der Bosch 3600J10800 ( GHP5-75X )
Teileliste der Bosch 3600J10800 ( GHP5-75X )
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Gehäuse | ||||
| 1 | F016L73329 | 20.39 | 24.26 | |
| Knopf | ||||
| 2 | F016L72008 | 4.58 | 5.45 | |
| Gummifuss | ||||
| 3 | F016L73028 | 7.32 | 8.71 | |
| Zubehörablage | ||||
| 4 | F016L73029 | 6.53 | 7.77 | |
| Gehäuse | ||||
| 5 | F016L73284 | 45.52 | 54.17 | |
| Abdeckung | ||||
| 6 | F016L73031 | 6.53 | 7.77 | |
| Einhängehaken | ||||
| 7 | F016L73032 | 4.58 | 5.45 | |
| Gehäuseteil | ||||
| 8 | F016L73033 | 20.39 | 24.26 | |
| Stange | ||||
| 10 | F016L73356 | 13.90 | 16.54 | |
| Handgriff | ||||
| 11 | F016L73036 | 12.21 | 14.53 | |
| Zubehörablage | ||||
| 12 | F016L73037 | 11.02 | 13.11 | |
| Zubehörablage | ||||
| 13 | F016L73038 | 10.68 | 12.71 | |
| Stellknopf | ||||
| 14 | F016L73039 | 7.32 | 8.71 | |
| Abdeckplatte | ||||
| 15 | F016L73040 | 10.68 | 12.71 | |
| Wasserfilter | ||||
| 16 | F016L73041 | 7.32 | 8.71 | |
| Absaugschlauch | ||||
| 17 | F016L73239 | 3.04 | 3.62 | |
| Schraube | ||||
| 18 | F016L73053 | 1.32 | 1.57 | |
| Gehäuse | ||||
| 19 | F016L73044 | 20.39 | 24.26 | |
| Radwelle | ||||
| 20 | F016L73045 | 10.68 | 12.71 | |
| Rad | ||||
| 21 | F016L73046 | 17.60 | 20.94 | |
| Unterlegscheibe | ||||
| 22 | F016L73047 | 2.52 | 3.00 | |
| Abdeckung | ||||
| 23 | F016L73048 | 10.68 | 12.71 | |
| Schutzabdeckung | ||||
| 24 | F016L72122 | 9.47 | 11.27 | |
| Schlauchanschluss | ||||
| 25 | F016L72010 | 2.52 | 3.00 | |
| Durchführungsfilter | ||||
| 26 | F016L73591 | 1.90 | 2.26 | |
| Gummifuss | ||||
| 27 | F016L72119 | 6.53 | 7.77 | |
| Schraube | ||||
| 28 | F016L72012 | 1.00 | 1.19 | |
| Schraube | ||||
| 29 | F016L72187 | 1.00 | 1.19 | |
| Überwurfschraube | ||||
| 30 | F016L73337 | 1.00 | 1.19 | |
| Unterlegscheibe | ||||
| 31 | F016L73051 | 3.04 | 3.62 | |
| Tülle | ||||
| 32 | F016L72109 | 1.32 | 1.57 | |
| Unterlegscheibe | ||||
| 33 | F016L72120 | 2.18 | 2.59 | |
| Schraube | ||||
| 34 | F016L73711 | 1.00 | 1.19 | |
| Vibrationsdämpfer | ||||
| 35 | F016L73100 | 2.18 | 2.59 | |
| Absaugschlauch | ||||
| 36 | F016L73338 | 4.58 | 5.45 | |
| Verschlussstopfen | ||||
| 37 | F016L73278 | 1.32 | 1.57 | |
| Drehknopf | ||||
| 38 | F016L72169 | 11.02 | 13.11 | |
| Schraube | ||||
| 39 | F016L73710 | 1.00 | 1.19 | |
| Verschlussstopfen | ||||
| 101 | F016L72124 | 5.96 | 7.09 | |
| Pumpenkopf | ||||
| 102 | F016L72170 | 126.98 | 151.11 | |
| Schraube | ||||
| 103 | F016L72126 | 1.90 | 2.26 | |
| O-Ring | ||||
| 104 | F016L72035 | 1.00 | 1.19 | |
| Adapter | ||||
| 105 | F016F04381 | 15.61 | 18.58 | |
| O-Ring | ||||
| 106 | F016L72014 | 1.00 | 1.19 | |
| Adapter | ||||
| 107 | F016L73357 | 17.60 | 20.94 | |
| O-Ring | ||||
| 108 | F016L72074 | 1.32 | 1.57 | |
| Ventil | ||||
| 109 | F016L72129 | 7.32 | 8.71 | |
| Dichtung | ||||
| 110 | F016L72130 | 3.71 | 4.41 | |
| O-Ring | ||||
| 111 | F016L72131 | 1.32 | 1.57 | |
| Lagerbuchse | ||||
| 112 | F016L72132 | 10.68 | 12.71 | |
| Lagerbuchse | ||||
| 113 | F016L72133 | 6.53 | 7.77 | |
| Schraube | ||||
| 115 | F016L72134 | 2.52 | 3.00 | |
| Kolbenführung | ||||
| 116 | F016L72135 | 15.61 | 18.58 | |
| Feder | ||||
| 117 | F016L72136 | 4.58 | 5.45 | |
| Kolben 3 Stück | ||||
| 118 | F016F04323 | 15.61 | 18.58 | |
| Taumelscheibe | ||||
| 119 | F016L72137 | 2.18 | 2.59 | |
| Schraube | ||||
| 121 | F016L72139 | 7.32 | 8.71 | |
| Verschlussstopfen | ||||
| 122 | F016L72138 | 6.53 | 7.77 | |
| O-Ring | ||||
| 124 | F016L72141 | 1.32 | 1.57 | |
| Manometer | ||||
| 125 | F016L72045 | 13.90 | 16.54 | |
| Feder | ||||
| 126 | F016L72072 | 1.32 | 1.57 | |
| Kugel | ||||
| 127 | F016L72073 | 1.32 | 1.57 | |
| O-Ring | ||||
| 128 | F016L72074 | 1.32 | 1.57 | |
| Nippel | ||||
| 129 | F016L72143 | 5.96 | 7.09 | |
| O-Ring | ||||
| 130 | F016L72019 | 1.00 | 1.19 | |
| Ventileinsatz | ||||
| 131 | F016L72018 | 8.48 | 10.09 | |
| Feder | ||||
| 132 | F016L72017 | 1.90 | 2.26 | |
| O-Ring | ||||
| 133 | F016L72016 | 1.00 | 1.19 | |
| Injektor | ||||
| 134 | F016L73332 | 10.68 | 12.71 | |
| O-Ring | ||||
| 135 | F016L72065 | 1.00 | 1.19 | |
| O-Ring | ||||
| 136 | F016L72030 | 1.90 | 2.26 | |
| Steckerstift | ||||
| 137 | F016L72066 | 9.47 | 11.27 | |
| Feder | ||||
| 138 | F016L72067 | 2.52 | 3.00 | |
| Unterlegscheibe | ||||
| 139 | F016L72068 | 1.32 | 1.57 | |
| O-Ring | ||||
| 140 | F016L72069 | 1.00 | 1.19 | |
| Adapter | ||||
| 141 | F016L72070 | 8.48 | 10.09 | |
| Adapter | ||||
| 142 | F016L72071 | 10.68 | 12.71 | |
| Gewindebuchse | ||||
| 143 | F016L72174 | 13.90 | 16.54 | |
| O-Ring | ||||
| 144 | F016L72030 | 1.90 | 2.26 | |
| Kolben | ||||
| 145 | F016L72031 | 13.90 | 16.54 | |
| Kolben | ||||
| 146 | F016L72032 | 13.90 | 16.54 | |
| O-Ring | ||||
| 147 | F016L72033 | 1.90 | 2.26 | |
| O-Ring | ||||
| 148 | F016L72030 | 1.90 | 2.26 | |
| Distanzring | ||||
| 149 | F016L72034 | 1.32 | 1.57 | |
| O-Ring | ||||
| 150 | F016L72035 | 1.00 | 1.19 | |
| O-Ring | ||||
| 151 | F016L72014 | 1.00 | 1.19 | |
| Kolbenführung | ||||
| 152 | F016L72036 | 15.61 | 18.58 | |
| Taumelscheibe | ||||
| 153 | F016L72037 | 3.71 | 4.41 | |
| Feder | ||||
| 154 | F016L72038 | 4.58 | 5.45 | |
| Taumelscheibe | ||||
| 155 | F016L72039 | 1.90 | 2.26 | |
| Steckerstift | ||||
| 156 | F016L72040 | 1.32 | 1.57 | |
| Einsatz | ||||
| 157 | F016L72041 | 13.90 | 16.54 | |
| Verschlussstopfen | ||||
| 158 | F016L72042 | 1.00 | 1.19 | |
| Mutter | ||||
| 159 | F016L72043 | 1.00 | 1.19 | |
| Knopf | ||||
| 160 | F016L73290 | 6.53 | 7.77 | |
| Ventil | ||||
| 161 | F016F04355 | 55.56 | 66.12 | |
| Pumpenkopf | ||||
| 162 | F016L73333 | 234.56 | 279.13 | |
| Verschlussstopfen | ||||
| 163 | F016L73362 | 15.61 | 18.58 | |
| Klemmschelle | ||||
| 164 | F016L73360 | 5.27 | 6.27 | |
| O-Ring | ||||
| 165 | F016L72219 | 1.00 | 1.19 | |
| O-Ring | ||||
| 166 | F016L73709 | 1.00 | 1.19 | |
| Kugellager | ||||
| 401 | F016L72144 | 13.90 | 16.54 | |
| Taumelscheibe | ||||
| 402 | F016L72176 | 9.47 | 11.27 | |
| Kugellager | ||||
| 403 | F016L72146 | 15.61 | 18.58 | |
| Radial-Wellendichtring | ||||
| 404 | F016L73063 | 5.27 | 6.27 | |
| Schraube | ||||
| 405 | F016L72177 | 2.52 | 3.00 | |
| Pumpe | ||||
| 406 | F016L72149 | 20.39 | 24.26 | |
| Kugellager | ||||
| 407 | F016L72150 | 10.68 | 12.71 | |
| Abdeckung | ||||
| 408 | F016L72151 | 15.61 | 18.58 | |
| Dichtung | ||||
| 409 | F016L72152 | 1.90 | 2.26 | |
| O-Ring | ||||
| 410 | F016L72153 | 1.00 | 1.19 | |
| Lüfter | ||||
| 411 | F016L72154 | 8.48 | 10.09 | |
| Luftkanal | ||||
| 412 | F016L73065 | 10.68 | 12.71 | |
| Unterlegscheibe | ||||
| 413 | F016L72156 | 1.00 | 1.19 | |
| Schraube | ||||
| 414 | F016L72157 | 1.00 | 1.19 | |
| O-Ring | ||||
| 415 | F016L72158 | 1.00 | 1.19 | |
| Gehäuse | ||||
| 416 | F016L72159 | 7.32 | 8.71 | |
| Unterlegscheibe | ||||
| 417 | F016L72160 | 1.00 | 1.19 | |
| Schraube | ||||
| 418 | F016L72161 | 1.00 | 1.19 | |
| Abdeckung | ||||
| 419 | F016L73339 | 6.53 | 7.77 | |
| Schalter | ||||
| 420 | F016L72087 | 13.90 | 16.54 | |
| Tülle | ||||
| 421 | F016L72092 | 4.58 | 5.45 | |
| Netzanschlussleitung | ||||
| 422 | F016L73340 | 26.62 | 31.68 | |
| O-Ring | ||||
| 423 | F016L72163 | 1.32 | 1.57 | |
| Kondensator | ||||
| 424 | F016F05927 | 15.61 | 18.58 | |
| Kondensator | ||||
| 424 | F016L72178 | 13.11 | 15.60 | |
| Motor | ||||
| 425 | F016F05935 | 234.56 | 279.13 | |
| Elektromotor | ||||
| 425 | F016L73324 | 197.04 | 234.48 | |
| Klemmschelle | ||||
| 426 | F016L72094 | 7.32 | 8.71 | |
| Elektronik-Modul | ||||
| 427 | F016L72093 | 17.60 | 20.94 | |
| Schraube | ||||
| 428 | F016L72086 | 1.00 | 1.19 | |
| Tülle | ||||
| 429 | F016L72096 | 4.58 | 5.45 | |
| O-Ring | ||||
| 430 | F016L72260 | 5.27 | 6.27 | |
| O-Ring | ||||
| 431 | F016L73343 | 1.00 | 1.19 | |
| Abdeckung | ||||
| 501 | F016L73367 | 4.58 | 5.45 | |
| Ring | ||||
| 502 | F016L73368 | 1.00 | 1.19 | |
| Adapter | ||||
| 503 | F016L73369 | 17.60 | 20.94 | |
| Klemmschelle | ||||
| 504 | F016L73370 | 5.27 | 6.27 | |
| Abdeckung | ||||
| 505 | F016L73371 | 9.47 | 11.27 | |
| Abdeckung | ||||
| 506 | F016L73372 | 9.47 | 11.27 | |
| Schraube | ||||
| 507 | F016L73373 | 1.00 | 1.19 | |
| Abdeckung | ||||
| 508 | F016L73374 | 13.90 | 16.54 | |
| O-Ring | ||||
| 509 | F016L72101 | 1.00 | 1.19 | |
| Adapter | ||||
| 510 | F016L73375 | 17.60 | 20.94 | |
| Ring | ||||
| 511 | F016L72286 | 1.00 | 1.19 | |
| Hochdruckschlauch | ||||
| 512 | F016L73376 | 82.63 | 98.33 | |
| Abdeckung | ||||
| 513 | F016L73377 | 12.21 | 14.53 | |
| Nabe | ||||
| 514 | F016L73378 | 22.88 | 27.23 | |
| Schraube | ||||
| 515 | F016L73053 | 1.32 | 1.57 | |
| Haken | ||||
| 516 | F016L72282 | 5.96 | 7.09 | |
| Hebel | ||||
| 517 | F016L73379 | 9.47 | 11.27 | |
| Schraube | ||||
| 518 | F016L72203 | 1.00 | 1.19 | |
| Knopf | ||||
| 519 | F016L73380 | 3.04 | 3.62 | |
| Hochdruckschlauch | ||||
| 520 | F016L73381 | 17.60 | 20.94 | |
| Schlauchtrommel | ||||
| 521 | F016L73382 | 210.30 | 250.26 | |
| Auslöser | ||||
| 601 | F016L73068 | 37.50 | 44.62 | |
| Auslöser | ||||
| 601/1 | 1619PA9742 | 15.61 | 18.58 | |
| Feder | ||||
| 601/2 | 1619PA9743 | 7.32 | 8.71 | |
| Verschluss | ||||
| 601/3 | 1619PA9744 | 9.47 | 11.27 | |
| Strahlrohr | ||||
| 602 | F016L73327 | 37.50 | 44.62 | |
| O-Ring 9,5x1,5 | ||||
| 602/815 | 1619PB2119 | 1.90 | 2.26 | |
| Rotolanze | ||||
| 603 | F016L73384 | 67.98 | 80.90 | |
| O-Ring 9,5x1,5 | ||||
| 603/815 | 1619PB2119 | 1.90 | 2.26 | |
| Durchführungsfilter | ||||
| 611 | F016L73351 | 20.39 | 24.26 | |
| Durchführungsfilter | ||||
| 612 | F016L73352 | 20.39 | 24.26 | |
| Typschild | ||||
| 808 | F016F05917 | 2.18 | 2.59 | |
| Dichtung | ||||
| 814 | F016F04324 | 12.21 | 14.53 | |
| Verschleissteilsatz | ||||
| 880 | F016L73319 | 15.61 | 18.58 | |
