Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Bosch 3601GD4000 (GTR55-225)'. Von hier aus können Sie alle gewünschten Teile direkt bestellen.Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert 5 bis 10 Arbeitstage. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

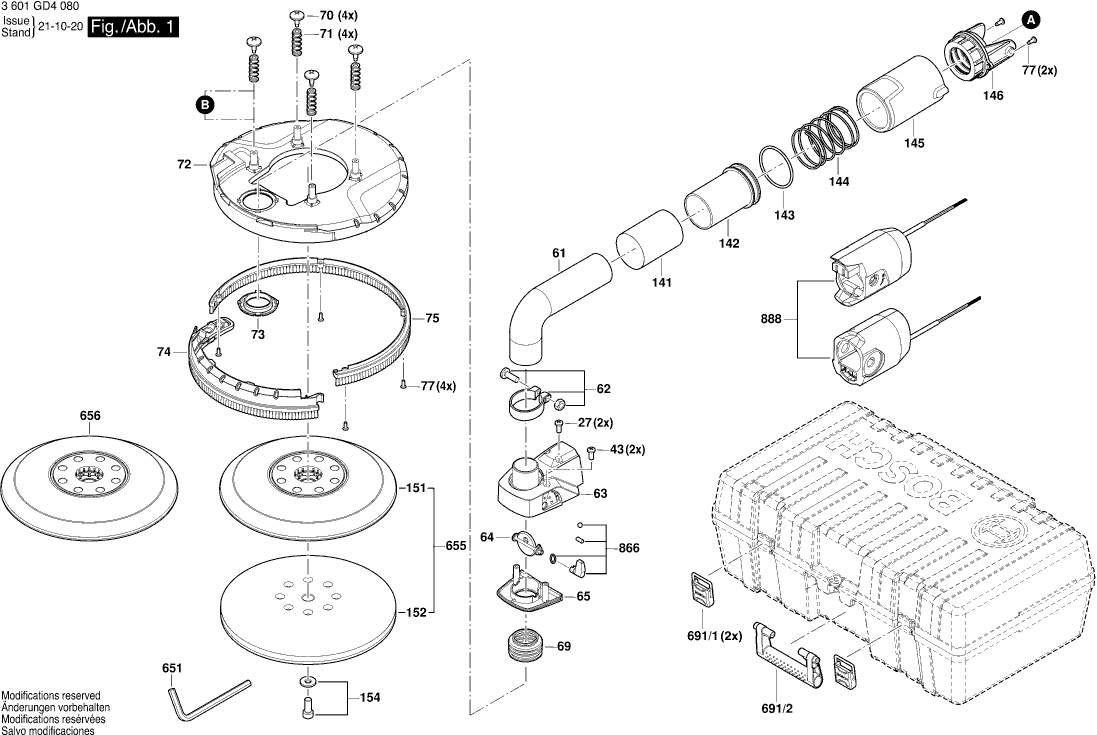

Zeichnungen der Bosch 3601GD4000 (GTR55-225)
Teileliste der Bosch 3601GD4000 (GTR55-225)
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Motorgehäuse | ||||
| 1 | 1619PB5941 | 4.94 | 5.88 | |
| Polschuh 230V | ||||
| 2 | 1619PB5942 | 16.79 | 19.98 | |
| Anker | ||||
| 3 | 1619PB5943 | 27.81 | 33.09 | |
| Schalter | ||||
| 4 | 1619PB5944 | 4.94 | 5.88 | |
| Netzanschlussleitung | ||||
| 5 | 160111AA6Z | 14.94 | 17.78 | |
| KABELDURCHFUEHRUNG | ||||
| 6 | 1619PB5946 | 1.49 | 1.77 | |
| Befestigungsschelle | ||||
| 7 | 1619PB6021 | 1.00 | 1.19 | |
| Typschild | ||||
| 8 | 1619PB8626 | 2.40 | 2.86 | |
| Firmenschild GBH 2000 | ||||
| 9 | 1619PB5948 | 2.40 | 2.86 | |
| RILLENKUGELLAGER OSC 18 | ||||
| 13 | 1619PB5950 | 7.46 | 8.88 | |
| Befestigungsschelle | ||||
| 19 | 1619PB5952 | 1.49 | 1.77 | |
| Plaatschroef | ||||
| 21 | 1619PB6082 | 1.00 | 1.19 | |
| Lagerflansch | ||||
| 22 | 1619PB5953 | 12.82 | 15.26 | |
| Magnet | ||||
| 23 | 1619PB5954 | 9.67 | 11.51 | |
| Montagehülse | ||||
| 24 | 1619PB5955 | 1.00 | 1.19 | |
| Luftleitring | ||||
| 25 | 1619PB5956 | 1.00 | 1.19 | |
| KABELDURCHFUEHRUNG | ||||
| 26 | 1619PB5957 | 1.00 | 1.19 | |
| Plaatschroef | ||||
| 27 | 1619PB5958 | 1.00 | 1.19 | |
| Gehäusedeckel GRUEN | ||||
| 28 | 1619PB5959 | 2.40 | 2.86 | |
| EL-Baugruppe | ||||
| 29 | 1619PB5960 | 23.90 | 28.44 | |
| Werkstückauflage | ||||
| 31 | 1619PB5962 | 1.00 | 1.19 | |
| Gehäusedeckel GRUEN | ||||
| 32 | 1619PB5963 | 1.49 | 1.77 | |
| Gehäusedeckel GRUEN | ||||
| 33 | 1619PB5964 | 1.49 | 1.77 | |
| Nadeldülse AGC 18 | ||||
| 34 | 1619PB5965 | 9.67 | 11.51 | |
| Getriebegehäuse | ||||
| 35 | 1619PB5966 | 11.37 | 13.53 | |
| RILLENKUGELLAGER OSC 18 | ||||
| 36 | 1619PB5967 | 3.44 | 4.09 | |
| Sicherungsring | ||||
| 37 | 1619PB5968 | 1.00 | 1.19 | |
| Kronenrad | ||||
| 38 | 1619PB5969 | 8.35 | 9.94 | |
| Vorgelegewelle | ||||
| 39 | 1619PB5970 | 5.81 | 6.91 | |
| Sicherungsring | ||||
| 40 | 1619PB5971 | 1.00 | 1.19 | |
| RILLENKUGELLAGER OSC 18 | ||||
| 41 | 1619PB5972 | 8.35 | 9.94 | |
| Lagerflansch | ||||
| 42 | 1619PB5973 | 2.86 | 3.40 | |
| Kupplungsbolzen | ||||
| 43 | 1619PB5974 | 1.00 | 1.19 | |
| Woodruff-Schlüssel | ||||
| 44 | 1619PB5975 | 1.00 | 1.19 | |
| Sicherungsring | ||||
| 45 | 1619PB5976 | 1.00 | 1.19 | |
| Stirnrad | ||||
| 46 | 1619PB5977 | 10.90 | 12.97 | |
| Dichtscheibe | ||||
| 47 | 1619PB5978 | 1.00 | 1.19 | |
| Lagerflansch | ||||
| 48 | 1619PB5979 | 4.94 | 5.88 | |
| Dichtplatte | ||||
| 49 | 1619PB5980 | 1.49 | 1.77 | |
| ANTR.WELLE ZSB | ||||
| 50 | 1619PB5981 | 4.18 | 4.97 | |
| RILLENKUGELLAGER OSC 18 | ||||
| 51 | 1619PB5982 | 9.67 | 11.51 | |
| Sicherungsring | ||||
| 52 | 1619PB5983 | 1.00 | 1.19 | |
| Staubschutz | ||||
| 53 | 1619PB5984 | 1.49 | 1.77 | |
| Flachkeil | ||||
| 54 | 1619PB5985 | 1.00 | 1.19 | |
| Versenkte Schraube VN-HK 85 M5x10 | ||||
| 55 | 1619PB6017 | 1.00 | 1.19 | |
| Kupplungsbolzen | ||||
| 56 | 1619PB6018 | 1.00 | 1.19 | |
| Drosselspule | ||||
| 57 | 1619PB6084 | 2.08 | 2.48 | |
| Feder | ||||
| 58 | 1607000E8V | 1.00 | 1.19 | |
| Wellrohr | ||||
| 61 | 1619PB5986 | 10.90 | 12.97 | |
| UNTERLEGSCHEIBE | ||||
| 62 | 1619PB5987 | 1.49 | 1.77 | |
| Reglergehäuse | ||||
| 63 | 1619PB5988 | 2.40 | 2.86 | |
| Ventileinsatz | ||||
| 64 | 1619PB5989 | 1.49 | 1.77 | |
| Gehäusedeckel GRUEN | ||||
| 65 | 1619PB5990 | 1.00 | 1.19 | |
| Wellrohr | ||||
| 69 | 1619PB5994 | 1.49 | 1.77 | |
| Kupplungsbolzen | ||||
| 70 | 1619PB5995 | 1.00 | 1.19 | |
| Feder | ||||
| 71 | 1619PB5996 | 1.00 | 1.19 | |
| Abdeckkappe STM 1800 | ||||
| 72 | 1619PB5997 | 9.67 | 11.51 | |
| Druckplatte | ||||
| 73 | 1619PB5998 | 1.00 | 1.19 | |
| Streifenbürste | ||||
| 74 | 1619PB5999 | 8.35 | 9.94 | |
| Streifenbürste | ||||
| 75 | 1619PB6000 | 11.37 | 13.53 | |
| Plaatschroef | ||||
| 77 | 1619PB6087 | 1.00 | 1.19 | |
| Tragrahmen | ||||
| 81 | 1619PB6001 | 18.94 | 22.54 | |
| Verbindungsleitung MX 1200/2 E EF | ||||
| 82 | 1619PB6002 | 2.40 | 2.86 | |
| Al-Rohr | ||||
| 83 | 1619PB6003 | 7.46 | 8.88 | |
| Kunststoffabdeckung | ||||
| 84 | 1619PB6004 | 4.18 | 4.97 | |
| Steckverbinder | ||||
| 88 | 1619PB6008 | 3.44 | 4.09 | |
| Kurvenscheibe | ||||
| 89 | 1619PB6009 | 3.44 | 4.09 | |
| Griff | ||||
| 90 | 1619PB6010 | 2.08 | 2.48 | |
| Kupplungsbolzen | ||||
| 91 | 1619PB6011 | 1.00 | 1.19 | |
| Haltewinkel | ||||
| 92 | 1619PB6012 | 3.44 | 4.09 | |
| SCHRAUBE M4X35 | ||||
| 94 | 1619PB6083 | 1.00 | 1.19 | |
| HAKEN | ||||
| 95 | 1619PB6014 | 1.49 | 1.77 | |
| Verbindungsstück | ||||
| 96 | 1619PB6015 | 4.18 | 4.97 | |
| Versenkte Schraube VN-HK 85 M5x10 | ||||
| 97 | 1619PB6016 | 1.00 | 1.19 | |
| Schalterknopf | ||||
| 101 | 1619PB6019 | 1.00 | 1.19 | |
| Verstellschieber | ||||
| 102 | 1619PB6020 | 1.49 | 1.77 | |
| WINKELBLECH | ||||
| 104 | 1619PB6022 | 1.49 | 1.77 | |
| Griff | ||||
| 105 | 1619PB6023 | 9.67 | 11.51 | |
| Verbindungsleitung MX 1200/2 E EF | ||||
| 106 | 1619PB6024 | 2.40 | 2.86 | |
| Drehzahlregler | ||||
| 107 | 1619PB6025 | 52.45 | 62.42 | |
| Flussregler | ||||
| 109 | 1619PB6027 | 1.49 | 1.77 | |
| Zwischengehäuse | ||||
| 110 | 1619PB6028 | 1.49 | 1.77 | |
| Steckdosengehäuse | ||||
| 111 | 1619PB6029 | 1.00 | 1.19 | |
| Kunststoffabdeckung | ||||
| 112 | 1619PB6030 | 1.00 | 1.19 | |
| Al-Rohr | ||||
| 113 | 1619PB6031 | 11.37 | 13.53 | |
| Schlauchkupplung | ||||
| 114 | 1619PB6032 | 2.40 | 2.86 | |
| Haltewinkel | ||||
| 116 | 1619PB6034 | 4.94 | 5.88 | |
| Nockenwelle | ||||
| 117 | 1619PB6035 | 6.73 | 8.01 | |
| STEHBOLZEN | ||||
| 118 | 1619PB6036 | 4.94 | 5.88 | |
| Kunststoffabdeckung | ||||
| 120 | 1619PB6037 | 4.18 | 4.97 | |
| Einstellring 1,6 mm | ||||
| 121 | 1619PB6038 | 1.00 | 1.19 | |
| Filzpad | ||||
| 122 | 1619PB6039 | 1.00 | 1.19 | |
| Al-Rohr | ||||
| 123 | 1619PB6006 | 23.90 | 28.44 | |
| Verbindungsleitung MX 1200/2 E EF | ||||
| 124 | 1619PB6007 | 2.86 | 3.40 | |
| Verbindungkabel PVC, 0.5mm^2, | ||||
| 125 | 1607000EH5 | 2.40 | 2.86 | |
| Gummipuffer | ||||
| 131 | 1619PB6040 | 1.00 | 1.19 | |
| GEWINDEBUCHSE | ||||
| 132 | 1619PB6041 | 1.00 | 1.19 | |
| Knopfmanschette | ||||
| 133 | 1619PB6042 | 4.18 | 4.97 | |
| Zylinderstift | ||||
| 134 | 1619PB6043 | 1.49 | 1.77 | |
| Feder | ||||
| 135 | 1619PB6086 | 1.00 | 1.19 | |
| Schalterknopf | ||||
| 141 | 1619PB6044 | 5.81 | 6.91 | |
| Gewindebuchse | ||||
| 142 | 1619PB6045 | 3.44 | 4.09 | |
| Dichtring | ||||
| 143 | 1619PB6046 | 1.00 | 1.19 | |
| Feder | ||||
| 144 | 1619PB6047 | 1.49 | 1.77 | |
| Gleitbuchse | ||||
| 145 | 1619PB6048 | 1.49 | 1.77 | |
| Schlauchkupplung | ||||
| 146 | 1619PB6049 | 1.49 | 1.77 | |
| Wellrohr | ||||
| 147 | 1619PB6050 | 10.90 | 12.97 | |
| Schlauchkupplung | ||||
| 148 | 1619PB6051 | 1.49 | 1.77 | |
| Stützteller | ||||
| 151 | 1619PB6052 | 23.90 | 28.44 | |
| Zwischenschicht | ||||
| 152 | 1619PB6053 | 23.90 | 28.44 | |
| Zylinderschraube | ||||
| 154 | 1619PB6055 | 1.00 | 1.19 | |
| Griffstange | ||||
| 156 | 1607000E57 | 47.53 | 56.56 | |
| Typschild | ||||
| 161 | 1619PB8632 | 2.40 | 2.86 | |
| Firmenschild GBH 2000 | ||||
| 162 | 1619PB8639 | 2.40 | 2.86 | |
| Innensechskantschlüssel | ||||
| 651 | 1619PB6075 | 2.08 | 2.48 | |
| Gummi-Stützteller | ||||
| 655 | 1607000E5X | 34.82 | 41.44 | |
| Stützteller | ||||
| 656 | 1619PB6056 | 18.94 | 22.54 | |
| KABELKLEMME | ||||
| 657 | 1619PB6088 | 1.49 | 1.77 | |
| Vakuumadapter | ||||
| 658 | 1607000F2K | 6.73 | 8.01 | |
| Schnappverschluss | ||||
| 691/1 | 1619PB6089 | 2.40 | 2.86 | |
| Griff | ||||
| 691/2 | 1619PB6090 | 2.86 | 3.40 | |
| SERVICE KIT 115V | ||||
| 810 | 1607000E7H | 12.82 | 15.26 | |
| Druckplatte | ||||
| 817 | 1619PB6081 | 1.00 | 1.19 | |
| Betriebsknopf | ||||
| 866 | 1619PB6085 | 1.49 | 1.77 | |
| Steckkupplung GTR550 | ||||
| 888 | 1607000E8U | 13.13 | 15.62 | |
