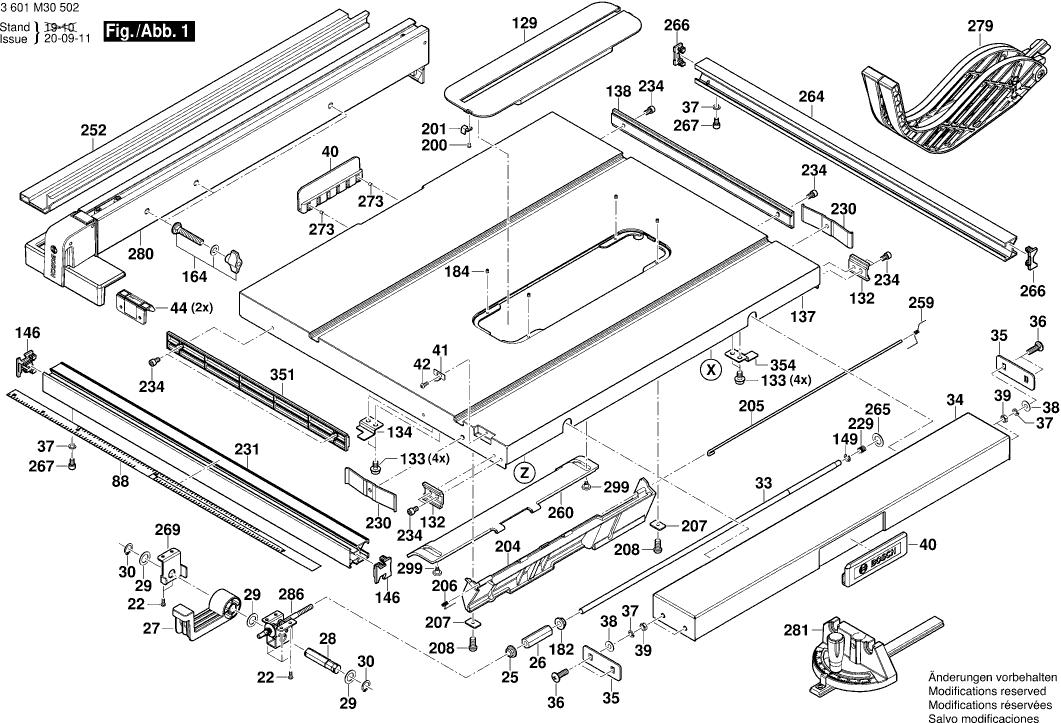

Zeichnungen der Bosch 3601M30502 ( GTS10J )
Teileliste der Bosch 3601M30502 ( GTS10J )
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Motorgehäuse | ||||
| 1 | 1619PB2487 | 15.71 | 18.69 | |
| Polschuh 230-240 V | ||||
| 2 | 1609B07856 | 55.25 | 65.75 | |
| Polschuh 230V | ||||
| 2 | 1609203K86 | 55.25 | 65.75 | |
| Anker 230V | ||||
| 3 | 1619P03278 | 113.29 | 134.82 | |
| Schalter | ||||
| 4 | 2610016997 | 44.82 | 53.34 | |
| Netzanschlussleitung | ||||
| 5 | 2610016998 | 26.84 | 31.94 | |
| Kabelklemme | ||||
| 6 | 1609203K96 | 0.83 | 0.99 | |
| Kabelklemme | ||||
| 7 | 2610014693 | 0.83 | 0.99 | |
| Kohlebürstensatz | ||||
| 10 | 2610018332 | 18.19 | 21.65 | |
| Kugellager | ||||
| 13 | 2610004595 | 9.53 | 11.34 | |
| Kugellager | ||||
| 14 | 2610911927 | 20.42 | 24.30 | |
| Bürstenhalter Zusammenbau | ||||
| 16 | 1609B07133 | 7.58 | 9.02 | |
| Schraube | ||||
| 18 | 2610015078 | 0.83 | 0.99 | |
| Schraube | ||||
| 19 | 2610017002 | 0.83 | 0.99 | |
| Schraube | ||||
| 22 | 2610014697 | 0.83 | 0.99 | |
| Mutter | ||||
| 25 | 2610014698 | 0.83 | 0.99 | |
| Verbindungsmutter | ||||
| 26 | 2610996920 | 4.70 | 5.59 | |
| Handgriff | ||||
| 27 | 2610014699 | 5.33 | 6.34 | |
| Kurvenscheibe | ||||
| 28 | 2610015000 | 8.45 | 10.06 | |
| Scheibe | ||||
| 29 | 2610015001 | 0.83 | 0.99 | |
| Sicherungsring | ||||
| 30 | 2610015002 | 0.83 | 0.99 | |
| Steckerstift | ||||
| 32 | 2610017003 | 0.83 | 0.99 | |
| Stange | ||||
| 33 | 2610017004 | 5.83 | 6.94 | |
| Schiebetisch | ||||
| 34 | 1600A01D8S | 23.75 | 28.26 | |
| Fixierplatte | ||||
| 35 | 1600A01D8T | 1.18 | 1.40 | |
| Rollen-Bundbolzen | ||||
| 36 | 2610910015 | 2.24 | 2.67 | |
| Federscheibe Ø27,5x38,4 MM | ||||
| 37 | 2610355325 | 0.83 | 0.99 | |
| Scheibe | ||||
| 38 | 2610910013 | 1.70 | 2.02 | |
| Mutter | ||||
| 39 | 2610015008 | 0.83 | 0.99 | |
| Handgriff | ||||
| 40 | 2610015009 | 4.70 | 5.59 | |
| Zeiger | ||||
| 41 | 2610015010 | 1.18 | 1.40 | |
| Schraube | ||||
| 42 | 2610950077 | 0.83 | 0.99 | |
| Gleitschuh | ||||
| 44 | 2610023173 | 1.70 | 2.02 | |
| Schraube | ||||
| 72 | 2610950069 | 0.83 | 0.99 | |
| Scheibe | ||||
| 73 | 2610015011 | 0.83 | 0.99 | |
| Bolzen | ||||
| 74 | 2610015012 | 0.83 | 0.99 | |
| Scheibe | ||||
| 75 | 2610925438 | 0.83 | 0.99 | |
| Gerätefuss | ||||
| 76 | 2610015014 | 4.10 | 4.88 | |
| Schraube | ||||
| 77 | 2610015015 | 0.83 | 0.99 | |
| Handgriff | ||||
| 78 | 2610015016 | 9.53 | 11.34 | |
| Halteplatte | ||||
| 79 | 2610015017 | 10.73 | 12.77 | |
| Schraube | ||||
| 80 | 2610015018 | 0.83 | 0.99 | |
| Schlüssel | ||||
| 81 | 2610015019 | 6.54 | 7.78 | |
| Lagerdeckel | ||||
| 82 | 2610911566 | 2.24 | 2.67 | |
| Mutter | ||||
| 83 | 2610015021 | 1.18 | 1.40 | |
| Werkstückschieber | ||||
| 84 | 2610015022 | 5.33 | 6.34 | |
| Stützwinkel | ||||
| 86 | 2610017007 | 1.94 | 2.31 | |
| Schraube | ||||
| 87 | 2610010404 | 0.83 | 0.99 | |
| Bandmaß | ||||
| 88 | 1600A01D8X | 1.70 | 2.02 | |
| Schraube | ||||
| 102 | 1609902670 | 0.83 | 0.99 | |
| Mutter | ||||
| 103 | 2610327868 | 0.83 | 0.99 | |
| Schraube | ||||
| 109 | 2610998587 | 0.83 | 0.99 | |
| Endkappe | ||||
| 112 | 2610017013 | 6.54 | 7.78 | |
| Verbinder | ||||
| 113 | 2610911933 | 0.83 | 0.99 | |
| Schraube neu | ||||
| 117 | 2610018983 | 0.83 | 0.99 | |
| Federscheibe | ||||
| 118 | 2610950042 | 0.83 | 0.99 | |
| Abdeckung TURBO II | ||||
| 119 | 1600A01D91 | 13.93 | 16.58 | |
| Schraube | ||||
| 120 | 2610950044 | 0.83 | 0.99 | |
| Kugellager | ||||
| 121 | 2610996949 | 11.88 | 14.14 | |
| Filter | ||||
| 122 | 2610017015 | 9.53 | 11.34 | |
| Sicherungsring | ||||
| 123 | 2610997281 | 0.83 | 0.99 | |
| Schraube | ||||
| 124 | 2610998572 | 0.83 | 0.99 | |
| Drehfeder | ||||
| 125 | 2610996875 | 1.18 | 1.40 | |
| Sperrhebel | ||||
| 126 | 2610996874 | 8.45 | 10.06 | |
| Ansatzschraube | ||||
| 127 | 2610996876 | 1.18 | 1.40 | |
| Schraube | ||||
| 128 | 2610998588 | 1.18 | 1.40 | |
| Einsatz SYS-ISC 240 | ||||
| 129 | 1600A01D8R | 20.42 | 24.30 | |
| Getriebegehäuse | ||||
| 130 | 2610017017 | 55.25 | 65.75 | |
| Sprengring | ||||
| 131 | 2610937293 | 0.83 | 0.99 | |
| Gleitplatte | ||||
| 132 | 1600A00726 | 0.83 | 0.99 | |
| Schraube | ||||
| 133 | 2610950108 | 0.83 | 0.99 | |
| Anschlagblock | ||||
| 134 | 1600A01D8Y | 0.83 | 0.99 | |
| Sicherungsbügel | ||||
| 136 | 2610017008 | 2.71 | 3.22 | |
| Basis DF 700 | ||||
| 137 | 1600A01D8P | 187.62 | 223.27 | |
| Aufspannschiene | ||||
| 138 | 1600A00724 | 1.70 | 2.02 | |
| Gewindestift | ||||
| 140 | 1609902054 | 0.83 | 0.99 | |
| Schraube | ||||
| 141 | 2610911929 | 0.83 | 0.99 | |
| Sicherungsmutter | ||||
| 142 | 2610911901 | 1.18 | 1.40 | |
| Einsatz | ||||
| 143 | 2610911569 | 1.94 | 2.31 | |
| Gummiring | ||||
| 144 | 2610996948 | 1.18 | 1.40 | |
| Schraube | ||||
| 145 | 2610950071 | 0.83 | 0.99 | |
| Endkappe | ||||
| 146 | 2610015030 | 1.18 | 1.40 | |
| Bürstendeckel Ø 22mm | ||||
| 147 | 2610916802 | 1.94 | 2.31 | |
| Sicherungsring | ||||
| 149 | 2610015031 | 0.83 | 0.99 | |
| Lagerhülse | ||||
| 150 | 2610996932 | 1.94 | 2.31 | |
| Absauganschluss | ||||
| 151 | 2610017001 | 4.70 | 5.59 | |
| Kugellager | ||||
| 152 | 2610997210 | 11.88 | 14.14 | |
| Sicherungsring | ||||
| 153 | 2610997282 | 0.83 | 0.99 | |
| Spindel | ||||
| 154 | 2610017021 | 26.84 | 31.94 | |
| Scheibenfeder | ||||
| 155 | 2610012984 | 0.83 | 0.99 | |
| Zahnrad | ||||
| 156 | 2610997208 | 33.45 | 39.81 | |
| Buchse | ||||
| 157 | 2610017018 | 2.71 | 3.22 | |
| Sicherungsring | ||||
| 158 | 2610998573 | 0.83 | 0.99 | |
| Gewindestift | ||||
| 159 | 2610950427 | 0.83 | 0.99 | |
| Kette | ||||
| 160 | 2610017022 | 0.83 | 0.99 | |
| Befestigungswinkel | ||||
| 161 | 2610950126 | 6.54 | 7.78 | |
| Lagerbuchse | ||||
| 162 | 2610950070 | 0.83 | 0.99 | |
| Stützwinkel | ||||
| 163 | 2610015035 | 6.54 | 7.78 | |
| Befestigungssatz | ||||
| 164 | 2610017023 | 11.88 | 14.14 | |
| Halteplatte | ||||
| 165 | 2610017024 | 67.25 | 80.03 | |
| Stange | ||||
| 166 | 2610017025 | 10.73 | 12.77 | |
| Bolzen | ||||
| 167 | 2610015038 | 1.18 | 1.40 | |
| Scheibe | ||||
| 168 | 2610015039 | 0.83 | 0.99 | |
| Stützplatte | ||||
| 169 | 2610015040 | 3.31 | 3.94 | |
| Schraube | ||||
| 170 | 2610950055 | 0.83 | 0.99 | |
| Stange | ||||
| 171 | 2610017026 | 6.54 | 7.78 | |
| Kegelrad | ||||
| 172 | 2610015042 | 1.94 | 2.31 | |
| Scheibe | ||||
| 173 | 2610013162 | 0.83 | 0.99 | |
| Lagerbuchse | ||||
| 174 | 2610015043 | 0.83 | 0.99 | |
| Scheibe | ||||
| 175 | 2610015044 | 0.83 | 0.99 | |
| Schraube | ||||
| 177 | 2610015045 | 0.83 | 0.99 | |
| Fingerwelle | ||||
| 178 | 2610017027 | 6.54 | 7.78 | |
| Stützplatte | ||||
| 179 | 2610015047 | 4.10 | 4.88 | |
| Lagerbuchse | ||||
| 180 | 2610015048 | 0.83 | 0.99 | |
| Scheibe | ||||
| 181 | 2610016557 | 0.83 | 0.99 | |
| Mutter | ||||
| 182 | 2610016558 | 0.83 | 0.99 | |
| Lagerbuchse | ||||
| 183 | 2610015049 | 5.83 | 6.94 | |
| Gewindestift | ||||
| 184 | 2610013053 | 0.83 | 0.99 | |
| Schraube | ||||
| 185 | 2610016559 | 0.83 | 0.99 | |
| Abdeckung | ||||
| 186 | 2610015050 | 10.73 | 12.77 | |
| Schraube | ||||
| 187 | 2610950049 | 0.83 | 0.99 | |
| Elektronikmodul | ||||
| 188 | 2610017037 | 55.25 | 65.75 | |
| Staubschutzfassung | ||||
| 189 | 2610015051 | 7.58 | 9.02 | |
| Schraube | ||||
| 190 | 2610015052 | 0.83 | 0.99 | |
| Sicherungsring | ||||
| 191 | 2610015053 | 0.83 | 0.99 | |
| Sicherungsbügel | ||||
| 192 | 2610017028 | 0.83 | 0.99 | |
| Gewindebolzen | ||||
| 193 | 2610016560 | 1.18 | 1.40 | |
| Schraube | ||||
| 194 | 2610016561 | 0.83 | 0.99 | |
| Mutter | ||||
| 195 | 2610925187 | 0.83 | 0.99 | |
| Schutzblech | ||||
| 196 | 2610015055 | 1.18 | 1.40 | |
| Schraube | ||||
| 197 | 2610950132 | 0.83 | 0.99 | |
| Platte | ||||
| 198 | 2610015073 | 6.54 | 7.78 | |
| Schraube | ||||
| 200 | 2610017029 | 0.83 | 0.99 | |
| Federclip | ||||
| 201 | 2610017030 | 0.83 | 0.99 | |
| Berührungsschutz | ||||
| 202 | 2610017033 | 2.71 | 3.22 | |
| Schraube | ||||
| 203 | 2610950439 | 0.83 | 0.99 | |
| Schutzblech | ||||
| 204 | 2610015054 | 6.54 | 7.78 | |
| Stange | ||||
| 205 | 2610016562 | 0.83 | 0.99 | |
| Kontaktlasche | ||||
| 206 | 2610016563 | 0.83 | 0.99 | |
| Platte | ||||
| 207 | 2610923830 | 0.83 | 0.99 | |
| Schraube | ||||
| 208 | 2610010404 | 0.83 | 0.99 | |
| Schraube | ||||
| 209 | 2610017031 | 0.83 | 0.99 | |
| Scheibe | ||||
| 210 | 2610015058 | 0.83 | 0.99 | |
| Gummibuchse | ||||
| 211 | 2610911920 | 0.83 | 0.99 | |
| Steckschlüsseleinsatz | ||||
| 212 | 2610015059 | 1.18 | 1.40 | |
| Halteplatte | ||||
| 213 | 2610017032 | 36.85 | 43.85 | |
| Scheibe | ||||
| 214 | 2610017110 | 1.70 | 2.02 | |
| Unterlegscheibe | ||||
| 215 | 2610347092 | 0.83 | 0.99 | |
| Isolator | ||||
| 216 | 2610017046 | 2.71 | 3.22 | |
| Lagerbuchse | ||||
| 217 | 2610015061 | 1.94 | 2.31 | |
| Handgriff | ||||
| 218 | 2610015062 | 5.83 | 6.94 | |
| Mutter | ||||
| 219 | 2610924961 | 0.83 | 0.99 | |
| Schraube | ||||
| 220 | 2610015359 | 0.83 | 0.99 | |
| Kurvenscheibe | ||||
| 221 | 1600A00725 | 0.83 | 0.99 | |
| Zeiger | ||||
| 225 | 2610015064 | 1.70 | 2.02 | |
| Schraube M5x8 | ||||
| 226 | 2610015065 | 0.83 | 0.99 | |
| Kontaktlasche | ||||
| 227 | 2610013054 | 0.83 | 0.99 | |
| Schaltergehäuse | ||||
| 228 | 2610015066 | 4.70 | 5.59 | |
| Feder | ||||
| 229 | 2610015067 | 0.83 | 0.99 | |
| Befestigungsblech | ||||
| 230 | 2610996912 | 4.70 | 5.59 | |
| Schiene | ||||
| 231 | 1600A01D8V | 23.75 | 28.26 | |
| Schraube | ||||
| 234 | 2610951945 | 0.83 | 0.99 | |
| Aufspannflansch | ||||
| 235 | 1609203K93 | 9.53 | 11.34 | |
| Klemmflansch | ||||
| 237 | 2610950046 | 9.53 | 11.34 | |
| Mutter | ||||
| 238 | 2610358858 | 1.94 | 2.31 | |
| Handrad | ||||
| 239 | 2610015069 | 7.58 | 9.02 | |
| Handgriff | ||||
| 242 | 2610950059 | 0.83 | 0.99 | |
| Schraube | ||||
| 243 | 2610950060 | 0.83 | 0.99 | |
| Scheibe | ||||
| 244 | 2610950389 | 0.83 | 0.99 | |
| Schutzabdeckung | ||||
| 248 | 2610017034 | 2.71 | 3.22 | |
| Gehrungslineal | ||||
| 252 | 2610017035 | 20.42 | 24.30 | |
| Stange | ||||
| 253 | 2610017036 | 1.18 | 1.40 | |
| Schraube | ||||
| 254 | 2610017052 | 0.83 | 0.99 | |
| Schraube | ||||
| 256 | 2610998580 | 0.83 | 0.99 | |
| Mutter | ||||
| 257 | 2610017038 | 0.83 | 0.99 | |
| Schraube | ||||
| 258 | 2610015070 | 0.83 | 0.99 | |
| Kontaktlasche | ||||
| 259 | 2610016565 | 0.83 | 0.99 | |
| Schutzabdeckung | ||||
| 260 | 2610017039 | 8.45 | 10.06 | |
| Schaltergehäuse | ||||
| 261 | 2610015071 | 1.94 | 2.31 | |
| Verbindungskabel | ||||
| 262 | 2610017040 | 5.33 | 6.34 | |
| Schiene | ||||
| 264 | 1600A01D8U | 20.42 | 24.30 | |
| Scheibe | ||||
| 265 | 2610015075 | 0.83 | 0.99 | |
| Gerätekappe | ||||
| 266 | 2610015076 | 0.83 | 0.99 | |
| Bolzen | ||||
| 267 | 2610950134 | 0.83 | 0.99 | |
| Anschlagblock | ||||
| 269 | 1600A01D8Z | 1.18 | 1.40 | |
| Schraube | ||||
| 270 | 2610950117 | 0.83 | 0.99 | |
| Federscheibe | ||||
| 271 | 2610013365 | 0.83 | 0.99 | |
| Schraube | ||||
| 273 | 2610015080 | 0.83 | 0.99 | |
| Scheibe | ||||
| 274 | 2610950135 | 0.83 | 0.99 | |
| Scheibe | ||||
| 275 | 2610016566 | 0.83 | 0.99 | |
| Schutzhaube | ||||
| 279 | 1600A01R18 | 23.75 | 28.26 | |
| Gehrungslineal | ||||
| 280 | 2610017047 | 101.94 | 121.31 | |
| Gehrungsanschlag | ||||
| 281 | 2610015507 | 23.75 | 28.26 | |
| Sechskantsteckschlüssel | ||||
| 283 | 2610016567 | 1.18 | 1.40 | |
| Fächerscheibe | ||||
| 285 | 2610023174 | 0.83 | 0.99 | |
| Schloss | ||||
| 286 | 2610015093 | 29.75 | 35.40 | |
| RAHMEN | ||||
| 287 | 1600A01D8N | 148.65 | 176.89 | |
| Spaltautomat CS 50 EBG | ||||
| 288 | 1600A01D8L | 26.84 | 31.94 | |
| Stange | ||||
| 289 | 2610017050 | 0.83 | 0.99 | |
| Scheibe | ||||
| 291 | 2610017051 | 0.83 | 0.99 | |
| Scheibe | ||||
| 292 | 2610950109 | 0.83 | 0.99 | |
| Schraube | ||||
| 293 | 2610950108 | 0.83 | 0.99 | |
| Halterung | ||||
| 294 | 2610017053 | 7.58 | 9.02 | |
| Halterung | ||||
| 295 | 2610017054 | 7.58 | 9.02 | |
| Stange | ||||
| 298 | 2610017056 | 1.18 | 1.40 | |
| Schraube | ||||
| 299 | 2610017057 | 0.83 | 0.99 | |
| Torsionsfeder | ||||
| 300 | 2610017058 | 0.83 | 0.99 | |
| Berührungsschutz | ||||
| 302 | 2610017060 | 1.94 | 2.31 | |
| Prallschutz | ||||
| 305 | 2610020858 | 1.94 | 2.31 | |
| Kabelklemme | ||||
| 343 | 2610020856 | 0.83 | 0.99 | |
| Fuss | ||||
| 346 | 1600A01D90 | 2.24 | 2.67 | |
| Haltevorrichtung | ||||
| 347 | 1600A01B74 | 1.70 | 2.02 | |
| Haltevorrichtung | ||||
| 348 | 1600A01B74 | 1.70 | 2.02 | |
| Haltevorrichtung | ||||
| 348 | 1600A01B75 | 1.70 | 2.02 | |
| Sechskantmutter DIN 934-M12-m-8 | ||||
| 349 | 2915011011 | 1.18 | 1.40 | |
| Kappenschraube | ||||
| 350 | 1600A01TJ5 | 0.83 | 0.99 | |
| GEWINDEBUCHSE | ||||
| 351 | 1600A01D8W | 2.24 | 2.67 | |
| Anschlagblock | ||||
| 354 | 1600A01S0T | 1.18 | 1.40 | |
| Typschild | ||||
| 808 | 160111A6WG | 1.94 | 2.31 | |
| Bürstenhalter Zusammenbau | ||||
| 816 | 1609B07133 | 7.58 | 9.02 | |
