Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Bosch 3601M45000 ( GTS254 )'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

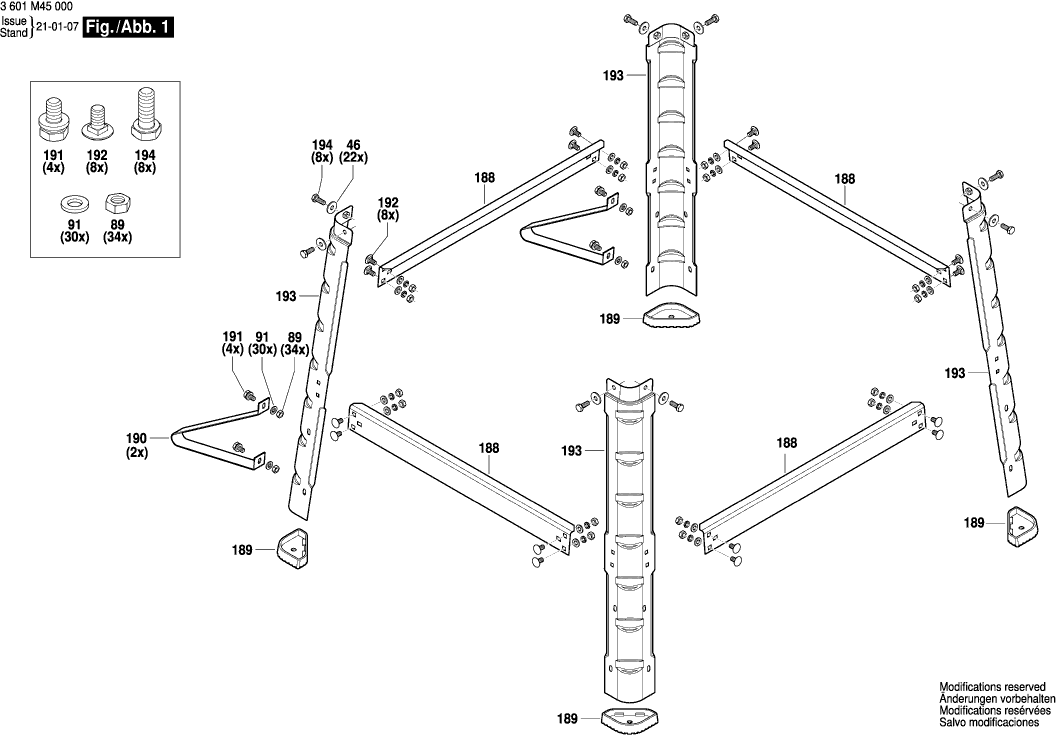

Zeichnungen der Bosch 3601M45000 ( GTS254 )
Teileliste der Bosch 3601M45000 ( GTS254 )
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Polschuh 230V | ||||
| 2 | 160422058V | 26.84 | 31.94 | |
| Schalter | ||||
| 4 | 160720037L | 12.41 | 14.77 | |
| Netzanschlussleitung | ||||
| 5 | 1619PB6263 | 8.45 | 10.06 | |
| KABELDURCHFUEHRUNG | ||||
| 6 | 160070305B | 0.83 | 0.99 | |
| Befestigungsschelle | ||||
| 7 | 1600A022BY | 0.83 | 0.99 | |
| Typschild | ||||
| 8 | 160111A8G9 | 1.94 | 2.31 | |
| Selbstklebende Platte | ||||
| 9 | 160111C3WM | 1.94 | 2.31 | |
| Störungskondensator | ||||
| 12 | 1619PB6256 | 1.70 | 2.02 | |
| RILLENKUGELLAGER OSC 18 | ||||
| 13 | 160090009G | 4.10 | 4.88 | |
| SCHRAUBE M4X35 | ||||
| 19 | 160343008V | 0.83 | 0.99 | |
| Mutter | ||||
| 23 | 1600A022CF | 0.83 | 0.99 | |
| Stecker | ||||
| 27 | 1600A022DZ | 0.83 | 0.99 | |
| Endanschlag DF500 | ||||
| 28 | 1600A022EG | 5.83 | 6.94 | |
| Bolzen | ||||
| 32 | 1600A022CM | 0.83 | 0.99 | |
| Stecker | ||||
| 33 | 1600A022E0 | 0.83 | 0.99 | |
| KNOPF | ||||
| 34 | 1600A022C0 | 0.83 | 0.99 | |
| SCHRAUBE M4X35 | ||||
| 35 | 160343008W | 0.83 | 0.99 | |
| Verriegelungsstift | ||||
| 43 | 1600A022BT | 0.83 | 0.99 | |
| Klemmhebel | ||||
| 44 | 1600A022FM | 1.18 | 1.40 | |
| POLSTUECK | ||||
| 45 | 1600A022FN | 0.83 | 0.99 | |
| Flachdichtung | ||||
| 46 | 1600A022CC | 0.83 | 0.99 | |
| SCHRAUBE M4X35 | ||||
| 47 | 160343009P | 0.83 | 0.99 | |
| Halterarm | ||||
| 48 | 1600A022ES | 1.18 | 1.40 | |
| Feder | ||||
| 49 | 160343008Y | 0.83 | 0.99 | |
| STREIFEN | ||||
| 50 | 1600A022DV | 0.83 | 0.99 | |
| SCHRAUBE M4X35 | ||||
| 51 | 1600A022C9 | 0.83 | 0.99 | |
| Verriegelungshebel | ||||
| 54 | 1600A022CX | 1.94 | 2.31 | |
| Schutz AF-DW | ||||
| 55 | 1600A022CY | 4.10 | 4.88 | |
| Spaltautomat CS 50 EBG | ||||
| 57 | 1600A022F1 | 5.33 | 6.34 | |
| Bolzen | ||||
| 58 | 1600A022CN | 0.83 | 0.99 | |
| Anschlagblech RTSC/DTSC/ETSC | ||||
| 67 | 1600A022DM | 0.83 | 0.99 | |
| Anschlagblech RTSC/DTSC/ETSC | ||||
| 68 | 1600A022DN | 0.83 | 0.99 | |
| Einlage | ||||
| 69 | 1619PB7208 | 6.54 | 7.78 | |
| KABELKLEMME | ||||
| 70 | 1600A022F2 | 1.70 | 2.02 | |
| SCHRAUBE M4X35 | ||||
| 71 | 160343008Z | 0.83 | 0.99 | |
| DECKEL 11-2 | ||||
| 72 | 16055002HL | 0.83 | 0.99 | |
| Tischplatte | ||||
| 73 | 1600A022F5 | 10.73 | 12.77 | |
| Basis | ||||
| 74 | 1600A022ET | 4.10 | 4.88 | |
| SCHRAUBE M4X35 | ||||
| 75 | 1603430090 | 0.83 | 0.99 | |
| Stecker | ||||
| 76 | 1600A022E1 | 0.83 | 0.99 | |
| SCHRAUBE M4X35 | ||||
| 77 | 1603430091 | 0.83 | 0.99 | |
| Tischplatte | ||||
| 78 | 1600A022F6 | 49.56 | 58.98 | |
| Griff | ||||
| 79 | 1600A022ED | 0.83 | 0.99 | |
| Sitz | ||||
| 80 | 1600A022DD | 2.71 | 3.22 | |
| SCHRAUBE M4X35 | ||||
| 81 | 1603430092 | 0.83 | 0.99 | |
| Sitz | ||||
| 82 | 1600A022DE | 0.83 | 0.99 | |
| SCHRAUBE M4X35 | ||||
| 83 | 1603430093 | 0.83 | 0.99 | |
| Drehfeder TSF 55 | ||||
| 84 | 1600A022C3 | 0.83 | 0.99 | |
| Schutz AF-DW | ||||
| 85 | 1600A022CZ | 2.71 | 3.22 | |
| Schutz AF-DW | ||||
| 86 | 1600A022D0 | 0.83 | 0.99 | |
| Ausgleichscheibe | ||||
| 87 | 1600A022F7 | 0.83 | 0.99 | |
| Sitz | ||||
| 88 | 1600A022DF | 4.10 | 4.88 | |
| Mutter | ||||
| 89 | 1600A022CG | 0.83 | 0.99 | |
| Federscheibe Ø27,5x38,4 MM | ||||
| 90 | 160015003M | 0.83 | 0.99 | |
| Distanzring AU 43 FF | ||||
| 91 | 1600A022BM | 0.83 | 0.99 | |
| Skalenrad | ||||
| 92 | 1600A022F8 | 0.83 | 0.99 | |
| Anzeigegerät | ||||
| 93 | 1600A022F9 | 0.83 | 0.99 | |
| Montageplatte | ||||
| 94 | 1600A022DP | 0.83 | 0.99 | |
| Bolzen | ||||
| 95 | 1600A022CP | 0.83 | 0.99 | |
| Stecker | ||||
| 96 | 1600A022E2 | 0.83 | 0.99 | |
| Skala FSK 670 | ||||
| 97 | 1600A022EP | 1.18 | 1.40 | |
| Basis | ||||
| 98 | 1600A022EU | 10.73 | 12.77 | |
| Skala FSK 670 | ||||
| 99 | 1600A022ER | 0.83 | 0.99 | |
| Stecker | ||||
| 100 | 1600A022E3 | 0.83 | 0.99 | |
| Flachdichtung | ||||
| 101 | 1600A022CD | 0.83 | 0.99 | |
| DECKEL 11-2 | ||||
| 102 | 16055002HM | 6.54 | 7.78 | |
| SCHRAUBE M4X35 | ||||
| 103 | 1603430094 | 1.18 | 1.40 | |
| Flansch | ||||
| 105 | 1600A022FA | 1.18 | 1.40 | |
| Flansch | ||||
| 107 | 1619PB6279 | 2.71 | 3.22 | |
| STREIFEN | ||||
| 108 | 1600A022DY | 1.18 | 1.40 | |
| SCHRAUBE M4X35 | ||||
| 109 | 1603430095 | 0.83 | 0.99 | |
| Woodruff-Schlüssel | ||||
| 112 | 1600A022FP | 0.83 | 0.99 | |
| ANTR.WELLE ZSB | ||||
| 113 | 1600A022FR | 3.31 | 3.94 | |
| SCHRAUBE M4X35 | ||||
| 114 | 160343009R | 0.83 | 0.99 | |
| Kronenrad | ||||
| 115 | 1600A022BL | 11.88 | 14.14 | |
| Spaltautomat CS 50 EBG | ||||
| 116 | 1600A022BK | 1.18 | 1.40 | |
| Sicherungsring | ||||
| 117 | 1600A022F4 | 0.83 | 0.99 | |
| SCHRAUBE M4X35 | ||||
| 119 | 1603430096 | 0.83 | 0.99 | |
| Sitz | ||||
| 120 | 1600A022DG | 4.10 | 4.88 | |
| Pad | ||||
| 121 | 1600A022FS | 0.83 | 0.99 | |
| Sitz | ||||
| 122 | 1600A022DH | 1.94 | 2.31 | |
| STREIFEN | ||||
| 123 | 1600A022DU | 13.93 | 16.58 | |
| Mutter | ||||
| 124 | 1600A022CL | 1.18 | 1.40 | |
| SCHRAUBE M4X35 | ||||
| 126 | 1603430097 | 0.83 | 0.99 | |
| Verkleidung | ||||
| 127 | 1600A022FT | 1.18 | 1.40 | |
| Verkleidung | ||||
| 127 | 1619PB7258 | 1.10 | 1.31 | |
| SCHRAUBE M4X35 | ||||
| 128 | 1603430098 | 0.83 | 0.99 | |
| Distanzring AU 43 FF | ||||
| 129 | 1600A022FU | 0.83 | 0.99 | |
| Kappe | ||||
| 130 | 1600A022E8 | 0.83 | 0.99 | |
| DECKEL 11-2 | ||||
| 131 | 16055002HN | 1.18 | 1.40 | |
| Anschlussdraht | ||||
| 132 | 1600A022EL | 1.18 | 1.40 | |
| Distanzring AU 43 FF | ||||
| 133 | 1600A022BN | 0.83 | 0.99 | |
| SCHRAUBE M4X35 | ||||
| 134 | 1603430099 | 0.83 | 0.99 | |
| EXZENTERHUELSE | ||||
| 135 | 1600A022EA | 0.83 | 0.99 | |
| Stange | ||||
| 136 | 1600A022D8 | 4.10 | 4.88 | |
| Kegelrad | ||||
| 137 | 16063332FF | 0.83 | 0.99 | |
| SCHRAUBE M4X35 | ||||
| 138 | 160343009A | 0.83 | 0.99 | |
| EXZENTERHUELSE | ||||
| 139 | 1600A022EB | 0.83 | 0.99 | |
| Distanzring AU 43 FF | ||||
| 140 | 1600A022BP | 0.83 | 0.99 | |
| Gerätehalter | ||||
| 141 | 1600A022FY | 1.18 | 1.40 | |
| Sitz | ||||
| 142 | 1600A022DJ | 0.83 | 0.99 | |
| KOERPER | ||||
| 143 | 1600A022FZ | 36.85 | 43.85 | |
| Elektr Leitung | ||||
| 144 | 160440001P | 0.83 | 0.99 | |
| Schutz AF-DW | ||||
| 145 | 1600A022G5 | 2.71 | 3.22 | |
| SCHRAUBE M4X35 | ||||
| 146 | 160343009B | 0.83 | 0.99 | |
| Halterarm | ||||
| 147 | 1600A022FD | 0.83 | 0.99 | |
| Sitz | ||||
| 148 | 1600A022DK | 2.24 | 2.67 | |
| Schalterdeckel | ||||
| 149 | 1600A022D6 | 0.83 | 0.99 | |
| STIFT (1) | ||||
| 151 | 1600A022BW | 0.83 | 0.99 | |
| Schalthebel Feder | ||||
| 152 | 1600A022C4 | 0.83 | 0.99 | |
| Auslöser | ||||
| 153 | 1600A022EZ | 0.83 | 0.99 | |
| SCHRAUBE M4X35 | ||||
| 154 | 160343009C | 0.83 | 0.99 | |
| STREIFEN | ||||
| 155 | 1600A022DT | 5.33 | 6.34 | |
| Mutter | ||||
| 156 | 1600A022CH | 0.83 | 0.99 | |
| Mutter | ||||
| 157 | 1600A022CJ | 0.83 | 0.99 | |
| Kappe | ||||
| 158 | 1600A022E9 | 0.83 | 0.99 | |
| Griff | ||||
| 159 | 160513219G | 0.83 | 0.99 | |
| SCHRAUBE M4X35 | ||||
| 160 | 160343009D | 0.83 | 0.99 | |
| POLSTUECK | ||||
| 161 | 1600A022FE | 1.18 | 1.40 | |
| Distanzring AU 43 FF | ||||
| 162 | 1600A022BR | 0.83 | 0.99 | |
| Feder | ||||
| 163 | 1600A022C7 | 0.83 | 0.99 | |
| Hebel KA 65 | ||||
| 164 | 1600A022FF | 1.18 | 1.40 | |
| SCHRAUBE M4X35 | ||||
| 165 | 160343009E | 0.83 | 0.99 | |
| Mutter | ||||
| 166 | 1600A022CK | 1.18 | 1.40 | |
| Distanzring AU 43 FF | ||||
| 167 | 1600A022BS | 0.83 | 0.99 | |
| ZEIGER | ||||
| 168 | 1600A022D1 | 0.83 | 0.99 | |
| HALTEDORN | ||||
| 169 | 1600A022FG | 1.70 | 2.02 | |
| SCHRAUBE M4X35 | ||||
| 170 | 160343009F | 0.83 | 0.99 | |
| Stange | ||||
| 171 | 1600A022DA | 2.71 | 3.22 | |
| EXZENTERHUELSE | ||||
| 172 | 1600A022EC | 0.83 | 0.99 | |
| STREIFEN | ||||
| 173 | 1600A022DS | 1.70 | 2.02 | |
| Sitz | ||||
| 174 | 1600A022DL | 1.94 | 2.31 | |
| SCHRAUBE M4X35 | ||||
| 175 | 160343009G | 0.83 | 0.99 | |
| Stecker | ||||
| 176 | 1600A022E4 | 0.83 | 0.99 | |
| STREIFEN | ||||
| 177 | 1600A025F9 | 5.83 | 6.94 | |
| Stecker | ||||
| 178 | 1600A022E5 | 0.83 | 0.99 | |
| SCHRAUBE M4X35 | ||||
| 179 | 160343009H | 0.83 | 0.99 | |
| RAHMEN | ||||
| 188 | 1600A022EX | 10.73 | 12.77 | |
| Stützfuß | ||||
| 189 | 1600A022EY | 0.83 | 0.99 | |
| WINKELBLECH | ||||
| 190 | 1600A022FK | 4.10 | 4.88 | |
| SCHRAUBE M4X35 | ||||
| 191 | 160343009L | 0.83 | 0.99 | |
| SCHRAUBE M4X35 | ||||
| 192 | 160343009M | 0.83 | 0.99 | |
| Tischbein | ||||
| 193 | 1600A022FV | 23.75 | 28.26 | |
| SCHRAUBE M4X35 | ||||
| 194 | 160343009N | 0.83 | 0.99 | |
| Druckstange | ||||
| 195 | 1600A022D7 | 1.18 | 1.40 | |
| Spannkeil | ||||
| 196 | 1600A022FW | 1.18 | 1.40 | |
| Montageschlüssel | ||||
| 197 | 1600A022FX | 1.18 | 1.40 | |
| SCHRAUBE M4X35 | ||||
| 198 | 16034300A7 | 0.83 | 0.99 | |
| Feder | ||||
| 199 | 1600A025FA | 0.83 | 0.99 | |
| Drosselspule | ||||
| 200 | 1619PB6257 | 1.70 | 2.02 | |
| Rohr | ||||
| 201 | 1600A025FB | 1.18 | 1.40 | |
| Motorgehäuse | ||||
| 801 | 1619PB6273 | 11.88 | 14.14 | |
| Anker | ||||
| 803 | 1619PB6274 | 55.25 | 65.75 | |
| Anker | ||||
| 803 | 1619PB7256 | 52.03 | 61.92 | |
| SERVICE KIT 115V | ||||
| 810 | 1619PB6280 | 5.33 | 6.34 | |
| Lagerdeckel RTS 400 REQ | ||||
| 811 | 1619PB6276 | 4.10 | 4.88 | |
| Getriebegehäuse | ||||
| 825 | 1619PB7259 | 13.93 | 16.58 | |
| Nicht mehr lieferbar, kein Ersatz | ||||
| 830 | 1619PB6271 | |||
| Sperrklinke | ||||
| 861 | 1619PB6270 | 5.83 | 6.94 | |
| Gehrungslineal | ||||
| 881 | 1619PB6272 | 9.53 | 11.34 | |
