Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Festool 491304 (CS70E230V)'. Von hier aus können Sie alle gewünschten Teile direkt bestellen.Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

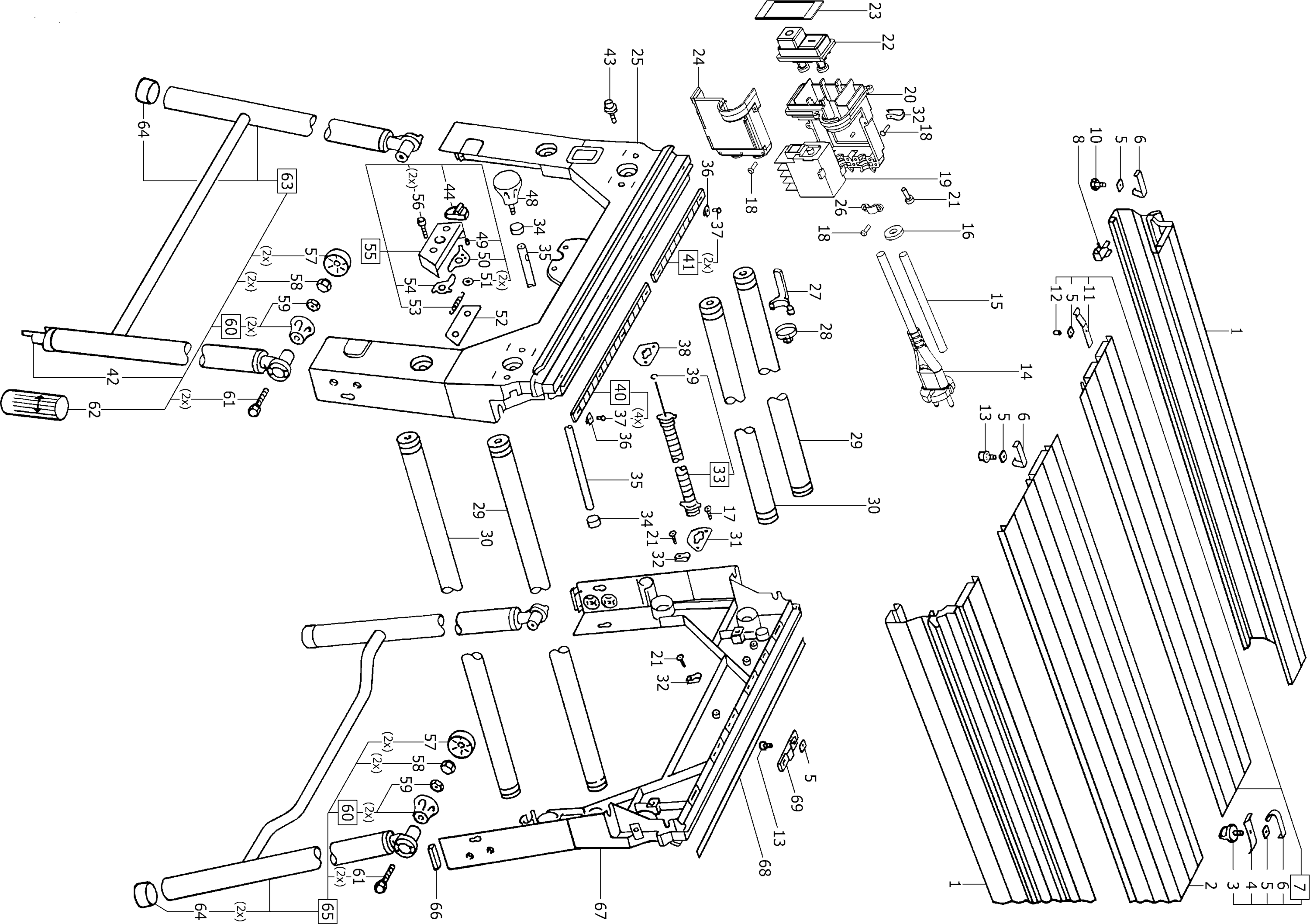

Zeichnungen der Festool 491304 (CS70E230V)
Teileliste der Festool 491304 (CS70E230V)
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Profil TKS 80 ET-BG | ||||
| 1 | 10435240 | 76.71 | 91.28 | |
| Eckprofil | ||||
| 1 | 445867 | 69.33 | 82.50 | |
| FLACHPROFIL CS 70 EB ET-BG | ||||
| 2 | 10711281 | 105.63 | 125.70 | |
| Drehknopf | ||||
| 3 | 482110 | 2.38 | 2.83 | |
| Spannpratze | ||||
| 4 | 448234 | 4.75 | 5.65 | |
| Vierkantmutter DIN 557-M6-05 | ||||
| 5 | 228566 | 1.51 | 1.80 | |
| Feder | ||||
| 6 | 447262 | 1.51 | 1.80 | |
| Tischeinlage | ||||
| 7 | 488160 | 83.49 | 99.35 | |
| Klammer | ||||
| 8 | 449080 | 2.59 | 3.08 | |
| Scheibe 6,4 mm | ||||
| 9 | 228546 | 1.51 | 1.80 | |
| Schraube M6 x 12 | ||||
| 10 | 450682 | 2.09 | 2.49 | |
| Blattfeder | ||||
| 11 | 448233 | 2.38 | 2.83 | |
| Gewindestift M6 x 10 | ||||
| 12 | 772405 | 1.51 | 1.80 | |
| Schraube M6 x 12 | ||||
| 13 | 449888 | 1.51 | 1.80 | |
| Kabel Eu | ||||
| 14 | 458753 | 24.81 | 29.52 | |
| Schleppkabel | ||||
| 15 | 458756 | 24.81 | 29.52 | |
| Gummiring | ||||
| 16 | 458613 | 1.51 | 1.80 | |
| Linsenschraube M4 x 16 | ||||
| 17 | 219075 | 1.51 | 1.80 | |
| Linsenschraube 3,5 x 14 mm | ||||
| 18 | 228584 | 1.51 | 1.80 | |
| Schütz | ||||
| 19 | 455695 | 40.66 | 48.39 | |
| Schaltergehäuse | ||||
| 20 | 447703 | 10.66 | 12.69 | |
| Linsenschraube M4 x 12 | ||||
| 21 | 228509 | 1.51 | 1.80 | |
| Drücker | ||||
| 22 | 490211 | 11.52 | 13.71 | |
| Dichtung | ||||
| 23 | 447768 | 1.51 | 1.80 | |
| Schalterdeckel | ||||
| 24 | 447704 | 6.05 | 7.20 | |
| Portal | ||||
| 25 | 462419 | 162.50 | 193.38 | |
| Klemmbrücke | ||||
| 26 | 439288 | 1.51 | 1.80 | |
| Kabelhalter | ||||
| 27 | 449273 | 2.81 | 3.34 | |
| Klammer | ||||
| 28 | 400428 | 4.32 | 5.14 | |
| Führungsröhre CS 50 ET-BG | ||||
| 29 | 10703295 | 62.56 | 74.45 | |
| Rohr | ||||
| 29 | 459286 | 57.11 | 67.96 | |
| Tragrohr | ||||
| 30 | 459287 | 57.84 | 68.83 | |
| Lagerblech | ||||
| 31 | 448236 | 2.30 | 2.74 | |
| Klammer | ||||
| 32 | 458614 | 1.51 | 1.80 | |
| Dämpfer | ||||
| 33 | 488139 | 43.80 | 52.12 | |
| Puffer | ||||
| 34 | 447528 | 1.87 | 2.23 | |
| Zugstange | ||||
| 35 | 487568 | 54.81 | 65.22 | |
| Blechmutter | ||||
| 36 | 448477 | 1.51 | 1.80 | |
| Linsenschraube 2,5 x 8 mm | ||||
| 37 | 400444 | 1.51 | 1.80 | |
| Lagerblech | ||||
| 38 | 448236 | 2.30 | 2.74 | |
| Scheibe | ||||
| 39 | 222490 | 1.51 | 1.80 | |
| Skala | ||||
| 40 | 488138 | 19.48 | 23.18 | |
| Skala | ||||
| 41 | 488137 | 15.73 | 18.72 | |
| Stellkurve | ||||
| 42 | 448178 | 2.74 | 3.26 | |
| Schraube M8 x 25 | ||||
| 43 | 450683 | 1.73 | 2.06 | |
| Griff | ||||
| 44 | 446974 | 2.09 | 2.49 | |
| Griff | ||||
| 48 | 487569 | 11.29 | 13.44 | |
| Federdruckstück | ||||
| 49 | 400286 | 11.22 | 13.35 | |
| Hebel | ||||
| 50 | 446669 | 4.18 | 4.97 | |
| Hülse | ||||
| 51 | 449122 | 1.51 | 1.80 | |
| Halteblech | ||||
| 52 | 447789 | 7.70 | 9.16 | |
| Zugfeder | ||||
| 53 | 447263 | 1.58 | 1.88 | |
| Rasthebel | ||||
| 54 | 702066 | 6.55 | 7.79 | |
| Führung | ||||
| 55 | 488140 | 34.97 | 41.61 | |
| Zylinderschraube DIN 912-M6x25-10.9 | ||||
| 56 | 200128 | 1.51 | 1.80 | |
| Griffoberteil | ||||
| 57 | 447534 | 1.94 | 2.31 | |
| Sechskantmutter M8 | ||||
| 58 | 200735 | 1.51 | 1.80 | |
| Sechskantmutter M8 | ||||
| 59 | 200719 | 1.51 | 1.80 | |
| Griffunterteil | ||||
| 60 | 488523 | 2.88 | 3.43 | |
| Sechskantschraube M8 x 75 | ||||
| 61 | 400309 | 1.66 | 1.98 | |
| Stellfuss | ||||
| 62 | 465883 | 13.07 | 15.55 | |
| Klappbein | ||||
| 63 | 499888 | 93.41 | 111.16 | |
| Gummifuss | ||||
| 64 | 465163 | 3.60 | 4.28 | |
| Klappbein CS 70 ET-BG | ||||
| 65 | 10031146 | 109.26 | 130.02 | |
| Gummifuss | ||||
| 66 | 701230 | 5.33 | 6.34 | |
| Portal | ||||
| 67 | 462420 | 162.50 | 193.38 | |
| Aufkleber | ||||
| 68 | 448251 | 7.20 | 8.57 | |
| Anschlag | ||||
| 69 | 448118 | 2.52 | 3.00 | |
| Stiftschlüssel | ||||
| 81 | 450935 | 2.66 | 3.17 | |
| Abdeckung | ||||
| 82 | 488152 | 55.30 | 65.81 | |
| Schutzhaube | ||||
| 83 | 460737 | 30.37 | 36.14 | |
| Zylinderschraube M6 x 20 | ||||
| 84 | 228612 | 1.51 | 1.80 | |
| Bundbuchse | ||||
| 85 | 449159 | 4.18 | 4.97 | |
| Splitterschutz | ||||
| 86 | 448695 | 2.09 | 2.49 | |
| Electronic 230 V | ||||
| 93 | 488262 | 140.60 | 167.31 | |
| Linsenschraube 3,5 x 10 mm | ||||
| 96 | 219031 | 7.32 | 8.71 | |
| Absaugstutzen | ||||
| 98 | 446588 | 2.88 | 3.43 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 99 | xxx | |||
| Linsenschraube 3,5 x 25 mm | ||||
| 100 | 219068 | 1.51 | 1.80 | |
| Spannflansch | ||||
| 102 | 488151 | 68.24 | 81.21 | |
| Bundschraube M8 x 15 | ||||
| 103 | 446370 | 10.08 | 12.00 | |
| Tellerfeder | ||||
| 106 | 444235 | 1.73 | 2.06 | |
| Gleitblech | ||||
| 107 | 450055 | 4.68 | 5.57 | |
| Schwinge | ||||
| 108 | 488149 | 128.99 | 153.50 | |
| Spindelstop | ||||
| 109 | 488150 | 24.32 | 28.94 | |
| Linsenschraube M4 x 10 | ||||
| 110 | 228582 | 1.51 | 1.80 | |
| Sprengring | ||||
| 111 | 219855 | 1.51 | 1.80 | |
| Rillenkugellager | ||||
| 112 | 789595 | 10.08 | 12.00 | |
| SPIL CS 70 ET-BG | ||||
| 113 | 10575127 | 40.29 | 47.95 | |
| Rillenkugellager | ||||
| 114 | 400467 | 19.48 | 23.18 | |
| Zahnriemenrad | ||||
| 115 | 445880 | 35.57 | 42.33 | |
| Scheibe | ||||
| 116 | 228642 | 1.51 | 1.80 | |
| Mutter M10 | ||||
| 117 | 451484 | 1.58 | 1.88 | |
| Sechskantmutter M 10 | ||||
| 117 | 434017 | 1.51 | 1.80 | |
| Luftkanal | ||||
| 118 | 446473 | 9.58 | 11.40 | |
| Filzstreifen | ||||
| 119 | 447962 | 1.58 | 1.88 | |
| Motorabdeckung | ||||
| 120 | 446469 | 9.43 | 11.22 | |
| Zahnriemen | ||||
| 121 | 488135 | 54.93 | 65.37 | |
| Zylinderschraube | ||||
| 122 | 401165 | 1.51 | 1.80 | |
| Mitnehmerscheibe | ||||
| 123 | 446937 | 1.66 | 1.98 | |
| Zahnriemenrad | ||||
| 124 | 445878 | 34.97 | 41.61 | |
| Abdeckung | ||||
| 125 | 447710 | 7.27 | 8.65 | |
| Zahnrad | ||||
| 126 | 491936 | 30.13 | 35.85 | |
| Sicherungsring | ||||
| 127 | 771483 | 1.51 | 1.80 | |
| Scheibe | ||||
| 128 | 449203 | 2.59 | 3.08 | |
| Rillenkugellager | ||||
| 129 | 789775 | 10.08 | 12.00 | |
| Welle | ||||
| 131 | 202846 | 39.93 | 47.52 | |
| Nadelbuchse | ||||
| 132 | 400254 | 9.14 | 10.88 | |
| Scheibe | ||||
| 133 | 446474 | 7.42 | 8.83 | |
| Ausgleichscheibe | ||||
| 134 | 488465 | 12.08 | 14.38 | |
| Sicherungsring | ||||
| 135 | 200414 | 1.51 | 1.80 | |
| Stützblech | ||||
| 137 | 446704 | 7.92 | 9.42 | |
| Zylinderschraube M5 x 18 DIN912-8.8 | ||||
| 138 | 202824 | 1.51 | 1.80 | |
| Sechskantmutter M5 | ||||
| 139 | 200717 | 1.51 | 1.80 | |
| Blechsegment | ||||
| 140 | 446147 | 7.92 | 9.42 | |
| Schwenksegment | ||||
| 141 | 488148 | 116.77 | 138.96 | |
| Linsenschraube M4 x 16 | ||||
| 142 | 219075 | 1.51 | 1.80 | |
| Zahnsegment CS 70 EB | ||||
| 143 | 202847 | 10.94 | 13.02 | |
| Du-bundbuchse | ||||
| 144 | 400253 | 2.16 | 2.57 | |
| Zylinderstift | ||||
| 145 | 400097 | 1.58 | 1.88 | |
| Du-bundbuchse | ||||
| 146 | 400253 | 2.16 | 2.57 | |
| Kulisse | ||||
| 147 | 446146 | 1.66 | 1.98 | |
| Tacho | ||||
| 148 | 487467 | 8.57 | 10.20 | |
| Dichtring | ||||
| 149 | 447750 | 5.11 | 6.08 | |
| Kohle (paar) 230v | ||||
| 150 | 488134 | 37.63 | 44.78 | |
| Kohlehalter (paar) 230v | ||||
| 151 | 488136 | 44.29 | 52.71 | |
| Motorgehäuse | ||||
| 152 | 446309 | 16.58 | 19.73 | |
| Feldpaket 230 V | ||||
| 153 | 493503 | 89.42 | 106.41 | |
| Lagerring | ||||
| 154 | 438613 | 1.51 | 1.80 | |
| Rillenkugellager | ||||
| 155 | 228559 | 4.68 | 5.57 | |
| Anker | ||||
| 156 | 11233870 | 205.22 | 244.21 | |
| Anker 230 V | ||||
| 156 | 493504 | 205.22 | 244.21 | |
| Rillenkugellager | ||||
| 157 | 219021 | 11.42 | 13.59 | |
| Luftführungsscheibe | ||||
| 158 | 469886 | 3.46 | 4.12 | |
| Linsenschraube 5,0 x 80 mm | ||||
| 159 | 400264 | 1.51 | 1.80 | |
| Lüfter | ||||
| 160 | 486880 | 6.70 | 7.97 | |
| O-ring | ||||
| 161 | 400488 | 1.51 | 1.80 | |
| Linsenschraube M5 x 40 | ||||
| 162 | 400255 | 1.51 | 1.80 | |
| Sechskantmutter M8 | ||||
| 163 | 200719 | 1.51 | 1.80 | |
| Spannhülse | ||||
| 164 | 400259 | 1.51 | 1.80 | |
| Zahnriemenrad | ||||
| 165 | 445877 | 15.25 | 18.15 | |
| Motorflansch | ||||
| 166 | 451454 | 40.78 | 48.53 | |
| Motor 230 V | ||||
| 167 | 488153 | 429.07 | 510.59 | |
| Lippenring | ||||
| 168 | 447968 | 2.30 | 2.74 | |
| Gehäuse | ||||
| 169 | 488154 | 19.36 | 23.04 | |
| Schutzkappe | ||||
| 175 | 459077 | 4.32 | 5.14 | |
| Litzensortiment | ||||
| 176 | 488440 | 24.81 | 29.52 | |
| Splitterschutz | ||||
| 178 | 448694 | 3.17 | 3.77 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 179 | xxx | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 180 | xxx | |||
| Kabelklemme RTK-S | ||||
| 181 | 431899 | 1.51 | 1.80 | |
| Spaltkeilplatte | ||||
| 182 | 445927 | 7.27 | 8.65 | |
| Zylinderschraube M8 x 16 | ||||
| 183 | 774346 | 1.51 | 1.80 | |
| Spaltkeil | ||||
| 184 | 710662 | 46.10 | 54.86 | |
| Spaltkeilhalter | ||||
| 185 | 488158 | 84.82 | 100.94 | |
| Zylinderschraube M6 x 14 | ||||
| 186 | 209354 | 1.51 | 1.80 | |
| Spaltkeilaufnahme | ||||
| 187 | 445926 | 14.76 | 17.56 | |
| Bundbuchse | ||||
| 188 | 447555 | 2.30 | 2.74 | |
| Bolzen | ||||
| 190 | 447358 | 2.95 | 3.51 | |
| Koppel | ||||
| 191 | 446528 | 2.09 | 2.49 | |
| Scheibe | ||||
| 192 | 447702 | 2.45 | 2.92 | |
| Sicherungsring | ||||
| 193 | 200615 | 1.51 | 1.80 | |
| Federdruckstück | ||||
| 194 | 400287 | 5.47 | 6.51 | |
| STOPFPROFIL CS 70 ET-BG | ||||
| 202 | 10711280 | 29.28 | 34.84 | |
| Profil Cs 70 | ||||
| 203 | 465708 | 31.34 | 37.29 | |
| Klemmplatte CS 50 EB | ||||
| 204 | 10023711 | 5.33 | 6.34 | |
| Schwenksegment CS 70 EB ET-BG | ||||
| 205 | 10699976 | 43.56 | 51.84 | |
| Schwenksegment | ||||
| 205 | 448014 | 30.13 | 35.85 | |
| Skala | ||||
| 206 | 488156 | 22.63 | 26.93 | |
| Linsenschraube M4 x 6 | ||||
| 207 | 400348 | 1.51 | 1.80 | |
| Flachkopfschraube | ||||
| 208 | 448065 | 4.39 | 5.22 | |
| Scheibe | ||||
| 209 | 448471 | 3.60 | 4.28 | |
| Drehknopf | ||||
| 210 | 487755 | 9.22 | 10.97 | |
| Drehknopf | ||||
| 211 | 440713 | 3.10 | 3.69 | |
| Senkschraube M4 x 8 | ||||
| 212 | 219043 | 1.51 | 1.80 | |
| Stiftschraube | ||||
| 213 | 464525 | 1.51 | 1.80 | |
| Zylinderschraube M6 x 12 | ||||
| 214 | 200684 | 1.51 | 1.80 | |
| Aufnahme | ||||
| 215 | 489181 | 27.95 | 33.26 | |
| Hülse 5 x 12 mm | ||||
| 218 | 228692 | 1.51 | 1.80 | |
| Flachrundschraube M6 x 40 | ||||
| 219 | 228534 | 1.51 | 1.80 | |
| Distanzbuchse | ||||
| 220 | 448066 | 9.29 | 11.06 | |
| Klemmstück | ||||
| 221 | 488433 | 41.75 | 49.68 | |
| Klemmpratze CS 70 | ||||
| 222 | 10031568 | 14.52 | 17.28 | |
| Griff | ||||
| 223 | 487893 | 8.35 | 9.94 | |
| Hülse 6 x 36 mm | ||||
| 224 | 400289 | 1.51 | 1.80 | |
| Druckfeder | ||||
| 225 | 448064 | 2.02 | 2.40 | |
| Drehknopf M6 | ||||
| 226 | 483350 | 7.27 | 8.65 | |
| Rolle | ||||
| 230 | 488868 | 42.59 | 50.68 | |
| Rolle | ||||
| 231 | 488867 | 40.41 | 48.09 | |
| Zylinderrolle | ||||
| 232 | 488870 | 30.86 | 36.72 | |
| Wagenfront | ||||
| 233 | 497195 | 76.84 | 91.44 | |
| Zylinderschraube M6 x 40 | ||||
| 234 | 228653 | 1.51 | 1.80 | |
| Linsenschraube M4 x 25 | ||||
| 235 | 400257 | 1.51 | 1.80 | |
| Sechskantschraube M8 x 60 | ||||
| 236 | 400382 | 1.51 | 1.80 | |
| Griff | ||||
| 238 | 487555 | 7.78 | 9.26 | |
| Skala | ||||
| 239 | 446467 | 13.67 | 16.27 | |
| Drehgriff | ||||
| 240 | 446063 | 9.14 | 10.88 | |
| Zugfeder | ||||
| 242 | 447263 | 1.58 | 1.88 | |
| Endanschlag | ||||
| 243 | 449868 | 8.93 | 10.63 | |
| Griff | ||||
| 244 | 449869 | 2.16 | 2.57 | |
| Zylinderschraube M5 x 18 DIN912-8.8 | ||||
| 245 | 202824 | 1.51 | 1.80 | |
| Exzentermutter | ||||
| 246 | 449928 | 8.14 | 9.69 | |
| Kurbel | ||||
| 247 | 488159 | 17.30 | 20.59 | |
| Sechskantmutter M6 | ||||
| 248 | 228541 | 1.51 | 1.80 | |
| Federscheibe | ||||
| 249 | 200588 | 1.51 | 1.80 | |
| Passscheibe | ||||
| 250 | 400884 | 1.51 | 1.80 | |
| Spindel | ||||
| 251 | 488271 | 34.97 | 41.61 | |
| Lager | ||||
| 252 | 446470 | 5.62 | 6.69 | |
| Scheibe | ||||
| 253 | 446472 | 3.31 | 3.94 | |
| Zeiger | ||||
| 254 | 446468 | 2.59 | 3.08 | |
| Filzeinlage | ||||
| 255 | 451917 | 1.51 | 1.80 | |
| Filzeinlage | ||||
| 256 | 451918 | 1.51 | 1.80 | |
| Abstreifer | ||||
| 257 | 496821 | 18.39 | 21.88 | |
| Federring | ||||
| 258 | 447961 | 1.94 | 2.31 | |
| Abstreifer | ||||
| 259 | 496820 | 13.67 | 16.27 | |
| Sicherungsring | ||||
| 260 | 200618 | 1.51 | 1.80 | |
| Rolle | ||||
| 261 | 488869 | 47.67 | 56.73 | |
| Zahnrad | ||||
| 262 | 446072 | 4.10 | 4.88 | |
| Scheibe | ||||
| 263 | 447702 | 2.45 | 2.92 | |
| Linsenschraube PT-4.0x20-KT15 | ||||
| 264 | 228567 | 1.51 | 1.80 | |
| Zugfeder | ||||
| 265 | 447263 | 1.58 | 1.88 | |
| Stützlager | ||||
| 266 | 465449 | 10.58 | 12.59 | |
| Zylinderstift | ||||
| 267 | 400260 | 1.51 | 1.80 | |
| Hebel | ||||
| 268 | 446671 | 2.02 | 2.40 | |
| Scheibe 4,3 mm | ||||
| 269 | 228542 | 1.51 | 1.80 | |
| Flansch | ||||
| 270 | 488147 | 27.95 | 33.26 | |
| Träger | ||||
| 271 | 497196 | 49.13 | 58.46 | |
| Sechskantmutter M8 | ||||
| 272 | 200719 | 1.51 | 1.80 | |
| Scheibe 8,4 mm | ||||
| 273 | 228601 | 1.51 | 1.80 | |
| Schiebestock | ||||
| 274 | 450199 | 7.20 | 8.57 | |
| Schutzeinrichtung | ||||
| 276 | 492132 | 29.04 | 34.56 | |
