Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Festool 10752007 ( DFC500EU )'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

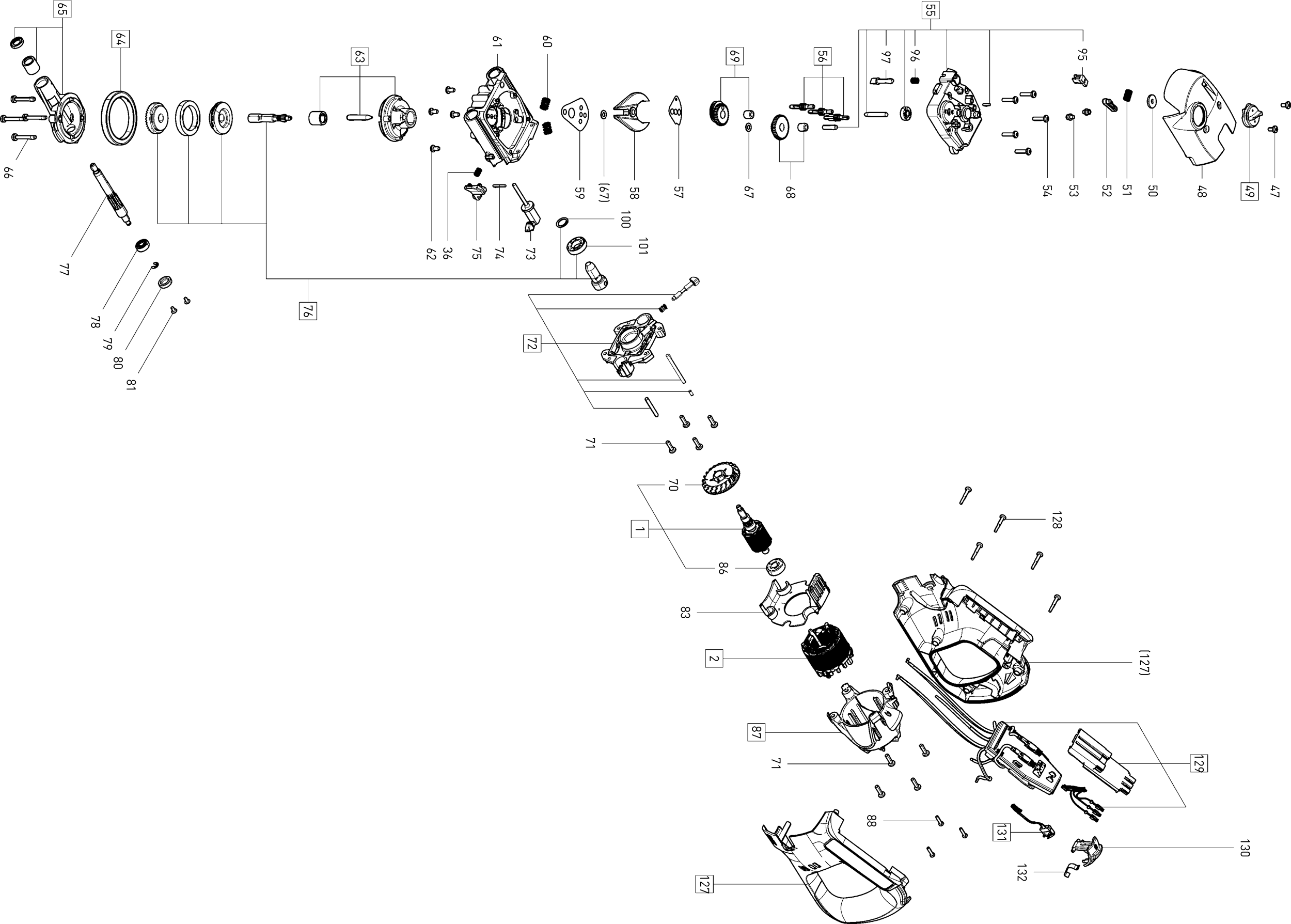

Zeichnungen der Festool 10752007 ( DFC500EU )
Teileliste der Festool 10752007 ( DFC500EU )
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| ROTOR DFC 500 ET-BG | ||||
| 1 | 11101462 | 68.37 | 81.36 | |
| VELDPAKKET MFKC 700 ET-BG | ||||
| 2 | 11089777 | 48.47 | 57.68 | |
| HANDGREEPBOVEND DF 500 R | ||||
| 6 | 10960058 | 6.55 | 7.79 | |
| Schraube | ||||
| 7 | 401076 | 4.36 | 5.19 | |
| HANGREEPONDERDE DF 500 R | ||||
| 9 | 10960059 | 6.77 | 8.06 | |
| Gewindestift | ||||
| 10 | 478995 | 14.88 | 17.71 | |
| R - Segment | ||||
| 12 | 493779 | 12.03 | 14.32 | |
| Bundbolzen | ||||
| 13 | 469141 | 10.10 | 12.02 | |
| TAFEL DF 500 R | ||||
| 14 | 10880163 | 48.64 | 57.88 | |
| Gewindestift | ||||
| 15 | 401104 | 11.75 | 13.98 | |
| Linsenschraube | ||||
| 16 | 400983 | 12.41 | 14.77 | |
| SCHAAL DF 700 | ||||
| 17 | 10962858 | 5.62 | 6.69 | |
| SLEDE DF 500 R ET-BG | ||||
| 18 | 11125886 | 69.76 | 83.01 | |
| Federdruckstück | ||||
| 19 | 400286 | 11.22 | 13.35 | |
| Gewindestift M4 x 12 | ||||
| 20 | 203387 | 4.56 | 5.43 | |
| Segment | ||||
| 23 | 10001040 | 13.43 | 15.98 | |
| Linsenschraube M4 x 12 | ||||
| 25 | 470216 | 5.94 | 7.07 | |
| Linsenschraube M5 x 12 | ||||
| 29 | 400901 | 4.09 | 4.87 | |
| TAFEL DF 500 R ET-BG | ||||
| 34 | 11126512 | 125.91 | 149.83 | |
| Anschlag | ||||
| 38 | 702486 | 11.20 | 13.33 | |
| SCHAAL DF 500 R | ||||
| 40 | 11059648 | 31.10 | 37.01 | |
| TREKSTANG DF 500 R | ||||
| 41 | 11035584 | 7.56 | 9.00 | |
| GEDRUCKTE SCHIEBE DF 500 | ||||
| 42 | 10515490 | 6.94 | 8.26 | |
| Winkelblech | ||||
| 43 | 464821 | 4.49 | 5.34 | |
| Saugflansch | ||||
| 44 | 465203 | 4.94 | 5.88 | |
| Absaugrohr | ||||
| 45 | 465204 | 8.58 | 10.21 | |
| Saugstutzen | ||||
| 46 | 10027879 | 7.99 | 9.51 | |
| Linsenschraube M4 x 8 | ||||
| 47 | 467961 | 6.53 | 7.77 | |
| Deckel | ||||
| 48 | 493153 | 9.90 | 11.78 | |
| Schaltgriff | ||||
| 49 | 493815 | 9.64 | 11.47 | |
| Rolle | ||||
| 50 | 464837 | 4.36 | 5.19 | |
| Druckfeder | ||||
| 51 | 467959 | 4.22 | 5.02 | |
| Hebel | ||||
| 52 | 464839 | 4.94 | 5.88 | |
| Stopfen | ||||
| 53 | 466890 | 10.63 | 12.65 | |
| Linsenschraube M4 x 18 | ||||
| 54 | 400904 | 11.48 | 13.66 | |
| BEHUIZING DFC 500 ET-BG | ||||
| 55 | 11101505 | 99.53 | 118.44 | |
| Nockenwelle | ||||
| 56 | 465947 | 17.18 | 20.44 | |
| Blende | ||||
| 57 | 466015 | 5.09 | 6.06 | |
| Pendelhebel | ||||
| 58 | 464840 | 52.64 | 62.64 | |
| Blende | ||||
| 59 | 466262 | 5.47 | 6.51 | |
| Druckfeder | ||||
| 60 | 472015 | 6.79 | 8.08 | |
| Hauptträger | ||||
| 61 | 493895 | 111.08 | 132.19 | |
| Linsenschraube M4 x 8 | ||||
| 62 | 228570 | 9.17 | 10.91 | |
| Innentopf | ||||
| 63 | 493920 | 106.06 | 126.21 | |
| Kugellager | ||||
| 64 | 401073 | 27.35 | 32.55 | |
| Pendeltopf | ||||
| 65 | 493898 | 98.01 | 116.63 | |
| LENSKOPSCHROEF M4X30-10.9-T20-IPR-PR80 | ||||
| 66 | 10946232 | 1.51 | 1.80 | |
| Scheibe | ||||
| 67 | 465024 | 7.06 | 8.40 | |
| Stufenrad | ||||
| 68 | 493897 | 57.84 | 68.83 | |
| Exzenterrad | ||||
| 69 | 493896 | 84.58 | 100.65 | |
| VENTILATOR DFC 500 | ||||
| 70 | 10752284 | 6.26 | 7.45 | |
| Linsenschraube M4 x 14 | ||||
| 71 | 445566 | 14.59 | 17.36 | |
| Zwischenflansch | ||||
| 72 | 493893 | 73.69 | 87.69 | |
| Stellschieber | ||||
| 73 | 492418 | 9.64 | 11.47 | |
| Zylinderstift | ||||
| 74 | 469645 | 4.03 | 4.80 | |
| Riegel | ||||
| 75 | 469643 | 5.47 | 6.51 | |
| TANDWIELOVERBRE DFC 500 ET-BG | ||||
| 76 | 11101533 | 230.08 | 273.80 | |
| Frässpindel | ||||
| 77 | 201683 | 50.03 | 59.54 | |
| Kugellager | ||||
| 78 | 479254 | 6.73 | 8.01 | |
| Scheibe | ||||
| 79 | 400106 | 3.89 | 4.63 | |
| Stopfen | ||||
| 80 | 464847 | 4.49 | 5.34 | |
| Sicherheitsschraube | ||||
| 81 | 400552 | 6.34 | 7.54 | |
| LUCHTGELEIDING DFC 500 | ||||
| 83 | 10766433 | 7.20 | 8.57 | |
| Rillenkugellager | ||||
| 86 | 401525 | 5.18 | 6.16 | |
| MOTORHUIS DFC 500 ET-BG | ||||
| 87 | 11101481 | 15.55 | 18.50 | |
| Linsenschraube 3,0 x 12 mm | ||||
| 88 | 219069 | 1.51 | 1.80 | |
| O-ring | ||||
| 91 | 200911 | 5.74 | 6.83 | |
| AANSLAGHOEK DF 500 | ||||
| 92 | 10679826 | 7.92 | 9.42 | |
| Klemmschraube | ||||
| 93 | 469620 | 7.73 | 9.20 | |
| AANSLAG DF 500 R ET-BG | ||||
| 94 | 11155475 | 11.88 | 14.14 | |
| VERGRENDELKAP DFC 500 | ||||
| 95 | 11073388 | 5.11 | 6.08 | |
| Druckfeder | ||||
| 96 | 436528 | 2.04 | 2.43 | |
| Rastbolzen | ||||
| 97 | 701474 | 16.87 | 20.08 | |
| BUFFER DF 700 EQ | ||||
| 98 | 478994 | 1.37 | 1.63 | |
| Sicherungsring | ||||
| 100 | 401062 | 4.36 | 5.19 | |
| Rillenkugellager 6901 VV C3U 246T HA1S9 | ||||
| 101 | 10779006 | 12.83 | 15.27 | |
| GELEIDER DF 500 R ET-BG | ||||
| 102 | 11126516 | 399.78 | 475.74 | |
| Gabelschlüssel Sw 8 | ||||
| 105 | 401739 | 8.18 | 9.73 | |
| SPANHENDEL DF 500 R | ||||
| 112 | 10866442 | 22.87 | 27.22 | |
| Klammer | ||||
| 114 | 498315 | 14.83 | 17.65 | |
| Zeiger | ||||
| 116 | 10000925 | 6.34 | 7.54 | |
| Linsenschraube M4 x 12 | ||||
| 118 | 470216 | 5.94 | 7.07 | |
| Gewindestift | ||||
| 119 | 401104 | 11.75 | 13.98 | |
| PEN DIN 8734 3M6 X 32 | ||||
| 120 | 10848932 | 12.01 | 14.29 | |
| VEERPLAAT DF 500 R | ||||
| 123 | 10884559 | 7.56 | 9.00 | |
| Linsenschraube | ||||
| 124 | 10016393 | 6.94 | 8.26 | |
| AFDEKPLAAT DF 500 R | ||||
| 125 | 10837571 | 7.56 | 9.00 | |
| HANDGREEP DFC 500 ET-BG | ||||
| 127 | 11101484 | 32.60 | 38.79 | |
| DRUKVEER 0,50 X 5,00X 11,10X 3,50 | ||||
| 128 | 467680 | 1.66 | 1.98 | |
| ELECTRONIC DFC 500 ET-BG | ||||
| 129 | 11101488 | 170.61 | 203.03 | |
| Schalthebel | ||||
| 130 | 479674 | 1.87 | 2.23 | |
| SCHAKELAAR DFC 500 ET-BG | ||||
| 131 | 11101502 | 17.01 | 20.24 | |
| Linsenschraube M4 x 8 | ||||
| 132 | 467961 | 6.53 | 7.77 | |
| AFSTANDSBUIS DF 500 TRANSPORTSICHERUN | ||||
| 133 | 10575293 | 5.76 | 6.85 | |
| DEKSELSCHUIM DFC500 SYS M237 | ||||
| 134 | 10966087 | 7.20 | 8.57 | |
