Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Festool 10179652 (TKS80EBSGB240V)'. Von hier aus können Sie alle gewünschten Teile direkt bestellen.Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

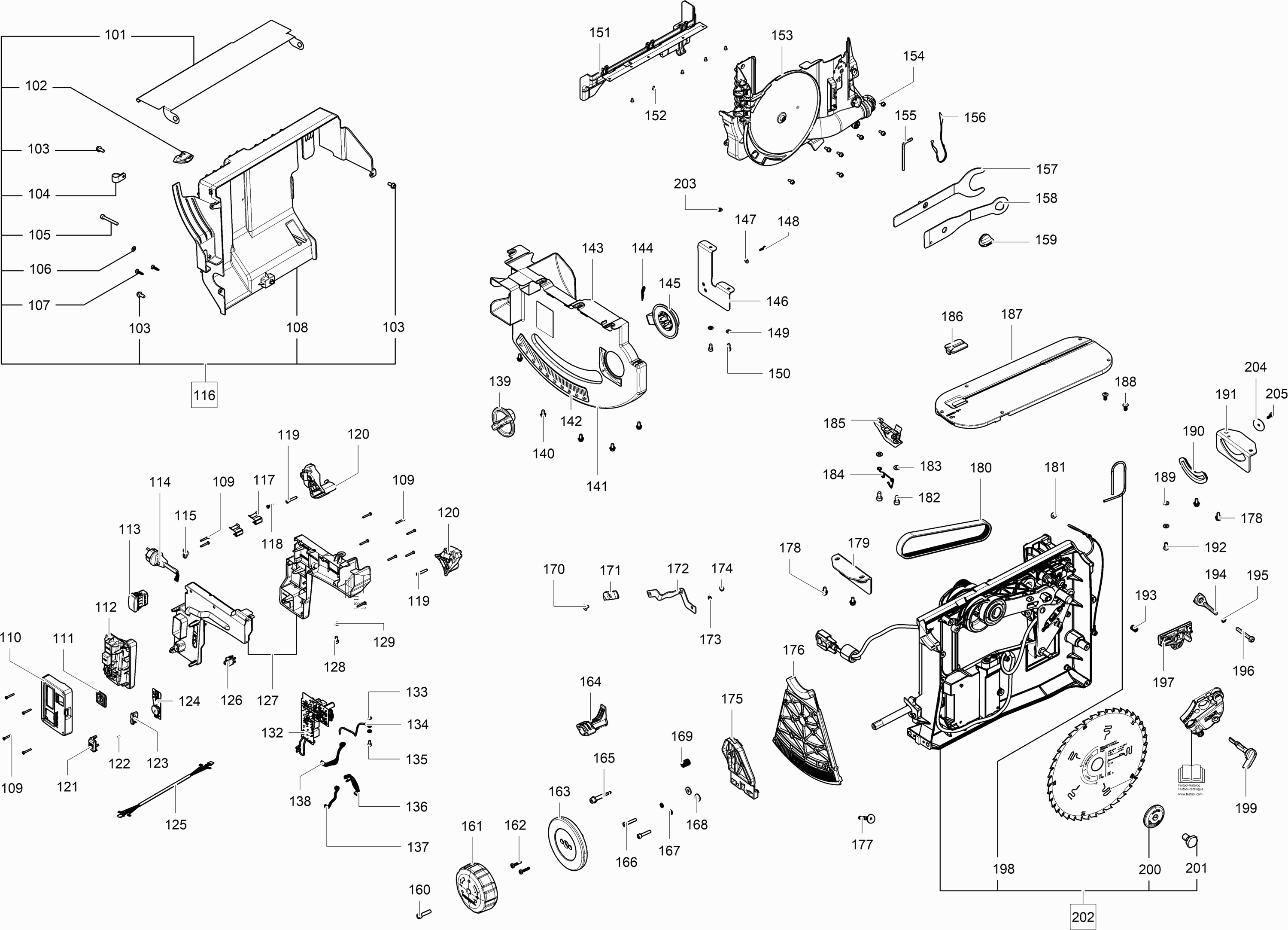

Zeichnungen der Festool 10179652 (TKS80EBSGB240V)
Teileliste der Festool 10179652 (TKS80EBSGB240V)
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Schraube 4 x 16 mm | ||||
| 1 | 625697 | 1.51 | 1.80 | |
| Kappe TKS 80-AIM | ||||
| 2 | 10162928 | 8.71 | 10.36 | |
| Motorgehäuse | ||||
| 3 | 446309 | 16.58 | 19.73 | |
| Lagerring | ||||
| 4 | 438613 | 1.51 | 1.80 | |
| Rillenkugellager | ||||
| 5 | 228559 | 4.68 | 5.57 | |
| Lüfter TKS 80-AIM komplett | ||||
| 7 | 10176759 | 9.43 | 11.22 | |
| Rotor TKS 80-AIM ET-BG | ||||
| 8 | 205571 | 205.22 | 244.21 | |
| Rillenkugellager | ||||
| 9 | 219021 | 11.42 | 13.59 | |
| Sicherungsring | ||||
| 10 | 771483 | 1.51 | 1.80 | |
| Zahnriemenrad | ||||
| 11 | 445877 | 15.25 | 18.15 | |
| Sechskantmutter M 8LH | ||||
| 12 | 429279 | 1.51 | 1.80 | |
| Linsenschraube 3,5 x 25 mm | ||||
| 13 | 219068 | 1.51 | 1.80 | |
| Stator TKS 80 ET-BG | ||||
| 14 | 205699 | 89.42 | 106.41 | |
| Luftführungsscheibe | ||||
| 15 | 469886 | 3.46 | 4.12 | |
| Linsenschraube 5,0 x 80 mm | ||||
| 16 | 400264 | 1.51 | 1.80 | |
| Schraube M6 x 12 | ||||
| 17 | 449888 | 1.51 | 1.80 | |
| Scheibe 6,4x25 | ||||
| 18 | 779142 | 1.51 | 1.80 | |
| Rolle TKS 80-AIM | ||||
| 19 | 10203882 | 14.52 | 17.28 | |
| Federkeil TKS 80-AIM M5x5x12 | ||||
| 20 | 10203881 | 1.51 | 1.80 | |
| Welle TKS 80-AIM | ||||
| 21 | 10162931 | 31.10 | 37.01 | |
| Lager 6202 ZZ CM D AS2SJ | ||||
| 22 | 721302 | 8.93 | 10.63 | |
| Motorhalter TKS 80-AIM ET-BG | ||||
| 23 | 205570 | 61.23 | 72.86 | |
| Passfeder A5x5x28 DIN 6885 | ||||
| 24 | 623532 | 1.87 | 2.23 | |
| Zahnriemenscheibe TKS 80 ET-BG | ||||
| 25 | 10699946 | 35.09 | 41.76 | |
| Scheibe | ||||
| 26 | 449203 | 2.59 | 3.08 | |
| Sicherungsring DIN 471-15x1 | ||||
| 27 | 204011 | 1.51 | 1.80 | |
| Federring | ||||
| 28 | 400323 | 1.51 | 1.80 | |
| Zylinderschraube M6 x 25 | ||||
| 29 | 400477 | 1.51 | 1.80 | |
| Riemenschutz TKS 80-AIM | ||||
| 30 | 10162930 | 14.04 | 16.71 | |
| Linsenschraube M4 x 16 | ||||
| 31 | 219075 | 1.51 | 1.80 | |
| Riemen TKS 80-AIM | ||||
| 32 | 10162932 | 25.77 | 30.67 | |
| Elektronik TKS 80 ET-BG | ||||
| 33 | 205697 | 138.42 | 164.72 | |
| Spannen TKS 80-AIM | ||||
| 36 | 10194080 | 1.51 | 1.80 | |
| Halter TKS 80-AIM Elektronik | ||||
| 37 | 10194074 | 11.81 | 14.05 | |
| Kabelbinder T18R HS | ||||
| 38 | 437985 | 1.51 | 1.80 | |
| Flexibles Kabel TKS 80-AIM blau compl. | ||||
| 39 | 10167571 | 6.55 | 7.79 | |
| Flexibles Kabel TKS 80-AIM rot compl. | ||||
| 40 | 10167576 | 6.55 | 7.79 | |
| Flexibles Kabel TKS 80-AIM gelb compl. | ||||
| 41 | 10167575 | 5.40 | 6.43 | |
| Flexibles Kabel TKS 80-AIM schwarz compl. | ||||
| 42 | 10167573 | 5.40 | 6.43 | |
| Bürstenhalter TKS 80 AIM | ||||
| 43 | 10358942 | 75.87 | 90.29 | |
| Bürstenset TKS 80 EBS | ||||
| 44 | 205743 | 34.24 | 40.75 | |
| Tachometer TKS 80-AIM | ||||
| 45 | 10227978 | 11.42 | 13.59 | |
| Abdeckplatte TKS 80-AIM | ||||
| 101 | 10165737 | 21.66 | 25.78 | |
| Spannen TKS 80-AIM | ||||
| 102 | 10194080 | 1.51 | 1.80 | |
| Ch. Kopfschraube M5x12 BN 3873 | ||||
| 103 | 10251401 | 1.51 | 1.80 | |
| Montage TKS 80-AIM | ||||
| 104 | 10216148 | 1.51 | 1.80 | |
| Zylinderschraube | ||||
| 105 | 761444 | 2.16 | 2.57 | |
| Scheibe 5,3 mm | ||||
| 106 | 200577 | 1.51 | 1.80 | |
| Schraube 4 x 16 mm | ||||
| 107 | 625697 | 1.51 | 1.80 | |
| Abdeckung TKS 80-AIM | ||||
| 108 | 10165734 | 26.74 | 31.82 | |
| Linsenschraube 3,5 x 25 mm | ||||
| 109 | 219068 | 1.51 | 1.80 | |
| Abdeckung TKS 80-AIM | ||||
| 110 | 10205152 | 6.48 | 7.71 | |
| Abdeckkappe TKS 80-AIM | ||||
| 111 | 10205149 | 5.54 | 6.59 | |
| Schalteinheit TKS 80-AIM komplett | ||||
| 112 | 10229144 | 16.46 | 19.59 | |
| Schalter TKS 80-AIM | ||||
| 113 | 10205166 | 38.84 | 46.22 | |
| Klammer | ||||
| 115 | 619112 | 1.51 | 1.80 | |
| Deckung TKS 80 ET-BG | ||||
| 116 | 205573 | 50.82 | 60.48 | |
| Klammer | ||||
| 117 | 449080 | 2.59 | 3.08 | |
| Schraube 4 x 16 mm | ||||
| 118 | 625697 | 1.51 | 1.80 | |
| Schraube | ||||
| 119 | 10002348 | 1.51 | 1.80 | |
| Kabelhalter TKS 80-AIM | ||||
| 120 | 10163005 | 7.49 | 8.91 | |
| Abdeckkappe TKS 80-AIM | ||||
| 121 | 10205149 | 5.54 | 6.59 | |
| Druckfeder 0,5x3,2x7,9 TKS 80-AIM | ||||
| 122 | 10240530 | 1.51 | 1.80 | |
| Anzeige TKS 80-AIM | ||||
| 123 | 10205150 | 2.23 | 2.65 | |
| Elektronik TKS 80-AIM | ||||
| 124 | 10205148 | 28.92 | 34.41 | |
| Nachlaufkabel TKS 80-AIM | ||||
| 125 | 10204932 | 42.83 | 50.97 | |
| Hauptschalter 2-pol. / 250V / 12A | ||||
| 126 | 10039940 | 11.81 | 14.05 | |
| Box TKS 80 Elektronik | ||||
| 127 | 10279410 | 21.54 | 25.63 | |
| Zylinderschraube M6 x 12 | ||||
| 128 | 200684 | 1.51 | 1.80 | |
| Scheibe | ||||
| 129 | 761516 | 1.51 | 1.80 | |
| Elektronik TKS 80 ET-BG | ||||
| 132 | 205698 | 138.42 | 164.72 | |
| Scheibe 5,3 mm | ||||
| 133 | 761515 | 1.51 | 1.80 | |
| Erdungsflex TKS 80-AIM | ||||
| 134 | 10205155 | 4.18 | 4.97 | |
| Zylinderschraube M5 x 10 | ||||
| 135 | 200669 | 1.51 | 1.80 | |
| Kabelbaum TKS 80-AIM Start/Stopp | ||||
| 136 | 10214514 | 10.08 | 12.00 | |
| Kabelbaum TKS 80-AIM | ||||
| 137 | 10214502 | 10.80 | 12.85 | |
| Kabelbaum TKS 80-AIM | ||||
| 138 | 10214488 | 12.71 | 15.12 | |
| Taste TKS 80-AIM compl. | ||||
| 139 | 10229089 | 13.67 | 16.27 | |
| Schraube M6 x 12 | ||||
| 140 | 449888 | 1.51 | 1.80 | |
| Skala für TKS 80-AIM | ||||
| 141 | 10168297 | 13.55 | 16.12 | |
| Klebeetikett für TKS 80-AIM Feineinstellung | ||||
| 142 | 10168296 | 8.35 | 9.94 | |
| Frontplatte TKS 80-AIM ET-BG | ||||
| 143 | 205572 | 49.97 | 59.46 | |
| Stecker TKS 80 | ||||
| 144 | 10684510 | 1.51 | 1.80 | |
| Schwenkarm TKS 80-AIM | ||||
| 145 | 10169748 | 9.94 | 11.83 | |
| Stützplatte TKS 80-AIM | ||||
| 146 | 10188453 | 19.48 | 23.18 | |
| Scheibe | ||||
| 147 | 403100 | 1.51 | 1.80 | |
| Schraube 4 x 16 mm | ||||
| 148 | 625697 | 1.51 | 1.80 | |
| Scheibe | ||||
| 149 | 761516 | 1.51 | 1.80 | |
| Zylinderschraube M6 x 12 | ||||
| 150 | 200684 | 1.51 | 1.80 | |
| Montagesatz TKS 80-AIM | ||||
| 151 | 10238031 | 20.81 | 24.76 | |
| Schraube | ||||
| 152 | 614980 | 1.51 | 1.80 | |
| Montageset TKS 80-AIM | ||||
| 153 | 10238030 | 55.78 | 66.38 | |
| Schraube M5x16 | ||||
| 154 | 623812 | 2.66 | 3.17 | |
| Inbusschlüssel 5 mit Leck | ||||
| 155 | 10198769 | 3.38 | 4.02 | |
| Kette TKS 80-EVG Vollständig | ||||
| 156 | 10201018 | 5.62 | 6.69 | |
| Schlüssel TKS 80-AIM | ||||
| 157 | 10177708 | 19.97 | 23.76 | |
| Schlüssel TKS 80-AIM | ||||
| 158 | 10177709 | 18.88 | 22.47 | |
| Drehknopf | ||||
| 159 | 482098 | 2.38 | 2.83 | |
| Zylinderschraube M6 x 25 | ||||
| 160 | 400477 | 1.51 | 1.80 | |
| Handrad TKS 80-AIM | ||||
| 161 | 10177780 | 11.23 | 13.36 | |
| Schraube TKS 80-AIM M5x1.59x16 | ||||
| 162 | 10203915 | 1.51 | 1.80 | |
| Griff TKS 80-AIM | ||||
| 163 | 10203917 | 13.19 | 15.70 | |
| Verriegelungs Kappe TKS 80-AIM | ||||
| 164 | 10202077 | 4.10 | 4.88 | |
| Stiftschraube TKS 80-AIM | ||||
| 165 | 10202086 | 2.38 | 2.83 | |
| Innensechskant Schraube M5x25 DIN 912 | ||||
| 166 | 761442 | 2.16 | 2.57 | |
| Federring | ||||
| 167 | 761538 | 1.51 | 1.80 | |
| Scheibe M5/5,3/15/2 DIN 7349 | ||||
| 168 | 717353 | 1.51 | 1.80 | |
| Feder TKS 80-AIM Verriegelung | ||||
| 169 | 10202092 | 2.45 | 2.92 | |
| Senkschraube M5 x 8 | ||||
| 170 | 400693 | 1.51 | 1.80 | |
| Anzeiger TKS 80-AIM TBD | ||||
| 171 | 10203913 | 2.23 | 2.65 | |
| Halterung TKS 80-AIM | ||||
| 172 | 10202113 | 5.33 | 6.34 | |
| Scheibe 5,3 mm | ||||
| 173 | 200577 | 1.51 | 1.80 | |
| Mutter M5 | ||||
| 174 | 625175 | 1.51 | 1.80 | |
| Winkelhalter TKS 80-AIM | ||||
| 175 | 10221750 | 5.47 | 6.51 | |
| Führungswinkel TKS 80-AIM komplett | ||||
| 176 | 10240123 | 15.00 | 17.85 | |
| Verstellschraube TKS 80-AIM M6x35 | ||||
| 177 | 10203732 | 2.38 | 2.83 | |
| Schraube M6 x 12 | ||||
| 178 | 449888 | 1.51 | 1.80 | |
| Halterung TKS 80-AIM Vorne | ||||
| 179 | 10203888 | 17.67 | 21.03 | |
| Riemen TKS 80-AIM | ||||
| 180 | 10203870 | 32.31 | 38.45 | |
| Sechskantmutter M6 | ||||
| 181 | 228689 | 1.51 | 1.80 | |
| Zylinderschraube M6 x 12 | ||||
| 182 | 200684 | 1.51 | 1.80 | |
| Scheibe | ||||
| 183 | 761516 | 1.51 | 1.80 | |
| Feder TKS 80-AIM Einsetzen Auswerfen. | ||||
| 184 | 10203887 | 3.53 | 4.20 | |
| Verriegelung TKS 80-AIM | ||||
| 185 | 10201622 | 11.81 | 14.05 | |
| Splitterwache TKS 80-AIM Grundgerät | ||||
| 186 | 10272140 | 3.67 | 4.37 | |
| Tischplatteneinsatz TKS 80 ET-BG | ||||
| 187 | 10435238 | 79.74 | 94.89 | |
| Schraube TKS 80-AIM M6x12 DIN7380 | ||||
| 188 | 10203912 | 1.51 | 1.80 | |
| Scheibe 5,3 mm | ||||
| 189 | 761515 | 1.51 | 1.80 | |
| Buchse TKS 80-AIM Führung | ||||
| 190 | 10203889 | 1.87 | 2.23 | |
| Halterung TKS 80-AIM Hinten | ||||
| 191 | 10203892 | 18.63 | 22.17 | |
| Zylinderschraube M5 x 10 | ||||
| 192 | 200669 | 1.51 | 1.80 | |
| Druckfeder 1x9x19 - 46/3/2 | ||||
| 193 | 10203719 | 3.38 | 4.02 | |
| Hebelklemme TKS 80-AIM | ||||
| 194 | 10204188 | 2.52 | 3.00 | |
| O-Ring 6x1,8 NBR70 | ||||
| 195 | 10205361 | 1.51 | 1.80 | |
| Schraube (~01-001868-45) - M6x45 | ||||
| 196 | 10204189 | 10.22 | 12.16 | |
| Platte TKS 80-AIM | ||||
| 197 | 10203720 | 3.67 | 4.37 | |
| Stift TKS 80 - AIM 37-001925-0 | ||||
| 198 | 10203718 | 13.00 | 15.47 | |
| Schlüssel TKS 80-AIM | ||||
| 199 | 10201624 | 13.55 | 16.12 | |
| Scheibe TKS 80-AIM | ||||
| 200 | 10203809 | 15.49 | 18.43 | |
| Sechskantkopf sc TKS 80 - AIM 05-003469-0 | ||||
| 201 | 10203807 | 11.22 | 13.35 | |
| Teile-Kit TKS 80 ET-BG | ||||
| 202 | 10435243 | 291.37 | 346.73 | |
| Unterlegscheibe 6,4x16x0,8 BN 735 | ||||
| 203 | 10011926 | 1.51 | 1.80 | |
| Unterlegscheibe 4x25x1,5 BN 732 | ||||
| 204 | 10489356 | 1.51 | 1.80 | |
| Schraube | ||||
| 205 | 614456 | 1.51 | 1.80 | |
| Klebeetikett TKS 80-AIM | ||||
| 301 | 10162951 | 12.14 | 14.45 | |
| Portal TKS 80 ET-BG | ||||
| 302 | 10435239 | 154.28 | 183.59 | |
| Gummifuss | ||||
| 303 | 701230 | 5.33 | 6.34 | |
| Schraube M6 x 12 | ||||
| 304 | 449888 | 1.51 | 1.80 | |
| Profil TKS 80 ET-BG | ||||
| 305 | 10435240 | 76.71 | 91.28 | |
| Platte TKS 80-AIM Beschichtet | ||||
| 306 | 10194929 | 169.40 | 201.59 | |
| Feder | ||||
| 307 | 447262 | 1.51 | 1.80 | |
| Vierkantmutter DIN 557-M6-05 | ||||
| 308 | 228566 | 1.51 | 1.80 | |
| Halteplatte TKS 80 - AIM | ||||
| 309 | 10347707 | 2.66 | 3.17 | |
| Portalbeschichtung TKS 80-AIM | ||||
| 310 | 10162944 | 127.78 | 152.06 | |
| Skala TKS 80-AIM rechts komplett. | ||||
| 311 | 10162950 | 14.76 | 17.56 | |
| Skala TKS 80-AIM Links kompl. | ||||
| 312 | 10162947 | 15.97 | 19.00 | |
| Linsenschraube 2,5 x 8 mm | ||||
| 313 | 400444 | 1.51 | 1.80 | |
| Blechmutter | ||||
| 314 | 448477 | 1.51 | 1.80 | |
| Schieber CS 70 EB | ||||
| 315 | 10023700 | 9.79 | 11.65 | |
| Tasche für TKS 80-AIM | ||||
| 316 | 10169014 | 31.82 | 37.87 | |
| Sicherheitsvorrichtung TKS 80-AIM | ||||
| 317 | 10154247 | 80.95 | 96.33 | |
| Spaltmesser TKS 80-AIM Verlängerte | ||||
| 318 | 10148823 | 39.20 | 46.65 | |
| Spaltmesser TKS 80-AIM | ||||
| 319 | 10152477 | 47.07 | 56.01 | |
| Winkelanschlag WRA TKS 80 ET-BG | ||||
| 320 | 10469691 | 267.65 | 318.50 | |
| Klappbein TKS 80 ET-BG | ||||
| 401 | 10435241 | 113.26 | 134.78 | |
| Rad | ||||
| 402 | 766488 | 19.48 | 23.18 | |
| Haltevorrichtung | ||||
| 403 | 10024831 | 2.66 | 3.17 | |
| Mutter M8 | ||||
| 404 | 618497 | 1.51 | 1.80 | |
| Bolzen | ||||
| 405 | 10024062 | 2.66 | 3.17 | |
| Sicherungsring | ||||
| 406 | 615477 | 1.51 | 1.80 | |
| Reduzierung CS 70 | ||||
| 407 | 10024830 | 2.66 | 3.17 | |
| Gummifuss | ||||
| 408 | 465163 | 3.60 | 4.28 | |
| Sechskantschraube M8 x 110 | ||||
| 409 | 400734 | 1.58 | 1.88 | |
| Scheibe 8,4 mm | ||||
| 410 | 228601 | 1.51 | 1.80 | |
| Abdeckkappe TKS 80-AIM | ||||
| 411 | 10239624 | 1.51 | 1.80 | |
| Griffoberteil | ||||
| 412 | 447534 | 1.94 | 2.31 | |
| Sechskantmutter M8 | ||||
| 413 | 200735 | 1.51 | 1.80 | |
| Sechskantschraube DIN933 M5x12 8.8 A3F | ||||
| 414 | 400563 | 1.51 | 1.80 | |
| Untere Sek. Kolben CS 70 EB | ||||
| 415 | 448479 | 2.16 | 2.57 | |
| Sechskantschraube M8 x 75 | ||||
| 416 | 400309 | 1.66 | 1.98 | |
| Stellkurve | ||||
| 417 | 448178 | 2.74 | 3.26 | |
| Stellfuss | ||||
| 418 | 465883 | 13.07 | 15.55 | |
| Klappbein TKS 80 ET-BG | ||||
| 419 | 10435242 | 71.51 | 85.10 | |
| Y-stück | ||||
| 420 | 450575 | 25.05 | 29.81 | |
| Schlauch Ø 27 x 2 m | ||||
| 421 | 459250 | 45.13 | 53.70 | |
| Klammer | ||||
| 422 | 450158 | 2.02 | 2.40 | |
| Schlauch Ø 36 x 1,5 m | ||||
| 425 | 459251 | 43.92 | 52.26 | |
