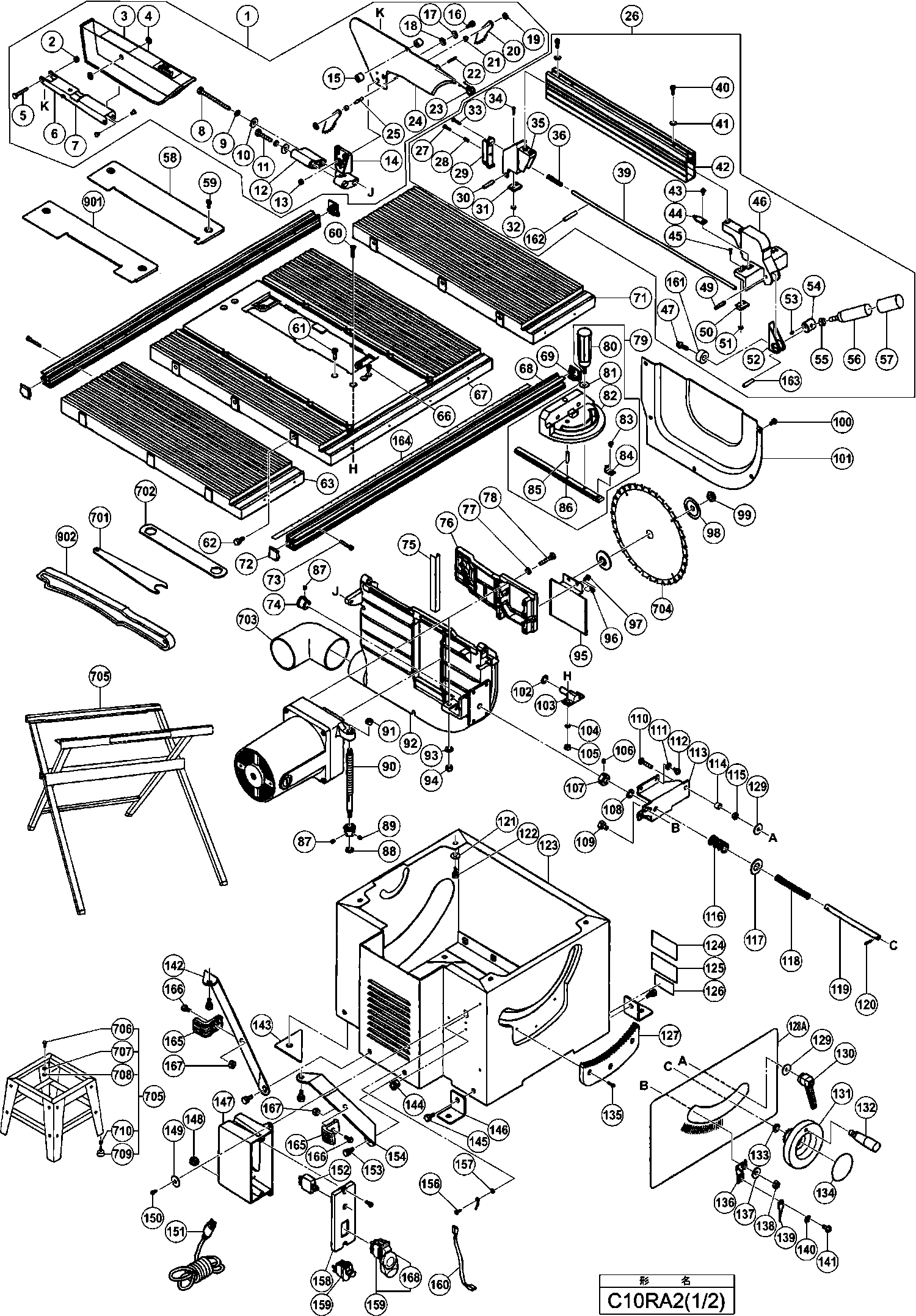

Zeichnungen der Hikoki C10RA2
Teileliste der Hikoki C10RA2
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Keine Informationen verfügbar, nicht bestellbar | ||||
1 | 318086 | |||
Spannmutter M6 | ||||
2 | 314474 | 1.20 | 1.43 | |
Blattschutz C10ra | ||||
3 | 314479 | 14.99 | 17.84 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
4 | 314476 | |||
Schraube M6x40 (10st) Cg18dl | ||||
5 | 949644 | 1.65 | 1.96 | |
Arm | ||||
6 | 314477 | 6.75 | 8.03 | |
Rivet | ||||
7 | 314478 | 1.80 | 2.14 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
8 | 318088 | |||
Federscheibe M6 (10st), C8fshe, C8fse, Cg18dal, C | ||||
9 | 949455 | 1.05 | 1.25 | |
Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
10 | 949432 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
11 | 318089 | |||
Schutzhalterung | ||||
12 | 314483 | 9.75 | 11.60 | |
Mutter M6 (10st) Cg18dl For Europe (sl),usa,can | ||||
13 | 949556 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
14 | 318090 | |||
Unterlegscheibe | ||||
15 | 314480 | 3.45 | 4.11 | |
Schraube M6x10 (10st) | ||||
16 | 949613 | 1.20 | 1.43 | |
Federscheibe M6 (10st), C8fshe, C8fse, Cg18dal, C | ||||
17 | 949455 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
18 | 973361 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
19 | 314476 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
20 | 314444 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
21 | 314445 | |||
Rollstift D4x33 (10st) | ||||
22 | 949870 | 3.00 | 3.57 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
23 | 314447 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
24 | 318092 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
25 | 314446 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
26 | 318093 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
27 | 318094 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
28 | 318535 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
29 | 318095 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
30 | 318096 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
31 | 318097 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
32 | 318098 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
33 | 318133 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
34 | 318100 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
35 | 318101 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
36 | 318536 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
39 | 318104 | |||
Inbusschraube M6x16 (10st), Nr90aa | ||||
40 | 949755 | 3.00 | 3.57 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
41 | 317627 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
42 | 318105 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
43 | 317567 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
44 | 318106 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
45 | 318107 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
46 | 318108 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
47 | 318537 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
49 | 318096 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
50 | 318111 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
51 | 318098 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
52 | 318113 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
53 | 318114 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
54 | 318115 | |||
Mutter M8 (10st) | ||||
55 | 949558 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
56 | 318116 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
57 | 318117 | |||
Sägeblatthalter | ||||
58 | 314484 | 10.50 | 12.50 | |
Kopfschraube M5x 8 (10st) | ||||
59 | 949235 | 1.05 | 1.25 | |
Senkkopfschraube M6x25 (10st), C8fshe, C8fse | ||||
60 | 949342 | 1.65 | 1.96 | |
Schraube M6x20 Selbstsich. C10ra | ||||
61 | 314486 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
62 | 318118 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
63 | 318119 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
66 | 314490 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
67 | 318122 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
68 | 318123 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
69 | 318124 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
71 | 318126 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
72 | 318127 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
73 | 318128 | |||
Schrägzahnrad (a) C10ra | ||||
74 | 314512 | 3.00 | 3.57 | |
Gleitplatte C10ra | ||||
75 | 314513 | 2.10 | 2.50 | |
Nicht mehr lieferbar, kein Ersatz | ||||
76 | 314514 | |||
Federscheibe M6 (10st), C8fshe, C8fse, Cg18dal, C | ||||
77 | 949455 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
78 | 949803 | |||
Winkelanschlag Komplett C10ra (inkl.pos.52-58) In | ||||
79 | 315042 | 11.85 | 14.10 | |
Klemmhandgriff (b) C10ra | ||||
80 | 314505 | 2.10 | 2.50 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
81 | 314506 | |||
Winkeleinstellung C10ra | ||||
82 | 314507 | 6.30 | 7.50 | |
Kopfschraube M5x 6 (10st) | ||||
83 | 949234 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
84 | 314509 | |||
Stift (1) | ||||
85 | 314510 | 1.05 | 1.25 | |
Bogenstab C10ra | ||||
86 | 314511 | 11.85 | 14.10 | |
Inbusstiftschraube M6x6 C10ra | ||||
87 | 967469 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
88 | 314516 | |||
Schrägzahnrad (b) C10ra | ||||
89 | 314517 | 3.15 | 3.75 | |
Gewindestange C10ra | ||||
90 | 314518 | 4.20 | 5.00 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
91 | 314519 | |||
Gehäuse | ||||
92 | 314520 | 83.19 | 98.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
93 | 314521 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
94 | 314522 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
95 | 314523 | |||
Federscheibe M6 (10st), C8fshe, C8fse, Cg18dal, C | ||||
96 | 949455 | 1.05 | 1.25 | |
Kopfschraube M6x12 (10st) | ||||
97 | 949255 | 1.35 | 1.61 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
98 | 314454 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
99 | 318130 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
100 | 317352 | |||
Blattschutz C10ra | ||||
101 | 314526 | 12.30 | 14.64 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
102 | 314527 | |||
Drehstütze C10ra | ||||
103 | 314528 | 8.70 | 10.35 | |
Federscheibe M6 (10st), C8fshe, C8fse, Cg18dal, C | ||||
104 | 949455 | 1.05 | 1.25 | |
Mutter M6 (10st) Cg18dl For Europe (sl),usa,can | ||||
105 | 949556 | 1.05 | 1.25 | |
Inbusstiftschraube M6x6 C10ra | ||||
106 | 967469 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
107 | 314533 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
108 | 314534 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
109 | 307410 | |||
Spezialschraube M6x35 C10ra | ||||
110 | 314529 | 1.04 | 1.23 | |
Federscheibe M6 (10st), C8fshe, C8fse, Cg18dal, C | ||||
111 | 949455 | 1.05 | 1.25 | |
Kopfschraube M6x12 (10st) | ||||
112 | 949255 | 1.35 | 1.61 | |
Traeger (1) | ||||
113 | 314530 | 11.40 | 13.57 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
114 | 314531 | |||
Mutter M6 (10st) Cg18dl For Europe (sl),usa,can | ||||
115 | 949556 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
116 | 314535 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
117 | 314536 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
118 | 314537 | |||
Einstellwelle C10ra | ||||
119 | 314538 | 3.00 | 3.57 | |
Rollstift D3x18 (10st) Nv38ab2 | ||||
120 | 949518 | 2.40 | 2.86 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
121 | 973361 | |||
Kopfschraube M6x12 (m.u-scheibe) | ||||
122 | 996577 | 1.05 | 1.25 | |
Gehäuse | ||||
123 | 314539 | 123.20 | 146.61 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
127 | 314555 | |||
Flächenscheibe M9,5 C10ra | ||||
129 | 314532 | 1.35 | 1.61 | |
Griff | ||||
130 | 314556 | 8.20 | 9.76 | |
Handrad C10ra | ||||
131 | 314557 | 4.65 | 5.53 | |
Griff | ||||
132 | 314558 | 3.30 | 3.93 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
133 | 314534 | |||
Schild | ||||
134 | 314560 | 1.65 | 1.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
135 | 318131 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
136 | 314561 | |||
Unterlegscheibe M8 (10st), C8fshe, C8fse | ||||
137 | 949433 | 1.05 | 1.25 | |
Mutter M8 (10st) | ||||
138 | 949558 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
139 | 314562 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
140 | 314580 | |||
Kopfschraube M5x 8 (10st) | ||||
141 | 949235 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
142 | 314541 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
143 | 314542 | |||
Zugentlastung (ra-1418) | ||||
144 | 314548 | 1.80 | 2.14 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
145 | 308946 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
146 | 314540 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
147 | 317285 | |||
Zugentlastung (ru-1435) | ||||
148 | 314544 | 1.65 | 1.96 | |
Unterlegschreibe M4 (10st), C8fshe, C8fse | ||||
149 | 949429 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
150 | 314545 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
151 | 314456 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
152 | 314457 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
153 | 308946 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
154 | 314547 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
155 | 314549 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
156 | 318132 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
157 | 314553 | |||
Schalterplatte C10ra | ||||
158 | 314458 | 2.40 | 2.86 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
159 | 321620 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
160 | 317158 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
161 | 318274 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
162 | 318538 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
163 | 318539 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
164 | 319000 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
165 | 321617 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
166 | 321618 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
167 | 321619 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
168 | 321621 | |||
Spindel kpl. | ||||
201A | 324508 | 29.56 | 35.18 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
202 | 314567 | |||
Kopfschraube M4x12 (10st),c8fshe, C8fse | ||||
203 | 949217 | 1.05 | 1.25 | |
Federscheibe M4 (10st) | ||||
204 | 949453 | 1.05 | 1.25 | |
Lagerdeckel C10ra | ||||
205 | 314572 | 1.50 | 1.78 | |
Kugellager 6204 Vv | ||||
206 | 6204VV | 9.15 | 10.89 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
207 | 314568 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
208 | 314569 | |||
Ring | ||||
209 | 967261 | 1.05 | 1.25 | |
Nadellager C10ra | ||||
210 | 314570 | 11.25 | 13.39 | |
Bremse kpl. C10ra Includ.210 | ||||
211A | 324507 | 67.10 | 79.85 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
212A | 314452 | |||
Kugellager 6201 Vv | ||||
213 | 6201VV | 6.45 | 7.68 | |
Kugellager 6200 Dd | ||||
214A | 6200DD | 6.00 | 7.14 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
215 | 314578 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
216 | 314579 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
217 | 314580 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
218 | 314453 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
219 | 314577 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
220 | 314583 | |||
Kohlenbürsten (paar) | ||||
221 | 999044 | 4.50 | 5.36 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
222 | 314585 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
223 | 314586 | |||
Federscheibe M5 (10st), C8fshe, C8fse | ||||
224 | 949454 | 1.04 | 1.23 | |
Kopfschraube M5x30 | ||||
225 | 949245 | 1.65 | 1.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
226 | 967377 | |||
Zugentlastung (ru-1435) | ||||
227 | 314544 | 1.65 | 1.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
701 | 314590 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
702 | 314591 | |||
Nicht mehr lieferbar, kein Ersatz | ||||
703 | 314592 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
704 | 314616 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
705 | 321531 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
706 | 318820 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
707 | 317603 | |||
Mutter M8 (10st) | ||||
708 | 949558 | 1.05 | 1.25 | |
Gummifuss Tug10 | ||||
709 | 318821 | 11.55 | 13.74 | |
M10 Mutter (10 Stücke) | ||||
710 | 949560 | 2.40 | 2.86 | |
Tischeinlage C10ra | ||||
901 | 314325 | 11.70 | 13.92 | |
Schiebestock | ||||
902 | 314324 | 7.15 | 8.51 |
