Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki C3610DRAWAZ'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

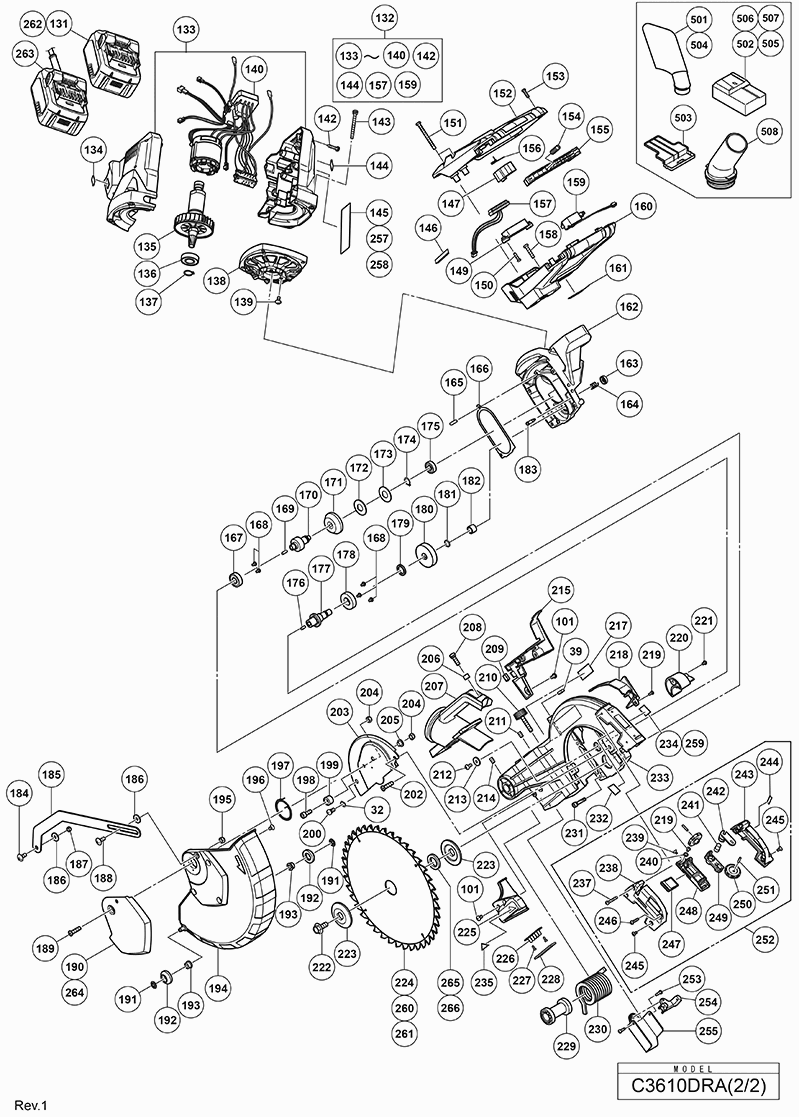

Zeichnungen der Hikoki C3610DRAWAZ
Teileliste der Hikoki C3610DRAWAZ
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| HEX.SOCKET HD.CAP SCREW (10 PCS) C3610DRA | ||||
| 1 | 372555 | 4.05 | 4.82 | |
| HEXAGON SOCKET TRUSS HEAD ASSEMBLIED (10 PCS) C361 | ||||
| 2 | 372556 | 2.25 | 2.68 | |
| FLAT WASHER (10 PCS) C3610DRA | ||||
| 3 | 372561 | 1.05 | 1.25 | |
| HEX.SOCKET HD.CAP SCREW (10 PCS) C3610DRA | ||||
| 4 | 372577 | 4.95 | 5.89 | |
| EXTERNAL TOOTH LOCK WASHER (10 PCS) C3610DRA | ||||
| 5 | 372450 | 1.05 | 1.25 | |
| NUT CHUCK (10 PCS) C3610DRA | ||||
| 6 | 372500 | 4.95 | 5.89 | |
| DISC SPRING WASHER (10 PCS) C3610DRA | ||||
| 7 | 372453 | 2.25 | 2.68 | |
| FLAT WASHER (10 PCS) C3610DRA NEW | ||||
| 8 | 372559 | 1.05 | 1.25 | |
| HEX. SOC. SET SCREW (10 PCS) C3610DRA | ||||
| 9 | 372553 | 4.05 | 4.82 | |
| ARM-MITER C3610DRA | ||||
| 10 | 373689 | 115.09 | 136.95 | |
| PLATE C3610DRA | ||||
| 11 | 372623 | 1.80 | 2.14 | |
| CR. RE. TRUSS HD. ROUND NECK SCREW (10 PCS) C3610D | ||||
| 12 | 372625 | 4.05 | 4.82 | |
| WAVE WASHER C3610DRA | ||||
| 13 | 372018 | 1.04 | 1.23 | |
| PLATE C3610DRA | ||||
| 14 | 372622 | 1.80 | 2.14 | |
| SET PLATE C3610DRA | ||||
| 15 | 372524 | 2.55 | 3.03 | |
| RUBBER PAD C3610DRA NEW | ||||
| 16 | 372521 | 1.04 | 1.23 | |
| O-RING ROD (10 PCS) C3610DRA | ||||
| 17 | 372458 | 3.15 | 3.75 | |
| MITER BAR ASS'Y C3610DRA | ||||
| 18 | 372515 | 19.66 | 23.40 | |
| CR.-RE. TRUSS HD. SCREW (10 PCS) C3610DRA | ||||
| 19 | 372543 | 1.05 | 1.25 | |
| BEARING COVER C3610DRA | ||||
| 20 | 372519 | 1.04 | 1.23 | |
| BLANKET WASHER C3610DRA | ||||
| 21 | 372491 | 1.04 | 1.23 | |
| LINEAR MOTION BEARING C3610DRA | ||||
| 22 | 372490 | 19.25 | 22.91 | |
| SET PLATE C3610DRA | ||||
| 23 | 372569 | 2.10 | 2.50 | |
| HEXAGON SOCKET TRUSS HEAD ASSEMBLIED (10 PCS) C361 | ||||
| 24 | 372503 | 2.25 | 2.68 | |
| CLAMP HANDLE C3610DRA | ||||
| 25 | 372585 | 1.35 | 1.61 | |
| O-RING (10 PCS) C3610DRA | ||||
| 26 | 372050 | 1.05 | 1.25 | |
| CLEVIS PIN C3610DRA | ||||
| 27 | 372481 | 1.20 | 1.43 | |
| C-RING (10 PCS) C3610DRA | ||||
| 28 | 372454 | 1.05 | 1.25 | |
| SHAFT C3610DRA | ||||
| 29 | 372489 | 2.25 | 2.68 | |
| ANCHOR PLATE C3610DRA | ||||
| 30 | 372566 | 1.05 | 1.25 | |
| CR. RE. TRUSS HD. ROUND NECK SCREW (10 PCS) C3610D | ||||
| 31 | 372567 | 4.95 | 5.89 | |
| FLAT WASHER C3610DRA | ||||
| 32 | 327354 | 1.05 | 1.25 | |
| ARM MITER COVER C3610DRA | ||||
| 33 | 372533 | 2.10 | 2.50 | |
| CR.RE. PAN HD. TAPPING SCREW (10 PCS) C3610DRA | ||||
| 34 | 372024 | 1.05 | 1.25 | |
| CR.RE. PAN HD. TAPPING SCREW (10 PCS) C3610DRA | ||||
| 35 | 372059 | 1.05 | 1.25 | |
| CR.RE. PAN HD. TAPPING SCREW (10 PCS) C3610DRA | ||||
| 36 | 372573 | 2.25 | 2.68 | |
| MITER BAR C3610DRA | ||||
| 37 | 372516 | 16.64 | 19.80 | |
| FRAME ENDCAP BLACK PLASTIC C3610DRA | ||||
| 38 | 372511 | 1.04 | 1.23 | |
| SPACER C3610DRA | ||||
| 39 | 372513 | 1.04 | 1.23 | |
| WARNING LABEL C3610DRA | ||||
| 40 | 372617 | 1.04 | 1.23 | |
| SLIDE-BAR SEAT (FRONT) C3610DRA | ||||
| 41 | 373688 | 64.35 | 76.58 | |
| WASHER BEARING C3610DRA | ||||
| 42 | 372512 | 1.04 | 1.23 | |
| LINEAR MOTION BEARING C3610DRA | ||||
| 43 | 372523 | 19.66 | 23.40 | |
| SET PLATE C3610DRA | ||||
| 44 | 372514 | 3.90 | 4.64 | |
| O-RING (10 PCS) C3610DRA | ||||
| 45 | 372456 | 1.05 | 1.25 | |
| LOCATING BAR C3610DRA | ||||
| 46 | 372510 | 2.40 | 2.86 | |
| CR. RE. PAN HD. SCREW (10 PCS) C3610DRA | ||||
| 47 | 372466 | 1.05 | 1.25 | |
| TILTING SCALE C3610DRA | ||||
| 48 | 372628 | 1.05 | 1.25 | |
| FLAT WASHER C3610DRA | ||||
| 49 | 327352 | 1.04 | 1.23 | |
| NEEDLE POINTER C3610DRA | ||||
| 50 | 372536 | 1.04 | 1.23 | |
| CLAMP BOLT C3610DRA | ||||
| 51 | 372583 | 1.04 | 1.23 | |
| LOCK NUT M8 C8FSHG | ||||
| 52 | 339841 | 1.04 | 1.23 | |
| Ring | ||||
| 53 | 726478 | 1.20 | 1.43 | |
| TABLE C3610DRA | ||||
| 54 | 372587 | 128.56 | 152.99 | |
| CR. RE. PAN HD. SCREW (10 PCS) C3610DRA NEW | ||||
| 55 | 372552 | 1.05 | 1.25 | |
| TABLE INSERT C3610DRA | ||||
| 56 | 372610 | 2.55 | 3.03 | |
| STOP PLATE C3610DRA | ||||
| 57 | 372731 | 1.04 | 1.23 | |
| COMPRESSION SPRING C3610DRA | ||||
| 58 | 372478 | 1.04 | 1.23 | |
| BRACKET STOP C3610DRA | ||||
| 59 | 372595 | 2.40 | 2.86 | |
| ROLL PIN C3610DRA | ||||
| 60 | 372474 | 1.04 | 1.23 | |
| LOCATING BAR C3610DRA | ||||
| 61 | 372593 | 2.85 | 3.39 | |
| SPECIAL NUT C3610DRA NEW | ||||
| 62 | 372592 | 1.65 | 1.96 | |
| CAUTION LABEL C3610DRA | ||||
| 63 | 372613 | 1.04 | 1.23 | |
| CLAMP HANDLE C3610DRA | ||||
| 64 | 372589 | 5.25 | 6.25 | |
| ROLL PIN C3610DRA | ||||
| 65 | 372629 | 1.05 | 1.25 | |
| LOCKING ROD C3610DRA | ||||
| 66 | 372594 | 9.45 | 11.25 | |
| KNOB C3610DRA | ||||
| 67 | 372590 | 2.55 | 3.03 | |
| HEX SOC. HD. CAP SCREW C3610DRA | ||||
| 68 | 726539 | 5.25 | 6.25 | |
| SHAFT-PIVOT C3610DRA | ||||
| 69 | 372517 | 3.60 | 4.28 | |
| NUT CHUCK C3610DRA | ||||
| 70 | 339796 | 1.04 | 1.23 | |
| Unterlegscheibe M10 (10st) | ||||
| 71 | 949434 | 1.35 | 1.61 | |
| CR. RE. PAN HD. SCREW (10 PCS) C3610DRA | ||||
| 72 | 372548 | 1.05 | 1.25 | |
| SPECIAL BOLT C3610DRA | ||||
| 73 | 372532 | 3.00 | 3.57 | |
| FLAT WASHER C3610DRA | ||||
| 74 | 339832 | 1.04 | 1.23 | |
| HEX.SOCKET HD.CAP SCREWS (10 PCS) C3610DRA | ||||
| 75 | 372564 | 3.15 | 3.75 | |
| BUSHING C3610DRA | ||||
| 76 | 372497 | 2.10 | 2.50 | |
| HEX. NUT (10 PCS) C3610DRA | ||||
| 77 | 372505 | 1.05 | 1.25 | |
| HEX. HD. BOLT C3610DRA | ||||
| 78 | 372459 | 1.50 | 1.78 | |
| INBUSSTELSCHROEF M6X10 | ||||
| 79 | 968247 | 1.04 | 1.23 | |
| Kopfschraube M5x 8 (10st) | ||||
| 80 | 949235 | 1.05 | 1.25 | |
| NEEDLE POINTER C3610DRA | ||||
| 81 | 372576 | 1.04 | 1.23 | |
| PLUNGER HANDLE C3610DRA | ||||
| 83 | 372530 | 2.10 | 2.50 | |
| COMPRESSION SPRING C3610DRA | ||||
| 84 | 372504 | 1.04 | 1.23 | |
| COMPRESSION SPRING C3610DRA | ||||
| 85 | 372502 | 1.04 | 1.23 | |
| CR.-RE. TRUSS HD. SCREW (10 PCS) C3610DRA NEW | ||||
| 86 | 372486 | 3.15 | 3.75 | |
| ALLEN BOLT (10 PCS) C3610DRA | ||||
| 87 | 372572 | 2.25 | 2.68 | |
| HANDLE C3610DRA | ||||
| 88 | 372588 | 1.80 | 2.14 | |
| BLOKKEERMOER M5 (NIEUW 949555) | ||||
| 89 | 726615 | 1.04 | 1.23 | |
| PLUNGER HANDLE C3610DRA NEW | ||||
| 90 | 372591 | 10.80 | 12.85 | |
| SLIDE PLATE C3610DRA | ||||
| 92 | 373962 | 4.20 | 5.00 | |
| CAUTION LABEL C3610DRA | ||||
| 93 | 372614 | 1.04 | 1.23 | |
| ADJUSTABLE NUT C3610DRA | ||||
| 94 | 372529 | 1.35 | 1.61 | |
| LEVELING PAD C3610DRA | ||||
| 95 | 372528 | 2.10 | 2.50 | |
| CLAMP HANDLE C3610DRA | ||||
| 96 | 372586 | 1.65 | 1.96 | |
| EXTENSION TABLE C3610DRA | ||||
| 97 | 373681 | 15.26 | 18.16 | |
| HEX.SOCKET HD.CAP SCREWS C3610DRA | ||||
| 98 | 373665 | 1.04 | 1.23 | |
| WARNING LABEL C3610DRA | ||||
| 99 | 372618 | 1.04 | 1.23 | |
| BLADE WRENCH C3610DRA | ||||
| 100 | 372446 | 2.85 | 3.39 | |
| CR. RE. PAN HD. SCREW (10 PCS) C3610DRA | ||||
| 101 | 372549 | 2.25 | 2.68 | |
| WRENCH SET C3610DRA | ||||
| 102 | 372525 | 1.05 | 1.25 | |
| ASSIST-FENCE (RIGHT) C3610DRA | ||||
| 103 | 372582 | 30.80 | 36.65 | |
| CLAMP BOLT C3610DRA | ||||
| 104 | 372584 | 3.60 | 4.28 | |
| HEX. SOC. TRUSS HD. SCREW C3610DRA | ||||
| 105 | 726318 | 1.50 | 1.78 | |
| HEX. SOC. SET SCREW (10 PCS) C3610DRA | ||||
| 106 | 372479 | 1.05 | 1.25 | |
| ASSIST-FENCE (LEFT) C3610DRA | ||||
| 107 | 372581 | 27.09 | 32.23 | |
| FENCE C3610DRA | ||||
| 108 | 372580 | 65.86 | 78.38 | |
| REAR SUPPORT TUBE C3610DRA | ||||
| 109 | 372570 | 1.04 | 1.23 | |
| REAR SUPPORT TUBE C3610DRA | ||||
| 110 | 372571 | 2.40 | 2.86 | |
| CR.-RE. TRUSS HD. SCREW (10 PCS) C3610DRA NEW | ||||
| 111 | 372464 | 1.05 | 1.25 | |
| BASE C3610DRA | ||||
| 112 | 373687 | 145.89 | 173.61 | |
| CENTER BOLT C3610DRA | ||||
| 113 | 372442 | 1.95 | 2.32 | |
| SCALE C3610DRA | ||||
| 114 | 372612 | 6.75 | 8.03 | |
| HANDLE BAR ASS'Y C8FSHG | ||||
| 115 | 373666 | 5.85 | 6.96 | |
| Nicht mehr lieferbar | ||||
| 116 | 373668 | |||
| FLAT WASHER C8FSHG | ||||
| 117 | 373677 | 1.04 | 1.23 | |
| FLANGE C8FSHG | ||||
| 118 | 373667 | 2.70 | 3.21 | |
| CR.RE.PAN HD. SCREW & SCREW C8FSHG | ||||
| 119 | 373675 | 1.04 | 1.23 | |
| VISE ASSY C3610DRA | ||||
| 120 | 372531 | 14.10 | 16.78 | |
| FLAT WASHER C8FSHG | ||||
| 121 | 373678 | 1.04 | 1.23 | |
| FLAT WASHER C3610DRA | ||||
| 122 | 373961 | 1.04 | 1.23 | |
| MOTOR ASS'Y SET C3610DRA | ||||
| 132 | 373762 | 244.34 | 290.76 | |
| HOUSING SET C3610DRA | ||||
| 133 | 373763 | 17.88 | 21.27 | |
| MV LABEL (A) | ||||
| 134 | 373913 | 1.04 | 1.23 | |
| ROTOR ASS'Y | ||||
| 135 | 361094 | 59.81 | 71.18 | |
| Nicht mehr lieferbar | ||||
| 136 | 372405 | |||
| Nicht mehr lieferbar | ||||
| 137 | 726512 | |||
| FRONT HOUSING C3610DRA | ||||
| 138 | 372412 | 18.29 | 21.76 | |
| Nicht mehr lieferbar | ||||
| 139 | 372404 | |||
| WIRING ASS'Y (OLD 341011) | ||||
| 140 | 341011B | 132.55 | 157.73 | |
| Schneidschraube D4x20 Mit Flansch (schwarz), C8fs | ||||
| 142 | 301653 | 1.04 | 1.23 | |
| CR.RE. PAN HD. SCREW C3610DRA NEW | ||||
| 143 | 373797 | 1.04 | 1.23 | |
| MV LABEL (B) | ||||
| 144 | 373914 | 1.04 | 1.23 | |
| Nicht mehr lieferbar | ||||
| 146 | 372212 | |||
| BUTTON SWITCH C3610DRA | ||||
| 147 | 372537 | 1.20 | 1.43 | |
| SWITCH MOUNTING C3610DRA | ||||
| 149 | 373685 | 1.04 | 1.23 | |
| CR.RE. PAN HD. TAPPING SCREW (10 PCS) C3610DRA | ||||
| 150 | 373664 | 1.05 | 1.25 | |
| CR. RE. PAN HD. SCREW (10 PCS) C3610DRA | ||||
| 151 | 372550 | 3.15 | 3.75 | |
| MOTOR HANDLE (UP) C3610DRA | ||||
| 152 | 373683 | 17.05 | 20.29 | |
| CR.RE. PAN HD. TAPPING SCREW (10 PCS) C3610DRA | ||||
| 153 | 372488 | 1.05 | 1.25 | |
| COMPRESSION SPRING C3610DRA | ||||
| 154 | 372441 | 1.04 | 1.23 | |
| TRIGGER C3610DRA NEW | ||||
| 155 | 373686 | 2.85 | 3.39 | |
| TORSION SPRING C3610DRA | ||||
| 156 | 372538 | 1.04 | 1.23 | |
| Nicht mehr lieferbar | ||||
| 157 | 373949 | |||
| CR. RE. PAN HD. SCREW (10 PCS) C3610DRA | ||||
| 158 | 372551 | 1.05 | 1.25 | |
| SWITCH | ||||
| 159 | 371907 | 13.75 | 16.36 | |
| MOTOR HANDLE (DOWN) C3610DRA | ||||
| 160 | 373684 | 17.05 | 20.29 | |
| GEAR BOX C3610DRA | ||||
| 162 | 372415 | 29.98 | 35.67 | |
| LOCK KNOB C3610DRA | ||||
| 163 | 372414 | 1.04 | 1.23 | |
| COMPRESSION SPRING (10 PCS) C3610DRA | ||||
| 164 | 372416 | 1.05 | 1.25 | |
| NEEDLE ROLLER C3610DRA | ||||
| 165 | 372422 | 1.04 | 1.23 | |
| OIL PAPER C3610DRA | ||||
| 166 | 372423 | 1.35 | 1.61 | |
| BALL BEARING C3610DRA | ||||
| 167 | 372391 | 10.05 | 11.96 | |
| PARALLEL KEY (10 PCS) C3610DRA | ||||
| 169 | 372396 | 3.15 | 3.75 | |
| GEAR SHAFT C3610DRA | ||||
| 170 | 372411 | 23.51 | 27.98 | |
| STRAIGHT BEVEL GEAR C3610DRA | ||||
| 171 | 372436 | 43.31 | 51.54 | |
| BUMPER C3610DRA | ||||
| 172 | 372435 | 1.04 | 1.23 | |
| CENTER SHAFT WASHER C3610DRA | ||||
| 173 | 372434 | 1.04 | 1.23 | |
| C-RING (10 PCS) C3610DRA | ||||
| 174 | 372403 | 1.05 | 1.25 | |
| BALL BEARING C3610DRA | ||||
| 175 | 372389 | 2.70 | 3.21 | |
| PARALLEL KEY (10 PCS) C3610DRA | ||||
| 176 | 372433 | 4.05 | 4.82 | |
| CUTTER SHAFT C3610DRA | ||||
| 177 | 372408 | 12.60 | 14.99 | |
| BALL BEARING C3610DRA | ||||
| 178 | 372390 | 4.95 | 5.89 | |
| COLLAR C3610DRA | ||||
| 179 | 372409 | 1.04 | 1.23 | |
| HELIX GEAR C3610DRA | ||||
| 180 | 372410 | 24.61 | 29.29 | |
| C-RING (10 PCS) C3610DRA | ||||
| 181 | 317578 | 3.00 | 3.57 | |
| Naaldlager C10rc | ||||
| 182 | 326905 | 6.30 | 7.50 | |
| CLEVIS PIN C3610DRA | ||||
| 183 | 372413 | 1.65 | 1.96 | |
| CR. RE. TRUSS HD. ROUND NECK SCREW (10 PCS) C3610D | ||||
| 184 | 372498 | 4.95 | 5.89 | |
| LEVER C3610DRA | ||||
| 185 | 372596 | 4.65 | 5.53 | |
| FLAT WASHER (10 PCS) C3610DRA | ||||
| 186 | 372501 | 1.05 | 1.25 | |
| NUT C3610DRA | ||||
| 187 | 339840 | 1.95 | 2.32 | |
| CR. RE. TRUSS HD. ROUND NECK SCREW (10 PCS) C3610D | ||||
| 188 | 372635 | 4.95 | 5.89 | |
| CR. RE. COUNT HD. SCREW (10 PCS) C3610DRA | ||||
| 189 | 372465 | 2.25 | 2.68 | |
| SELF-LOCKING RING C3610DRA | ||||
| 191 | 372455 | 1.50 | 1.78 | |
| ROLLING WHEEL C3610DRA | ||||
| 192 | 372444 | 1.04 | 1.23 | |
| BEARING C3610DRA | ||||
| 193 | 372445 | 1.04 | 1.23 | |
| PC-GUARD C3610DRA | ||||
| 194 | 373822 | 22.55 | 26.83 | |
| NUT CHUCK M6 | ||||
| 195 | 314474 | 1.20 | 1.43 | |
| CR. RE.COUNT HD. TAPPING SCREW (10 PCS) C3610DRA | ||||
| 196 | 373680 | 1.05 | 1.25 | |
| SPRING GUARD C3610DRA | ||||
| 197 | 372496 | 1.04 | 1.23 | |
| HEX. SOC. HD. CAP BOLT (10 PCS) C3610DRA | ||||
| 198 | 372460 | 1.05 | 1.25 | |
| ANCHOR BLOCK C3610DRA | ||||
| 199 | 372443 | 1.04 | 1.23 | |
| CR.RE. PAN HD. ROUND NECK SCREW (10 PCS) C3610DRA | ||||
| 200 | 372547 | 4.95 | 5.89 | |
| CR.-RE. TRUSS HD. SCREW (10 PCS) C3610DRA | ||||
| 202 | 372542 | 2.25 | 2.68 | |
| CUTTER SHAFT GUARD C3610DRA | ||||
| 203 | 373821 | 7.50 | 8.92 | |
| NUT CHUCK (10 PCS) C3610DRA | ||||
| 204 | 372499 | 2.25 | 2.68 | |
| SPACER C3610DRA | ||||
| 205 | 372730 | 1.04 | 1.23 | |
| BUSH C3610DRA | ||||
| 206 | 372631 | 1.04 | 1.23 | |
| SEGMENT HANDLE C3610DRA | ||||
| 207 | 372630 | 8.85 | 10.53 | |
| CR.RE. PAN HD. SCREW (10 PCS) C3610DRA | ||||
| 208 | 372485 | 3.15 | 3.75 | |
| BUSH C3610DRA | ||||
| 209 | 373682 | 1.04 | 1.23 | |
| CLAMP HANDLE C3610DRA | ||||
| 210 | 372608 | 1.80 | 2.14 | |
| Nicht mehr lieferbar | ||||
| 211 | 372562 | |||
| HEX. SOC. HD. CAP BOLT (10 PCS) C3610DRA | ||||
| 212 | 372432 | 4.05 | 4.82 | |
| FLAT WASHER (10 PCS) C3610DRA | ||||
| 213 | 372430 | 1.05 | 1.25 | |
| HEX. SOC. SET SCREW (10 PCS) C3610DRA | ||||
| 214 | 372554 | 4.05 | 4.82 | |
| CABLE COVER C3610DRA | ||||
| 215 | 372600 | 1.50 | 1.78 | |
| CAUTION LABEL C3610DRA | ||||
| 217 | 372634 | 1.04 | 1.23 | |
| CABLE SHIELD C3610DRA | ||||
| 218 | 372620 | 1.04 | 1.23 | |
| CR.RE. PAN HD. SCREW (10 PCS) C3610DRA | ||||
| 219 | 372487 | 1.05 | 1.25 | |
| OIL CAP C3610DRA | ||||
| 220 | 372417 | 1.50 | 1.78 | |
| HEX. SOC. TRUSS HD. SCREW (10 PCS) C3610DRA | ||||
| 221 | 372429 | 2.25 | 2.68 | |
| HEX WASHER HD BOLT (10 PCS) C3610DRA | ||||
| 222 | 372557 | 11.85 | 14.10 | |
| ARBOR COLLAR C3610DRA | ||||
| 223 | 372494 | 3.00 | 3.57 | |
| LAMP SOCKET C3610DRA | ||||
| 225 | 372601 | 3.15 | 3.75 | |
| LED LIGHT C3610DRA | ||||
| 226 | 372605 | 19.25 | 22.91 | |
| CR.RE. PAN HD. TAPPING SCREW (10 PCS) C3610DRA | ||||
| 227 | 372546 | 1.05 | 1.25 | |
| INSERT C3610DRA | ||||
| 228 | 372606 | 1.95 | 2.32 | |
| SHAFT SLEEVE C3610DRA | ||||
| 229 | 372520 | 1.04 | 1.23 | |
| TORSION SPRING C3610DRA | ||||
| 230 | 372518 | 8.55 | 10.17 | |
| HEX.SOCKET HD.CAP SCREWS (10 PCS) C3610DRA | ||||
| 231 | 372428 | 7.05 | 8.39 | |
| CAUTION LABEL C3610DRA | ||||
| 232 | 372565 | 1.04 | 1.23 | |
| ARM C3610DRA | ||||
| 233 | 373690 | 81.26 | 96.70 | |
| Nicht mehr lieferbar | ||||
| 234 | 372627 | |||
| CR.RE. PAN HD. TAPPING SCREW (10 PCS) C3610DRA | ||||
| 237 | 372545 | 1.05 | 1.25 | |
| LASER COVER C3610DRA | ||||
| 238 | 372526 | 2.40 | 2.86 | |
| CR. RE. COUNT HD. SCREW C3610DRA | ||||
| 239 | 373674 | 1.04 | 1.23 | |
| FLAT WASHER C3610DRA | ||||
| 240 | 373676 | 1.04 | 1.23 | |
| PLUNGER HOUSING C3610DRA | ||||
| 241 | 373673 | 16.36 | 19.47 | |
| LASER PLUNGER HOUSING C3610DRA | ||||
| 242 | 373672 | 1.04 | 1.23 | |
| COVERLASER COVER C3610DRA | ||||
| 243 | 372527 | 2.25 | 2.68 | |
| LASER STICKER C3610DRA | ||||
| 244 | 372626 | 1.04 | 1.23 | |
| CR. RE. COUNT HD. SCREW (10 PCS) C3610DRA | ||||
| 245 | 372541 | 1.05 | 1.25 | |
| CR.RE. PAN HD. TAPPING SCREW (10 PCS) C3610DRA | ||||
| 246 | 372544 | 1.05 | 1.25 | |
| INSERT C3610DRA NEW | ||||
| 247 | 372522 | 1.04 | 1.23 | |
| LASER SET C3610DRA | ||||
| 248 | 373670 | 1.05 | 1.25 | |
| PIVOT-SUPPORT C3610DRA | ||||
| 249 | 373671 | 1.04 | 1.23 | |
| BUTTON C3610DRA | ||||
| 250 | 373679 | 1.04 | 1.23 | |
| PIN C3610DRA | ||||
| 251 | 373669 | 1.04 | 1.23 | |
| LASER ASS'Y C3610DRA | ||||
| 252 | 372621 | 25.99 | 30.93 | |
| CR.RE. PAN HD. TAPPING SCREW C3610DRA | ||||
| 253 | 373663 | 1.04 | 1.23 | |
| SUPPORT SEAT C3610DRA | ||||
| 254 | 373693 | 1.80 | 2.14 | |
| RUBBER SLEEVE C3610DRA | ||||
| 255 | 373692 | 3.60 | 4.28 | |
| Nicht mehr lieferbar | ||||
| 256 | 373908 | |||
| LASER LABEL (C) C3610DRA | ||||
| 259 | 373911 | 1.04 | 1.23 | |
| Nicht mehr lieferbar | ||||
| 260 | 373415 | |||
| Nicht mehr lieferbar | ||||
| 262 | 372120 | |||
| BRACING PLATE C3610DRA | ||||
| 264 | 373923 | 12.60 | 14.99 | |
| COLLAR (OD 30) C3610DRA | ||||
| 265 | 373963 | 1.95 | 2.32 | |
| Beschermkapje Voor Batterij | ||||
| 503 | 329897 | 1.80 | 2.14 | |
| DUST BAG C3610DRA | ||||
| 504 | 373912 | 7.80 | 9.28 | |
| ELBOW C3610DRA | ||||
| 508 | 374294 | 1.80 | 2.14 | |
