Hikoki CG22EAS Zeichnungen und Teile
Genaue Typennummer:
CG22EAS
CG22EAS

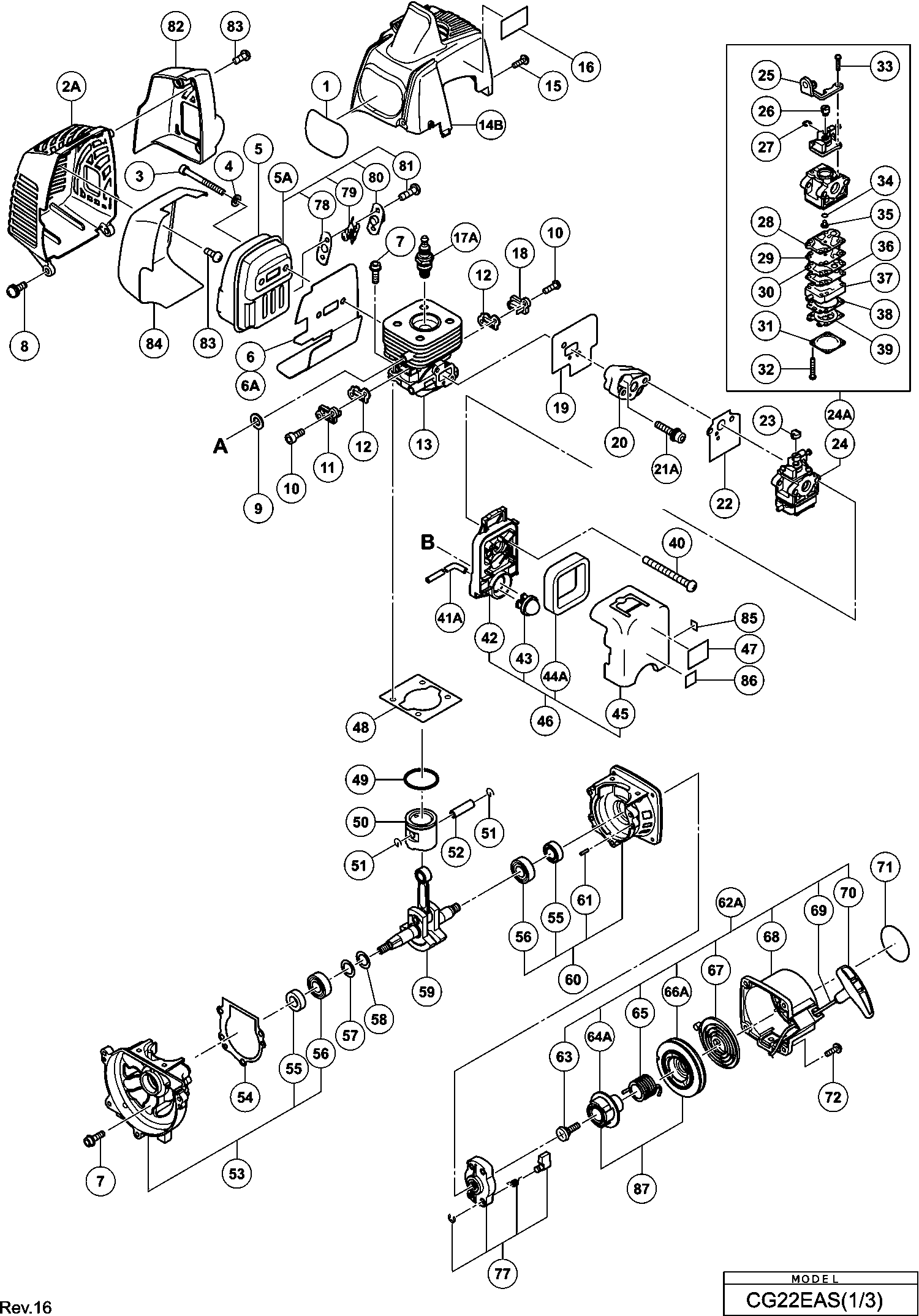

Zeichnungen der HIKOKI CG22EAS
Teileliste der HIKOKI CG22EAS
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Muffler Protector Since 11 2013 | ||||
| 2A | 6600338 | Muffler Protector Since 11 2013 | € 3.19 | |
| Sechskantbolzen Cg24ekb | ||||
| 3 | 6684638 | Sechskantbolzen Cg24ekb | € 2.08 | |
| Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
| 4 | 949432 | Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | € 1.02 | |
| Knaldemper | ||||
| 5 | 6696570 | Knaldemper | € 7.05 | |
| Uitlaat | ||||
| 5A | 6698477 | Uitlaat | € 11.47 | |
| Sechskantbolzen Cg24ekb | ||||
| 7 | 6684586 | Sechskantbolzen Cg24ekb | € 2.08 | |
| Sechskantbolzen Cg24ekb | ||||
| 10 | 6684595 | Sechskantbolzen Cg24ekb | € 2.08 | |
| Intake Cover (b) | ||||
| 11 | 6696536 | Intake Cover (b) | € 1.02 | |
| Cover Packing | ||||
| 12 | 6696534 | Cover Packing | € 1.02 | |
| Zylinder | ||||
| 13 | 6696527 | Zylinder | € 23.91 | |
| Cilinder Afdekkap (oud 6699155) | ||||
| 14B | 6600424 | Cilinder Afdekkap (oud 6699155) | € 3.05 | |
| Kopfschraube M4x20 M.u-scheibe | ||||
| 15 | 307606 | Kopfschraube M4x20 M.u-scheibe | € 1.02 | |
| Bougie Bmr7a | ||||
| 17A | 6699316 | Bougie Bmr7a | € 8.63 | |
| Bougie (oud 6685052) | ||||
| 17A | 6699322 | Bougie (oud 6685052) | € 2.40 | |
| Intake Cover (a) | ||||
| 18 | 6696535 | Intake Cover (a) | € 1.02 | |
| Dichtung | ||||
| 19 | 6696548 | Dichtung | € 1.02 | |
| Carburetor Insulator | ||||
| 20A | 6698387 | Carburetor Insulator | € 3.05 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 21A | 6698844 | Seal Lock Hex. Socket Bolt M5x25 (w/washers) | € 1.16 | |
| Vergaserdichtung Cg24ekb | ||||
| 22 | 6684616 | Vergaserdichtung Cg24ekb | € 2.08 | |
| Carburator Wyc-22 | ||||
| 24 | 6696550 | Carburator Wyc-22 | € 44.16 | |
| Carburetor Ass'y Wyc-28 | ||||
| 24A | 6698474 | Carburetor Ass'y Wyc-28 | € 53.37 | |
| Cable Adjust Stay | ||||
| 25 | 6699287 | Cable Adjust Stay | € 3.99 | |
| Swivel | ||||
| 26 | 6696830 | Swivel | € 4.31 | |
| Anschlagring Cg24ekb alte Art.nr. 489-25100-20 | ||||
| 27 | 6684696 | Anschlagring Cg24ekb alte Art.nr. 489-25100-20 | € 2.08 | |
| Pumpendichtung Cg24ekb alte Art.nr. 577-25292-20 | ||||
| 28 | 6684692 | Pumpendichtung Cg24ekb alte Art.nr. 577-25292-20 | € 28.25 | |
| Membranabdeckung Cg24ekb alte Art.nr.576-25100-20 | ||||
| 29 | 6684693 | Membranabdeckung Cg24ekb alte Art.nr.576-25100-20 | € 8.30 | |
| Pumpenplatte alte Art.nr.523-25100-20 | ||||
| 30 | 6691242 | Pumpenplatte alte Art.nr.523-25100-20 | € 2.24 | |
| Membranabdeckung | ||||
| 31 | 6685222 | Membranabdeckung | € 4.31 | |
| Schrauben Set alte Art.nr.548-25101-20 | ||||
| 32 | 6691312 | Schrauben Set alte Art.nr.548-25101-20 | € 1.11 | |
| Set Screw M3x12 | ||||
| 33 | 6696829 | Set Screw M3x12 | € 1.00 | |
| O-RING (OUD 550-25100-20) | ||||
| 34 | 6684695 | O-RING (OUD 550-25100-20) | € 4.15 | |
| Schaltplatte alte Art.nr.522-25100-20 | ||||
| 36 | 6691234 | Schaltplatte alte Art.nr.522-25100-20 | € 3.19 | |
| Pump Body | ||||
| 37 | 6696828 | Pump Body | € 12.93 | |
| Membran Verpackung | ||||
| 38 | 6685220 | Membran Verpackung | € 2.24 | |
| Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | ||||
| 39 | 6684690 | Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | € 17.42 | |
| Kopfschraube M5x60 M.u-scheibe (schwarz) | ||||
| 40 | 307224 | Kopfschraube M5x60 M.u-scheibe (schwarz) | € 1.02 | |
| Brandstofleiding (oud 6696962) | ||||
| 41A | 6698720 | Brandstofleiding (oud 6696962) | € 3.34 | |
| Hauptpumpe | ||||
| 43 | 6685139 | Hauptpumpe | € 5.75 | |
| Cleaner Sponge | ||||
| 44A | 6600704 | Cleaner Sponge | € 3.68 | |
| Air Cleaner Ass'y | ||||
| 46 | 6696549 | Air Cleaner Ass'y | € 8.83 | |
| Cylinder Packing | ||||
| 48 | 6696530 | Cylinder Packing | € 1.02 | |
| Zuiger Ring | ||||
| 49 | 6696532 | Zuiger Ring | € 2.03 | |
| Kolben | ||||
| 50 | 6696531 | Kolben | € 6.66 | |
| Kolbenstift Cg24ekb | ||||
| 51 | 6684590 | Kolbenstift Cg24ekb | € 2.08 | |
| Zuiger Pin | ||||
| 52 | 6696944 | Zuiger Pin | € 3.22 | |
| Crank Case (b) Comp | ||||
| 53 | 6696538 | Crank Case (b) Comp | € 12.84 | |
| Crank Case Packing | ||||
| 54 | 6696539 | Crank Case Packing | € 1.02 | |
| Öldichtung Cg24ekb | ||||
| 55 | 6684607 | Öldichtung Cg24ekb | € 4.15 | |
| Kugellager Cg24ekb | ||||
| 56 | 6684608 | Kugellager Cg24ekb | € 3.68 | |
| Shim | ||||
| 57 | 6696946 | Shim | € 1.62 | |
| Shim | ||||
| 58 | 6696945 | Shim | € 1.62 | |
| Kurbelwelle | ||||
| 59 | 6696533 | Kurbelwelle | € 31.28 | |
| Crank Case (a) Comp | ||||
| 60 | 6696537 | Crank Case (a) Comp | € 13.24 | |
| Drückstift 4x12 alte Art.nr. 999-05041-203 | ||||
| 61 | 6695521 | Drückstift 4x12 alte Art.nr. 999-05041-203 | € 1.11 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 63 | 6684679 | SET SCREW (OLD 839-03045-20) | € 2.08 | |
| Cam Plate | ||||
| 64A | 6699996 | Cam Plate | € 2.47 | |
| Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20 | ||||
| 65 | 6684677 | Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20 | € 8.30 | |
| Starter Rope Reel | ||||
| 66A | 6699997 | Starter Rope Reel | € 8.14 | |
| Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | ||||
| 67 | 6684675 | Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | € 11.18 | |
| Seilzugstarter Gehäuse Cg24ekb For (s) Type Since | ||||
| 68 | 6684673 | Seilzugstarter Gehäuse Cg24ekb For (s) Type Since | € 18.45 | |
| Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo | ||||
| 69 | 6684674 | Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo | € 4.15 | |
| Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo | ||||
| 70 | 6684680 | Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo | € 2.08 | |
| Kopfschraube M4x16 M.u.scheibe | ||||
| 72 | 993539 | Kopfschraube M4x16 M.u.scheibe | € 1.00 | |
| Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90 | ||||
| 77 | 6684681 | Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90 | € 12.78 | |
| Schalldämpfer Spezial Dichtung alte Art.nr. 751-5 | ||||
| 78 | 6684650 | Schalldämpfer Spezial Dichtung alte Art.nr. 751-5 | € 2.08 | |
| Funkenfänger Cg24ekb alte Art.nr. 732-52200-20 Fo | ||||
| 79 | 6684652 | Funkenfänger Cg24ekb alte Art.nr. 732-52200-20 Fo | € 4.15 | |
| Motorleitung For Aus (sl,s),nzl (sl,s) | ||||
| 80 | 6685047 | Motorleitung For Aus (sl,s),nzl (sl,s) | € 5.75 | |
| Ring | ||||
| 81 | 6685068 | Ring | € 1.11 | |
| Muffler Rear Cover | ||||
| 82 | 6600339 | Muffler Rear Cover | € 4.50 | |
| Tapping Screw D4x10 | ||||
| 83 | 6600325 | Tapping Screw D4x10 | € 1.00 | |
| Muffler Heat Cover Since 11 2013 | ||||
| 84 | 6600340 | Muffler Heat Cover Since 11 2013 | € 5.23 | |
| Mark Plate (t) | ||||
| 85 | 6600327 | Mark Plate (t) | € 1.00 | |
| Primer Label | ||||
| 86 | 6699000 | Primer Label | € 1.00 | |
| Cam Plate Ass'y | ||||
| 87 | 6699691 | Cam Plate Ass'y | € 5.90 | |
| Sechskantbolzen Cg24ekb alte Art.nr. 994-61050-12 | ||||
| 91 | 6684667 | Sechskantbolzen Cg24ekb alte Art.nr. 994-61050-12 | € 2.08 | |
| Ventilatorhuis (oud 6698725) | ||||
| 93B | 6699159 | Ventilatorhuis (oud 6698725) | € 8.86 | |
| CLUTCH SHAFT COMP | ||||
| 94B | 6696541 | CLUTCH SHAFT COMP | € 8.14 | |
| Abstandsbolzen | ||||
| 95 | 6696469 | Abstandsbolzen | € 1.00 | |
| Ring | ||||
| 96 | 6684648 | Ring | € 2.08 | |
| Clutch Plate (a) | ||||
| 97 | 6696546 | Clutch Plate (a) | € 1.02 | |
| Clutch | ||||
| 98 | 6696948 | Clutch | € 11.27 | |
| Ring (b) | ||||
| 99 | 6696547 | Ring (b) | € 1.02 | |
| Mutter | ||||
| 100 | 6685337 | Mutter | € 1.02 | |
| Bolzenscheibe H65sd2 | ||||
| 101 | 323212 | Bolzenscheibe H65sd2 | € 1.02 | |
| BOBINE | ||||
| 102B | 6699464 | BOBINE | € 17.04 | |
| Sechskantbolzen Cg24ekb Till H124040 | ||||
| 103 | 6684599 | Sechskantbolzen Cg24ekb Till H124040 | € 2.08 | |
| Cord | ||||
| 106 | 6696544 | Cord | € 1.02 | |
| Earth Cord | ||||
| 107 | 6696545 | Earth Cord | € 1.02 | |
| Vliegwiel | ||||
| 108A | 6699289 | Vliegwiel | € 24.89 | |
| Anti Vibe Rubber (a) | ||||
| 109 | 6696963 | Anti Vibe Rubber (a) | € 3.22 | |
| Pipe Holder (a) | ||||
| 110 | 6696542 | Pipe Holder (a) | € 1.02 | |
| Pipe Holder (b) | ||||
| 112 | 6696543 | Pipe Holder (b) | € 1.02 | |
| Anti Vibe Rubber (b) | ||||
| 113 | 6696964 | Anti Vibe Rubber (b) | € 3.22 | |
| Sicherungsring D12 (10st), G23ss | ||||
| 114 | 939542 | Sicherungsring D12 (10st), G23ss | € 1.45 | |
| Schneidschraube Cg24ekb | ||||
| 115 | 6684636 | Schneidschraube Cg24ekb | € 2.08 | |
| Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | ||||
| 117 | 305812 | Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | € 1.00 | |
| Ballengriff | ||||
| 118 | 6696487 | Ballengriff | € 3.34 | |
| Handle (b) | ||||
| 118 | 6696942 | Handle (b) | € 4.85 | |
| Rasthebel | ||||
| 119 | 6696490 | Rasthebel | € 1.00 | |
| Hebel (1) | ||||
| 120 | 6696488 | Hebel (1) | € 1.00 | |
| Feder | ||||
| 121 | 6696489 | Feder | € 1.00 | |
| Stop Switch | ||||
| 122A | 6601275 | Stop Switch | € 1.31 | |
| Stoppschalterleine | ||||
| 123 | 6696491 | Stoppschalterleine | € 1.74 | |
| Stop Switch Cord | ||||
| 123 | 6696592 | Stop Switch Cord | € 2.03 | |
| Protection Tube | ||||
| 124 | 6696594 | Protection Tube | € 2.03 | |
| Protection Tube | ||||
| 124 | 6696967 | Protection Tube | € 1.02 | |
| Gaskabel | ||||
| 125 | 6696560 | Gaskabel | € 4.04 | |
| Gaskabel | ||||
| 125 | 6696593 | Gaskabel | € 4.94 | |
| Ballengriff | ||||
| 126 | 6696486 | Ballengriff | € 3.34 | |
| Handle (a) | ||||
| 126 | 6696941 | Handle (a) | € 4.85 | |
| Behalter | ||||
| 127 | 6696569 | Behalter | € 4.44 | |
| Pomp Filter | ||||
| 128A | 6600351 | Pomp Filter | € 2.61 | |
| Clip | ||||
| 129 | 6696949 | Clip | € 1.62 | |
| Bolt (w/flange) | ||||
| 131 | 6696574 | Bolt (w/flange) | € 1.02 | |
| Brandstofleiding | ||||
| 132A | 6698716 | Brandstofleiding | € 3.34 | |
| Brandstofleiding L70 | ||||
| 133A | 6699014 | Brandstofleiding L70 | € 1.60 | |
| Return Grommet (old 6684627) | ||||
| 134A | 6697846 | Return Grommet (old 6684627) | € 1.00 | |
| Tank Dop Compleet | ||||
| 136A | 6698402 | Tank Dop Compleet | € 4.07 | |
| Scheibenfeder 3x13x4.5 alte Art.nr. 068-10100-20 | ||||
| 145 | 6684899 | Scheibenfeder 3x13x4.5 alte Art.nr. 068-10100-20 | € 2.08 | |
| Vliegwiel (old 6696928) | ||||
| 146 | 6699463 | Vliegwiel (old 6696928) | € 22.63 | |
| Tapping Screw (w/flange) D4x30 | ||||
| 151 | 323837 | Tapping Screw (w/flange) D4x30 | € 1.62 | |
| Handle (b) | ||||
| 152 | 6696590 | Handle (b) | € 3.02 | |
| Handle (b) | ||||
| 152 | 6696591 | Handle (b) | € 3.02 | |
| Machine Screw M5x30 (black) | ||||
| 153 | 323041 | Machine Screw M5x30 (black) | € 1.02 | |
| Handle Right | ||||
| 154 | 6696585 | Handle Right | € 6.24 | |
| Handle Holder (b) (old 6696577) | ||||
| 155A | 6600501 | Handle Holder (b) (old 6696577) | € 6.97 | |
| Handle Holder (c) | ||||
| 156 | 6696578 | Handle Holder (c) | € 2.03 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 157 | 6684714 | HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | € 2.08 | |
| Sechskantbolzen Cg24ekd, Cg18dal, Cg18dl | ||||
| 158 | 6684709 | Sechskantbolzen Cg24ekd, Cg18dal, Cg18dl | € 2.08 | |
| Handle Holder (a) (old 6696576) | ||||
| 159A | 6600500 | Handle Holder (a) (old 6696576) | € 4.07 | |
| Handle (a) | ||||
| 160 | 6696588 | Handle (a) | € 2.03 | |
| Handle (a) | ||||
| 160 | 6696589 | Handle (a) | € 2.03 | |
| Mutter M5 (schwarz) C13u/m8v/m12v | ||||
| 161 | 302012 | Mutter M5 (schwarz) C13u/m8v/m12v | € 1.02 | |
| Handle Left | ||||
| 162 | 6696595 | Handle Left | € 12.84 | |
| Barrier | ||||
| 164 | 6696973 | Barrier | € 3.22 | |
| Getriebegehaeuse | ||||
| 168A | 6699402 | Getriebegehaeuse | € 48.71 | |
| Bolzen Cg24ekd, Cg18dal, Cg18dl | ||||
| 169 | 6684737 | Bolzen Cg24ekd, Cg18dal, Cg18dl | € 2.08 | |
| Cutter Holder (a) | ||||
| 176 | 6696977 | Cutter Holder (a) | € 12.90 | |
| Schraube 5x12ws alte Art.nr. 994-16050-121 | ||||
| 180 | 6695414 | Schraube 5x12ws alte Art.nr. 994-16050-121 | € 1.11 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 181 | 949664 | Hex.socket Hd.bolt M5x30 (10 Pcs) | € 3.63 | |
| Abdeckhaube For Europe | ||||
| 186 | 6696494 | Abdeckhaube For Europe | € 1.74 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 187 | 6684714 | HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | € 2.08 | |
| Füllstandsmarkierung Cg24ekb | ||||
| 194 | 6684851 | Füllstandsmarkierung Cg24ekb | € 2.08 | |
| Main Pipe Comp (old 6696483) | ||||
| 195 | 6696558 | Main Pipe Comp (old 6696483) | € 17.12 | |
| Drive Shaft (old 6696484) | ||||
| 196A | 6698514 | Drive Shaft (old 6696484) | € 15.10 | |
| Cover Comp. W/ Shaft M10x.125 Left | ||||
| 198 | 6698794 | Cover Comp. W/ Shaft M10x.125 Left | € 9.00 | |
| Set Screw | ||||
| 200 | 6698795 | Set Screw | € 1.31 | |
| Reel | ||||
| 201 | 6698796 | Reel | € 2.32 | |
| Return Spring | ||||
| 202 | 6698797 | Return Spring | € 1.02 | |
| Knopf (1) | ||||
| 203 | 6698798 | Knopf (1) | € 1.16 | |
| Cord Guide | ||||
| 204 | 6698799 | Cord Guide | € 1.16 | |
| Case | ||||
| 205 | 6698800 | Case | € 6.39 | |
| Cover Guard | ||||
| 207 | 6696950 | Cover Guard | € 10.62 | |
| Schneidschraube Cg24ekd | ||||
| 208 | 6684751 | Schneidschraube Cg24ekd | € 2.08 | |
| Messer Cg24ekd For Irl | ||||
| 209 | 6684750 | Messer Cg24ekd For Irl | € 4.15 | |
| Safety Cover Holder | ||||
| 210 | 6696951 | Safety Cover Holder | € 3.22 | |
| COVER | ||||
| 211 | 6696980 | COVER | € 16.82 | |
| MOER M4 ( 10 STUKS ) | ||||
| 212 | 949554 | MOER M4 ( 10 STUKS ) | € 1.02 | |
| Mesje | ||||
| 213 | 6696584 | Mesje | € 2.03 | |
| Schutz (1) | ||||
| 214 | 6696981 | Schutz (1) | € 7.11 | |
| Bolt Washer M4 (black) | ||||
| 215 | 323210 | Bolt Washer M4 (black) | € 1.02 | |
| Ring | ||||
| 216 | 6685068 | Ring | € 1.11 | |
| Fuel Grommet | ||||
| 217A | 6698931 | Fuel Grommet | € 3.34 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 218 | 6684714 | HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | € 2.08 | |
| COVER BRACKET NEW OCT | ||||
| 219 | 6699011 | COVER BRACKET NEW OCT | € 1.60 | |
| Sicherheitsabdeckung, 24 Dia For Aus (sl) | ||||
| 222 | 6690272 | Sicherheitsabdeckung, 24 Dia For Aus (sl) | € 12.78 | |
| Messer For Aus (sl) | ||||
| 223 | 6693388 | Messer For Aus (sl) | € 6.07 | |
| Schneidschraube Cg24ekb, Cg18dal, Cg18dl For Aus | ||||
| 224 | 6684753 | Schneidschraube Cg24ekb, Cg18dal, Cg18dl For Aus | € 2.08 | |
| Plug Cap (old 6699932) | ||||
| 225B | 6601421 | Plug Cap (old 6699932) | € 1.00 | |
| Plug Cap Metal | ||||
| 226 | 6699186 | Plug Cap Metal | € 1.00 | |
| Handle Holder Set (a+b) (old 6696576+6696577) | ||||
| 227 | 6600499 | Handle Holder Set (a+b) (old 6696576+6696577) | € 10.31 | |
| ZESKANTSLEUTEL 17/19MM | ||||
| 501 | 6684764 | ZESKANTSLEUTEL 17/19MM | € 3.84 | |
| INBUSSLEUTEL 4MM | ||||
| 503 | 944458 | INBUSSLEUTEL 4MM | € 1.31 | |
| Messer Abdeckung For (s) | ||||
| 504B | 6684768 | Messer Abdeckung For (s) | € 2.08 | |
| Cutter Holder (b) | ||||
| 601 | 6698659 | Cutter Holder (b) | € 12.62 | |
| Reperaturset | ||||
| 604 | 6600027 | Reperaturset | € 30.08 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
