Hikoki CG24EBDP Zeichnungen und Teile
Genaue Typennummer:
CG24EBDP
CG24EBDP

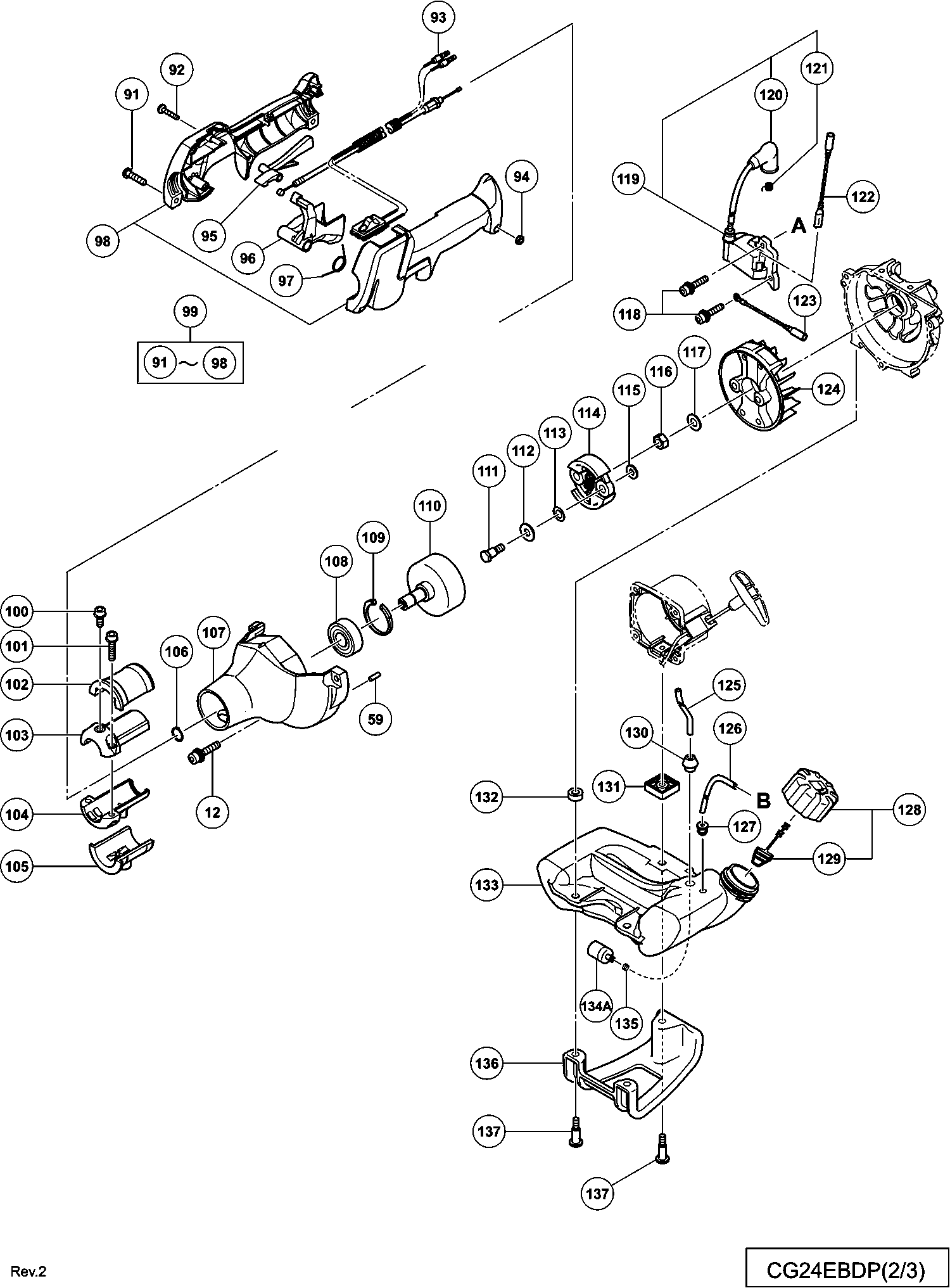

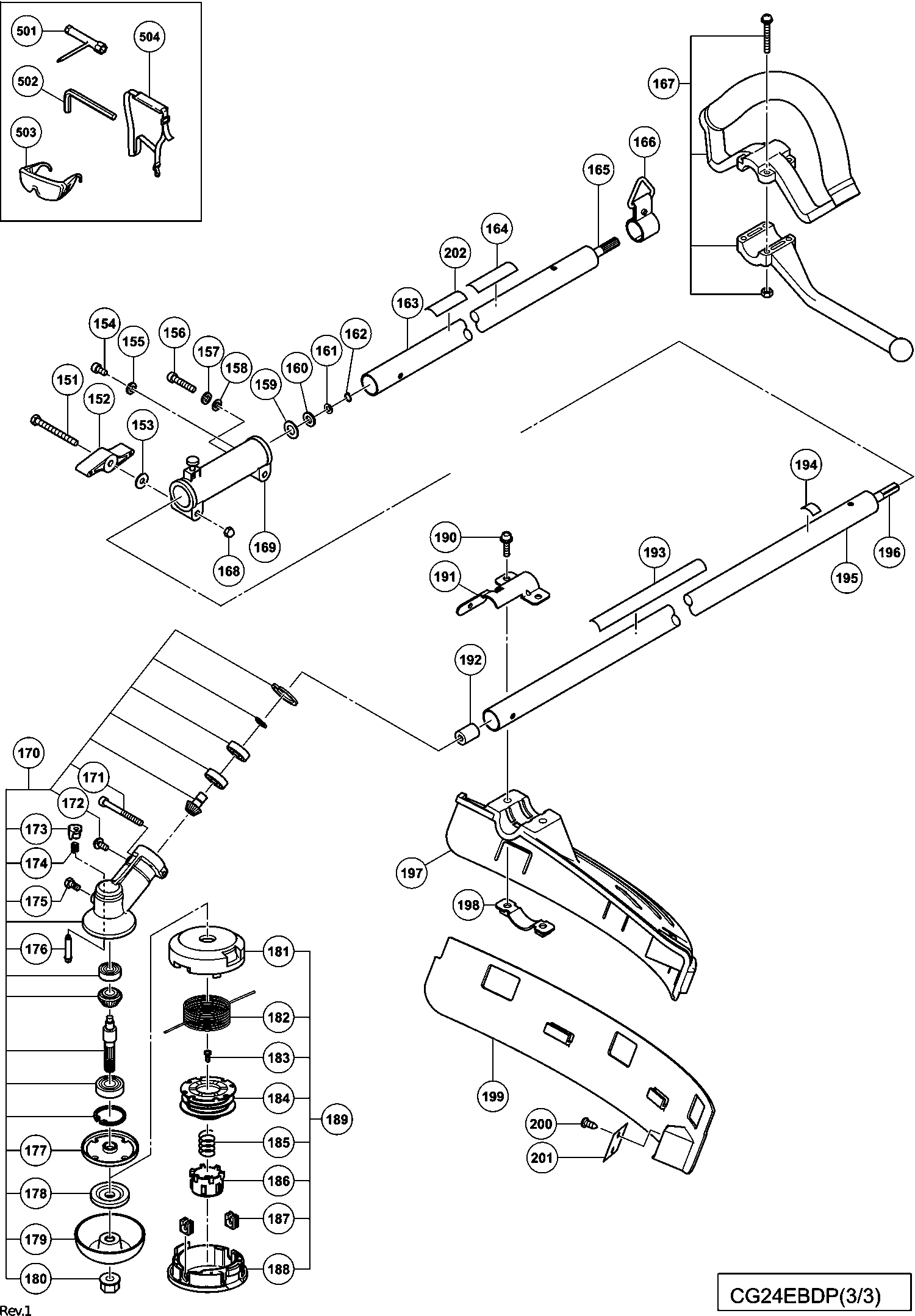

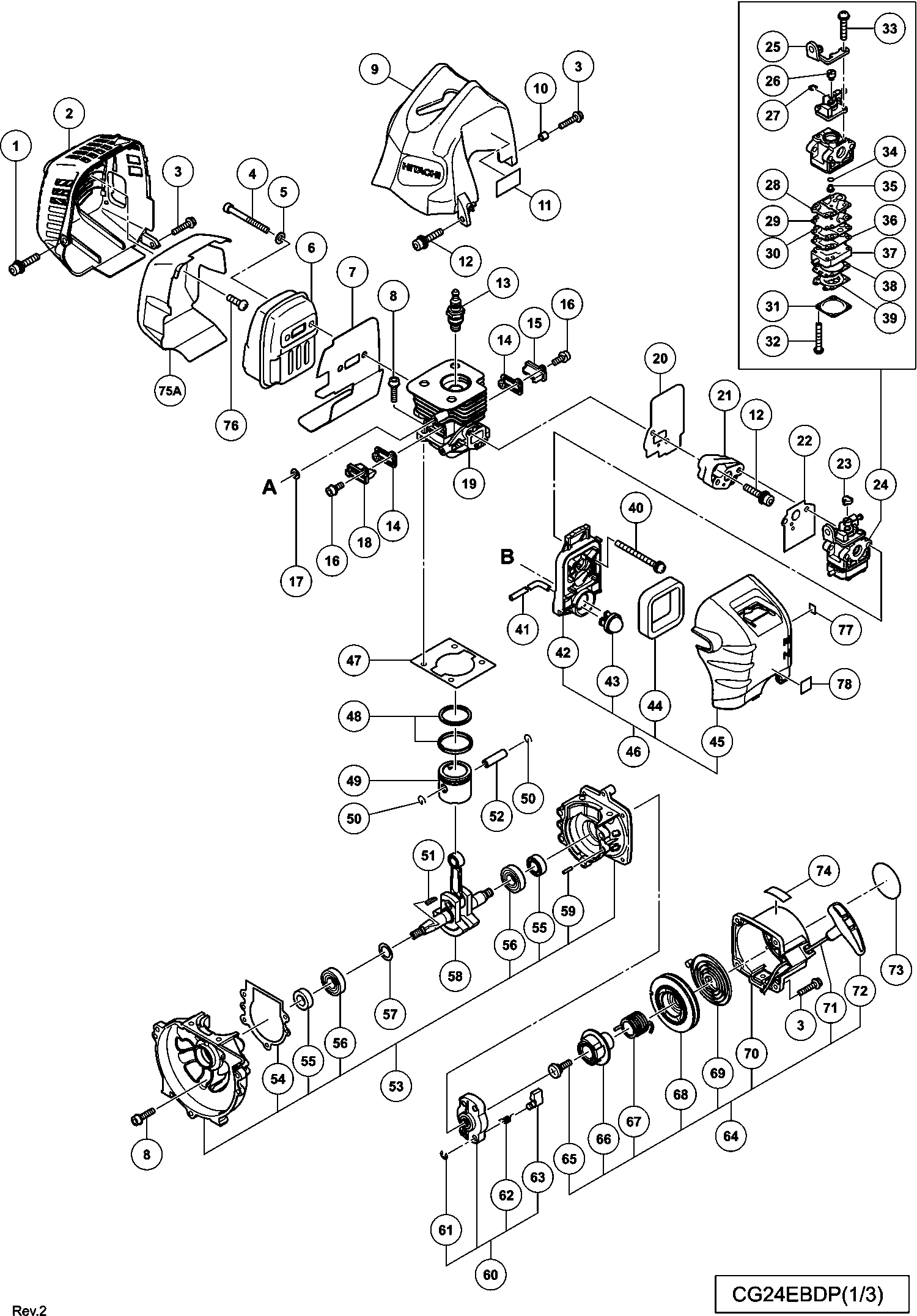

Zeichnungen der HIKOKI CG24EBDP
Teileliste der HIKOKI CG24EBDP
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 1 | 6698950 | Seal Lock Hex. Socket Hd. Bolt M5x30 | € 1.11 | |
| Knaldemper Afdekkap | ||||
| 2 | 6600319 | Knaldemper Afdekkap | € 5.85 | |
| Abzweigdosen Bolzen | ||||
| 3 | 6696326 | Abzweigdosen Bolzen | € 1.11 | |
| Hex. Socket Hd Bolt M6x65 | ||||
| 4 | 6698384 | Hex. Socket Hd Bolt M6x65 | € 0.97 | |
| Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
| 5 | 949432 | Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | € 0.97 | |
| Muffler (b) | ||||
| 6 | 6600004 | Muffler (b) | € 23.99 | |
| Hitteschild | ||||
| 7 | 6600320 | Hitteschild | € 1.25 | |
| Hex. Socket Hd Bolt M5x18 (w/sp.washer) | ||||
| 8 | 6698386 | Hex. Socket Hd Bolt M5x18 (w/sp.washer) | € 0.97 | |
| Cilinder Afdekkap | ||||
| 9 | 6699454 | Cilinder Afdekkap | € 6.40 | |
| Collar (b) | ||||
| 10 | 6600008 | Collar (b) | € 0.96 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 12 | 6698844 | Seal Lock Hex. Socket Bolt M5x25 (w/washers) | € 1.11 | |
| Bougie Bmr7a | ||||
| 13 | 6699316 | Bougie Bmr7a | € 8.27 | |
| Cover Packing | ||||
| 14 | 6698468 | Cover Packing | € 0.97 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 15 | 6698469 | Uitlaatgas Ventiel Deksel (a) | € 0.97 | |
| Hex. Socket Hd Bolt M4x12 | ||||
| 16 | 6698385 | Hex. Socket Hd Bolt M4x12 | € 0.97 | |
| Ring | ||||
| 17 | 6698700 | Ring | € 1.11 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 18 | 6698470 | Uitlaatgas Ventiel Deksel (b) | € 0.97 | |
| Zylinder | ||||
| 19 | 6698465 | Zylinder | € 29.99 | |
| Dichtung | ||||
| 20 | 6699437 | Dichtung | € 0.96 | |
| Carburetor Insulator | ||||
| 21 | 6698387 | Carburetor Insulator | € 2.92 | |
| Carbureteur Pakking | ||||
| 22 | 6698405 | Carbureteur Pakking | € 1.95 | |
| Spannschlosskappe Since C026901 | ||||
| 23 | 6691337 | Spannschlosskappe Since C026901 | € 1.07 | |
| Carburator Wyc-36 | ||||
| 24 | 6600321 | Carburator Wyc-36 | € 27.82 | |
| Cable Adjust Stay | ||||
| 25 | 6699287 | Cable Adjust Stay | € 3.83 | |
| Swivel | ||||
| 26 | 6696830 | Swivel | € 4.13 | |
| Anschlagring Cg24ekb alte Art.nr. 489-25100-20 | ||||
| 27 | 6684696 | Anschlagring Cg24ekb alte Art.nr. 489-25100-20 | € 2.00 | |
| Pumpendichtung Cg24ekb alte Art.nr. 577-25292-20 | ||||
| 28 | 6684692 | Pumpendichtung Cg24ekb alte Art.nr. 577-25292-20 | € 27.09 | |
| Membranabdeckung Cg24ekb alte Art.nr.576-25100-20 | ||||
| 29 | 6684693 | Membranabdeckung Cg24ekb alte Art.nr.576-25100-20 | € 7.96 | |
| Pumpenplatte alte Art.nr.523-25100-20 | ||||
| 30 | 6691242 | Pumpenplatte alte Art.nr.523-25100-20 | € 2.15 | |
| Membranabdeckung | ||||
| 31 | 6685222 | Membranabdeckung | € 4.13 | |
| Schrauben Set alte Art.nr.548-25101-20 | ||||
| 32 | 6691312 | Schrauben Set alte Art.nr.548-25101-20 | € 1.07 | |
| Set Screw M3x12 | ||||
| 33 | 6696829 | Set Screw M3x12 | € 0.96 | |
| O-RING (OUD 550-25100-20) | ||||
| 34 | 6684695 | O-RING (OUD 550-25100-20) | € 3.98 | |
| Schaltplatte alte Art.nr.522-25100-20 | ||||
| 36 | 6691234 | Schaltplatte alte Art.nr.522-25100-20 | € 3.06 | |
| Pump Body | ||||
| 37 | 6696828 | Pump Body | € 12.40 | |
| Membran Verpackung | ||||
| 38 | 6685220 | Membran Verpackung | € 2.15 | |
| Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | ||||
| 39 | 6684690 | Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | € 16.70 | |
| Kopfschraube M5x60 M.u-scheibe (schwarz) | ||||
| 40 | 307224 | Kopfschraube M5x60 M.u-scheibe (schwarz) | € 0.97 | |
| Nicht mehr lieferbar | ||||
| 41A | 6601329 | Nicht mehr lieferbar | ||
| Fuel Pipe | ||||
| 41B | 6601443 | Fuel Pipe | € 0.96 | |
| Nicht mehr lieferbar | ||||
| 42 | 6696832 | Nicht mehr lieferbar | ||
| Hauptpumpe | ||||
| 43 | 6685139 | Hauptpumpe | € 5.51 | |
| Filter Element | ||||
| 44 | 6690347 | Filter Element | € 4.13 | |
| Filterabdeckung | ||||
| 45 | 6699185 | Filterabdeckung | € 6.68 | |
| AIR CLEANER (A) ASS'Y | ||||
| 46 | 6699132 | AIR CLEANER (A) ASS'Y | € 8.07 | |
| Zylinderdichtung Cg24ekb | ||||
| 47 | 6684587 | Zylinderdichtung Cg24ekb | € 2.00 | |
| Zuiger Ring | ||||
| 48 | 6698404 | Zuiger Ring | € 3.90 | |
| Kolben | ||||
| 49 | 6699456 | Kolben | € 7.24 | |
| Kolbenstift Cg24ekb | ||||
| 50 | 6684590 | Kolbenstift Cg24ekb | € 2.00 | |
| Scheibenfeder 3x13x4.5 alte Art.nr. 068-10100-20 | ||||
| 51 | 6684899 | Scheibenfeder 3x13x4.5 alte Art.nr. 068-10100-20 | € 2.00 | |
| Kolbenstift Cg24ekb | ||||
| 52 | 6684591 | Kolbenstift Cg24ekb | € 3.98 | |
| Kurbelgehäuse Cg24ekb Includ.54-56,59 | ||||
| 53 | 6684606 | Kurbelgehäuse Cg24ekb Includ.54-56,59 | € 50.53 | |
| Kurbelgehäuse Cg24ekb | ||||
| 54 | 6684609 | Kurbelgehäuse Cg24ekb | € 2.00 | |
| Öldichtung Cg24ekb | ||||
| 55 | 6684607 | Öldichtung Cg24ekb | € 3.98 | |
| Kugellager Cg24ekb | ||||
| 56 | 6684608 | Kugellager Cg24ekb | € 3.53 | |
| Shim | ||||
| 57 | 6696945 | Shim | € 1.55 | |
| Shim | ||||
| 57 | 6696946 | Shim | € 1.55 | |
| Kurbelwelle | ||||
| 58 | 6696533 | Kurbelwelle | € 29.99 | |
| Knock Pin 4x12 | ||||
| 59 | 6696947 | Knock Pin 4x12 | € 0.97 | |
| Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90 | ||||
| 60 | 6684681 | Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90 | € 12.25 | |
| D4eretainingringnew | ||||
| 61 | 6685101 | D4eretainingringnew | € 1.07 | |
| Feder f. Startersperre Cg24ekb | ||||
| 62 | 6684684 | Feder f. Startersperre Cg24ekb | € 3.98 | |
| Startersperre Cg24ekb alte Art.nr.788-0651h-20 | ||||
| 63 | 6684685 | Startersperre Cg24ekb alte Art.nr.788-0651h-20 | € 3.98 | |
| Nicht mehr lieferbar | ||||
| 64 | 6699995 | Nicht mehr lieferbar | ||
| SET SCREW (OLD 839-03045-20) | ||||
| 65 | 6684679 | SET SCREW (OLD 839-03045-20) | € 2.00 | |
| Cam Plate | ||||
| 66 | 6699996 | Cam Plate | € 2.37 | |
| Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20 | ||||
| 67 | 6684677 | Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20 | € 7.96 | |
| Starter Rope Reel | ||||
| 68 | 6699997 | Starter Rope Reel | € 7.81 | |
| Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | ||||
| 69 | 6684675 | Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | € 10.72 | |
| Seilzugstarter Gehäuse Cg24ekb For (s) Type Since | ||||
| 70 | 6684673 | Seilzugstarter Gehäuse Cg24ekb For (s) Type Since | € 17.69 | |
| Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo | ||||
| 71 | 6684674 | Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo | € 3.98 | |
| Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo | ||||
| 72 | 6684680 | Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo | € 2.00 | |
| Tank Mark Label | ||||
| 74 | 6698921 | Tank Mark Label | € 1.11 | |
| Muffler Heat Cover | ||||
| 75A | 6600422 | Muffler Heat Cover | € 5.29 | |
| Tapping Screw D4x10 | ||||
| 76 | 6600325 | Tapping Screw D4x10 | € 0.96 | |
| Mark Plate (t) | ||||
| 77 | 6600327 | Mark Plate (t) | € 0.96 | |
| Primer Label | ||||
| 78 | 6699000 | Primer Label | € 0.96 | |
| Machine Screw M5x20 (black) | ||||
| 91 | 6699195 | Machine Screw M5x20 (black) | € 1.11 | |
| P Tight Screw D4x20 (black) | ||||
| 92 | 6699194 | P Tight Screw D4x20 (black) | € 1.11 | |
| Switch Wire Set | ||||
| 93 | 6699197 | Switch Wire Set | € 9.47 | |
| Mutter M5 | ||||
| 94 | 6699196 | Mutter M5 | € 0.96 | |
| Stop Lever | ||||
| 95 | 6699192 | Stop Lever | € 1.53 | |
| Long Lever | ||||
| 96 | 6699191 | Long Lever | € 2.37 | |
| Return Spring | ||||
| 97 | 6699193 | Return Spring | € 0.96 | |
| Stay Set | ||||
| 98 | 6699190 | Stay Set | € 15.18 | |
| Regulateur | ||||
| 99 | 6699133 | Regulateur | € 19.65 | |
| Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | ||||
| 100 | 6699176 | Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | € 0.96 | |
| Sechskantbolzen 5x22/s alte Art.nr. 994-61050-224 | ||||
| 101 | 6695492 | Sechskantbolzen 5x22/s alte Art.nr. 994-61050-224 | € 1.07 | |
| Anti Vibe Rubber (a) | ||||
| 102 | 6696963 | Anti Vibe Rubber (a) | € 3.09 | |
| Pipe Holder (a) | ||||
| 103 | 6698643 | Pipe Holder (a) | € 1.95 | |
| Pipe Holder (b) | ||||
| 104 | 6698644 | Pipe Holder (b) | € 1.95 | |
| Anti Vibe Rubber (b) | ||||
| 105 | 6696964 | Anti Vibe Rubber (b) | € 3.09 | |
| Sicherungsring D12 (10st), G23ss | ||||
| 106 | 939542 | Sicherungsring D12 (10st), G23ss | € 1.39 | |
| Lüftergehäuse | ||||
| 107 | 6699457 | Lüftergehäuse | € 13.91 | |
| BALL BEARING 6301ZZC3 | ||||
| 108 | 6699435 | BALL BEARING 6301ZZC3 | € 2.37 | |
| VEERRING 37MM | ||||
| 109 | 322813 | VEERRING 37MM | € 1.53 | |
| CLUTCH SHAFT | ||||
| 110 | 6699434 | CLUTCH SHAFT | € 6.68 | |
| Abstandsbolzen | ||||
| 111 | 6696469 | Abstandsbolzen | € 0.96 | |
| Ring | ||||
| 112 | 6684648 | Ring | € 2.00 | |
| Clutch Plate (a) | ||||
| 113 | 6696546 | Clutch Plate (a) | € 0.97 | |
| Nicht mehr lieferbar | ||||
| 114 | 6699130 | Nicht mehr lieferbar | ||
| Ring (b) | ||||
| 115 | 6699131 | Ring (b) | € 0.96 | |
| Mutter | ||||
| 116 | 6685337 | Mutter | € 0.97 | |
| Bolzenscheibe H65sd2 | ||||
| 117 | 323212 | Bolzenscheibe H65sd2 | € 0.97 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 118 | 6698388 | Hex. Socket Hd Bolt M4x18 (w/washers) | € 0.97 | |
| Bobine | ||||
| 119 | 6699458 | Bobine | € 24.50 | |
| Plug Cap (old 6699932) | ||||
| 120A | 6601421 | Plug Cap (old 6699932) | € 0.96 | |
| Metal Fitting Of Plug Cap | ||||
| 121 | 6699933 | Metal Fitting Of Plug Cap | € 1.53 | |
| Cord | ||||
| 122 | 6696544 | Cord | € 0.97 | |
| Earth Cord | ||||
| 123 | 6696545 | Earth Cord | € 0.97 | |
| Vliegwiel | ||||
| 124 | 6699289 | Vliegwiel | € 23.86 | |
| Brandstofleiding | ||||
| 125 | 6698716 | Brandstofleiding | € 3.20 | |
| Nicht mehr lieferbar | ||||
| 126 | 6698401 | Nicht mehr lieferbar | ||
| Brandstofleiding L70 | ||||
| 126A | 6699014 | Brandstofleiding L70 | € 1.53 | |
| Return Grommet (old 6684627) | ||||
| 127 | 6697846 | Return Grommet (old 6684627) | € 0.96 | |
| Tank Dop Compleet | ||||
| 128 | 6698402 | Tank Dop Compleet | € 3.90 | |
| Tank Cap Chain | ||||
| 129 | 6698732 | Tank Cap Chain | € 1.11 | |
| Fuel Grommet | ||||
| 130 | 6698931 | Fuel Grommet | € 3.20 | |
| Fuel Grommet | ||||
| 130A | 6600358 | Fuel Grommet | € 0.96 | |
| Distanzring (1) | ||||
| 131 | 6699558 | Distanzring (1) | € 0.96 | |
| Spacer (b) | ||||
| 132 | 6699459 | Spacer (b) | € 0.96 | |
| Behalter | ||||
| 133 | 6600317 | Behalter | € 7.38 | |
| Tank (c) | ||||
| 133A | 6600354 | Tank (c) | € 3.20 | |
| Pomp Filter | ||||
| 134A | 6600351 | Pomp Filter | € 2.51 | |
| Clip | ||||
| 135 | 6696949 | Clip | € 1.55 | |
| Stand alte Art.nr.940-07350-20 | ||||
| 136 | 6694787 | Stand alte Art.nr.940-07350-20 | € 3.06 | |
| Bout L27.8 | ||||
| 137 | 6698991 | Bout L27.8 | € 1.11 | |
| Sechskantbolzen Cg24ekd | ||||
| 151 | 6684824 | Sechskantbolzen Cg24ekd | € 2.00 | |
| Griffknopf Cg24ekd, Cg18dl | ||||
| 152 | 6684823 | Griffknopf Cg24ekd, Cg18dl | € 3.98 | |
| Ring | ||||
| 153 | 6684822 | Ring | € 2.00 | |
| Sechskantbolzen Cg24ekd | ||||
| 154 | 6684829 | Sechskantbolzen Cg24ekd | € 2.00 | |
| Spring Washer M5 | ||||
| 155 | 6698884 | Spring Washer M5 | € 1.67 | |
| Sechskantbolzen Cg24ekd | ||||
| 156 | 6684825 | Sechskantbolzen Cg24ekd | € 2.00 | |
| Federscheibe M6 (10st), C8fshe, C8fse, Cg18dal, C | ||||
| 157 | 949455 | Federscheibe M6 (10st), C8fshe, C8fse, Cg18dal, C | € 0.97 | |
| Unterlegscheibe M6 (10st), C8fse | ||||
| 158 | 949425 | Unterlegscheibe M6 (10st), C8fse | € 0.97 | |
| Abstandshalter 1.6 | ||||
| 159 | 6689139 | Abstandshalter 1.6 | € 1.07 | |
| Distanzstück Cg24ekd, Cg18dl | ||||
| 160 | 6684819 | Distanzstück Cg24ekd, Cg18dl | € 3.98 | |
| Ring | ||||
| 161 | 6684820 | Ring | € 2.00 | |
| Sicherungsring D10 (10st), Cm9uby, Cg18dl Till 12 | ||||
| 162 | 939540 | Sicherungsring D10 (10st), Cm9uby, Cg18dl Till 12 | € 1.81 | |
| Main Pipe (a) | ||||
| 163 | 6699460 | Main Pipe (a) | € 13.14 | |
| Füllstandsmarkierung Cg24ekb | ||||
| 164 | 6684852 | Füllstandsmarkierung Cg24ekb | € 2.00 | |
| Drive Shaft | ||||
| 165 | 6699462 | Drive Shaft | € 16.59 | |
| Nicht mehr lieferbar | ||||
| 166 | 6696493 | Nicht mehr lieferbar | ||
| Hanger | ||||
| 166A | 6600504 | Hanger | € 1.11 | |
| Loop Handle (w/barrier) | ||||
| 167 | 6699448 | Loop Handle (w/barrier) | € 10.02 | |
| Verschlussmutter Cg24ekd | ||||
| 168 | 6684828 | Verschlussmutter Cg24ekd | € 2.00 | |
| Gehäusedichtung Cg24ekd, Cg18dl | ||||
| 169 | 6684817 | Gehäusedichtung Cg24ekd, Cg18dl | € 35.80 | |
| Getriebegehaeuse | ||||
| 170 | 6699439 | Getriebegehaeuse | € 43.26 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 171 | 949664 | Hex.socket Hd.bolt M5x30 (10 Pcs) | € 3.48 | |
| Schraube 5x12ws alte Art.nr. 994-16050-121 | ||||
| 172 | 6695414 | Schraube 5x12ws alte Art.nr. 994-16050-121 | € 1.07 | |
| Kappe | ||||
| 173 | 6600005 | Kappe | € 2.51 | |
| Feder (1) | ||||
| 174 | 6600006 | Feder (1) | € 3.34 | |
| Bolzen Cg24ekd, Cg18dal, Cg18dl | ||||
| 175 | 6684737 | Bolzen Cg24ekd, Cg18dal, Cg18dl | € 2.00 | |
| Lock Pin | ||||
| 176 | 6600007 | Lock Pin | € 10.44 | |
| Cutter Holder (a) | ||||
| 177 | 6699441 | Cutter Holder (a) | € 7.66 | |
| Cutter Holder (b) | ||||
| 178 | 6698659 | Cutter Holder (b) | € 12.10 | |
| NUT COVER | ||||
| 179 | 6699188 | NUT COVER | € 6.54 | |
| Linksmoer M10 (oud 6698658) | ||||
| 180 | 335759 | Linksmoer M10 (oud 6698658) | € 0.96 | |
| Cover Comp. W/ Shaft M10x.125 Left | ||||
| 181 | 6698794 | Cover Comp. W/ Shaft M10x.125 Left | € 8.63 | |
| Set Screw | ||||
| 183 | 6698795 | Set Screw | € 1.25 | |
| Reel | ||||
| 184 | 6698796 | Reel | € 2.23 | |
| Return Spring | ||||
| 185 | 6698797 | Return Spring | € 0.97 | |
| Knopf (1) | ||||
| 186 | 6698798 | Knopf (1) | € 1.11 | |
| Cord Guide | ||||
| 187 | 6698799 | Cord Guide | € 1.11 | |
| Case | ||||
| 188 | 6698800 | Case | € 6.12 | |
| Nicht mehr lieferbar | ||||
| 189 | 6696454 | Nicht mehr lieferbar | ||
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 190 | 6684714 | HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | € 2.00 | |
| Cover Bracket | ||||
| 191 | 6699442 | Cover Bracket | € 1.39 | |
| Lagerbuchse Cg24ekd, Cg18dl For (sl) | ||||
| 192 | 6684833 | Lagerbuchse Cg24ekd, Cg18dl For (sl) | € 2.00 | |
| Caution Mark Hitachi (old 6684850) | ||||
| 193 | 6697625 | Caution Mark Hitachi (old 6684850) | € 1.83 | |
| Füllstandsmarkierung Cg24ekb | ||||
| 194 | 6684851 | Füllstandsmarkierung Cg24ekb | € 2.00 | |
| Main Pipe (a) | ||||
| 195 | 6699461 | Main Pipe (a) | € 13.14 | |
| Antriebswelle Cg24ekd, Cg18dl For (sl) | ||||
| 196 | 6684832 | Antriebswelle Cg24ekd, Cg18dl For (sl) | € 19.23 | |
| COVER | ||||
| 197 | 6696980 | COVER | € 16.12 | |
| Safety Cover Holder | ||||
| 198 | 6696951 | Safety Cover Holder | € 3.09 | |
| Cover Guard | ||||
| 199 | 6696950 | Cover Guard | € 10.18 | |
| Schneidschraube Cg24ekd | ||||
| 200 | 6684751 | Schneidschraube Cg24ekd | € 2.00 | |
| Messer Cg24ekd For Irl | ||||
| 201 | 6684750 | Messer Cg24ekd For Irl | € 3.98 | |
| Caution Label (hedge) | ||||
| 202 | 6600328 | Caution Label (hedge) | € 0.96 | |
| Kopfschraube M5x10 (10st), G23ss For Irl | ||||
| 203 | 949236 | Kopfschraube M5x10 (10st), G23ss For Irl | € 0.97 | |
| ZESKANTSLEUTEL 17/19MM | ||||
| 501 | 6684764 | ZESKANTSLEUTEL 17/19MM | € 3.68 | |
| INBUSSLEUTEL 4MM | ||||
| 502 | 944458 | INBUSSLEUTEL 4MM | € 1.25 | |
| Nicht mehr lieferbar | ||||
| 503 | 875769 | Nicht mehr lieferbar | ||
| SHOULDER BELT SINGLE | ||||
| 504A | 6601420 | SHOULDER BELT SINGLE | € 5.85 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
