Hikoki CG24ECM Zeichnungen und Teile
Genaue Typennummer:
CG24ECM
CG24ECM

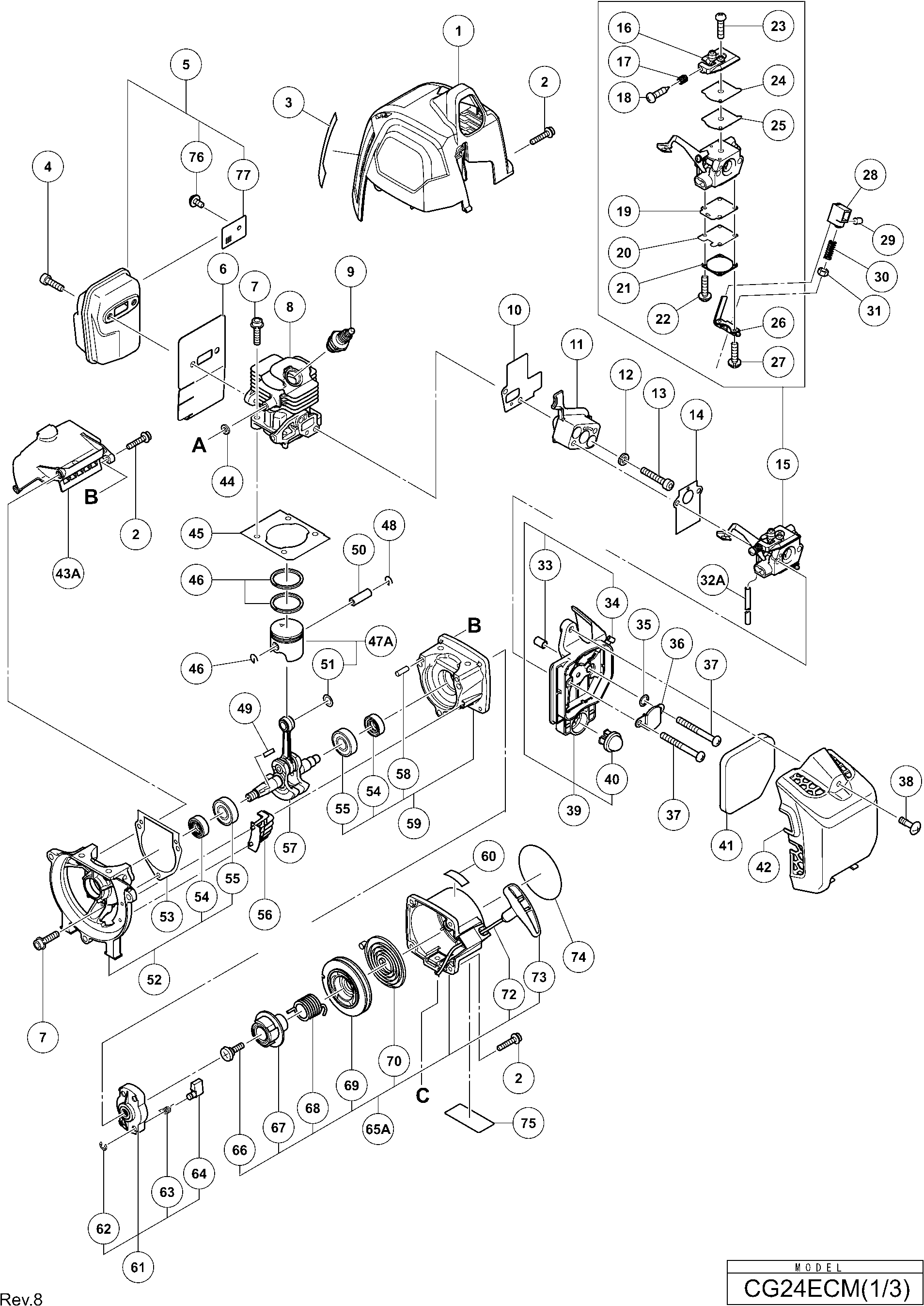

Zeichnungen der HIKOKI CG24ECM
Teileliste der HIKOKI CG24ECM
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Cylinder Cover | ||||
| 1 | 6600546 | Cylinder Cover | € 8.57 | |
| Seal Lock Hex. Socket Hd. Bolt M4 | ||||
| 2 | 6600918 | Seal Lock Hex. Socket Hd. Bolt M4 | € 1.00 | |
| Seal Lock Hex. Socket Hd. Bolt M6x16 | ||||
| 4 | 6600518 | Seal Lock Hex. Socket Hd. Bolt M6x16 | € 1.00 | |
| Muffler | ||||
| 5 | 6600516 | Muffler | € 6.39 | |
| Heat Protection Panel | ||||
| 6 | 6600517 | Heat Protection Panel | € 1.16 | |
| Hex. Socket Hd. Bolt M5x22 (w/sp.washer) | ||||
| 7 | 6601339 | Hex. Socket Hd. Bolt M5x22 (w/sp.washer) | € 1.02 | |
| Cylinder N24 | ||||
| 8 | 6600902 | Cylinder N24 | € 29.02 | |
| Ignition Plug (torch L7rtc) | ||||
| 9 | 6600542 | Ignition Plug (torch L7rtc) | € 5.81 | |
| Intake Packing | ||||
| 10 | 6600524 | Intake Packing | € 1.00 | |
| Carburetor Insulator (ecm) | ||||
| 11 | 6600533 | Carburetor Insulator (ecm) | € 4.50 | |
| Spring Washer D6 | ||||
| 12 | 6600910 | Spring Washer D6 | € 1.00 | |
| Seal Lock Hex. Socket Hd. Bolt M6x27 | ||||
| 13 | 6601358 | Seal Lock Hex. Socket Hd. Bolt M6x27 | € 1.00 | |
| Carburetor Packing (ecm) | ||||
| 14 | 6600534 | Carburetor Packing (ecm) | € 1.00 | |
| Carburetor Ass'y Wt-1147 | ||||
| 15 | 6600535 | Carburetor Ass'y Wt-1147 | € 43.26 | |
| Pump Body | ||||
| 16 | 6601350 | Pump Body | € 6.07 | |
| Leerlauf Justierfede | ||||
| 17 | 6690766 | Leerlauf Justierfede | € 2.24 | |
| Leerlauf Justierschraube | ||||
| 18 | 6690736 | Leerlauf Justierschraube | € 3.19 | |
| Membran Verpackung | ||||
| 19 | 6685220 | Membran Verpackung | € 2.24 | |
| Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | ||||
| 20 | 6684690 | Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | € 17.42 | |
| Membranabdeckung | ||||
| 21 | 6685222 | Membranabdeckung | € 4.31 | |
| Schraube | ||||
| 22 | 6685223 | Schraube | € 1.11 | |
| Schraube | ||||
| 23 | 6685210 | Schraube | € 1.11 | |
| Pumpendichtung | ||||
| 24 | 6685212 | Pumpendichtung | € 2.24 | |
| Pumpen Membrane | ||||
| 25 | 6685213 | Pumpen Membrane | € 4.31 | |
| Traeger (1) | ||||
| 26 | 6601352 | Traeger (1) | € 7.83 | |
| Screw M3 | ||||
| 27 | 6601351 | Screw M3 | € 1.00 | |
| Stopper Slider | ||||
| 28 | 6600537 | Stopper Slider | € 1.74 | |
| Set Screw M3 | ||||
| 29 | 6600915 | Set Screw M3 | € 1.00 | |
| Return Spring | ||||
| 30 | 6600914 | Return Spring | € 1.00 | |
| Moer M6 (10 Stuks) | ||||
| 31 | 949567 | Moer M6 (10 Stuks) | € 1.02 | |
| Fuel Pipe | ||||
| 32A | 6601443 | Fuel Pipe | € 1.00 | |
| Collar M5 | ||||
| 33 | 6601340 | Collar M5 | € 1.89 | |
| Choke Valve | ||||
| 34 | 6601342 | Choke Valve | € 2.76 | |
| Wave Washer 8 | ||||
| 35 | 334242 | Wave Washer 8 | € 1.67 | |
| Spit Back Shield | ||||
| 36 | 6600913 | Spit Back Shield | € 1.74 | |
| Schraube 5x55 alte Art.nr. 990-11050-552 | ||||
| 37 | 6694914 | Schraube 5x55 alte Art.nr. 990-11050-552 | € 1.11 | |
| Special Screw M5 | ||||
| 38 | 6600532 | Special Screw M5 | € 1.00 | |
| Air Cleaner Base Ass'y | ||||
| 39 | 6600912 | Air Cleaner Base Ass'y | € 11.91 | |
| Hauptpumpe | ||||
| 40 | 6685139 | Hauptpumpe | € 5.75 | |
| Air Cleaner Element | ||||
| 41 | 6600529 | Air Cleaner Element | € 1.00 | |
| Luftfilterabdeckung | ||||
| 42 | 6600531 | Luftfilterabdeckung | € 1.31 | |
| MUFFLER TANK PARTITION | ||||
| 43A | 6601430 | MUFFLER TANK PARTITION | € 2.47 | |
| Ring | ||||
| 44 | 6698700 | Ring | € 1.16 | |
| Cylinder Packing | ||||
| 45 | 6600510 | Cylinder Packing | € 1.00 | |
| Zuiger Ring | ||||
| 46 | 6698404 | Zuiger Ring | € 4.07 | |
| PISTON SET | ||||
| 47A | 6601476 | PISTON SET | € 7.55 | |
| Kolbenstift Cg24ekb | ||||
| 48 | 6684590 | Kolbenstift Cg24ekb | € 2.08 | |
| Woodruff Key 3x13x4.5 | ||||
| 49 | 6601343 | Woodruff Key 3x13x4.5 | € 1.89 | |
| Piston Pin | ||||
| 50 | 6601344 | Piston Pin | € 2.76 | |
| Shim | ||||
| 51 | 6600909 | Shim | € 1.00 | |
| Crank Case Packing | ||||
| 53 | 6600514 | Crank Case Packing | € 1.00 | |
| Öldichtung Cg24ekb | ||||
| 54 | 6684607 | Öldichtung Cg24ekb | € 4.15 | |
| Kugellager Cg24ekb | ||||
| 55 | 6684608 | Kugellager Cg24ekb | € 3.68 | |
| Crank Case Guard | ||||
| 56 | 6600924 | Crank Case Guard | € 1.00 | |
| Crank Shaft | ||||
| 57 | 6600511 | Crank Shaft | € 25.95 | |
| Knock Pin 4x12 | ||||
| 58 | 6696947 | Knock Pin 4x12 | € 1.02 | |
| Crank Case (r) Ass'y | ||||
| 59 | 6600906 | Crank Case (r) Ass'y | € 13.50 | |
| Tank Mark Label | ||||
| 60 | 6698921 | Tank Mark Label | € 1.16 | |
| Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90 | ||||
| 61 | 6684681 | Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90 | € 12.78 | |
| D4eretainingringnew | ||||
| 62 | 6685101 | D4eretainingringnew | € 1.11 | |
| Feder f. Startersperre Cg24ekb | ||||
| 63 | 6684684 | Feder f. Startersperre Cg24ekb | € 4.15 | |
| Startersperre Cg24ekb alte Art.nr.788-0651h-20 | ||||
| 64 | 6684685 | Startersperre Cg24ekb alte Art.nr.788-0651h-20 | € 4.15 | |
| RECOIL STARTER BODY ASS'Y NEW | ||||
| 65A | 6601570 | RECOIL STARTER BODY ASS'Y NEW | € 15.31 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 66 | 6684679 | SET SCREW (OLD 839-03045-20) | € 2.08 | |
| Cam Plate | ||||
| 67 | 6699996 | Cam Plate | € 2.47 | |
| Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20 | ||||
| 68 | 6684677 | Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20 | € 8.30 | |
| Starter Rope Reel | ||||
| 69 | 6699997 | Starter Rope Reel | € 8.14 | |
| Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | ||||
| 70 | 6684675 | Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | € 11.18 | |
| Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo | ||||
| 72 | 6684674 | Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo | € 4.15 | |
| Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo | ||||
| 73 | 6684680 | Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo | € 2.08 | |
| Machine Screw M4x8 (w/washers) Black | ||||
| 76 | 6601439 | Machine Screw M4x8 (w/washers) Black | € 1.00 | |
| Spark Arrester | ||||
| 77 | 6601438 | Spark Arrester | € 1.00 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M5 | ||||
| 81 | 6600919 | Hex. Socket Hd. Bolt (w/sp.washer) M5 | € 1.00 | |
| Ring | ||||
| 82 | 6685407 | Ring | € 1.02 | |
| Hex. Socket Hd. Bolt M5 (w/washers) | ||||
| 83 | 6600372 | Hex. Socket Hd. Bolt M5 (w/washers) | € 1.74 | |
| Metallfitting | ||||
| 84 | 6689664 | Metallfitting | € 3.19 | |
| Pipe Holder | ||||
| 85 | 6600551 | Pipe Holder | € 2.61 | |
| Damper (holder) | ||||
| 86 | 6600552 | Damper (holder) | € 2.76 | |
| Tapping Screw D4.5x16 | ||||
| 87 | 6698878 | Tapping Screw D4.5x16 | € 1.16 | |
| Fan Case | ||||
| 88 | 6600548 | Fan Case | € 13.98 | |
| Clutch Shaft | ||||
| 89 | 6600549 | Clutch Shaft | € 6.39 | |
| Abstandsbolzen | ||||
| 90 | 6696469 | Abstandsbolzen | € 1.00 | |
| Ring | ||||
| 91 | 6684648 | Ring | € 2.08 | |
| Clutch | ||||
| 92 | 6696948 | Clutch | € 11.27 | |
| Ring (b) | ||||
| 93 | 6696547 | Ring (b) | € 1.02 | |
| Mutter | ||||
| 94 | 6685337 | Mutter | € 1.02 | |
| Bolzenscheibe H65sd2 | ||||
| 95 | 323212 | Bolzenscheibe H65sd2 | € 1.02 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 96 | 6698388 | Hex. Socket Hd Bolt M4x18 (w/washers) | € 1.02 | |
| Ignition Coil | ||||
| 97 | 6600515 | Ignition Coil | € 22.36 | |
| Cord Insulation Tube L100 | ||||
| 98 | 6600051 | Cord Insulation Tube L100 | € 1.00 | |
| Plug Cap Metal | ||||
| 99 | 6699186 | Plug Cap Metal | € 1.00 | |
| Plug Cap (old 6699932) | ||||
| 100A | 6601421 | Plug Cap (old 6699932) | € 1.00 | |
| Band | ||||
| 101 | 6698943 | Band | € 1.16 | |
| Protection Tube L50 | ||||
| 102 | 6601345 | Protection Tube L50 | € 1.02 | |
| Cord | ||||
| 103 | 6698495 | Cord | € 2.03 | |
| Earth Cord | ||||
| 104 | 6696545 | Earth Cord | € 1.02 | |
| Vliegwiel | ||||
| 105 | 6699289 | Vliegwiel | € 24.89 | |
| Machine Screw (w/washers) M5x18 | ||||
| 106 | 6600920 | Machine Screw (w/washers) M5x18 | € 1.00 | |
| Behalter | ||||
| 107 | 6600519 | Behalter | € 4.79 | |
| Bolt (w/flange) | ||||
| 108 | 6696574 | Bolt (w/flange) | € 1.02 | |
| Pomp Filter | ||||
| 109 | 6600351 | Pomp Filter | € 2.61 | |
| Clip | ||||
| 110 | 6696949 | Clip | € 1.62 | |
| Bout L23.8 | ||||
| 111 | 6698512 | Bout L23.8 | € 1.02 | |
| Distanzring (1) | ||||
| 112 | 6699558 | Distanzring (1) | € 1.00 | |
| Brandstofleiding L70 | ||||
| 113A | 6699014 | Brandstofleiding L70 | € 1.60 | |
| Fuel Grommet | ||||
| 114 | 6600358 | Fuel Grommet | € 1.00 | |
| Fuel Pipe L180 | ||||
| 115 | 6600523 | Fuel Pipe L180 | € 1.00 | |
| Tank Dop Compleet | ||||
| 116 | 6698402 | Tank Dop Compleet | € 4.07 | |
| Tank Cap Chain | ||||
| 117 | 6698732 | Tank Cap Chain | € 1.16 | |
| Throttle Lever (d) | ||||
| 131 | 6600917 | Throttle Lever (d) | € 13.21 | |
| Handle Collar | ||||
| 132 | 6600503 | Handle Collar | € 1.00 | |
| Sechskantbolzen Cg24ekd, Cg18dal, Cg18dl | ||||
| 133 | 6684709 | Sechskantbolzen Cg24ekd, Cg18dal, Cg18dl | € 2.08 | |
| Handle Holder (a) | ||||
| 134 | 6600561 | Handle Holder (a) | € 1.74 | |
| U-handle | ||||
| 135 | 6600896 | U-handle | € 18.63 | |
| Handle Holder (b) | ||||
| 136 | 6600562 | Handle Holder (b) | € 2.90 | |
| Getriebegehaeuse | ||||
| 137 | 6699439 | Getriebegehaeuse | € 45.12 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 138 | 949664 | Hex.socket Hd.bolt M5x30 (10 Pcs) | € 3.63 | |
| Schraube 5x12ws alte Art.nr. 994-16050-121 | ||||
| 139 | 6695414 | Schraube 5x12ws alte Art.nr. 994-16050-121 | € 1.11 | |
| Kappe | ||||
| 140 | 6600005 | Kappe | € 2.61 | |
| Feder (1) | ||||
| 141 | 6600006 | Feder (1) | € 3.48 | |
| Bolzen Cg24ekd, Cg18dal, Cg18dl | ||||
| 142 | 6684737 | Bolzen Cg24ekd, Cg18dal, Cg18dl | € 2.08 | |
| Lock Pin | ||||
| 143 | 6600007 | Lock Pin | € 10.89 | |
| Cutter Holder (a) | ||||
| 144 | 6699441 | Cutter Holder (a) | € 7.99 | |
| Cutter Holder (b) | ||||
| 145 | 6698659 | Cutter Holder (b) | € 12.62 | |
| NUT COVER | ||||
| 146 | 6699188 | NUT COVER | € 6.82 | |
| Linksmoer M10 (oud 6698658) | ||||
| 147 | 335759 | Linksmoer M10 (oud 6698658) | € 1.00 | |
| Handle Holder (c) | ||||
| 148 | 6600563 | Handle Holder (c) | € 1.31 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 149 | 6684714 | HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | € 2.08 | |
| Cover Bracket | ||||
| 150 | 6699443 | Cover Bracket | € 2.03 | |
| Caution Mark Hitachi | ||||
| 151 | 6600450 | Caution Mark Hitachi | € 1.74 | |
| Main Pipe (t1.1) | ||||
| 152 | 6600556 | Main Pipe (t1.1) | € 21.56 | |
| Drive Shaft (damper) | ||||
| 153 | 6600560 | Drive Shaft (damper) | € 39.40 | |
| Waist Protecter | ||||
| 154 | 6600540 | Waist Protecter | € 9.00 | |
| Hanger | ||||
| 155 | 6600504 | Hanger | € 1.16 | |
| Kopfschraube M5x10 (10st), G23ss For Irl | ||||
| 156 | 949236 | Kopfschraube M5x10 (10st), G23ss For Irl | € 1.02 | |
| Protection Tube L230 | ||||
| 157 | 6601346 | Protection Tube L230 | € 1.89 | |
| Guard Ass'y (eu) | ||||
| 158 | 6600528 | Guard Ass'y (eu) | € 4.36 | |
| Cover Guard (eu) Ass'y | ||||
| 159 | 6601356 | Cover Guard (eu) Ass'y | € 6.10 | |
| Schneidschraube Cg24ekd | ||||
| 160 | 6684751 | Schneidschraube Cg24ekd | € 2.08 | |
| Messer Cg24ekd For Irl | ||||
| 161 | 6684750 | Messer Cg24ekd For Irl | € 4.15 | |
| Ignition Coil Ass'y | ||||
| 202 | 6601380 | Ignition Coil Ass'y | € 33.54 | |
| Fan Case (a) Ass'y | ||||
| 203 | 6601378 | Fan Case (a) Ass'y | € 29.55 | |
| ZESKANTSLEUTEL 17/19MM | ||||
| 501 | 6684764 | ZESKANTSLEUTEL 17/19MM | € 3.84 | |
| INBUSSLEUTEL 4MM | ||||
| 502 | 944458 | INBUSSLEUTEL 4MM | € 1.31 | |
| Messer Abdeckung For (s) | ||||
| 504 | 6684768 | Messer Abdeckung For (s) | € 2.08 | |
| Tool Bag | ||||
| 505 | 6600923 | Tool Bag | € 1.60 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
