Hikoki CH22EC2 Zeichnungen und Teile
Genaue Typennummer:
CH22EC2
CH22EC2

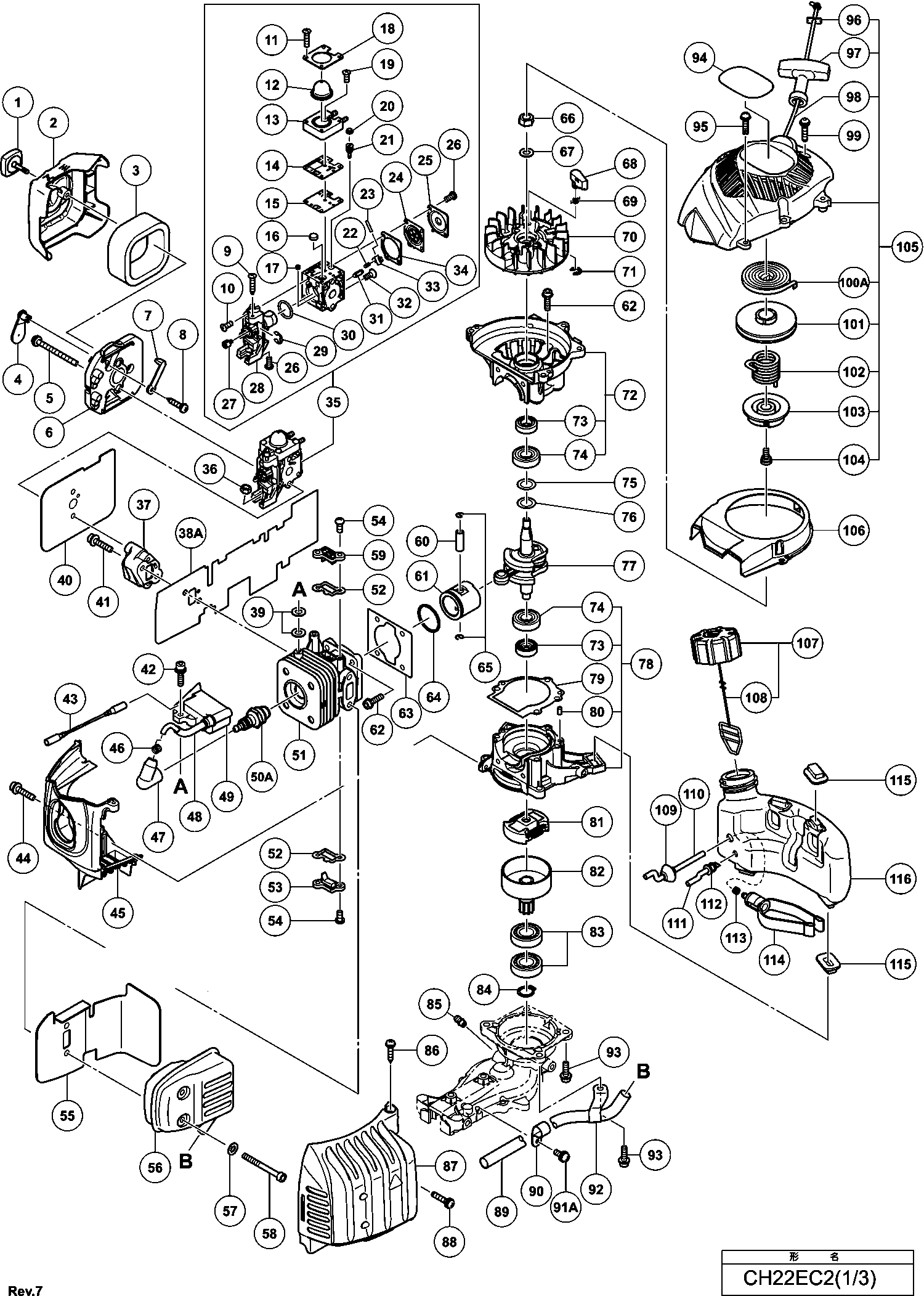

Zeichnungen der HIKOKI CH22EC2
Teileliste der HIKOKI CH22EC2
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Cover Fixing Bolt Comp. | ||||
| 1 | 6698730 | Cover Fixing Bolt Comp. | € 2.92 | |
| Filterabdeckung | ||||
| 2 | 6698609 | Filterabdeckung | € 1.95 | |
| Filter Schwamm neue Art.-nr.:6690365 | ||||
| 3 | 6690365 | Filter Schwamm neue Art.-nr.:6690365 | € 1.07 | |
| Choke Valve | ||||
| 4 | 6698608 | Choke Valve | € 1.11 | |
| Kopfschraube M5x60 M.u-scheibe (schwarz) | ||||
| 5 | 307224 | Kopfschraube M5x60 M.u-scheibe (schwarz) | € 0.97 | |
| Cleaner Body | ||||
| 6 | 6698606 | Cleaner Body | € 1.95 | |
| Choke Handle | ||||
| 7 | 6698607 | Choke Handle | € 1.11 | |
| Nicht mehr lieferbar | ||||
| 8 | 309470 | Nicht mehr lieferbar | ||
| Throttle Adjust Screw | ||||
| 9 | 6699087 | Throttle Adjust Screw | € 7.24 | |
| Set Screw (b) | ||||
| 10 | 6699088 | Set Screw (b) | € 0.96 | |
| Set Screw (d) | ||||
| 11 | 6699100 | Set Screw (d) | € 0.97 | |
| Syringe | ||||
| 12 | 6699098 | Syringe | € 3.90 | |
| Primer Base | ||||
| 13 | 6699097 | Primer Base | € 26.16 | |
| Pump Gasket | ||||
| 14 | 6699096 | Pump Gasket | € 4.04 | |
| Pump Diaphragm | ||||
| 15 | 6699095 | Pump Diaphragm | € 5.99 | |
| Strainer | ||||
| 16 | 6699080 | Strainer | € 1.39 | |
| Guide Pin Roller | ||||
| 17 | 6699103 | Guide Pin Roller | € 2.37 | |
| Syringe Retainer | ||||
| 18 | 6699099 | Syringe Retainer | € 2.37 | |
| Set Screw (e) | ||||
| 19 | 6699101 | Set Screw (e) | € 0.97 | |
| Ball Plug Retainer | ||||
| 20 | 6699104 | Ball Plug Retainer | € 2.37 | |
| Adjusting Screw (main Mixture) | ||||
| 21 | 6699105 | Adjusting Screw (main Mixture) | € 7.66 | |
| Metering Lever Spring | ||||
| 22 | 6699083 | Metering Lever Spring | € 1.39 | |
| Stift (1) | ||||
| 23 | 6699082 | Stift (1) | € 0.97 | |
| Metering Diaphragm | ||||
| 24 | 6699091 | Metering Diaphragm | € 8.07 | |
| Metering Cover | ||||
| 25 | 6699093 | Metering Cover | € 5.71 | |
| Set Screw (c) | ||||
| 26 | 6699094 | Set Screw (c) | € 0.97 | |
| Post | ||||
| 27 | 6699089 | Post | € 5.57 | |
| Rotor Cover | ||||
| 28 | 6699086 | Rotor Cover | € 39.05 | |
| Retaining Ring (e-type) For D2.5 Shaft | ||||
| 29 | 6699090 | Retaining Ring (e-type) For D2.5 Shaft | € 0.96 | |
| O-ring | ||||
| 30 | 6699102 | O-ring | € 4.87 | |
| Inlet Needle Valve | ||||
| 31 | 6699081 | Inlet Needle Valve | € 6.54 | |
| Set Screw (a) | ||||
| 32 | 6699085 | Set Screw (a) | € 0.96 | |
| Metering Lever | ||||
| 33 | 6699084 | Metering Lever | € 1.53 | |
| Metering Gasket | ||||
| 34 | 6699092 | Metering Gasket | € 4.04 | |
| Nicht mehr lieferbar | ||||
| 35 | 6699078 | Nicht mehr lieferbar | ||
| Moer M6 (10 Stuks) | ||||
| 36 | 949567 | Moer M6 (10 Stuks) | € 0.97 | |
| Carburetor Insulator | ||||
| 37 | 6698387 | Carburetor Insulator | € 2.92 | |
| Intake Packing (a) (old 6698605) | ||||
| 38A | 6600456 | Intake Packing (a) (old 6698605) | € 1.53 | |
| Ring | ||||
| 39 | 6698700 | Ring | € 1.11 | |
| Carbureteur Pakking | ||||
| 40 | 6698816 | Carbureteur Pakking | € 1.67 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 41 | 6698844 | Seal Lock Hex. Socket Bolt M5x25 (w/washers) | € 1.11 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 42 | 6698388 | Hex. Socket Hd Bolt M4x18 (w/washers) | € 0.97 | |
| Cord | ||||
| 43 | 6699060 | Cord | € 0.96 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 | ||||
| 44 | 6698879 | Seal Lock Hex. Socket Hd. Bolt M4x12 | € 1.11 | |
| Cilinder Afdekkap | ||||
| 45 | 6698871 | Cilinder Afdekkap | € 3.90 | |
| METAL FITTING OF PLUG CAP (OLD 6698547) | ||||
| 46 | 6699180 | METAL FITTING OF PLUG CAP (OLD 6698547) | € 0.96 | |
| Plug Cap | ||||
| 47 | 6698548 | Plug Cap | € 1.95 | |
| Cord Insulation Tube | ||||
| 48 | 6699175 | Cord Insulation Tube | € 1.11 | |
| Bobine | ||||
| 49 | 6698602 | Bobine | € 37.00 | |
| Bougie Bmr7a | ||||
| 50A | 6699316 | Bougie Bmr7a | € 8.27 | |
| Bougie (oud 6685052) | ||||
| 50A | 6699322 | Bougie (oud 6685052) | € 2.30 | |
| Zylinder | ||||
| 51 | 6698597 | Zylinder | € 28.33 | |
| Cover Packing | ||||
| 52 | 6696534 | Cover Packing | € 0.97 | |
| Intake Cover (a) | ||||
| 53 | 6696535 | Intake Cover (a) | € 0.97 | |
| Seal Lock Screw M4x10 | ||||
| 54 | 6696835 | Seal Lock Screw M4x10 | € 1.11 | |
| Hitteschild | ||||
| 55 | 6698617 | Hitteschild | € 1.95 | |
| Uitlaat | ||||
| 56 | 6698632 | Uitlaat | € 7.80 | |
| Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
| 57 | 949432 | Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | € 0.97 | |
| Nicht mehr lieferbar | ||||
| 58 | 6696819 | Nicht mehr lieferbar | ||
| Intake Cover (b) | ||||
| 59 | 6696536 | Intake Cover (b) | € 0.97 | |
| Zuiger Pin | ||||
| 60 | 6696944 | Zuiger Pin | € 3.09 | |
| Kolben | ||||
| 61 | 6696531 | Kolben | € 6.38 | |
| Hex. Socket Hd Bolt M5x18 (w/sp.washer) | ||||
| 62 | 6698386 | Hex. Socket Hd Bolt M5x18 (w/sp.washer) | € 0.97 | |
| Cylinder Packing | ||||
| 63 | 6696530 | Cylinder Packing | € 0.97 | |
| Zuiger Ring | ||||
| 64 | 6696532 | Zuiger Ring | € 1.95 | |
| Kolbenstift Cg24ekb | ||||
| 65 | 6684590 | Kolbenstift Cg24ekb | € 2.00 | |
| Mutter | ||||
| 66 | 6696879 | Mutter | € 0.97 | |
| Ring D7 | ||||
| 67 | 6696880 | Ring D7 | € 0.97 | |
| Starter Pawl | ||||
| 68 | 6698603 | Starter Pawl | € 1.11 | |
| Startersperrfeder | ||||
| 69 | 6685335 | Startersperrfeder | € 0.97 | |
| Magneto Rotor | ||||
| 70 | 6698601 | Magneto Rotor | € 12.81 | |
| Sicherungsring | ||||
| 71 | 6685336 | Sicherungsring | € 0.97 | |
| Crank Case Ass'y (b) | ||||
| 72 | 6698872 | Crank Case Ass'y (b) | € 14.93 | |
| Öldichtung Cg24ekb | ||||
| 73 | 6684607 | Öldichtung Cg24ekb | € 3.98 | |
| Kugellager Cg24ekb | ||||
| 74 | 6684608 | Kugellager Cg24ekb | € 3.53 | |
| Shim | ||||
| 75 | 6696946 | Shim | € 1.55 | |
| Shim | ||||
| 76 | 6696945 | Shim | € 1.55 | |
| Kurbelwelle | ||||
| 77 | 6699043 | Kurbelwelle | € 29.48 | |
| Crank Case Ass'y (a) | ||||
| 78 | 6698729 | Crank Case Ass'y (a) | € 17.48 | |
| Crank Case Packing | ||||
| 79 | 6696539 | Crank Case Packing | € 0.97 | |
| Knock Pin 4x12 | ||||
| 80 | 6696947 | Knock Pin 4x12 | € 0.97 | |
| Clutch (b) | ||||
| 81 | 6699173 | Clutch (b) | € 6.96 | |
| Clutch Drum | ||||
| 82 | 6699040 | Clutch Drum | € 8.91 | |
| Kugellager | ||||
| 83 | 6698740 | Kugellager | € 3.90 | |
| Sicherungsring D15 (10st) | ||||
| 84 | 939544 | Sicherungsring D15 (10st) | € 1.97 | |
| GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
| 85 | 6688643 | GREASE NIPPLE COMP. (OLD 300-32250-80) | € 1.07 | |
| Schneidschraube D5x20 M.flansch H41mb | ||||
| 86 | 302089 | Schneidschraube D5x20 M.flansch H41mb | € 0.97 | |
| Muffler Protector | ||||
| 87 | 6699174 | Muffler Protector | € 5.29 | |
| Nicht mehr lieferbar | ||||
| 88 | 887021 | Nicht mehr lieferbar | ||
| Tail Pipe | ||||
| 89 | 6698782 | Tail Pipe | € 3.90 | |
| Fixation Plate (a) | ||||
| 90 | 6698634 | Fixation Plate (a) | € 1.95 | |
| Kopfschraube M4x12 M.u-scheibe (schwarz), C 8fshe | ||||
| 91A | 935196 | Kopfschraube M4x12 M.u-scheibe (schwarz), C 8fshe | € 0.96 | |
| Fixation Plate (b) | ||||
| 92 | 6699073 | Fixation Plate (b) | € 0.96 | |
| Sechskantbolzen 6x18/s alte Art.nr. 994-61060-184 | ||||
| 93 | 6695495 | Sechskantbolzen 6x18/s alte Art.nr. 994-61060-184 | € 1.07 | |
| Tapping Screw D4.5x16 | ||||
| 95 | 6698878 | Tapping Screw D4.5x16 | € 1.11 | |
| Platte | ||||
| 96 | 6685189 | Platte | € 1.07 | |
| Startergriff alte Art.nr.785-01620-20 Till 7.2014 | ||||
| 97 | 6693227 | Startergriff alte Art.nr.785-01620-20 Till 7.2014 | € 3.06 | |
| Schnuranlasser alte Art.nr. 783-06097-20 Till 7.2 | ||||
| 98 | 6693168 | Schnuranlasser alte Art.nr. 783-06097-20 Till 7.2 | € 2.15 | |
| Hex. Socket Hd. Bolt M5x20 (w/button) | ||||
| 99 | 6698988 | Hex. Socket Hd. Bolt M5x20 (w/button) | € 1.11 | |
| Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | ||||
| 100A | 6684675 | Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | € 10.72 | |
| Seilscheibenstarter alte Art.nr. 774-0651h-20 | ||||
| 101 | 6693072 | Seilscheibenstarter alte Art.nr. 774-0651h-20 | € 4.74 | |
| Dämpfungsfeder Since H081351 | ||||
| 102 | 6685183 | Dämpfungsfeder Since H081351 | € 4.13 | |
| CAM PLATE (OLD 759-0174M-20) | ||||
| 103 | 6685182 | CAM PLATE (OLD 759-0174M-20) | € 3.06 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 104 | 6684679 | SET SCREW (OLD 839-03045-20) | € 2.00 | |
| Recoil Starter Ass'y | ||||
| 105 | 6698622 | Recoil Starter Ass'y | € 22.97 | |
| Luchtkeerschot | ||||
| 106 | 6698624 | Luchtkeerschot | € 1.11 | |
| Tank Dop Compleet | ||||
| 107 | 6698402 | Tank Dop Compleet | € 3.90 | |
| Tank Cap Chain | ||||
| 108 | 6698732 | Tank Cap Chain | € 1.11 | |
| Fuel Grommet | ||||
| 109 | 6698931 | Fuel Grommet | € 3.20 | |
| Brandstofleiding | ||||
| 110 | 6698873 | Brandstofleiding | € 4.73 | |
| Nicht mehr lieferbar | ||||
| 111 | 6698875 | Nicht mehr lieferbar | ||
| Clip | ||||
| 113 | 6696949 | Clip | € 1.55 | |
| Pomp Filter | ||||
| 114 | 6698874 | Pomp Filter | € 11.14 | |
| Cushion Rubber | ||||
| 115 | 6698615 | Cushion Rubber | € 1.95 | |
| Behalter | ||||
| 116 | 6698613 | Behalter | € 5.29 | |
| Hex. Socket Hd. Bolt (w/flange) M6x32 | ||||
| 141 | 6698814 | Hex. Socket Hd. Bolt (w/flange) M6x32 | € 1.11 | |
| Front Handle | ||||
| 142 | 6698776 | Front Handle | € 6.82 | |
| Rahmen | ||||
| 144 | 6698777 | Rahmen | € 12.39 | |
| Damper | ||||
| 146 | 6698778 | Damper | € 1.11 | |
| Handle (a) | ||||
| 147 | 6698880 | Handle (a) | € 7.52 | |
| Flexible Shaft | ||||
| 148 | 6698945 | Flexible Shaft | € 12.81 | |
| Feder A | ||||
| 149 | 6696348 | Feder A | € 0.97 | |
| Lock Lever | ||||
| 150 | 6699055 | Lock Lever | € 0.96 | |
| Regulateur | ||||
| 151 | 6699053 | Regulateur | € 0.96 | |
| Sicherheitshebel | ||||
| 152 | 6696344 | Sicherheitshebel | € 0.97 | |
| Drosselhebelfeder | ||||
| 153 | 6696345 | Drosselhebelfeder | € 0.97 | |
| Nicht mehr lieferbar | ||||
| 154 | 6696940 | Nicht mehr lieferbar | ||
| Handle (b) | ||||
| 155 | 6699051 | Handle (b) | € 3.34 | |
| Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | ||||
| 156 | 305812 | Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | € 0.96 | |
| Gaskabel | ||||
| 157 | 6698627 | Gaskabel | € 1.95 | |
| Protection Tube | ||||
| 158 | 6698738 | Protection Tube | € 1.11 | |
| Stop Switch Cord | ||||
| 159 | 6699058 | Stop Switch Cord | € 0.96 | |
| Stop Switch Cord | ||||
| 160 | 6699059 | Stop Switch Cord | € 1.11 | |
| Hex. Socket Hd. Bolt (w/flange) M6x22 | ||||
| 161 | 6698815 | Hex. Socket Hd. Bolt (w/flange) M6x22 | € 1.11 | |
| Clip | ||||
| 162 | 6696359 | Clip | € 0.97 | |
| Nicht mehr lieferbar | ||||
| 163 | 6698766 | Nicht mehr lieferbar | ||
| Ring | ||||
| 164 | 6684639 | Ring | € 2.00 | |
| U-nut M5 | ||||
| 165 | 6699108 | U-nut M5 | € 1.53 | |
| Support Plate | ||||
| 169A | 6699064 | Support Plate | € 0.96 | |
| Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
| 170 | 949432 | Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | € 0.97 | |
| Veerhouder | ||||
| 171 | 6698779 | Veerhouder | € 1.95 | |
| Hex. Socket Hd. Bolt (w/flange) M5x10 | ||||
| 172 | 6698781 | Hex. Socket Hd. Bolt (w/flange) M5x10 | € 1.11 | |
| Anti-trilveer | ||||
| 173A | 6600480 | Anti-trilveer | € 2.51 | |
| Blade Ass'y 620mm (old 6699061) | ||||
| 174A | 6600398 | Blade Ass'y 620mm (old 6699061) | € 61.12 | |
| Blade Ass'y 780mm | ||||
| 174A | 6600410 | Blade Ass'y 780mm | € 71.46 | |
| Blade Ass'y 620mm | ||||
| 174B | 6600451 | Blade Ass'y 620mm | € 61.12 | |
| Blade Ass'y 780mm | ||||
| 174B | 6600453 | Blade Ass'y 780mm | € 71.46 | |
| Hex. Socket Hd. Bolt M5x8 (w/flange) | ||||
| 175 | 6699065 | Hex. Socket Hd. Bolt M5x8 (w/flange) | € 0.96 | |
| Guard Plate | ||||
| 176 | 6699062 | Guard Plate | € 0.96 | |
| Hex. Socket Hd. Bolt M6x25 (w/button) | ||||
| 177 | 6699113 | Hex. Socket Hd. Bolt M6x25 (w/button) | € 1.53 | |
| Ring (a) | ||||
| 178 | 6699114 | Ring (a) | € 0.96 | |
| Washer M7 | ||||
| 179 | 6699111 | Washer M7 | € 0.96 | |
| Shoulder Button Bolt M5x25 | ||||
| 180 | 6699109 | Shoulder Button Bolt M5x25 | € 1.53 | |
| Shoulder Button Bolt M5x31 | ||||
| 181 | 6699179 | Shoulder Button Bolt M5x31 | € 1.95 | |
| Blade Case (for 780mm) | ||||
| 182 | 6698785 | Blade Case (for 780mm) | € 3.90 | |
| Blade Case (for 620mm) | ||||
| 182 | 6698948 | Blade Case (for 620mm) | € 3.90 | |
| Tandwielkast (a) | ||||
| 183 | 6699074 | Tandwielkast (a) | € 34.83 | |
| Nicht mehr lieferbar | ||||
| 184 | 6698772 | Nicht mehr lieferbar | ||
| Hex. Socket Hd. Bolt M6x25 (w/button) | ||||
| 185 | 6699113 | Hex. Socket Hd. Bolt M6x25 (w/button) | € 1.53 | |
| Guide Plate (b) (old 6699063) | ||||
| 186A | 6600418 | Guide Plate (b) (old 6699063) | € 1.11 | |
| Cam Rod | ||||
| 187 | 6698987 | Cam Rod | € 1.95 | |
| Getriebe | ||||
| 188 | 6699066 | Getriebe | € 15.82 | |
| Felt Packing (b) | ||||
| 189 | 6699068 | Felt Packing (b) | € 0.96 | |
| Felt Packing (c) | ||||
| 190 | 6699067 | Felt Packing (c) | € 0.96 | |
| Gear Case Packing | ||||
| 191 | 6699042 | Gear Case Packing | € 0.96 | |
| Tandwielkast (b) | ||||
| 192 | 6699071 | Tandwielkast (b) | € 9.74 | |
| Hex. Socket Hd. Bolt M5x14 (w/sp.washer) | ||||
| 193 | 6699069 | Hex. Socket Hd. Bolt M5x14 (w/sp.washer) | € 0.96 | |
| Lower Plate | ||||
| 194 | 6600013 | Lower Plate | € 9.33 | |
| Geleidingsplaat 620mm | ||||
| 195 | 6600012 | Geleidingsplaat 620mm | € 8.77 | |
| Geleidingsplaat 780mm | ||||
| 195 | 6600015 | Geleidingsplaat 780mm | € 10.30 | |
| Hedge Trimmer Blade (c) 620 Mm | ||||
| 196 | 6600014 | Hedge Trimmer Blade (c) 620 Mm | € 21.18 | |
| Hedge Trimmer Blade (d) 780 Mm | ||||
| 196 | 6600016 | Hedge Trimmer Blade (d) 780 Mm | € 21.18 | |
| Hedge Trimmer Blade (c) 620 Mm | ||||
| 196A | 6600452 | Hedge Trimmer Blade (c) 620 Mm | € 21.18 | |
| Hedge Trimmer Blade (d) 780mm | ||||
| 196A | 6600454 | Hedge Trimmer Blade (d) 780mm | € 21.18 | |
| Mes Geleidingsplaat 620 Mm | ||||
| 197 | 6600360 | Mes Geleidingsplaat 620 Mm | € 4.04 | |
| Mes Geleidingsplaat 780 Mm | ||||
| 197 | 6600361 | Mes Geleidingsplaat 780 Mm | € 4.73 | |
| Ring (b) | ||||
| 198 | 6699112 | Ring (b) | € 0.96 | |
| Geleidingsplaat | ||||
| 199 | 6600362 | Geleidingsplaat | € 1.95 | |
| BOX WRENCH 10/19MM | ||||
| 501 | 6698756 | BOX WRENCH 10/19MM | € 6.89 | |
| Bottom Cover Set | ||||
| 601 | 6600487 | Bottom Cover Set | € 15.82 | |
| Bottom Cover (c) Ass'y | ||||
| 602 | 6600481 | Bottom Cover (c) Ass'y | € 10.16 | |
| Sealing Sponge (a) | ||||
| 603 | 6600482 | Sealing Sponge (a) | € 1.11 | |
| Sealing Sponge (e) | ||||
| 604 | 6600483 | Sealing Sponge (e) | € 1.95 | |
| Sealing Sponge (f) | ||||
| 605 | 6600484 | Sealing Sponge (f) | € 0.96 | |
| Sealing Sponge (g) | ||||
| 606 | 6600485 | Sealing Sponge (g) | € 0.96 | |
| Heat Protection Panel | ||||
| 607 | 6600486 | Heat Protection Panel | € 2.51 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
