Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki CH22ECP2'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

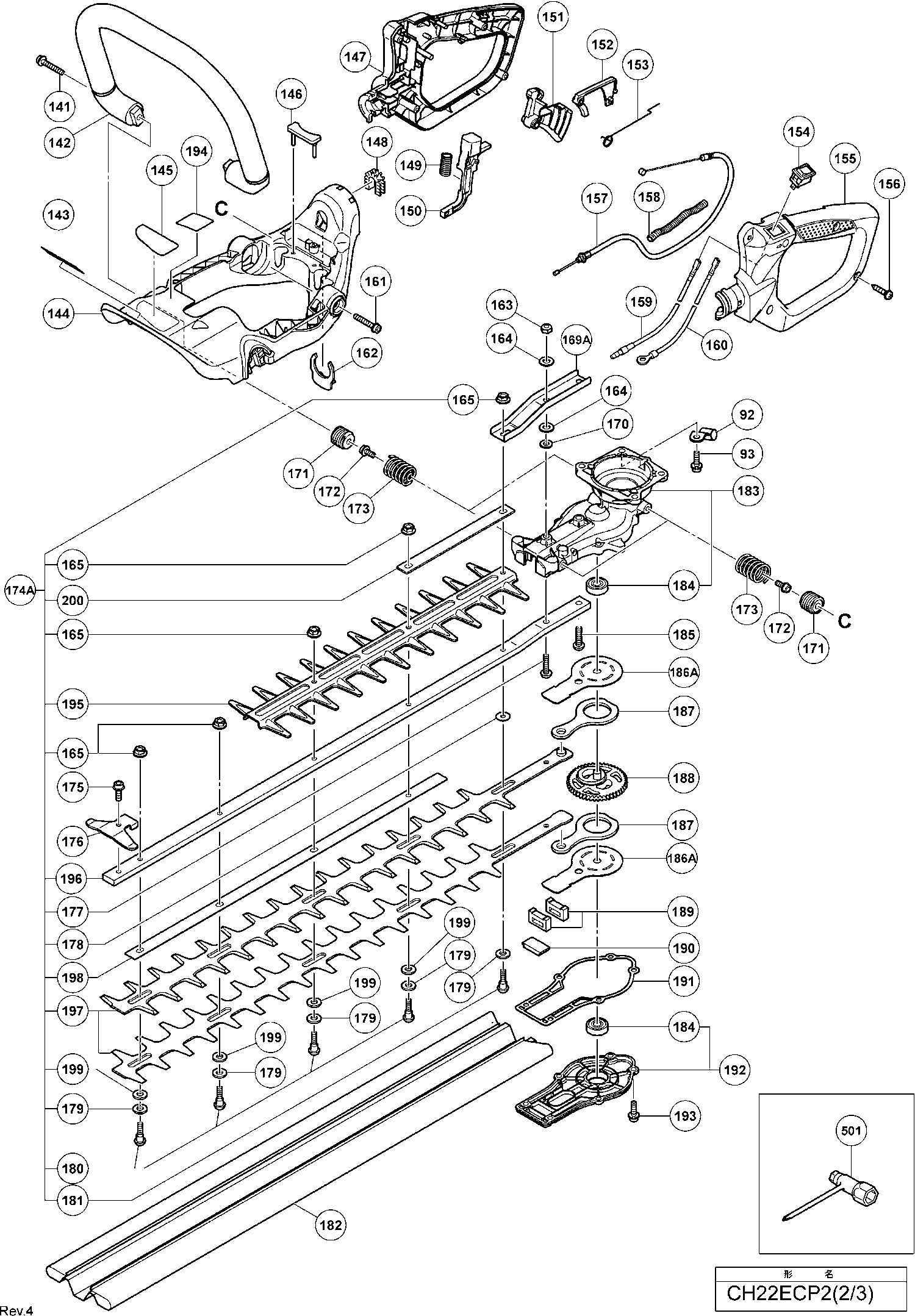

Zeichnungen der Hikoki CH22ECP2
Teileliste der Hikoki CH22ECP2
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Cover Fixing Bolt Comp. | ||||
| 1 | 6698730 | 3.15 | 3.75 | |
| Filterabdeckung | ||||
| 2 | 6698609 | 2.10 | 2.50 | |
| Filter Schwamm neue Art.-nr.:6690365 | ||||
| 3 | 6690365 | 1.15 | 1.37 | |
| Choke Valve | ||||
| 4 | 6698608 | 1.20 | 1.43 | |
| Kopfschraube M5x60 M.u-scheibe (schwarz) | ||||
| 5 | 307224 | 1.05 | 1.25 | |
| Cleaner Body | ||||
| 6 | 6698606 | 2.10 | 2.50 | |
| Choke Handle | ||||
| 7 | 6698607 | 1.20 | 1.43 | |
| Nicht mehr lieferbar | ||||
| 8 | 309470 | |||
| Throttle Adjust Screw | ||||
| 9 | 6699087 | 7.80 | 9.28 | |
| Set Screw (b) | ||||
| 10 | 6699088 | 1.04 | 1.23 | |
| Set Screw (d) | ||||
| 11 | 6699100 | 1.05 | 1.25 | |
| Syringe | ||||
| 12 | 6699098 | 4.20 | 5.00 | |
| Primer Base | ||||
| 13 | 6699097 | 28.19 | 33.54 | |
| Pump Gasket | ||||
| 14 | 6699096 | 4.35 | 5.18 | |
| Nicht mehr lieferbar | ||||
| 15 | 6699095 | |||
| Strainer | ||||
| 16 | 6699080 | 1.50 | 1.78 | |
| Guide Pin Roller | ||||
| 17 | 6699103 | 2.55 | 3.03 | |
| Syringe Retainer | ||||
| 18 | 6699099 | 2.55 | 3.03 | |
| Set Screw (e) | ||||
| 19 | 6699101 | 1.05 | 1.25 | |
| Ball Plug Retainer | ||||
| 20 | 6699104 | 2.55 | 3.03 | |
| Adjusting Screw (main Mixture) | ||||
| 21 | 6699105 | 8.25 | 9.82 | |
| Metering Lever Spring | ||||
| 22 | 6699083 | 1.50 | 1.78 | |
| Stift (1) | ||||
| 23 | 6699082 | 1.05 | 1.25 | |
| Metering Diaphragm | ||||
| 24 | 6699091 | 8.70 | 10.35 | |
| Metering Cover | ||||
| 25 | 6699093 | 6.15 | 7.32 | |
| Set Screw (c) | ||||
| 26 | 6699094 | 1.05 | 1.25 | |
| Post | ||||
| 27 | 6699089 | 6.00 | 7.14 | |
| Rotor Cover | ||||
| 28 | 6699086 | 42.08 | 50.07 | |
| Retaining Ring (e-type) For D2.5 Shaft | ||||
| 29 | 6699090 | 1.04 | 1.23 | |
| O-ring | ||||
| 30 | 6699102 | 5.25 | 6.25 | |
| Inlet Needle Valve | ||||
| 31 | 6699081 | 7.05 | 8.39 | |
| Set Screw (a) | ||||
| 32 | 6699085 | 1.04 | 1.23 | |
| Metering Lever | ||||
| 33 | 6699084 | 1.65 | 1.96 | |
| Metering Gasket | ||||
| 34 | 6699092 | 4.35 | 5.18 | |
| Nicht mehr lieferbar | ||||
| 35 | 6699078 | |||
| Moer M6 (10 Stuks) | ||||
| 36 | 949567 | 1.05 | 1.25 | |
| Carburetor Insulator | ||||
| 37 | 6698387 | 3.15 | 3.75 | |
| Nicht mehr lieferbar | ||||
| 38 | 6698605 | |||
| Ring | ||||
| 39 | 6698700 | 1.20 | 1.43 | |
| Carbureteur Pakking | ||||
| 40 | 6698816 | 1.80 | 2.14 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 41 | 6698844 | 1.20 | 1.43 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 42 | 6698388 | 1.05 | 1.25 | |
| Cord | ||||
| 43 | 6699060 | 1.04 | 1.23 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 | ||||
| 44 | 6698879 | 1.20 | 1.43 | |
| Cilinder Afdekkap | ||||
| 45 | 6698871 | 4.20 | 5.00 | |
| Nicht mehr lieferbar | ||||
| 46 | 6699180 | |||
| Plug Cap | ||||
| 47 | 6698548 | 2.10 | 2.50 | |
| Cord Insulation Tube | ||||
| 48 | 6699175 | 1.20 | 1.43 | |
| Bobine | ||||
| 49 | 6698602 | 39.88 | 47.45 | |
| Bougie Bmr7a | ||||
| 50A | 6699316 | 8.91 | 10.61 | |
| Bougie (oud 6685052) | ||||
| 50A | 6699322 | 2.48 | 2.95 | |
| Zylinder | ||||
| 51 | 6698597 | 30.53 | 36.32 | |
| Cover Packing | ||||
| 52 | 6696534 | 1.05 | 1.25 | |
| Intake Cover (a) | ||||
| 53 | 6696535 | 1.05 | 1.25 | |
| Seal Lock Screw M4x10 | ||||
| 54 | 6696835 | 1.20 | 1.43 | |
| Hitteschild | ||||
| 55 | 6698617 | 2.10 | 2.50 | |
| Uitlaat | ||||
| 56 | 6698631 | 32.31 | 38.45 | |
| Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
| 57 | 949432 | 1.05 | 1.25 | |
| Nicht mehr lieferbar | ||||
| 58 | 6696819 | |||
| Intake Cover (b) | ||||
| 59 | 6696536 | 1.05 | 1.25 | |
| Zuiger Pin | ||||
| 60 | 6696944 | 3.33 | 3.96 | |
| Kolben | ||||
| 61 | 6696531 | 6.88 | 8.18 | |
| Nicht mehr lieferbar | ||||
| 62 | 6698386 | |||
| Cylinder Packing | ||||
| 63 | 6696530 | 1.05 | 1.25 | |
| Zuiger Ring | ||||
| 64 | 6696532 | 2.10 | 2.50 | |
| Kolbenstift Cg24ekb | ||||
| 65 | 6684590 | 2.15 | 2.56 | |
| Mutter | ||||
| 66 | 6696879 | 1.05 | 1.25 | |
| Ring D7 | ||||
| 67 | 6696880 | 1.05 | 1.25 | |
| Starter Pawl | ||||
| 68 | 6698603 | 1.20 | 1.43 | |
| Startersperrfeder | ||||
| 69 | 6685335 | 1.05 | 1.25 | |
| Magneto Rotor | ||||
| 70 | 6698601 | 13.80 | 16.42 | |
| Sicherungsring | ||||
| 71 | 6685336 | 1.05 | 1.25 | |
| Crank Case Ass'y (b) | ||||
| 72 | 6698872 | 16.09 | 19.14 | |
| Öldichtung Cg24ekb | ||||
| 73 | 6684607 | 4.29 | 5.10 | |
| Kugellager Cg24ekb | ||||
| 74 | 6684608 | 3.80 | 4.52 | |
| Shim | ||||
| 75 | 6696946 | 1.68 | 1.99 | |
| Shim | ||||
| 76 | 6696945 | 1.68 | 1.99 | |
| Kurbelwelle | ||||
| 77 | 6699043 | 31.76 | 37.80 | |
| Crank Case Ass'y (a) | ||||
| 78 | 6698729 | 18.84 | 22.42 | |
| Crank Case Packing | ||||
| 79 | 6696539 | 1.05 | 1.25 | |
| Knock Pin 4x12 | ||||
| 80 | 6696947 | 1.05 | 1.25 | |
| Clutch (b) | ||||
| 81 | 6699173 | 7.50 | 8.92 | |
| Clutch Drum | ||||
| 82 | 6699040 | 9.60 | 11.42 | |
| Kugellager | ||||
| 83 | 6698740 | 4.20 | 5.00 | |
| Sicherungsring D15 (10st) | ||||
| 84 | 939544 | 2.13 | 2.53 | |
| GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
| 85 | 6688643 | 1.15 | 1.37 | |
| Schneidschraube D5x20 M.flansch H41mb | ||||
| 86 | 302089 | 1.05 | 1.25 | |
| Muffler Protector | ||||
| 87 | 6698876 | 16.78 | 19.96 | |
| Nicht mehr lieferbar | ||||
| 88 | 887021 | |||
| Tail Pipe | ||||
| 89 | 6698782 | 4.20 | 5.00 | |
| Fixation Plate (a) | ||||
| 90 | 6698634 | 2.10 | 2.50 | |
| Kopfschraube M4x12 M.u-scheibe (schwarz), C 8fshe | ||||
| 91A | 935196 | 1.04 | 1.23 | |
| Fixation Plate (b) | ||||
| 92 | 6699073 | 1.04 | 1.23 | |
| Sechskantbolzen 6x18/s alte Art.nr. 994-61060-184 | ||||
| 93 | 6695495 | 1.15 | 1.37 | |
| Tapping Screw D4.5x16 | ||||
| 95 | 6698878 | 1.20 | 1.43 | |
| Platte | ||||
| 96 | 6685189 | 1.15 | 1.37 | |
| Startergriff alte Art.nr.785-01620-20 Till 7.2014 | ||||
| 97 | 6693227 | 3.30 | 3.93 | |
| Schnuranlasser alte Art.nr. 783-06097-20 Till 7.2 | ||||
| 98 | 6693168 | 2.31 | 2.75 | |
| Hex. Socket Hd. Bolt M5x20 (w/button) | ||||
| 99 | 6698988 | 1.20 | 1.43 | |
| Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | ||||
| 100A | 6684675 | 11.55 | 13.74 | |
| Seilscheibenstarter alte Art.nr. 774-0651h-20 | ||||
| 101 | 6693072 | 5.11 | 6.08 | |
| Dämpfungsfeder Since H081351 | ||||
| 102 | 6685183 | 4.45 | 5.30 | |
| CAM PLATE (OLD 759-0174M-20) | ||||
| 103 | 6685182 | 3.30 | 3.93 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 104 | 6684679 | 2.15 | 2.56 | |
| CAM PLATE (OLD 759-0174M-20) | ||||
| 104 | 6685182 | 3.30 | 3.93 | |
| Recoil Starter Ass'y | ||||
| 105 | 6698622 | 24.75 | 29.45 | |
| Luchtkeerschot | ||||
| 106 | 6698624 | 1.20 | 1.43 | |
| Tank Dop Compleet | ||||
| 107 | 6698402 | 4.20 | 5.00 | |
| Tank Cap Chain | ||||
| 108 | 6698732 | 1.20 | 1.43 | |
| Fuel Grommet | ||||
| 109 | 6698931 | 3.45 | 4.11 | |
| Brandstofleiding | ||||
| 110 | 6698873 | 5.10 | 6.07 | |
| Nicht mehr lieferbar | ||||
| 111 | 6698875 | |||
| Clip | ||||
| 113 | 6696949 | 1.68 | 1.99 | |
| Pomp Filter | ||||
| 114 | 6698874 | 12.00 | 14.28 | |
| Cushion Rubber | ||||
| 115 | 6698615 | 2.10 | 2.50 | |
| Behalter | ||||
| 116 | 6698613 | 5.70 | 6.78 | |
| Hex. Socket Hd. Bolt (w/flange) M6x32 | ||||
| 141 | 6698814 | 1.20 | 1.43 | |
| Front Handle | ||||
| 142 | 6698776 | 7.35 | 8.75 | |
| Rahmen | ||||
| 144 | 6698777 | 13.35 | 15.89 | |
| Damper | ||||
| 146 | 6698778 | 1.20 | 1.43 | |
| Handle (a) | ||||
| 147 | 6698880 | 8.10 | 9.64 | |
| Flexible Shaft | ||||
| 148 | 6698945 | 13.80 | 16.42 | |
| Feder A | ||||
| 149 | 6696348 | 1.05 | 1.25 | |
| Lock Lever | ||||
| 150 | 6699055 | 1.04 | 1.23 | |
| Regulateur | ||||
| 151 | 6699053 | 1.04 | 1.23 | |
| Sicherheitshebel | ||||
| 152 | 6696344 | 1.05 | 1.25 | |
| Drosselhebelfeder | ||||
| 153 | 6696345 | 1.05 | 1.25 | |
| Nicht mehr lieferbar | ||||
| 154 | 6696940 | |||
| Handle (b) | ||||
| 155 | 6699051 | 3.60 | 4.28 | |
| Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | ||||
| 156 | 305812 | 1.04 | 1.23 | |
| Gaskabel | ||||
| 157 | 6698627 | 2.10 | 2.50 | |
| Protection Tube | ||||
| 158 | 6698738 | 1.20 | 1.43 | |
| Stop Switch Cord | ||||
| 159 | 6699058 | 1.04 | 1.23 | |
| Stop Switch Cord | ||||
| 160 | 6699059 | 1.20 | 1.43 | |
| Hex. Socket Hd. Bolt (w/flange) M6x22 | ||||
| 161 | 6698815 | 1.20 | 1.43 | |
| Clip | ||||
| 162 | 6696359 | 1.05 | 1.25 | |
| Nicht mehr lieferbar | ||||
| 163 | 6698766 | |||
| Ring | ||||
| 164 | 6684639 | 2.15 | 2.56 | |
| U-nut M5 | ||||
| 165 | 6699108 | 1.65 | 1.96 | |
| Support Plate | ||||
| 169A | 6699064 | 1.04 | 1.23 | |
| Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
| 170 | 949432 | 1.05 | 1.25 | |
| Veerhouder | ||||
| 171 | 6698779 | 2.10 | 2.50 | |
| Hex. Socket Hd. Bolt (w/flange) M5x10 | ||||
| 172 | 6698781 | 1.20 | 1.43 | |
| Nicht mehr lieferbar | ||||
| 173 | 6698780 | |||
| Blade Ass'y 620mm (old 6699061) | ||||
| 174A | 6600398 | 65.86 | 78.38 | |
| Blade Ass'y 780mm | ||||
| 174A | 6600410 | 77.00 | 91.63 | |
| Hex. Socket Hd. Bolt M5x8 (w/flange) | ||||
| 175 | 6699065 | 1.04 | 1.23 | |
| Guard Plate | ||||
| 176 | 6699062 | 1.04 | 1.23 | |
| Hex. Socket Hd. Bolt M6x25 (w/button) | ||||
| 177 | 6699113 | 1.65 | 1.96 | |
| Ring (a) | ||||
| 178 | 6699114 | 1.04 | 1.23 | |
| Washer M7 | ||||
| 179 | 6699111 | 1.04 | 1.23 | |
| Shoulder Button Bolt M5x25 | ||||
| 180 | 6699109 | 1.65 | 1.96 | |
| Shoulder Button Bolt M5x31 | ||||
| 181 | 6699179 | 2.10 | 2.50 | |
| Blade Case (for 780mm) | ||||
| 182 | 6698785 | 4.20 | 5.00 | |
| Blade Case (for 620mm) | ||||
| 182 | 6698948 | 4.20 | 5.00 | |
| Tandwielkast (a) | ||||
| 183 | 6699074 | 37.54 | 44.67 | |
| Nicht mehr lieferbar | ||||
| 184 | 6698772 | |||
| Hex. Socket Hd. Bolt M6x25 (w/button) | ||||
| 185 | 6699113 | 1.65 | 1.96 | |
| Guide Plate (b) (old 6699063) | ||||
| 186A | 6600418 | 1.20 | 1.43 | |
| Cam Rod | ||||
| 187 | 6698987 | 2.10 | 2.50 | |
| Getriebe | ||||
| 188 | 6699066 | 17.05 | 20.29 | |
| Felt Packing (b) | ||||
| 189 | 6699068 | 1.04 | 1.23 | |
| Felt Packing (c) | ||||
| 190 | 6699067 | 1.04 | 1.23 | |
| Gear Case Packing | ||||
| 191 | 6699042 | 1.04 | 1.23 | |
| Tandwielkast (b) | ||||
| 192 | 6699071 | 10.50 | 12.50 | |
| Hex. Socket Hd. Bolt M5x14 (w/sp.washer) | ||||
| 193 | 6699069 | 1.04 | 1.23 | |
| Lower Plate | ||||
| 195 | 6600013 | 10.05 | 11.96 | |
| Geleidingsplaat 620mm | ||||
| 196 | 6600012 | 9.45 | 11.25 | |
| Geleidingsplaat 780mm | ||||
| 196 | 6600015 | 11.10 | 13.21 | |
| Hedge Trimmer Blade (c) 620 Mm | ||||
| 197 | 6600014 | 22.83 | 27.16 | |
| Hedge Trimmer Blade (d) 780 Mm | ||||
| 197 | 6600016 | 22.83 | 27.16 | |
| Mes Geleidingsplaat 620 Mm | ||||
| 198 | 6600360 | 4.35 | 5.18 | |
| Mes Geleidingsplaat 780 Mm | ||||
| 198 | 6600361 | 5.10 | 6.07 | |
| Ring (b) | ||||
| 199 | 6699112 | 1.04 | 1.23 | |
| Geleidingsplaat | ||||
| 200 | 6600362 | 2.10 | 2.50 | |
| Nicht mehr lieferbar | ||||
| 501 | 6698756 | |||
