Hikoki CM75EAP Zeichnungen und Teile
Genaue Typennummer:
CM75EAP
CM75EAP

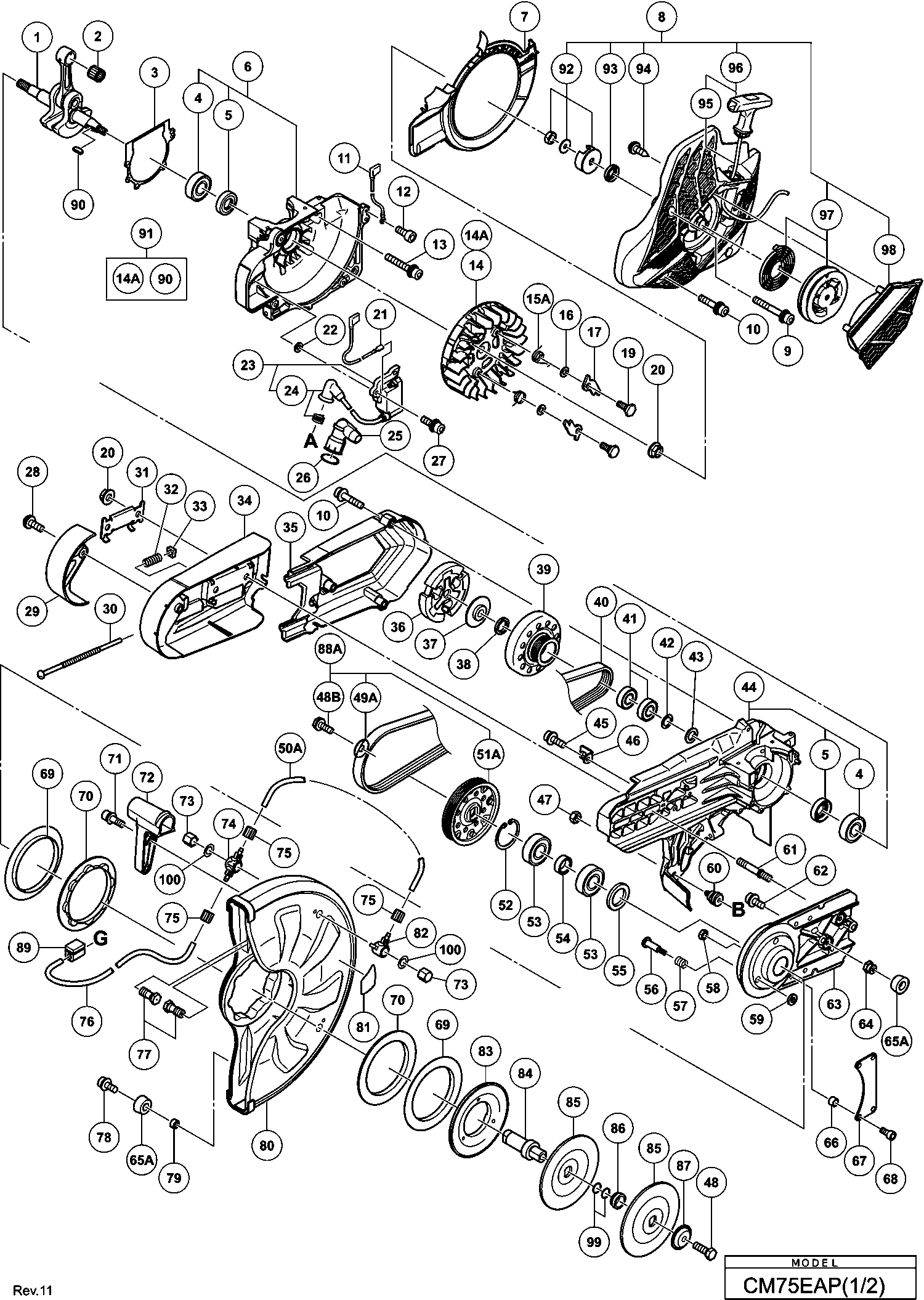

Zeichnungen der HIKOKI CM75EAP
Teileliste der HIKOKI CM75EAP
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Kurbelwelle | ||||
| 1 | 6699801 | Kurbelwelle | € 29.55 | |
| Naaldlager (a) | ||||
| 2 | 6699803 | Naaldlager (a) | € 3.48 | |
| Crank Case Packing | ||||
| 3 | 6699800 | Crank Case Packing | € 1.00 | |
| Kugellager | ||||
| 4 | 6202C3 | Kugellager | € 4.21 | |
| Olie Keerring | ||||
| 5 | 6698914 | Olie Keerring | € 3.05 | |
| Crank Case (a) | ||||
| 6 | 6600364 | Crank Case (a) | € 91.57 | |
| Fan Guide | ||||
| 7 | 6699875 | Fan Guide | € 3.05 | |
| Recoil Starter Ass'y | ||||
| 8 | 6699876 | Recoil Starter Ass'y | € 57.10 | |
| Set Bolt M5 | ||||
| 9 | 6600374 | Set Bolt M5 | € 1.74 | |
| Set Bolt M5x25 | ||||
| 10 | 6699871 | Set Bolt M5x25 | € 1.16 | |
| Earth Cord | ||||
| 11A | 6696567 | Earth Cord | € 2.03 | |
| Inbusschraube M4x10 (10st) Till 12.2017 | ||||
| 12 | 949812 | Inbusschraube M4x10 (10st) Till 12.2017 | € 2.32 | |
| Seal Lock Hex. Socket Hd. Bolt M5 | ||||
| 13 | 6600365 | Seal Lock Hex. Socket Hd. Bolt M5 | € 1.74 | |
| Magneto Rotor (old 6699808) | ||||
| 14A | 6600458 | Magneto Rotor (old 6699808) | € 12.49 | |
| Starter Pawl Spring | ||||
| 15A | 6600477 | Starter Pawl Spring | € 1.02 | |
| Ring 0.8 | ||||
| 16 | 6696857 | Ring 0.8 | € 1.02 | |
| Starter Pawl | ||||
| 17 | 6699811 | Starter Pawl | € 1.00 | |
| Bolzen | ||||
| 19 | 6696878 | Bolzen | € 1.02 | |
| Moer M8 | ||||
| 20 | 6698581 | Moer M8 | € 1.16 | |
| Cord | ||||
| 21 | 6699812 | Cord | € 1.00 | |
| Ring | ||||
| 22 | 6698700 | Ring | € 1.16 | |
| Ignition Coil Ass'y | ||||
| 23 | 6699809 | Ignition Coil Ass'y | € 25.56 | |
| Cord Set | ||||
| 24 | 6600434 | Cord Set | € 10.89 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 27 | 6698388 | Hex. Socket Hd Bolt M4x18 (w/washers) | € 1.02 | |
| Seal Lock Hex. Socket Button Bolt M5x10 | ||||
| 28 | 6699909 | Seal Lock Hex. Socket Button Bolt M5x10 | € 1.16 | |
| Cover Plate | ||||
| 29 | 6699908 | Cover Plate | € 4.07 | |
| Tensioner Bolt | ||||
| 30 | 6699907 | Tensioner Bolt | € 2.03 | |
| Tensioner Plate | ||||
| 31 | 6699904 | Tensioner Plate | € 2.03 | |
| Tensioner Spring | ||||
| 32 | 6699906 | Tensioner Spring | € 1.16 | |
| Tension Nut | ||||
| 33 | 6699905 | Tension Nut | € 1.16 | |
| Arm Cover | ||||
| 34 | 6699903 | Arm Cover | € 6.39 | |
| Clutch Cover | ||||
| 35 | 6699878 | Clutch Cover | € 8.57 | |
| Clutch | ||||
| 36 | 6699823 | Clutch | € 20.23 | |
| Clutch Flange | ||||
| 37 | 6699822 | Clutch Flange | € 4.07 | |
| Filzdichtung G12s1/g13yb1/fg12sa2 G13v/g13yd | ||||
| 38 | 301946 | Filzdichtung G12s1/g13yb1/fg12sa2 G13v/g13yd | € 1.00 | |
| Clutch Housing | ||||
| 39 | 6699821 | Clutch Housing | € 12.49 | |
| Belt | ||||
| 40 | 6699877 | Belt | € 10.31 | |
| Kugellager 6001 Dd | ||||
| 41 | 6001DD | Kugellager 6001 Dd | € 6.24 | |
| Shim | ||||
| 42 | 6696946 | Shim | € 1.62 | |
| Ring | ||||
| 43 | 6685072 | Ring | € 1.11 | |
| Crank Case (b) | ||||
| 44 | 6600366 | Crank Case (b) | € 123.92 | |
| Hex. Socket Hd. Bolt M5x16 (w/washers) | ||||
| 45 | 6699826 | Hex. Socket Hd. Bolt M5x16 (w/washers) | € 1.02 | |
| Tensioner Base | ||||
| 46 | 6699825 | Tensioner Base | € 1.16 | |
| Mutter M6 | ||||
| 47A | 329934 | Mutter M6 | € 1.67 | |
| Bolt M8 | ||||
| 48 | 6699902 | Bolt M8 | € 1.16 | |
| Water Supply Hose | ||||
| 50A | 6600462 | Water Supply Hose | € 1.02 | |
| Sicherungsring D40 Innen H41sa/h45ma/dh40mr | ||||
| 52 | 948391 | Sicherungsring D40 Innen H41sa/h45ma/dh40mr | € 1.60 | |
| Kugellager 6203 Dd | ||||
| 53 | 6203DD | Kugellager 6203 Dd | € 7.41 | |
| Bb Collar | ||||
| 54 | 6699880 | Bb Collar | € 2.03 | |
| Filz (1) | ||||
| 55 | 6699879 | Filz (1) | € 1.16 | |
| Bolt M5 (s) | ||||
| 56 | 6699896 | Bolt M5 (s) | € 1.16 | |
| Wheel Guard Spring | ||||
| 57 | 6699895 | Wheel Guard Spring | € 1.16 | |
| Sicherungsmutter M5 (10st) | ||||
| 58 | 949566 | Sicherungsmutter M5 (10st) | € 1.00 | |
| Unterlegscheibe M6 (10st), C8fse | ||||
| 59 | 949425 | Unterlegscheibe M6 (10st), C8fse | € 1.02 | |
| Spring Holder | ||||
| 60A | 6601390 | Spring Holder | € 2.76 | |
| Chain Bar Bolt | ||||
| 61 | 6699881 | Chain Bar Bolt | € 2.03 | |
| Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | ||||
| 62 | 6699176 | Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | € 1.00 | |
| Arm | ||||
| 63 | 6600367 | Arm | € 62.02 | |
| Stopper Holder | ||||
| 64 | 6699883 | Stopper Holder | € 1.16 | |
| Stopper Rubber (2 Pcs) (old 6600368) | ||||
| 65A | 6600442 | Stopper Rubber (2 Pcs) (old 6600368) | € 2.03 | |
| Collar | ||||
| 66 | 6699866 | Collar | € 1.16 | |
| Arm Plate | ||||
| 67 | 6600396 | Arm Plate | € 1.74 | |
| Hex. Socket Hd. Bolt M5x12 (precote) | ||||
| 68 | 6696836 | Hex. Socket Hd. Bolt M5x12 (precote) | € 1.16 | |
| Plate (a) | ||||
| 69 | 6699885 | Plate (a) | € 2.03 | |
| Damper (a) | ||||
| 70 | 6699886 | Damper (a) | € 2.03 | |
| Set Bolt M5x16 | ||||
| 71 | 6699889 | Set Bolt M5x16 | € 1.16 | |
| Handle (w) | ||||
| 72 | 6699888 | Handle (w) | € 2.03 | |
| Cap Nut | ||||
| 73 | 6699892 | Cap Nut | € 2.03 | |
| Water Supply Joint (b) | ||||
| 74 | 6699891 | Water Supply Joint (b) | € 1.16 | |
| Lock Nut | ||||
| 75 | 6699912 | Lock Nut | € 1.16 | |
| Water Supply Hose | ||||
| 76 | 6699911 | Water Supply Hose | € 1.16 | |
| Nozzle Bolt | ||||
| 77 | 6699893 | Nozzle Bolt | € 4.07 | |
| Bolzen | ||||
| 78 | 996399 | Bolzen | € 1.00 | |
| Stopper Holder | ||||
| 79 | 6600375 | Stopper Holder | € 1.74 | |
| Wheel Guard (12') | ||||
| 80 | 6699887 | Wheel Guard (12') | € 84.65 | |
| Wheel Mark Label (12") | ||||
| 81 | 6600376 | Wheel Mark Label (12") | € 1.74 | |
| Water Supply Joint (a) | ||||
| 82 | 6699890 | Water Supply Joint (a) | € 1.16 | |
| Flange (a) | ||||
| 83 | 6699894 | Flange (a) | € 17.97 | |
| Spindel (1) | ||||
| 84 | 6699882 | Spindel (1) | € 11.47 | |
| Wheel Washer | ||||
| 85 | 6699897 | Wheel Washer | € 5.52 | |
| Spindle Collar | ||||
| 86 | 6699898 | Spindle Collar | € 3.05 | |
| Flange Washer | ||||
| 87 | 6699901 | Flange Washer | € 1.16 | |
| Hose Holder | ||||
| 89 | 6600457 | Hose Holder | € 1.00 | |
| Woodruff Key | ||||
| 90 | 6600459 | Woodruff Key | € 1.00 | |
| Magneto Rotor Set | ||||
| 91 | 6600460 | Magneto Rotor Set | € 13.21 | |
| Cam Complete Set | ||||
| 92 | 6600469 | Cam Complete Set | € 6.82 | |
| Starter Grommet | ||||
| 93 | 6600471 | Starter Grommet | € 5.66 | |
| Tapping Screw D4x16 | ||||
| 94 | 6600466 | Tapping Screw D4x16 | € 1.00 | |
| Starter Rope | ||||
| 95 | 6600468 | Starter Rope | € 7.41 | |
| Rope Ass'y | ||||
| 96 | 6600467 | Rope Ass'y | € 8.57 | |
| Reel Complete Set | ||||
| 97 | 6600470 | Reel Complete Set | € 20.36 | |
| Fan Case Cover | ||||
| 98 | 6600464 | Fan Case Cover | € 18.77 | |
| O-ring (s-12) Dv20v1/cs35b/u.a. Vb16y | ||||
| 99 | 875638 | O-ring (s-12) Dv20v1/cs35b/u.a. Vb16y | € 1.60 | |
| Pulley Washer | ||||
| 100 | 6600495 | Pulley Washer | € 1.00 | |
| Tank Dop | ||||
| 101 | 6600369 | Tank Dop | € 4.94 | |
| Tankkappen Verpackung | ||||
| 102 | 6685179 | Tankkappen Verpackung | € 1.11 | |
| Square Nut M5 | ||||
| 103 | 6699828 | Square Nut M5 | € 1.16 | |
| Hauptpumpe | ||||
| 104 | 6685139 | Hauptpumpe | € 5.75 | |
| BRANDSTOFLEIDING | ||||
| 105 | 6698722 | BRANDSTOFLEIDING | € 9.44 | |
| Fuel Pipe | ||||
| 106A | 6601460 | Fuel Pipe | € 2.18 | |
| Schneidschraube D4x25 Mit Flansch Neue Art.nr. 30 | ||||
| 107 | 304035 | Schneidschraube D4x25 Mit Flansch Neue Art.nr. 30 | € 1.00 | |
| Tank Mark Label | ||||
| 108 | 6698921 | Tank Mark Label | € 1.16 | |
| Tank Mark Label (25:1) | ||||
| 108 | 6698922 | Tank Mark Label (25:1) | € 1.16 | |
| Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | ||||
| 109 | 305812 | Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | € 1.00 | |
| Air Vent Cap | ||||
| 110 | 6699838 | Air Vent Cap | € 1.16 | |
| Tank Dop Compleet | ||||
| 111 | 6600370 | Tank Dop Compleet | € 14.23 | |
| Fuel Grommet | ||||
| 112 | 6698931 | Fuel Grommet | € 3.34 | |
| Return Grommet (old 6684627) | ||||
| 113 | 6697846 | Return Grommet (old 6684627) | € 1.00 | |
| Achtergreep | ||||
| 114 | 6699827 | Achtergreep | € 25.82 | |
| Long Nut M6 | ||||
| 116 | 6699852 | Long Nut M6 | € 1.16 | |
| Front Handle | ||||
| 117 | 6699842 | Front Handle | € 22.09 | |
| Tapschroef D6 | ||||
| 118 | 6696872 | Tapschroef D6 | € 1.02 | |
| Inbus Bout M6x20 | ||||
| 119 | 881722 | Inbus Bout M6x20 | € 1.74 | |
| Anti-trilveer | ||||
| 120 | 6699849 | Anti-trilveer | € 1.16 | |
| Front Adapter | ||||
| 121 | 6699847 | Front Adapter | € 13.79 | |
| Grip End (b) | ||||
| 122 | 6699844 | Grip End (b) | € 1.16 | |
| Hex. Socket Hd. Bolt M6x50 | ||||
| 123 | 6699819 | Hex. Socket Hd. Bolt M6x50 | € 1.00 | |
| Uitlaat | ||||
| 124 | 6699816 | Uitlaat | € 30.08 | |
| Hitteschild | ||||
| 125 | 6699815 | Hitteschild | € 1.74 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 126 | 6698899 | Seal Lock Hex. Socket Hd. Bolt M6x20 | € 1.16 | |
| Ring | ||||
| 127 | 6685068 | Ring | € 1.11 | |
| Exhaust Pipe | ||||
| 128 | 6699818 | Exhaust Pipe | € 1.00 | |
| Exhaust Gasket | ||||
| 129 | 6699817 | Exhaust Gasket | € 1.00 | |
| Trigger Lockout Collar | ||||
| 130 | 6699836 | Trigger Lockout Collar | € 1.16 | |
| Trigger Lockout | ||||
| 131 | 6699835 | Trigger Lockout | € 1.16 | |
| Needle Pin D3 | ||||
| 132 | 6699834 | Needle Pin D3 | € 1.16 | |
| Throttle Lever Spring | ||||
| 133 | 6699833 | Throttle Lever Spring | € 1.16 | |
| Throttle Lever | ||||
| 134 | 6699832 | Throttle Lever | € 1.16 | |
| Throttle Rod | ||||
| 135 | 6699863 | Throttle Rod | € 1.16 | |
| Cilinder Afdekkap | ||||
| 136 | 6699865 | Cilinder Afdekkap | € 8.86 | |
| Brandstofleiding | ||||
| 137 | 6698908 | Brandstofleiding | € 4.50 | |
| D6clipnew | ||||
| 138 | 6685311 | D6clipnew | € 1.02 | |
| Filterpumpen Gehäuse alte Art.nr.675-11657-90 | ||||
| 139 | 6692285 | Filterpumpen Gehäuse alte Art.nr.675-11657-90 | € 7.03 | |
| Veerhouder | ||||
| 140 | 6699851 | Veerhouder | € 2.03 | |
| Anti-trilveer | ||||
| 141 | 6699824 | Anti-trilveer | € 2.03 | |
| Decomp Cap | ||||
| 143 | 6600378 | Decomp Cap | € 3.34 | |
| Decomp. | ||||
| 144 | 6698541 | Decomp. | € 22.09 | |
| Grip End (a) | ||||
| 145 | 6699843 | Grip End (a) | € 1.16 | |
| Cylinder (old 6600371) | ||||
| 146A | 6600478 | Cylinder (old 6600371) | € 58.70 | |
| Insulator Clip | ||||
| 147 | 6699862 | Insulator Clip | € 1.16 | |
| Insulator Plate | ||||
| 148 | 6699858 | Insulator Plate | € 2.03 | |
| Carburetor Insulator | ||||
| 149 | 6699860 | Carburetor Insulator | € 8.57 | |
| Brandstofleiding (fkm) | ||||
| 150 | 6699857 | Brandstofleiding (fkm) | € 5.95 | |
| Carburetor Ass'y (c3m) | ||||
| 151 | 6699856 | Carburetor Ass'y (c3m) | € 60.69 | |
| Screw (d) | ||||
| 152 | 6600385 | Screw (d) | € 3.34 | |
| Pump Cover | ||||
| 153 | 6600386 | Pump Cover | € 10.02 | |
| Pump Gasket | ||||
| 154 | 6600387 | Pump Gasket | € 3.34 | |
| Pump Diaphragm | ||||
| 155 | 6600388 | Pump Diaphragm | € 3.34 | |
| Strainer | ||||
| 156 | 6600389 | Strainer | € 4.94 | |
| Screw (e) | ||||
| 157 | 6600390 | Screw (e) | € 3.34 | |
| Stift (1) | ||||
| 158 | 6699082 | Stift (1) | € 1.02 | |
| Metealing Lever Spring | ||||
| 159 | 6600391 | Metealing Lever Spring | € 3.34 | |
| Inlet Needle Valve | ||||
| 160 | 6699081 | Inlet Needle Valve | € 6.82 | |
| Metering Lever | ||||
| 161 | 6699084 | Metering Lever | € 1.60 | |
| Metealing Chamber Gasket | ||||
| 162 | 6600392 | Metealing Chamber Gasket | € 4.94 | |
| Metealing Diaphragm | ||||
| 163 | 6600393 | Metealing Diaphragm | € 9.44 | |
| Metealing Chamber Cover | ||||
| 164 | 6600394 | Metealing Chamber Cover | € 41.39 | |
| Set Screw (c) | ||||
| 165 | 6699094 | Set Screw (c) | € 1.02 | |
| Brandstofleiding | ||||
| 166 | 6698873 | Brandstofleiding | € 4.94 | |
| Square Nut (b) M5 | ||||
| 167 | 6699859 | Square Nut (b) M5 | € 1.16 | |
| Inbusschraube M6x25 M.flansch | ||||
| 168 | 991712 | Inbusschraube M6x25 M.flansch | € 1.02 | |
| Cylinder Packing | ||||
| 169 | 6600397 | Cylinder Packing | € 3.34 | |
| Piston Ring | ||||
| 170 | 6699806 | Piston Ring | € 2.03 | |
| Cir Clip | ||||
| 171 | 6699805 | Cir Clip | € 1.00 | |
| Piston (51.5) | ||||
| 172 | 6699804 | Piston (51.5) | € 8.42 | |
| Zuiger Pin | ||||
| 173 | 6699802 | Zuiger Pin | € 1.60 | |
| Water Supply Connector | ||||
| 174 | 6699913 | Water Supply Connector | € 9.29 | |
| Mounting Plate | ||||
| 175 | 6699914 | Mounting Plate | € 1.16 | |
| Valve | ||||
| 176 | 6699915 | Valve | € 10.31 | |
| Coupler | ||||
| 177 | 6699916 | Coupler | € 3.05 | |
| Grommet | ||||
| 178 | 6698787 | Grommet | € 1.74 | |
| Throttle Lock Pin | ||||
| 179 | 6699829 | Throttle Lock Pin | € 1.16 | |
| Carbureteur Pakking | ||||
| 180 | 6699855 | Carbureteur Pakking | € 1.16 | |
| Carburetor Bracket | ||||
| 181 | 6699854 | Carburetor Bracket | € 4.07 | |
| Pre Filter | ||||
| 182 | 6699872 | Pre Filter | € 4.94 | |
| Caution Label (eng) | ||||
| 183 | 6600382 | Caution Label (eng) | € 3.34 | |
| Cleaner Knob | ||||
| 184 | 6699874 | Cleaner Knob | € 2.03 | |
| Knob Packing | ||||
| 185 | 6698570 | Knob Packing | € 1.16 | |
| Start Label (cm75) (ex) | ||||
| 186 | 6600381 | Start Label (cm75) (ex) | € 1.74 | |
| Cleaner Box (b) | ||||
| 187 | 6699873 | Cleaner Box (b) | € 9.87 | |
| Rubber Rope | ||||
| 188 | 6699870 | Rubber Rope | € 2.03 | |
| Cleaner Box (a) | ||||
| 189 | 6699869 | Cleaner Box (a) | € 13.79 | |
| RUBBEREN PEN | ||||
| 190 | 931701 | RUBBEREN PEN | € 1.02 | |
| Choke Button | ||||
| 191 | 6699864 | Choke Button | € 1.16 | |
| Gummi f.drosselgestell | ||||
| 192 | 6685369 | Gummi f.drosselgestell | € 1.02 | |
| Paper Filter | ||||
| 193 | 6699868 | Paper Filter | € 6.68 | |
| Nylon Filter | ||||
| 194 | 6699867 | Nylon Filter | € 4.07 | |
| Hex. Socket Hd. Bolt M5x55 (w/washers) | ||||
| 195 | 6699861 | Hex. Socket Hd. Bolt M5x55 (w/washers) | € 1.16 | |
| Stop Switch | ||||
| 196A | 6601275 | Stop Switch | € 1.31 | |
| Switch Cover | ||||
| 197 | 6698400 | Switch Cover | € 1.02 | |
| Throttle Lock Pin Spring | ||||
| 198 | 6699830 | Throttle Lock Pin Spring | € 1.16 | |
| Throttle Lock Cap | ||||
| 199 | 6699831 | Throttle Lock Cap | € 1.16 | |
| Rear Foot | ||||
| 200 | 6699839 | Rear Foot | € 2.03 | |
| Anti-trilveer | ||||
| 201 | 6699840 | Anti-trilveer | € 1.16 | |
| Lower Guard | ||||
| 202 | 6699841 | Lower Guard | € 6.39 | |
| Muffler Guard (old 6600395) | ||||
| 203A | 6600443 | Muffler Guard (old 6600395) | € 41.13 | |
| FRONT FOOT RUBBER (B) | ||||
| 205A | 6601393 | FRONT FOOT RUBBER (B) | € 1.45 | |
| FRONT FOOT PLATE (B) | ||||
| 206A | 6601392 | FRONT FOOT PLATE (B) | € 2.18 | |
| Hex. Socket Hd. Bolt M5 (w/washers) | ||||
| 207 | 6600372 | Hex. Socket Hd. Bolt M5 (w/washers) | € 1.74 | |
| Hex. Socket Hd Bolt M5x18 (w/sp.washer) | ||||
| 207A | 6698386 | Hex. Socket Hd Bolt M5x18 (w/sp.washer) | € 1.02 | |
| Idle Sponge | ||||
| 208 | 6600056 | Idle Sponge | € 1.02 | |
| Band | ||||
| 209 | 6698943 | Band | € 1.16 | |
| Earth Cord Set | ||||
| 210 | 6601373 | Earth Cord Set | € 1.31 | |
| Spring Holder | ||||
| 211 | 6601391 | Spring Holder | € 3.63 | |
| Ring (b) | ||||
| 212 | 6699112 | Ring (b) | € 1.00 | |
| Front Foot Holder (old 6601365) | ||||
| 213 | 6601394 | Front Foot Holder (old 6601365) | € 5.95 | |
| Combi Box Spanner 13x19 | ||||
| 501 | 6698582 | Combi Box Spanner 13x19 | € 4.50 | |
| HEX. BAR WRENCH 4MMX135L | ||||
| 502 | 6699918 | HEX. BAR WRENCH 4MMX135L | € 3.05 | |
| Adapter Collar | ||||
| 504 | 6699919 | Adapter Collar | € 6.10 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
