Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki DH18DSL'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

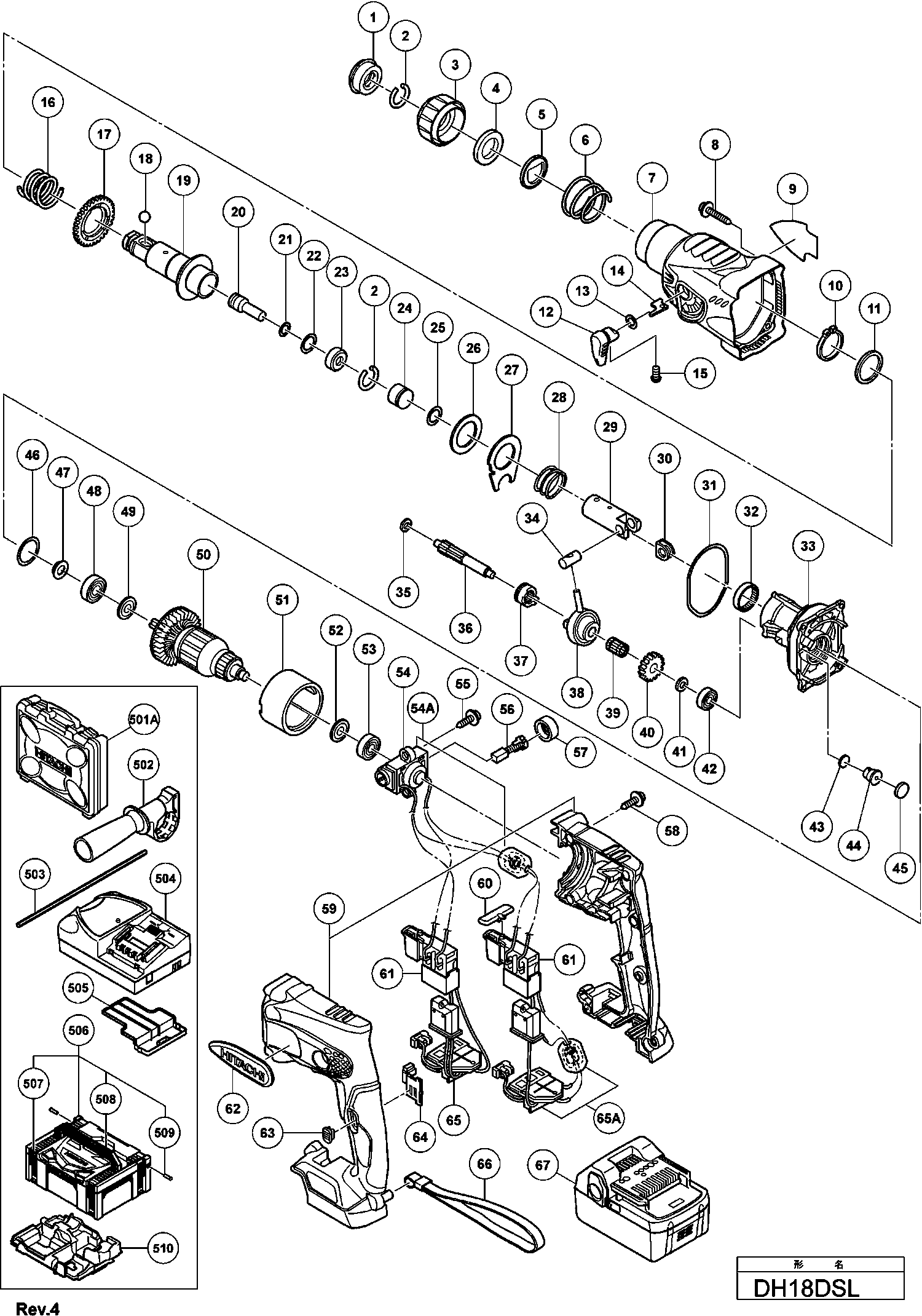

Zeichnungen der Hikoki DH18DSL
Teileliste der Hikoki DH18DSL
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Keine Informationen verfügbar, nicht bestellbar | ||||
1 | 306345 | |||
Sicherungsring Dh18vb/dh30pc | ||||
2 | 306340 | 1.35 | 1.61 | |
Kappe | ||||
3 | 325597 | 3.30 | 3.93 | |
Kugelhalter Dh22pg | ||||
4 | 327879 | 3.15 | 3.75 | |
Halteplatte Dh24pc3 | ||||
5 | 324526 | 3.30 | 3.93 | |
Haltefeder Dh24pb2 | ||||
6 | 322812 | 1.65 | 1.96 | |
Getriebegehaeuse | ||||
7 | 325593 | 67.10 | 79.85 | |
Schneidschraube D4x30 M.flansch (schwarz) | ||||
8 | 305490 | 1.04 | 1.23 | |
Federscheibe | ||||
10 | 965469 | 1.05 | 1.25 | |
Ring | ||||
11 | 944274 | 1.05 | 1.25 | |
Hebel | ||||
12 | 325594 | 1.65 | 1.96 | |
Nicht mehr lieferbar, kein Ersatz | ||||
13 | 872654 | |||
Stopper Dh22pg | ||||
14 | 327875 | 1.65 | 1.96 | |
Kopfschraube M4x5 (10st) Except For Ind | ||||
15 | 949213 | 1.05 | 1.25 | |
Feder (a) Dh18vb | ||||
16 | 306334 | 3.60 | 4.28 | |
Zweites Zahnrad Dh18vb | ||||
17 | 306333 | 18.98 | 22.58 | |
Stahlkugel D7.0 (10st) | ||||
18 | 959156 | 1.65 | 1.96 | |
Zylinder | ||||
19 | 327876 | 22.83 | 27.16 | |
Zweithammer Dh22pg | ||||
20 | 327877 | 2.10 | 2.50 | |
O-ring (b) Dh15d/dh20dv/dh22vb/vd Dh24pb-vd/dh20p | ||||
21 | 301672 | 1.05 | 1.25 | |
O-ring (p-15) Dh22pg | ||||
22 | 311814 | 1.05 | 1.25 | |
Hammerhalter Dh22pg | ||||
23 | 327878 | 2.10 | 2.50 | |
Anschläger Dh22pg | ||||
24 | 325601 | 4.80 | 5.71 | |
O-ring (a) Dh18vb | ||||
25 | 306326 | 3.00 | 3.57 | |
Druckunterlegscheibe Dh22pg | ||||
26 | 327880 | 1.05 | 1.25 | |
Druckplatte Dh22pg | ||||
27 | 325588 | 3.30 | 3.93 | |
Feder (b) | ||||
28 | 306976 | 3.60 | 4.28 | |
Kolben | ||||
29 | 306324 | 14.10 | 16.78 | |
Ring | ||||
30 | 321007 | 3.30 | 3.93 | |
O-ring(id61) Dh14dsl | ||||
31 | 325583 | 1.65 | 1.96 | |
Nadellager | ||||
32 | 306328 | 4.80 | 5.71 | |
Innenabdeckung (d) Dh14dsl Includ.42-45 | ||||
33 | 328479 | 32.31 | 38.45 | |
Kolbenstift Dh18vb | ||||
34 | 306322 | 6.15 | 7.32 | |
Abstandhalter Dh22pg | ||||
35 | 325587 | 1.65 | 1.96 | |
Zweite Welle Dh22pg | ||||
36 | 327871 | 5.85 | 6.96 | |
Kupplung Dh22pg | ||||
37 | 325584 | 9.00 | 10.71 | |
Pendel-kugellager Dh22pg | ||||
38 | 325585 | 26.95 | 32.07 | |
Nadelkäfig Dh18vb | ||||
39 | 306320 | 5.25 | 6.25 | |
Erstes Zahnrad Dh22pg | ||||
40 | 327872 | 4.20 | 5.00 | |
Unterlegscheibe | ||||
41 | 995634 | 1.05 | 1.25 | |
Kugellager 626 Vvm Cj65v3 | ||||
42 | 626VVM | 5.70 | 6.78 | |
Filzdichtung (a) Dh24pc3 | ||||
43 | 324543 | 1.65 | 1.96 | |
Ventil Dh24pc3 | ||||
44 | 324545 | 1.65 | 1.96 | |
Filzdichtung (b) Dh24pc3 | ||||
45 | 324544 | 1.65 | 1.96 | |
O-ring (s-24) Nv32a/ab/vb13y Vb16y | ||||
46 | 878609 | 1.05 | 1.25 | |
Schleuderscheibe Dh18vb | ||||
47 | 306312 | 1.95 | 2.32 | |
Kugellager 609ddc | ||||
48 | 609DDC | 12.66 | 15.07 | |
Lagerring | ||||
49 | 958915 | 1.04 | 1.23 | |
Anker 18v | ||||
50 | 360809 | 45.65 | 54.32 | |
Magnet | ||||
51 | 328482 | 17.19 | 20.45 | |
Unterlegscheibe | ||||
52 | 980865 | 1.04 | 1.23 | |
Kugellager 626 Vvm Cj65v3 | ||||
53 | 626VVM | 5.70 | 6.78 | |
Bürstenblock Dh14dsl Except For Europe (till 2.20 | ||||
54 | 328486 | 12.45 | 14.82 | |
Bürstenblock Komplett Cl10sa Includ.23,24 | ||||
54A | 334890 | 14.58 | 17.34 | |
Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | ||||
55 | 305812 | 1.04 | 1.23 | |
Kohlebürsten (1 Paar) | ||||
56 | 999100 | 4.20 | 5.00 | |
Kohlenkappe C6dd/cr24dv/dv24dv/cg18dal/ Cg18dl | ||||
57 | 319847 | 1.65 | 1.96 | |
Schneidschraube D4x20 Mit Flansch (schwarz), C8fs | ||||
58 | 301653 | 1.04 | 1.23 | |
Gehäuse Set A+b Dh18dsl | ||||
59 | 330075 | 26.68 | 31.74 | |
Druckknopf Dv18v | ||||
60 | 322853 | 1.05 | 1.25 | |
Schalter | ||||
61 | 328484 | 32.31 | 38.45 | |
Schieber | ||||
63 | 326276 | 1.05 | 1.25 | |
Bolzen | ||||
64 | 328480 | 1.20 | 1.43 | |
Kontrollstation Dh18dsl Except For Europe(till 2. | ||||
65 | 330074 | 123.20 | 146.61 | |
Regler | ||||
65A | 334895 | 91.30 | 108.65 | |
Trageriemen (schwarz) | ||||
66 | 306952 | 4.05 | 4.82 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
67 | 330068 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
501A | 337088 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
502 | 324548 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
503 | 303709 | |||
Abdeckkappe für Batterie | ||||
505 | 329897 | 1.80 | 2.14 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
506 | 336471 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
507 | 336472 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
508 | 336473 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
509 | 336474 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
510 | 337114 | |||
Fett (Dose 500 Gramm) | ||||
601 | 980927 | 73.01 | 86.88 | |
Fett (tube 30 Gramm) | ||||
602 | 981840 | 8.40 | 10.00 | |
Fett für Hammer. Hammerbohrer (70g) | ||||
603 | 308471 | 12.75 | 15.17 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
604 | 306885 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
605 | 986802 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
606 | 986803 | |||
Dichtung | ||||
607 | 986804 | 3.38 | 4.02 | |
Sicherungsring D30 Div.typen Dh30pc | ||||
608 | 948310 | 1.35 | 1.61 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
609 | 958063 | |||
Stahlkugel D6,35 (10st) | ||||
610 | 959150 | 1.35 | 1.61 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
611 | 986805 | |||
Steckdose | ||||
612 | 986806 | 5.10 | 6.07 | |
Steckdosenadapter (b) | ||||
613 | 306910 | 4.50 | 5.36 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
614 | 971787 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
615 | 931844 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
616 | 321814 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
617 | 995344 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
618 | 321813 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
619 | 971511Z | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
620 | 971512Z | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
621 | 944477 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
622 | 982684 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
623 | 982685 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
624 | 982672 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
625 | 982673 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
626 | 982674 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
627 | 982686 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
628 | 982675 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
629 | 982687 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
630 | 982676 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
631 | 982688 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
632 | 982677 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
633 | 982689 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
635 | 982690 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
636 | 971794 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
637 | 971795 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
638 | 971796 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
639 | 971797 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
640 | 971798 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
641 | 971799 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
642 | 971800 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
643 | 971801 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
644 | 971802 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
645 | 971803 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
647 | 944461 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
648 | 993038 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
650 | 944500 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
653 | 303046 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
654 | 303044 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
655 | 303045 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
656 | 303617 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
657 | 303619 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
658 | 303620 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
659 | 303624 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
660 | 303623 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
661 | 302976 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
662 | 302975 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
663 | 303621 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
664 | 302974 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
665 | 302979 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
666 | 302978 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
667 | 303622 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
668 | 302977 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
669 | 303625 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
670 | 303626 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
671 | 303627 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
672 | 303332 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
673 | 303334 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
674 | 303335 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
675 | 321825 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
676 | 303623 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
677 | 321814 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
678 | 987576 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
679 | 995344 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
680 | 930515 |
