Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki DH22PB'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

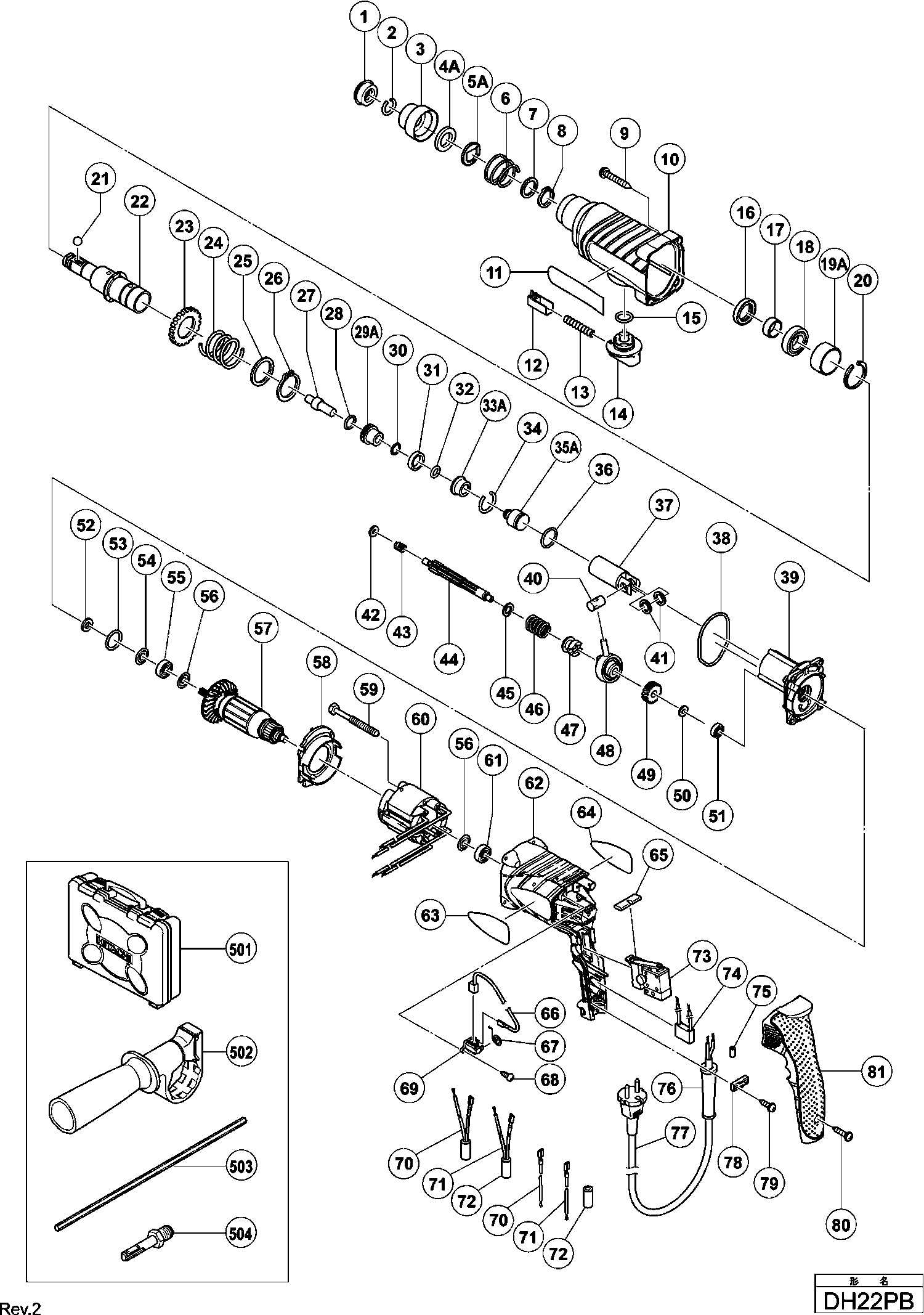

Zeichnungen der Hikoki DH22PB
Teileliste der Hikoki DH22PB
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Keine Informationen verfügbar, nicht bestellbar | ||||
1 | 306345 | |||
Sicherungsring Dh18vb/dh30pc | ||||
2 | 306340 | 1.35 | 1.61 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
3 | 322809 | |||
Kugelhalter Dh24pc3 | ||||
4A | 324528 | 6.45 | 7.68 | |
Halteplatte Dh24pc3 | ||||
5A | 324526 | 3.30 | 3.93 | |
Haltefeder Dh24pb2 | ||||
6 | 322812 | 1.65 | 1.96 | |
Scheibe (b) Ds9dva/ds12dva/ds14dv Ds14dva/ds14dvb | ||||
7 | 984118 | 1.05 | 1.25 | |
Sicherungsring D20 (10 Stücke) | ||||
8 | 939547 | 3.90 | 4.64 | |
SCHRAUBE M4X35 | ||||
9 | 301654 | 1.05 | 1.25 | |
Getriebegehaeuse | ||||
10 | 322786 | 58.44 | 69.54 | |
Druckknopf | ||||
12 | 322789 | 4.80 | 5.71 | |
Druckfeder Dh24pc | ||||
13 | 317223 | 1.65 | 1.96 | |
Wechselhebel Dh24pb2 | ||||
14 | 322787 | 6.45 | 7.68 | |
O-ring (s-18) Cr17y/nv65ad2, Nr90aa | ||||
15 | 878885 | 1.05 | 1.25 | |
Öldichtung Dh24pb/pd/vb/vd Dh20pb | ||||
16 | 307688 | 3.90 | 4.64 | |
EXZENTERHUELSE | ||||
17 | 322815 | 1.65 | 1.96 | |
KUGELLAGER 6904DDPS2L | ||||
18 | 6904DD | 15.81 | 18.82 | |
BUS (A) | ||||
19A | 324522 | 3.30 | 3.93 | |
Federring 37MM | ||||
20 | 322813 | 1.65 | 1.96 | |
Stahlkugel D7.0 (10st) | ||||
21 | 959156 | 1.65 | 1.96 | |
Zylinder | ||||
22 | 322814 | 73.01 | 86.88 | |
Zweites Zahnrad Dh22vb/vd/ Dh24pb-vd/dh20pb | ||||
23 | 301677 | 23.38 | 27.82 | |
Feder (a) Dh22vb/vd/dh24pb-vd Dh20pb | ||||
24 | 301678 | 3.30 | 3.93 | |
Ring | ||||
25 | 301679 | 1.20 | 1.43 | |
Sicherungsring D30 Div.typen Dh30pc | ||||
26 | 948310 | 1.35 | 1.61 | |
Zweithammer Dh24pc3 | ||||
27 | 324525 | 6.45 | 7.68 | |
O-ring (iap-20) Cm6/wh16/vb16y | ||||
28 | 944486 | 1.05 | 1.25 | |
Hammerhalter Dh24pc3 | ||||
29A | 324523 | 11.55 | 13.74 | |
O-ring Dh24pb2 | ||||
30 | 322802 | 3.30 | 3.93 | |
DÄMPFERING (A) | ||||
31 | 322805 | 1.65 | 1.96 | |
O-ring (c) Dh40ma/mb/mr | ||||
32 | 322808 | 1.65 | 1.96 | |
Dämpferhalter Dh24pc3 | ||||
33A | 324524 | 6.45 | 7.68 | |
STOPFRING | ||||
34 | 322807 | 1.65 | 1.96 | |
Anschläger Dh24 Pc3 | ||||
35A | 324535 | 10.20 | 12.14 | |
O-ring Dh24pb2 | ||||
36 | 322834 | 3.30 | 3.93 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
37 | 322800 | |||
O-Ring | ||||
38 | 322793 | 3.30 | 3.93 | |
Innengehäuse Dh24pb2 | ||||
39 | 322792 | 28.88 | 34.36 | |
Kolbenpin Dh24pb2 | ||||
40 | 322798 | 1.65 | 1.96 | |
Unterlegscheibe (c) Dh24pb2 | ||||
41 | 322799 | 1.65 | 1.96 | |
Distanzbuchse Dh24pb2 | ||||
42 | 322795 | 1.65 | 1.96 | |
Feder (b) Dh24pb2 | ||||
43 | 322796 | 3.30 | 3.93 | |
Getriebewelle | ||||
44 | 322794 | 18.70 | 22.25 | |
Unterlegscheibe | ||||
45 | 301659 | 1.04 | 1.23 | |
Kupplungsfeder Dh22vb/d/dh24pb-vd Dh20pb | ||||
46 | 301660 | 1.04 | 1.23 | |
Kupplung Dh24pd3 | ||||
47 | 324532 | 11.55 | 13.74 | |
Pendel-kugellager Dh15dv/dh20pb | ||||
48 | 306990 | 49.64 | 59.07 | |
Erstes Zahnrad Dh24pb2 | ||||
49 | 322797 | 13.50 | 16.06 | |
Distanzring AU 43 FF | ||||
50 | 301663 | 1.04 | 1.23 | |
Kugellager 626 Vvm Cj65v3 | ||||
51 | 626VVM | 5.70 | 6.78 | |
Filzdichtung G12s1/g13yb1/fg12sa2 G13v/g13yd | ||||
52 | 322816 | 1.65 | 1.96 | |
O-ring (p-22) Dh24pb/pd/nv83a Dh20pb | ||||
53 | 876796 | 1.05 | 1.25 | |
Dichtungsscheibe für Wh14 | ||||
54 | 322818 | 3.30 | 3.93 | |
Kugellager 608ddm | ||||
55 | 608DDM | 5.55 | 6.60 | |
Unterlegscheibe (a) Cr17y/dh20pb H30pv/dh30pc/h45 | ||||
56 | 982631 | 1.04 | 1.23 | |
Anker 230v | ||||
57 | 360650E | 43.73 | 52.03 | |
Ventilatorführung Dh24pb2 | ||||
58 | 322791 | 3.30 | 3.93 | |
Sechskantschneidschraube D4x50 | ||||
59 | 961672 | 1.04 | 1.23 | |
Stator 220-230v Dh22pb | ||||
60 | 340583E | 39.88 | 47.45 | |
Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | ||||
61 | 608VVM | 5.70 | 6.78 | |
Gehäuse | ||||
62 | 322836 | 17.19 | 20.45 | |
Druckknopf | ||||
65 | 322790 | 1.65 | 1.96 | |
Kohlebürsten (paar), Cm5sb | ||||
66 | 999088 | 4.50 | 5.36 | |
Kohlenhalterfeder G12se/g13v G13yd/g13sb2/g12sa2 | ||||
67 | 308536 | 1.65 | 1.96 | |
Schneidschraube D3x10 | ||||
68 | 306945 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
69 | 322838 | |||
Verbinderkabel (braun) | ||||
70 | 322826 | 3.00 | 3.57 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
71 | 322829 | |||
Puffer (b) Dh24pb2 | ||||
72 | 322823 | 1.65 | 1.96 | |
Schalter | ||||
73 | 322825 | 46.75 | 55.63 | |
Kanalhülse für Kabel (d) Div.typen, Cm9uby, G23ss | ||||
75 | 981373 | 1.05 | 1.25 | |
Kabelknickschutz D8.8 Div.typen, Cm5sb | ||||
76 | 380090 | 1.04 | 1.24 | |
Kabelknickschutz D10.1 Div.typen, C8fshe, C8fse | ||||
76 | 938051 | 1.04 | 1.23 | |
Nicht mehr lieferbar, kein Ersatz | ||||
77 | 500391Z | |||
Kabelklemme Div.typen, C8fshe, Cm5sb, C8fse | ||||
78 | 937631 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
79 | 984750 | |||
Schneidschraube D4x20 Mit Flansch (schwarz), C8fs | ||||
80 | 301653 | 1.04 | 1.23 | |
Handgriffabdeckung Dh22pb | ||||
81 | 322837 | 10.65 | 12.67 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
501A | 324555 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
502 | 303659 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
503 | 303709 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
504 | 303624 | |||
Fett (Dose 500 Gramm) | ||||
601 | 980927 | 73.01 | 86.88 | |
Fett (tube 30 Gramm) | ||||
602 | 981840 | 8.40 | 10.00 | |
Fett für Hammer. Hammerbohrer (70g) | ||||
603 | 308471 | 12.75 | 15.17 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
604 | 306885 | |||
Steckdosenadapter (b) | ||||
605 | 306910 | 4.50 | 5.36 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
606 | 971787 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
607 | 931844 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
608 | 321814 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
609 | 995344 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
610 | 321813 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
611 | 971511Z | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
612 | 971512Z | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
613 | 944477 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
614 | 982684 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
615 | 982685 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
616 | 982672 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
619 | 982686 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
621 | 982687 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
623 | 982688 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
625 | 982689 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
627 | 982690 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
628 | 971794 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
629 | 971795 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
630 | 971796 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
631 | 971797 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
632 | 971798 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
633 | 971799 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
634 | 971800 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
635 | 971801 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
636 | 971802 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
637 | 971803 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
638 | 303046 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
639 | 303044 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
640 | 303045 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
641 | 302976 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
642 | 930515 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
643 | 302975 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
644 | 303621 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
645 | 302974 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
646 | 302979 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
647 | 302978 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
648 | 303622 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
649 | 302977 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
650 | 303332 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
651 | 303334 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
652 | 303335 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
653 | 303617 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
654 | 303618 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
655 | 303619 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
656 | 303620 | |||
Senkkopfschraube M6x22 Linksgew. | ||||
657 | 981122 | 1.35 | 1.61 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
658 | 303627 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
659 | 303625 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
660 | 303626 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
661 | 303624 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
662 | 303623 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
663 | 321825 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
674 | 320859 | |||
Flüssige Dichtung | ||||
676 | 324688 | 40.84 | 48.60 |
