Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki DH35'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

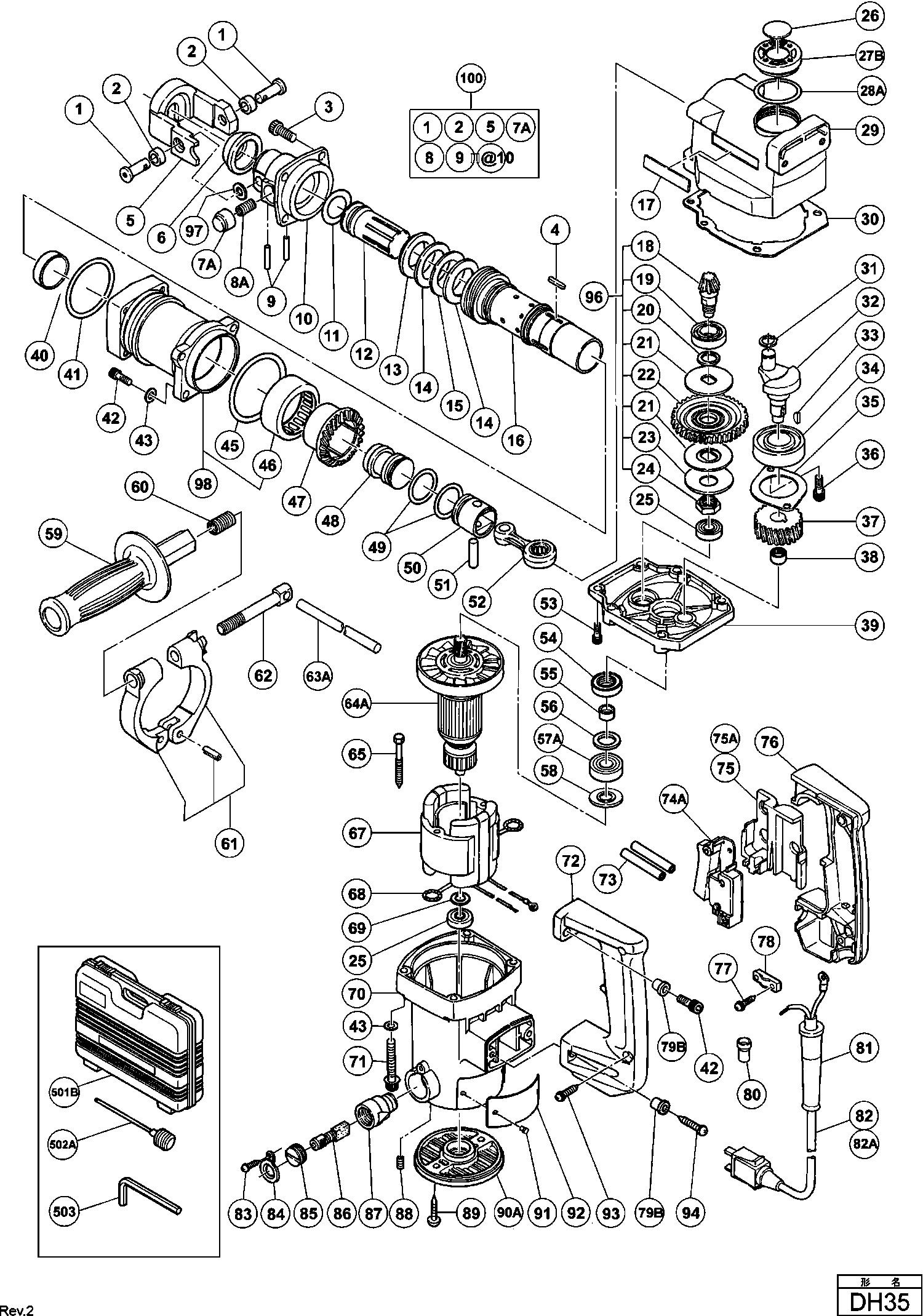

Zeichnungen der Hikoki DH35
Teileliste der Hikoki DH35
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Werkzeughalterstift H41sa | ||||
1 | 990135 | 11.85 | 14.10 | |
Dämpfer H41sa | ||||
2 | 990134 | 2.40 | 2.86 | |
Inbusschraube M7x20 Selbstsich. | ||||
3 | 993068 | 2.40 | 2.86 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
4 | 993062 | |||
Meisselhalter H41sa | ||||
5 | 990131 | 35.06 | 41.72 | |
Staubschutz | ||||
6 | 971077 | 1.04 | 1.23 | |
Druckknopf | ||||
7A | 990133 | 9.60 | 11.42 | |
Feder | ||||
8A | 331239 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
9 | 949499 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
10 | 993060 | |||
O-ring (c) Dh28y/dh38yb1/dh40yb | ||||
11 | 981857 | 5.85 | 6.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
12 | 993061 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
13 | 993067 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
14 | 993066 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
15 | 993063 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
16 | 993059 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
17 | 957561 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
18 | 993057 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
19 | 990936 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
20 | 986103 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
21 | 993055 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
22 | 993058 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
23 | 993056 | |||
Mutter | ||||
24 | 986106 | 1.65 | 1.96 | |
Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | ||||
25 | 608VVM | 5.70 | 6.78 | |
Nicht mehr lieferbar, kein Ersatz | ||||
26 | 980934Z | |||
Ölkappe Mit O-ring Dh25v/dh28y Including Part 28a | ||||
27B | 314031 | 3.90 | 4.64 | |
O-ring Dh25v/dh28y/h30pv/dh30pc | ||||
28A | 314030 | 1.05 | 1.25 | |
Kurbelgehäuse Dh28y | ||||
29 | 986093 | 61.33 | 72.98 | |
Dichtung | ||||
30 | 986071 | 1.65 | 1.96 | |
Sicherungsring D12 (10st), G23ss | ||||
31 | 939542 | 1.50 | 1.78 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
32 | 993053 | |||
EINLEGEKEIL 3X13 | ||||
33 | 932815 | 1.35 | 1.61 | |
Kugellager 6204 Vv | ||||
34 | 6204VV | 9.15 | 10.89 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
35 | 986074 | |||
Inbusschraube M5x14 Selbstsich., Cm9uby | ||||
36 | 984509 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
37 | 993054 | |||
Nadellager | ||||
38 | 939299 | 10.65 | 12.67 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
39 | 993083 | |||
Ventilband Dh28y/dh40yb | ||||
40 | 981858 | 7.35 | 8.75 | |
O-ring (s-55) Dh25v/dh28y u.a. | ||||
41 | 980744 | 2.55 | 3.03 | |
Inbusschraube M6x25 Selbstsich. For Kor | ||||
42 | 987707 | 1.05 | 1.25 | |
Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
43 | 949432 | 1.05 | 1.25 | |
Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
43S | 949432 | 1.05 | 1.25 | |
O-ring (1as-60) Div.typen, Nr90aa Since 9.1979 | ||||
45 | 956996 | 3.00 | 3.57 | |
Nadellager (b) (ntn Hmk4520) | ||||
46 | 993069 | 20.76 | 24.71 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
47 | 981854 | |||
Anschläger Dh28y | ||||
48 | 986081 | 25.44 | 30.27 | |
O-ring Dh28/40/50 (hämmer) | ||||
49 | 986104 | 1.05 | 1.25 | |
Kolben | ||||
50 | 981885 | 18.70 | 22.25 | |
Kolbenstift Dh28y/dh38yb/dh40mr | ||||
51 | 980708 | 2.40 | 2.86 | |
Stange | ||||
52 | 980707 | 35.06 | 41.72 | |
Inbusschraube M6x16 Selbstsich. | ||||
53 | 990935 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
54 | 993051 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
55 | 993065 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
56 | 993064 | |||
Kugellager 6001 Dd | ||||
57A | 6001DD | 6.45 | 7.68 | |
Staubring | ||||
58 | 993052 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
59 | 981870 | |||
Feder Dh28y/dh38yb1/h45sa/h45ma Except For Hkg,ch | ||||
60 | 672612 | 1.05 | 1.25 | |
Griffhalter Kompl.dh28y/dh38yb1 | ||||
61 | 981960 | 19.94 | 23.73 | |
Griffbolzen Dh28y/dh38yb1 u.a. Except For Hkg,chn | ||||
62 | 971785 | 3.60 | 4.28 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
63A | 971786 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
64A | 993072F | |||
Schneidschraube D5x55 | ||||
65 | 953174 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
67 | 986090H | |||
Kohlenhalterklemme Dh28y u.a. H30pv/vb16y/dh30pc/ | ||||
68 | 930703 | 2.40 | 2.86 | |
Unterlegscheibe | ||||
69 | 980698 | 1.05 | 1.25 | |
Inbusschraube M6x50 Selbstsich. | ||||
71 | 986491 | 1.04 | 1.23 | |
Griff | ||||
72 | 981867 | 13.80 | 16.42 | |
Handgriff (b) Dh38yb/yb1/yf | ||||
72 | 992809 | 13.05 | 15.53 | |
Schalter Dh38yb1/yf | ||||
74A | 990941 | 26.40 | 31.42 | |
Schalter C8u/c9u Since 1.1995 For Chn | ||||
74A | 981533Z | 21.04 | 25.03 | |
STÜTZE (A) | ||||
75 | 981986Z | 21.45 | 25.53 | |
Halterung Dh28y/h55sa Till 7.1988 | ||||
75 | 981869 | 6.30 | 7.50 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
75A | 990082 | |||
Griff (a) Dh38yb Since 12.1982 For Aus,since 1.19 | ||||
76 | 981866 | 14.03 | 16.69 | |
Handgriff (a) Dh38yb/yb1/yf | ||||
76 | 992808 | 13.80 | 16.42 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
77 | 984750 | |||
Kabelklemme Div.typen, Cm9uby, G23ss | ||||
78 | 960266 | 1.04 | 1.23 | |
Distanzstück (c) Dh28y/dh38yb1/yf Since 12.1982 F | ||||
79B | 990940 | 1.05 | 1.25 | |
Verbinder 50091 (10st) Div.typen | ||||
80 | 959140 | 3.30 | 3.93 | |
Kabelknickschutz D10.7 Div.typen, Cm9by, H41mb, G | ||||
81 | 940778 | 2.10 | 2.50 | |
Kabelknickschutz D8.2 Div.typen H41mb, G23ss | ||||
81 | 958049 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
82 | 500408Z | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
82A | 500424Z | |||
Schraube | ||||
83 | 958715 | 1.04 | 1.23 | |
Kappendeckel Dh28y/dh38yb1 u.a. | ||||
84 | 981959 | 2.40 | 2.86 | |
Kohlenkappe C6u/cr12v u.a.. | ||||
85 | 961781 | 2.55 | 3.03 | |
Kohlenbürsten (paar) H41mb | ||||
86 | 999043 | 4.50 | 5.36 | |
Kohlekasten Zsb | ||||
87 | 981586 | 6.45 | 7.68 | |
Inbusstiftschraube M5x8, C8fshe, C8fse, H41mb,g23 | ||||
88 | 938477 | 1.05 | 1.25 | |
Schneidschraube M5x20 Sb110/cs35b | ||||
89 | 953040 | 1.05 | 1.25 | |
Rückseite (alt 981951) | ||||
90A | 302323 | 20.76 | 24.71 | |
Niete D 2,5 X 4,8 (10st) Three-phase | ||||
91 | 949510 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
93 | 956636 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
94 | 986087 | |||
Kanalhülse für Kabel (d) Div.typen, Cm9uby, G23ss | ||||
95 | 981373 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
96 | 990939 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
97 | 991701 | |||
Zylindergehäuse H90sc/se | ||||
98 | 990943 | 88.83 | 105.70 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
100 | 990946 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
501B | 312831 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
503 | 944459 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
601 | 985720 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
602 | 981890 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
603 | 981904 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
604 | 985723 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
605 | 981891 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
606 | 981905 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
607 | 985726 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
608 | 981892 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
609 | 981906 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
610 | 985729 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
611 | 981893 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
612 | 981907 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
613 | 985732 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
614 | 981894 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
615 | 981908 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
616 | 981902 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
617 | 981895 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
618 | 981909 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
619 | 990931 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
620 | 990930 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
622 | 955994 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
623 | 955995 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
624 | 955996 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
625 | 955998 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
626 | 956000 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
627 | 955154 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
628 | 955155 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
629 | 956002 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
630 | 955157 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
631 | 956004 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
632 | 955159 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
633 | 955163 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
634 | 956008 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
635 | 955165 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
636 | 956009 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
637 | 981924 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
638 | 955186 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
639 | 955183 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
640 | 955181 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
641 | 956126 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
642 | 944574 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
644 | 944477 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
656 | 981922 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
657 | 981923 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
658 | 981925 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
659 | 981926 | |||
Fett (tube 30 Gramm) | ||||
660 | 981840 | 8.40 | 10.00 | |
Fett (Dose 500 Gramm) | ||||
661 | 980927 | 73.01 | 86.88 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
664 | 981929 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
665 | 981930 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
666 | 981931 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
669 | 981919 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
670 | 981920 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
671 | 981921 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
672 | 321813 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
673 | 930515 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
674 | 986102 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
675 | 970884 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
676A | 936728 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
677 | 984010 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
678 | 984017 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
679 | 984011 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
680 | 984018 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
681 | 984012 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
683 | 984013 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
685 | 984014 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
687 | 984015 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
689 | 985754 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
690 | 985755 | |||
Fett für Hammer. Hammerbohrer (70g) | ||||
691 | 308471 | 12.75 | 15.17 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
692A | 318085 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
693 | 998561 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
694 | 998562 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
695 | 320859 |
