Hikoki DH36DPB Zeichnungen und Teile
Auf dem Typenschild sollte die Typenbezeichnung DH36DPB stehen. Je nach Typenbezeichnung kann es Unterschiede geben, die dazu führen können, dass Teile nicht passen. Bestellen Sie nur, wenn diese Nummer übereinstimmt. Hikoki Powertools ist der neue Name von Hitachi Powertools.Zeichnungen der HIKOKI DH36DPB

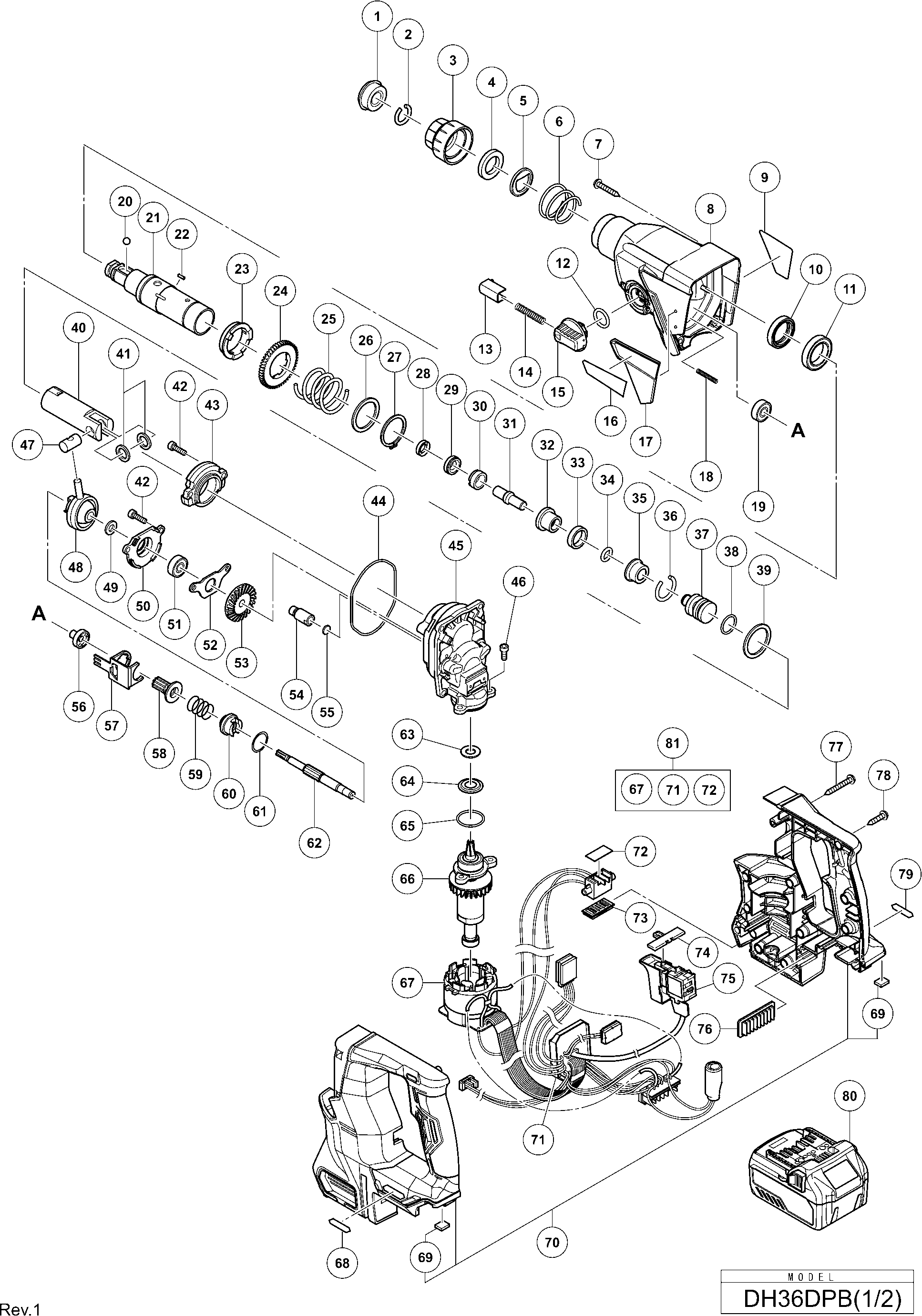

Teileliste der Hikoki DH36DPB
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer.
| Nicht bestellbar | ||||
| 1 | 306345 | Nicht bestellbar | ||
| Sicherungsring Dh18vb/dh30pc | ||||
| 2 | 306340 | Sicherungsring Dh18vb/dh30pc | € 1.31 | |
| Schiebegriff Dh24pc3 | ||||
| 3 | 324527 | Schiebegriff Dh24pc3 | € 3.19 | |
| BALL HOLDER (FW) | ||||
| 4 | 371326 | BALL HOLDER (FW) | € 9.87 | |
| Halteplatte Dh24pc3 | ||||
| 5 | 324526 | Halteplatte Dh24pc3 | € 3.19 | |
| Haltefeder Dh24pb2 | ||||
| 6 | 322812 | Haltefeder Dh24pb2 | € 1.60 | |
| Tapping Screw (w/flange) D5 | ||||
| 7 | 370307 | Tapping Screw (w/flange) D5 | € 1.00 | |
| Gear Cover Ass'y Includ.17,18,32 | ||||
| 8 | 370306 | Gear Cover Ass'y Includ.17,18,32 | € 26.62 | |
| OLIE KEERRING | ||||
| 10 | 335259 | OLIE KEERRING | € 2.76 | |
| Ball Bearing 6805dd | ||||
| 11 | 335260 | Ball Bearing 6805dd | € 3.19 | |
| O-ring (s-18) Cr17y/nv65ad2, Nr90aa | ||||
| 12 | 878885 | O-ring (s-18) Cr17y/nv65ad2, Nr90aa | € 1.02 | |
| Druckknopf | ||||
| 13 | 322789 | Druckknopf | € 4.65 | |
| Druckfeder Dh24pc | ||||
| 14 | 317223 | Druckfeder Dh24pc | € 1.60 | |
| Change Lever | ||||
| 15 | 334011 | Change Lever | € 2.03 | |
| Brand Plate | ||||
| 17 | 370308 | Brand Plate | € 2.32 | |
| Spring (e) | ||||
| 18 | 335800 | Spring (e) | € 1.00 | |
| Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | ||||
| 19 | 608VVM | Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | € 5.52 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 20 | 335300 | Steel Ball D7.0 (10 Pcs.) | € 1.00 | |
| Zylinder | ||||
| 21 | 335261 | Zylinder | € 21.56 | |
| PIN D2.5 | ||||
| 22 | 335264 | PIN D2.5 | € 1.00 | |
| Cylinder Clutch | ||||
| 23 | 335263 | Cylinder Clutch | € 12.05 | |
| Second Gear | ||||
| 24 | 335265 | Second Gear | € 5.95 | |
| Spring (a) | ||||
| 25 | 335266 | Spring (a) | € 1.45 | |
| Ring | ||||
| 26 | 301679 | Ring | € 1.16 | |
| Sicherungsring D30 Div.typen Dh30pc | ||||
| 27 | 948310 | Sicherungsring D30 Div.typen Dh30pc | € 1.31 | |
| OLIE KEERRING (A) | ||||
| 28 | 335262 | OLIE KEERRING (A) | € 1.74 | |
| Hammer Holder (c) | ||||
| 29 | 335268 | Hammer Holder (c) | € 9.29 | |
| Sleeve (fw) | ||||
| 30 | 335795 | Sleeve (fw) | € 4.07 | |
| Second Hammer | ||||
| 31 | 335269 | Second Hammer | € 3.78 | |
| Hammer Holder (a) | ||||
| 32 | 335267 | Hammer Holder (a) | € 2.90 | |
| DEMPERRING (A) | ||||
| 33 | 322805 | DEMPERRING (A) | € 1.60 | |
| O-RING (C) | ||||
| 34 | 322808 | O-RING (C) | € 1.60 | |
| Dämpferhalter Dh24pc3 | ||||
| 35 | 324524 | Dämpferhalter Dh24pc3 | € 6.24 | |
| STOPPER RING | ||||
| 36 | 322807 | STOPPER RING | € 1.60 | |
| SLAGSTUK | ||||
| 37 | 372815 | SLAGSTUK | € 4.50 | |
| O-RING | ||||
| 38 | 372816 | O-RING | € 2.90 | |
| Ring | ||||
| 39 | 301679 | Ring | € 1.16 | |
| ZUIGER | ||||
| 40 | 372817 | ZUIGER | € 9.58 | |
| Piston Washer | ||||
| 41 | 335794 | Piston Washer | € 1.16 | |
| Inbusschraube M5x16 Selbstsich. | ||||
| 42 | 990079 | Inbusschraube M5x16 Selbstsich. | € 1.02 | |
| Abdeckhaube | ||||
| 43 | 370309 | Abdeckhaube | € 5.37 | |
| O-ring | ||||
| 44 | 370310 | O-ring | € 5.66 | |
| Inner Cover (a) Includ.66,67,75-77 | ||||
| 45 | 370311 | Inner Cover (a) Includ.66,67,75-77 | € 18.10 | |
| Inbusschraube Mit Dichtung M5x10, C8fshe, C8fse | ||||
| 46 | 877839 | Inbusschraube Mit Dichtung M5x10, C8fshe, C8fse | € 1.02 | |
| Piston Pin | ||||
| 47 | 335793 | Piston Pin | € 3.05 | |
| Reciprocating Bearing | ||||
| 48 | 335249 | Reciprocating Bearing | € 13.21 | |
| Bearing Washer | ||||
| 49 | 335250 | Bearing Washer | € 1.00 | |
| Bearing Holder (b) | ||||
| 50 | 370312 | Bearing Holder (b) | € 15.97 | |
| Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | ||||
| 51 | 608VVM | Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | € 5.52 | |
| Bearing Cover (a) | ||||
| 52 | 370313 | Bearing Cover (a) | € 1.60 | |
| Bevel Gear (a) | ||||
| 53 | 370314 | Bevel Gear (a) | € 21.03 | |
| Air Cap | ||||
| 54 | 334008 | Air Cap | € 1.16 | |
| Filzdichtung (a) Dh24pc3 | ||||
| 55 | 324543 | Filzdichtung (a) Dh24pc3 | € 1.60 | |
| Pinion Sleeve | ||||
| 56 | 335275 | Pinion Sleeve | € 2.90 | |
| Lagerdeckel (1) | ||||
| 57 | 335276 | Lagerdeckel (1) | € 10.74 | |
| Second Gear | ||||
| 58 | 335278 | Second Gear | € 6.97 | |
| Kupplungsfeder Dh24pc2 | ||||
| 59 | 323182 | Kupplungsfeder Dh24pc2 | € 1.60 | |
| Clutch | ||||
| 60 | 335254 | Clutch | € 3.78 | |
| Ring | ||||
| 61 | 331315 | Ring | € 1.02 | |
| Second Shaft | ||||
| 62 | 335277 | Second Shaft | € 6.39 | |
| Felt Packing | ||||
| 63 | 370315 | Felt Packing | € 1.00 | |
| Packing Washer | ||||
| 64 | 370316 | Packing Washer | € 1.00 | |
| O-RING (S-26) | ||||
| 65 | 872470 | O-RING (S-26) | € 1.60 | |
| ROTOR (B) | ||||
| 66 | 361072 | ROTOR (B) | € 76.53 | |
| STATOR | ||||
| 67 | 340981 | STATOR | € 9.87 | |
| Damper (a) | ||||
| 69 | 370321 | Damper (a) | € 1.00 | |
| BEHUIZING (A+B) | ||||
| 70 | 372718 | BEHUIZING (A+B) | € 25.42 | |
| Nicht bestellbar | ||||
| 71 | 372868 | Nicht bestellbar | ||
| Rubber Cushion | ||||
| 72 | 370327 | Rubber Cushion | € 2.03 | |
| Terminal Rubber Base | ||||
| 73 | 370545 | Terminal Rubber Base | € 1.00 | |
| Druckknopf (b) Wh14dmr, Wh18dbdl,wh14dbdl, Wr18db | ||||
| 74 | 324225 | Druckknopf (b) Wh14dmr, Wh18dbdl,wh14dbdl, Wr18db | € 1.02 | |
| Schalter | ||||
| 75 | 370322 | Schalter | € 23.96 | |
| Battery Rubber (b) | ||||
| 76 | 370328 | Battery Rubber (b) | € 1.89 | |
| Schneidschraube D4x40 M.flansch | ||||
| 77 | 306664 | Schneidschraube D4x40 M.flansch | € 1.02 | |
| Schneidschraube D4x20 Mit Flansch (schwarz), C8fs | ||||
| 78 | 301653 | Schneidschraube D4x20 Mit Flansch (schwarz), C8fs | € 1.00 | |
| BSL36A18 BATTERIJ MULTIVOLT A 36V 2,5Ah / 18V 5,0A | ||||
| 80 | 371750 | BSL36A18 BATTERIJ MULTIVOLT A 36V 2,5Ah / 18V 5,0A | € 139.15 | |
| WIRING ASS'Y | ||||
| 81 | 372867 | WIRING ASS'Y | € 141.62 | |
| Nozzle Seal | ||||
| 101 | 370494 | Nozzle Seal | € 1.60 | |
| Nozzle (1) | ||||
| 102 | 370495 | Nozzle (1) | € 1.45 | |
| Brush Cap | ||||
| 103 | 370496 | Brush Cap | € 20.50 | |
| Retaining Ring D35 | ||||
| 104 | 370497 | Retaining Ring D35 | € 1.00 | |
| Slide Pipe | ||||
| 105 | 370823 | Slide Pipe | € 35.40 | |
| Nicht bestellbar | ||||
| 106 | 307811 | Nicht bestellbar | ||
| Latch Holder | ||||
| 108 | 370511 | Latch Holder | € 1.60 | |
| Spring (e) | ||||
| 109 | 370821 | Spring (e) | € 3.78 | |
| Latch (a) | ||||
| 110 | 370512 | Latch (a) | € 1.89 | |
| Tapping Screw D2.6 | ||||
| 111 | 370500 | Tapping Screw D2.6 | € 1.00 | |
| Justierung | ||||
| 112 | 370501 | Justierung | € 1.00 | |
| Spring (a) | ||||
| 113 | 370502 | Spring (a) | € 1.00 | |
| Button (a) | ||||
| 114 | 370838 | Button (a) | € 1.60 | |
| Housing Set | ||||
| 115 | 370508 | Housing Set | € 35.80 | |
| Adjustment Rail | ||||
| 116 | 370504 | Adjustment Rail | € 1.60 | |
| Fan Cover | ||||
| 117 | 370514 | Fan Cover | € 1.45 | |
| Motor Fan Set | ||||
| 118 | 370515 | Motor Fan Set | € 26.62 | |
| Rubber Bushing (a) | ||||
| 119 | 337801 | Rubber Bushing (a) | € 1.00 | |
| Rubber Bushing (b) | ||||
| 120 | 337802 | Rubber Bushing (b) | € 1.00 | |
| Support (d) | ||||
| 121 | 339343 | Support (d) | € 1.16 | |
| Controller | ||||
| 122 | 370517 | Controller | € 54.97 | |
| Button (b) | ||||
| 123 | 370509 | Button (b) | € 1.00 | |
| Stopper | ||||
| 124 | 370510 | Stopper | € 1.00 | |
| Dust Box Ass'y Includ.136-140 | ||||
| 126 | 370518 | Dust Box Ass'y Includ.136-140 | € 29.15 | |
| Dust Box | ||||
| 127 | 370822 | Dust Box | € 11.62 | |
| Filter | ||||
| 128 | 370520 | Filter | € 17.57 | |
| Packing (c) | ||||
| 129 | 370519 | Packing (c) | € 1.00 | |
| Filter Cover | ||||
| 130 | 370521 | Filter Cover | € 2.32 | |
| Packing (b) | ||||
| 131 | 370522 | Packing (b) | € 1.00 | |
| Nicht bestellbar | ||||
| 502 | 303709 | Nicht bestellbar | ||
| Seitengriff | ||||
| 503 | 335273 | Seitengriff | € 8.57 | |
| Nicht bestellbar | ||||
| 504 | 373136 | Nicht bestellbar | ||
| Battery Cover | ||||
| 505 | 329897 | Battery Cover | € 1.74 | |
| Terminal Cover | ||||
| 506 | 371715 | Terminal Cover | € 1.00 | |
| Nicht bestellbar | ||||
| 601 | 303332 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 602 | 303334 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 603 | 303335 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 604 | 321825 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 605 | 303623 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 606 | 321814 | Nicht bestellbar | ||
| Flat Hd. Screw (left Hand) M6x20 | ||||
| 607 | 331966 | Flat Hd. Screw (left Hand) M6x20 | € 6.53 | |
| Nicht bestellbar | ||||
| 608 | 987576 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 609 | 321813 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 610 | 971787 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 611 | 931844 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 612 | 971511Z | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 613 | 971512Z | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 617 | 306885 | Nicht bestellbar | ||
| Socket Adapter (b) | ||||
| 618 | 306910 | Socket Adapter (b) | € 4.36 | |
| Grease For Rotary Hammer (60g) | ||||
| 621 | 335782 | Grease For Rotary Hammer (60g) | € 13.07 | |
| Grease For Rotary Hammer (500g) | ||||
| 622 | 335781 | Grease For Rotary Hammer (500g) | € 65.09 | |
| Nicht bestellbar | ||||
| 623 | 402933 | Nicht bestellbar | ||
