Hikoki DH36DPD Zeichnungen und Teile
Genaue Typennummer:
DH36DPD
DH36DPD

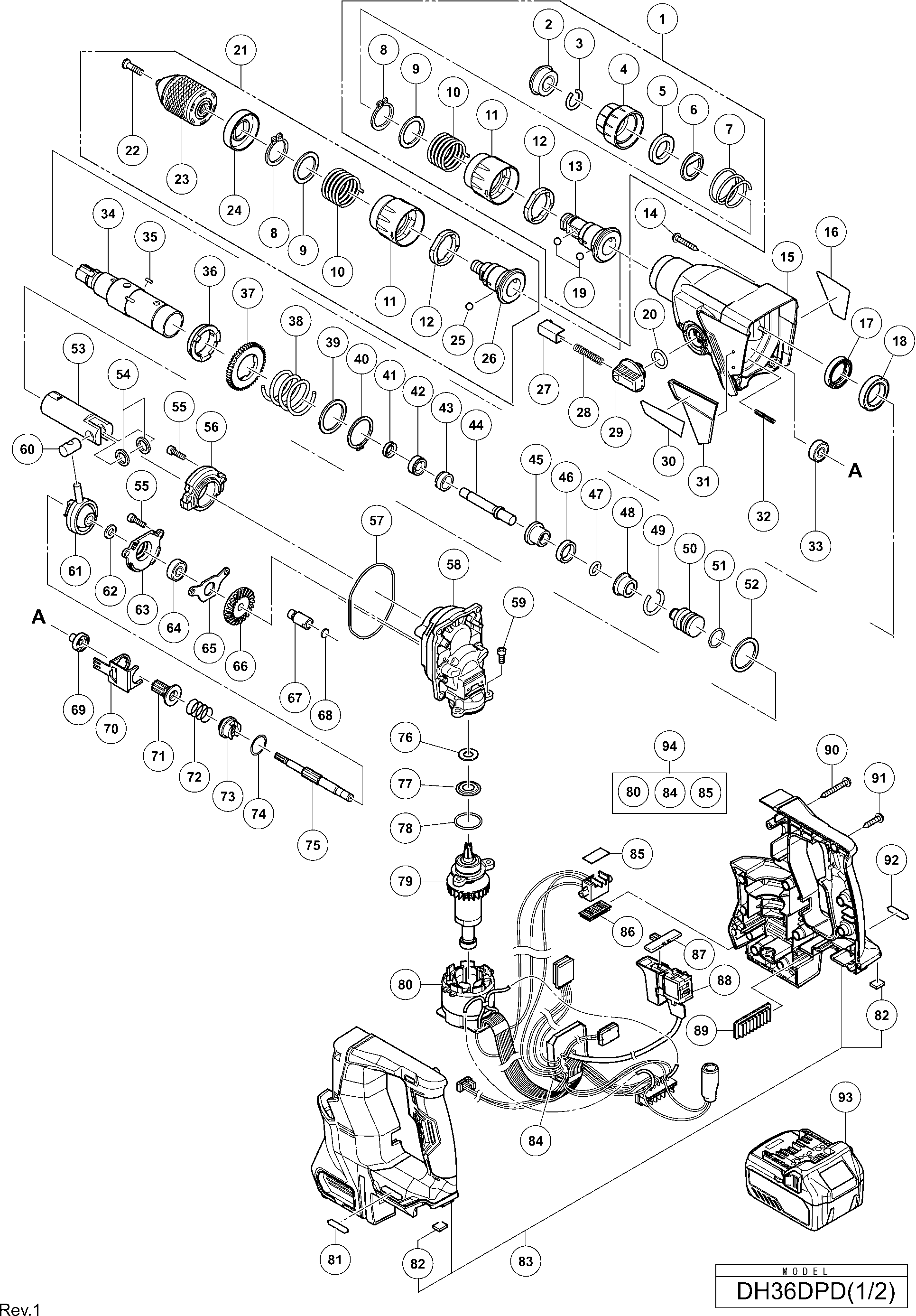

Zeichnungen der HIKOKI DH36DPD
Teileliste der HIKOKI DH36DPD
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| BOORHOUDERSET | ||||
| 1 | 371327 | BOORHOUDERSET | € 32.74 | |
| STOFVOORKAP | ||||
| 2 | 306345 | STOFVOORKAP | € 4.21 | |
| Sicherungsring Dh18vb/dh30pc | ||||
| 3 | 306340 | Sicherungsring Dh18vb/dh30pc | € 1.31 | |
| Schiebegriff Dh24pc3 | ||||
| 4 | 324527 | Schiebegriff Dh24pc3 | € 3.19 | |
| BALL HOLDER (FW) | ||||
| 5 | 371326 | BALL HOLDER (FW) | € 9.87 | |
| Halteplatte Dh24pc3 | ||||
| 6 | 324526 | Halteplatte Dh24pc3 | € 3.19 | |
| Haltefeder Dh24pb2 | ||||
| 7 | 322812 | Haltefeder Dh24pb2 | € 1.60 | |
| Federscheibe | ||||
| 8 | 965469 | Federscheibe | € 1.02 | |
| Unterlegscheibe (b) Dh24pm | ||||
| 9 | 326520 | Unterlegscheibe (b) Dh24pm | € 6.24 | |
| Feder Dh24pm | ||||
| 10 | 326519 | Feder Dh24pm | € 7.41 | |
| Sperrgriff Dh24pm | ||||
| 11 | 326387 | Sperrgriff Dh24pm | € 4.65 | |
| Borg Ring | ||||
| 12 | 326801 | Borg Ring | € 31.15 | |
| Bitadapter | ||||
| 13 | 336849 | Bitadapter | € 17.84 | |
| Tapping Screw D5 (w/flange) | ||||
| 14 | 370307 | Tapping Screw D5 (w/flange) | € 1.00 | |
| Gear Cover Ass'y | ||||
| 15 | 370306 | Gear Cover Ass'y | € 26.62 | |
| OLIE KEERRING | ||||
| 17 | 335259 | OLIE KEERRING | € 2.76 | |
| Kogellager 6805dd | ||||
| 18 | 335260 | Kogellager 6805dd | € 3.19 | |
| Stalen Kogel D7.0 (10 Stuks) | ||||
| 19 | 335300 | Stalen Kogel D7.0 (10 Stuks) | € 1.00 | |
| O-ring (s-18) Cr17y/nv65ad2, Nr90aa | ||||
| 20 | 878885 | O-ring (s-18) Cr17y/nv65ad2, Nr90aa | € 1.02 | |
| Chuck Holder Ass'y | ||||
| 21 | 370305 | Chuck Holder Ass'y | € 50.18 | |
| SPECIALE SCHROEF M6 (LINKSE DRAAD) | ||||
| 22 | 330094 | SPECIALE SCHROEF M6 (LINKSE DRAAD) | € 1.02 | |
| Stopper Dh24pm | ||||
| 24 | 326527 | Stopper Dh24pm | € 3.19 | |
| Stalen Kogel D7.0 (10 Stuks) | ||||
| 25 | 335300 | Stalen Kogel D7.0 (10 Stuks) | € 1.00 | |
| As Voor Boorhouder | ||||
| 26 | 336850 | As Voor Boorhouder | € 16.64 | |
| Druckknopf | ||||
| 27 | 322789 | Druckknopf | € 4.65 | |
| Druckfeder Dh24pc | ||||
| 28 | 317223 | Druckfeder Dh24pc | € 1.60 | |
| Omschakelknop | ||||
| 29 | 334011 | Omschakelknop | € 2.03 | |
| Hitachi Plate | ||||
| 31 | 370308 | Hitachi Plate | € 2.32 | |
| Veer (e) | ||||
| 32 | 335800 | Veer (e) | € 1.00 | |
| Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | ||||
| 33 | 608VVM | Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | € 5.52 | |
| Zylinder | ||||
| 34 | 336845 | Zylinder | € 39.26 | |
| PIN D2.5 | ||||
| 35 | 335264 | PIN D2.5 | € 1.00 | |
| Cylinder Clutch | ||||
| 36 | 335263 | Cylinder Clutch | € 12.05 | |
| Tweede Tandwiel | ||||
| 37 | 335265 | Tweede Tandwiel | € 5.95 | |
| Spring (a) | ||||
| 38 | 335266 | Spring (a) | € 1.45 | |
| Ring | ||||
| 39 | 301679 | Ring | € 1.16 | |
| Sicherungsring D30 Div.typen Dh30pc | ||||
| 40 | 948310 | Sicherungsring D30 Div.typen Dh30pc | € 1.31 | |
| OLIE KEERRING (A) | ||||
| 41 | 335262 | OLIE KEERRING (A) | € 1.74 | |
| Hammer Holder (c) | ||||
| 42 | 336847 | Hammer Holder (c) | € 5.66 | |
| Sleeve (fw) | ||||
| 43 | 335795 | Sleeve (fw) | € 4.07 | |
| Tweede Hamer | ||||
| 44 | 336846 | Tweede Hamer | € 5.08 | |
| Hammer Holder (a) | ||||
| 45 | 335267 | Hammer Holder (a) | € 2.90 | |
| DEMPERRING (A) | ||||
| 46 | 322805 | DEMPERRING (A) | € 1.60 | |
| O-RING (C) | ||||
| 47 | 322808 | O-RING (C) | € 1.60 | |
| Dämpferhalter Dh24pc3 | ||||
| 48 | 324524 | Dämpferhalter Dh24pc3 | € 6.24 | |
| STOPPER RING | ||||
| 49 | 322807 | STOPPER RING | € 1.60 | |
| SLAGSTUK | ||||
| 50 | 372815 | SLAGSTUK | € 4.50 | |
| O-RING | ||||
| 51 | 372816 | O-RING | € 2.90 | |
| Ring | ||||
| 52 | 301679 | Ring | € 1.16 | |
| ZUIGER | ||||
| 53 | 372817 | ZUIGER | € 9.58 | |
| Piston Washer | ||||
| 54 | 335794 | Piston Washer | € 1.16 | |
| Inbusschraube M5x16 Selbstsich. | ||||
| 55 | 990079 | Inbusschraube M5x16 Selbstsich. | € 1.02 | |
| Abdeckhaube | ||||
| 56 | 370309 | Abdeckhaube | € 5.37 | |
| O-ring | ||||
| 57 | 370310 | O-ring | € 5.66 | |
| Afdekkap (a) | ||||
| 58 | 370311 | Afdekkap (a) | € 18.10 | |
| Inbusschraube Mit Dichtung M5x10, C8fshe, C8fse | ||||
| 59 | 877839 | Inbusschraube Mit Dichtung M5x10, C8fshe, C8fse | € 1.02 | |
| Piston Pin | ||||
| 60 | 335793 | Piston Pin | € 3.05 | |
| Reciprocating Bearing | ||||
| 61 | 335249 | Reciprocating Bearing | € 13.21 | |
| Bearing Washer | ||||
| 62 | 335250 | Bearing Washer | € 1.00 | |
| Bearing Holder (b) | ||||
| 63 | 370312 | Bearing Holder (b) | € 15.97 | |
| Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | ||||
| 64 | 608VVM | Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | € 5.52 | |
| Lagerdeksel (a) | ||||
| 65 | 370313 | Lagerdeksel (a) | € 1.60 | |
| Tandwiel (a) | ||||
| 66 | 370314 | Tandwiel (a) | € 21.03 | |
| Air Cap | ||||
| 67 | 334008 | Air Cap | € 1.16 | |
| Filzdichtung (a) Dh24pc3 | ||||
| 68 | 324543 | Filzdichtung (a) Dh24pc3 | € 1.60 | |
| Pinion Sleeve | ||||
| 69 | 335275 | Pinion Sleeve | € 2.90 | |
| Lagerdeckel (1) | ||||
| 70 | 335276 | Lagerdeckel (1) | € 10.74 | |
| Tweede Tandwiel | ||||
| 71 | 335278 | Tweede Tandwiel | € 6.97 | |
| Kupplungsfeder Dh24pc2 | ||||
| 72 | 323182 | Kupplungsfeder Dh24pc2 | € 1.60 | |
| Clutch | ||||
| 73 | 335254 | Clutch | € 3.78 | |
| Ring | ||||
| 74 | 331315 | Ring | € 1.02 | |
| Second Shaft | ||||
| 75 | 335277 | Second Shaft | € 6.39 | |
| Felt Packing | ||||
| 76 | 370315 | Felt Packing | € 1.00 | |
| Packing Washer | ||||
| 77 | 370316 | Packing Washer | € 1.00 | |
| O-RING (S-26) | ||||
| 78 | 872470 | O-RING (S-26) | € 1.60 | |
| ROTOR (B) | ||||
| 79 | 361072 | ROTOR (B) | € 76.53 | |
| STATOR | ||||
| 80 | 340981 | STATOR | € 9.87 | |
| Damper (a) | ||||
| 82 | 370321 | Damper (a) | € 1.00 | |
| BEHUIZING (A+B) | ||||
| 83 | 372718 | BEHUIZING (A+B) | € 25.42 | |
| Rubber Cushion | ||||
| 85 | 370327 | Rubber Cushion | € 2.03 | |
| Terminal Rubber Base | ||||
| 86 | 370545 | Terminal Rubber Base | € 1.00 | |
| Druckknopf (b) Wh14dmr, Wh18dbdl,wh14dbdl, Wr18db | ||||
| 87 | 324225 | Druckknopf (b) Wh14dmr, Wh18dbdl,wh14dbdl, Wr18db | € 1.02 | |
| Schalter | ||||
| 88 | 370322 | Schalter | € 23.96 | |
| Buttery Rubber (b) | ||||
| 89 | 370328 | Buttery Rubber (b) | € 1.89 | |
| Schneidschraube D4x40 M.flansch | ||||
| 90 | 306664 | Schneidschraube D4x40 M.flansch | € 1.02 | |
| Schneidschraube D4x20 Mit Flansch (schwarz), C8fs | ||||
| 91 | 301653 | Schneidschraube D4x20 Mit Flansch (schwarz), C8fs | € 1.00 | |
| WIRING ASS'Y | ||||
| 94 | 372867 | WIRING ASS'Y | € 141.62 | |
| Nozzle Seal | ||||
| 101 | 370494 | Nozzle Seal | € 1.60 | |
| Nozzle | ||||
| 102 | 370495 | Nozzle | € 1.45 | |
| Brush Cap | ||||
| 103 | 370496 | Brush Cap | € 20.50 | |
| Retaining Ring D35 | ||||
| 104 | 370497 | Retaining Ring D35 | € 1.00 | |
| Slide Pipe | ||||
| 105 | 370824 | Slide Pipe | € 36.07 | |
| Latch Holder | ||||
| 108 | 370511 | Latch Holder | € 1.60 | |
| Spring (e) | ||||
| 109 | 370821 | Spring (e) | € 3.78 | |
| Latch (a) | ||||
| 110 | 370512 | Latch (a) | € 1.89 | |
| Tapping Screw D2.6 | ||||
| 111 | 370500 | Tapping Screw D2.6 | € 1.00 | |
| Justierung | ||||
| 112 | 370501 | Justierung | € 1.00 | |
| Spring (a) | ||||
| 113 | 370502 | Spring (a) | € 1.00 | |
| Button (a) | ||||
| 114 | 370838 | Button (a) | € 1.60 | |
| Housing Set | ||||
| 115 | 370508 | Housing Set | € 35.80 | |
| Adjustment Rail | ||||
| 116 | 370504 | Adjustment Rail | € 1.60 | |
| Fan Cover | ||||
| 117 | 370514 | Fan Cover | € 1.45 | |
| Motor Fan Set | ||||
| 118 | 370515 | Motor Fan Set | € 26.62 | |
| Rubber Bushing (a) | ||||
| 119 | 337801 | Rubber Bushing (a) | € 1.00 | |
| Rubber Bushing (b) | ||||
| 120 | 337802 | Rubber Bushing (b) | € 1.00 | |
| Support (d) | ||||
| 121 | 339343 | Support (d) | € 1.16 | |
| Controller | ||||
| 122 | 370517 | Controller | € 54.97 | |
| Button (b) | ||||
| 123 | 370509 | Button (b) | € 1.00 | |
| Stopper | ||||
| 124 | 370510 | Stopper | € 1.00 | |
| Dust Box Ass'y | ||||
| 126 | 370518 | Dust Box Ass'y | € 29.15 | |
| Dust Box | ||||
| 127 | 370822 | Dust Box | € 11.62 | |
| Filter | ||||
| 128 | 370520 | Filter | € 17.57 | |
| Packing (c) | ||||
| 129 | 370519 | Packing (c) | € 1.00 | |
| Filter Cover | ||||
| 130 | 370521 | Filter Cover | € 2.32 | |
| Packing (b) | ||||
| 131 | 370522 | Packing (b) | € 1.00 | |
| DIEPTEAANSLAG | ||||
| 502 | 303709 | DIEPTEAANSLAG | € 1.31 | |
| Seitengriff | ||||
| 503 | 335273 | Seitengriff | € 8.57 | |
| KUNSTSTOF KOFFER | ||||
| 504 | 373136 | KUNSTSTOF KOFFER | € 95.57 | |
| Beschermkapje Voor Batterij | ||||
| 505 | 329897 | Beschermkapje Voor Batterij | € 1.74 | |
| Terminal Cover (a) | ||||
| 506 | 371715 | Terminal Cover (a) | € 1.00 | |
| RUBBER STOFKAPJE VOOR 303332 | ||||
| 603 | 303335 | RUBBER STOFKAPJE VOOR 303332 | € 7.99 | |
| Linksschroef M6x20 | ||||
| 607 | 331966 | Linksschroef M6x20 | € 6.53 | |
| STOFVANGER VOOR OVER DE BOOR | ||||
| 610 | 971787 | STOFVANGER VOOR OVER DE BOOR | € 5.66 | |
| DIEPTEAANSLAG | ||||
| 611 | 931844 | DIEPTEAANSLAG | € 2.47 | |
| STOFVANGER | ||||
| 614 | 306885 | STOFVANGER | € 37.27 | |
| Socket Adaptor (b) | ||||
| 615 | 306910 | Socket Adaptor (b) | € 4.36 | |
| Vet Tube 60 Gram | ||||
| 616 | 335782 | Vet Tube 60 Gram | € 13.07 | |
| Vet (500 Gram) Boorhamers | ||||
| 617 | 335781 | Vet (500 Gram) Boorhamers | € 65.09 | |
| STOFAFZUIGUNIT VOOR MODELLEN DBQL | ||||
| 618 | 402934 | STOFAFZUIGUNIT VOOR MODELLEN DBQL | € 198.32 | |
