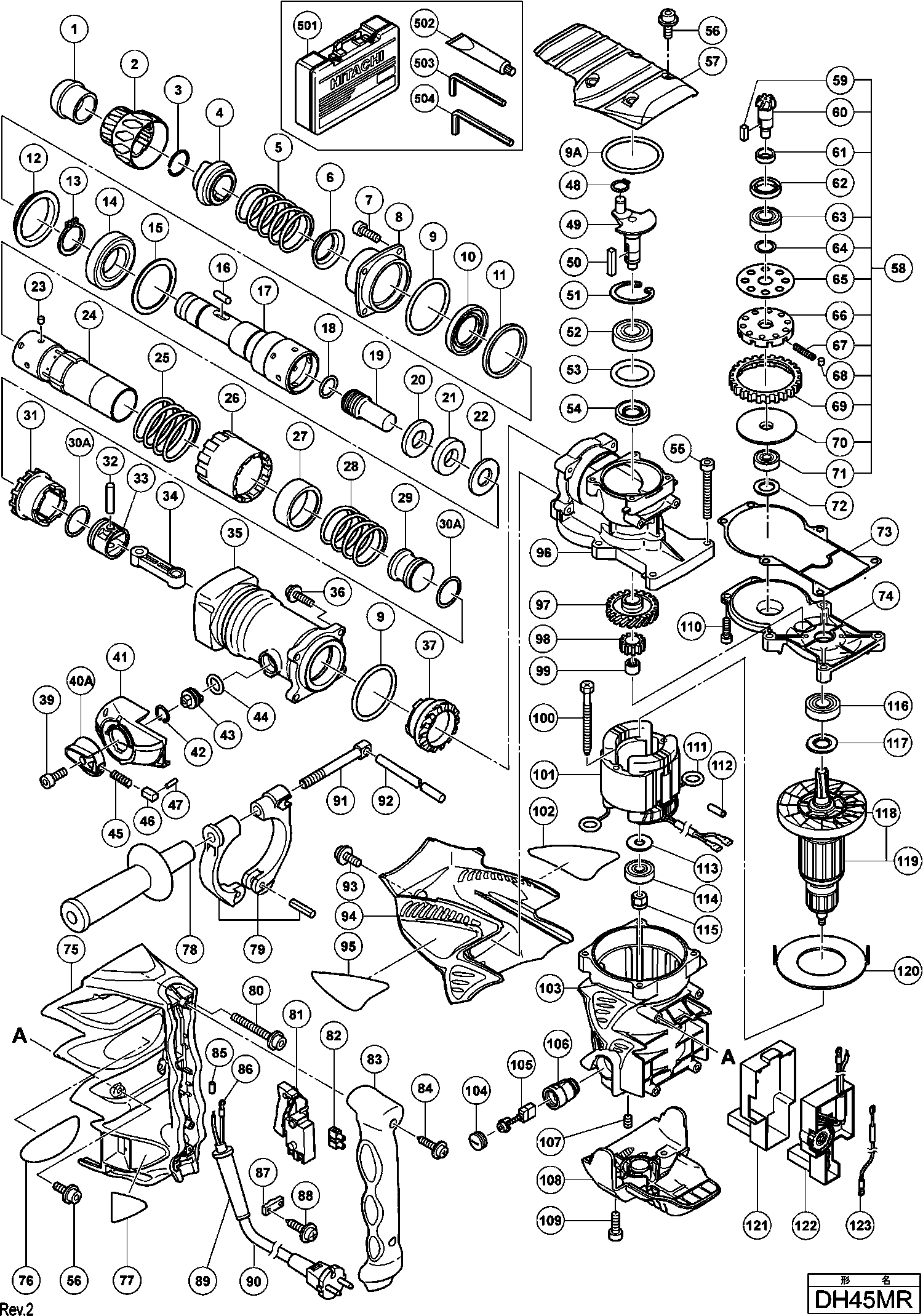

Zeichnungen der Hikoki DH45MR
Teileliste der Hikoki DH45MR
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Vorderkappe Dh40mr | ||||
1 | 321306 | 3.30 | 3.93 | |
Drehgriff Dh40mr | ||||
2 | 321305 | 4.80 | 5.71 | |
Stopring Dh50mb/dh40mr | ||||
3 | 318590 | 1.65 | 1.96 | |
Nadelhalter Dh40mr | ||||
4 | 321304 | 22.83 | 27.16 | |
Federring | ||||
5 | 321303 | 4.80 | 5.71 | |
Federhalter (a) Dh40mr | ||||
6 | 321302 | 4.80 | 5.71 | |
Inbusschraube M6x25 Selbstsich. | ||||
7 | 981942 | 1.65 | 1.96 | |
Vorderkappe Dh40mr | ||||
8 | 321300 | 20.49 | 24.38 | |
O-ring (1as-60) Div.typen, Nr90aa Since 9.1979 | ||||
9 | 956996 | 3.00 | 3.57 | |
O-ring (jas02060) Nr100a | ||||
9A | 878867 | 3.30 | 3.93 | |
Öldichtung Dh40mr | ||||
10 | 321301 | 6.45 | 7.68 | |
Gummiring (1) | ||||
11 | 325229 | 3.30 | 3.93 | |
Unterlegscheibenhalter aus Urethan | ||||
12 | 315868 | 3.30 | 3.93 | |
Federscheibe | ||||
13 | 948131 | 1.65 | 1.96 | |
Kugellager 6007 Dd | ||||
14 | 6007DD | 14.25 | 16.96 | |
Lagerscheibe Dh40sr | ||||
15 | 321297 | 3.30 | 3.93 | |
Nadellager D8x20 | ||||
16 | 313421 | 5.25 | 6.25 | |
Werkzeugaufnahme Dh45mr | ||||
17 | 324919 | 99.14 | 117.97 | |
O-ring (c) Dh45mr | ||||
18 | 324921 | 3.30 | 3.93 | |
Zweithammer Dh45mr | ||||
19 | 324920 | 14.10 | 16.78 | |
Dämpferscheibe Dh45mr | ||||
20 | 324922 | 6.45 | 7.68 | |
Dämpfer Dh45mr | ||||
21 | 324923 | 3.30 | 3.93 | |
Dämpferhalter Dh45mr | ||||
22 | 324924 | 6.45 | 7.68 | |
Nadelbolzen D6x6 Dh40yb/mr | ||||
23 | 313057 | 4.20 | 5.00 | |
Zylinder | ||||
24 | 324925 | 87.59 | 104.23 | |
Haltefeder | ||||
25 | 324930 | 1.65 | 1.96 | |
Sperrhülse Dh45mr | ||||
26 | 324931 | 4.80 | 5.71 | |
Federhalter (b) Dh45mr | ||||
27 | 324927 | 6.45 | 7.68 | |
Kupplungsfeder Dh45mr | ||||
28 | 324928 | 1.65 | 1.96 | |
Anschläger Dh45mr | ||||
29 | 324926 | 14.10 | 16.78 | |
O-ring Dh45mr | ||||
30A | 325297 | 3.30 | 3.93 | |
Kupplung Dh45mr | ||||
31 | 324929 | 55.41 | 65.94 | |
Kolbenpin Dh45mr | ||||
32 | 324917 | 4.80 | 5.71 | |
Kolben | ||||
33 | 324915 | 6.45 | 7.68 | |
Stange | ||||
34 | 324916 | 6.45 | 7.68 | |
Nicht mehr lieferbar, kein Ersatz | ||||
35 | 324932 | |||
Inbusschraube M6x25 M.flansch | ||||
36 | 991712 | 1.05 | 1.25 | |
Schrägzahnrad Dh45mr | ||||
37 | 324933 | 43.86 | 52.20 | |
Inbusschraube M4x12 Selbsts. For Switch Holder (t | ||||
39 | 983162 | 1.05 | 1.25 | |
Wechselhebel Dh38ms | ||||
40A | 331545 | 3.75 | 4.46 | |
Hebelhalter Dh45mr | ||||
41 | 324935 | 3.30 | 3.93 | |
Saegering (1) | ||||
42 | 311229 | 1.05 | 1.25 | |
Hebelwelle Dh45mr | ||||
43 | 324934 | 20.49 | 24.38 | |
O-ring (p16) Div.typen | ||||
44 | 873095 | 1.04 | 1.23 | |
Anschlagfeder Dh40mr | ||||
45 | 321310 | 1.65 | 1.96 | |
Druckknopf Dh40mr | ||||
46 | 321311 | 1.65 | 1.96 | |
Pin D2x10 | ||||
47 | 321312 | 1.65 | 1.96 | |
Sicherungsring D10 (10st), Cm9uby, Cg18dl Till 12 | ||||
48 | 939540 | 1.95 | 2.32 | |
Kurbelwelle | ||||
49 | 324909 | 35.06 | 41.72 | |
Keil 3x3x20 Dh40ma/mb/yb/fa/fb Vb16y Till 4.2002 | ||||
50 | 971750 | 1.05 | 1.25 | |
Sicherungsring D40 Innen H41sa/h45ma/dh40mr | ||||
51 | 948391 | 1.65 | 1.96 | |
Kugellager 6203 Dd | ||||
52 | 6203DD | 7.65 | 9.10 | |
O-ring (s-40) H41sa/h45ma/dh40mr | ||||
53 | 996363 | 1.65 | 1.96 | |
Öldichtung (a) Dh38yb1/h45sa | ||||
54 | 971745 | 4.50 | 5.36 | |
Inbusschraube M6x45 Selbstsich. | ||||
55 | 986940 | 1.05 | 1.25 | |
Inbusschraube M5x16 M.flansch, Cm9uby, G23ss | ||||
56 | 994192 | 1.04 | 1.23 | |
Nicht mehr lieferbar, kein Ersatz | ||||
57 | 324937 | |||
Rutschkupplung Dh45mr Includ.59-61,63-71 | ||||
58 | 324912 | 163.35 | 194.39 | |
Keil 3x3x8 Dh22vb/g12sa/g12sa2/ G13sb2/g12sa2/dh4 | ||||
59 | 944109 | 1.70 | 2.02 | |
Schrägritzel Dh45mr | ||||
60 | 324913 | 17.05 | 20.29 | |
Ring | ||||
61 | 321279 | 8.40 | 10.00 | |
Öldichtung (a) Dh40yb/mr | ||||
62 | 313050 | 3.90 | 4.64 | |
Kugellager 6002 Dd | ||||
63 | 6002DD | 7.05 | 8.39 | |
Ring | ||||
64 | 313058 | 1.05 | 1.25 | |
Unterlegscheibe (a) Dh40yb/mr | ||||
65 | 313053 | 3.60 | 4.28 | |
Getriebehalter Dh40sr | ||||
66 | 321281 | 17.88 | 21.27 | |
Feder (c) Dh40sr | ||||
67 | 321282 | 1.65 | 1.96 | |
Stift (1) | ||||
68 | 320343 | 3.30 | 3.93 | |
Zweites Zahnrad Dh45mr | ||||
69 | 324914 | 32.18 | 38.29 | |
Beilegring | ||||
70 | 321283 | 14.30 | 17.02 | |
Kugellager 629 Vvm | ||||
71 | 629VVM | 5.85 | 6.96 | |
Ring | ||||
72 | 944525 | 1.05 | 1.25 | |
Dichtung | ||||
73 | 325230 | 3.30 | 3.93 | |
Getriebegehaeuse | ||||
74 | 324944 | 32.18 | 38.29 | |
Griff | ||||
75 | 324947 | 20.49 | 24.38 | |
Sds-max Label Dh45mr | ||||
77 | 324938 | 1.50 | 1.78 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
78 | 313078 | |||
Handgriffhalter Dh40ma/mb/yb/fa/mr | ||||
79 | 313079 | 16.09 | 19.14 | |
Inbusschraube M5x40 | ||||
80 | 980673 | 1.04 | 1.23 | |
Schalter | ||||
81 | 313093 | 14.30 | 17.02 | |
Schraubklemme 1-reihig Div.typen Till 10.1999 For | ||||
82 | 938307 | 2.13 | 2.53 | |
Handgriffabdeckung Dh45mr | ||||
83 | 324948 | 12.15 | 14.46 | |
Schneidschraube D4x20 Mit Flansch (schwarz), C8fs | ||||
84 | 301653 | 1.04 | 1.23 | |
Kanalhülse für Kabel (d) Div.typen, Cm9uby, G23ss | ||||
85 | 981373 | 1.05 | 1.25 | |
Kabelschuh M4.0 (10st) G23ss | ||||
86 | 930804 | 3.00 | 3.57 | |
Anschlussklemme | ||||
86 | 980063 | 1.04 | 1.23 | |
Schnurklammer | ||||
87 | 981987Z | 1.05 | 1.25 | |
Kabelklemme Div.typen, Cm9uby, G23ss | ||||
87 | 960266 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
88 | 984750 | |||
Kabelknickschutz D8.8 Div.typen, Cm5sb | ||||
89 | 380090 | 1.04 | 1.24 | |
Kabelknickschutz D10.1 Div.typen, C8fshe, C8fse | ||||
89 | 938051 | 1.04 | 1.23 | |
VERBINDUNGSKABEL 230 VOLT FÜR ENGLAND | ||||
90 | 500446Z | 40.84 | 48.60 | |
Handgriffbolzen Dh40ma/mb/yb/fa/mr/dh30pc | ||||
91 | 313080 | 11.85 | 14.10 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
92 | 971786 | |||
Inbusschraube M5x12 | ||||
93 | 998471 | 1.05 | 1.25 | |
Haube (a) Dh45mr | ||||
94 | 324936 | 14.03 | 16.69 | |
Kurbelgehäuse Dh45mr | ||||
96 | 324908 | 46.75 | 55.63 | |
Erstes Zahnrad Dh45mr | ||||
97 | 324910 | 23.38 | 27.82 | |
Zweites Ritzel Dh45mr | ||||
98 | 324911 | 12.75 | 15.17 | |
Nadellager | ||||
99 | 939299 | 10.65 | 12.67 | |
Schneidschraube D5x60, G23ss | ||||
100 | 961501 | 1.04 | 1.23 | |
Stator 220-230v Dh45mr Includ.111 | ||||
101 | 340646E | 75.90 | 90.32 | |
Gehäuse | ||||
103 | 324943 | 87.59 | 104.23 | |
Kohlenkappe C6u/c7u u.a. H30pv/dh30pc/ H41mb/ G23 | ||||
104 | 945161 | 1.20 | 1.43 | |
Kohlebürsten Selbstabsch.(paar) | ||||
105 | 999071 | 14.40 | 17.14 | |
Kohlekasten Zsb | ||||
106 | 962777 | 6.45 | 7.68 | |
Inbusstiftschraube M5x8, C8fshe, C8fse, H41mb,g23 | ||||
107 | 938477 | 1.05 | 1.25 | |
Endabdeckung Dh45mr | ||||
108 | 324946 | 9.00 | 10.71 | |
Inbusschraube M5x20 | ||||
109 | 984508 | 1.05 | 1.25 | |
Schraube M6x22 | ||||
110 | 321313 | 1.65 | 1.96 | |
Kohlenhalterklemmer Bm25y/c8u/c9u/dh50sa/sa1/sbg2 | ||||
111 | 937623 | 1.04 | 1.23 | |
Rohr | ||||
112 | 321322 | 1.65 | 1.96 | |
Staubscheibe H55sa/dh50sa1/sb | ||||
113 | 985436 | 1.05 | 1.25 | |
Kugellager 6200 Vv | ||||
114 | 6200VV | 6.15 | 7.32 | |
Magnet | ||||
115 | 318721 | 17.60 | 20.94 | |
Kugellager 6202 Dd | ||||
116 | 6202DD | 6.75 | 8.03 | |
Unterlegscheibe | ||||
117 | 980700 | 1.04 | 1.23 | |
Ventilator Dh50mb | ||||
118 | 318918 | 7.95 | 9.46 | |
Anker 230v | ||||
119 | 360737E | 134.20 | 159.70 | |
Ventilatorführung Dh45mr | ||||
120 | 324945 | 4.80 | 5.71 | |
Gehäuse (b) Dh45mr | ||||
121 | 324942 | 4.80 | 5.71 | |
Drehzahlregler Dh45mr | ||||
122 | 324939 | 116.74 | 138.92 | |
Verbinderkabel | ||||
123 | 317113 | 3.30 | 3.93 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
501 | 324820 | |||
Fett (tube 30 Gramm) | ||||
502 | 981840 | 8.40 | 10.00 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
503 | 944458 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
504 | 944459 | |||
Fett für Hammer. Hammerbohrer (70g) | ||||
601 | 308471 | 12.75 | 15.17 | |
Fett (Dose 500 Gramm) | ||||
602 | 980927 | 73.01 | 86.88 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
603 | 320859 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
604 | 318085 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
605 | 313448 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
606 | 313456 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
607 | 313449 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
608 | 313457 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
609 | 313450 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
610 | 313458 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
611 | 313451 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
612 | 313459 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
613 | 313452 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
614 | 313460 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
615 | 313453 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
616 | 313461 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
617 | 313454 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
618 | 313462 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
619 | 313455 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
620 | 313463 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
621 | 944460 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
622 | 944461 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
623 | 993038 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
625 | 944500 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
628 | 944477 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
629 | 313465 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
630 | 955994 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
631 | 955995 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
632 | 955996 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
633 | 955997 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
634 | 955998 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
635 | 955999 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
636 | 956000 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
637 | 956001 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
638 | 955154 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
639 | 955166 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
640 | 955155 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
641 | 955167 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
642 | 956002 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
643 | 956003 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
644 | 955157 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
645 | 955168 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
646 | 956004 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
647 | 956005 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
648 | 955159 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
649 | 955169 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
650 | 313466 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
651 | 313467 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
652 | 956009 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
653 | 955165 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
654 | 321813 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
655 | 313468 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
656 | 303334 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
657 | 313469 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
658 | 313470 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
659 | 313471 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
660 | 313472 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
661 | 313473 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
662 | 313474 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
663 | 313475 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
664 | 313476 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
665 | 313478 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
666 | 313477 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
667 | 313479 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
668 | 956006 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
669 | 956007 |
