Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki G12SE2'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

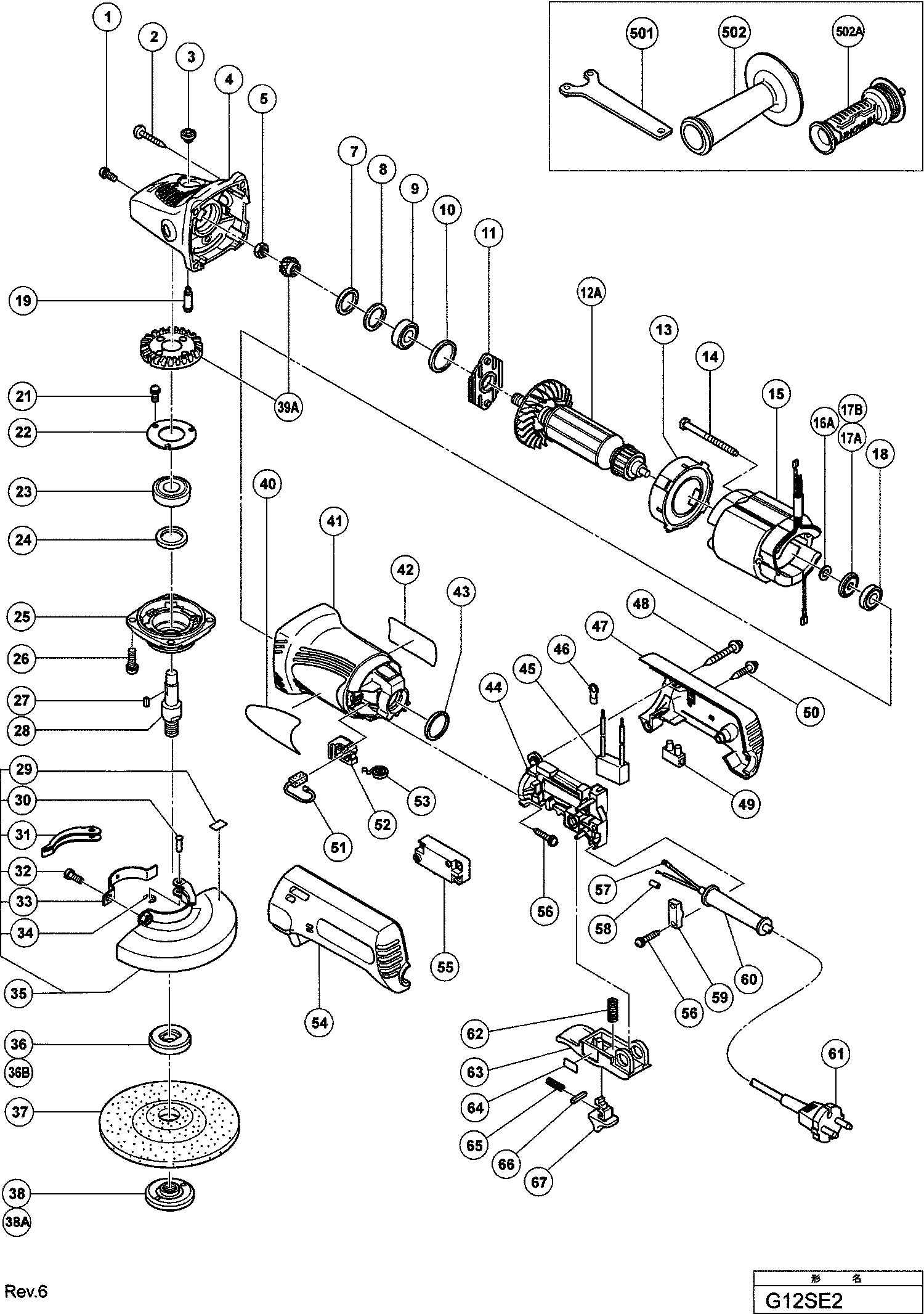

Zeichnungen der Hikoki G12SE2
Teileliste der Hikoki G12SE2
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Dichtungsverschlussschraube M4X10 | ||||
1 | 303255 | 1.04 | 1.23 | |
Schraube D5x25 schwarz, Cm5sb | ||||
2 | 320523 | 1.35 | 1.61 | |
Arretierungsstift G12s1/g12sa2/ G13yb1/g13v/g13yd | ||||
3 | 301944 | 1.04 | 1.23 | |
Getriebedeckel kpl. G12se2/g13se2, Cm5sb Includ.4 | ||||
4 | 321737 | 36.44 | 43.36 | |
Mutter M8 (10st) | ||||
5 | 949558 | 1.05 | 1.25 | |
Dichtungsring (a) G12se/g13se u.a G12sa2, Cm5sb | ||||
7 | 308543 | 1.04 | 1.23 | |
Unterlegscheibe (c) G12se/g12sa2/ G13sb2/g13yc/g1 | ||||
8 | 980866 | 1.04 | 1.23 | |
Kugellager 629t12ddc3, Cm5sb | ||||
9 | 629T12 | 9.83 | 11.69 | |
Gummiring G12sa/g12se/g12sa2 G13sb2/g12sa2, Cm5sb | ||||
10 | 957754 | 1.20 | 1.43 | |
Lagerdeckel G12se2/g13se2, Cm5sb | ||||
11 | 321734 | 1.35 | 1.61 | |
Anker G12se2 / G13se2 Includ.17b | ||||
12A | 360603F | 48.81 | 58.09 | |
Ventilatorführung G12se2/g13se2, Cm5sb | ||||
13 | 321732 | 1.35 | 1.61 | |
Sechskantschneidschraube D4x70, Cm5sb | ||||
14 | 982021 | 1.04 | 1.23 | |
Stator 230V | ||||
15 | 340933E | 32.86 | 39.11 | |
Stator 230 V für G 12 Se2/g13se2 | ||||
15 | 340551E | 31.76 | 37.80 | |
Distanzscheibe G12se/g13se/g13v G13yd | ||||
16A | 311737 | 1.04 | 1.23 | |
Staubdichtung (a) G12se/g13se/ C6dd | ||||
17A | 311435 | 1.04 | 1.23 | |
Staubdichtung G12s2/g12sa2/g13sd/ G13sb2/g12sa2, | ||||
17B | 315877 | 1.05 | 1.25 | |
Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | ||||
18 | 608VVM | 5.70 | 6.78 | |
Stift 2s1/g12sa2/g13yb1/g13v/ G13yd/g13sb2/g15yc/ | ||||
19 | 301943 | 1.65 | 1.96 | |
Kopfschraube M4x8 M.federring Selbstsichern, Cm5s | ||||
21 | 991207 | 1.04 | 1.23 | |
Lagerdeckel (b) G12sa/g13se/u.a G12sa2, Cm5sb | ||||
22 | 936680 | 1.04 | 1.23 | |
Kugellager 6201 Dd, Cm5sb | ||||
23 | 6201DD | 6.30 | 7.50 | |
Filzdichtung G12se/g12sa2/g13se/ G13sb2/g12sa2, C | ||||
24 | 308546 | 1.04 | 1.23 | |
Getriebedeckel G12se/g12sa2/g13se G13sb2/g12sa2, | ||||
25 | 308545 | 7.35 | 8.75 | |
Kopfschraube 5x16 M.federring Selbstsichern, | ||||
26 | 307046 | 1.04 | 1.23 | |
Keil 3x3x8 Dh22vb/g12sa/g12sa2/ G13sb2/g12sa2/dh4 | ||||
27 | 944109 | 1.70 | 2.02 | |
Gelenkwelle (a) | ||||
28 | 994301 | 14.25 | 16.96 | |
Spindel (b) | ||||
28 | 994302 | 13.89 | 16.53 | |
Schild | ||||
29 | 311492 | 1.20 | 1.43 | |
Stellstift G12se/g13se/g12y Till 11.2014 | ||||
30 | 311744 | 1.20 | 1.43 | |
Hebel G12se/g13se/g15yc | ||||
31 | 311743 | 5.75 | 6.84 | |
Maschinenschraube M5x25 G12se/u.a | ||||
32 | 880734 | 1.04 | 1.23 | |
Klemmstück (b) G12se/g13se/g15yc bis 11.2014 | ||||
33 | 311491 | 4.65 | 5.53 | |
C-type Ring D2,5 G12se/g13se | ||||
34 | 874759 | 1.04 | 1.23 | |
Schutzhaube Komplett G12se Includ.29-34 (except F | ||||
35 | 311745 | 19.54 | 23.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
36 | 937817Z | |||
Radunterlegscheibe (c) für Pfanne (120v) | ||||
36B | 334456 | 2.10 | 2.50 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
37 | 316821 | |||
Ausserer Flansch | ||||
38 | 937923P | 5.40 | 6.43 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
38A | 337329 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
38B | 339579 | |||
Antriebsritzel und Abzweigung, Cm5sb | ||||
39A | 329054 | 16.36 | 19.47 | |
Gehaeuse | ||||
41 | 321731 | 12.43 | 14.79 | |
Gummiring (1) | ||||
43 | 321733 | 1.35 | 1.61 | |
Schalterhalter | ||||
44 | 370016 | 2.55 | 3.03 | |
Schaltergehäuse G12se/g13se | ||||
44 | 311738 | 2.10 | 2.50 | |
Kondensator C6u-c13u u.a., C 8fshe | ||||
45 | 930039 | 1.95 | 2.32 | |
Kabelschuh Div.typen | ||||
46 | 311741 | 1.04 | 1.23 | |
Griffschale (b) G12se2/g13se2 | ||||
47 | 321739 | 4.96 | 5.91 | |
Abdeckkappe | ||||
47 | 370120 | 2.85 | 3.39 | |
Schneidschraube D4x35 M.flansch | ||||
48 | 303694 | 1.04 | 1.23 | |
Schraubklemme 1-reihig Div.typen Till 10.1999 For | ||||
49 | 938307 | 2.13 | 2.53 | |
Schneidschraube D4x20 Mit Flansch (schwarz), C8fs | ||||
50 | 301653 | 1.04 | 1.23 | |
Kohlebürsten Selbstabsch.(paar) | ||||
51 | 999076 | 14.40 | 17.14 | |
Kohlebürsten (paar), Cm5sb | ||||
51 | 999088 | 4.50 | 5.36 | |
Kohlekasten Zsb | ||||
52 | 317810 | 4.80 | 5.71 | |
Kohlenhalterfeder G12se/g13v G13yd/g13sb2/g12sa2 | ||||
53 | 308536 | 1.65 | 1.96 | |
Griffschale (a) G12se2/g13se2 | ||||
54 | 321738 | 4.96 | 5.91 | |
Abdeckkappe | ||||
54 | 370119 | 2.85 | 3.39 | |
Schalter | ||||
55 | 311739 | 12.00 | 14.28 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
56 | 984750 | |||
Anschlussklemme | ||||
57 | 980063 | 1.04 | 1.23 | |
Kanalhülse für Kabel (d) Div.typen, Cm9uby, G23ss | ||||
58 | 981373 | 1.05 | 1.25 | |
Kabelklemme Div.typen, Cm9uby, G23ss | ||||
59 | 960266 | 1.04 | 1.23 | |
Kabelknickschutz D8.8 Div.typen, Cm5sb | ||||
60 | 380090 | 1.04 | 1.24 | |
Kabel 5m 2 X 1,0 W/Stecker 13a/250v Für Gbr | ||||
61 | 500440Z | 20.49 | 24.38 | |
Kabel G13va (cord Armor D8.8) For Gbr (110v) | ||||
61 | 500461Z | 17.88 | 21.27 | |
Feder Cr10v/g12se u.a. | ||||
62 | 983595 | 1.04 | 1.23 | |
Schalterhebel G12se/g13se u.a. | ||||
63 | 308554 | 2.25 | 2.68 | |
Aktionsschild F.schalthebel G12se/g13se u.a. For | ||||
64 | 308557 | 1.05 | 1.25 | |
Aktionsschild f. Schalthebel G13yc | ||||
64 | 308558 | 1.05 | 1.25 | |
Feder (f) G13yc/g15yc/c6dd | ||||
65 | 301631 | 1.04 | 1.23 | |
Keil 3x3x15 Dh25v/dh28y/g12se u.a | ||||
66 | 982696 | 1.04 | 1.23 | |
Arretierhebel G12se/g13se u.a. For Bel,ger,esp | ||||
67 | 308555 | 1.50 | 1.78 | |
Sperrhebel G12se/g12se2 G13se/g13se2/g13yc | ||||
67 | 308556 | 1.35 | 1.61 | |
Varistor (b) Für Modell (e) | ||||
68 | 370017 | 5.85 | 6.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
501 | 938332Z | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
502 | 994322 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
502A | 336865 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
503 | 325515 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
601 | 938317 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
602 | 938318 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
603 | 314095 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
604 | 314096 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
605 | 314097 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
606 | 314098 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
607 | 314099 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
608 | 314100 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
609 | 314101 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
610 | 314102 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
611 | 314103 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
612 | 314104 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
613 | 314105 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
614 | 994312 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
615 | 310338 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
616 | 332785 | |||
Flüssige Dichtung | ||||
617 | 324688 | 40.84 | 48.60 |
