Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki GP2S2'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

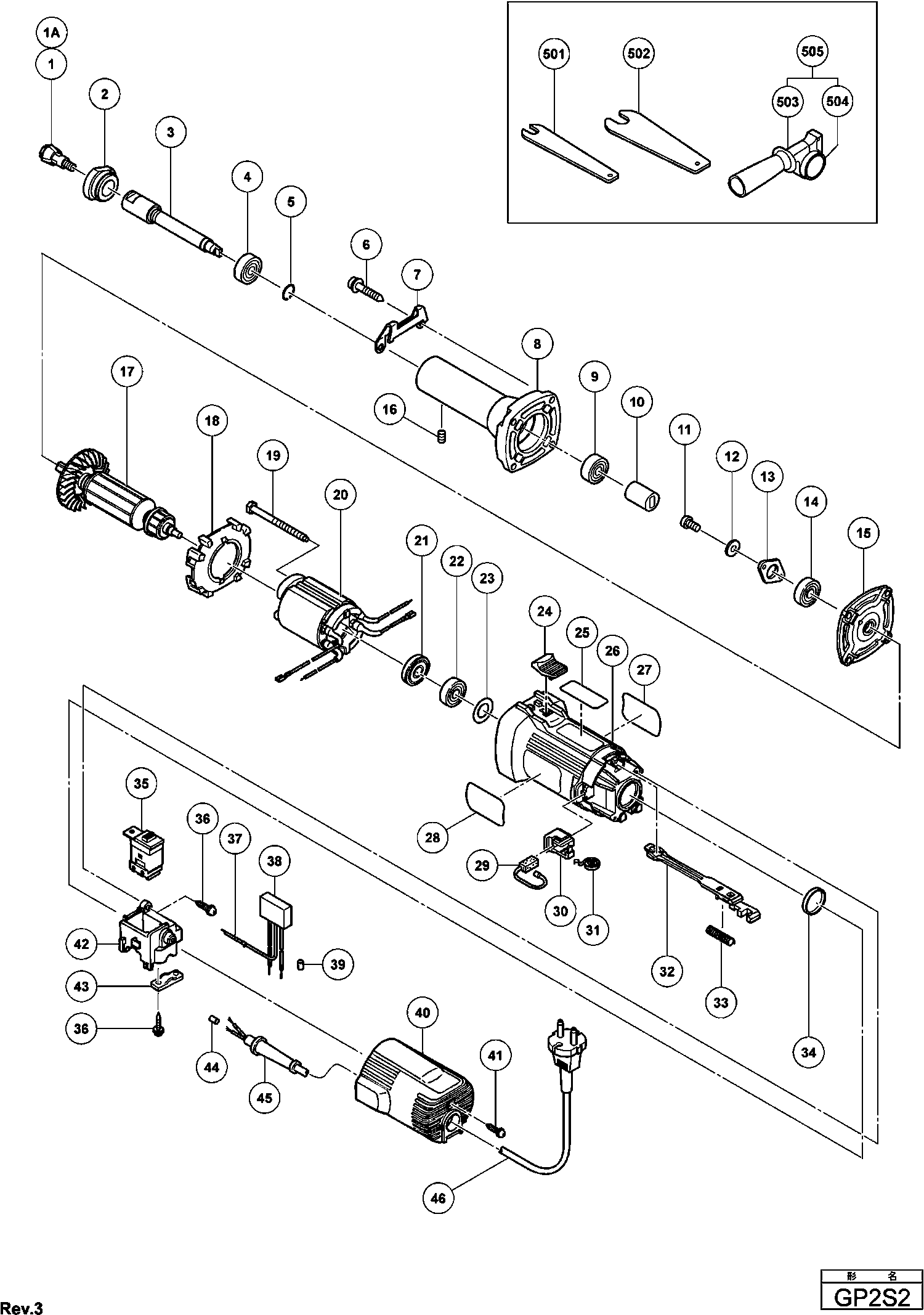

Zeichnungen der Hikoki GP2S2
Teileliste der Hikoki GP2S2
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Keine Informationen verfügbar, nicht bestellbar | ||||
1 | 331422 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
1A | 332812 | |||
Lagerdeckel | ||||
2 | 332452 | 4.28 | 5.09 | |
Gelenkwelle (a) | ||||
3 | 332453 | 14.38 | 17.11 | |
Kugellager 6001 Vv | ||||
4 | 6001VV | 6.60 | 7.85 | |
Unterlegscheibe | ||||
5 | 932617 | 1.05 | 1.25 | |
SCHRAUBE D5X30 | ||||
6 | 986011 | 1.04 | 1.23 | |
Ablagebügel G12s2/g13sd/g13v G13yd | ||||
7 | 317807 | 1.05 | 1.25 | |
Vordergehäuse | ||||
8 | 331474 | 13.95 | 16.60 | |
Kugellager 6000 Vv, Cm9by, C8fse, G23ss | ||||
9 | 6000VV | 6.15 | 7.32 | |
Nicht mehr lieferbar, kein Ersatz | ||||
10 | 985140 | |||
KUPPLUNG (ALT 985140) | ||||
10A | 372998 | 13.95 | 16.60 | |
Kopfschraube M4x10 M.federring Selbstsichernd | ||||
11 | 987201 | 1.05 | 1.25 | |
Federscheibe M4 (10st) | ||||
12 | 949453 | 1.05 | 1.25 | |
Lagerblech | ||||
13 | 937876 | 1.05 | 1.25 | |
Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | ||||
14 | 608VVM | 5.70 | 6.78 | |
Innengehäuse | ||||
15 | 331475 | 5.18 | 6.16 | |
INNENSECHSKANT-SCHRAUBE M4X4 | ||||
16 | 981478 | 1.05 | 1.25 | |
Anker 230v | ||||
17 | 360879E | 28.05 | 33.38 | |
Luftführung G13v | ||||
18 | 319898 | 1.05 | 1.25 | |
Sechskantschneidschraube D4x70, Cm5sb | ||||
19 | 982021 | 1.04 | 1.23 | |
Stator 230V | ||||
20 | 340758H | 19.33 | 23.00 | |
Staubdichtung G12s2/g12sa2/g13sd/ G13sb2/g12sa2, | ||||
21 | 315877 | 1.05 | 1.25 | |
Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | ||||
22 | 608VVM | 5.70 | 6.78 | |
Unterlegscheibe M14 | ||||
23 | 332804 | 1.05 | 1.25 | |
Schiebeknopf G12sg/g13v/g13yd G13sb2/g12sa2, Cm5s | ||||
24 | 314428 | 1.04 | 1.23 | |
Gehäuse | ||||
26 | 317802 | 12.00 | 14.28 | |
Kohlebürsten (paar), Cm5sb | ||||
29 | 999088 | 4.50 | 5.36 | |
Kohlekasten Zsb | ||||
30 | 317810 | 4.80 | 5.71 | |
Kohlenhalterfeder G12se/g13v G13yd/g13sb2/g12sa2 | ||||
31 | 308536 | 1.65 | 1.96 | |
Zugstange | ||||
32 | 317806 | 1.05 | 1.25 | |
Feder G12sg/g13v/g13yd, Cm9uby | ||||
33 | 314429 | 1.04 | 1.23 | |
Gummiring (1) | ||||
34 | 995662 | 1.04 | 1.23 | |
Schalter | ||||
35 | 332805 | 10.80 | 12.85 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
36 | 984750 | |||
Erdungsklemme G12s2/g13sd/g13v G13yd/g13sb2/g12sa | ||||
37 | 314854 | 1.50 | 1.78 | |
Kondensator | ||||
38 | 325566 | 9.00 | 10.71 | |
Kanalhülse für Kabel (d) Div.typen, Cm9uby, G23ss | ||||
39 | 981373 | 1.05 | 1.25 | |
Abdeckkappe G12s2/g13sd | ||||
40 | 317808 | 5.85 | 6.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
41 | 984750 | |||
Schalterhalter Zusammenstellung (alt 317811) | ||||
42 | 376969 | 1.05 | 1.25 | |
Kabelklemme Div.typen, C8fshe, Cm5sb, C8fse | ||||
43 | 937631 | 1.04 | 1.23 | |
Kanalhülse für Kabel (d) Div.typen, Cm9uby, G23ss | ||||
44 | 981373 | 1.05 | 1.25 | |
Kabelknickschutz D8.8 Div.typen, Cm5sb | ||||
45 | 380090 | 1.04 | 1.24 | |
Kabelknickschutz D10.1 Div.typen, C8fshe, C8fse | ||||
45 | 938051 | 1.04 | 1.23 | |
Kabel G13va (cord Armor D8.8) For Gbr (110v) | ||||
46 | 500461Z | 17.88 | 21.27 | |
Schnur | ||||
46 | 500240Z | 13.18 | 15.68 | |
Kabel 2,5 M C7mfa (cord Armor D8.8) For Gbr (110v | ||||
46 | 500237Z | 11.40 | 13.57 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
501 | 936553 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
502 | 936638 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
503 | 324548 | |||
Huelse | ||||
504 | 330061 | 3.45 | 4.11 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
505 | 330060 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
505A | 371325 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
601 | 932624 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
602 | 985135 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
603 | 985136 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
604 | 939103 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
605 | 939104 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
606 | 939107 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
607 | 949021 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
608 | 949022 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
609 | 939110 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
610 | 939115 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
611 | 939117 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
612 | 939118 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
613 | 939119 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
614 | 939120 |
