Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki H41SD'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

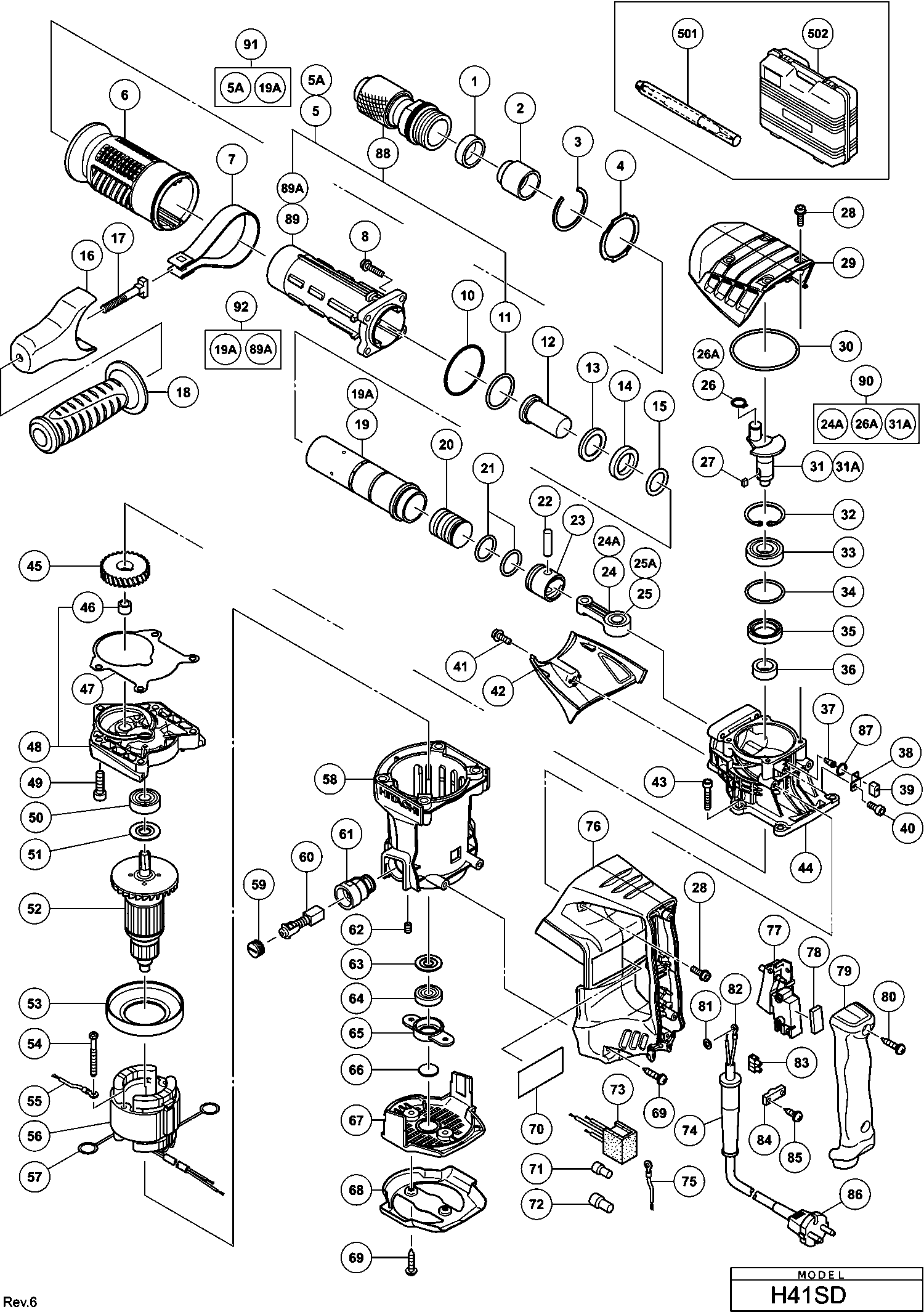

Zeichnungen der Hikoki H41SD
Teileliste der Hikoki H41SD
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Befestigung Dämpfer Dh50mr | ||||
1 | 334946 | 1.95 | 2.32 | |
Hammerhalter | ||||
2 | 334950 | 8.25 | 9.82 | |
Sicherungsring D45 | ||||
3 | 333856 | 3.15 | 3.75 | |
Vordere Unterlegscheibe | ||||
4 | 333855 | 1.05 | 1.25 | |
Zylindermantel Ass'y | ||||
5 | 334945 | 61.88 | 73.63 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
5A | 339599 | |||
Zylindergehäusedeckel | ||||
6 | 333854 | 4.65 | 5.53 | |
Band H41mb | ||||
7 | 333261 | 3.90 | 4.64 | |
Inbusschraube M6x25 M.flansch | ||||
8 | 991712 | 1.05 | 1.25 | |
O-ring (s-48) H41sa/h45ma/sa H30pv | ||||
10 | 980715 | 2.40 | 2.86 | |
O-ring | ||||
11 | 883771 | 1.80 | 2.14 | |
Zweiter Hammer | ||||
12 | 334947 | 37.95 | 45.16 | |
Dämpferunterlegscheibe | ||||
13 | 333852 | 3.75 | 4.46 | |
Dämpfer | ||||
14 | 333851 | 3.00 | 3.57 | |
O-ring (a) H41sa/h45sa | ||||
15 | 983234 | 8.70 | 10.35 | |
Traeger | ||||
16 | 333262 | 3.90 | 4.64 | |
Handgriffbolzen H41mb Except For Esp,ind,ina | ||||
17 | 333227 | 13.58 | 16.15 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
18 | 330209 | |||
Zylinder | ||||
19 | 333850 | 21.04 | 25.03 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
19A | 339601 | |||
Anschläger H60ma/mb | ||||
20 | 334944 | 9.00 | 10.71 | |
O-ring Dh28/40/50 (hämmer) | ||||
21 | 986104 | 1.05 | 1.25 | |
Kolbenstift Dh28y/dh38yb/dh40mr | ||||
22 | 980708 | 2.40 | 2.86 | |
Kolben | ||||
23 | 333848 | 5.70 | 6.78 | |
Stange | ||||
24 | 333847 | 21.73 | 25.85 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
24A | 339603 | |||
Nadellager | ||||
25 | 335303 | 4.35 | 5.18 | |
Nadellager (nsk Aj50 1203) Dh28y/dh40ma/mb u.a. | ||||
25A | 980756 | 10.65 | 12.67 | |
Sicherungsring D10 (10st), Cm9uby, Cg18dl Till 12 | ||||
26 | 939540 | 1.95 | 2.32 | |
Sicherungsring D12 (10st), G23ss | ||||
26A | 939542 | 1.50 | 1.78 | |
Keil 4x4x8 Say150a/g18sc/sd u.a.. Since 9.2000 | ||||
27 | 980809 | 1.04 | 1.23 | |
Inbusschraube M5x16 M.flansch, Cm9uby, G23ss | ||||
28 | 994192 | 1.04 | 1.23 | |
Kurbelgehäusedeckel H41sa/h45ma | ||||
29 | 333858 | 7.80 | 9.28 | |
O-ring (jas02060) Nr100a | ||||
30 | 878867 | 3.30 | 3.93 | |
Kurbelwelle | ||||
31 | 333846 | 29.56 | 35.18 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
31A | 339602 | |||
Sicherungsring D40 Innen H41sa/h45ma/dh40mr | ||||
32 | 948391 | 1.65 | 1.96 | |
Kugellager 6203 Dd | ||||
33 | 6203DD | 7.65 | 9.10 | |
O-ring (s-40) H41sa/h45ma/dh40mr | ||||
34 | 996363 | 1.65 | 1.96 | |
Öldichtung H41sa/h45ma/h45mr | ||||
35 | 310119 | 3.60 | 4.28 | |
Distanzring | ||||
36 | 333245 | 2.93 | 3.48 | |
VENTIL | ||||
37 | 995396 | 1.80 | 2.14 | |
Abdeckung | ||||
38 | 335301 | 1.04 | 1.23 | |
Filzring | ||||
39 | 334217 | 1.95 | 2.32 | |
Inbusschraube M4x8 Selbstsichernd | ||||
40 | 877838 | 1.05 | 1.25 | |
Inbusschraube M5x12 | ||||
41 | 998471 | 1.05 | 1.25 | |
Haube | ||||
42 | 333857 | 1.80 | 2.14 | |
Schraube M6x35 | ||||
43 | 324056 | 1.65 | 1.96 | |
Kurbelgehäuse | ||||
44 | 333845 | 16.23 | 19.31 | |
Erstes Zahnrad H41mb | ||||
45 | 333246 | 17.60 | 20.94 | |
Nadellager | ||||
46 | 939299 | 10.65 | 12.67 | |
Dichtungspackung (b) | ||||
47 | 334949 | 2.25 | 2.68 | |
Getriebegehaeuse | ||||
48 | 334943 | 20.21 | 24.05 | |
Inbusschraube M6x20 Selbstsich. | ||||
49 | 992803 | 1.05 | 1.25 | |
Kugellager 6201 Dd, Cm5sb | ||||
50 | 6201DD | 6.30 | 7.50 | |
Staubscheibe (b) H45mr/dh40mr | ||||
51 | 302429 | 1.05 | 1.25 | |
Anker 230v | ||||
52 | 360946E | 62.56 | 74.45 | |
Luftführung | ||||
53 | 331252 | 2.10 | 2.50 | |
Sechskantschneidschraube D5x50 | ||||
54 | 953121 | 1.04 | 1.23 | |
Verbinderkabel | ||||
55 | 990861 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
56 | 340788K | |||
Kohlenhalterklemme Dh28y u.a. H30pv/vb16y/dh30pc/ | ||||
57 | 930703 | 2.40 | 2.86 | |
Gehäuse | ||||
58 | 333267 | 21.04 | 25.03 | |
Kohlenkappe C6u/c7u u.a. H30pv/dh30pc/ H41mb/ G23 | ||||
59 | 945161 | 1.20 | 1.43 | |
Kohlenbürsten (paar) H41mb | ||||
60 | 999043 | 4.50 | 5.36 | |
Kohlekasten Zsb | ||||
61 | 958900 | 6.45 | 7.68 | |
Inbusstiftschraube M5x8, C8fshe, C8fse, H41mb,g23 | ||||
62 | 938477 | 1.05 | 1.25 | |
Unterlegscheibe (a) Cr17y/dh20pb H30pv/dh30pc/h45 | ||||
63 | 982631 | 1.04 | 1.23 | |
Kugellager 608 Vvm, C8fshe, Cm5sb, C8fse, H41mb | ||||
64 | 608VVM | 5.70 | 6.78 | |
Lagerhalter | ||||
65 | 331254 | 2.10 | 2.50 | |
Staubdichtung H41mb | ||||
66 | 333263 | 1.04 | 1.23 | |
Abdeckun H41mb | ||||
67 | 333264 | 3.90 | 4.64 | |
Platte (1) | ||||
68 | 333860 | 3.00 | 3.57 | |
Schneidschraube D5x20 M.flansch H41mb | ||||
69 | 302089 | 1.05 | 1.25 | |
Verbinder 50091 (10st) Div.typen | ||||
71 | 959140 | 3.30 | 3.93 | |
Verbinder 50092 (10st) Div.typen (usa, Can), C8fs | ||||
72 | 959141 | 3.75 | 4.46 | |
Kondensator | ||||
73 | 331203 | 4.20 | 5.00 | |
Kabelknickschutz D10.7 Div.typen, Cm9by, H41mb, G | ||||
74 | 940778 | 2.10 | 2.50 | |
Kabelknickschutz D8.2 Div.typen H41mb, G23ss | ||||
74 | 958049 | 1.04 | 1.23 | |
Verbinderkabel | ||||
75 | 981974 | 1.65 | 1.96 | |
Griff | ||||
76 | 333861 | 14.10 | 16.78 | |
Schalter (b) (Schraubentyp 1p) Mit Sperre | ||||
77 | 306143 | 17.05 | 20.29 | |
Gummiplatte | ||||
78 | 335302 | 1.04 | 1.23 | |
Griffgehäuse Dh38ms, H41mb | ||||
79 | 331205 | 9.00 | 10.71 | |
Schneidschraube D4x25 Mit Flansch (schwarz), H41m | ||||
80 | 307028 | 1.05 | 1.25 | |
Unterlegscheibe M4 (10st) | ||||
81 | 949423 | 1.05 | 1.25 | |
Anschlussklemme | ||||
82 | 980063 | 1.04 | 1.23 | |
Schraubklemme 1-reihig Div.typen Till 10.1999 For | ||||
83 | 938307 | 2.13 | 2.53 | |
Kabelklemme Div.typen, Cm9uby, G23ss | ||||
84 | 960266 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
85 | 984750 | |||
Kabel 5m 2 X 1,0 W/Stecker 13a/250v Für Gbr | ||||
86 | 500440Z | 20.49 | 24.38 | |
O-ring (s-10) D6sh | ||||
87 | 987105 | 1.05 | 1.25 | |
Vorderkappe H45ma/h60ma/mb H45mr | ||||
88 | 337616 | 44.83 | 53.34 | |
Zylindergehäuse | ||||
89 | 337617 | 15.40 | 18.33 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
89A | 339600 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
90 | 339613 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
91 | 339614 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
92 | 339615 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
501 | 980752 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
502 | 333862 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
601 | 980753 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
602 | 234001 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
603 | 323357 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
604 | 318085 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
605 | 320859 | |||
Fett (tube 30 Gramm) | ||||
606 | 981840 | 8.40 | 10.00 | |
Fett für Hammer. Hammerbohrer (70g) | ||||
607 | 308471 | 12.75 | 15.17 | |
Fett (Dose 500 Gramm) | ||||
608 | 980927 | 73.01 | 86.88 |
