Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki NC50H'. Von hier aus können Sie alle gewünschten Teile direkt bestellen.Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert 5 bis 10 Arbeitstage. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

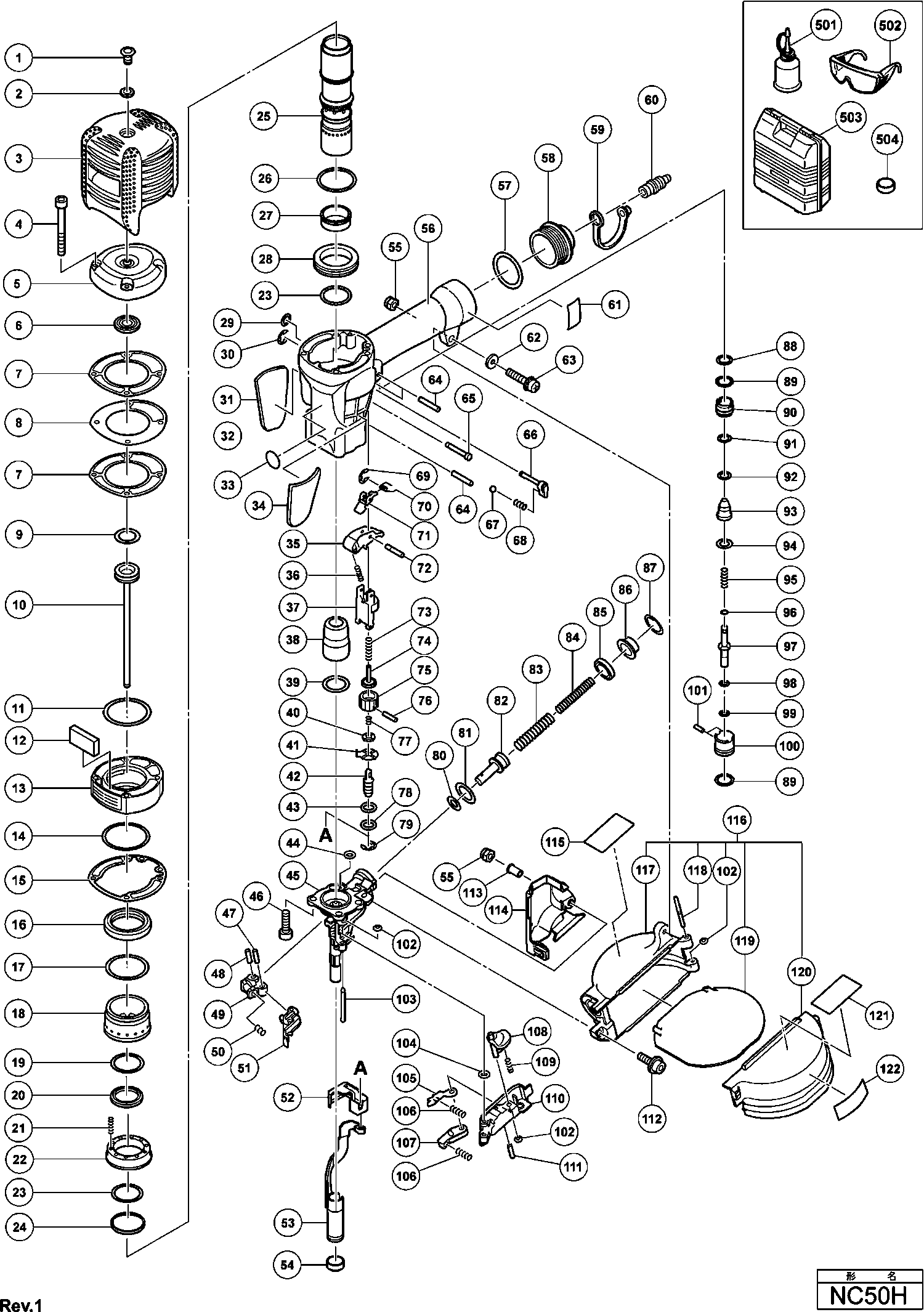

Zeichnungen der Hikoki NC50H
Teileliste der Hikoki NC50H
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 1 | 885265 | |||
| Ring | ||||
| 2 | 885264 | 5.10 | 6.07 | |
| HEAD GUARD | ||||
| 3 | 885593 | 8.52 | 10.14 | |
| Nylock Schraube M5x55 | ||||
| 4 | 883403 | 9.00 | 10.71 | |
| Oberdeckel (gold) | ||||
| 5 | 886632 | 67.10 | 79.85 | |
| Scheibe Nv65aj | ||||
| 6 | 883423 | 7.05 | 8.39 | |
| Dichtungsplatte (b) Cm12y | ||||
| 7 | 883130 | 10.05 | 11.96 | |
| Platte (1) | ||||
| 8 | 883132 | 5.10 | 6.07 | |
| Kolben-O-Ring | ||||
| 9 | 885253 | 8.10 | 9.64 | |
| SLAGPEN | ||||
| 10 | 885597 | 293.20 | 348.91 | |
| O-Ring (Innendurchmesser 45,5) | ||||
| 11 | 883401 | 21.18 | 25.20 | |
| MUFFLER (A) | ||||
| 12 | 883402 | 4.20 | 5.00 | |
| UITLAATKAP | ||||
| 13 | 886634 | 107.80 | 128.28 | |
| O-ring (s-48) H41sa/h45ma/sa H30pv | ||||
| 14 | 980715 | 2.40 | 2.86 | |
| Packung (c) | ||||
| 15 | 885188 | 13.05 | 15.53 | |
| Schlauchventilgummi | ||||
| 16 | 883121 | 8.10 | 9.64 | |
| O-RING (I.D. 41.5) FKM | ||||
| 17 | 885678 | 13.58 | 16.16 | |
| SLEEVE VALVE | ||||
| 18 | 883118 | 45.21 | 53.80 | |
| O-RING (I.D. 35.5) FKM | ||||
| 19 | 885679 | 11.06 | 13.16 | |
| Auspuffgummi | ||||
| 20 | 883120 | 5.10 | 6.07 | |
| Schlauchventilfeder | ||||
| 21 | 883123 | 1.80 | 2.14 | |
| VALVE PLATE | ||||
| 22 | 885861 | 80.24 | 95.49 | |
| O-Ring (i.d. 29.7) | ||||
| 23 | 880865 | 1.35 | 1.61 | |
| Zylinder Stoßstange | ||||
| 24 | 885862 | 13.05 | 15.53 | |
| CYLINDER | ||||
| 25 | 885863 | 167.97 | 199.88 | |
| O-Ring (Innendurchmesser 45,5) | ||||
| 26 | 883418 | 1.80 | 2.14 | |
| Ring | ||||
| 27 | 881244 | 10.05 | 11.96 | |
| Zylinderplatte Nv45ab/nv50a1 | ||||
| 28 | 883117 | 19.25 | 22.91 | |
| O-Ring (Innendurchmesser 1,8) ab 7.2016 für Nor | ||||
| 29 | 883405 | 5.10 | 6.07 | |
| Sicherungsring D4 (e-type) | ||||
| 30 | 968643 | 1.95 | 2.32 | |
| BEHUIZING | ||||
| 32 | 887976 | 105.22 | 125.21 | |
| Warnschild Nv50af3, Nr90aa | ||||
| 33 | 883513 | 1.65 | 1.96 | |
| Abzug (s) | ||||
| 35 | 886052 | 9.00 | 10.71 | |
| Abzugfeder | ||||
| 36 | 884916 | 1.80 | 2.14 | |
| Schiebehebelanleitung | ||||
| 37 | 886047 | 18.29 | 21.76 | |
| Kolbenstoßdämpfer | ||||
| 38 | 885254 | 13.35 | 15.89 | |
| O-ring (s-34) H90sa/vb13y/vrv16 H45mr | ||||
| 39 | 980879 | 1.05 | 1.25 | |
| Justierungsplatte (c) Nr90ae | ||||
| 40 | 884973 | 1.65 | 1.96 | |
| Justierungsplatte (a) Nv65aj | ||||
| 41 | 882886 | 3.30 | 3.93 | |
| Druckhebel (b) Nv65aj | ||||
| 42 | 882888 | 17.33 | 20.62 | |
| O-RING (S-4) | ||||
| 43 | 981317 | 1.05 | 1.25 | |
| O-ring (1ap-3) Nv32ab/nv45ab | ||||
| 44 | 873093 | 1.05 | 1.25 | |
| NEUSSTUK | ||||
| 45 | 886050 | 368.28 | 438.25 | |
| Inbusschraube M7x25 M.flansch Selbstsichernd | ||||
| 46 | 993040 | 2.40 | 2.86 | |
| Spindel (b) | ||||
| 47 | 883093 | 3.30 | 3.93 | |
| Rollstift D4x16 | ||||
| 48 | 949497 | 2.55 | 3.03 | |
| Schiebearm (b) Nv75ag | ||||
| 49 | 883144 | 46.75 | 55.63 | |
| Schiebearm Nv75ag | ||||
| 50 | 883143 | 1.65 | 1.96 | |
| TOEVOERMECHANISME | ||||
| 51 | 885604 | 57.64 | 68.59 | |
| Druckhebelabdeckung (b) Nv65aj | ||||
| 52 | 883113 | 5.10 | 6.07 | |
| PUSHING LEVER (A) | ||||
| 53 | 886058 | 152.90 | 181.95 | |
| NEUSKAP | ||||
| 54 | 886057 | 16.83 | 20.03 | |
| Nylonmutter M5 Nv83a/nr83a, Nr90aa | ||||
| 55 | 877371 | 1.05 | 1.25 | |
| O-ring (i.d.37.2.) Nv38ab/nv65ad2 | ||||
| 57 | 880183 | 1.05 | 1.25 | |
| Kappe (gold) | ||||
| 58 | 886426 | 20.21 | 24.05 | |
| Staubabdeckung Dh40sr | ||||
| 59 | 877914 | 1.95 | 2.32 | |
| Luftstecker L-pt 1/4 | ||||
| 60 | 883135 | 14.99 | 17.84 | |
| HULS (A) | ||||
| 62 | 886059 | 19.58 | 23.30 | |
| MACHINE SCREW M5X35 BLACK (W/WASHERS) | ||||
| 63 | 885266 | 1.50 | 1.78 | |
| Rollstift D3x28 (10st), Nr90aa | ||||
| 64 | 949865 | 2.55 | 3.03 | |
| Trigger Pin | ||||
| 65 | 885268 | 13.05 | 15.53 | |
| Sperrknopf | ||||
| 66 | 885865 | 18.70 | 22.25 | |
| Stahlkugel D3.175 (10st) (alte Art.nr.939270) Wh1 | ||||
| 67 | 959148 | 1.05 | 1.25 | |
| Arretierfeder Nv65aj | ||||
| 68 | 882923 | 1.80 | 2.14 | |
| VEERRING | ||||
| 69 | 886056 | 1.50 | 1.78 | |
| Feder | ||||
| 70 | 886054 | 14.16 | 16.85 | |
| Abzug Arm(e) | ||||
| 71 | 886053 | 161.56 | 192.26 | |
| Abzug Arm Stift | ||||
| 72 | 886055 | 22.00 | 26.18 | |
| Schiebehebelfeder (a)) Nv90ab2 | ||||
| 73 | 883305 | 1.50 | 1.78 | |
| Druckhebel (c) Nv65aj | ||||
| 74 | 882891 | 18.15 | 21.60 | |
| Justierung | ||||
| 75 | 882889 | 3.45 | 4.11 | |
| Rollstift D2x16 | ||||
| 76 | 880093 | 1.04 | 1.23 | |
| Justierfeder Nv65aj | ||||
| 77 | 882890 | 1.65 | 1.96 | |
| O-ring (s-5) Nc65a | ||||
| 78 | 872822 | 3.00 | 3.57 | |
| Sicherungsring (e-typ) D3 Till 6.1998 | ||||
| 79 | 872971 | 1.05 | 1.25 | |
| O-ring (1p-9) Dh20v | ||||
| 80 | 872645 | 1.65 | 1.96 | |
| FUTTERKOLBEN O-RING (I.D.14) | ||||
| 81 | 877763 | 1.05 | 1.25 | |
| Feedkolben | ||||
| 82 | 883094 | 22.00 | 26.18 | |
| Feder (a) Dh18vb | ||||
| 83 | 883095 | 1.80 | 2.14 | |
| Feder (b) | ||||
| 84 | 883096 | 1.80 | 2.14 | |
| Bumper | ||||
| 85 | 885681 | 7.35 | 8.75 | |
| Abdeckung Nv83a | ||||
| 86 | 883098 | 3.45 | 4.11 | |
| Sicherungsring D24 Nv38ab/dh30pc H30pv | ||||
| 87 | 983748 | 1.05 | 1.25 | |
| O-ring (s-14) Dh15dv/dh20dv/vtv16 | ||||
| 88 | 876319 | 1.65 | 1.96 | |
| O-ring (s-16) Fcj55v | ||||
| 89 | 876031 | 1.65 | 1.96 | |
| Ventil Buchse (b) | ||||
| 90 | 883100 | 6.75 | 8.03 | |
| O-ring (p7-u) | ||||
| 91 | 883105 | 3.45 | 4.11 | |
| O-ring (p9-u) | ||||
| 92 | 883104 | 3.45 | 4.11 | |
| Ventilkolben | ||||
| 93 | 883101 | 30.25 | 36.00 | |
| O-ring (1ap-11) Nc65ab | ||||
| 94 | 878764 | 1.04 | 1.23 | |
| Tauchkolbenfeder Nv83a u.a. | ||||
| 95 | 883103 | 1.80 | 2.14 | |
| O-Ring (Innendurchmesser 1,8) ab 7.2016 für Nor | ||||
| 96 | 883405 | 5.10 | 6.07 | |
| Kolben | ||||
| 97 | 886051 | 55.00 | 65.45 | |
| O-Ring (1ap-5) | ||||
| 98 | 873407 | 1.04 | 1.23 | |
| O-ring (s-6) C8fc | ||||
| 99 | 997218 | 1.05 | 1.25 | |
| Ventilhülse (a) Nv65ad2, Nr90aa | ||||
| 100 | 883099 | 8.10 | 9.64 | |
| Stift D2x8 (10 Stk.) | ||||
| 101 | 949778 | 1.80 | 2.14 | |
| Sicherungsring Nv50ag | ||||
| 102 | 880319 | 1.65 | 1.96 | |
| Nagelführwelle Nv65aa u.a. | ||||
| 103 | 885603 | 15.26 | 18.16 | |
| O-ring (p-4) Cs35b/nr83a | ||||
| 104 | 874436 | 1.05 | 1.25 | |
| Nagel Stopper (a) | ||||
| 105 | 885601 | 20.49 | 24.38 | |
| Druckfeder 500dc | ||||
| 106 | 885602 | 5.10 | 6.07 | |
| SHEET STOPPER | ||||
| 107 | 885600 | 37.62 | 44.77 | |
| Führungsriegel Nv90ab | ||||
| 108 | 886107 | 5.10 | 6.07 | |
| Feder Nv50ag u.a. | ||||
| 109 | 880446 | 1.35 | 1.61 | |
| GELEIDER | ||||
| 110 | 885599 | 117.76 | 140.13 | |
| Rollstift D3x14 (10st) Nv65ad3 | ||||
| 111 | 949900 | 2.40 | 2.86 | |
| Inbusschraube M5x25 M.flansch | ||||
| 112 | 992253 | 1.05 | 1.25 | |
| Huelse (1) | ||||
| 113 | 885605 | 11.10 | 13.21 | |
| PUSHING LEVER COVER (A) | ||||
| 114 | 887964 | 6.66 | 7.93 | |
| WARNUNGSETIKETT | ||||
| 115 | 887175 | 5.10 | 6.07 | |
| Magazin komplett | ||||
| 116 | 885612 | 82.36 | 98.01 | |
| Magazin Zsb | ||||
| 117 | 885613 | 22.00 | 26.18 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 118 | 883111 | |||
| Nagelhalter Nv50ag | ||||
| 119 | 880438 | 7.05 | 8.39 | |
| MAGAZIJN DEKSEL | ||||
| 120 | 885614 | 19.58 | 23.30 | |
| WARNUNGSETIKETT | ||||
| 121 | 887174 | 5.10 | 6.07 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 501 | 883136 | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 502 | 875769 | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 503A | 888666 | |||
| NEUSKAP | ||||
| 504 | 886057 | 16.83 | 20.03 | |
| Griffband (a) Nv50ae u.a. Alte Art.nr.880349, Nr9 | ||||
| 601 | 881768 | 5.25 | 6.25 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 602A | 888213 | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 603 | 876212 | |||
| GRIP GUIDE | ||||
| 604 | 887133 | 41.36 | 49.22 | |
| HANGER PARTS SET | ||||
| 605 | 887978 | 721.66 | 858.78 | |
