Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki NR50AK'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

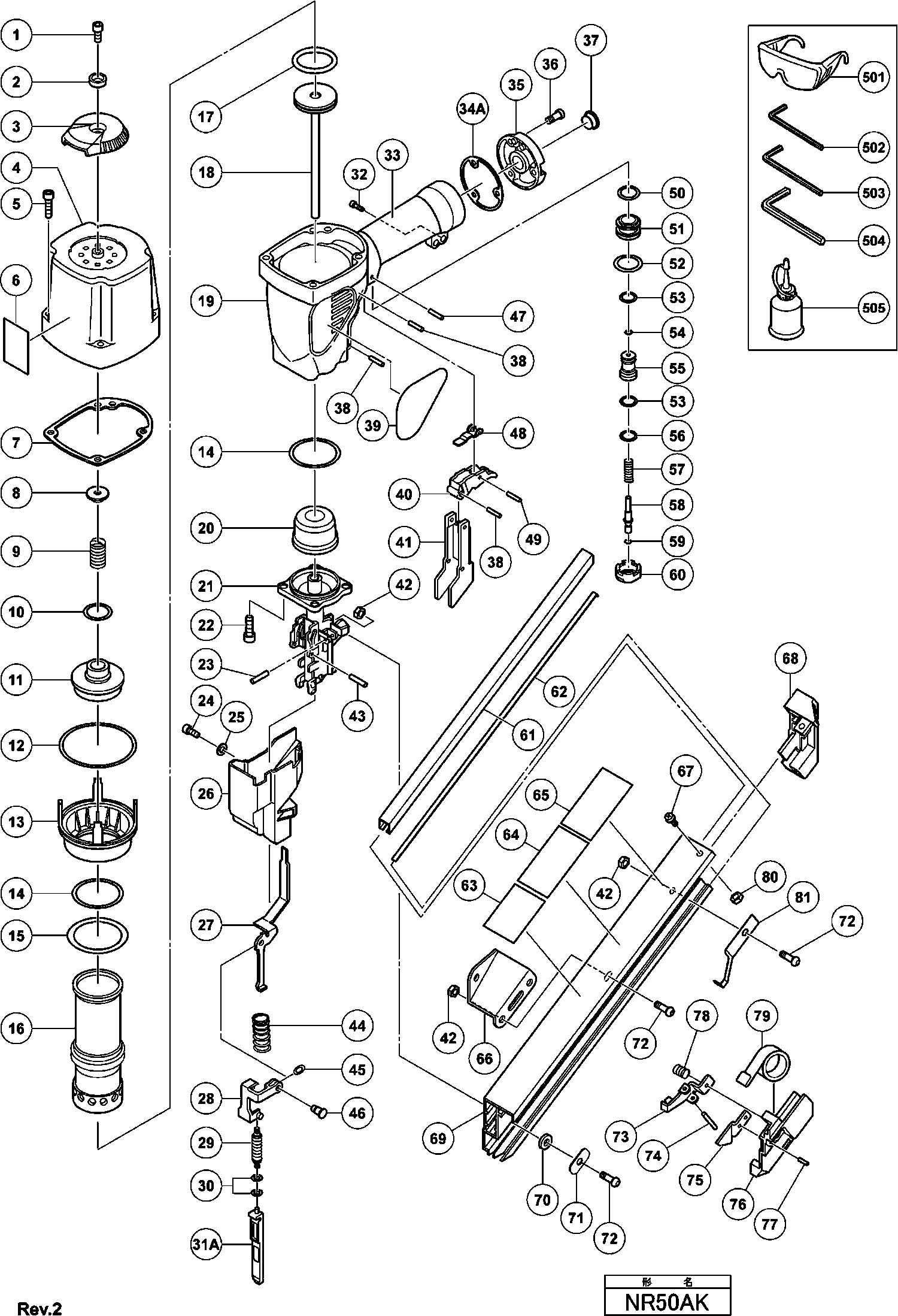

Zeichnungen der Hikoki NR50AK
Teileliste der Hikoki NR50AK
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Inbusschraube M6x12 (10st), Nr90aa | ||||
1 | 949657 | 3.00 | 3.57 | |
Platte (1) | ||||
2 | 880515 | 5.85 | 6.96 | |
Abdeckung | ||||
3 | 884332 | 4.20 | 5.00 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
4 | 883451 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
5 | 949822 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
6 | 881128 | |||
Dichtung (b) Nv75ag | ||||
7 | 883452 | 1.80 | 2.14 | |
Scheibe Nv65aj | ||||
8 | 882914 | 6.60 | 7.85 | |
Hauptventilfeder Nv65aj | ||||
9 | 882913 | 6.75 | 8.03 | |
O-ring | ||||
10 | 883992 | 1.65 | 1.96 | |
Hauptventil (a) Nv65af3 | ||||
11 | 882927 | 14.10 | 16.78 | |
O-ring (s-70) Nr100a | ||||
12 | 878863 | 2.40 | 2.86 | |
Zylinderplatte Nv65aj | ||||
13 | 882910 | 6.45 | 7.68 | |
O-ring (s-46) Nv65aj | ||||
14 | 882874 | 1.65 | 1.96 | |
O-ring (1ap-48) Nv83a/nr83a/aa | ||||
15 | 877368 | 1.95 | 2.32 | |
Zylinder Nv75ag | ||||
16 | 883989 | 50.46 | 60.05 | |
O-ring (i.d.37) | ||||
17 | 883431 | 1.65 | 1.96 | |
Kolben (h) Nr50ak | ||||
18 | 883471 | 132.83 | 158.06 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
19 | 885516 | |||
Kolbendämpfer Nv75ag | ||||
20 | 883432 | 14.03 | 16.69 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
21 | 885509 | |||
Schraube M6x20 | ||||
22 | 880675 | 4.05 | 4.82 | |
Rollstift D3x12 (10st) | ||||
23 | 949535 | 2.10 | 2.50 | |
NYLOCK HEX.SOCKET HD.SCHRAUBE M4X8 | ||||
24 | 878614 | 1.04 | 1.23 | |
Scheibe (b) C6dd/vb13y/vb16y | ||||
25 | 962569 | 1.05 | 1.25 | |
Schutz (1) | ||||
26 | 885515 | 6.30 | 7.50 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
27 | 883445 | |||
Druckhebel (b) Nr50ak | ||||
28 | 883444 | 21.04 | 25.03 | |
Feder (1) | ||||
29 | 883470 | 1.65 | 1.96 | |
O-ring (p-4) Cs35b/nr83a | ||||
30 | 874436 | 1.05 | 1.25 | |
Druckhebel (a) Nr50ak | ||||
31A | 883635 | 19.39 | 23.07 | |
Inbusschraube M6x16 Mit Flansch Selbstsichernd, N | ||||
32 | 880474 | 1.05 | 1.25 | |
Dichtung (b) Nv90ab2 | ||||
34A | 883309 | 4.80 | 5.71 | |
Kappe Nv75ag, Nr90aa | ||||
35 | 881949 | 4.80 | 5.71 | |
Inbusschraube M5x16 (10st), Nr90aa | ||||
36 | 949821 | 2.55 | 3.03 | |
Staubschutzkappe Nv83a/u.a, Nr90aa | ||||
37 | 872035 | 1.04 | 1.23 | |
Rollstift D3x28 (10st), Nr90aa | ||||
38 | 949865 | 2.55 | 3.03 | |
Druecker (1) | ||||
40 | 882894 | 3.30 | 3.93 | |
Hebelfeder-führung Nr50ak | ||||
41 | 883455 | 3.30 | 3.93 | |
Gewindemutter M6, C8fse, Nr90aa | ||||
42 | 963837 | 1.05 | 1.25 | |
Stift (1) | ||||
43 | 883438 | 1.65 | 1.96 | |
Hebelfeder Nr50ak | ||||
44 | 883446 | 1.65 | 1.96 | |
O-ring (1ap-3) Nv32ab/nv45ab | ||||
45 | 873093 | 1.05 | 1.25 | |
Anschluss (a) Nr50ak | ||||
46 | 883448 | 3.30 | 3.93 | |
Rollstift D3x22 (10st), Nr90aa | ||||
47 | 949864 | 1.65 | 1.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
48 | 883454 | |||
Rollstift D2,5x16 | ||||
49 | 881951 | 1.80 | 2.14 | |
KOPFVENTIL-O-RING (I.D.16.8) | ||||
50 | 877699 | 1.05 | 1.25 | |
Ventilbuchse (b) | ||||
51 | 878881 | 39.74 | 47.29 | |
O-ring (s-18) Cr17y/nv65ad2, Nr90aa | ||||
52 | 878885 | 1.05 | 1.25 | |
O-Ring (I.D. 8.8) | ||||
53 | 878925 | 1.05 | 1.25 | |
O-RING (S-4) | ||||
54 | 981317 | 1.05 | 1.25 | |
Ventilkolben (b) Nv65ad2, Nr90aa | ||||
55 | 880672 | 32.18 | 38.29 | |
O-Ring (I.D.11) | ||||
56 | 878887 | 1.65 | 1.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
57 | 883453 | |||
Tauchkolben (a) Nv65ad2, Nr90aa | ||||
58 | 880673 | 14.71 | 17.51 | |
O-Ring (I.D.1.8) | ||||
59 | 878888 | 1.05 | 1.25 | |
Ventilhülse (a) Nv65aj | ||||
60 | 882920 | 29.56 | 35.18 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
61 | 885511 | |||
Nagelplatte | ||||
62 | 885512 | 7.65 | 9.10 | |
Nicht mehr lieferbar, kein Ersatz | ||||
63 | 878183 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
64 | 883466 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
66 | 883464 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
67 | 881772 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
68 | 885513 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
69 | 885510 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
70 | 883434 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
71 | 883435 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
72 | 878647 | |||
Nagelspanner Nr50ak | ||||
73 | 883437 | 3.30 | 3.93 | |
Stift (1) | ||||
74 | 883438 | 1.65 | 1.96 | |
Druckhebelstopper Nr50ak | ||||
75 | 883439 | 1.65 | 1.96 | |
Nagelspannerabdeckung Nr50ak | ||||
76 | 883436 | 6.45 | 7.68 | |
Rollstift D3x10 (10st) | ||||
77 | 949776 | 2.40 | 2.86 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
78 | 883441 | |||
Rückzugfeder Nr50ak | ||||
79 | 883440 | 8.40 | 10.00 | |
Nylonmutter M5 Nv83a/nr83a, Nr90aa | ||||
80 | 877371 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
81 | 883463 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
501 | 875769 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
502 | 943277 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
503 | 944458 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
504 | 944459 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
505 | 877153 | |||
Griffband (a) Nv50ae u.a. Alte Art.nr.880349, Nr9 | ||||
601 | 881768 | 5.25 | 6.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
602A | 888213 |
