Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki NV50AP3'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

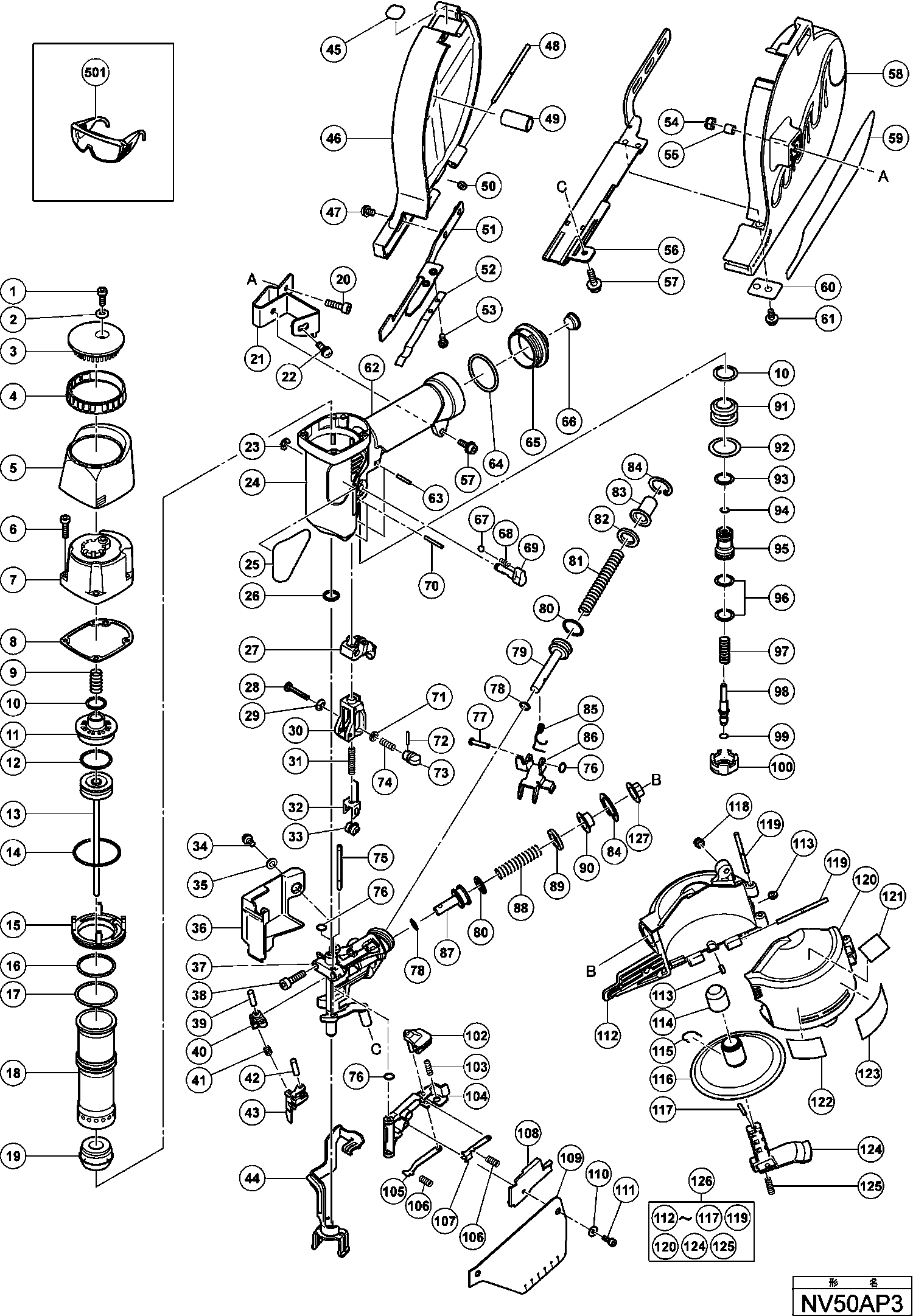

Zeichnungen der Hikoki NV50AP3
Teileliste der Hikoki NV50AP3
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Inbusschraube M5x10 (10st) | ||||
1 | 949819 | 2.55 | 3.03 | |
Unterlegscheibe Nv50af3 | ||||
2 | 944260 | 1.05 | 1.25 | |
Abdeckung Nv50af3 | ||||
3 | 881841 | 3.90 | 4.64 | |
Schalldämpferring Nv50af3 | ||||
4 | 881840 | 3.90 | 4.64 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
5 | 881883 | |||
Inbusschraube M5x20 (10st) For Europe | ||||
6 | 949757 | 3.00 | 3.57 | |
Ventildeckel Nv50af3 | ||||
7 | 881879 | 64.21 | 76.41 | |
Dichtung (a) Nv50af3 | ||||
8 | 881839 | 1.05 | 1.25 | |
Feder Nv50af3 | ||||
9 | 881851 | 3.00 | 3.57 | |
KOPFVENTIL-O-RING (I.D.16.8) | ||||
10 | 877699 | 1.05 | 1.25 | |
Ventil (a) Nv50af3 | ||||
11 | 881837 | 12.45 | 14.82 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
12 | 883365 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
13 | 885390 | |||
O-ring (1as-50) Nv50af3/dh30pc H30pv/h45mr | ||||
14 | 990067 | 1.65 | 1.96 | |
Zylinder Stützplatte Nv50af3 | ||||
15 | 881831 | 4.50 | 5.36 | |
O-ring(s-36) Dh50sa1 | ||||
16 | 984483 | 1.65 | 1.96 | |
Zylinder O-ring Nv50af3 | ||||
17 | 881864 | 1.65 | 1.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
18 | 885531 | |||
Puffer Nv50af3 | ||||
19 | 881830 | 15.81 | 18.82 | |
Inbusschraube M6x20 (10st) | ||||
20 | 949660 | 3.30 | 3.93 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
21 | 885413 | |||
Kopfschraube M5x16 M.u.scheibe | ||||
22 | 990541 | 1.05 | 1.25 | |
Sicherungsring (e-typ) D6 C10fca/c10ra/nv65ad, Nr | ||||
23 | 955479 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
24 | 885389 | |||
O-ring (s-12) Dv20v1/cs35b/u.a. Vb16y | ||||
26 | 875638 | 1.65 | 1.96 | |
Schalter | ||||
27 | 884145 | 6.45 | 7.68 | |
Einstellstift Nv50af3 | ||||
28 | 881846 | 7.65 | 9.10 | |
Riegel | ||||
29 | 886101 | 5.10 | 6.07 | |
Führung Nv50af3 | ||||
30 | 316389 | 3.30 | 3.93 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
31 | 881844 | |||
DRUCKHEBEL (B) | ||||
32 | 886099 | 12.00 | 14.28 | |
Justierung | ||||
33 | 886100 | 7.80 | 9.28 | |
Schraube M5x8 | ||||
34 | 878540 | 1.04 | 1.23 | |
Nicht mehr lieferbar, kein Ersatz | ||||
35 | 876205 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
36 | 885415 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
37 | 885392 | |||
Inbusschraube M6x25 (10st) | ||||
38 | 949652 | 3.30 | 3.93 | |
Rollstift D4x14 (10st) | ||||
39 | 949770 | 2.55 | 3.03 | |
Schiebearm Nv45ab | ||||
40 | 878132 | 40.84 | 48.60 | |
Schiebefeder Nv50ag | ||||
41 | 878340 | 1.05 | 1.25 | |
Nadelrolle Cr10v/fcj65v u.a. | ||||
42 | 983545 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
43 | 885539 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
44 | 885394 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
45 | 885532 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
46 | 885396 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
47 | 310533 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
48 | 885398 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
49 | 885399 | |||
Schiebehülsenring Nv83a/nv45ab | ||||
50 | 877826 | 2.55 | 3.03 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
51 | 885400 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
52 | 885401 | |||
Schraube M4x6 (schwarz) Nc40g | ||||
53 | 303631 | 1.04 | 1.23 | |
Gewindemutter M6, C8fse, Nr90aa | ||||
54 | 963837 | 1.05 | 1.25 | |
Abstandhalter (b), Cm9by | ||||
55 | 885414 | 1.65 | 1.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
56 | 885395 | |||
Bolzen M5x16 Dh40ma/mb/yb/fa Vb16y For Usa,can | ||||
57 | 313082 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
58 | 885397 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
60 | 885533 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
61 | 678668 | |||
Rollstift D3x18 (10st) Nv38ab2 | ||||
63 | 949518 | 2.40 | 2.86 | |
O-ring (i.d.37.2.) Nv38ab/nv65ad2 | ||||
64 | 880183 | 1.05 | 1.25 | |
Kappe | ||||
65 | 880379 | 28.05 | 33.38 | |
Staubschutzkappe Nv83a/u.a, Nr90aa | ||||
66 | 872035 | 1.04 | 1.23 | |
Stahlkugeln D3.97 (10st), Nr90aa | ||||
67 | 959155 | 1.04 | 1.23 | |
Feder (c) Cj65va2/v2/cr10v/cj120v, Nr90aa | ||||
68 | 982454 | 1.04 | 1.23 | |
Umschaltknopf Nt65ma3 | ||||
69 | 884335 | 4.80 | 5.71 | |
Rollstift D3x25 (10st) Nv38ab2 | ||||
70 | 949539 | 2.25 | 2.68 | |
Unterlegschreibe M4 (10st), C8fshe, C8fse | ||||
71 | 949429 | 1.05 | 1.25 | |
Stift D1,6x12 Nv50af3 | ||||
72 | 878222 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
73 | 885391 | |||
Feder Nv50af3 | ||||
74 | 881853 | 1.65 | 1.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
75 | 885535 | |||
O-ring (1ap-3) Nv32ab/nv45ab | ||||
76 | 873093 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
77 | 885407 | |||
O-ring (1p-9) Dh20v | ||||
78 | 872645 | 1.65 | 1.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
79 | 885402 | |||
O-Ring (P-18) | ||||
80 | 873570 | 1.35 | 1.61 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
81 | 885403 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
82 | 885534 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
83 | 885404 | |||
Sicherungsring D24 Nv38ab/dh30pc H30pv | ||||
84 | 983748 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
85 | 885406 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
86 | 885405 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
87 | 885393 | |||
Feder (1) | ||||
88 | 880409 | 2.40 | 2.86 | |
Dämpfer Nv38ab | ||||
89 | 877476 | 2.40 | 2.86 | |
Schiebekolbenabdeckung Nv38ab | ||||
90 | 880170 | 2.25 | 2.68 | |
Ventilbuchse (b) | ||||
91 | 878881 | 39.74 | 47.29 | |
O-ring (s-18) Cr17y/nv65ad2, Nr90aa | ||||
92 | 878885 | 1.05 | 1.25 | |
O-Ring (I.D.11) | ||||
93 | 878887 | 1.65 | 1.96 | |
O-RING (S-4) | ||||
94 | 981317 | 1.05 | 1.25 | |
Ventilkolben Nt65ma3 | ||||
95 | 884143 | 9.60 | 11.42 | |
O-Ring (I.D. 8.8) | ||||
96 | 878925 | 1.05 | 1.25 | |
Tauchkolbenfeder Nv65ad2/nv50ag, Nr90aa | ||||
97 | 878884 | 1.65 | 1.96 | |
Tauchkolben Nt65ma3 | ||||
98 | 884144 | 3.30 | 3.93 | |
O-Ring (I.D.1.8) | ||||
99 | 878888 | 1.05 | 1.25 | |
Ventilhülse (a) Nv65ad2, Nr90aa | ||||
100 | 880671 | 23.65 | 28.14 | |
Führungsarretierung Nv45ab | ||||
102 | 878103 | 11.85 | 14.10 | |
Feder Nv50ag u.a. | ||||
103 | 880446 | 1.35 | 1.61 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
104 | 885536 | |||
Nagelstopper (b) Nv50af3 | ||||
105 | 881814 | 3.00 | 3.57 | |
Feder Nv50ae | ||||
106 | 880393 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
107 | 885537 | |||
Abdeckplatte Nv50af3 | ||||
108 | 881815 | 4.20 | 5.00 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
109 | 885538 | |||
Hülse (b) Nv83a | ||||
110 | 878337 | 3.00 | 3.57 | |
Inbusschraube M4x10 Selbstsich. | ||||
111 | 880413 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
112 | 885540 | |||
Schiebehülsenring Nv83a/nv45ab | ||||
113 | 877826 | 2.55 | 3.03 | |
Haltekappe Nv83a2 | ||||
114 | 885412 | 1.80 | 2.14 | |
Feder Nv50ae | ||||
115 | 885543 | 1.80 | 2.14 | |
Nagelhalter Nv50af3 | ||||
116 | 885411 | 3.60 | 4.28 | |
Rollenstift D2.5 | ||||
117 | 885544 | 1.20 | 1.43 | |
Nylonmutter M5 Nv83a/nr83a, Nr90aa | ||||
118 | 877371 | 1.05 | 1.25 | |
Stift D4x58 | ||||
119 | 885541 | 6.75 | 8.03 | |
Magazinabdeckung Nv50 | ||||
120 | 885409 | 7.35 | 8.75 | |
Warnschild Nv65ah, Nr90aa | ||||
123 | 884070 | 1.65 | 1.96 | |
Haltehülse Nv65ad2 | ||||
124 | 885410 | 1.80 | 2.14 | |
Feder | ||||
125 | 885542 | 1.80 | 2.14 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
126 | 885408 | |||
Magazinhülse Nv38ab | ||||
127 | 880177 | 1.65 | 1.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
501 | 875769 | |||
Griffband (a) Nv50ae u.a. Alte Art.nr.880349, Nr9 | ||||
601 | 881768 | 5.25 | 6.25 |
