Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki NV65AF3'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

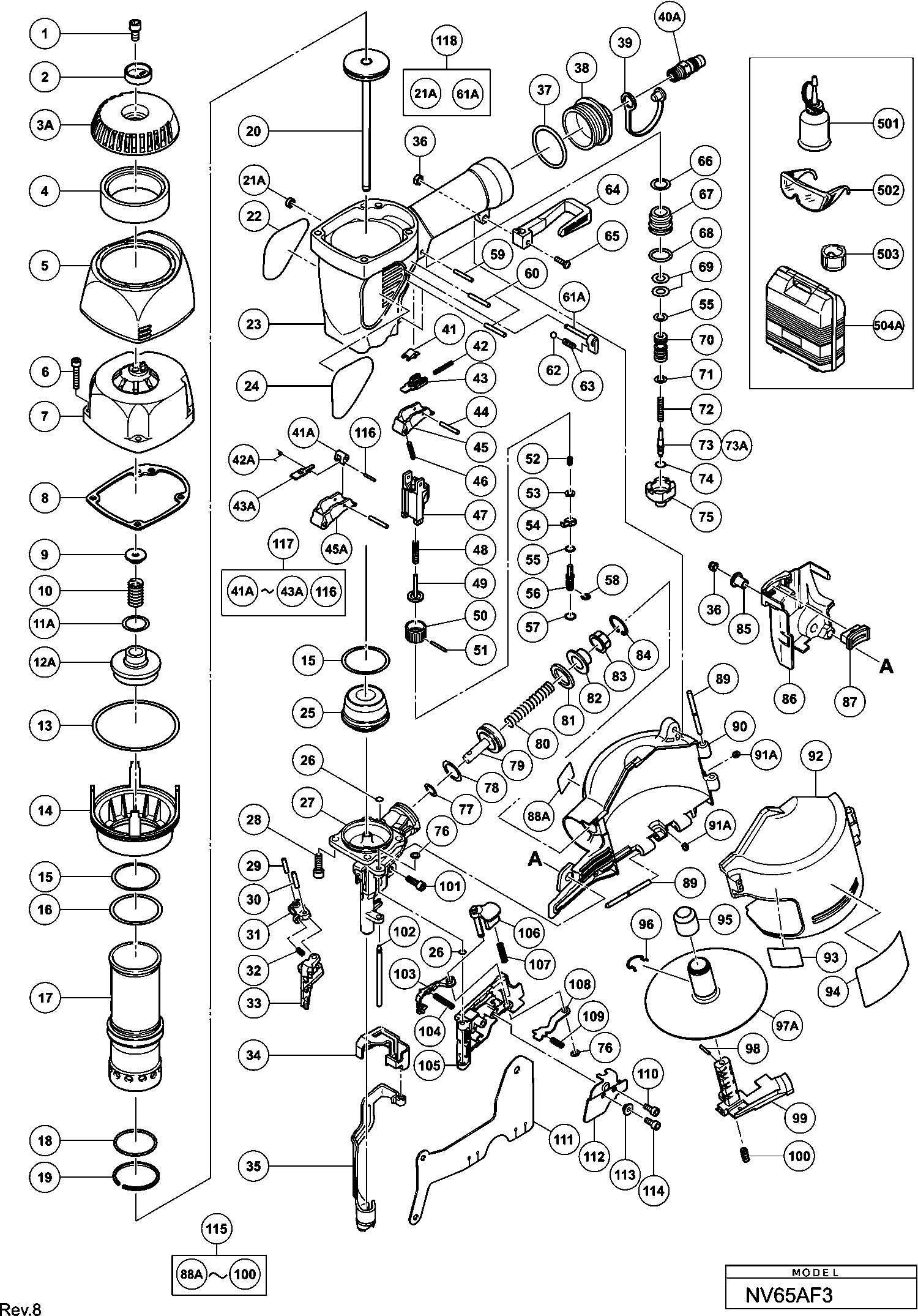

Zeichnungen der Hikoki NV65AF3
Teileliste der Hikoki NV65AF3
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Inbusschraube M6x12 (10st), Nr90aa | ||||
1 | 949657 | 3.00 | 3.57 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
2 | 882919 | |||
Deckel Nv65aj | ||||
3A | 882917 | 9.90 | 11.78 | |
Schalldämpfer Nv65aj | ||||
4 | 882918 | 13.65 | 16.24 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
5 | 882916 | |||
Inbusschraube M5x25 (10st) | ||||
6 | 949662 | 2.10 | 2.50 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
7 | 882911 | |||
Dichtung (a) Nv65aj | ||||
8 | 882915 | 4.80 | 5.71 | |
Scheibe Nv65aj | ||||
9 | 882914 | 6.60 | 7.85 | |
Hauptventilfeder Nv65aj | ||||
10 | 882913 | 6.75 | 8.03 | |
O-ring | ||||
11A | 883992 | 1.65 | 1.96 | |
Hauptventil (a) Nv65af3 | ||||
12A | 882927 | 14.10 | 16.78 | |
O-ring (s-70) Nr100a | ||||
13 | 878863 | 2.40 | 2.86 | |
Zylinderplatte Nv65aj | ||||
14 | 882910 | 6.45 | 7.68 | |
O-ring (s-46) Nv65aj | ||||
15 | 882874 | 1.65 | 1.96 | |
O-ring (1ap-48) Nv83a/nr83a/aa | ||||
16 | 877368 | 1.95 | 2.32 | |
Zylinder | ||||
17 | 882909 | 74.25 | 88.36 | |
Kolben O-ring Nv65aj | ||||
18 | 882871 | 1.80 | 2.14 | |
Kolbenring Nv65aj | ||||
19 | 882872 | 27.78 | 33.05 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
20 | 882870 | |||
Schiebehülsenring Nv83a/nv45ab | ||||
21A | 886669 | 1.80 | 2.14 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
23 | 883857 | |||
Kolbenpuffer Nv65aj | ||||
25 | 882873 | 22.00 | 26.18 | |
O-ring (p-4) Cs35b/nr83a | ||||
26 | 874436 | 1.05 | 1.25 | |
Nase Nv65af3 | ||||
27 | 882875 | 405.35 | 482.37 | |
Schraube M6x20 | ||||
28 | 880675 | 4.05 | 4.82 | |
Rollstift D4x16 | ||||
29 | 949497 | 2.55 | 3.03 | |
Nadelrolle Nv 65 Aj | ||||
30 | 880659 | 1.05 | 1.25 | |
Schiebearm Nv45ab | ||||
31 | 878132 | 40.84 | 48.60 | |
Schiebefeder Nv65aj | ||||
32 | 882924 | 1.65 | 1.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
33 | 883785 | |||
Druckhebelabdeckung (b) Nv65aj | ||||
34 | 882900 | 3.45 | 4.11 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
35 | 882884 | |||
Nylonmutter M5 Nv83a/nr83a, Nr90aa | ||||
36 | 877371 | 1.05 | 1.25 | |
O-ring (i.d.37.2.) Nv38ab/nv65ad2 | ||||
37 | 880183 | 1.05 | 1.25 | |
Kappe (alt 880182) | ||||
38 | 883177 | 33.00 | 39.27 | |
Staubabdeckung Dh40sr | ||||
39 | 877914 | 1.95 | 2.32 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
40A | 874782 | |||
Abzugbügel Nv65aj | ||||
41 | 882896 | 1.65 | 1.96 | |
Abzugsstück (c) | ||||
41A | 886626 | 1.80 | 2.14 | |
Feder (1) | ||||
42 | 882897 | 1.65 | 1.96 | |
Abzugfeder | ||||
42A | 886627 | 1.80 | 2.14 | |
Schaltarm (b) Nv65aj | ||||
43 | 882895 | 28.05 | 33.38 | |
Auslöserarm (c) | ||||
43A | 886625 | 13.35 | 15.89 | |
Rollstift D2,5x16 | ||||
44 | 881951 | 1.80 | 2.14 | |
Druecker (1) | ||||
45 | 882894 | 3.30 | 3.93 | |
Schalter | ||||
45A | 886623 | 3.45 | 4.11 | |
Druckfeder Nv65aj | ||||
46 | 883759 | 3.30 | 3.93 | |
Druckhebelführung Nv65aj | ||||
47 | 882885 | 6.45 | 7.68 | |
Druckhebelfeder Nv65aj | ||||
48 | 882892 | 5.10 | 6.07 | |
Druckhebel (c) Nv65aj | ||||
49 | 882891 | 18.15 | 21.60 | |
Justierung | ||||
50 | 882889 | 3.45 | 4.11 | |
Rollstift D2x16 | ||||
51 | 880093 | 1.04 | 1.23 | |
Justierfeder Nv65aj | ||||
52 | 882890 | 1.65 | 1.96 | |
Justierungsplatte (b) Nv65aj | ||||
53 | 882887 | 3.30 | 3.93 | |
Justierungsplatte (a) Nv65aj | ||||
54 | 882886 | 3.30 | 3.93 | |
O-RING (S-4) | ||||
55 | 981317 | 1.05 | 1.25 | |
Druckhebel (b) Nv65aj | ||||
56 | 882888 | 17.33 | 20.62 | |
O-ring (s-5) Nc65a | ||||
57 | 872822 | 3.00 | 3.57 | |
Sicherungsring (e-typ) D3 Till 6.1998 | ||||
58 | 872971 | 1.05 | 1.25 | |
Rollstift D3x22 (10st), Nr90aa | ||||
59 | 949864 | 1.65 | 1.96 | |
Rollstift D3x28 (10st), Nr90aa | ||||
60 | 949865 | 2.55 | 3.03 | |
Sperrknopf | ||||
61A | 886727 | 3.45 | 4.11 | |
Stahlkugel D3.175 (10st) (alte Art.nr.939270) Wh1 | ||||
62 | 959148 | 1.05 | 1.25 | |
Arretierfeder Nv65aj | ||||
63 | 882923 | 1.80 | 2.14 | |
Haken | ||||
64 | 883763 | 4.80 | 5.71 | |
Kopfschraube M5x35 (schwarz) | ||||
65 | 302197 | 1.05 | 1.25 | |
KOPFVENTIL-O-RING (I.D.16.8) | ||||
66 | 877699 | 1.05 | 1.25 | |
Ventilhülse (b) Nv65aj | ||||
67 | 882925 | 18.01 | 21.43 | |
O-ring (s-18) Cr17y/nv65ad2, Nr90aa | ||||
68 | 878885 | 1.05 | 1.25 | |
O-Ring (I.D. 8.8) | ||||
69 | 878925 | 1.05 | 1.25 | |
Ventilkolben (b) Nv65ad2, Nr90aa | ||||
70 | 880672 | 32.18 | 38.29 | |
O-Ring (I.D.11) | ||||
71 | 878887 | 1.65 | 1.96 | |
Tauchkolbenfeder Nv65ad2/nv50ag, Nr90aa | ||||
72 | 878884 | 1.65 | 1.96 | |
Tauchkolben (a) Nv65aj | ||||
73 | 882921 | 15.54 | 18.49 | |
Kolben (A) | ||||
73A | 886622 | 16.23 | 19.31 | |
O-Ring (I.D.1.8) | ||||
74 | 878888 | 1.05 | 1.25 | |
Ventilhülse (a) Nv65aj | ||||
75 | 882920 | 29.56 | 35.18 | |
Sicherungsring Nv50ag | ||||
76 | 880319 | 1.65 | 1.96 | |
O-ring (1p-9) Dh20v | ||||
77 | 872645 | 1.65 | 1.96 | |
O-ring (p-21) Nv50ae | ||||
78 | 880330 | 1.05 | 1.25 | |
Schiebekolben Nv65aj | ||||
79 | 882673 | 18.43 | 21.93 | |
Schiebefeder Nv65aj | ||||
80 | 882883 | 1.80 | 2.14 | |
Dämpfer Nv83a | ||||
81 | 877711 | 1.95 | 2.32 | |
Schiebekolbenabdeckung Nv50ag | ||||
82 | 880331 | 3.15 | 3.75 | |
Magazinhülse Nv83a | ||||
83 | 878305 | 1.04 | 1.23 | |
C-sicherungsring D28 (10stück) | ||||
84 | 939555 | 4.35 | 5.18 | |
Huelse (1) | ||||
85 | 882907 | 3.30 | 3.93 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
86 | 882899 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
87 | 882901 | |||
Warnschild Nv65ah, Nr90aa | ||||
88A | 884070 | 1.65 | 1.96 | |
Stift (1) | ||||
89 | 881825 | 3.00 | 3.57 | |
Magazin | ||||
90 | 882903 | 22.00 | 26.18 | |
Schiebehülsenring Nv83a/nv45ab | ||||
91A | 877826 | 2.55 | 3.03 | |
MAGAZINABDECKUNG | ||||
92 | 882904 | 18.01 | 21.43 | |
Haltekappe (a) Nv90af | ||||
95 | 881003 | 2.40 | 2.86 | |
Feder Nv50ae | ||||
96 | 880398 | 7.65 | 9.10 | |
Nagelhalterung (alt 882906) | ||||
97A | 885683 | 24.75 | 29.45 | |
Stift D2,5x12 Nv50af3 | ||||
98 | 878791 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
99 | 882905 | |||
Feder (1) | ||||
100 | 881826 | 1.05 | 1.25 | |
Inbusschraube M5x20 (10st) For Europe | ||||
101 | 949757 | 3.00 | 3.57 | |
Nagelführumgshülse Nv 65 Aj | ||||
102 | 880658 | 8.40 | 10.00 | |
Nagelstopper (a) Nv65aj | ||||
103 | 883783 | 67.79 | 80.67 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
104 | 882878 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
105 | 883786 | |||
Führungsriegel Nv90ab | ||||
106 | 886107 | 5.10 | 6.07 | |
Feder Nv50ag u.a. | ||||
107 | 880446 | 1.35 | 1.61 | |
Nagelstopper (b) Nv65aj | ||||
108 | 882680 | 3.30 | 3.93 | |
Stopfeder Nr100a | ||||
109 | 880494 | 2.40 | 2.86 | |
Inbusschraube M4x10 Selbstsich. | ||||
110 | 880413 | 1.05 | 1.25 | |
Abdeckung (1) | ||||
111 | 882880 | 4.80 | 5.71 | |
Nagelführungsabdeckung Nv65aj | ||||
112 | 883784 | 4.80 | 5.71 | |
Hülse (b) Nv65aj | ||||
113 | 882881 | 3.30 | 3.93 | |
Inbusschraube M4x12 Dh40ma/mb/yb/ | ||||
114 | 880630 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
115 | 882926 | |||
Rollstift D1.6x10 | ||||
116 | 886228 | 1.80 | 2.14 | |
Trigger Arm Ass'y | ||||
117 | 886624 | 16.78 | 19.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
118 | 888728 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
501 | 877153 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
502 | 875769 | |||
Nasenkappe (a) Nv65aj | ||||
503 | 880678 | 4.20 | 5.00 | |
Nicht mehr lieferbar, kein Ersatz | ||||
504A | 886432 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
601 | 880408 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
602A | 888213 |
