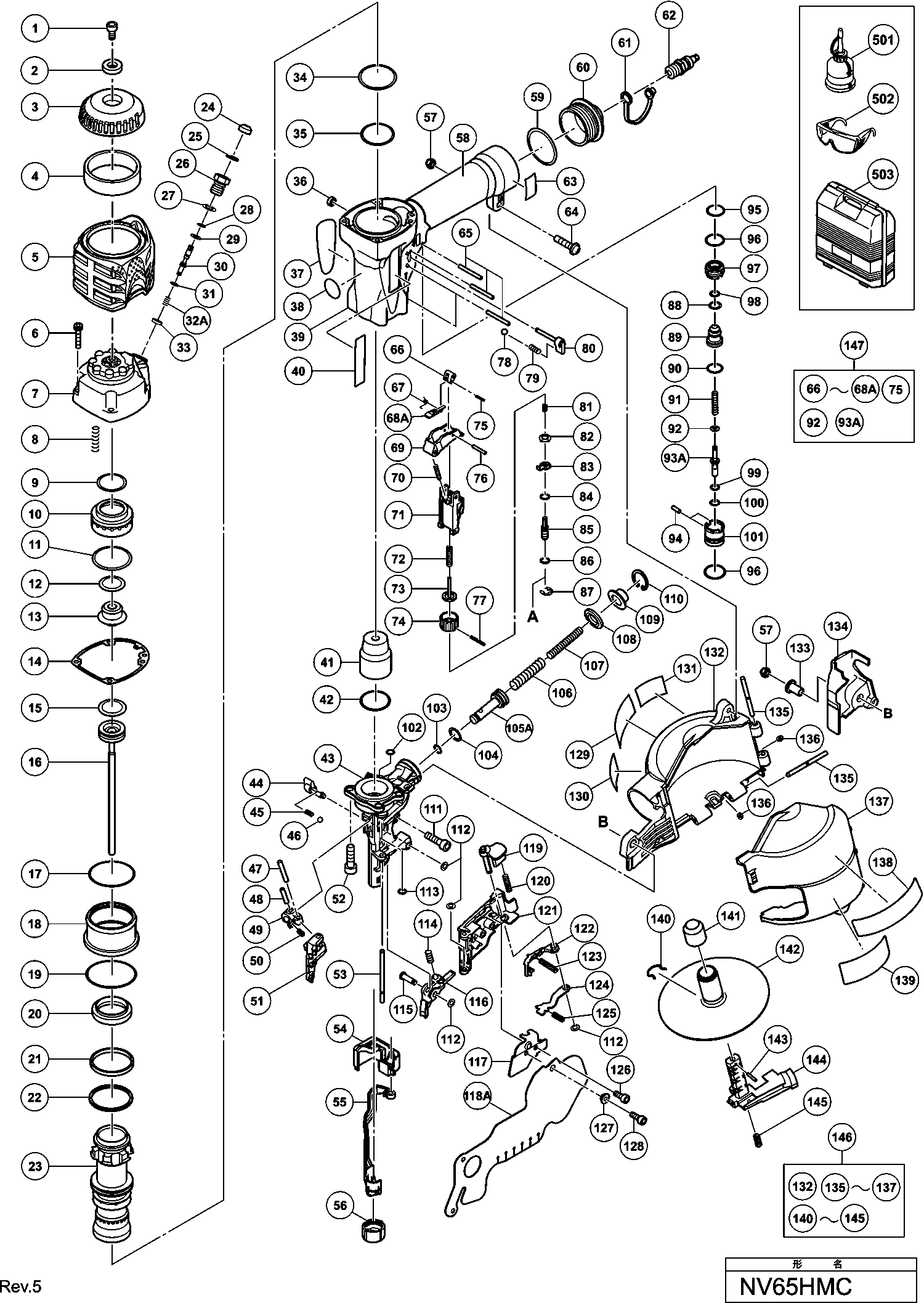

Hikoki NV65HMC Zeichnungen und Teile
Auf dem Typenschild sollte die Typenbezeichnung NV65HMC stehen. Je nach Typenbezeichnung kann es Unterschiede geben, die dazu führen können, dass Teile nicht passen. Bestellen Sie nur, wenn diese Nummer übereinstimmt. Hikoki Powertools ist der neue Name von Hitachi Powertools.Zeichnungen der HIKOKI NV65HMC
Teileliste der Hikoki NV65HMC
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer.
| Nicht bestellbar | ||||
| 1 | 980046 | Nicht bestellbar | ||
| Platte (1) | ||||
| 2 | 887026 | Platte (1) | € 4.94 | |
| Top Cover | ||||
| 3 | 887025 | Top Cover | € 4.94 | |
| Muffler | ||||
| 4 | 886658 | Muffler | € 4.94 | |
| Protector | ||||
| 5 | 886423 | Protector | € 6.53 | |
| Nylock Bolt M5x25 | ||||
| 6 | 881262 | Nylock Bolt M5x25 | € 2.61 | |
| Exhaust Cover (gold) | ||||
| 7 | 886421 | Exhaust Cover (gold) | € 79.73 | |
| Head Valve Spring | ||||
| 8 | 886418 | Head Valve Spring | € 1.74 | |
| O-ring | ||||
| 9 | 883770 | O-ring | € 1.74 | |
| Head Valve | ||||
| 10 | 886416 | Head Valve | € 29.28 | |
| O-ring | ||||
| 11 | 886417 | O-ring | € 3.34 | |
| O-ring | ||||
| 12 | 883774 | O-ring | € 3.34 | |
| Exhaust Rubber | ||||
| 13 | 886419 | Exhaust Rubber | € 14.23 | |
| Dichtung | ||||
| 14 | 883789 | Dichtung | € 6.53 | |
| O-ring | ||||
| 15 | 883751 | O-ring | € 10.02 | |
| Piston (h) | ||||
| 16 | 886402 | Piston (h) | € 97.43 | |
| Zylinder O-ring (d) Nv45ab/nv50a1 | ||||
| 17 | 877126 | Zylinder O-ring (d) Nv45ab/nv50a1 | € 1.60 | |
| Separater | ||||
| 18 | 886420 | Separater | € 38.47 | |
| O-ring (1as-50) Nv50af3/dh30pc H30pv/h45mr | ||||
| 19 | 990067 | O-ring (1as-50) Nv50af3/dh30pc H30pv/h45mr | € 1.60 | |
| Valve Rubber | ||||
| 20 | 883768 | Valve Rubber | € 9.15 | |
| Cylinder Bumper | ||||
| 21 | 883956 | Cylinder Bumper | € 7.11 | |
| Cylinder Washer | ||||
| 22 | 883955 | Cylinder Washer | € 6.53 | |
| Zylinder | ||||
| 23 | 886415 | Zylinder | € 135.76 | |
| Knopf Nt65ma3 | ||||
| 24 | 884334 | Knopf Nt65ma3 | € 1.60 | |
| Sicherungsring D4 (e-type) | ||||
| 25 | 968643 | Sicherungsring D4 (e-type) | € 1.89 | |
| Valve Bushing | ||||
| 26 | 885027 | Valve Bushing | € 19.57 | |
| O-ring (s-10) D6sh | ||||
| 27 | 987105 | O-ring (s-10) D6sh | € 1.02 | |
| O-ring Nt65ma3 | ||||
| 28 | 881715 | O-ring Nt65ma3 | € 1.02 | |
| O-ring (1ap-3) Nv32ab/nv45ab | ||||
| 29 | 873093 | O-ring (1ap-3) Nv32ab/nv45ab | € 1.02 | |
| Plunger | ||||
| 30 | 885028 | Plunger | € 17.70 | |
| O-RING | ||||
| 31 | 878607 | O-RING | € 1.02 | |
| Feder | ||||
| 32A | 887177 | Feder | € 1.16 | |
| Dichtung | ||||
| 33 | 884338 | Dichtung | € 1.02 | |
| O-ring (p-36) Nv65ab | ||||
| 34 | 931835 | O-ring (p-36) Nv65ab | € 1.60 | |
| O-ring (p-32) Nv38ab | ||||
| 35 | 986374 | O-ring (p-32) Nv38ab | € 1.60 | |
| Feeder Shaft Ring | ||||
| 36 | 886669 | Feeder Shaft Ring | € 1.74 | |
| Warnschild Nv50af3, Nr90aa | ||||
| 38 | 883513 | Warnschild Nv50af3, Nr90aa | € 1.60 | |
| Body Ass'y Includ.58 | ||||
| 39 | 887173 | Body Ass'y Includ.58 | € 129.91 | |
| Hitachi Label N 5024a2 | ||||
| 40 | 886342 | Hitachi Label N 5024a2 | € 1.74 | |
| Piston Bumper | ||||
| 41 | 885195 | Piston Bumper | € 6.53 | |
| O-ring (s-38) H65sd/h90sc/se H30pv | ||||
| 42 | 980717 | O-ring (s-38) H65sd/h90sc/se H30pv | € 1.31 | |
| Nose | ||||
| 43 | 886403 | Nose | € 247.83 | |
| Change Knob | ||||
| 44 | 886409 | Change Knob | € 3.34 | |
| Arretierfeder Nv65aj | ||||
| 45 | 882923 | Arretierfeder Nv65aj | € 1.74 | |
| Stahlkugel D3.175 (10st) (alte Art.nr.939270) Wh1 | ||||
| 46 | 959148 | Stahlkugel D3.175 (10st) (alte Art.nr.939270) Wh1 | € 1.02 | |
| Nadelrolle Nv 65 Aj | ||||
| 47 | 880659 | Nadelrolle Nv 65 Aj | € 1.02 | |
| Nicht bestellbar | ||||
| 48 | 949498 | Nicht bestellbar | ||
| Schiebearm (b) Nv75ag | ||||
| 49 | 883144 | Schiebearm (b) Nv75ag | € 45.25 | |
| Schiebearm Nv75ag | ||||
| 50 | 883143 | Schiebearm Nv75ag | € 1.60 | |
| Feeder (a) | ||||
| 51 | 886406 | Feeder (a) | € 25.42 | |
| Schraube M6x20 | ||||
| 52 | 880675 | Schraube M6x20 | € 3.92 | |
| Nail Guide Shaft | ||||
| 53 | 883755 | Nail Guide Shaft | € 7.11 | |
| Pushing Lever Cover (a) | ||||
| 54 | 883761 | Pushing Lever Cover (a) | € 4.94 | |
| Pushing Lever (a) | ||||
| 55 | 887024 | Pushing Lever (a) | € 64.95 | |
| Nose Cap | ||||
| 56 | 886650 | Nose Cap | € 3.34 | |
| Nylonmutter M5 Nv83a/nr83a, Nr90aa | ||||
| 57 | 877371 | Nylonmutter M5 Nv83a/nr83a, Nr90aa | € 1.02 | |
| O-ring (i.d.37.2.) Nv38ab/nv65ad2 | ||||
| 59 | 880183 | O-ring (i.d.37.2.) Nv38ab/nv65ad2 | € 1.02 | |
| Cap (gold) | ||||
| 60 | 886426 | Cap (gold) | € 19.57 | |
| Dust Cap | ||||
| 61 | 877914 | Dust Cap | € 1.89 | |
| Air Plug L-pt 1/4 | ||||
| 62 | 883135 | Air Plug L-pt 1/4 | € 14.51 | |
| Machine Screw (w/washer) M5x25 (black) | ||||
| 64 | 887315 | Machine Screw (w/washer) M5x25 (black) | € 1.74 | |
| Rollstift D3x28 (10st), Nr90aa | ||||
| 65 | 949865 | Rollstift D3x28 (10st), Nr90aa | € 2.47 | |
| Trigger Piece (c) | ||||
| 66 | 886626 | Trigger Piece (c) | € 1.74 | |
| Trigger Spring | ||||
| 67 | 886627 | Trigger Spring | € 1.74 | |
| Schalter | ||||
| 69 | 886623 | Schalter | € 3.34 | |
| Druckfeder Nv65aj | ||||
| 70 | 883759 | Druckfeder Nv65aj | € 3.19 | |
| Pushing Lever Guide | ||||
| 71 | 886047 | Pushing Lever Guide | € 17.70 | |
| Druckhebelfeder Nv65aj | ||||
| 72 | 882892 | Druckhebelfeder Nv65aj | € 4.94 | |
| Druckhebel (c) Nv65aj | ||||
| 73 | 882891 | Druckhebel (c) Nv65aj | € 17.57 | |
| Justierung | ||||
| 74 | 882889 | Justierung | € 3.34 | |
| Roll Pin D1.6x10 | ||||
| 75 | 886228 | Roll Pin D1.6x10 | € 1.74 | |
| Rollstift D2,5x16 | ||||
| 76 | 881951 | Rollstift D2,5x16 | € 1.74 | |
| Rollstift D2x16 | ||||
| 77 | 880093 | Rollstift D2x16 | € 1.00 | |
| Stahlkugel D3.175 (10st) (alte Art.nr.939270) Wh1 | ||||
| 78 | 959148 | Stahlkugel D3.175 (10st) (alte Art.nr.939270) Wh1 | € 1.02 | |
| Arretierfeder Nv65aj | ||||
| 79 | 882923 | Arretierfeder Nv65aj | € 1.74 | |
| Lock Knob | ||||
| 80 | 886727 | Lock Knob | € 3.34 | |
| Justierfeder Nv65aj | ||||
| 81 | 882890 | Justierfeder Nv65aj | € 1.60 | |
| Justierungsplatte (c) Nr90ae | ||||
| 82 | 884973 | Justierungsplatte (c) Nr90ae | € 1.60 | |
| Justierungsplatte (a) Nv65aj | ||||
| 83 | 882886 | Justierungsplatte (a) Nv65aj | € 3.19 | |
| O-RING (S-4) | ||||
| 84 | 981317 | O-RING (S-4) | € 1.02 | |
| Druckhebel (b) Nv65aj | ||||
| 85 | 882888 | Druckhebel (b) Nv65aj | € 16.77 | |
| O-ring (s-5) Nc65a | ||||
| 86 | 872822 | O-ring (s-5) Nc65a | € 2.90 | |
| Sicherungsring (e-typ) D3 Till 6.1998 | ||||
| 87 | 872971 | Sicherungsring (e-typ) D3 Till 6.1998 | € 1.02 | |
| O-ring (p9-u) | ||||
| 88 | 883104 | O-ring (p9-u) | € 3.34 | |
| Valve Piston | ||||
| 89 | 883101 | Valve Piston | € 29.28 | |
| O-ring (1ap-11) Nc65ab | ||||
| 90 | 878764 | O-ring (1ap-11) Nc65ab | € 1.00 | |
| Plunger Spring | ||||
| 91 | 883103 | Plunger Spring | € 1.74 | |
| O-ring (i.d 1.8) Since 7.2016 For Nor | ||||
| 92 | 883405 | O-ring (i.d 1.8) Since 7.2016 For Nor | € 4.94 | |
| Pin D2x8 (10 Pcs.) | ||||
| 94 | 949778 | Pin D2x8 (10 Pcs.) | € 1.74 | |
| O-ring (s-14) Dh15dv/dh20dv/vtv16 | ||||
| 95 | 876319 | O-ring (s-14) Dh15dv/dh20dv/vtv16 | € 1.60 | |
| O-ring (s-16) Fcj55v | ||||
| 96 | 876031 | O-ring (s-16) Fcj55v | € 1.60 | |
| Valve Bushing (b) | ||||
| 97 | 886042 | Valve Bushing (b) | € 15.44 | |
| O-ring (p7-u) | ||||
| 98 | 883105 | O-ring (p7-u) | € 3.34 | |
| O-ring (1ap-5) | ||||
| 99 | 873407 | O-ring (1ap-5) | € 1.00 | |
| O-ring (s-6) C8fc | ||||
| 100 | 997218 | O-ring (s-6) C8fc | € 1.02 | |
| Valve Bushing (a) | ||||
| 101 | 883099 | Valve Bushing (a) | € 7.84 | |
| O-ring (1ap-3) Nv32ab/nv45ab | ||||
| 102 | 873093 | O-ring (1ap-3) Nv32ab/nv45ab | € 1.02 | |
| O-ring (1p-9) Dh20v | ||||
| 103 | 872645 | O-ring (1p-9) Dh20v | € 1.60 | |
| FEED PISTON O-RING (I.D.14) | ||||
| 104 | 877763 | FEED PISTON O-RING (I.D.14) | € 1.02 | |
| Feed Piston | ||||
| 105A | 887455 | Feed Piston | € 21.30 | |
| Feed Spring (a) | ||||
| 106 | 883757 | Feed Spring (a) | € 1.74 | |
| Feed Spring (b) | ||||
| 107 | 883758 | Feed Spring (b) | € 1.74 | |
| Bumper | ||||
| 108 | 885681 | Bumper | € 7.11 | |
| Feed Piston Cover | ||||
| 109 | 883098 | Feed Piston Cover | € 3.34 | |
| Sicherungsring D24 Nv38ab/dh30pc H30pv | ||||
| 110 | 983748 | Sicherungsring D24 Nv38ab/dh30pc H30pv | € 1.02 | |
| Inbusschraube M5x20 (10st) For Europe | ||||
| 111 | 949757 | Inbusschraube M5x20 (10st) For Europe | € 2.90 | |
| Sicherungsring Nv50ag | ||||
| 112 | 880319 | Sicherungsring Nv50ag | € 1.60 | |
| O-ring (p-4) Cs35b/nr83a | ||||
| 113 | 874436 | O-ring (p-4) Cs35b/nr83a | € 1.02 | |
| Feder (1) | ||||
| 114 | 886412 | Feder (1) | € 1.74 | |
| Nose Shaft | ||||
| 115 | 886410 | Nose Shaft | € 4.94 | |
| Nose Piece | ||||
| 116 | 886652 | Nose Piece | € 26.62 | |
| Nagelführungsabdeckung Nv65aj | ||||
| 117 | 883784 | Nagelführungsabdeckung Nv65aj | € 4.65 | |
| Abdeckung (1) | ||||
| 118A | 888131 | Abdeckung (1) | € 1.74 | |
| Führungsriegel Nv90ab | ||||
| 119 | 886107 | Führungsriegel Nv90ab | € 4.94 | |
| Feder Nv50ag u.a. | ||||
| 120 | 880446 | Feder Nv50ag u.a. | € 1.31 | |
| Nail Guide | ||||
| 121 | 886404 | Nail Guide | € 59.10 | |
| Nagelstopper (a) Nv65aj | ||||
| 122 | 883783 | Nagelstopper (a) Nv65aj | € 65.62 | |
| Nail Stopper Spring | ||||
| 123 | 886451 | Nail Stopper Spring | € 1.74 | |
| Nagelstopper (b) Nv65aj | ||||
| 124 | 882680 | Nagelstopper (b) Nv65aj | € 3.19 | |
| Stopfeder Nr100a | ||||
| 125 | 880494 | Stopfeder Nr100a | € 2.32 | |
| Inbusschraube M4x10 Selbstsich. | ||||
| 126 | 880413 | Inbusschraube M4x10 Selbstsich. | € 1.02 | |
| Hülse (b) Nv65aj | ||||
| 127 | 882881 | Hülse (b) Nv65aj | € 3.19 | |
| Inbusschraube M4x12 Dh40ma/mb/yb/ | ||||
| 128 | 880630 | Inbusschraube M4x12 Dh40ma/mb/yb/ | € 1.02 | |
| Warning Label | ||||
| 129 | 887175 | Warning Label | € 4.94 | |
| Warning Label | ||||
| 131 | 887174 | Warning Label | € 4.94 | |
| Magazin | ||||
| 132 | 886428 | Magazin | € 12.92 | |
| Huelse (1) | ||||
| 133 | 882907 | Huelse (1) | € 3.19 | |
| Pushing Lever Cover (b) | ||||
| 134 | 883762 | Pushing Lever Cover (b) | € 6.53 | |
| Stift (1) | ||||
| 135 | 881825 | Stift (1) | € 2.90 | |
| Schiebehülsenring Nv83a/nv45ab | ||||
| 136 | 877826 | Schiebehülsenring Nv83a/nv45ab | € 2.47 | |
| Magazinabdeckung Nv65aj | ||||
| 137 | 883926 | Magazinabdeckung Nv65aj | € 15.84 | |
| Feder Nv50ae | ||||
| 140 | 880398 | Feder Nv50ae | € 7.41 | |
| Haltekappe (a) Nv90af | ||||
| 141 | 881003 | Haltekappe (a) Nv90af | € 2.32 | |
| Nail Holder | ||||
| 142 | 885683 | Nail Holder | € 23.96 | |
| Stift D2,5x12 Nv50af3 | ||||
| 143 | 878791 | Stift D2,5x12 Nv50af3 | € 1.00 | |
| Halter Nv65aj | ||||
| 144 | 882905 | Halter Nv65aj | € 6.53 | |
| Feder (1) | ||||
| 145 | 881826 | Feder (1) | € 1.02 | |
| Magazine Ass'y Includ.132,135-137,140-145 | ||||
| 146 | 887314 | Magazine Ass'y Includ.132,135-137,140-145 | € 79.73 | |
| Trigger Parts Set Includ.65-67a,71,94,95a | ||||
| 147 | 888727 | Trigger Parts Set Includ.65-67a,71,94,95a | € 16.77 | |
| Nicht bestellbar | ||||
| 501 | 883136 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 502 | 875769 | Nicht bestellbar | ||
| Nicht mehr lieferbar | ||||
| 503 | 886432 | Nicht mehr lieferbar | ||
| Griffband (a) Nv50ae u.a. Alte Art.nr.880349, Nr9 | ||||
| 601 | 881768 | Griffband (a) Nv50ae u.a. Alte Art.nr.880349, Nr9 | € 5.08 | |
| TAPE (2 PCS) | ||||
| 602A | 888213 | TAPE (2 PCS) | € 1.00 | |
| Nicht bestellbar | ||||
| 603 | 876212 | Nicht bestellbar | ||
| Single Sequential Actuation Mechanismkit | ||||
| 604 | 887952 | Single Sequential Actuation Mechanismkit | € 318.64 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
