Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki PH-40F'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

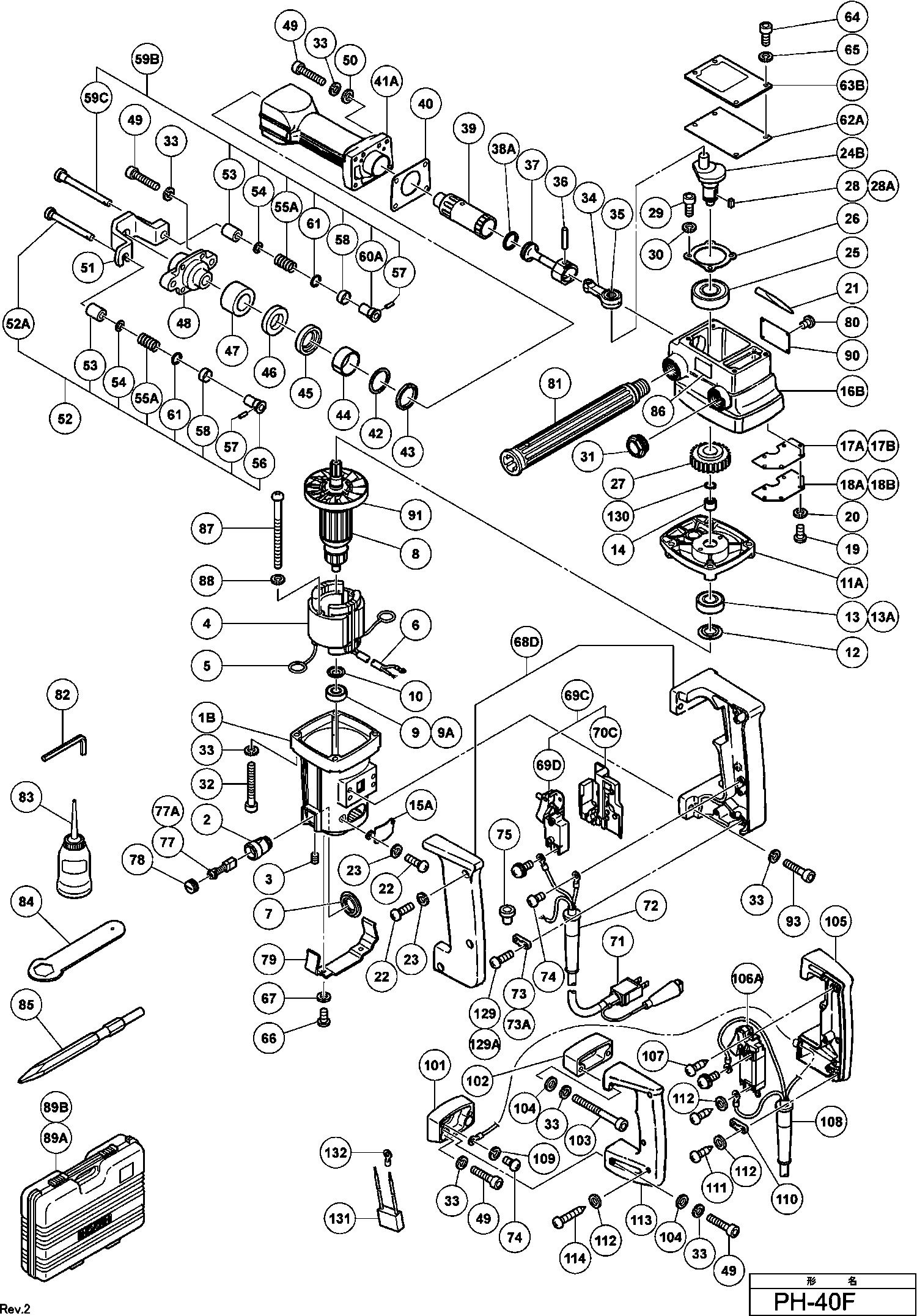

Zeichnungen der Hikoki PH-40F
Teileliste der Hikoki PH-40F
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Gehäuse Ass'y (metallisch Silber Grün) Inkl.2,10 | ||||
1B | 332168 | 48.81 | 58.09 | |
Kohlekasten Zsb | ||||
2 | 971001 | 6.45 | 7.68 | |
Inbusstiftschraube M5x8, C8fshe, C8fse, H41mb,g23 | ||||
3 | 938477 | 1.05 | 1.25 | |
Stator 220v-230v H90sa Includ.103 Für Nzl,saf | ||||
4 | 944535E | 46.75 | 55.63 | |
Stator Ass'y 240v Includ.103 | ||||
4 | 944535F | 46.75 | 55.63 | |
Kohlenhalterklemme Dh28y u.a. H30pv/vb16y/dh30pc/ | ||||
5 | 930703 | 2.40 | 2.86 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
7 | 956127 | |||
Anker 230v | ||||
8 | 971052E | 87.59 | 104.23 | |
Anker 240v | ||||
8 | 971052F | 87.59 | 104.23 | |
Kugellager 6000 Vv, Cm9by, C8fse, G23ss | ||||
9 | 6000VV | 6.15 | 7.32 | |
Kugellager 6000ddwcmns7l | ||||
9A | 6000DW | 4.65 | 5.53 | |
Ring | ||||
10 | 944433 | 1.65 | 1.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
11A | 332144 | |||
Staubdichtung (1) | ||||
12 | 971054 | 3.60 | 4.28 | |
Kugellager 6202 Vv | ||||
13 | 6202VV | 7.05 | 8.39 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
13A | 6202DW | |||
Nadellager | ||||
14 | 939299 | 10.65 | 12.67 | |
Seitendeckel (metallisch Silber Grün) Seit 7.2009 | ||||
15A | 332171 | 1.80 | 2.14 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
16B | 332142 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
17A | 971057 | |||
Abdichtung decken (b) | ||||
17B | 971098 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
18A | 971058 | |||
Platte (b) | ||||
18B | 971099 | 1.05 | 1.25 | |
Kopfschraube M4x12 (10st),c8fshe, C8fse | ||||
19 | 949217 | 1.05 | 1.25 | |
Federscheibe M4 (10st) | ||||
20 | 949453 | 1.05 | 1.25 | |
Ölfilz | ||||
21 | 956967 | 1.05 | 1.25 | |
Kopfschraube M4x12 (10st),c8fshe, C8fse | ||||
22 | 949217 | 1.05 | 1.25 | |
Federscheibe M4 (10st) | ||||
23 | 949453 | 1.05 | 1.25 | |
Kurbelwellenbaugruppe | ||||
24B | 971393 | 37.95 | 45.16 | |
Kugellager 6204 Dd | ||||
25 | 6204DD | 9.00 | 10.71 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
26 | 971060 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
27 | 971113 | |||
EINLEGEKEIL 3X13 | ||||
28 | 932815 | 1.35 | 1.61 | |
Federschlüssel 3x3x12 | ||||
28A | 937177 | 1.65 | 1.96 | |
Inbusschraube M5x16 (10st), Nr90aa | ||||
29 | 949821 | 2.55 | 3.03 | |
Federscheibe M5 (10st), C8fshe, C8fse | ||||
30 | 949454 | 1.04 | 1.23 | |
Ölanzeige H65sc | ||||
31 | 955011 | 10.95 | 13.03 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
32 | 949832 | |||
Federscheibe M6 (10st), C8fshe, C8fse, Cg18dal, C | ||||
33 | 949455 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
34 | 956106 | |||
Nadellager (nsk Aj50 1203) Dh28y/dh40ma/mb u.a. | ||||
35 | 980756 | 10.65 | 12.67 | |
Kolbenstift H60ma/mb | ||||
36 | 956110 | 1.65 | 1.96 | |
Kolben | ||||
37 | 971065 | 40.43 | 48.11 | |
X-Ring | ||||
38A | 971151 | 2.55 | 3.03 | |
Anschläger H60ma/mb | ||||
39 | 956111 | 37.13 | 44.18 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
40 | 971114 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
41A | 332143 | |||
Zylindersicherungsring | ||||
42 | 956225 | 1.05 | 1.25 | |
Uurethanring Dh50mb | ||||
43 | 956224 | 9.30 | 11.07 | |
Mund | ||||
44 | 971071 | 11.55 | 13.74 | |
Mondscheibenring | ||||
45 | 971072 | 7.05 | 8.39 | |
Dämpferring | ||||
46 | 971073 | 10.65 | 12.67 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
47 | 971116 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
48 | 971117 | |||
Inbusschraube M6x25 (10st) | ||||
49 | 949652 | 3.30 | 3.93 | |
Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
50 | 949432 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
51 | 971118 | |||
Haltestab (a) Ass'y | ||||
52 | 971106 | 21.04 | 25.03 | |
Haltestange(a) (alt 998554) | ||||
52A | 971079 | 5.70 | 6.78 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
53 | 971080 | |||
Unterlegscheibe M8 (10st) | ||||
54 | 949426 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
55A | 998558 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
56 | 971082 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
57 | 971083 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
58 | 971084 | |||
Haltestab (a) Ass'y | ||||
59B | 971107 | 21.18 | 25.20 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
59C | 998557 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
60A | 971082 | |||
Haltescheibe Dh20v/dh25pb | ||||
61 | 971087 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
62A | 971119 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
63B | 332145 | |||
Inbusschraube M5x14 (10st) | ||||
64 | 949665 | 2.10 | 2.50 | |
Federscheibe M5 (10st), C8fshe, C8fse | ||||
65 | 949454 | 1.04 | 1.23 | |
Kopfschraube M5x 8 (10st) | ||||
66 | 949235 | 1.05 | 1.25 | |
Federscheibe M5 (10st), C8fshe, C8fse | ||||
67 | 949454 | 1.04 | 1.23 | |
Griff Ass'y (a) Metallic Silbergrün Inkl.93a | ||||
68D | 334511 | 47.03 | 55.96 | |
Schalter | ||||
69C | 971139 | 32.18 | 38.29 | |
Schalter mit Verriegelung | ||||
69D | 971390 | 26.40 | 31.42 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
70C | 971163 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
71 | 971136 | |||
Kabelknickschutz D10.7 Div.typen, Cm9by, H41mb, G | ||||
72 | 940778 | 2.10 | 2.50 | |
Kabelknickschutz D8.2 Div.typen H41mb, G23ss | ||||
72 | 958049 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
73 | 930108 | |||
Kabelklemme Div.typen, Cm9uby, G23ss | ||||
73A | 960266 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
74 | 949292 | |||
Verbinder 50092 (10st) Div.typen (usa, Can), C8fs | ||||
75 | 959141 | 3.75 | 4.46 | |
Kohlenbürsten (paar) H41mb | ||||
77 | 999043 | 4.50 | 5.36 | |
Kohlebürsten Selbstabsch.(paar) H41mb | ||||
77A | 999073 | 14.40 | 17.14 | |
Bürstenkappe H41sa/h45ma/vb13y Vb16y/h45mr/dh40mr | ||||
78 | 935829 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
79 | 971091 | |||
Niete D 2,5 X 4,8 (10st) Three-phase | ||||
80 | 949510 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
81 | 944457 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
82 | 944459 | |||
Schmieröl (120cc) | ||||
83 | 931848 | 8.40 | 10.00 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
84 | 971109 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
85 | 981922 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
86 | 955006C | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
87 | 949233 | |||
Federscheibe M5 (10st), C8fshe, C8fse | ||||
88 | 949454 | 1.04 | 1.23 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
89A | 971395 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
89B | 312831 | |||
Lüfterrad Dh40ma/mb/yb/fa/fb | ||||
91 | 971097 | 7.65 | 9.10 | |
Inbusschraube M6x22 (10 Stück) Nr90ae | ||||
93 | 949670 | 3.00 | 3.57 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
101 | 971127Z | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
102 | 971128Z | |||
Mutter (10 Stück) | ||||
103 | 949782 | 6.75 | 8.03 | |
Unterlegscheibe M6 (10st), C8fse | ||||
104 | 949425 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
105 | 955291 | |||
Schalter (alt 955277) | ||||
106A | 971824Z | 35.06 | 41.72 | |
Schraube | ||||
107 | 954017 | 1.04 | 1.23 | |
Kabelknickschutz D10.2 Till 11.1982 For Aus | ||||
108 | 930026 | 3.00 | 3.57 | |
Federscheibe M4 (10st) | ||||
109 | 949453 | 1.05 | 1.25 | |
Kabelklemme Div.typen, C8fshe, Cm5sb, C8fse | ||||
110 | 937631 | 1.04 | 1.23 | |
Gewindeschraube D4X16 | ||||
111 | 954004 | 1.04 | 1.23 | |
Unterlegscheibe M4 (10st) | ||||
112 | 949423 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
113 | 955292 | |||
Schneidschraube D4x25 For Aus (since 1.1985 For S | ||||
114 | 958705 | 1.05 | 1.25 | |
Kopfschraube M4x12 (10st),c8fshe, C8fse | ||||
129 | 949217 | 1.05 | 1.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
129A | 957147 | |||
Sicherungsring D18 (10 Stk) | ||||
130 | 939546 | 3.60 | 4.28 | |
Kondensator C6u-c13u u.a., C 8fshe | ||||
131 | 930039 | 1.95 | 2.32 | |
Kabelschuh 50051 (10st) Div.typen For Noise Suppr | ||||
132 | 959144 | 3.00 | 3.57 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
602 | 944574 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
603A | 318085 | |||
OMALA Öl (1 Liter) | ||||
604 | 955009 | 21.04 | 25.03 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
605 | 971105 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
606 | 955181 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
607 | 955183 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
608 | 955186 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
609 | 956126 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
610A | 323357 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
611 | 980734 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
612 | 980752 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
613 | 980753 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
614 | 981922 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
615 | 981923 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
616 | 981924 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
617 | 981925 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
618 | 981926 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
619 | 981929 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
620 | 981930 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
621 | 981931 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
622 | 980982 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
623 | 320859 | |||
Ölfilz | ||||
624 | 324896 | 3.75 | 4.46 |
