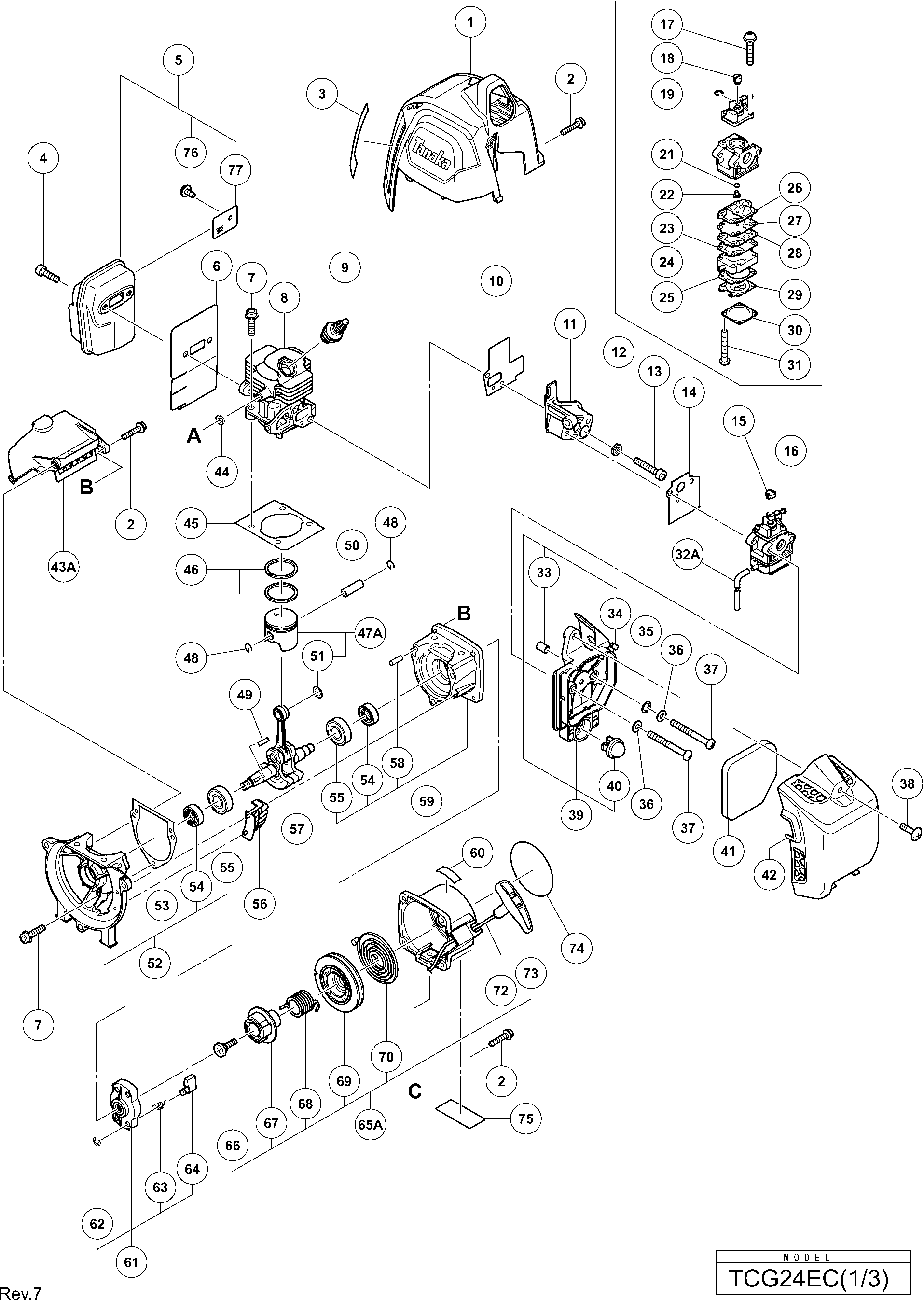

Hikoki TCG24EC Zeichnungen und Teile
Auf dem Typenschild sollte die Typenbezeichnung TCG24EC stehen. Je nach Typenbezeichnung kann es Unterschiede geben, die dazu führen können, dass Teile nicht passen. Bestellen Sie nur, wenn diese Nummer übereinstimmt. Hikoki Powertools ist der neue Name von Hitachi Powertools.Zeichnungen der HIKOKI TCG24EC
Teileliste der Hikoki TCG24EC
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer.
| Cylinder Cover | ||||
| 1 | 6600544 | Cylinder Cover | € 8,57 | |
| Seal Lock Hex. Socket Hd. Bolt M4 | ||||
| 2 | 6600918 | Seal Lock Hex. Socket Hd. Bolt M4 | € 1,00 | |
| Seal Lock Hex. Socket Hd. Bolt M6x16 | ||||
| 4 | 6600518 | Seal Lock Hex. Socket Hd. Bolt M6x16 | € 1,00 | |
| Muffler | ||||
| 5 | 6600516 | Muffler | € 6,39 | |
| Heat Protection Panel | ||||
| 6 | 6600517 | Heat Protection Panel | € 1,16 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M5x22 | ||||
| 7 | 6601339 | Hex. Socket Hd. Bolt (w/sp.washer) M5x22 | € 1,02 | |
| Cylinder N24 | ||||
| 8 | 6600902 | Cylinder N24 | € 29,02 | |
| Ignition Plug (torch L7rtc) | ||||
| 9 | 6600542 | Ignition Plug (torch L7rtc) | € 5,81 | |
| Intake Packing | ||||
| 10 | 6600524 | Intake Packing | € 1,00 | |
| Carburetor Insulator | ||||
| 11 | 6600525 | Carburetor Insulator | € 4,94 | |
| Spring Washer D6 | ||||
| 12 | 6600910 | Spring Washer D6 | € 1,00 | |
| Seal Lock Hex. Socket Hd. Bolt M6x27 | ||||
| 13 | 6601358 | Seal Lock Hex. Socket Hd. Bolt M6x27 | € 1,00 | |
| Carburetor Packing | ||||
| 14 | 6698405 | Carburetor Packing | € 2,03 | |
| Spannschlosskappe Since C026901 | ||||
| 15 | 6691337 | Spannschlosskappe Since C026901 | € 1,11 | |
| Carburetor Ass'y Wyc-43 Includ.17-31 | ||||
| 16 | 6600526 | Carburetor Ass'y Wyc-43 Includ.17-31 | € 28,08 | |
| Drosselschrauben Set Cg24ekb alte Art.nr. 548-251 | ||||
| 17 | 6684698 | Drosselschrauben Set Cg24ekb alte Art.nr. 548-251 | € 4,15 | |
| Swivel | ||||
| 18 | 6696830 | Swivel | € 4,31 | |
| Anschlagring Cg24ekb alte Art.nr. 489-25100-20 | ||||
| 19 | 6684696 | Anschlagring Cg24ekb alte Art.nr. 489-25100-20 | € 2,08 | |
| O-RING (OUD 550-25100-20) | ||||
| 21 | 6684695 | O-RING (OUD 550-25100-20) | € 4,15 | |
| Schaltplatte alte Art.nr.522-25100-20 | ||||
| 23 | 6691234 | Schaltplatte alte Art.nr.522-25100-20 | € 3,19 | |
| Pump Body Comp. | ||||
| 24 | 6696828 | Pump Body Comp. | € 12,93 | |
| Membran Verpackung | ||||
| 25 | 6685220 | Membran Verpackung | € 2,24 | |
| Pumpendichtung Cg24ekb alte Art.nr. 577-25292-20 | ||||
| 26 | 6684692 | Pumpendichtung Cg24ekb alte Art.nr. 577-25292-20 | € 28,25 | |
| Membranabdeckung Cg24ekb alte Art.nr.576-25100-20 | ||||
| 27 | 6684693 | Membranabdeckung Cg24ekb alte Art.nr.576-25100-20 | € 8,30 | |
| Pumpenplatte alte Art.nr.523-25100-20 | ||||
| 28 | 6691242 | Pumpenplatte alte Art.nr.523-25100-20 | € 2,24 | |
| Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | ||||
| 29 | 6684690 | Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | € 17,42 | |
| Membranabdeckung | ||||
| 30 | 6685222 | Membranabdeckung | € 4,31 | |
| Schrauben Set alte Art.nr.548-25101-20 | ||||
| 31 | 6691312 | Schrauben Set alte Art.nr.548-25101-20 | € 1,11 | |
| Fuel Pipe | ||||
| 32A | 6601444 | Fuel Pipe | € 1,00 | |
| Collar M5 | ||||
| 33 | 6601340 | Collar M5 | € 1,89 | |
| Choke Valve | ||||
| 34 | 6601341 | Choke Valve | € 2,76 | |
| Wave Washer 8 | ||||
| 35 | 334242 | Wave Washer 8 | € 1,67 | |
| Ring | ||||
| 36 | 6685407 | Ring | € 1,02 | |
| Schraube 5x55 alte Art.nr. 990-11050-552 | ||||
| 37 | 6694914 | Schraube 5x55 alte Art.nr. 990-11050-552 | € 1,11 | |
| Special Screw M5 | ||||
| 38 | 6600532 | Special Screw M5 | € 1,00 | |
| Air Cleaner Base Ass'y Includ.33,34,40 | ||||
| 39 | 6600911 | Air Cleaner Base Ass'y Includ.33,34,40 | € 11,91 | |
| Hauptpumpe | ||||
| 40 | 6685139 | Hauptpumpe | € 5,75 | |
| Air Cleaner Element | ||||
| 41 | 6600529 | Air Cleaner Element | € 1,00 | |
| Luftfilterabdeckung | ||||
| 42 | 6600530 | Luftfilterabdeckung | € 1,31 | |
| MUFFLER TANK PARTITION | ||||
| 43A | 6601430 | MUFFLER TANK PARTITION | € 2,47 | |
| Ring | ||||
| 44 | 6698700 | Ring | € 1,16 | |
| Cylinder Packing | ||||
| 45 | 6600510 | Cylinder Packing | € 1,00 | |
| Piston Ring | ||||
| 46 | 6698404 | Piston Ring | € 4,07 | |
| PISTON SET | ||||
| 47A | 6601476 | PISTON SET | € 7,55 | |
| Kolbenstift Cg24ekb | ||||
| 48 | 6684590 | Kolbenstift Cg24ekb | € 2,08 | |
| Woodruff Key 3x13x4.5 | ||||
| 49 | 6601343 | Woodruff Key 3x13x4.5 | € 1,89 | |
| Piston Pin | ||||
| 50 | 6601344 | Piston Pin | € 2,76 | |
| Shim | ||||
| 51 | 6600909 | Shim | € 1,00 | |
| Crank Case (f) Ass'y Includ.54,55 | ||||
| 52 | 6600907 | Crank Case (f) Ass'y Includ.54,55 | € 13,36 | |
| Crank Case Packing | ||||
| 53 | 6600514 | Crank Case Packing | € 1,00 | |
| Öldichtung Cg24ekb | ||||
| 54 | 6684607 | Öldichtung Cg24ekb | € 4,15 | |
| Kugellager Cg24ekb | ||||
| 55 | 6684608 | Kugellager Cg24ekb | € 3,68 | |
| Crank Case Guard | ||||
| 56 | 6600924 | Crank Case Guard | € 1,00 | |
| Crank Shaft | ||||
| 57 | 6600511 | Crank Shaft | € 25,95 | |
| Knock Pin 4x12 | ||||
| 58 | 6696947 | Knock Pin 4x12 | € 1,02 | |
| Crank Case (r) Ass'y Includ.54,55,58 | ||||
| 59 | 6600906 | Crank Case (r) Ass'y Includ.54,55,58 | € 13,50 | |
| Tank Mark Label (50:1) | ||||
| 60 | 6698921 | Tank Mark Label (50:1) | € 1,16 | |
| Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90 | ||||
| 61 | 6684681 | Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90 | € 12,78 | |
| D4eretainingringnew | ||||
| 62 | 6685101 | D4eretainingringnew | € 1,11 | |
| Feder f. Startersperre Cg24ekb | ||||
| 63 | 6684684 | Feder f. Startersperre Cg24ekb | € 4,15 | |
| Startersperre Cg24ekb alte Art.nr.788-0651h-20 | ||||
| 64 | 6684685 | Startersperre Cg24ekb alte Art.nr.788-0651h-20 | € 4,15 | |
| RECOIL STARTER BODY ASS'Y NEW | ||||
| 65A | 6601570 | RECOIL STARTER BODY ASS'Y NEW | € 15,31 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 66 | 6684679 | SET SCREW (OLD 839-03045-20) | € 2,08 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 67 | 6699996 | Cam Plate For (s) Type Since 9.2013 For Aus | € 2,47 | |
| Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20 | ||||
| 68 | 6684677 | Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20 | € 8,30 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 69 | 6699997 | Starter Rope Reel For (s) Type Since 9.2013 For A | € 8,14 | |
| Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | ||||
| 70 | 6684675 | Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | € 11,18 | |
| Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo | ||||
| 72 | 6684674 | Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo | € 4,15 | |
| Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo | ||||
| 73 | 6684680 | Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo | € 2,08 | |
| Machine Screw (w/washers) M4x8 (black) | ||||
| 76 | 6601439 | Machine Screw (w/washers) M4x8 (black) | € 1,00 | |
| Spark Arrester | ||||
| 77 | 6601438 | Spark Arrester | € 1,00 | |
| Maschinenschraube C8fs | ||||
| 81 | 995096 | Maschinenschraube C8fs | € 1,02 | |
| Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | ||||
| 82 | 305812 | Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | € 1,00 | |
| Handle (b) | ||||
| 83 | 6600566 | Handle (b) | € 1,74 | |
| Throttle Lever | ||||
| 84 | 6600568 | Throttle Lever | € 1,31 | |
| Feder | ||||
| 85 | 6696489 | Feder | € 1,00 | |
| Trigger Lockout | ||||
| 86 | 6600567 | Trigger Lockout | € 1,00 | |
| Stop Switch | ||||
| 87 | 6601275 | Stop Switch | € 1,31 | |
| Stoppschalterleine | ||||
| 88 | 6696491 | Stoppschalterleine | € 1,74 | |
| Protection Tube | ||||
| 89 | 6696967 | Protection Tube | € 1,02 | |
| Throttle Wire Comp | ||||
| 90 | 6600569 | Throttle Wire Comp | € 1,31 | |
| Handle (a) | ||||
| 91 | 6600565 | Handle (a) | € 2,03 | |
| Grip (loop) | ||||
| 92 | 6600538 | Grip (loop) | € 4,50 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M5 | ||||
| 93 | 6600919 | Hex. Socket Hd. Bolt (w/sp.washer) M5 | € 1,00 | |
| Hex. Socket Hd. Bolt (w/washers) M5 Till 12.2016 | ||||
| 94 | 6600372 | Hex. Socket Hd. Bolt (w/washers) M5 Till 12.2016 | € 1,74 | |
| Metallfitting | ||||
| 95 | 6689664 | Metallfitting | € 3,19 | |
| Pipe Holder | ||||
| 96 | 6600551 | Pipe Holder | € 2,61 | |
| Damper (holder) | ||||
| 97 | 6600552 | Damper (holder) | € 2,76 | |
| Tapping Screw D4.5x16 | ||||
| 98 | 6698878 | Tapping Screw D4.5x16 | € 1,16 | |
| Fan Case | ||||
| 99 | 6600548 | Fan Case | € 13,98 | |
| Clutch Shaft | ||||
| 100 | 6600549 | Clutch Shaft | € 6,39 | |
| Abstandsbolzen | ||||
| 101 | 6696469 | Abstandsbolzen | € 1,00 | |
| Ring | ||||
| 102 | 6684648 | Ring | € 2,08 | |
| Clutch | ||||
| 103 | 6696948 | Clutch | € 11,27 | |
| Washer (b) | ||||
| 104 | 6696547 | Washer (b) | € 1,02 | |
| Mutter | ||||
| 105 | 6685337 | Mutter | € 1,02 | |
| Bolzenscheibe H65sd2 | ||||
| 106 | 323212 | Bolzenscheibe H65sd2 | € 1,02 | |
| Hex. Socket Hd. Bolt (w/washers) M4x18 | ||||
| 107 | 6698388 | Hex. Socket Hd. Bolt (w/washers) M4x18 | € 1,02 | |
| Ignition Coil | ||||
| 108 | 6600515 | Ignition Coil | € 22,36 | |
| Cord Insulation Tube L100 | ||||
| 109 | 6600051 | Cord Insulation Tube L100 | € 1,00 | |
| Plug Cap Metal | ||||
| 110 | 6699186 | Plug Cap Metal | € 1,00 | |
| Plug Cap | ||||
| 111A | 6601421 | Plug Cap | € 1,00 | |
| Band | ||||
| 112 | 6698943 | Band | € 1,16 | |
| Protection Tube L50 For Irl | ||||
| 113 | 6601345 | Protection Tube L50 For Irl | € 1,02 | |
| Cord | ||||
| 114 | 6698495 | Cord | € 2,03 | |
| Earth Cord | ||||
| 115 | 6696545 | Earth Cord | € 1,02 | |
| Magneto Rotor Comp. | ||||
| 116 | 6699289 | Magneto Rotor Comp. | € 24,89 | |
| Machine Screw (w/washers) M5x18 | ||||
| 117 | 6600920 | Machine Screw (w/washers) M5x18 | € 1,00 | |
| Behalter | ||||
| 118 | 6600519 | Behalter | € 4,79 | |
| Bolt (w/flange) L17.8 Since G103931 | ||||
| 119 | 6696574 | Bolt (w/flange) L17.8 Since G103931 | € 1,02 | |
| Pump Filter | ||||
| 120 | 6600351 | Pump Filter | € 2,61 | |
| Clip | ||||
| 121 | 6696949 | Clip | € 1,62 | |
| Bolt (w/flange) L23.8 | ||||
| 122 | 6698512 | Bolt (w/flange) L23.8 | € 1,02 | |
| Distanzring (1) | ||||
| 123 | 6699558 | Distanzring (1) | € 1,00 | |
| Fuel Pipe L70 | ||||
| 124A | 6699014 | Fuel Pipe L70 | € 1,60 | |
| Fuel Grommet Since 8.2014 | ||||
| 125 | 6600358 | Fuel Grommet Since 8.2014 | € 1,00 | |
| Fuel Pipe L140 | ||||
| 126 | 6600521 | Fuel Pipe L140 | € 1,00 | |
| Fuel Tank Cap Ass'y Includ.100 | ||||
| 127 | 6698402 | Fuel Tank Cap Ass'y Includ.100 | € 4,07 | |
| Tank Cap Chain | ||||
| 128 | 6698732 | Tank Cap Chain | € 1,16 | |
| Barrier | ||||
| 131 | 6696973 | Barrier | € 3,22 | |
| Bolt (black) M6 | ||||
| 132 | 6696974 | Bolt (black) M6 | € 1,62 | |
| Loop Handle | ||||
| 133 | 6601348 | Loop Handle | € 11,04 | |
| Cushion Rubber | ||||
| 134 | 6601349 | Cushion Rubber | € 1,89 | |
| Bolt (w/flange) L23.8 | ||||
| 135 | 6698512 | Bolt (w/flange) L23.8 | € 1,02 | |
| Loop Handle Ass'y Includ.133-135 | ||||
| 136 | 6600922 | Loop Handle Ass'y Includ.133-135 | € 10,74 | |
| Gear Case Ass'y 3bb (d) Includ.138-144 | ||||
| 137 | 6600553 | Gear Case Ass'y 3bb (d) Includ.138-144 | € 28,88 | |
| Inbusschraube M5x25 (10st) | ||||
| 138 | 949662 | Inbusschraube M5x25 (10st) | € 2,03 | |
| Schraube 5x12ws alte Art.nr. 994-16050-121 | ||||
| 139 | 6695414 | Schraube 5x12ws alte Art.nr. 994-16050-121 | € 1,11 | |
| Bolzen Cg24ekd, Cg18dal, Cg18dl | ||||
| 140 | 6684737 | Bolzen Cg24ekd, Cg18dal, Cg18dl | € 2,08 | |
| Cutter Holder (a) | ||||
| 141 | 6601354 | Cutter Holder (a) | € 4,65 | |
| Cutter Holder (b) For Irl | ||||
| 142 | 6601355 | Cutter Holder (b) For Irl | € 3,92 | |
| Nicht bestellbar | ||||
| 143 | 6699188 | Nicht bestellbar | ||
| U-nut (left Hand) M10 For Irl | ||||
| 144 | 335759 | U-nut (left Hand) M10 For Irl | € 1,00 | |
| Nicht mehr lieferbar | ||||
| 145A | 6601432 | Nicht mehr lieferbar | ||
| Set Screw | ||||
| 148 | 6698795 | Set Screw | € 1,31 | |
| Reel | ||||
| 149 | 6698796 | Reel | € 2,32 | |
| Return Spring | ||||
| 150 | 6698797 | Return Spring | € 1,02 | |
| Knopf (1) | ||||
| 151 | 6698798 | Knopf (1) | € 1,16 | |
| Cord Guide | ||||
| 152 | 6698799 | Cord Guide | € 1,16 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 154 | 6684714 | HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | € 2,08 | |
| Cover Bracket For Irl | ||||
| 155 | 6699443 | Cover Bracket For Irl | € 2,03 | |
| Nicht bestellbar | ||||
| 156 | 6600449 | Nicht bestellbar | ||
| Level Mark (b) | ||||
| 157 | 6600446 | Level Mark (b) | € 1,74 | |
| Füllstandsmarkierung Cg24ekb | ||||
| 158 | 6684851 | Füllstandsmarkierung Cg24ekb | € 2,08 | |
| Main Pipe (t1.1) | ||||
| 159 | 6600556 | Main Pipe (t1.1) | € 21,56 | |
| Drive Shaft | ||||
| 160 | 6600558 | Drive Shaft | € 10,45 | |
| Hanger For Irl | ||||
| 161 | 6600504 | Hanger For Irl | € 1,16 | |
| Kopfschraube M5x10 (10st), G23ss For Irl | ||||
| 162 | 949236 | Kopfschraube M5x10 (10st), G23ss For Irl | € 1,02 | |
| Guard Ass'y (eu) For Irl | ||||
| 163 | 6600528 | Guard Ass'y (eu) For Irl | € 4,36 | |
| Cover Guard (eu) Ass'y For Irl | ||||
| 164 | 6601356 | Cover Guard (eu) Ass'y For Irl | € 6,10 | |
| Schneidschraube Cg24ekd | ||||
| 165 | 6684751 | Schneidschraube Cg24ekd | € 2,08 | |
| Messer Cg24ekd For Irl | ||||
| 166 | 6684750 | Messer Cg24ekd For Irl | € 4,15 | |
| Ignition Coil Ass'y Includ.108-111a | ||||
| 202 | 6601380 | Ignition Coil Ass'y Includ.108-111a | € 33,54 | |
| Fan Case (a) Ass'y Includ.36,93-97,99,100 | ||||
| 203 | 6601378 | Fan Case (a) Ass'y Includ.36,93-97,99,100 | € 29,55 | |
| Nicht bestellbar | ||||
| 501 | 6684764 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 502 | 944458 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 503 | 875769 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 504A | 6601420 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 505 | 66A2943 | Nicht bestellbar | ||
| AIR CLEANER ELEMENT | ||||
| 601 | 6601389 | AIR CLEANER ELEMENT | € 93,17 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
