Hikoki UM22VYSTUAZ Zeichnungen und Teile
Genaue Typennummer:
UM22VYSTUAZ
UM22VYSTUAZ

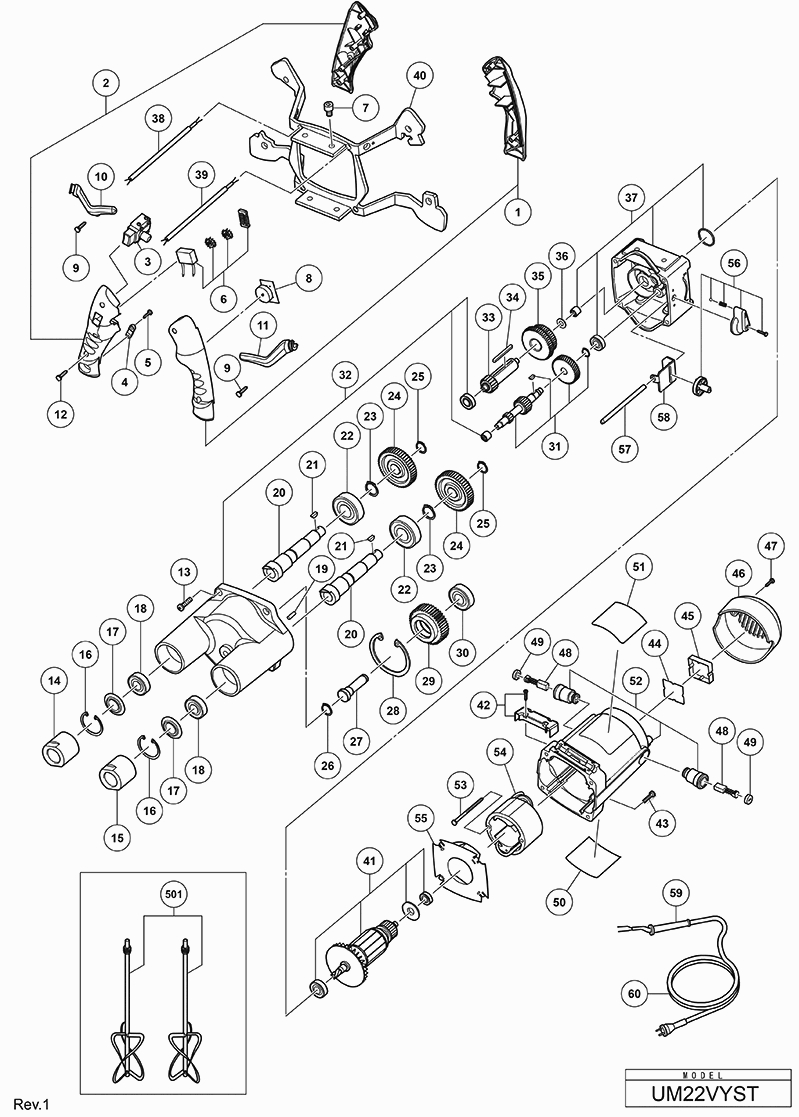

Zeichnungen der HIKOKI UM22VYSTUAZ
Teileliste der HIKOKI UM22VYSTUAZ
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| HANDLE ASS'Y (L) | ||||
| 1 | 375046 | HANDLE ASS'Y (L) | € 8.00 | |
| HANDLE ASS'Y (R) | ||||
| 2 | 375047 | HANDLE ASS'Y (R) | € 8.00 | |
| SWITCH | ||||
| 3 | 375067 | SWITCH | € 5.28 | |
| Clamp | ||||
| 4 | 333609 | Clamp | € 0.99 | |
| SCREW ST4.2X12 (2 PCS.) | ||||
| 5 | 375060 | SCREW ST4.2X12 (2 PCS.) | € 0.99 | |
| INDUCTANCE UNIT | ||||
| 6 | 375058 | INDUCTANCE UNIT | € 3.43 | |
| SCREW M8X14 (4 PCS.) | ||||
| 7 | 375056 | SCREW M8X14 (4 PCS.) | € 2.71 | |
| CIRCUITRY BOARD | ||||
| 8 | 375068 | CIRCUITRY BOARD | € 6.14 | |
| SCREW ST3X14 (2 PCS.) NEW | ||||
| 9 | 375059 | SCREW ST3X14 (2 PCS.) NEW | € 0.99 | |
| WIRING GROOVE (R) | ||||
| 10 | 375049 | WIRING GROOVE (R) | € 1.43 | |
| WIRING GROOVE (L) | ||||
| 11 | 375048 | WIRING GROOVE (L) | € 1.43 | |
| SCREW ST3.9X16 (6 PCS.) | ||||
| 12 | 375053 | SCREW ST3.9X16 (6 PCS.) | € 0.99 | |
| Screw M5x20 (4 Pcs) | ||||
| 13 | 333615 | Screw M5x20 (4 Pcs) | € 0.99 | |
| SLEEVE (R) | ||||
| 14 | 375083 | SLEEVE (R) | € 8.00 | |
| SLEEVE (L) | ||||
| 15 | 375084 | SLEEVE (L) | € 8.00 | |
| SHAFT RING D40 | ||||
| 16 | 375091 | SHAFT RING D40 | € 0.99 | |
| DUST COVER | ||||
| 17 | 375092 | DUST COVER | € 1.43 | |
| BEARING 6203RS | ||||
| 18 | 375094 | BEARING 6203RS | € 5.71 | |
| Stift (1) | ||||
| 19 | 333620 | Stift (1) | € 0.99 | |
| SPINDLE | ||||
| 20 | 375086 | SPINDLE | € 9.85 | |
| KEY | ||||
| 21 | 375087 | KEY | € 0.99 | |
| BEARING 6002Z | ||||
| 22 | 375093 | BEARING 6002Z | € 3.71 | |
| SHAFT RING D17 | ||||
| 23 | 375088 | SHAFT RING D17 | € 0.99 | |
| SPINDLE GEAR | ||||
| 24 | 375089 | SPINDLE GEAR | € 8.00 | |
| SHAFT RING D12 | ||||
| 25 | 375090 | SHAFT RING D12 | € 0.99 | |
| SHAFT RING D9 | ||||
| 26 | 375075 | SHAFT RING D9 | € 0.99 | |
| SHAFT | ||||
| 27 | 375077 | SHAFT | € 5.28 | |
| SHAFT RING D26 | ||||
| 28 | 375078 | SHAFT RING D26 | € 0.99 | |
| GEAR | ||||
| 29 | 375079 | GEAR | € 10.42 | |
| BEARING 6000Z | ||||
| 30 | 375080 | BEARING 6000Z | € 3.43 | |
| SECOND PINION ASS'Y | ||||
| 31 | 375102 | SECOND PINION ASS'Y | € 13.09 | |
| BEARING COVER ASS'Y | ||||
| 32 | 375085 | BEARING COVER ASS'Y | € 37.44 | |
| PINION | ||||
| 33 | 375095 | PINION | € 10.28 | |
| PARALLEL KEY | ||||
| 34 | 375096 | PARALLEL KEY | € 0.99 | |
| DOUBLE GEAR | ||||
| 35 | 375097 | DOUBLE GEAR | € 12.14 | |
| WASHER M16 | ||||
| 36 | 375098 | WASHER M16 | € 0.99 | |
| GEAR BOX ASS'Y | ||||
| 37 | 375076 | GEAR BOX ASS'Y | € 27.75 | |
| CABLE 0.75 (5 PCS.) | ||||
| 38 | 375682 | CABLE 0.75 (5 PCS.) | € 4.00 | |
| CABLE 3X0.5X0.23 | ||||
| 39 | 375050 | CABLE 3X0.5X0.23 | € 2.00 | |
| HOB | ||||
| 40 | 375057 | HOB | € 25.26 | |
| ARMATURE ASS'Y | ||||
| 41 | 375081 | ARMATURE ASS'Y | € 65.06 | |
| CABLE COVER ASS'Y | ||||
| 42 | 375055 | CABLE COVER ASS'Y | € 1.57 | |
| Screw M5x25 (4 Pcs) | ||||
| 43 | 333630 | Screw M5x25 (4 Pcs) | € 0.99 | |
| CONTROLLER | ||||
| 44 | 375069 | CONTROLLER | € 31.15 | |
| Protective Guard Um16vst | ||||
| 45 | 333634 | Protective Guard Um16vst | € 1.00 | |
| Rear Cover Um16vst | ||||
| 46 | 333635 | Rear Cover Um16vst | € 3.43 | |
| SCREW ST3.5X16 (2 PCS.) | ||||
| 47 | 375061 | SCREW ST3.5X16 (2 PCS.) | € 0.99 | |
| CARBON BRUSH (2 PCS.) | ||||
| 48 | 375072 | CARBON BRUSH (2 PCS.) | € 8.57 | |
| Koolborstel Dop (2 Stuks) Um16vst | ||||
| 49 | 333632 | Koolborstel Dop (2 Stuks) Um16vst | € 0.99 | |
| MOTOR BOX ASS'Y | ||||
| 52 | 375071 | MOTOR BOX ASS'Y | € 20.42 | |
| SCREW ST5X65 (2 PCS.) | ||||
| 53 | 375070 | SCREW ST5X65 (2 PCS.) | € 0.99 | |
| STATOR UM22VYST | ||||
| 54 | 375101 | STATOR UM22VYST | € 31.81 | |
| AIR GUIDE SHIM | ||||
| 55 | 375054 | AIR GUIDE SHIM | € 1.43 | |
| LEVER ASS'Y | ||||
| 56 | 375082 | LEVER ASS'Y | € 2.71 | |
| PIVOT D6X90 | ||||
| 57 | 375099 | PIVOT D6X90 | € 0.99 | |
| COULISSE | ||||
| 58 | 375100 | COULISSE | € 1.43 | |
| Huelse (1) | ||||
| 59 | 333636 | Huelse (1) | € 1.14 | |
| Nicht mehr lieferbar | ||||
| 60 | 333637 | Nicht mehr lieferbar | ||
| STIRRER SET (R/L SET) UM22VYST | ||||
| 501 | 375615 | STIRRER SET (R/L SET) UM22VYST | € 104.65 | |
