Hikoki UR18DSDL Zeichnungen und Teile

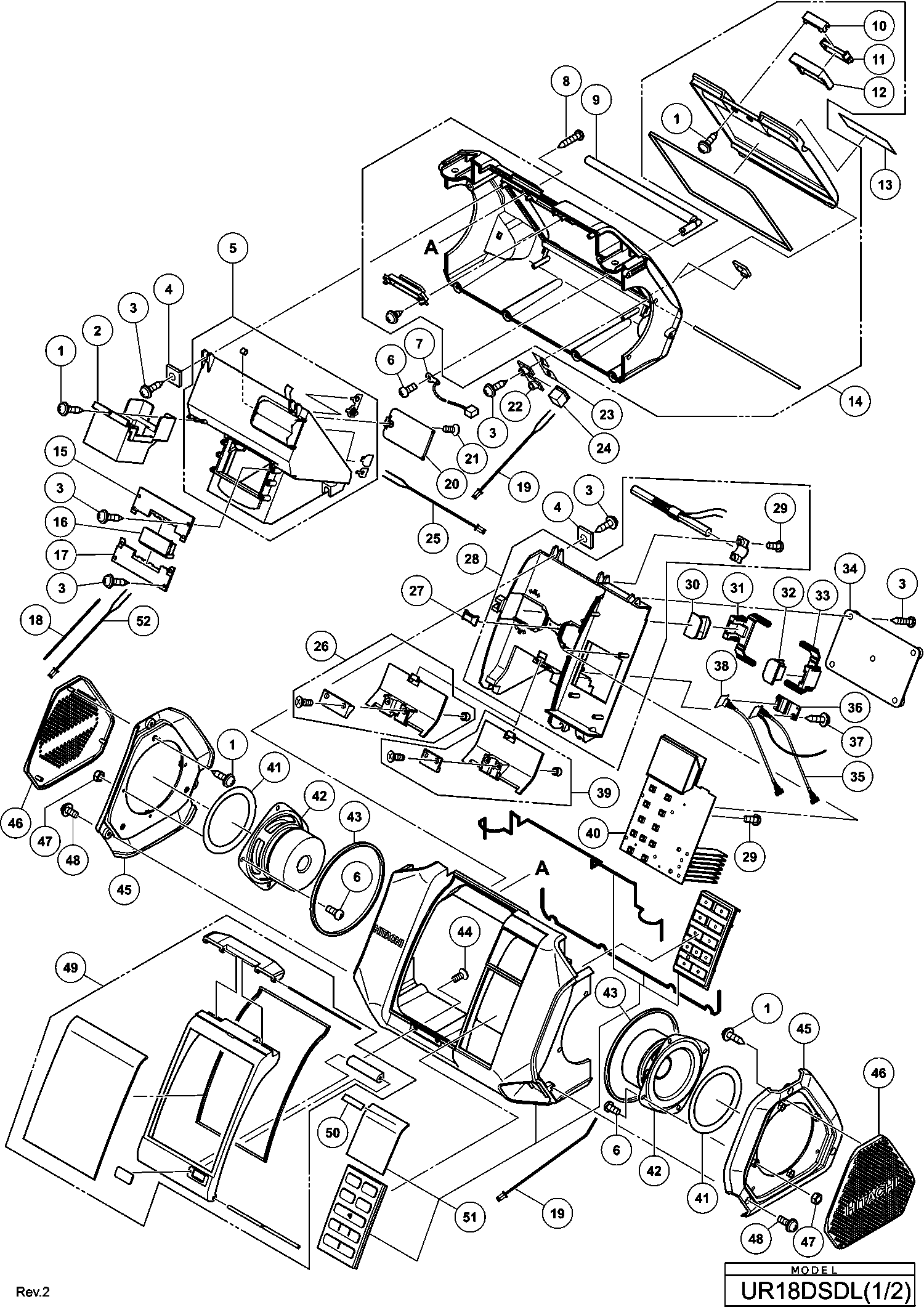

Auf dem Typenschild sollte die Typenbezeichnung UR18DSDL stehen. Je nach Typenbezeichnung kann es Unterschiede geben, die dazu führen können, dass Teile nicht passen. Bestellen Sie nur, wenn diese Nummer übereinstimmt. Hikoki Powertools ist der neue Name von Hitachi Powertools.Zeichnungen der HIKOKI UR18DSDL
Teileliste der Hikoki UR18DSDL
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer.
| Tapping Screw (w/flange) D2x8 | ||||
| 1 | 338364 | Tapping Screw (w/flange) D2x8 | € 1,00 | |
| Adapter Storage Case | ||||
| 2 | 338392 | Adapter Storage Case | € 2,61 | |
| Tapping Screw (w/flange) D2.3x8 | ||||
| 3 | 338399 | Tapping Screw (w/flange) D2.3x8 | € 2,47 | |
| Square Washer | ||||
| 4 | 338409 | Square Washer | € 1,00 | |
| Battery Compartment Set | ||||
| 5 | 338365 | Battery Compartment Set | € 9,29 | |
| Machine Screw (w/flange) M3x8 | ||||
| 6 | 338398 | Machine Screw (w/flange) M3x8 | € 1,00 | |
| Connector A | ||||
| 7 | 338374 | Connector A | € 1,74 | |
| Tapping Screw D4x18 | ||||
| 8 | 338397 | Tapping Screw D4x18 | € 2,47 | |
| Rubber Antenna | ||||
| 9 | 338390 | Rubber Antenna | € 11,47 | |
| Lower Back Cover Button | ||||
| 10 | 338363 | Lower Back Cover Button | € 1,00 | |
| Upper Back Cover Button | ||||
| 11 | 338362 | Upper Back Cover Button | € 1,00 | |
| Back Cover Latching B | ||||
| 12 | 338361 | Back Cover Latching B | € 1,00 | |
| Back Cabinet Set Includ.1,10-12 | ||||
| 14 | 338360 | Back Cabinet Set Includ.1,10-12 | € 48,45 | |
| Upper Contact Bracket | ||||
| 15 | 338388 | Upper Contact Bracket | € 1,45 | |
| Battery Terminal | ||||
| 16 | 339154 | Battery Terminal | € 1,74 | |
| Lower Contact Bracket | ||||
| 17 | 338389 | Lower Contact Bracket | € 1,45 | |
| Internal Wire (b) | ||||
| 18 | 338407 | Internal Wire (b) | € 1,60 | |
| Connector C | ||||
| 19 | 338405 | Connector C | € 1,74 | |
| Battery Cover | ||||
| 20 | 338387 | Battery Cover | € 1,00 | |
| Screw M3 | ||||
| 21 | 338410 | Screw M3 | € 2,47 | |
| Dc Jack Bracket | ||||
| 22 | 338394 | Dc Jack Bracket | € 1,00 | |
| Rubber Sheet (dc Jack) | ||||
| 23 | 339155 | Rubber Sheet (dc Jack) | € 1,00 | |
| Dc Jack | ||||
| 24 | 338396 | Dc Jack | € 1,02 | |
| Connector B | ||||
| 25 | 338404 | Connector B | € 1,74 | |
| Cable Holder (android) | ||||
| 26 | 338372 | Cable Holder (android) | € 1,74 | |
| Support | ||||
| 27 | 338385 | Support | € 1,00 | |
| Bracket Set Includ.29 | ||||
| 28 | 338366 | Bracket Set Includ.29 | € 13,21 | |
| Tapping Screw D2x6 | ||||
| 29 | 338400 | Tapping Screw D2x6 | € 1,00 | |
| Left Latching | ||||
| 30 | 338383 | Left Latching | € 1,00 | |
| Left Latch Mounting | ||||
| 31 | 338378 | Left Latch Mounting | € 1,00 | |
| Right Latching | ||||
| 32 | 338384 | Right Latching | € 1,00 | |
| Right Latch Mounting | ||||
| 33 | 338379 | Right Latch Mounting | € 1,00 | |
| Latching Plate | ||||
| 34 | 338386 | Latching Plate | € 2,18 | |
| Pcb Ass'y (usb) | ||||
| 35 | 338408 | Pcb Ass'y (usb) | € 5,66 | |
| Pcb Plate | ||||
| 36 | 338403 | Pcb Plate | € 2,18 | |
| Nicht mehr lieferbar | ||||
| 37 | 339113 | Nicht mehr lieferbar | ||
| Pcb Ass'y (aux) | ||||
| 38 | 338391 | Pcb Ass'y (aux) | € 5,95 | |
| Cable Holder (apple) | ||||
| 39 | 338371 | Cable Holder (apple) | € 1,60 | |
| Pcb Ass'y (a) | ||||
| 40 | 338376 | Pcb Ass'y (a) | € 135,10 | |
| Speaker Resistance Strip | ||||
| 41 | 338402 | Speaker Resistance Strip | € 9,87 | |
| Speaker (dsdl) | ||||
| 42 | 338395 | Speaker (dsdl) | € 17,84 | |
| Water Resistance Strip E | ||||
| 43 | 339115 | Water Resistance Strip E | € 1,74 | |
| Tapping Screw D2x8 | ||||
| 44 | 338401 | Tapping Screw D2x8 | € 2,47 | |
| Side Plate | ||||
| 45 | 338377 | Side Plate | € 3,19 | |
| Speaker Grill Set | ||||
| 46 | 338370 | Speaker Grill Set | € 2,90 | |
| Mutter M3 (10 Stück) | ||||
| 47 | 949553 | Mutter M3 (10 Stück) | € 1,00 | |
| Inbusschraube M4x 8 (10st) | ||||
| 48 | 949811 | Inbusschraube M4x 8 (10st) | € 1,45 | |
| Front Cover Set | ||||
| 49 | 338367 | Front Cover Set | € 22,63 | |
| Front Cabinet Set A | ||||
| 51 | 338359 | Front Cabinet Set A | € 29,95 | |
| Connector D | ||||
| 52 | 338406 | Connector D | € 1,74 | |
| Inbusschraube M5x18 (10st) | ||||
| 71 | 949658 | Inbusschraube M5x18 (10st) | € 1,74 | |
| Inbusschraube M5x10 (10st) | ||||
| 72 | 949819 | Inbusschraube M5x10 (10st) | € 2,47 | |
| Unterlegscheibe M5 (10st) | ||||
| 73 | 949431 | Unterlegscheibe M5 (10st) | € 1,00 | |
| Upper Protector | ||||
| 74 | 338380 | Upper Protector | € 5,37 | |
| Short Laver Set | ||||
| 75 | 338369 | Short Laver Set | € 2,61 | |
| Lower Protector | ||||
| 76 | 338381 | Lower Protector | € 4,50 | |
| Mutter M5 (schwarz) C13u/m8v/m12v | ||||
| 77 | 302012 | Mutter M5 (schwarz) C13u/m8v/m12v | € 1,02 | |
| Long Lever Set | ||||
| 78 | 338368 | Long Lever Set | € 3,92 | |
| Absorber Set | ||||
| 79 | 338373 | Absorber Set | € 10,02 | |
| Rubber Washer | ||||
| 80 | 339114 | Rubber Washer | € 1,00 | |
| Nicht bestellbar | ||||
| 501 | 338414 | Nicht bestellbar | ||
| Ac-adapter (euro) | ||||
| 501 | 338412 | Ac-adapter (euro) | € 21,03 | |
