Makita 2012NB Zeichnungen und Teile
Genaue Typennummer:
2012NB
2012NB

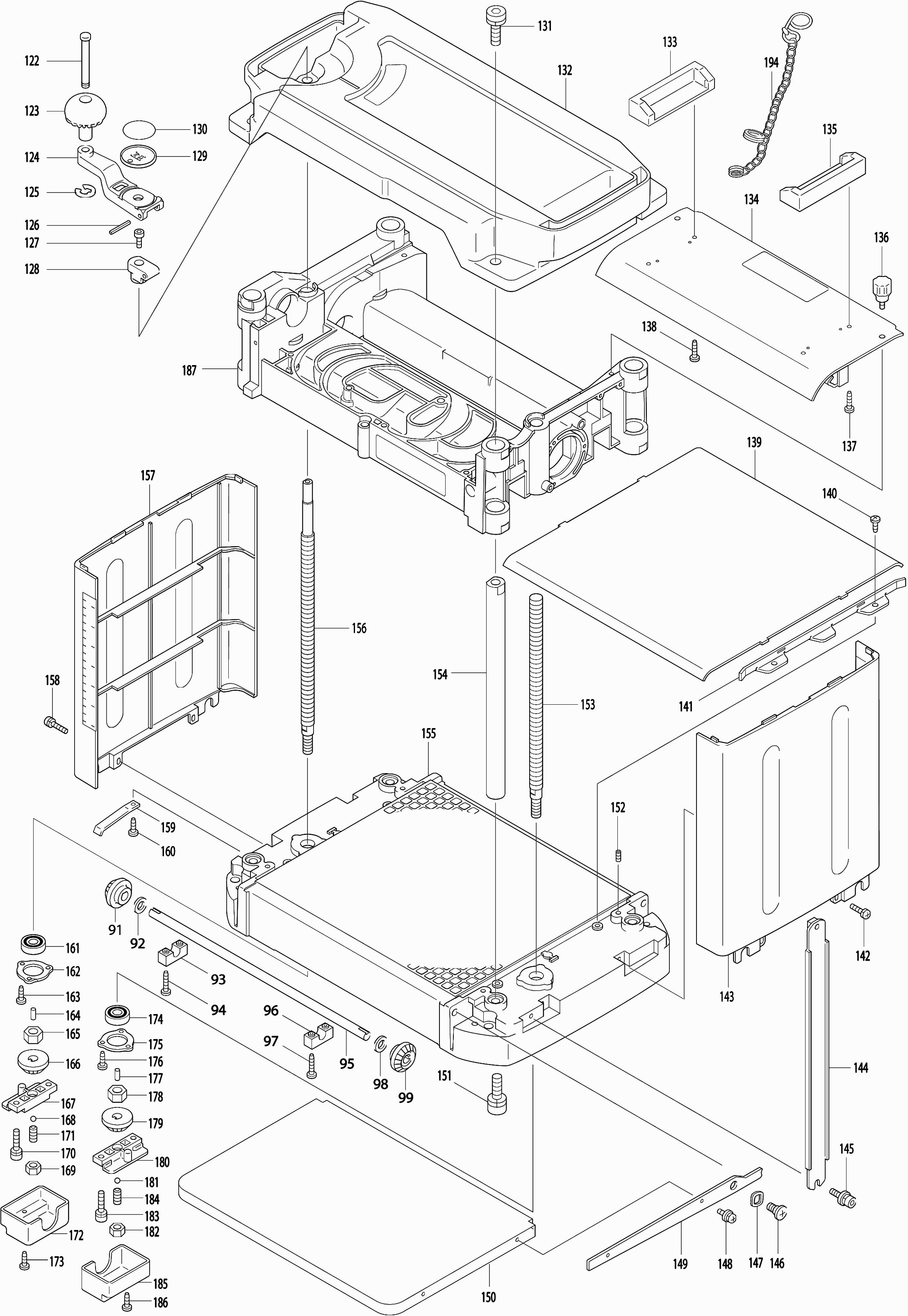

Zeichnungen der MAKITA 2012NB
Teileliste der MAKITA 2012NB
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Kroonsteen | ||||
| 001 | 654561-8 | Kroonsteen | € 3.13 | |
| Indicatielamp | ||||
| 002 | 631371-0 | Indicatielamp | € 8.21 | |
| Schakelpaneel | ||||
| 006 | 418416-9 | Schakelpaneel | € 1.67 | |
| Nicht mehr lieferbar | ||||
| 007 | 251991-0 | Nicht mehr lieferbar | ||
| Schakelunit | ||||
| 008 | 632519-7 | Schakelunit | € 19.27 | |
| Schaltergehäuse | ||||
| 011 | 417041-3 | Schaltergehäuse | € 6.40 | |
| Schakelkastdeksel | ||||
| 012 | 417038-2 | Schakelkastdeksel | € 3.13 | |
| Tapschroef 4x18 | ||||
| 013 | 265995-6 | Tapschroef 4x18 | € 0.96 | |
| Tapschroef M4x12mm Ck | ||||
| 014 | 266026-4 | Tapschroef M4x12mm Ck | € 0.96 | |
| Kabeltule 10-85 | ||||
| 015 | 682504-0 | Kabeltule 10-85 | € 1.67 | |
| Netsnoer 2x1.50 4.0mtr | ||||
| 016 | 695123-3 | Netsnoer 2x1.50 4.0mtr | € 21.11 | |
| Tapschroef 4x18 | ||||
| 017 | 265995-6 | Tapschroef 4x18 | € 0.96 | |
| Klemstrip | ||||
| 018 | 687053-2 | Klemstrip | € 0.96 | |
| Trekontlaster | ||||
| 019 | 687042-7 | Trekontlaster | € 0.96 | |
| Schroef 4X16 A | ||||
| 020 | 911526-6 | Schroef 4X16 A | € 0.96 | |
| Typenschild | ||||
| 021 | 851968-1 | Typenschild | € 2.71 | |
| Inbusbout M6x12 | ||||
| 022 | 922312-0 | Inbusbout M6x12 | € 0.96 | |
| Sluitring 6 | ||||
| 023 | 267080-1 | Sluitring 6 | € 0.96 | |
| Tandwiel 10 | ||||
| 024 | 221525-3 | Tandwiel 10 | € 0.96 | |
| Zelftapper Pt 5x75 | ||||
| 025 | 266059-9 | Zelftapper Pt 5x75 | € 1.18 | |
| Getriebegehaeuse | ||||
| 026 | 151739-9 | Getriebegehaeuse | € 19.27 | |
| Glijlager 6 | ||||
| 026A | 214014-5 | Glijlager 6 | € 6.40 | |
| Glijlager 8 6905H * | ||||
| 026B | 214022-6 | Glijlager 8 6905H * | € 0.97 | |
| Glijlager 14 | ||||
| 026C | 214156-5 | Glijlager 14 | € 0.96 | |
| Pen 6 | ||||
| 026D | 256041-6 | Pen 6 | € 0.96 | |
| Sluitring 6 | ||||
| 027 | 253715-0 | Sluitring 6 | € 0.96 | |
| Tandwielunit 8-50 | ||||
| 028 | 226134-3 | Tandwielunit 8-50 | € 10.51 | |
| Sluitring 6 | ||||
| 029 | 253715-0 | Sluitring 6 | € 0.96 | |
| Sluitring 8 x 14 X 0,5mm | ||||
| 030 | 253215-0 | Sluitring 8 x 14 X 0,5mm | € 0.96 | |
| Tandwielunit 8-46 | ||||
| 031 | 226135-1 | Tandwielunit 8-46 | € 10.51 | |
| Sluitring 8 x 14 X 0,5mm | ||||
| 032 | 253215-0 | Sluitring 8 x 14 X 0,5mm | € 0.96 | |
| Inlegspie 4 | ||||
| 033 | 254001-2 | Inlegspie 4 | € 0.96 | |
| Sluitring 14 | ||||
| 034 | 253760-5 | Sluitring 14 | € 0.96 | |
| Antriebswelle | ||||
| 035 | 323923-8 | Antriebswelle | € 9.26 | |
| Tandwiel 47 | ||||
| 036 | 226518-5 | Tandwiel 47 | € 9.26 | |
| Sluitring 12 | ||||
| 037 | 253744-3 | Sluitring 12 | € 0.96 | |
| Getriebegehaeuse | ||||
| 038 | 151738-1 | Getriebegehaeuse | € 15.64 | |
| Glijlager 6 | ||||
| 038A | 214014-5 | Glijlager 6 | € 6.40 | |
| Glijlager 8 6905H * | ||||
| 038B | 214022-6 | Glijlager 8 6905H * | € 0.97 | |
| Glijlager 12 * | ||||
| 038C | 214109-4 | Glijlager 12 * | € 1.18 | |
| V-snaar 8-341 | ||||
| 039 | 225083-1 | V-snaar 8-341 | € 13.85 | |
| V-poelie 8-23,5 | ||||
| 040 | 222155-3 | V-poelie 8-23,5 | € 3.55 | |
| Motorgehäuse | ||||
| 041 | 151737-3 | Motorgehäuse | € 21.11 | |
| Koolborstelhouder A | ||||
| 041A | 643653-8 | Koolborstelhouder A | € 3.13 | |
| Veld 2012Nb | ||||
| 042 | 526104-5 | Veld 2012Nb | € 41.85 | |
| Statorveertje Cb5 | ||||
| 042A | 654020-2 | Statorveertje Cb5 | € 0.96 | |
| Klembus tbv statorv. 2mm | ||||
| 042B | 654502-4 | Klembus tbv statorv. 2mm | € 0.96 | |
| Kogellager 6200llb | ||||
| 043 | 211066-7 | Kogellager 6200llb | € 4.45 | |
| Isolatiering | ||||
| 044 | 681623-9 | Isolatiering | € 0.96 | |
| Anker 2012Nb | ||||
| 045 | 516813-4 | Anker 2012Nb | € 45.04 | |
| Tussenplaat 2012Nb | ||||
| 046 | 417033-2 | Tussenplaat 2012Nb | € 0.96 | |
| Kogellager 6200llb | ||||
| 047 | 211066-7 | Kogellager 6200llb | € 4.45 | |
| Zelftapper Pt 5x75 | ||||
| 048 | 266059-9 | Zelftapper Pt 5x75 | € 1.18 | |
| Inbusbout M6x12 | ||||
| 049 | 922312-0 | Inbusbout M6x12 | € 0.96 | |
| Sluitring 6 | ||||
| 050 | 267080-1 | Sluitring 6 | € 0.96 | |
| Tandwiel 10 | ||||
| 051 | 221525-3 | Tandwiel 10 | € 0.96 | |
| Schutz | ||||
| 052 | 343844-8 | Schutz | € 0.96 | |
| Drukveer 15 | ||||
| 053 | 233016-2 | Drukveer 15 | € 0.96 | |
| Drukveer 13 | ||||
| 054 | 231459-2 | Drukveer 13 | € 0.97 | |
| Label "makita" | ||||
| 055 | 819064-1 | Label "makita" | € 0.96 | |
| Glijlager 17 | ||||
| 056 | 214251-1 | Glijlager 17 | € 1.67 | |
| Inbusbout 5x16 | ||||
| 057 | 922221-3 | Inbusbout 5x16 | € 0.96 | |
| Koolborstelhouderdop | ||||
| 058 | 643650-4 | Koolborstelhouderdop | € 0.96 | |
| Koolborstel set Cb-153 | ||||
| 059 | 181044-0 | Koolborstel set Cb-153 | € 7.18 | |
| Antriebsrolle | ||||
| 060 | 162216-6 | Antriebsrolle | € 112.29 | |
| Drukveer 13a | ||||
| 061 | 233392-4 | Drukveer 13a | € 0.96 | |
| Schutz | ||||
| 062 | 341685-6 | Schutz | € 1.39 | |
| Inbusbout 5x16 | ||||
| 063 | 922221-3 | Inbusbout 5x16 | € 0.96 | |
| Glijlager 17 | ||||
| 064 | 214251-1 | Glijlager 17 | € 1.67 | |
| Inbusbout M6x12 | ||||
| 065 | 265854-4 | Inbusbout M6x12 | € 4.45 | |
| V-poelie 8-54 | ||||
| 066 | 222154-5 | V-poelie 8-54 | € 13.36 | |
| Schroef 4X16 A | ||||
| 067 | 911526-6 | Schroef 4X16 A | € 0.96 | |
| Kogellagerhuis | ||||
| 068 | 317259-5 | Kogellagerhuis | € 5.71 | |
| Kogellager 6202llb | ||||
| 069 | 211228-7 | Kogellager 6202llb | € 7.24 | |
| Inlegspie 4 | ||||
| 070 | 254204-8 | Inlegspie 4 | € 0.96 | |
| Beitelwals | ||||
| 071 | 323928-8 | Beitelwals | € 99.53 | |
| Kogellager 6202llb | ||||
| 072 | 211228-7 | Kogellager 6202llb | € 7.24 | |
| Borgring R-35 | ||||
| 073 | 962153-2 | Borgring R-35 | € 0.96 | |
| HSS wisselbeitels 306mm | ||||
| 074 | 793346-8 | HSS wisselbeitels 306mm | € 42.80 | |
| Beitelklemplaat | ||||
| 075 | 343682-8 | Beitelklemplaat | € 25.39 | |
| Flensbout M6x17 | ||||
| 076 | 251609-3 | Flensbout M6x17 | € 0.96 | |
| Ketting 35-46 2012Nb | ||||
| 077 | 225520-5 | Ketting 35-46 2012Nb | € 10.51 | |
| Inbusbout M6x12 | ||||
| 078 | 922312-0 | Inbusbout M6x12 | € 0.96 | |
| Sluitring 6 | ||||
| 079 | 267080-1 | Sluitring 6 | € 0.96 | |
| Tandwiel 10 | ||||
| 080 | 221525-3 | Tandwiel 10 | € 0.96 | |
| Inbusbout 5x16 | ||||
| 081 | 922221-3 | Inbusbout 5x16 | € 0.96 | |
| Schutz | ||||
| 082 | 343844-8 | Schutz | € 0.96 | |
| Moer M14 | ||||
| 083 | 252426-4 | Moer M14 | € 10.51 | |
| Glijlager 17 | ||||
| 084 | 214251-1 | Glijlager 17 | € 1.67 | |
| Drukveer 13 | ||||
| 085 | 231459-2 | Drukveer 13 | € 0.97 | |
| Antriebsrolle | ||||
| 086 | 162216-6 | Antriebsrolle | € 112.29 | |
| Drukveer 13a | ||||
| 087 | 233392-4 | Drukveer 13a | € 0.96 | |
| Glijlager 17 | ||||
| 088 | 214251-1 | Glijlager 17 | € 1.67 | |
| Schutz | ||||
| 089 | 341685-6 | Schutz | € 1.39 | |
| Inbusbout 5x16 | ||||
| 090 | 922221-3 | Inbusbout 5x16 | € 0.96 | |
| Tandwiel 15 | ||||
| 091 | 226786-0 | Tandwiel 15 | € 2.02 | |
| Sluitring 10 | ||||
| 092 | 253828-7 | Sluitring 10 | € 0.96 | |
| As montageblok | ||||
| 093 | 417034-0 | As montageblok | € 0.96 | |
| Tapschroef Ct 4x25 | ||||
| 094 | 266040-0 | Tapschroef Ct 4x25 | € 0.96 | |
| Gelenkwelle (a) | ||||
| 095 | 323926-2 | Gelenkwelle (a) | € 4.45 | |
| As montageblok | ||||
| 096 | 417034-0 | As montageblok | € 0.96 | |
| Tapschroef Ct 4x25 | ||||
| 097 | 266040-0 | Tapschroef Ct 4x25 | € 0.96 | |
| Sluitring 10 | ||||
| 098 | 253828-7 | Sluitring 10 | € 0.96 | |
| Tandwiel 15 | ||||
| 099 | 226786-0 | Tandwiel 15 | € 2.02 | |
| Spanstift 4-28 | ||||
| 100 | 951122-8 | Spanstift 4-28 | € 0.96 | |
| Blokkeerplaat | ||||
| 101 | 344815-8 | Blokkeerplaat | € 0.96 | |
| Trekveer 5 | ||||
| 102 | 231793-0 | Trekveer 5 | € 1.39 | |
| Kruiskopschroef M5 | ||||
| 103 | 251283-7 | Kruiskopschroef M5 | € 0.97 | |
| Snaardeksel | ||||
| 104 | 417035-8 | Snaardeksel | € 0.97 | |
| Tapschroef Ct 4x25 | ||||
| 105 | 266040-0 | Tapschroef Ct 4x25 | € 0.96 | |
| Nicht mehr lieferbar | ||||
| 106 | 251322-3 | Nicht mehr lieferbar | ||
| Moer M14l | ||||
| 107 | 252427-2 | Moer M14l | € 10.51 | |
| Drukveer 15 | ||||
| 108 | 233016-2 | Drukveer 15 | € 0.96 | |
| O-ring 4 | ||||
| 109 | 213009-5 | O-ring 4 | € 0.96 | |
| Schroef Vk 20mm | ||||
| 110 | 911233-1 | Schroef Vk 20mm | € 0.96 | |
| Sluitring 5 | ||||
| 111 | 253194-2 | Sluitring 5 | € 0.96 | |
| Bus 6 2012Nb | ||||
| 112 | 257600-9 | Bus 6 2012Nb | € 0.96 | |
| Torsieveer 9 2012Nb | ||||
| 113 | 231588-1 | Torsieveer 9 2012Nb | € 0.96 | |
| Markeerpunt | ||||
| 114 | 344068-9 | Markeerpunt | € 1.18 | |
| Tapschroef M4x12mm Ck | ||||
| 115 | 266026-4 | Tapschroef M4x12mm Ck | € 0.96 | |
| Tiefenanschlag | ||||
| 116 | 322229-1 | Tiefenanschlag | € 2.02 | |
| Tapschroef Ct 4x25 | ||||
| 117 | 266040-0 | Tapschroef Ct 4x25 | € 0.96 | |
| Tapschroef Pt 5x30 | ||||
| 118 | 266173-1 | Tapschroef Pt 5x30 | € 0.96 | |
| Diepte instelbout M6x135mm | ||||
| 119 | 265736-0 | Diepte instelbout M6x135mm | € 5.08 | |
| Mutter | ||||
| 120 | 323927-0 | Mutter | € 5.08 | |
| Drukveer 11 | ||||
| 121 | 231226-5 | Drukveer 11 | € 0.96 | |
| Pen 8 | ||||
| 122 | 256688-6 | Pen 8 | € 2.37 | |
| Knop 45 | ||||
| 123 | 271296-2 | Knop 45 | € 2.37 | |
| Hebel | ||||
| 124 | 272028-0 | Hebel | € 3.13 | |
| Stopring E-6 | ||||
| 125 | 259053-8 | Stopring E-6 | € 0.96 | |
| Spanstift 4-28 | ||||
| 126 | 951122-8 | Spanstift 4-28 | € 0.96 | |
| Schroef 5x16 | ||||
| 127 | 911225-0 | Schroef 5x16 | € 0.96 | |
| Handelplaat | ||||
| 128 | 317760-0 | Handelplaat | € 2.02 | |
| Zwischenplatte | ||||
| 129 | 417032-4 | Zwischenplatte | € 0.96 | |
| Schaalverdeling | ||||
| 130 | 816358-5 | Schaalverdeling | € 2.71 | |
| Inbusbout M10x25 | ||||
| 131 | 266240-2 | Inbusbout M10x25 | € 0.96 | |
| Bovendeksel 2012Nb | ||||
| 132 | 153781-6 | Bovendeksel 2012Nb | € 55.51 | |
| Indicatielabel | ||||
| 132A | 816359-3 | Indicatielabel | € 2.71 | |
| Warnschild | ||||
| 132B | 817737-0 | Warnschild | € 2.71 | |
| Gereedschapbakhouder | ||||
| 133 | 417036-6 | Gereedschapbakhouder | € 0.97 | |
| Spaangeleidingsplaat | ||||
| 134 | 165379-7 | Spaangeleidingsplaat | € 8.21 | |
| Gereedschapbakhouder | ||||
| 135 | 417036-6 | Gereedschapbakhouder | € 0.97 | |
| Vastzetschroef M5x10 | ||||
| 136 | 265716-6 | Vastzetschroef M5x10 | € 2.71 | |
| Tapschroef 4x18 | ||||
| 137 | 265995-6 | Tapschroef 4x18 | € 0.96 | |
| Tapschroef 4x18 | ||||
| 138 | 265995-6 | Tapschroef 4x18 | € 0.96 | |
| Führungsplatte | ||||
| 139 | 344816-6 | Führungsplatte | € 19.27 | |
| Tapschroef M4x12mm Ck | ||||
| 140 | 266026-4 | Tapschroef M4x12mm Ck | € 0.96 | |
| Montageblech | ||||
| 141 | 344819-0 | Montageblech | € 1.39 | |
| Schroef 4X16 A | ||||
| 142 | 911526-6 | Schroef 4X16 A | € 0.96 | |
| Zijdeksel | ||||
| 143 | 417040-5 | Zijdeksel | € 8.21 | |
| Verstevigingsboom | ||||
| 144 | 344820-5 | Verstevigingsboom | € 2.71 | |
| Inbusbout M6x16 | ||||
| 145 | 922323-5 | Inbusbout M6x16 | € 0.96 | |
| Schroef M8 | ||||
| 146 | 251217-0 | Schroef M8 | € 2.02 | |
| Veerring 10 | ||||
| 147 | 253932-2 | Veerring 10 | € 0.96 | |
| Schroef 4x8 | ||||
| 148 | 911109-2 | Schroef 4x8 | € 0.96 | |
| Arm | ||||
| 149 | 344818-2 | Arm | € 1.39 | |
| Onderplaat | ||||
| 150 | 344817-4 | Onderplaat | € 13.85 | |
| Inbusbout M10x25 | ||||
| 151 | 266240-2 | Inbusbout M10x25 | € 0.96 | |
| Zeskantbout M5X12 5621Rd * | ||||
| 152 | 266213-5 | Zeskantbout M5X12 5621Rd * | € 0.96 | |
| Schroef L | ||||
| 153 | 323925-4 | Schroef L | € 7.24 | |
| Pilaar 20 | ||||
| 154 | 331562-0 | Pilaar 20 | € 11.83 | |
| Ondertafel | ||||
| 155 | 317763-4 | Ondertafel | € 88.04 | |
| Schroef R | ||||
| 156 | 323924-6 | Schroef R | € 11.83 | |
| Nicht mehr lieferbar | ||||
| 157 | 151886-6 | Nicht mehr lieferbar | ||
| Schaalverdeling | ||||
| 157A | 816354-3 | Schaalverdeling | € 2.71 | |
| Schroef 4X16 A | ||||
| 158 | 911526-6 | Schroef 4X16 A | € 0.96 | |
| Blattfeder | ||||
| 159 | 232195-3 | Blattfeder | € 0.96 | |
| Tapschroef M4x12mm Ck | ||||
| 160 | 266026-4 | Tapschroef M4x12mm Ck | € 0.96 | |
| Kogellager 6000ddw | ||||
| 161 | 211088-7 | Kogellager 6000ddw | € 5.08 | |
| Lagerborging | ||||
| 162 | 285698-6 | Lagerborging | € 0.96 | |
| Tapschroef M4x12mm Ck | ||||
| 163 | 266026-4 | Tapschroef M4x12mm Ck | € 0.96 | |
| Pin 4 | ||||
| 164 | 268075-7 | Pin 4 | € 0.96 | |
| Moer M10x17 | ||||
| 165 | 252164-8 | Moer M10x17 | € 0.96 | |
| Tandwiel 15 | ||||
| 166 | 226791-7 | Tandwiel 15 | € 1.67 | |
| Tandwielplaat | ||||
| 167 | 317260-0 | Tandwielplaat | € 5.08 | |
| Nicht mehr lieferbar | ||||
| 168 | 216011-7 | Nicht mehr lieferbar | ||
| Zeskant moer M8 | ||||
| 169 | 931403-6 | Zeskant moer M8 | € 0.96 | |
| Zeskant bout 5x20 | ||||
| 170 | 922231-0 | Zeskant bout 5x20 | € 0.96 | |
| Inbusbout M8x16 | ||||
| 171 | 265846-3 | Inbusbout M8x16 | € 0.96 | |
| Tandwielkap | ||||
| 172 | 417030-8 | Tandwielkap | € 1.18 | |
| Tapschroef M4x12mm Ck | ||||
| 173 | 266026-4 | Tapschroef M4x12mm Ck | € 0.96 | |
| Kogellager 6000ddw | ||||
| 174 | 211088-7 | Kogellager 6000ddw | € 5.08 | |
| Lagerborging | ||||
| 175 | 285698-6 | Lagerborging | € 0.96 | |
| Tapschroef M4x12mm Ck | ||||
| 176 | 266026-4 | Tapschroef M4x12mm Ck | € 0.96 | |
| Pin 4 | ||||
| 177 | 268075-7 | Pin 4 | € 0.96 | |
| Moer M10x17 | ||||
| 178 | 252164-8 | Moer M10x17 | € 0.96 | |
| Tandwiel 15 | ||||
| 179 | 226791-7 | Tandwiel 15 | € 1.67 | |
| Tandwielplaat | ||||
| 180 | 317260-0 | Tandwielplaat | € 5.08 | |
| Nicht mehr lieferbar | ||||
| 181 | 216011-7 | Nicht mehr lieferbar | ||
| Zeskant moer M8 | ||||
| 182 | 931403-6 | Zeskant moer M8 | € 0.96 | |
| Zeskant bout 5x20 | ||||
| 183 | 922231-0 | Zeskant bout 5x20 | € 0.96 | |
| Inbusbout M8x16 | ||||
| 184 | 265846-3 | Inbusbout M8x16 | € 0.96 | |
| Tandwielkap | ||||
| 185 | 417030-8 | Tandwielkap | € 1.18 | |
| Tapschroef M4x12mm Ck | ||||
| 186 | 266026-4 | Tapschroef M4x12mm Ck | € 0.96 | |
| Rahmen | ||||
| 187 | 153731-1 | Rahmen | € 93.15 | |
| Warnschild | ||||
| 187A | 817283-3 | Warnschild | € 0.96 | |
| Waaier 80 | ||||
| 188 | 240003-4 | Waaier 80 | € 3.13 | |
| Sluitring 4 | ||||
| 189 | 941051-3 | Sluitring 4 | € 0.96 | |
| Condensator 0,22uf | ||||
| 191 | 645190-8 | Condensator 0,22uf | € 2.37 | |
| Relais | ||||
| 192 | 638897-3 | Relais | € 68.27 | |
| Line filter | ||||
| 193 | 688106-0 | Line filter | € 3.55 | |
| Kette | ||||
| 194 | 282017-7 | Kette | € 1.67 | |
| Stofkap | ||||
| 195 | 414301-4 | Stofkap | € 1.18 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
