Makita 2712 Zeichnungen und Teile
Genaue Typennummer:
2712
2712

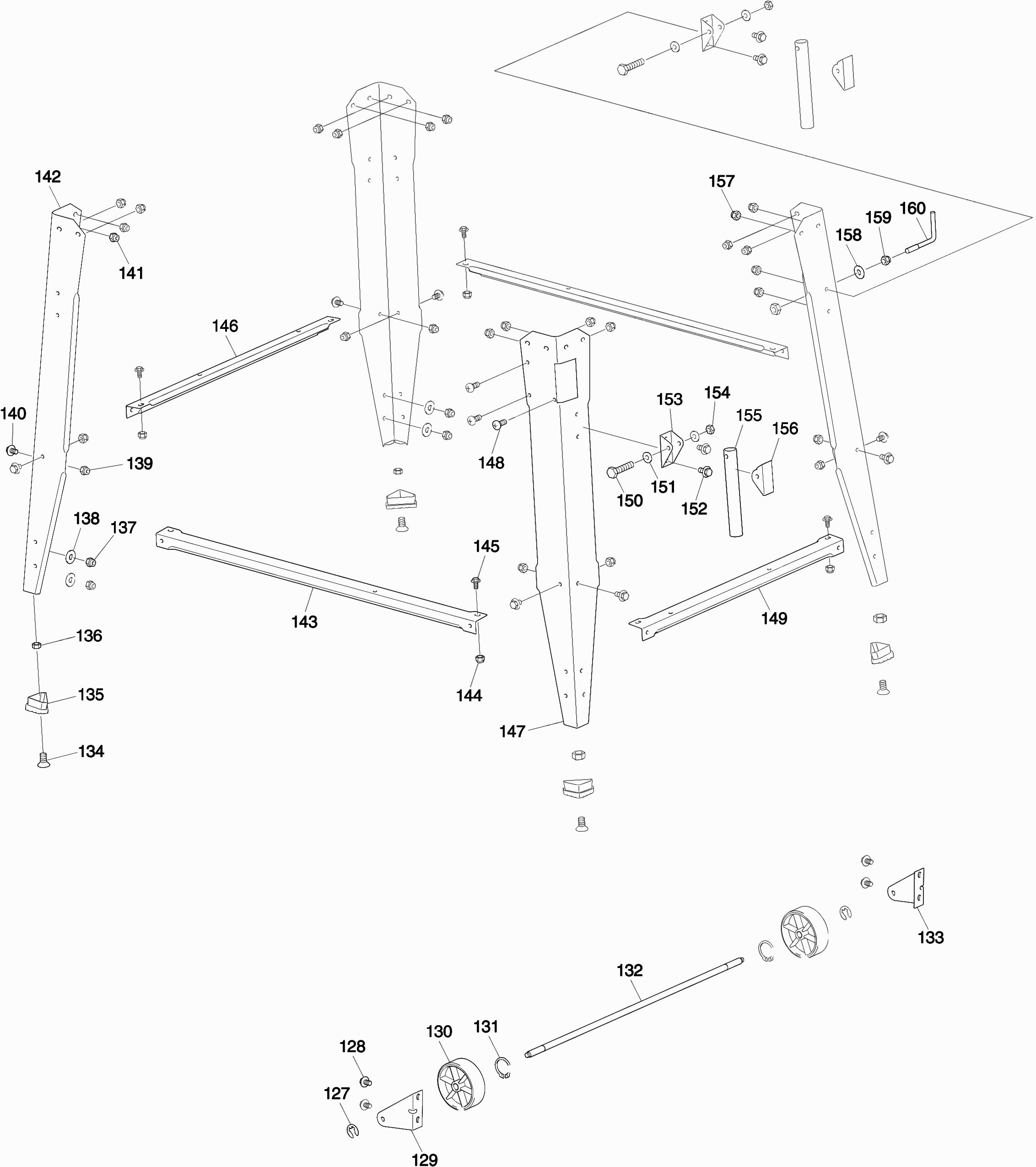

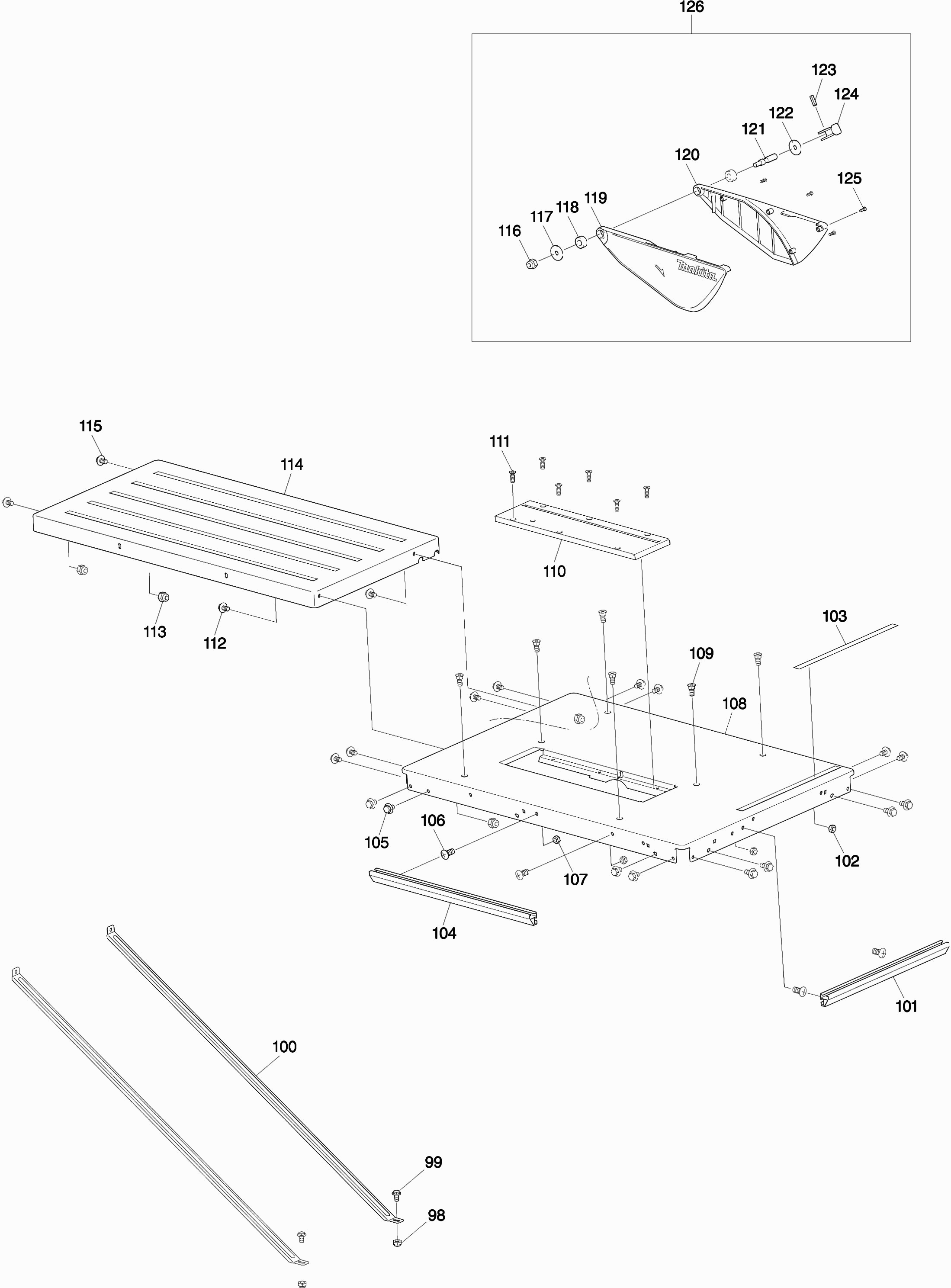

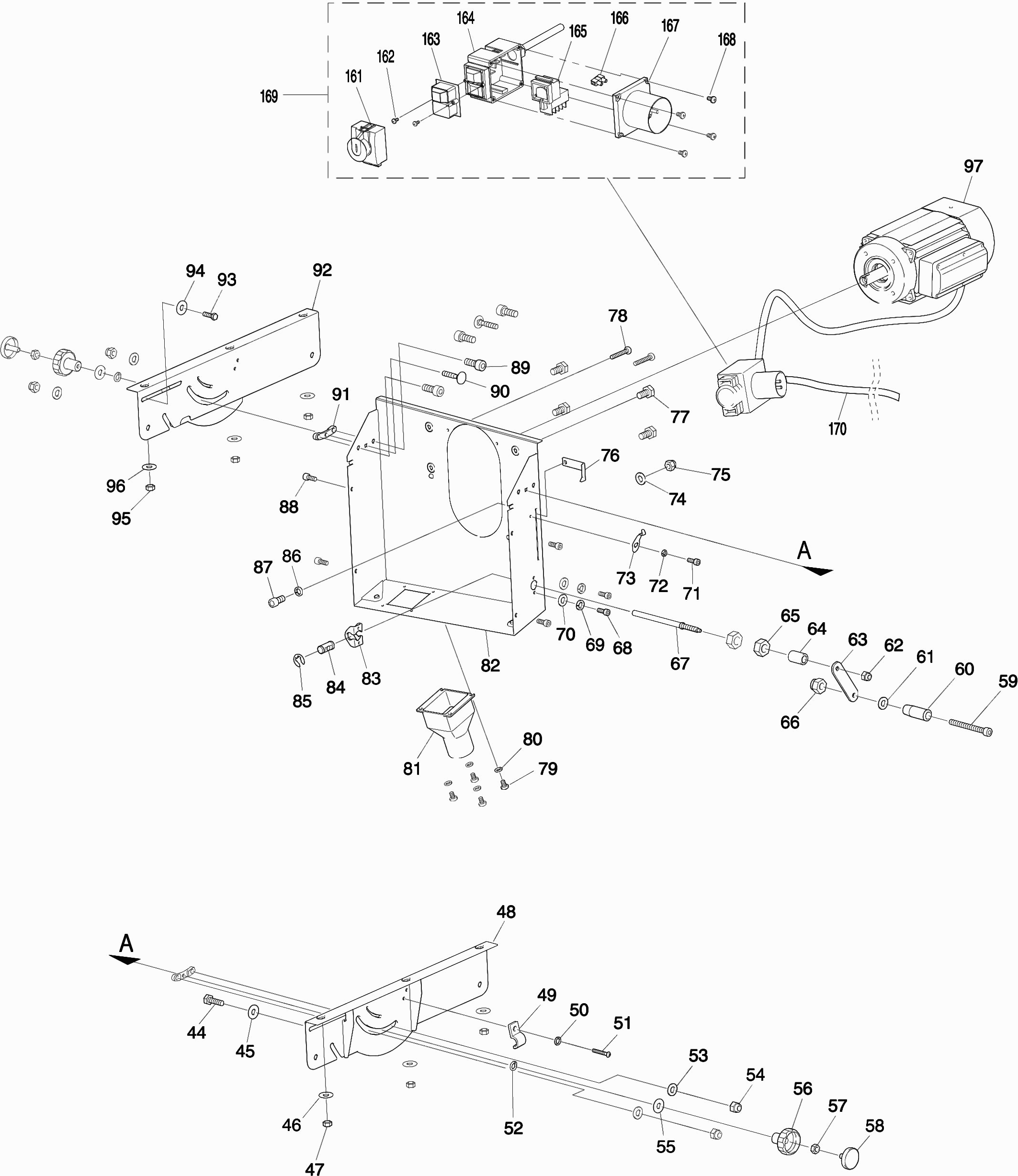

Zeichnungen der MAKITA 2712
Teileliste der MAKITA 2712
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Met.schroef M5 | ||||
| 001 | JM27100031 | Met.schroef M5 | € 1.18 | |
| Sluitring 5 | ||||
| 002 | JM27100032 | Sluitring 5 | € 1.67 | |
| Scharnier | ||||
| 003 | JM27100033 | Scharnier | € 1.18 | |
| Afdekkap a compleet | ||||
| 004 | JM27110001 | Afdekkap a compleet | € 10.51 | |
| Makita logo label | ||||
| 004A | JM27180024 | Makita logo label | € 3.97 | |
| Borgmoer M5 | ||||
| 005 | JM27100111 | Borgmoer M5 | € 0.96 | |
| Afdekkap b | ||||
| 006 | JM27100035 | Afdekkap b | € 5.08 | |
| Sluitring 6Mm A | ||||
| 007 | 267214-6 | Sluitring 6Mm A | € 0.96 | |
| Borgmoer M6 | ||||
| 008 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Druckfeder | ||||
| 009 | JM27100036 | Druckfeder | € 0.96 | |
| Inbusbout M6 | ||||
| 010 | JM27100104 | Inbusbout M6 | € 0.97 | |
| Borgmoer M12 | ||||
| 011 | JM27100037 | Borgmoer M12 | € 0.96 | |
| Spouwmeshouderplaat | ||||
| 012 | JM27100038 | Spouwmeshouderplaat | € 1.18 | |
| Spaltkeil | ||||
| 013 | JM27100039 | Spaltkeil | € 5.71 | |
| Spouwmesplaat | ||||
| 014 | JM27100040 | Spouwmesplaat | € 0.96 | |
| Zaagbladbout M10 | ||||
| 015 | JM27100041 | Zaagbladbout M10 | € 13.36 | |
| Flens revet 10 | ||||
| 016 | JM27100042 | Flens revet 10 | € 3.13 | |
| Ausserer Flansch | ||||
| 017 | JM27100043 | Ausserer Flansch | € 1.39 | |
| Innerer Flansch | ||||
| 019 | JM27100044 | Innerer Flansch | € 5.08 | |
| Met.schr. M4 | ||||
| 020 | JM27100047 | Met.schr. M4 | € 5.08 | |
| Sluitring 4mm | ||||
| 021 | JM27100046 | Sluitring 4mm | € 0.96 | |
| Abdeckhaube | ||||
| 022 | JM27100048 | Abdeckhaube | € 0.97 | |
| Schutzschild | ||||
| 023 | JM27100049 | Schutzschild | € 0.96 | |
| Borgmoer M4 | ||||
| 024 | JM27100045 | Borgmoer M4 | € 2.37 | |
| Sluitring 4mm | ||||
| 025 | JM27100046 | Sluitring 4mm | € 0.96 | |
| Sluitring 4mm | ||||
| 026 | JM27100046 | Sluitring 4mm | € 0.96 | |
| Borgmoer M4 | ||||
| 027 | JM27100045 | Borgmoer M4 | € 2.37 | |
| Zeskant bout M8 | ||||
| 028 | JM27100050 | Zeskant bout M8 | € 1.18 | |
| Spring Veer 8 | ||||
| 029 | JM27100051 | Spring Veer 8 | € 0.96 | |
| Sluitring 8 | ||||
| 030 | JM27100052 | Sluitring 8 | € 1.18 | |
| Borgmoer M8 | ||||
| 031 | JM27100053 | Borgmoer M8 | € 5.08 | |
| Sluitring 8mm | ||||
| 032 | JM27100054 | Sluitring 8mm | € 0.96 | |
| Afstel pin | ||||
| 033 | JM27100055 | Afstel pin | € 1.18 | |
| Sluitring 8 | ||||
| 034 | JM27100106 | Sluitring 8 | € 0.96 | |
| Instelplaat | ||||
| 035 | JM27100057 | Instelplaat | € 0.96 | |
| Splitpen 2 | ||||
| 036 | JM27100056 | Splitpen 2 | € 1.18 | |
| Borgring 10 | ||||
| 037 | JM27100025 | Borgring 10 | € 0.96 | |
| Borgmoer M8 | ||||
| 038 | JM27100053 | Borgmoer M8 | € 5.08 | |
| Sluitring 8 | ||||
| 039 | JM27100052 | Sluitring 8 | € 1.18 | |
| Stok Bout | ||||
| 040 | JM27100058 | Stok Bout | € 1.67 | |
| Rahmen | ||||
| 041 | JM27100072 | Rahmen | € 38.79 | |
| Platte Slotbout M12 | ||||
| 042 | JM27100073 | Platte Slotbout M12 | € 1.39 | |
| Draadbus M4 | ||||
| 043 | JM27100059 | Draadbus M4 | € 0.96 | |
| Tapbout M6 | ||||
| 044 | JM27100011 | Tapbout M6 | € 0.97 | |
| Sluitring 6Mm A | ||||
| 045 | 267214-6 | Sluitring 6Mm A | € 0.96 | |
| Sluitring 6Mm A | ||||
| 046 | 267214-6 | Sluitring 6Mm A | € 0.96 | |
| Borgmoer M6 | ||||
| 047 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Instelgeleideplaat | ||||
| 048 | JM27100080 | Instelgeleideplaat | € 13.85 | |
| Kabelklemme | ||||
| 049 | JM27100078 | Kabelklemme | € 0.96 | |
| Sluitring 5 | ||||
| 050 | JM27100032 | Sluitring 5 | € 1.67 | |
| Met.schroef M5 | ||||
| 051 | JM27100031 | Met.schroef M5 | € 1.18 | |
| Borgring E-5 | ||||
| 052 | JM27100079 | Borgring E-5 | € 0.96 | |
| Sluitring 8 | ||||
| 053 | JM27100052 | Sluitring 8 | € 1.18 | |
| Borgmoer M8 | ||||
| 054 | JM27100053 | Borgmoer M8 | € 5.08 | |
| Sluitring 6Mm A | ||||
| 055 | 267214-6 | Sluitring 6Mm A | € 0.96 | |
| Stellrad | ||||
| 056 | JM27100077 | Stellrad | € 3.97 | |
| Stelmoer M6 | ||||
| 057 | JM27100108 | Stelmoer M6 | € 0.97 | |
| Stelknopkap | ||||
| 058 | JM27100076 | Stelknopkap | € 3.97 | |
| Inbusbout M8 | ||||
| 059 | JM27100066 | Inbusbout M8 | € 0.97 | |
| Afstandbus | ||||
| 060 | JM27100067 | Afstandbus | € 0.96 | |
| Sluitring 8mm | ||||
| 061 | JM27100054 | Sluitring 8mm | € 0.96 | |
| Borgmoer M6 | ||||
| 062 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Koppelplaat | ||||
| 063 | JM27100068 | Koppelplaat | € 2.37 | |
| Afstandbus | ||||
| 064 | JM27100069 | Afstandbus | € 0.96 | |
| Moer M10 | ||||
| 065 | JM27100070 | Moer M10 | € 1.39 | |
| Borgmoer M8 | ||||
| 066 | JM27100053 | Borgmoer M8 | € 5.08 | |
| Hefstang | ||||
| 067 | JM27100071 | Hefstang | € 5.08 | |
| Binnenzeskantbout M5 | ||||
| 068 | JM27100109 | Binnenzeskantbout M5 | € 0.97 | |
| Veerring 5 | ||||
| 069 | JM27100065 | Veerring 5 | € 0.96 | |
| Sluitring 5 | ||||
| 070 | JM27100032 | Sluitring 5 | € 1.67 | |
| Binnenzeskantbout M5 | ||||
| 071 | JM27100109 | Binnenzeskantbout M5 | € 0.97 | |
| Veerring 5 | ||||
| 072 | JM27100065 | Veerring 5 | € 0.96 | |
| Markeerplaat | ||||
| 073 | JM27100082 | Markeerplaat | € 0.96 | |
| Sluitring 8mm | ||||
| 074 | JM27100054 | Sluitring 8mm | € 0.96 | |
| Moer M8 | ||||
| 075 | JM27100020 | Moer M8 | € 1.18 | |
| Centreerplaat B | ||||
| 076 | JM27100083 | Centreerplaat B | € 0.96 | |
| Zeskant bout M8 | ||||
| 077 | JM27100050 | Zeskant bout M8 | € 1.18 | |
| Met.schr. M4 | ||||
| 078 | JM27100107 | Met.schr. M4 | € 0.97 | |
| Met.schroef M5 | ||||
| 079 | JM27100031 | Met.schroef M5 | € 1.18 | |
| Sluitring 5 | ||||
| 080 | JM27100032 | Sluitring 5 | € 1.67 | |
| Stofgeleider | ||||
| 081 | JM27100063 | Stofgeleider | € 3.13 | |
| Rahmen | ||||
| 082 | JM27110002 | Rahmen | € 38.79 | |
| Makita logo label | ||||
| 082A | JM27180025 | Makita logo label | € 2.71 | |
| Halter | ||||
| 083 | JM27100062 | Halter | € 3.13 | |
| Stelmoer | ||||
| 084 | JM27100061 | Stelmoer | € 1.67 | |
| Borgring 15 | ||||
| 085 | JM27100060 | Borgring 15 | € 0.96 | |
| Veerring 5 | ||||
| 086 | JM27100065 | Veerring 5 | € 0.96 | |
| Binnenzeskantbout M5 | ||||
| 087 | JM27100109 | Binnenzeskantbout M5 | € 0.97 | |
| Binnenzeskantbout M4 | ||||
| 088 | JM27100110 | Binnenzeskantbout M4 | € 0.97 | |
| Binnenzeskantbout M8x20mm | ||||
| 089 | JM27100074 | Binnenzeskantbout M8x20mm | € 1.39 | |
| Bout M6 | ||||
| 090 | JM27100075 | Bout M6 | € 0.97 | |
| Geleidingblok | ||||
| 091 | JM27100081 | Geleidingblok | € 3.13 | |
| Hoeksteun | ||||
| 092 | JM27100084 | Hoeksteun | € 13.85 | |
| Tapbout M6 | ||||
| 093 | JM27100011 | Tapbout M6 | € 0.97 | |
| Sluitring 6Mm A | ||||
| 094 | 267214-6 | Sluitring 6Mm A | € 0.96 | |
| Borgmoer M6 | ||||
| 095 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Sluitring 6Mm A | ||||
| 096 | 267214-6 | Sluitring 6Mm A | € 0.96 | |
| Nicht mehr lieferbar | ||||
| 097 | JM27100001 | Nicht mehr lieferbar | ||
| Condensator Motor 2712 | ||||
| 097C10 | JM27100159 | Condensator Motor 2712 | € 10.51 | |
| Borgmoer M6 | ||||
| 098 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Flensbout M6 | ||||
| 099 | JM27100131 | Flensbout M6 | € 0.97 | |
| Stützplatte | ||||
| 100 | JM27100089 | Stützplatte | € 4.45 | |
| Langsgeleider compleet | ||||
| 101 | JM27100101 | Langsgeleider compleet | € 10.51 | |
| Borgmoer M6 | ||||
| 102 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Schaalverdeling | ||||
| 103 | JM27100100 | Schaalverdeling | € 2.71 | |
| Glijrail | ||||
| 104 | JM27100085 | Glijrail | € 10.51 | |
| Flensbout M6 | ||||
| 105 | JM27100131 | Flensbout M6 | € 0.97 | |
| Met.schr. M6x12mm | ||||
| 106 | JM27100086 | Met.schr. M6x12mm | € 0.97 | |
| Borgmoer M6 | ||||
| 107 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Werktafel | ||||
| 108 | JM27110003 | Werktafel | € 82.94 | |
| Met.schr. M6 X 10mm | ||||
| 109 | JM27100087 | Met.schr. M6 X 10mm | € 0.97 | |
| Zaaginlegplaat | ||||
| 110 | JM27100148 | Zaaginlegplaat | € 6.40 | |
| Metaalschroef M5 | ||||
| 111 | JM27100091 | Metaalschroef M5 | € 0.97 | |
| Flensbout M6 | ||||
| 112 | JM27100131 | Flensbout M6 | € 0.97 | |
| Borgmoer M6 | ||||
| 113 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Bijtafel | ||||
| 114 | JM27100092 | Bijtafel | € 55.51 | |
| Flensbout M6 | ||||
| 115 | JM27100131 | Flensbout M6 | € 0.97 | |
| Borgmoer M6 | ||||
| 116 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Platte ring 6 | ||||
| 117 | JM27100093 | Platte ring 6 | € 0.96 | |
| Druckplatte | ||||
| 118 | JM27100094 | Druckplatte | € 1.39 | |
| Nicht mehr lieferbar | ||||
| 119 | JM27100095 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 120 | JM27100096 | Nicht mehr lieferbar | ||
| Verbindingsbout | ||||
| 121 | JM27100097 | Verbindingsbout | € 0.97 | |
| Platte ring 8 | ||||
| 122 | JM27100103 | Platte ring 8 | € 0.96 | |
| Borgpin 4mm | ||||
| 123 | JM27100099 | Borgpin 4mm | € 1.18 | |
| Blokkeerhandel | ||||
| 124 | JM27100098 | Blokkeerhandel | € 2.71 | |
| Nicht mehr lieferbar | ||||
| 125 | JM27100105 | Nicht mehr lieferbar | ||
| Schutzhaube vollst. | ||||
| 126 | JM27110004 | Schutzhaube vollst. | € 19.27 | |
| Borgring 10mm 2712 | ||||
| 127 | JM27100009 | Borgring 10mm 2712 | € 0.96 | |
| Flensbout M6 | ||||
| 128 | JM27100131 | Flensbout M6 | € 0.97 | |
| Wielmontageplaat Re | ||||
| 129 | JM27100010 | Wielmontageplaat Re | € 2.71 | |
| Rad | ||||
| 130 | JM27100012 | Rad | € 13.85 | |
| Borgring 12mm | ||||
| 131 | JM27100102 | Borgring 12mm | € 0.96 | |
| Wielstang | ||||
| 132 | JM27100013 | Wielstang | € 8.21 | |
| Wielmontageplaat Li | ||||
| 133 | JM27100014 | Wielmontageplaat Li | € 2.71 | |
| Met.schroef M8 | ||||
| 134 | JM27100022 | Met.schroef M8 | € 0.97 | |
| Voetdop | ||||
| 135 | JM27100021 | Voetdop | € 4.45 | |
| Moer M8 | ||||
| 136 | JM27100020 | Moer M8 | € 1.18 | |
| Borgmoer M6 | ||||
| 137 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Sluitring 6Mm A | ||||
| 138 | 267214-6 | Sluitring 6Mm A | € 0.96 | |
| Borgmoer M6 | ||||
| 139 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Flensbout M6 | ||||
| 140 | JM27100131 | Flensbout M6 | € 0.97 | |
| Borgmoer M6 | ||||
| 141 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Bein | ||||
| 142 | JM27100015 | Bein | € 13.85 | |
| Stabiliteitsstang A | ||||
| 143 | JM27100019 | Stabiliteitsstang A | € 10.51 | |
| Borgmoer M6 | ||||
| 144 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Flensbout M6 | ||||
| 145 | JM27100131 | Flensbout M6 | € 0.97 | |
| Poot A | ||||
| 147 | JM27100024 | Poot A | € 13.85 | |
| Nicht mehr lieferbar | ||||
| 148 | JM27100023 | Nicht mehr lieferbar | ||
| Stabiliteitsstang B | ||||
| 149 | JM27100017 | Stabiliteitsstang B | € 8.21 | |
| Tapbout M8 | ||||
| 150 | JM27100029 | Tapbout M8 | € 1.18 | |
| Sluitring 8mm | ||||
| 151 | JM27100054 | Sluitring 8mm | € 0.96 | |
| Flensbout M6 | ||||
| 152 | JM27100131 | Flensbout M6 | € 0.97 | |
| Montageplaat 1 | ||||
| 153 | JM27100028 | Montageplaat 1 | € 3.55 | |
| Borgmoer M8 | ||||
| 154 | JM27100053 | Borgmoer M8 | € 5.08 | |
| Stange | ||||
| 155 | JM27100027 | Stange | € 4.45 | |
| Montageplaat 2 | ||||
| 156 | JM27100026 | Montageplaat 2 | € 1.67 | |
| Borgmoer M6 | ||||
| 157 | JM27100016 | Borgmoer M6 | € 6.40 | |
| Sluitring 6Mm A | ||||
| 158 | 267214-6 | Sluitring 6Mm A | € 0.96 | |
| Stelmoer M6 | ||||
| 159 | JM27100108 | Stelmoer M6 | € 0.97 | |
| Haken | ||||
| 160 | JM27100030 | Haken | € 0.97 | |
| Nicht mehr lieferbar | ||||
| 161 | JM27100133 | Nicht mehr lieferbar | ||
| Parker 3x12mm | ||||
| 162 | JM27100134 | Parker 3x12mm | € 0.97 | |
| Nicht mehr lieferbar | ||||
| 163 | JM27100135 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 164 | JM27100136 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 165 | JM27100138 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 166 | JM27100140 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 167 | JM27100141 | Nicht mehr lieferbar | ||
| Parker 4,2x18mm | ||||
| 168 | JM27100143 | Parker 4,2x18mm | € 0.97 | |
| Schakelaar assy | ||||
| 169 | JM27100112 | Schakelaar assy | € 51.93 | |
| Netzkabel | ||||
| 170 | JM27100003 | Netzkabel | € 25.39 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
