Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita 4304'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

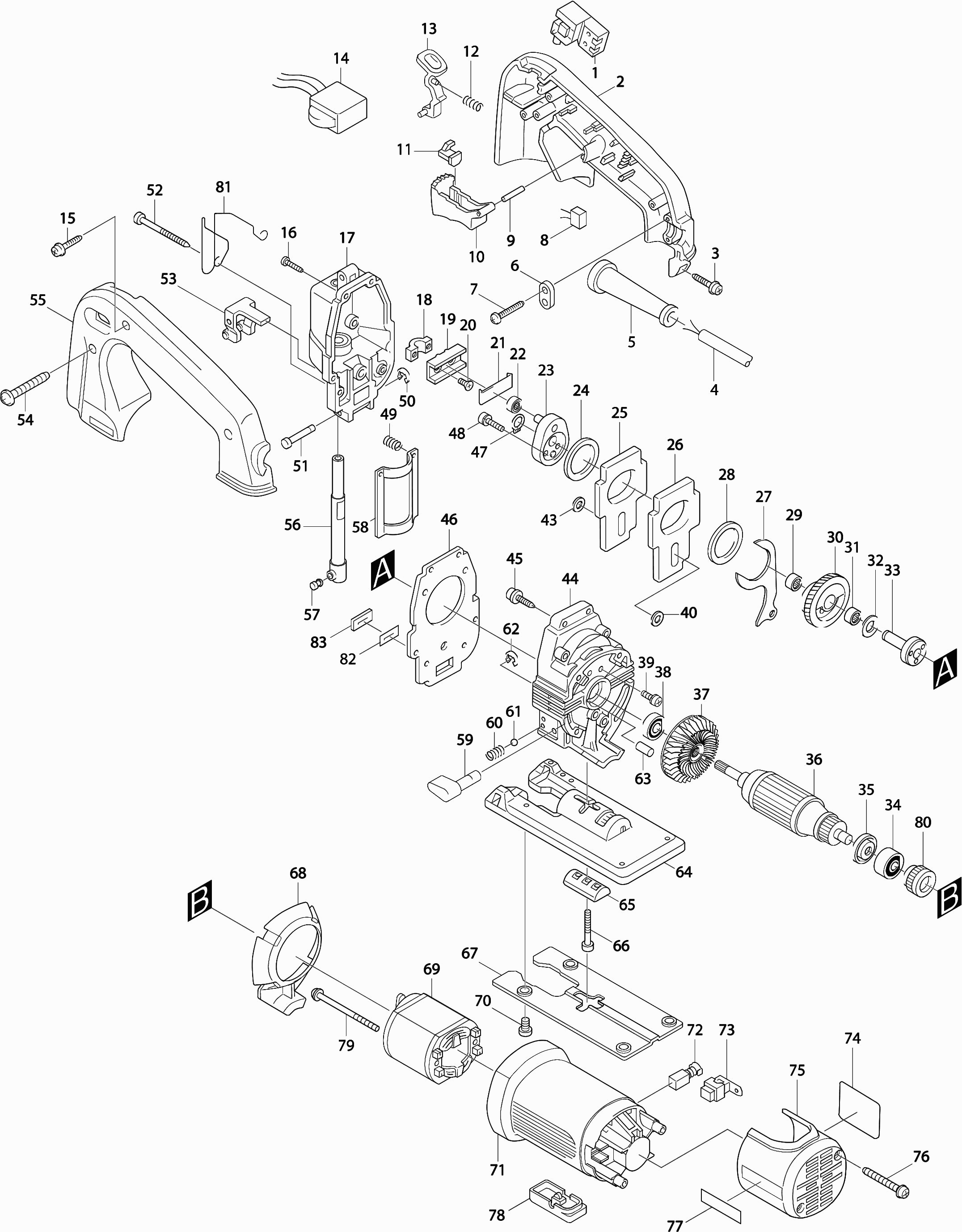

Zeichnungen der Makita 4304
Teileliste der Makita 4304
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Schakelaar Sw-131 | ||||
| 001 | 651922-3@141 | 11.16 | 13.28 | |
| Handgreep Set 4304 * | ||||
| 002 | 182680-5@141 | 18.76 | 22.32 | |
| Tapschroef Pt4x20 | ||||
| 003 | 266045-0@141 | 0.83 | 0.99 | |
| Netsnoer 2x1.00 2.2mtr | ||||
| 004 | 665383-1@141 | 10.81 | 12.86 | |
| Kabeltule 8-85 | ||||
| 005 | 682502-4@141 | 1.72 | 2.05 | |
| Klemstrip | ||||
| 006 | 687053-2@141 | 0.83 | 0.99 | |
| Tapschroef 4x18 | ||||
| 007 | 265A48-7@141 | 0.90 | 1.07 | |
| Pen 3 | ||||
| 009 | 256221-4@141 | 0.83 | 0.99 | |
| Schalterknopf | ||||
| 010 | 415158-6@141 | 3.22 | 3.83 | |
| Afstandhouder 4304 * | ||||
| 011 | 415159-4@141 | 1.72 | 2.05 | |
| Drukveer 4 | ||||
| 012 | 233101-1@141 | 0.83 | 0.99 | |
| Blokkeerhandel | ||||
| 013 | 415534-4@141 | 0.83 | 0.99 | |
| Toerenregelingsunit | ||||
| 014 | 631678-4@141 | 21.70 | 25.82 | |
| Tapschroef Pt4x20 | ||||
| 015 | 266045-0@141 | 0.83 | 0.99 | |
| Tapschroef Ct4x16 | ||||
| 016 | 266034-5@141 | 0.83 | 0.99 | |
| Tandwielh. deksel | ||||
| 017 | 153389-6@141 | 53.39 | 63.53 | |
| Glijlager 8 | ||||
| 017A | 214005-6@141 | 1.21 | 1.44 | |
| Glijlager 10 | ||||
| 017B | 214061-6@141 | 1.43 | 1.70 | |
| Spanstift 3-12 | ||||
| 017C | 951057-3@141 | 0.83 | 0.99 | |
| Afdichting 8 | ||||
| 017D | 421821-1@141 | 1.01 | 1.20 | |
| Brughouder | ||||
| 018 | 316608-3@141 | 11.32 | 13.47 | |
| Brug nieuw | ||||
| 019 | 310028-3@141 | 11.68 | 13.90 | |
| Verzonken schroef M4x12 | ||||
| 020 | 251263-3@141 | 2.63 | 3.13 | |
| Zwischenplatte | ||||
| 021 | 344232-2@141 | 0.83 | 0.99 | |
| Naaldlager 607 | ||||
| 022 | 212010-7@141 | 12.58 | 14.97 | |
| Exzenter | ||||
| 023 | 152454-8@141 | 8.84 | 10.52 | |
| Pen 6 | ||||
| 023A | 256033-5@141 | 0.83 | 0.99 | |
| Sluitring 26 | ||||
| 024 | 253792-2@141 | 0.83 | 0.99 | |
| Balansplaat | ||||
| 025 | 344330-2@141 | 6.58 | 7.83 | |
| Balansplaat | ||||
| 026 | 344330-2@141 | 6.58 | 7.83 | |
| Drukplaat 4304 | ||||
| 027 | 344134-2@141 | 4.58 | 5.45 | |
| Sluitring 26 | ||||
| 028 | 253792-2@141 | 0.83 | 0.99 | |
| Naaldlager 810 | ||||
| 029 | 212043-2@141 | 2.80 | 3.33 | |
| Tandwiel 51 | ||||
| 030 | 226428-6@141 | 23.75 | 28.26 | |
| Naaldlager 810 | ||||
| 031 | 212043-2@141 | 2.80 | 3.33 | |
| Sluitring 8x0,5mm | ||||
| 032 | 253139-0@141 | 0.83 | 0.99 | |
| Getriebewelle | ||||
| 033 | 322691-0@141 | 19.80 | 23.56 | |
| Kogellager 607llb | ||||
| 034 | 211021-9@141 | 4.58 | 5.45 | |
| Isolatiering | ||||
| 035 | 681636-0@141 | 1.21 | 1.44 | |
| Anker | ||||
| 036 | 517098-5@141 | 57.06 | 67.90 | |
| Waaier 54 | ||||
| 037 | 240039-3@141 | 2.93 | 3.49 | |
| Kogellager 608ddw | ||||
| 038 | 210005-4@141 | 4.58 | 5.45 | |
| Schroef 4x12 | ||||
| 039 | 911116-5@141 | 0.83 | 0.99 | |
| Sluitring 6 | ||||
| 040 | 253715-0@141 | 0.83 | 0.99 | |
| Sluitring 6 | ||||
| 043 | 253715-0@141 | 0.83 | 0.99 | |
| Getriebegehaeuse | ||||
| 044 | 151594-9@141 | 55.92 | 66.54 | |
| Tapschroef Pt4x20 | ||||
| 045 | 266045-0@141 | 0.83 | 0.99 | |
| Tandwielh. deks. pakking | ||||
| 046 | 442123-2@141 | 1.21 | 1.44 | |
| Borgring S-8 | ||||
| 047 | 961004-6@141 | 0.83 | 0.99 | |
| Inbusbout M4x16 | ||||
| 048 | 922126-7@141 | 0.83 | 0.99 | |
| Drukveer 4 | ||||
| 049 | 231314-8@141 | 0.83 | 0.99 | |
| Stopring E-3 | ||||
| 050 | 961017-7@141 | 0.83 | 0.99 | |
| Pin 4 | ||||
| 051 | 256693-3@141 | 2.56 | 3.05 | |
| Tapschroef Pf 4x55 | ||||
| 052 | 266147-2@141 | 0.83 | 0.99 | |
| Steunwiel compl. | ||||
| 053 | 152947-5@141 | 14.24 | 16.95 | |
| Pin 4 | ||||
| 053A | 268074-9@141 | 2.08 | 2.48 | |
| Roller | ||||
| 053B | 152950-6@141 | 8.46 | 10.07 | |
| Stopring E-3 | ||||
| 053C | 961017-7@141 | 0.83 | 0.99 | |
| Schroef 4x35 | ||||
| 054 | 266351-3@141 | 0.83 | 0.99 | |
| Handgreep Set 4304 * | ||||
| 055 | 182680-5@141 | 18.76 | 22.32 | |
| Stoessel | ||||
| 056 | 165089-6@141 | 61.09 | 72.70 | |
| Inwendig zeskant bout M6x8 | ||||
| 057 | 265894-2@141 | 0.83 | 0.99 | |
| Führungsplatte | ||||
| 058 | 344137-6@141 | 2.56 | 3.05 | |
| Verstelknop | ||||
| 059 | 272231-3@141 | 7.80 | 9.28 | |
| Drukveer 4 | ||||
| 060 | 231314-8@141 | 0.83 | 0.99 | |
| Stalen kogel 4 | ||||
| 061 | 216008-6@141 | 0.83 | 0.99 | |
| Stopring E-5 | ||||
| 062 | 961018-5@141 | 0.83 | 0.99 | |
| Rubber pen 4 | ||||
| 063 | 263002-9@141 | 0.83 | 0.99 | |
| Voetzool | ||||
| 064 | 316883-1@141 | 26.11 | 31.07 | |
| Halteblech | ||||
| 065 | 331435-7@141 | 2.08 | 2.48 | |
| Inbusbout 4x25 | ||||
| 066 | 922146-1@141 | 0.83 | 0.99 | |
| Afdekplaat voor voetzool | ||||
| 067 | 344443-9@141 | 7.44 | 8.85 | |
| Tussenplaat 4304 * | ||||
| 068 | 415535-2@141 | 1.01 | 1.20 | |
| Feld | ||||
| 069 | 633288-3@141 | 18.76 | 22.32 | |
| Zeskant bout 5x8 | ||||
| 070 | 266055-7@141 | 0.83 | 0.99 | |
| Motorhuis 4304 * | ||||
| 071 | 415748-5@141 | 12.58 | 14.97 | |
| Koolborstel set Cb-419 | ||||
| 072 | 195015-1@141 | 5.20 | 6.19 | |
| Kohlekasten Zsb | ||||
| 073 | 643923-5@141 | 1.21 | 1.44 | |
| Abdeckkappe | ||||
| 075 | 415532-8@141 | 7.44 | 8.85 | |
| Tapschroef Pt4x30 | ||||
| 076 | 266050-7@141 | 0.83 | 0.99 | |
| Afdekkap 4304 * | ||||
| 078 | 415538-6@141 | 2.08 | 2.48 | |
| Tapschroef Pt4X60 * | ||||
| 079 | 266052-3@141 | 0.83 | 0.99 | |
| Rubber ring 19 | ||||
| 080 | 421494-0@141 | 4.08 | 4.86 | |
| Beschermveer | ||||
| 081 | 322893-8@141 | 2.16 | 2.57 | |
| Halteplatte | ||||
| 082 | 344784-3@141 | 0.83 | 0.99 | |
| Afdichting vilt | ||||
| 083 | 443106-5@141 | 0.83 | 0.99 | |
