Makita AC310H Zeichnungen und Teile
Genaue Typennummer:
AC310H
AC310H

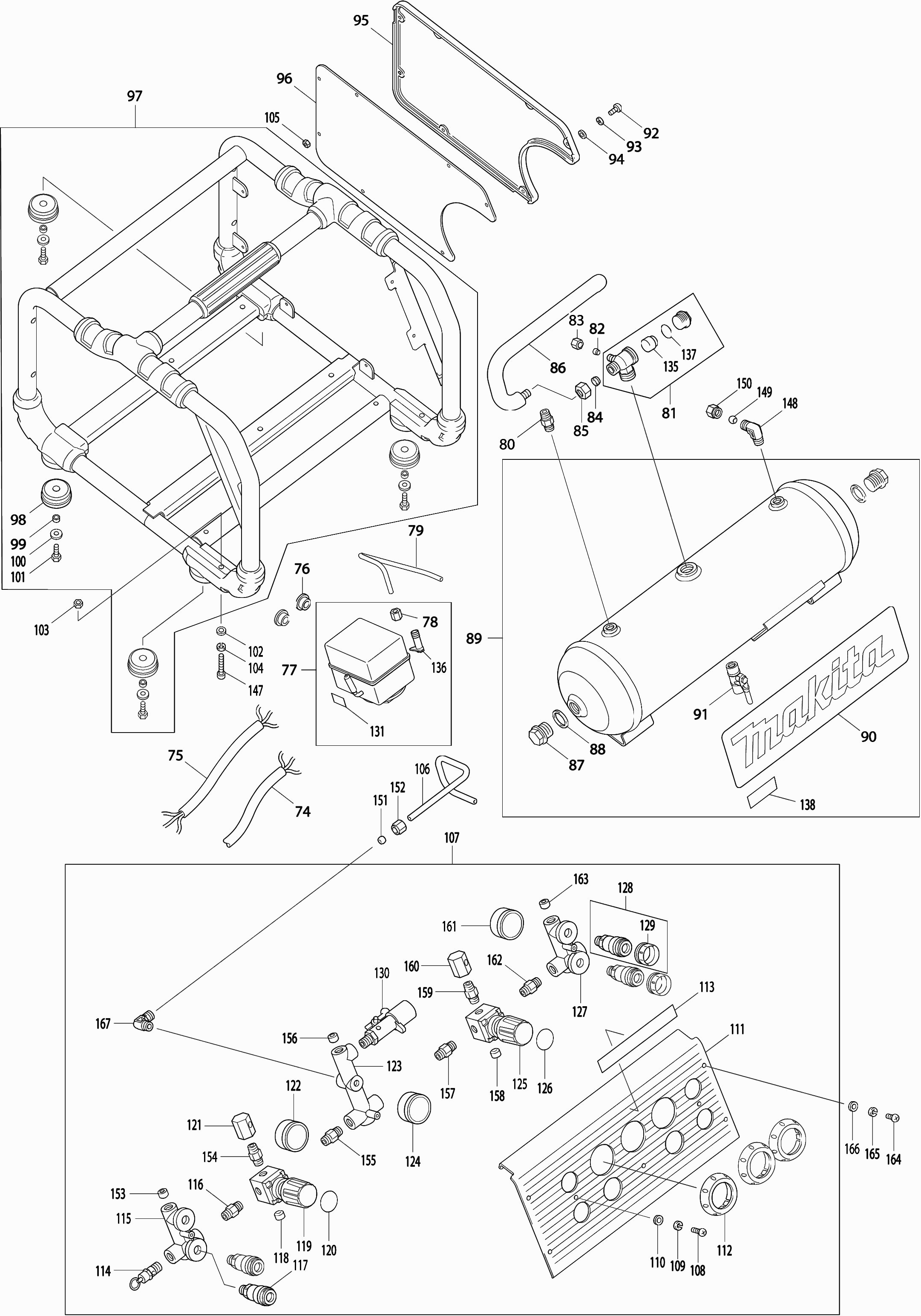

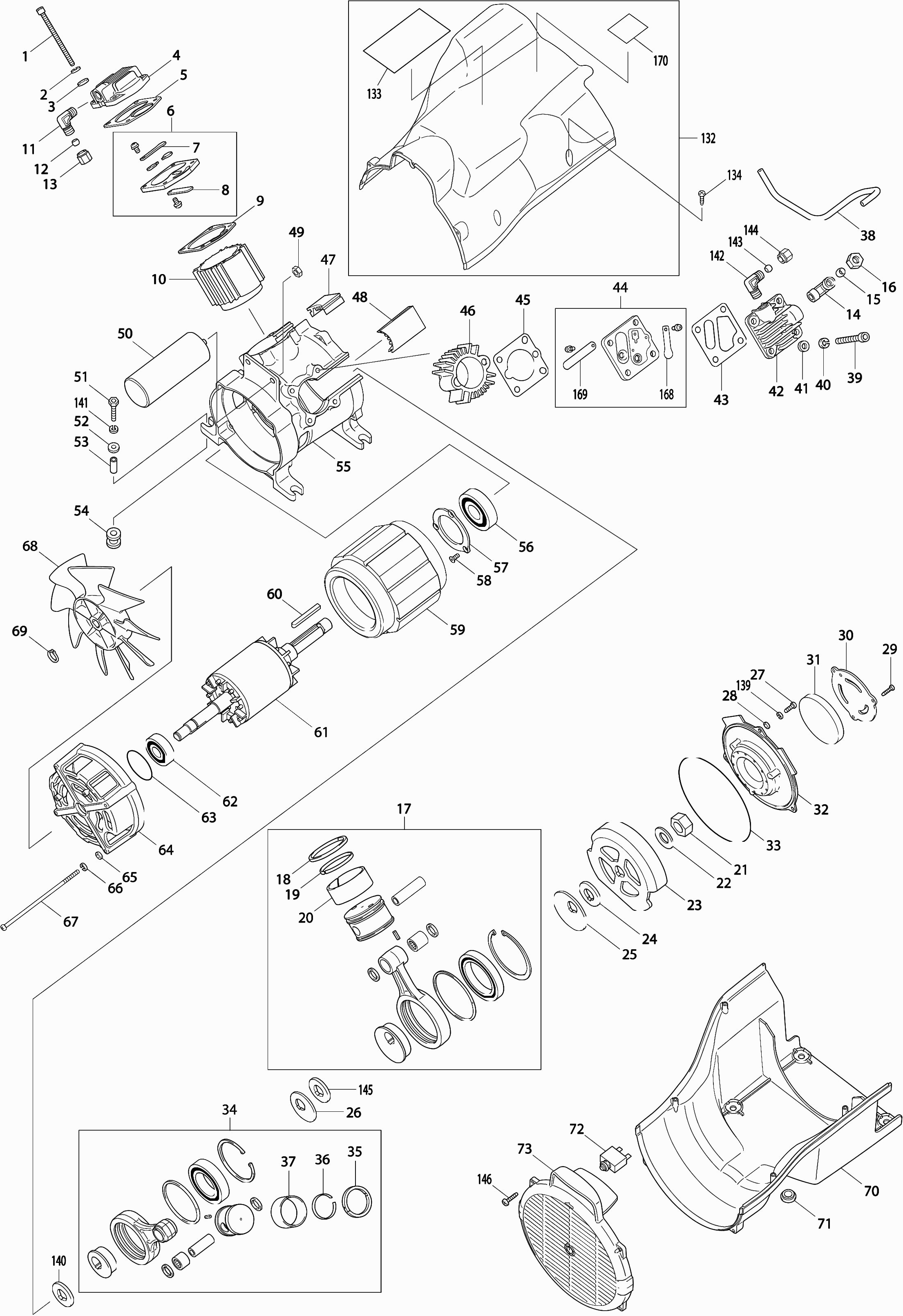

Zeichnungen der MAKITA AC310H
Teileliste der MAKITA AC310H
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Imbusbout M6x45 | ||||
| 001 | HY00000213 | Imbusbout M6x45 | € 0.96 | |
| Veerring M6 | ||||
| 002 | HY00000214 | Veerring M6 | € 0.96 | |
| Sluitring 6 | ||||
| 003 | HY00000215 | Sluitring 6 | € 0.96 | |
| Zylinderkopf | ||||
| 004 | HY00000216 | Zylinderkopf | € 8.21 | |
| Pakking, Hoofd- L Ac310H | ||||
| 005 | HY00000217 | Pakking, Hoofd- L Ac310H | € 1.18 | |
| Plaat, klep- L compleet | ||||
| 006 | HY00000218 | Plaat, klep- L compleet | € 10.51 | |
| Ventiel, uitlaat- | ||||
| 007 | HY00000219 | Ventiel, uitlaat- | € 2.02 | |
| Ventiel, inlaat- | ||||
| 008 | HY00000220 | Ventiel, inlaat- | € 2.02 | |
| Pakking, Cylinder- L Ac310H | ||||
| 009 | HY00000221 | Pakking, Cylinder- L Ac310H | € 1.18 | |
| Cilinder L (50hz) | ||||
| 010 | HY00000223 | Cilinder L (50hz) | € 11.83 | |
| Knie 8-r1/4 | ||||
| 011 | HY00000224 | Knie 8-r1/4 | € 3.97 | |
| Ring 8 | ||||
| 012 | HY00000225 | Ring 8 | € 0.96 | |
| Moer tbv ring 8 | ||||
| 013 | HY00000226 | Moer tbv ring 8 | € 0.96 | |
| Knie 10-r3/8 | ||||
| 014 | HY00000227 | Knie 10-r3/8 | € 4.45 | |
| Ring 10 | ||||
| 015 | HY00000228 | Ring 10 | € 0.96 | |
| Moer tbv ring 10 | ||||
| 016 | HY00000229 | Moer tbv ring 10 | € 0.96 | |
| Drijfstang L set | ||||
| 017 | HY00000230 | Drijfstang L set | € 118.67 | |
| Ring L | ||||
| 018 | HY00000231 | Ring L | € 30.75 | |
| Blattfeder | ||||
| 019 | HY00000232 | Blattfeder | € 0.96 | |
| Loopvlak L (ring) | ||||
| 020 | HY00000233 | Loopvlak L (ring) | € 17.42 | |
| Zeskant moer M18 | ||||
| 021 | HY00000234 | Zeskant moer M18 | € 0.96 | |
| Veerring 18 | ||||
| 022 | HY00000235 | Veerring 18 | € 0.96 | |
| Balansgewicht (50hz) | ||||
| 023 | HY00000237 | Balansgewicht (50hz) | € 11.83 | |
| Distanzscheibe | ||||
| 024 | HY00000238 | Distanzscheibe | € 0.97 | |
| Afstandhouder krukas L | ||||
| 025 | HY00000239 | Afstandhouder krukas L | € 2.02 | |
| Afstandhouder krukas H | ||||
| 026 | HY00000240 | Afstandhouder krukas H | € 0.96 | |
| Schroef M5x16 | ||||
| 027 | HY00000241 | Schroef M5x16 | € 0.96 | |
| Sluitring 5 | ||||
| 028 | HY00000242 | Sluitring 5 | € 0.96 | |
| Tapschroef 4x18 | ||||
| 029 | HY00000243 | Tapschroef 4x18 | € 0.96 | |
| Filterdeksel Ac310H | ||||
| 030 | HY00000244 | Filterdeksel Ac310H | € 1.39 | |
| Filter Ac310H | ||||
| 031 | HY00000245 | Filter Ac310H | € 1.39 | |
| Carterhuis Ac310H | ||||
| 032 | HY00000246 | Carterhuis Ac310H | € 3.97 | |
| O-Ring 147 Ac310H | ||||
| 033 | HY00000247 | O-Ring 147 Ac310H | € 0.96 | |
| Drijfstang H set | ||||
| 034 | HY00000248 | Drijfstang H set | € 88.04 | |
| Ring H | ||||
| 035 | HY00000249 | Ring H | € 28.07 | |
| Blattfeder | ||||
| 036 | HY00000250 | Blattfeder | € 0.96 | |
| Loopvlak H (Ring) Ac310H | ||||
| 037 | HY00000251 | Loopvlak H (Ring) Ac310H | € 15.64 | |
| Buis 8 Ac310h | ||||
| 038 | HY00000252 | Buis 8 Ac310h | € 4.45 | |
| Imbusbout M8x70 | ||||
| 039 | HY00000253 | Imbusbout M8x70 | € 0.96 | |
| Sluitring 8 | ||||
| 040 | HY00000254 | Sluitring 8 | € 0.96 | |
| Veerring 8 | ||||
| 041 | HY00000255 | Veerring 8 | € 0.96 | |
| Cilinderkop H | ||||
| 042 | HY00000256 | Cilinderkop H | € 7.24 | |
| Pakking, Hoofd- H Ac310H | ||||
| 043 | HY00000257 | Pakking, Hoofd- H Ac310H | € 1.18 | |
| Plaat, klep- H compleet | ||||
| 044 | HY00000258 | Plaat, klep- H compleet | € 10.51 | |
| Pakking, Cylinder- H Ac310H | ||||
| 045 | HY00000259 | Pakking, Cylinder- H Ac310H | € 1.18 | |
| Cilinder H (50Hz) Ac310H | ||||
| 046 | HY00000261 | Cilinder H (50Hz) Ac310H | € 8.21 | |
| Afdichtplaatje L | ||||
| 047 | HY00000262 | Afdichtplaatje L | € 0.96 | |
| Afdichtplaatje H | ||||
| 048 | HY00000263 | Afdichtplaatje H | € 1.18 | |
| Zeskant moer M8 | ||||
| 049 | HY00000264 | Zeskant moer M8 | € 0.96 | |
| Kondensator | ||||
| 050 | HY00000266 | Kondensator | € 13.36 | |
| Imbusbout M6x40 | ||||
| 051 | HY00000267 | Imbusbout M6x40 | € 0.96 | |
| Sluitring 6 | ||||
| 052 | HY00000268 | Sluitring 6 | € 0.96 | |
| Bus 6 | ||||
| 053 | HY00000269 | Bus 6 | € 0.96 | |
| Kussen | ||||
| 054 | HY00000270 | Kussen | € 1.67 | |
| Carter | ||||
| 055 | HY00000271 | Carter | € 48.49 | |
| Kogellager 6305llb | ||||
| 056 | HY00000272 | Kogellager 6305llb | € 13.36 | |
| Lagerborging | ||||
| 057 | HY00000273 | Lagerborging | € 0.97 | |
| Verzonken schroef 5x12 | ||||
| 058 | HY00000274 | Verzonken schroef 5x12 | € 0.96 | |
| Feld | ||||
| 059 | HY00000276 | Feld | € 169.71 | |
| Spie 6 | ||||
| 060 | HY00000277 | Spie 6 | € 0.96 | |
| Anker | ||||
| 061 | HY00000278 | Anker | € 105.91 | |
| Kogellager 6303llb | ||||
| 062 | HY00000279 | Kogellager 6303llb | € 8.21 | |
| O-ring 49 | ||||
| 063 | HY00000280 | O-ring 49 | € 0.96 | |
| Achtersteun | ||||
| 064 | HY00000281 | Achtersteun | € 13.36 | |
| Sluitring 5 | ||||
| 065 | HY00000242 | Sluitring 5 | € 0.96 | |
| Veerring 5 | ||||
| 066 | HY00000282 | Veerring 5 | € 0.96 | |
| Zeskantbout M5x146 | ||||
| 067 | HY00000283 | Zeskantbout M5x146 | € 0.96 | |
| Waaier 195 | ||||
| 068 | HY00000284 | Waaier 195 | € 3.13 | |
| Sicherungsring | ||||
| 069 | HY00000285 | Sicherungsring | € 0.96 | |
| Motordeksel B | ||||
| 070 | HY00000286 | Motordeksel B | € 15.64 | |
| Hülse | ||||
| 071 | HY00000287 | Hülse | € 0.96 | |
| Overbelastingsunit | ||||
| 072 | HY00000289 | Overbelastingsunit | € 3.55 | |
| Motordeksel C | ||||
| 073 | HY00000290 | Motordeksel C | € 6.40 | |
| Netzkabel | ||||
| 074 | HY00000292 | Netzkabel | € 11.83 | |
| Kabel | ||||
| 075 | HY00000295 | Kabel | € 2.37 | |
| Kabeltülle | ||||
| 076 | HY00000297 | Kabeltülle | € 0.96 | |
| Schakelaar compleet | ||||
| 077 | HY00000299 | Schakelaar compleet | € 139.08 | |
| Moer 6 | ||||
| 078 | HY00000300 | Moer 6 | € 0.96 | |
| Buis 6 Ac310h | ||||
| 079 | HY00000301 | Buis 6 Ac310h | € 3.55 | |
| Nippel tbv ton | ||||
| 080 | HY00000302 | Nippel tbv ton | € 0.96 | |
| Controle klep | ||||
| 081 | HY00000303 | Controle klep | € 10.51 | |
| Ring 6 | ||||
| 082 | HY00000304 | Ring 6 | € 0.96 | |
| Moer 6 | ||||
| 083 | HY00000305 | Moer 6 | € 0.96 | |
| Ring 10 | ||||
| 084 | HY00000228 | Ring 10 | € 0.96 | |
| Moer tbv ring 10 | ||||
| 085 | HY00000229 | Moer tbv ring 10 | € 0.96 | |
| Buis 10 Ac310h | ||||
| 086 | HY00000306 | Buis 10 Ac310h | € 11.83 | |
| Sluitstuk 1/2 | ||||
| 087 | HY00000307 | Sluitstuk 1/2 | € 0.97 | |
| Rubber pakking | ||||
| 088 | HY00000308 | Rubber pakking | € 0.96 | |
| Tank cpl | ||||
| 089 | HY00000310 | Tank cpl | € 903.41 | |
| Warnschild | ||||
| 090 | HY00000311 | Warnschild | € 2.71 | |
| Afvoerfitting | ||||
| 091 | HY00000312 | Afvoerfitting | € 5.08 | |
| Schroef m5x10 | ||||
| 092 | HY00000313 | Schroef m5x10 | € 0.96 | |
| Veerring 5 | ||||
| 093 | HY00000282 | Veerring 5 | € 0.96 | |
| Sluitring 5 | ||||
| 094 | HY00000242 | Sluitring 5 | € 0.96 | |
| Deksel zijpaneel | ||||
| 095 | HY00000314 | Deksel zijpaneel | € 3.13 | |
| Zijpaneel | ||||
| 096 | HY00000315 | Zijpaneel | € 11.83 | |
| Frame compleet | ||||
| 097 | HY00000316 | Frame compleet | € 146.74 | |
| Pedal | ||||
| 098 | HY00000317 | Pedal | € 1.39 | |
| Bus 6 | ||||
| 099 | HY00000318 | Bus 6 | € 0.96 | |
| Sluitring 6 | ||||
| 100 | HY00000319 | Sluitring 6 | € 0.96 | |
| Imbusbout M6x12 | ||||
| 101 | HY00000320 | Imbusbout M6x12 | € 0.96 | |
| Sluitring 6 | ||||
| 102 | HY00000215 | Sluitring 6 | € 0.96 | |
| Zeskant moer M6 | ||||
| 103 | HY00000321 | Zeskant moer M6 | € 0.96 | |
| Veerring M6 | ||||
| 104 | HY00000214 | Veerring M6 | € 0.96 | |
| Zeskant moer M5 | ||||
| 105 | HY00000322 | Zeskant moer M5 | € 0.96 | |
| Buis 8 Ac310h | ||||
| 106 | HY00000323 | Buis 8 Ac310h | € 5.71 | |
| Afdekvoorplaatset | ||||
| 107 | HY00000325 | Afdekvoorplaatset | € 376.42 | |
| Schroef M5x16 | ||||
| 108 | HY00000241 | Schroef M5x16 | € 0.96 | |
| Veerring 5 | ||||
| 109 | HY00000282 | Veerring 5 | € 0.96 | |
| Sluitring 5 | ||||
| 110 | HY00000242 | Sluitring 5 | € 0.96 | |
| Afdekvoorplaat | ||||
| 111 | HY00000327 | Afdekvoorplaat | € 15.64 | |
| Deksel drukmeter | ||||
| 112 | HY00000328 | Deksel drukmeter | € 1.39 | |
| Warnschild | ||||
| 113 | HY00000329 | Warnschild | € 2.71 | |
| Veiligheidsventiel cpl | ||||
| 114 | HY00000331 | Veiligheidsventiel cpl | € 5.71 | |
| Spruitstuk | ||||
| 115 | HY00000333 | Spruitstuk | € 11.83 | |
| Nippel tbv ton | ||||
| 116 | HY00000336 | Nippel tbv ton | € 2.02 | |
| Snelkoppeling L | ||||
| 117 | HY00000338 | Snelkoppeling L | € 5.71 | |
| Stecker (1) | ||||
| 118 | HY00000340 | Stecker (1) | € 0.96 | |
| Regler | ||||
| 119 | HY00000341 | Regler | € 36.11 | |
| Aanduidingslabel | ||||
| 120 | HY00000342 | Aanduidingslabel | € 2.71 | |
| Regelknop drukmeter | ||||
| 121 | HY00000343 | Regelknop drukmeter | € 2.02 | |
| Drukmeter L | ||||
| 122 | HY00000344 | Drukmeter L | € 6.40 | |
| Spruitstuk A | ||||
| 123 | HY00000346 | Spruitstuk A | € 11.83 | |
| Drukmeter H | ||||
| 124 | HY00000347 | Drukmeter H | € 6.40 | |
| Regelaar H | ||||
| 125 | HY00000348 | Regelaar H | € 38.79 | |
| Aanduidingslabel | ||||
| 126 | HY00000349 | Aanduidingslabel | € 2.71 | |
| Spruitstuk H | ||||
| 127 | HY00000350 | Spruitstuk H | € 11.83 | |
| Snelkoppeling H | ||||
| 128 | HY00000351 | Snelkoppeling H | € 10.51 | |
| Huls, rubber | ||||
| 129 | HY00000352 | Huls, rubber | € 0.96 | |
| Veiligheidsventiel 30 cpl | ||||
| 130 | HY00000354 | Veiligheidsventiel 30 cpl | € 197.78 | |
| Warnschild | ||||
| 131 | HY00000355 | Warnschild | € 2.71 | |
| Motordeksel A compleet | ||||
| 132 | HY00000357 | Motordeksel A compleet | € 17.42 | |
| Warnschild | ||||
| 133 | HY00000360 | Warnschild | € 2.71 | |
| Tapschroef 4x18 | ||||
| 134 | HY00000243 | Tapschroef 4x18 | € 0.96 | |
| Controle klep | ||||
| 135 | HY00000361 | Controle klep | € 1.18 | |
| Losklep | ||||
| 136 | HY00000362 | Losklep | € 10.51 | |
| O-ring 17 | ||||
| 137 | HY00000363 | O-ring 17 | € 0.96 | |
| Veerring 5 | ||||
| 139 | HY00000282 | Veerring 5 | € 0.96 | |
| Distanzscheibe | ||||
| 140 | HY00000238 | Distanzscheibe | € 0.97 | |
| Veerring M6 | ||||
| 141 | HY00000214 | Veerring M6 | € 0.96 | |
| Knie 8-r1/4 | ||||
| 142 | HY00000224 | Knie 8-r1/4 | € 3.97 | |
| Ring 8 | ||||
| 143 | HY00000225 | Ring 8 | € 0.96 | |
| Moer tbv ring 8 | ||||
| 144 | HY00000226 | Moer tbv ring 8 | € 0.96 | |
| Distanzscheibe | ||||
| 145 | HY00000238 | Distanzscheibe | € 0.97 | |
| Tapschroef 4x18 | ||||
| 146 | HY00000243 | Tapschroef 4x18 | € 0.96 | |
| Imbusbout M6x40 | ||||
| 147 | HY00000267 | Imbusbout M6x40 | € 0.96 | |
| Knie 8-r1/4 | ||||
| 148 | HY00000224 | Knie 8-r1/4 | € 3.97 | |
| Ring 8 | ||||
| 149 | HY00000225 | Ring 8 | € 0.96 | |
| Moer tbv ring 8 | ||||
| 150 | HY00000226 | Moer tbv ring 8 | € 0.96 | |
| Ring 8 | ||||
| 151 | HY00000225 | Ring 8 | € 0.96 | |
| Moer tbv ring 8 | ||||
| 152 | HY00000226 | Moer tbv ring 8 | € 0.96 | |
| Stecker (1) | ||||
| 153 | HY00000340 | Stecker (1) | € 0.96 | |
| Nippel tbv ton | ||||
| 154 | HY00000336 | Nippel tbv ton | € 2.02 | |
| Nippel tbv ton | ||||
| 155 | HY00000336 | Nippel tbv ton | € 2.02 | |
| Stecker (1) | ||||
| 156 | HY00000340 | Stecker (1) | € 0.96 | |
| Nippel tbv ton | ||||
| 157 | HY00000336 | Nippel tbv ton | € 2.02 | |
| Stecker (1) | ||||
| 158 | HY00000340 | Stecker (1) | € 0.96 | |
| Nippel tbv ton | ||||
| 159 | HY00000336 | Nippel tbv ton | € 2.02 | |
| Regelknop drukmeter | ||||
| 160 | HY00000343 | Regelknop drukmeter | € 2.02 | |
| Drukmeter H | ||||
| 161 | HY00000347 | Drukmeter H | € 6.40 | |
| Nippel tbv ton | ||||
| 162 | HY00000336 | Nippel tbv ton | € 2.02 | |
| Stecker (1) | ||||
| 163 | HY00000340 | Stecker (1) | € 0.96 | |
| Schroef m5x10 | ||||
| 164 | HY00000313 | Schroef m5x10 | € 0.96 | |
| Veerring 5 | ||||
| 165 | HY00000282 | Veerring 5 | € 0.96 | |
| Sluitring 5 | ||||
| 166 | HY00000242 | Sluitring 5 | € 0.96 | |
| Knie 8-r1/4 | ||||
| 167 | HY00000224 | Knie 8-r1/4 | € 3.97 | |
| Ventiel, uitlaat- | ||||
| 168 | HY00000219 | Ventiel, uitlaat- | € 2.02 | |
| Ventiel, inlaat- | ||||
| 169 | HY00000220 | Ventiel, inlaat- | € 2.02 | |
| Nicht mehr lieferbar | ||||
| 172 | HY00000366 | Nicht mehr lieferbar | ||
| Rad | ||||
| 172A | HY00000369 | Rad | € 30.75 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
