Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita AF601'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

Zeichnungen der Makita AF601


Teilezeichnung 1
Zum Vergrößern anklicken

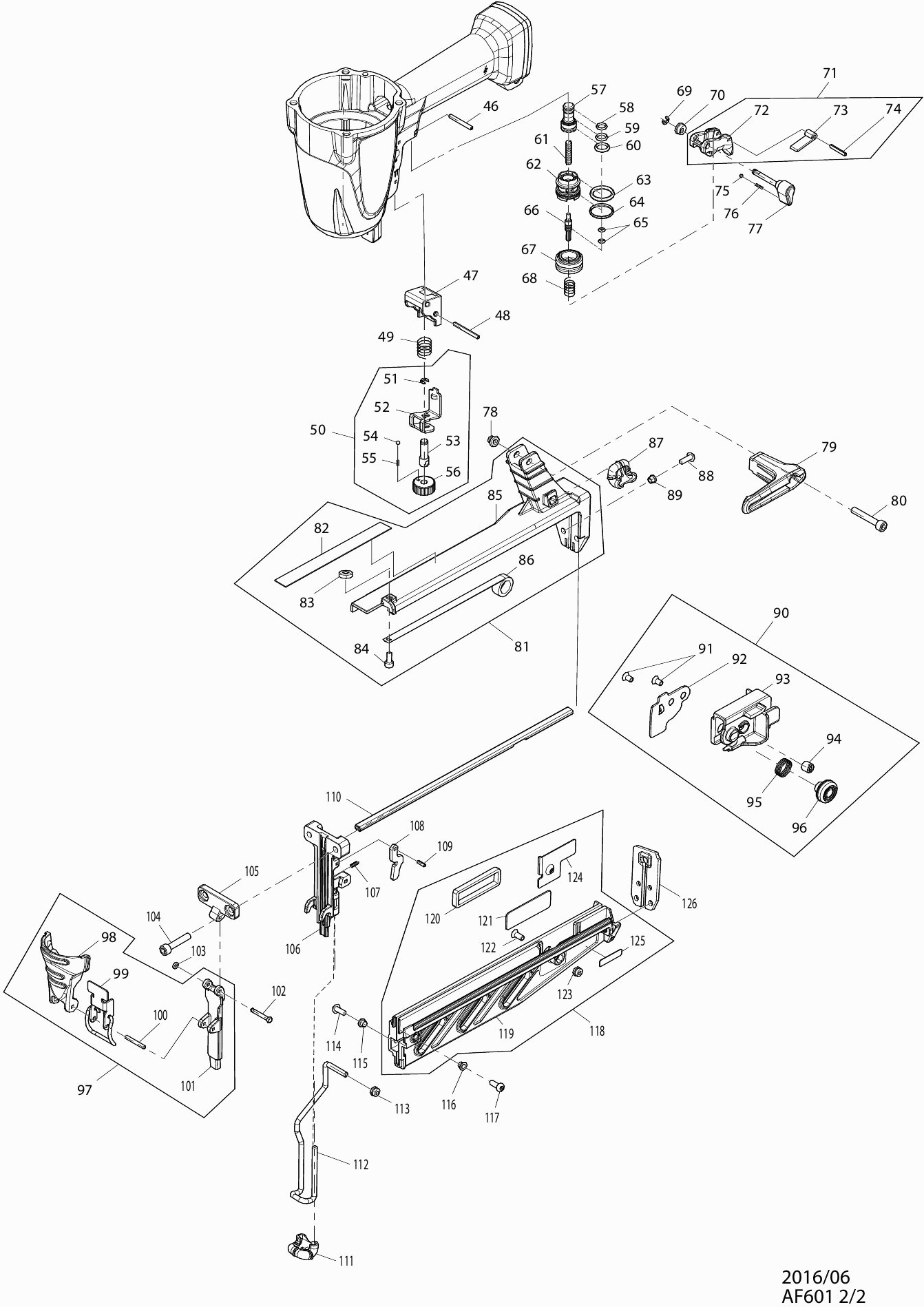

Teilezeichnung 2
Zum Vergrößern anklicken

Teileliste der Makita AF601

Pos. Beschreibung Preis ohne MwSt Preis inkl. MwSt
Die angegebenen Preise enthalten die Mehrwertsteuer

Inbusschraube M6x16mm AF601
001 HY00000679 0.83 0.99

Buchse 6mm AF601
002 HY00000632 1.01 1.20

Luftauslasskappe AF601
003 HY00000596 1.43 1.70

Gummischeibe 10mm AF601
004 HY00000627 0.83 0.99

Innensechskantschraube M5x25mm AF506
005 HY00000156 2.08 2.48

Sicherungsscheibe 5mm AF506
006 HY00000160 0.83 0.99

Oberteil AF601
007 HY00000543 21.87 26.03

Dämpfer AF601
008 HY00000205 1.01 1.20

Druckfeder 10mm AF601
009 HY00000611 0.83 0.99

O-Ring 18mm AF601
010 HY00000404 0.83 0.99

Hauptventil AF601
011 HY00000592 6.58 7.83

O-Ring 22,5mm AF506
012 HY00000400 0.83 0.99

O-Ring 36,5mm AF601
013 HY00000401 0.83 0.99

O-Ring 43mm AF601
014 HY00000403 0.83 0.99

Dichtung AF601
015 HY00000577 0.83 0.99

Schlagstift AF601
016 HY00000552 16.07 19.12

O-Ring 33,5mm
017 HY00000410 0.83 0.99

Konisch AF601
018 HY00000553 1.43 1.70

Zylindrisches Zwischenstück AF601
019 HY00000554 1.43 1.70

O-Ring 62mm AF601
020 HY00000407 0.83 0.99

Zylinder AF601
021 HY00000602 11.16 13.28

O-Ring 42mm AF601
022 HY00000133 1.01 1.20

Stoßkissen AF601
023 HY00000545 4.58 5.45

Gehäuse AF601
024 HY00000562 84.94 101.08

Abdeckkappe R AF601
025 HY00000427 2.05 2.44

Abdeckkappe L AF601
026 HY00000426 2.05 2.44

Griff AF601
027 HY00000559 2.80 3.33

Namensschild AF601
028 HY00000663 2.80 3.33

Warnschild AF353
029 HY00000105 2.80 3.33

Dichtstopfen
030 HY00000023 0.83 0.99

Entlüftungsset assy AF506
031 HY00000494 16.07 19.12

Dichtungsring AN613
032 HY00000580 0.83 0.99

Keine Informationen verfügbar, nicht bestellbar
033 HY00000573

Stift 2
034 HY00000046 0.83 0.99

Keine Informationen verfügbar, nicht bestellbar
035 HY00000591

Keine Informationen verfügbar, nicht bestellbar
036 HY00000399

Keine Informationen verfügbar, nicht bestellbar
037 HY00000599

O-Ring 5mm AF353
038 HY00000397 0.83 0.99

Keine Informationen verfügbar, nicht bestellbar
039 HY00000513

O-Ring 3
040 HY00000037 0.83 0.99

Keine Informationen verfügbar, nicht bestellbar
041 HY00000499

Spannstift 2.5-18
042 HY00000054 0.83 0.99

Niete
043 HY00000070 0.83 0.99

Luchtnippel Orion R1/4
044 HY00000081 0.99 1.18

Innensechskantbolzen M4x20mm
045 HY00000530 0.83 0.99

Spannstift 3-26
046 HY00000024 0.83 0.99

Halter AF601
047 HY00000505 1.02 1.21

Sicherungsstift 3x28mm AF601
048 HY00000165 1.72 2.05

Druckfeder 8mm AF601
049 HY00000607 0.83 0.99

Oberer Griff assy AF601
050 HY00000440 4.08 4.86

Sprengring E-3 AF601
051 HY00000659 0.83 0.99

Keine Informationen verfügbar, nicht bestellbar
052 HY00000443

Keine Informationen verfügbar, nicht bestellbar
053 HY00000636

Kugel 3mm AF601
054 HY00000539 0.83 0.99

Druckfeder 2mm AF601
055 HY00000470 0.83 0.99

Einstellmutter AF601
056 HY00000608 1.24 1.48

Regelventil AF601
057 HY00000182 1.01 1.20

O-Ring 6mm AF601
058 HY00000131 0.83 0.99

O-Ring 7mm AF601
059 HY00000132 0.83 0.99

O-Ring 9mm AF601
060 HY00000134 0.83 0.99

Druckfeder 4mm AF601
061 HY00000146 0.83 0.99

Schaltführer AF601
062 HY00000446 0.83 0.99

O-Ring 15mm AF601
063 HY00000135 0.83 0.99

O-Ring 17mm AF601
064 HY00000137 0.83 0.99

O-Ring 3
065 HY00000037 0.83 0.99

Schaltventilführung AF601
066 HY00000514 1.01 1.20

Schaltklappenträger AF601
067 HY00000447 0.83 0.99

Druckfeder 10mm AF353
068 HY00000705 0.83 0.99

Sprengring E-3 AF601
069 HY00000659 0.83 0.99

Bus 4mm AF601
070 HY00000520 0.83 0.99

Schalterbaugruppe AF601
071 HY00000433 2.08 2.48

Magazin assy AF506
072 HY00000947 26.11 31.07

Keine Informationen verfügbar, nicht bestellbar
073 HY00000437

Spannstift 2.5-16
074 HY00000053 0.83 0.99

Kugel 3mm AF601
075 HY00000539 0.83 0.99

Druckfeder 2mm AF601
076 HY00000590 0.83 0.99

Hebel 4mm AF601
077 HY00000518 1.01 1.20

Selbstsichernde Mutter M5 AF601
078 HY00000528 0.83 0.99

Haken AF601
079 HY00000569 1.21 1.44

Inbus-Schraube M5x35mm AF601
080 HY00000651 0.83 0.99

Lagerdeckel cpl AF601
081 HY00000475 17.90 21.30

Keine Informationen verfügbar, nicht bestellbar
082 HY00000661

Flache Mutter M4 AF601
083 HY00000527 0.83 0.99

Innensechskantschraube M4 x 10 mm
084 HY00000001 0.83 0.99

Keine Informationen verfügbar, nicht bestellbar
085 HY00000480

Spiralfeder AF601
086 HY00000618 2.08 2.48

Nasenadapter AF601
087 HY00000560 0.83 0.99

Inbus-Schraube M4x12mm AF601
088 HY00000653 0.83 0.99

Bus 4mm AF601
089 HY00000631 0.83 0.99

Druckknopf assy AF601
090 HY00000486 9.52 11.33

Innensechskantschraube M4x8mm
091 HY00000540 0.83 0.99

Keine Informationen verfügbar, nicht bestellbar
092 HY00000488

Keine Informationen verfügbar, nicht bestellbar
093 HY00000491

Mutter M4
094 HY00000635 2.08 2.48

Druckfeder 13mm AF601
095 HY00000610 0.83 0.99

Keine Informationen verfügbar, nicht bestellbar
096 HY00000575

Verschlusseinheit AF601
097 HY00000535 14.23 16.93

Keine Informationen verfügbar, nicht bestellbar
098 HY00000430

Keine Informationen verfügbar, nicht bestellbar
099 HY00000624

Sicherungsstift 3x22mm AF506
100 HY00000531 0.83 0.99

Keine Informationen verfügbar, nicht bestellbar
101 HY00000536

Scharnierstift 3mm AF601
102 HY00000461 0.83 0.99

Gummiring 2mm
103 HY00000043 0.83 0.99

Innensechskantschraube M5x25mm AF506
104 HY00000156 2.08 2.48

Platte AF601
105 HY00000537 8.46 10.07

Schlagstiflenker AF601
106 HY00000603 31.62 37.63

Druckfeder 3mm AF601
107 HY00000469 0.83 0.99

Stopper AF601
108 HY00000570 2.44 2.90

Splint 3-8mm AF601
109 HY00000657 0.83 0.99

Magazinschiene AF601
110 HY00000621 2.80 3.33

Nasenadapter AF601
111 HY00000560 0.83 0.99

Kontaktarm AF601
112 HY00000441 3.22 3.83

Sicherungsmutter M4 AF506
113 HY00000159 0.83 0.99

Schraube M4x10mm AF601
114 HY00000654 0.83 0.99

Bus 4mm AF601
115 HY00000631 0.83 0.99

Bus 4mm AF601
116 HY00000631 0.83 0.99

Schraube M4x10mm AF601
117 HY00000654 0.83 0.99

Lagerbaugruppe AF601
118 HY00000476 43.02 51.19

Keine Informationen verfügbar, nicht bestellbar
119 HY00000479

Kappe Magazin AF353
120 HY00000574 0.83 0.99

Keine Informationen verfügbar, nicht bestellbar
121 HY00000576

Inbusschraube M4x10mm AF601
122 HY00000656 0.83 0.99

Sicherungsmutter M4 AF506
123 HY00000159 0.83 0.99

Nagelstopper AF601
124 HY00000500 0.83 0.99

Warnschild AF601
125 HY00000584 2.80 3.33

Magazindeckel B AF601
126 HY00000645 2.44 2.90
