Makita AN510H Zeichnungen und Teile

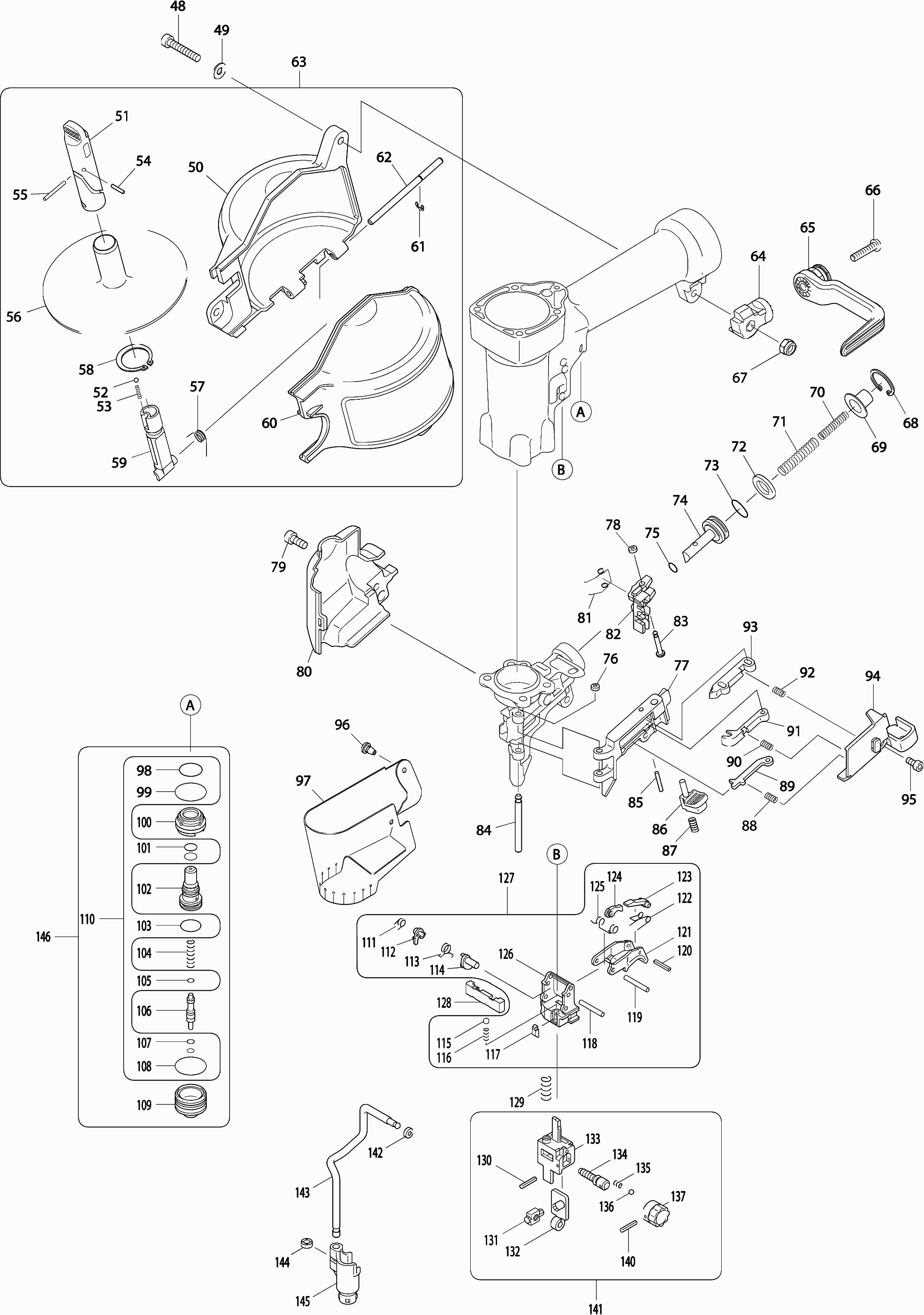

Auf dem Typenschild sollte die Typenbezeichnung AN510H stehen. Je nach Typenbezeichnung kann es Unterschiede geben, die dazu führen können, dass Teile nicht passen. Bestellen Sie nur, wenn diese Nummer übereinstimmt.Zeichnungen der MAKITA AN510H
Teileliste der Makita AN510H
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer.
| Nicht bestellbar | ||||
| 001 | 266233-9 | Nicht bestellbar | ||
| Platte ring 5 | ||||
| 002 | 267343-5 | Platte ring 5 | € 1.00 | |
| Uitlaatkap | ||||
| 003 | 419764-9 | Uitlaatkap | € 3.70 | |
| Filter | ||||
| 004 | 413106-9 | Filter | € 13.94 | |
| Afdichting deksel | ||||
| 005 | 419763-1 | Afdichting deksel | € 2.47 | |
| Inbusbout 5x20 | ||||
| 006 | 266369-4 | Inbusbout 5x20 | € 1.00 | |
| Bovendeksel | ||||
| 007 | 318252-2 | Bovendeksel | € 71.21 | |
| Drukveer 27 | ||||
| 008 | 234055-5 | Drukveer 27 | € 2.47 | |
| O-ring 5 | ||||
| 009 | 213021-5 | O-ring 5 | € 1.00 | |
| O-ring 23 | ||||
| 010 | 213393-8 | O-ring 23 | € 1.00 | |
| O-ring 34 | ||||
| 011 | 213458-6 | O-ring 34 | € 1.45 | |
| Hoofdklep | ||||
| 012 | 419770-4 | Hoofdklep | € 34.87 | |
| O-ring 36 | ||||
| 013 | 213510-0 | O-ring 36 | € 1.23 | |
| Hoofdklep geleider | ||||
| 014 | 331744-4 | Hoofdklep geleider | € 8.57 | |
| O-ring 42 | ||||
| 015 | 213561-3 | O-ring 42 | € 1.00 | |
| Revisieset At450h | ||||
| 016 | 194736-2 | Revisieset At450h | € 26.49 | |
| Platte ring 18 | ||||
| 017 | 267344-3 | Platte ring 18 | € 1.00 | |
| Stootkussen achter | ||||
| 018 | 421993-2 | Stootkussen achter | € 14.45 | |
| O-ring 17 | ||||
| 019 | 213282-7 | O-ring 17 | € 5.95 | |
| Slagpen | ||||
| 020 | 165458-1 | Slagpen | € 161.05 | |
| Slagpen set | ||||
| 021 | 135135-9 | Slagpen set | € 169.04 | |
| Klepstoel | ||||
| 022 | 421994-0 | Klepstoel | € 9.66 | |
| Cilinder houder | ||||
| 023 | 331743-6 | Cilinder houder | € 9.66 | |
| Zylinder | ||||
| 024 | 331742-8 | Zylinder | € 34.87 | |
| O-ring 33 | ||||
| 025 | 213462-5 | O-ring 33 | € 1.00 | |
| O-ring 26 | ||||
| 026 | 213643-1 | O-ring 26 | € 1.00 | |
| Pakking, bovendeksel- | ||||
| 027 | 162249-1 | Pakking, bovendeksel- | € 5.95 | |
| Naamplaat "an510h" | ||||
| 028 | 866113-5 | Naamplaat "an510h" | € 2.83 | |
| Label "makita" | ||||
| 029 | 819333-0 | Label "makita" | € 8.57 | |
| Label "makita" | ||||
| 031 | 819334-8 | Label "makita" | € 8.57 | |
| Machinehuis | ||||
| 033 | 188650-2 | Machinehuis | € 219.62 | |
| Indicatie label | ||||
| 033A | 816919-1 | Indicatie label | € 2.83 | |
| Stootkussen voor | ||||
| 034 | 421992-4 | Stootkussen voor | € 13.94 | |
| O-ring 31 | ||||
| 035 | 213491-8 | O-ring 31 | € 1.00 | |
| O-ring 3 | ||||
| 036 | 213034-6 | O-ring 3 | € 1.00 | |
| Slagpengeleider compleet | ||||
| 037 | 158171-8 | Slagpengeleider compleet | € 219.62 | |
| Inbusbout 5x20 | ||||
| 038 | 266369-4 | Inbusbout 5x20 | € 1.00 | |
| Spannstift | ||||
| 039 | 951078-5 | Spannstift | € 1.00 | |
| Spannstift | ||||
| 040 | 951078-5 | Spannstift | € 1.00 | |
| Spannstift | ||||
| 041 | 951078-5 | Spannstift | € 1.00 | |
| Borgpen 3x20mm | ||||
| 042 | 951069-6 | Borgpen 3x20mm | € 1.00 | |
| Inlaatfilter | ||||
| 043 | 413105-1 | Inlaatfilter | € 2.83 | |
| O-ring 36 | ||||
| 044 | 213506-1 | O-ring 36 | € 1.23 | |
| Inlaatdeksel | ||||
| 045 | 318108-9 | Inlaatdeksel | € 20.10 | |
| Kappe | ||||
| 046 | 286280-4 | Kappe | € 1.02 | |
| Insteeknippel Orion | ||||
| 047 | 243105-5 | Insteeknippel Orion | € 16.31 | |
| Inbusbout 5x28 | ||||
| 048 | 265570-8 | Inbusbout 5x28 | € 1.00 | |
| Platte ring 5 | ||||
| 049 | 267343-5 | Platte ring 5 | € 1.00 | |
| Magazin Zsb | ||||
| 050 | 419768-1 | Magazin Zsb | € 26.49 | |
| Schakelbus | ||||
| 051 | 419767-3 | Schakelbus | € 2.47 | |
| Stalen kogel 3.5 | ||||
| 052 | 216040-0 | Stalen kogel 3.5 | € 1.00 | |
| Drukveer 2 | ||||
| 053 | 233492-0 | Drukveer 2 | € 1.00 | |
| Pen 2,5 | ||||
| 054 | 268169-8 | Pen 2,5 | € 1.00 | |
| Pen 2,5 | ||||
| 055 | 268167-2 | Pen 2,5 | € 1.00 | |
| Wisselplaat | ||||
| 056 | 419766-5 | Wisselplaat | € 5.95 | |
| Torsieveer 7 | ||||
| 057 | 233505-7 | Torsieveer 7 | € 3.27 | |
| Borgring S-25 | ||||
| 058 | 961105-0 | Borgring S-25 | € 1.00 | |
| Schaltwelle | ||||
| 059 | 419765-7 | Schaltwelle | € 2.11 | |
| Deksel tbv magazijn compleet | ||||
| 060 | 158916-4 | Deksel tbv magazijn compleet | € 29.28 | |
| Label, tbv magazijn An510h | ||||
| 060A | 808229-0 | Label, tbv magazijn An510h | € 18.17 | |
| Stopring E-3 | ||||
| 061 | 259042-3 | Stopring E-3 | € 1.00 | |
| Pen 4 | ||||
| 062 | 268171-1 | Pen 4 | € 1.02 | |
| Magazijn compleet | ||||
| 063 | 135257-5 | Magazijn compleet | € 86.52 | |
| Haakaansluiting | ||||
| 064 | 162255-6 | Haakaansluiting | € 3.27 | |
| Haken | ||||
| 065 | 419843-3 | Haken | € 3.27 | |
| Schraube | ||||
| 066 | 265176-2 | Schraube | € 1.00 | |
| Zeskant moer M5 | ||||
| 067 | 931202-6 | Zeskant moer M5 | € 1.00 | |
| Borgring R-21 | ||||
| 068 | 962101-1 | Borgring R-21 | € 1.00 | |
| Nicht bestellbar | ||||
| 069 | 345777-3 | Nicht bestellbar | ||
| Drukveer 6 | ||||
| 070 | 233493-8 | Drukveer 6 | € 1.23 | |
| Drukveer 6 | ||||
| 071 | 233494-6 | Drukveer 6 | € 1.23 | |
| Rubber ring 13 | ||||
| 072 | 262121-8 | Rubber ring 13 | € 1.45 | |
| O-ring 14 | ||||
| 073 | 213154-6 | O-ring 14 | € 1.00 | |
| Kolben | ||||
| 074 | 324750-6 | Kolben | € 7.55 | |
| O-ring 8 | ||||
| 075 | 213007-9 | O-ring 8 | € 1.00 | |
| Urethaan ring 3 | ||||
| 076 | 262120-0 | Urethaan ring 3 | € 1.00 | |
| Tuer | ||||
| 077 | 310189-9 | Tuer | € 50.58 | |
| Urethaan ring 3 | ||||
| 078 | 262120-0 | Urethaan ring 3 | € 1.00 | |
| Inbusbout M5x12mm | ||||
| 079 | 265903-7 | Inbusbout M5x12mm | € 1.00 | |
| Abdeckung | ||||
| 080 | 419762-3 | Abdeckung | € 5.30 | |
| Torsieveer 6 | ||||
| 081 | 231652-8 | Torsieveer 6 | € 2.47 | |
| Aanvoerklauw | ||||
| 082 | 310116-6 | Aanvoerklauw | € 22.02 | |
| Kraagpin | ||||
| 083 | 256463-0 | Kraagpin | € 1.00 | |
| Pen 4 | ||||
| 084 | 268170-3 | Pen 4 | € 1.02 | |
| Pen 3 | ||||
| 085 | 268183-4 | Pen 3 | € 1.00 | |
| Deblokkeerhandel | ||||
| 086 | 162247-5 | Deblokkeerhandel | € 3.70 | |
| Drukveer 5 | ||||
| 087 | 234013-1 | Drukveer 5 | € 1.02 | |
| Drukveer 4 | ||||
| 088 | 233133-8 | Drukveer 4 | € 1.00 | |
| Borgklauw | ||||
| 089 | 344995-0 | Borgklauw | € 2.11 | |
| Drukveer 4 | ||||
| 090 | 233133-8 | Drukveer 4 | € 1.00 | |
| Nagelhouder | ||||
| 091 | 311998-9 | Nagelhouder | € 12.34 | |
| Drukveer 4 | ||||
| 092 | 233133-8 | Drukveer 4 | € 1.00 | |
| Arm | ||||
| 093 | 311997-1 | Arm | € 13.94 | |
| Deurkap | ||||
| 094 | 419761-5 | Deurkap | € 4.65 | |
| Inbusbout M5x12mm | ||||
| 095 | 265903-7 | Inbusbout M5x12mm | € 1.00 | |
| Rubber pen 9,5 | ||||
| 096 | 421418-6 | Rubber pen 9,5 | € 1.00 | |
| Abdeckhaube | ||||
| 097 | 413107-7 | Abdeckhaube | € 4.65 | |
| O-ring 15 | ||||
| 098 | 213233-0 | O-ring 15 | € 1.00 | |
| O-ring 18 | ||||
| 099 | 213275-4 | O-ring 18 | € 1.00 | |
| Schakelklepgeleiding | ||||
| 100 | 419732-2 | Schakelklepgeleiding | € 32.08 | |
| O-ring 7 | ||||
| 101 | 213968-3 | O-ring 7 | € 1.74 | |
| Regelklep | ||||
| 102 | 419733-0 | Regelklep | € 34.87 | |
| O-ring 12,5 | ||||
| 103 | 213185-5 | O-ring 12,5 | € 1.00 | |
| Drukveer 4 | ||||
| 104 | 233485-7 | Drukveer 4 | € 1.45 | |
| O-ring 3 | ||||
| 105 | 213034-6 | O-ring 3 | € 1.00 | |
| O-ring 3 | ||||
| 105A | 213044-3 | O-ring 3 | € 1.00 | |
| Schakelklepsteel | ||||
| 106 | 324743-3 | Schakelklepsteel | € 5.30 | |
| Nicht bestellbar | ||||
| 106A | 326189-9 | Nicht bestellbar | ||
| O-ring 3 | ||||
| 107 | 213979-8 | O-ring 3 | € 1.45 | |
| O-ring 3 | ||||
| 107A | 213640-7 | O-ring 3 | € 2.11 | |
| O-ring 18 | ||||
| 108 | 213275-4 | O-ring 18 | € 1.00 | |
| Schakelklephuis | ||||
| 109 | 331741-0 | Schakelklephuis | € 10.96 | |
| Revisieset At450h | ||||
| 110 | 194736-2 | Revisieset At450h | € 26.49 | |
| Torsieveer 5 | ||||
| 111 | 233501-5 | Torsieveer 5 | € 1.00 | |
| Distanzscheibe | ||||
| 112 | 310199-6 | Distanzscheibe | € 5.30 | |
| Nicht bestellbar | ||||
| 113 | 233502-3 | Nicht bestellbar | ||
| Ontgrendelpal | ||||
| 114 | 310310-0 | Ontgrendelpal | € 5.30 | |
| Stalen kogel 4 | ||||
| 115 | 216024-8 | Stalen kogel 4 | € 1.00 | |
| Drukveer 2 | ||||
| 116 | 233490-4 | Drukveer 2 | € 1.00 | |
| Afdekplaat tbv startveer | ||||
| 117 | 419743-7 | Afdekplaat tbv startveer | € 1.00 | |
| Pen 3 | ||||
| 118 | 268168-0 | Pen 3 | € 1.00 | |
| Pen 3 | ||||
| 119 | 268168-0 | Pen 3 | € 1.00 | |
| Spanstift 2-12 | ||||
| 120 | 951007-8 | Spanstift 2-12 | € 1.00 | |
| Schakelknop | ||||
| 121 | 310294-2 | Schakelknop | € 20.10 | |
| Torsieveer 4 | ||||
| 122 | 231699-2 | Torsieveer 4 | € 1.00 | |
| Hebel | ||||
| 123 | 310196-2 | Hebel | € 5.30 | |
| Hebel | ||||
| 124 | 310198-8 | Hebel | € 5.30 | |
| Torsieveer 4 | ||||
| 125 | 233503-1 | Torsieveer 4 | € 2.11 | |
| Schakel montageplaat | ||||
| 126 | 419844-1 | Schakel montageplaat | € 4.14 | |
| Schakelknop | ||||
| 127 | 135231-3 | Schakelknop | € 50.58 | |
| Schaltstange | ||||
| 128 | 310293-4 | Schaltstange | € 10.96 | |
| Drukveer 6 | ||||
| 129 | 234012-3 | Drukveer 6 | € 1.45 | |
| Spanstift 2-14 | ||||
| 130 | 951010-9 | Spanstift 2-14 | € 1.00 | |
| Stelelement | ||||
| 131 | 310201-5 | Stelelement | € 4.65 | |
| Adjusting Plate | ||||
| 132 | 345775-7 | Adjusting Plate | € 2.11 | |
| Stelboek (boven) | ||||
| 133 | 310234-0 | Stelboek (boven) | € 24.09 | |
| As, afsteller- | ||||
| 134 | 324745-9 | As, afsteller- | € 1.74 | |
| Drukveer 2 | ||||
| 135 | 233491-2 | Drukveer 2 | € 1.00 | |
| Stalen kogel 2.3 | ||||
| 136 | 216031-1 | Stalen kogel 2.3 | € 1.00 | |
| Afsteller compleet | ||||
| 137 | 158747-1 | Afsteller compleet | € 1.23 | |
| Spanstift 2-14 | ||||
| 140 | 951010-9 | Spanstift 2-14 | € 1.00 | |
| Urethaan ring 3 | ||||
| 142 | 262120-0 | Urethaan ring 3 | € 1.00 | |
| Arm | ||||
| 143 | 324751-4 | Arm | € 32.08 | |
| Urethaan ring 4 | ||||
| 144 | 262128-4 | Urethaan ring 4 | € 4.65 | |
| Contactpunt | ||||
| 145 | 310240-5 | Contactpunt | € 16.31 | |
| Schakelklep cmpl. | ||||
| 146 | 135598-9 | Schakelklep cmpl. | € 66.55 | |
